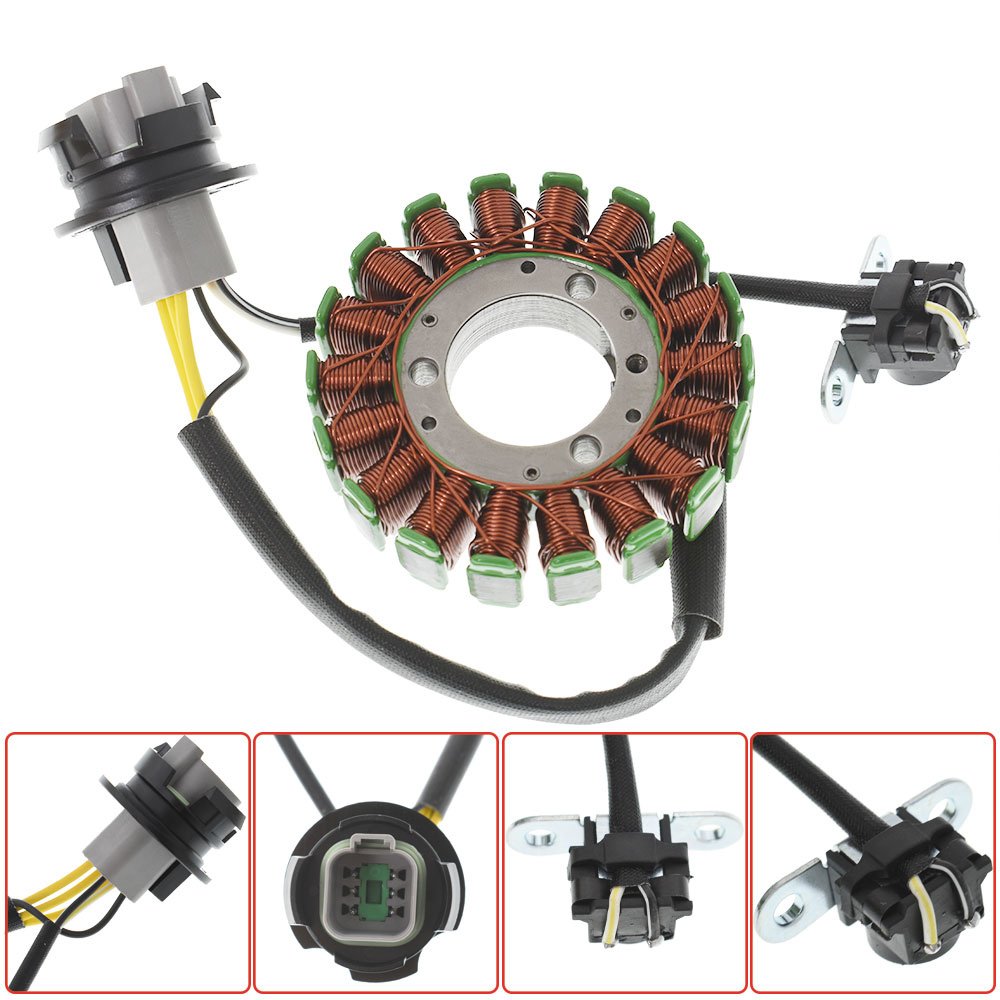

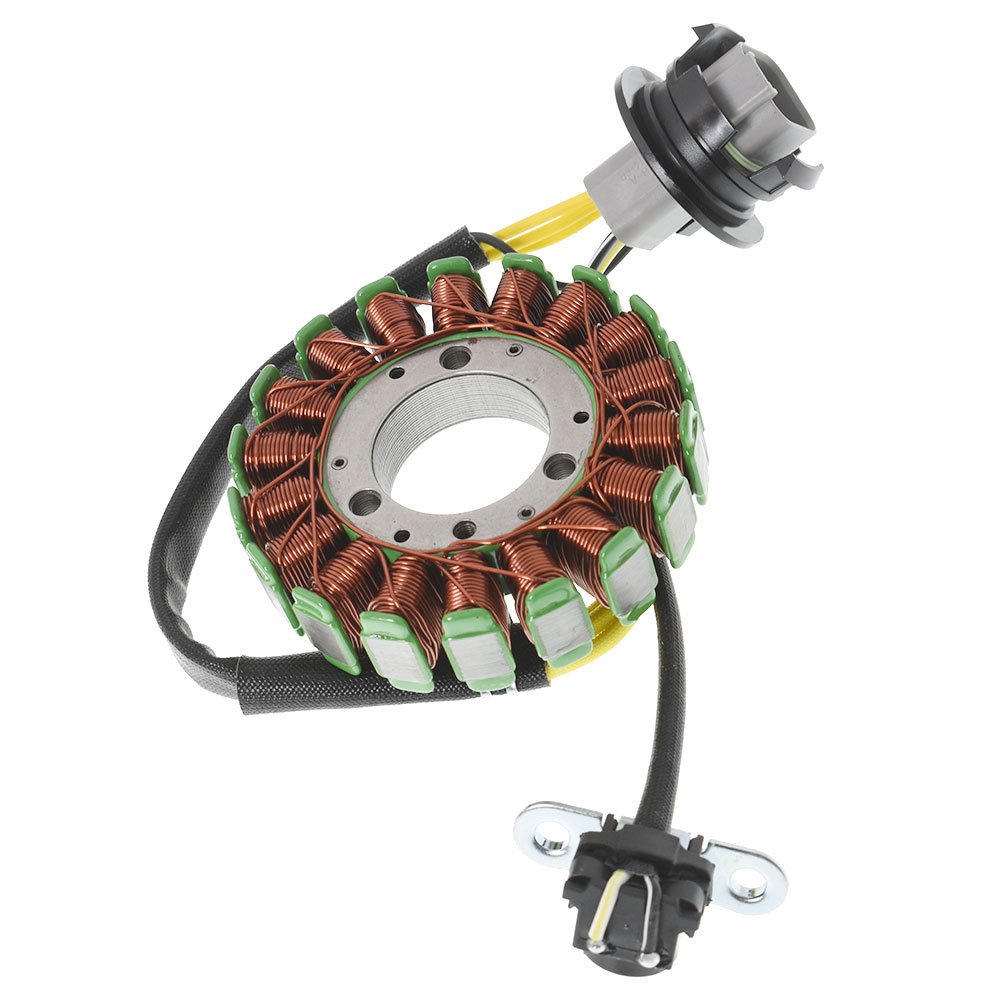

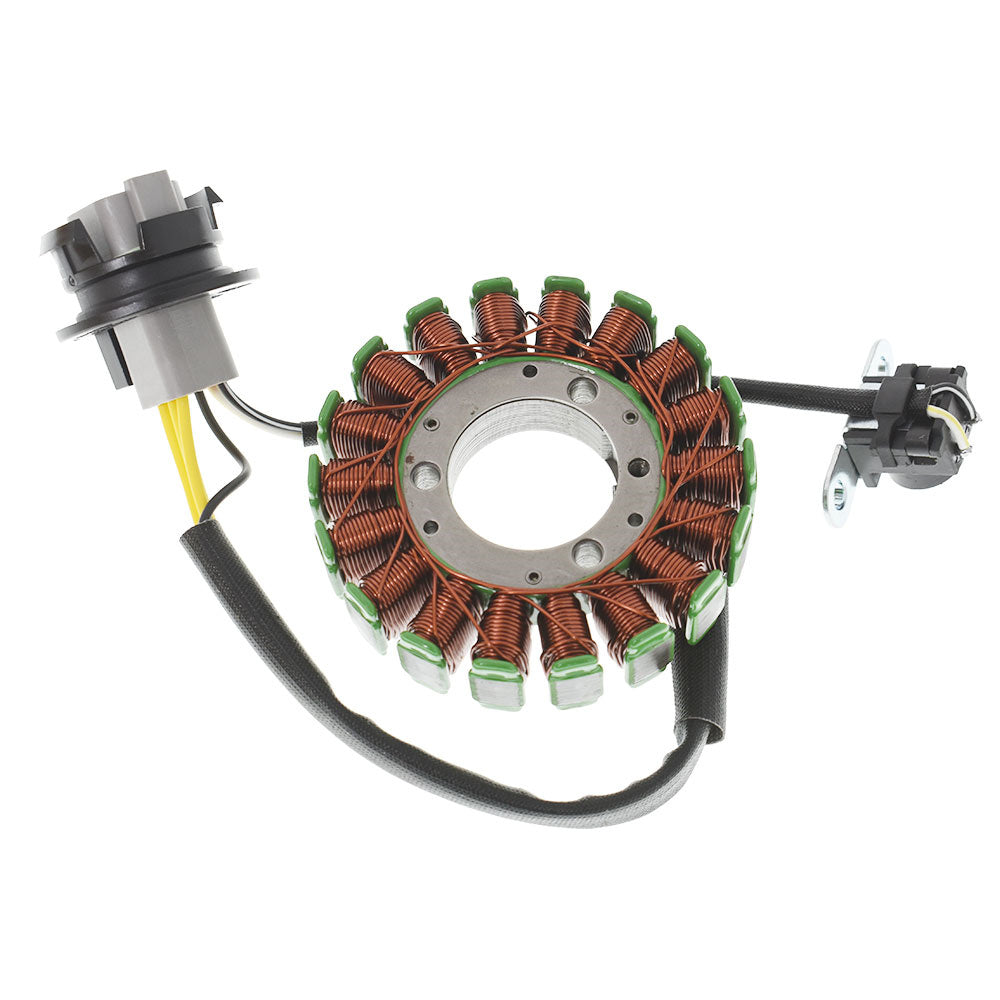

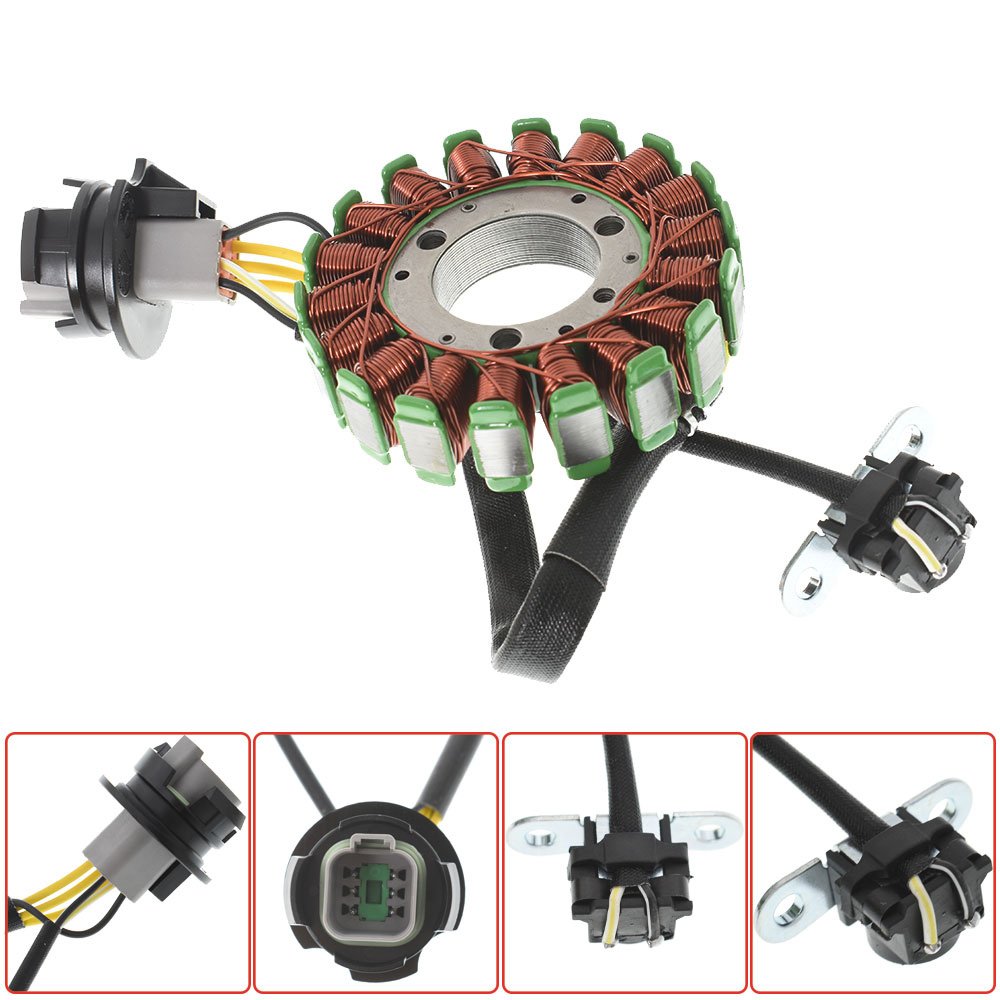

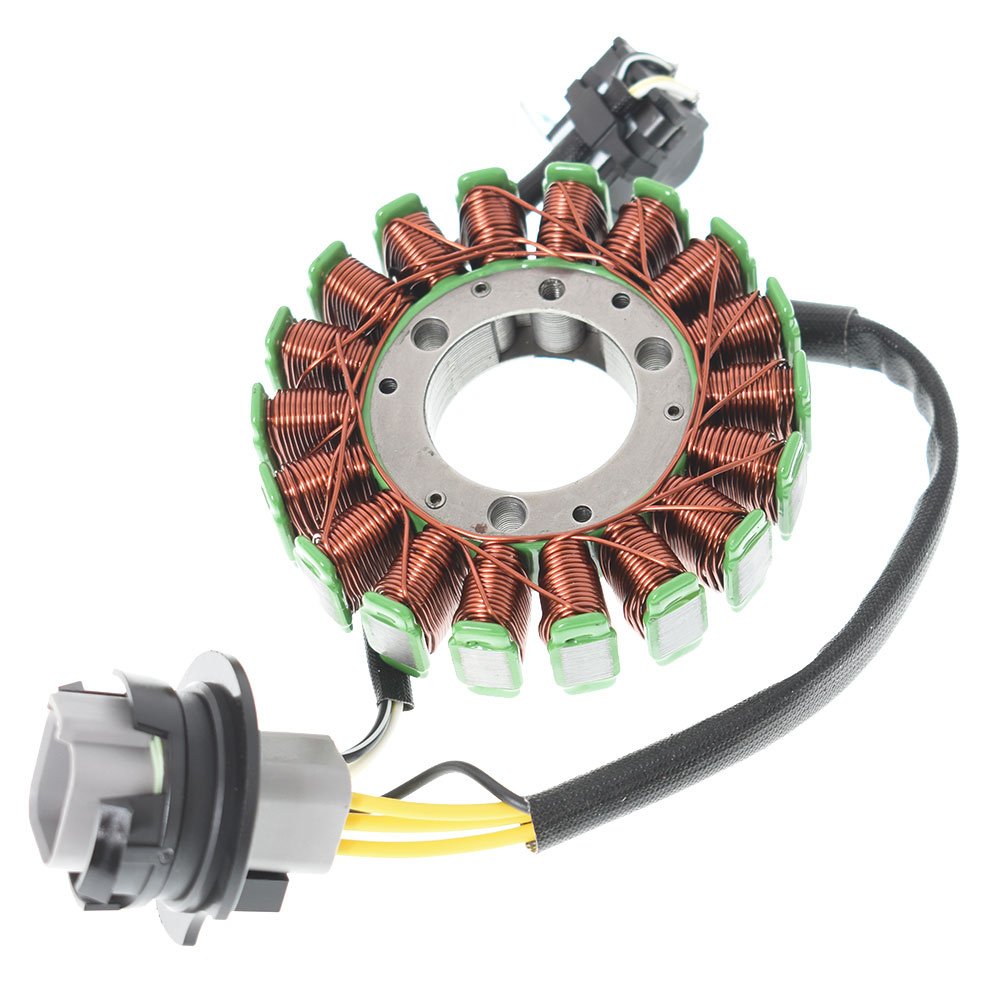

For SeaDoo 800 951 GTX GSX SPX RX XP 420886588 290886588 Stator Magneto

Fitment：

-For Sea-Doo 800 GSX 1996-1998
-For Sea-Doo GSX Limited 1998-1999
-For Sea-Doo 800 GTX 1996-1997
-For Sea-Doo GTX 1996-1997/2000-2002

-For Sea-Doo GTX Limited 1998-1999
-For Sea-Doo 800 SPX 1997-1999
-For Sea-Doo 800 XP 1995-1997
-For Sea-Doo 951 GSX Ltd 1998-1999
-For Sea-Doo 951 GTX  2000-2002
-For Sea-Doo 951 GTX Ltd 1998-1999
-For Sea-Doo 951 LRV 2000-2001
-For Sea-Doo 951 RX 2000-2002
-For Sea-Doo 951 RX X 2001
-For Sea-Doo 951 XP 2000-2002
-For Sea-Doo 951 XP Ltd 1998-1999
-For Sea-Doo XP 1996-1997/2000-2002
-For Sea-Doo 782 cc 110 hp 1996-1997
-For Sea-Doo Speedster 1564 cc 220 hp 1998-1999
-For Sea-Doo Sportster LE 950 cc 130 HP 2000-2003
-For Sea-Doo 1800 1997-1999

Description：

-Direct replacement to your unit
-Plug-and-play, direct fit, easy installation.
-Highest grade lamination materials.
-Highest grade copper windings, resistant to 200 degrees Celsius.

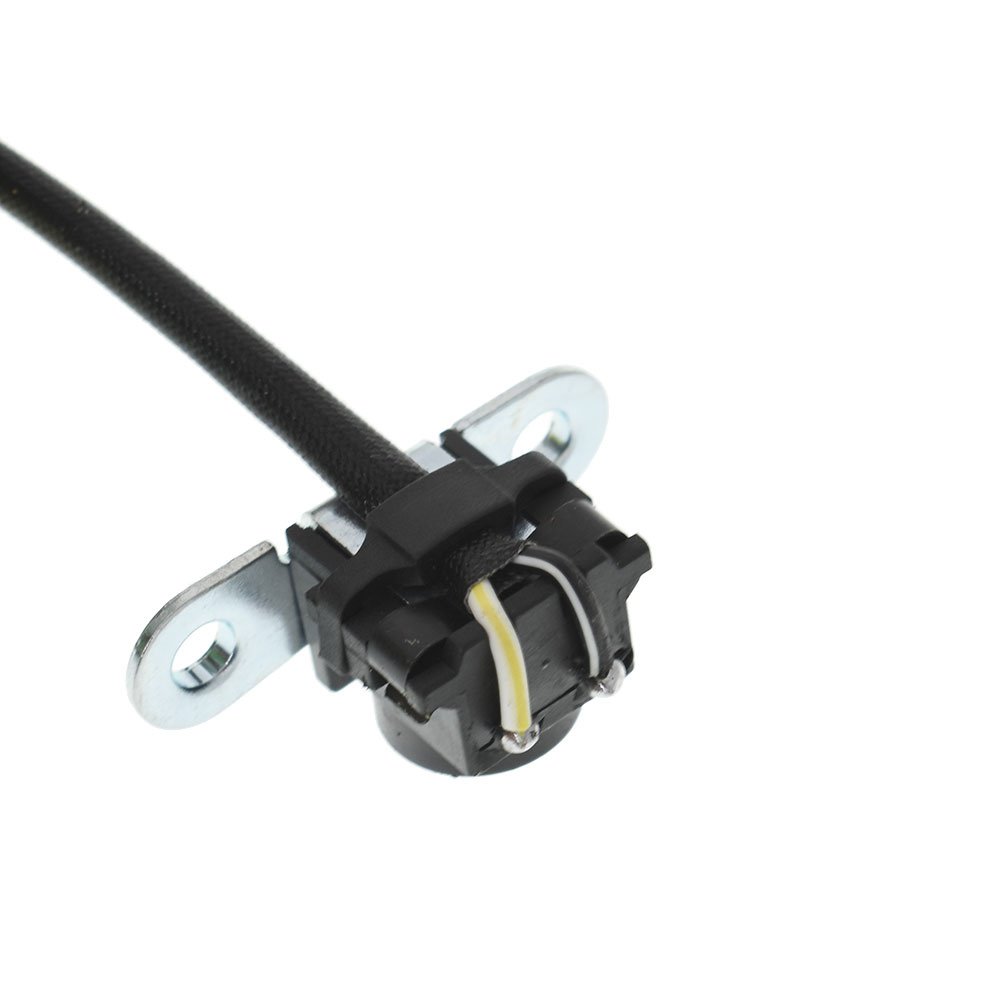

-Pick up pulsar coil included.
-Connector included.
-All products shipped are tested.

-SPECIFICATIONS:
-Condition: Aftermarket 100% Brand New
-Quanity: 1PC
-Type: Generator Stator Coil
-Replacement Part Number: 290886588, 420886588

-Dimensions :
-Interior diameter : 35mm / 1.36"
-Exterior diameter : 93mm / 3.68"
-Pole's Thickness : 24mm / 0.95"
-Pole's Width : 11.4mm / 0.44"

-Other specifications :
-Number of wires: 6
-Number of pins: 6
-Number of plugs: 1
-Number of fixation holes: 3(+3)
-Number of poles: 18

-Before installing your new stator

-Check the AC output of the stator.
-Replace any burned or corroded connectors on stator and regulator/rectifier.
-Check and repair any melted wiring.
-Use hi-temp dielectric grease on all connectors
-Our stator may use a different wire color code than your .
-All of the wires are installed in the correct order; please do not change any of the wiring configurations.
-This stator is designed as a direct plug-in replacement and should be used as such.
-When bolting stator in, always use locking compound.
-If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

-All item pictures are accurate; if in doubt do not hesitate to compare our item to your part.

Package includes:

-1* Generator Stator Coil
