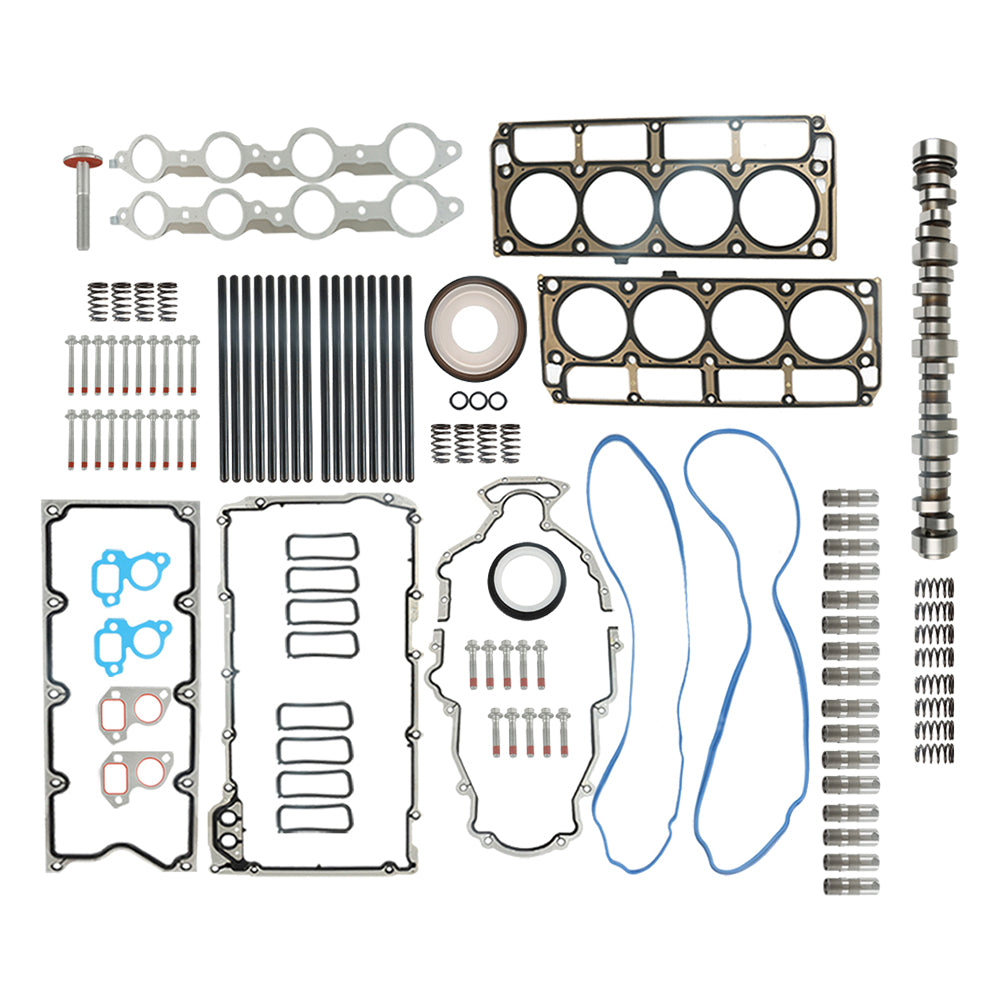

For LS1 4.8 5.3 5.7 6.0 6.2 LS Sloppy Mechanics Stage 2 Cam Lifters Pushrods Kit

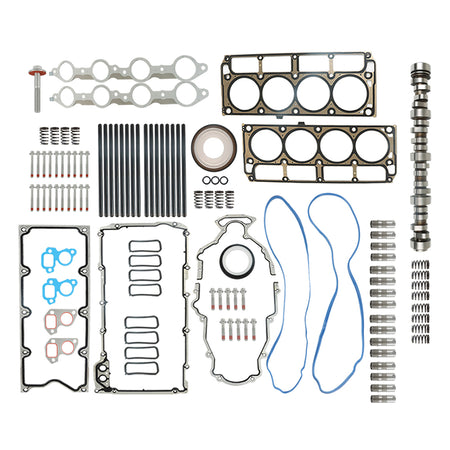

Package Include：

1*Camshaft

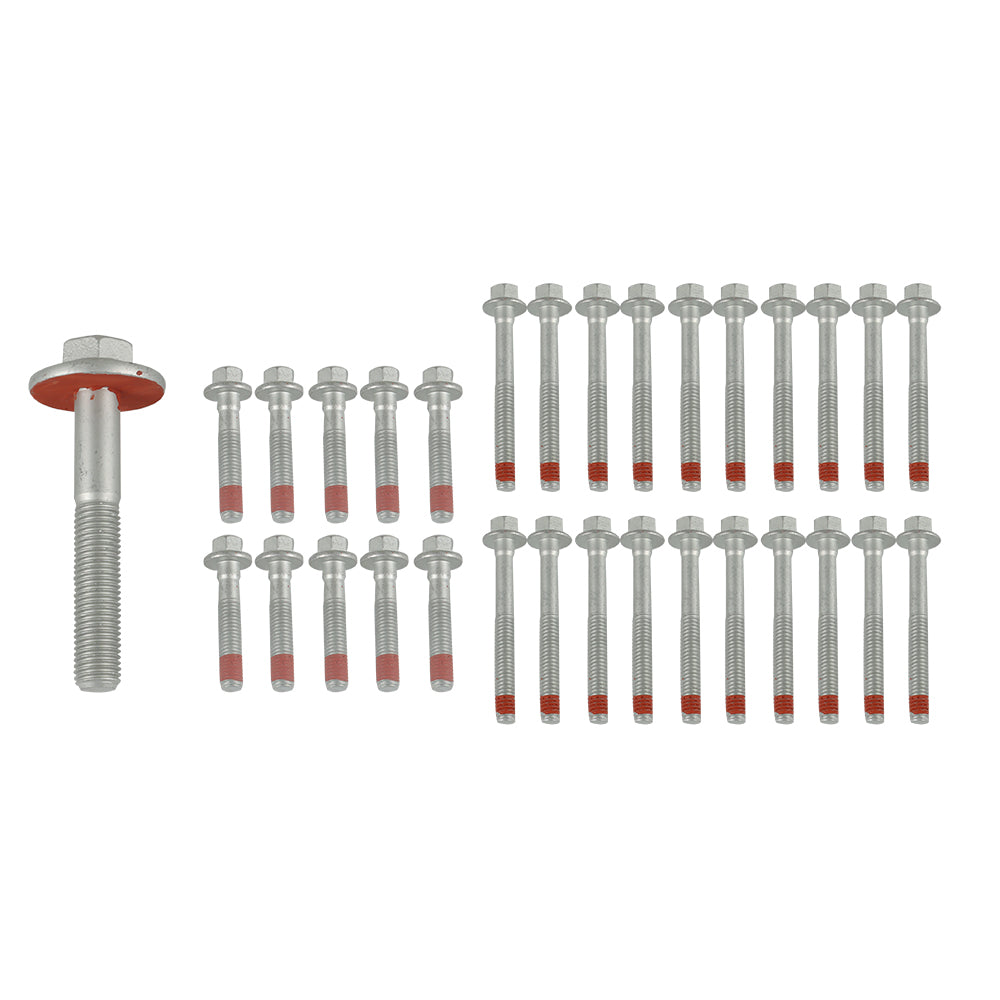

1*Screw Set

Spacer Set with 16 Valve Lifters

16* Valve Lifters

16* putters

W/o Product Instruction

Fitment：

1997-2007 For GM Chevy LS L92 L99 5.3L 5.7L 6.0L 6.2L

1997-2007 For LSx Sloppy Stage 2V8

Specification:

1. Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°
Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt

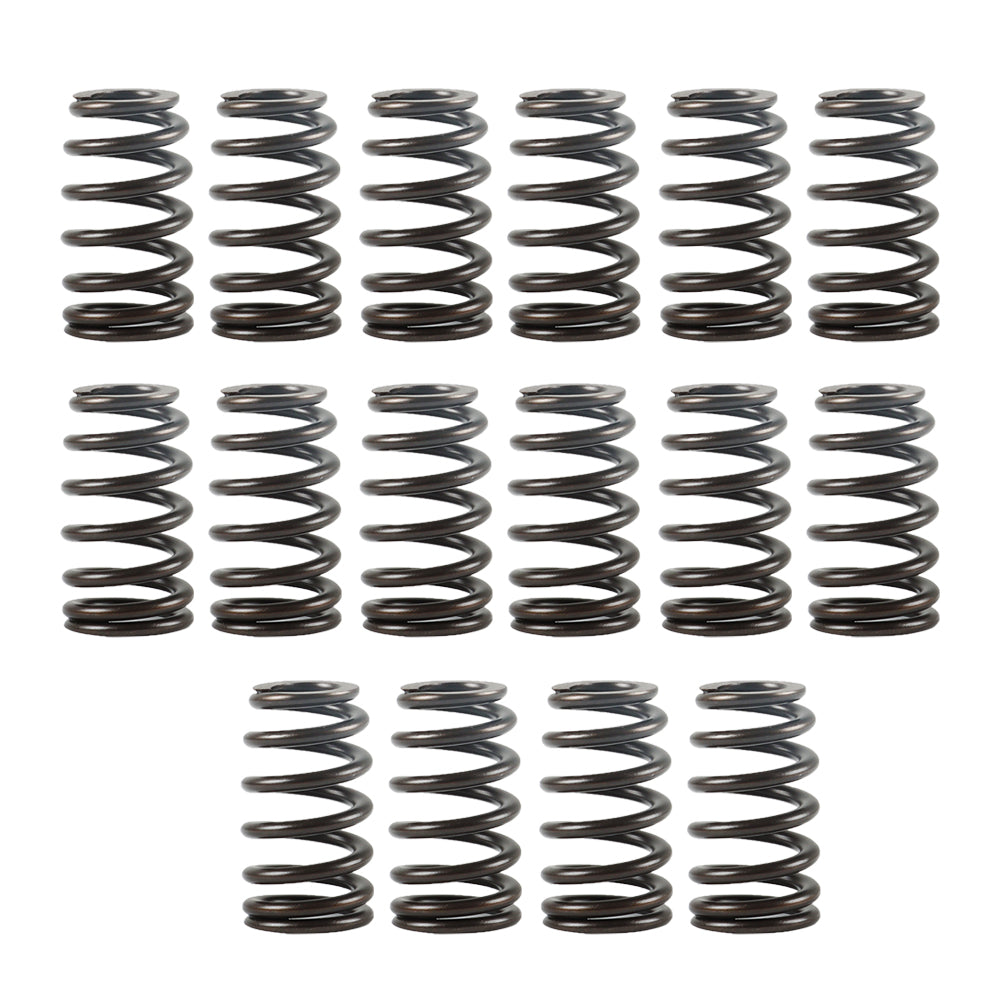

2. Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive

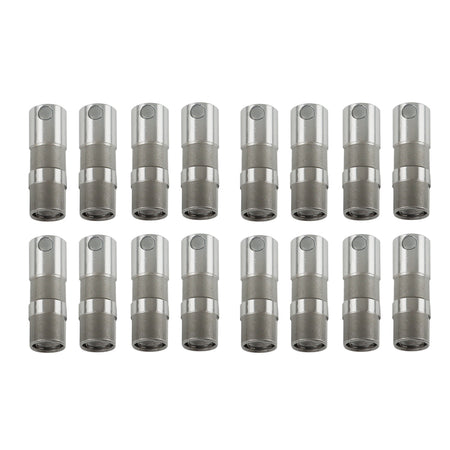

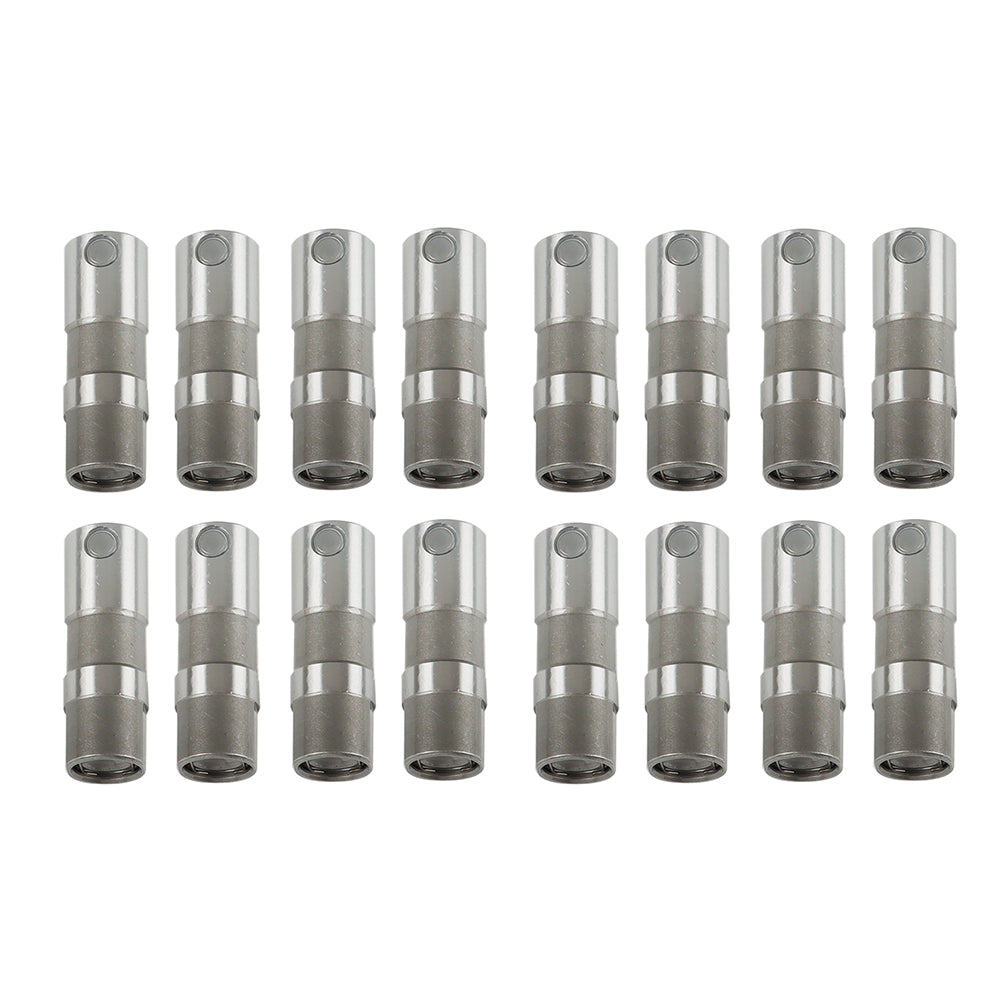

3. Set of 16 Elgin Roller Lifters for 1997-2015 Chevy/GM LS Series Factory Roller applications without Active Fuel Management.
Lifters Fitment includes:

1999-2012 For Trucks/SUVs 4.8L V-8 VIN-V,C,A
1999-2007 For Trucks/SUVs 5.3L V-8 VIN-T,Z,B
1997-2004 5.7L For LS1 V-8
2001-2005 5.7L For LS6 V-8
1999-2010 For Trucks/SUVs 6.0L V-8 VIN-U,K
2005-2009 6.0L For LS2 V-8
2008-2013 6.2L For LS3 V-8; without AFM
2006-2013 7.0L For LS7 V-8
Also fit Factory Roller 93-97 LT1, and 305-350 For Chevy Engines.

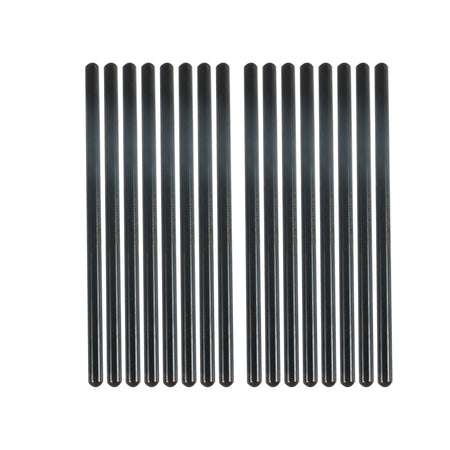

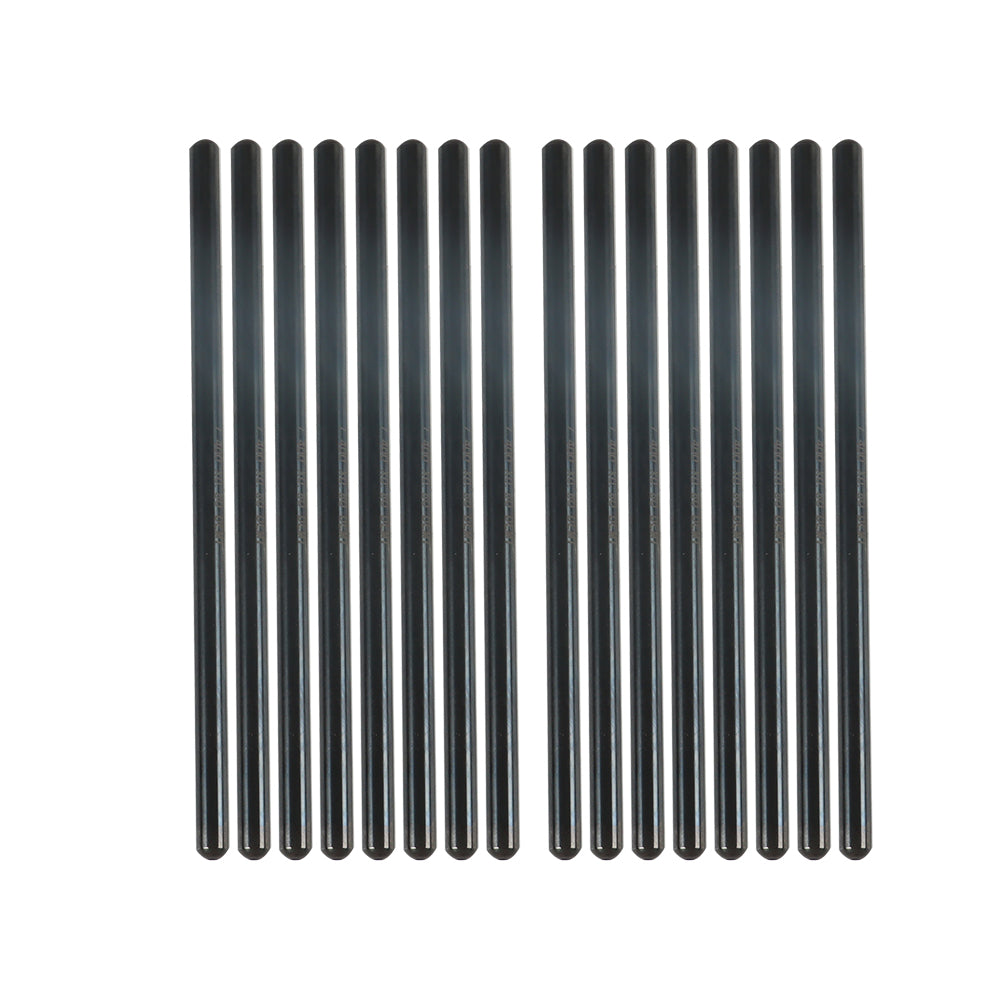

4. putters
5/16" DIAMETER - 7.400" LENGTH - .080 WALL THICKNESS
