For Johnson Evinrude Outboard Water Pump Impeller Kit 20 25 30 35 hp 393630 F9F5

This is the water pump impeller repair kit for Johnson/Evinrude 20/25/30/35 Horsepower Outboard Engine Parts. The Boat Motor Parts Number Model 393630 0393630.

It includes: Full Power Plus Neoprene Impeller, Impeller Key, Gasket, Wear Plate, Pump Cup, Pump Housing, Grommets, O-rings, Sear and Installation bolts with washers.

This kit makes repair and maintenance of water pumps easy.

Product:

Materials: The strongest marine and chemical corrosion resistant hardened nylon and scientifically engineered high performance neoprene rubber.

Replacement for Johnson/Evinrude 20/25/30/35 Horsepower Outboard.

Application:

1980-2005 Years 20 -35 HP 2 Cycle. Cross flow engines with thru-prop exhaust and one-piece gear case.

20 HP 1985 and Up

25 HP 1985 and Up

25 HP Commercial 1998-2001

30 HP 1980 to 1982

30 HP (2 cycle) 1983 and Up

35 HP 1980 to 1982

35 HP (2 cycle) 1983 and Up

Package Weight: Apprx.320 g

Impeller Number of Blade: 6

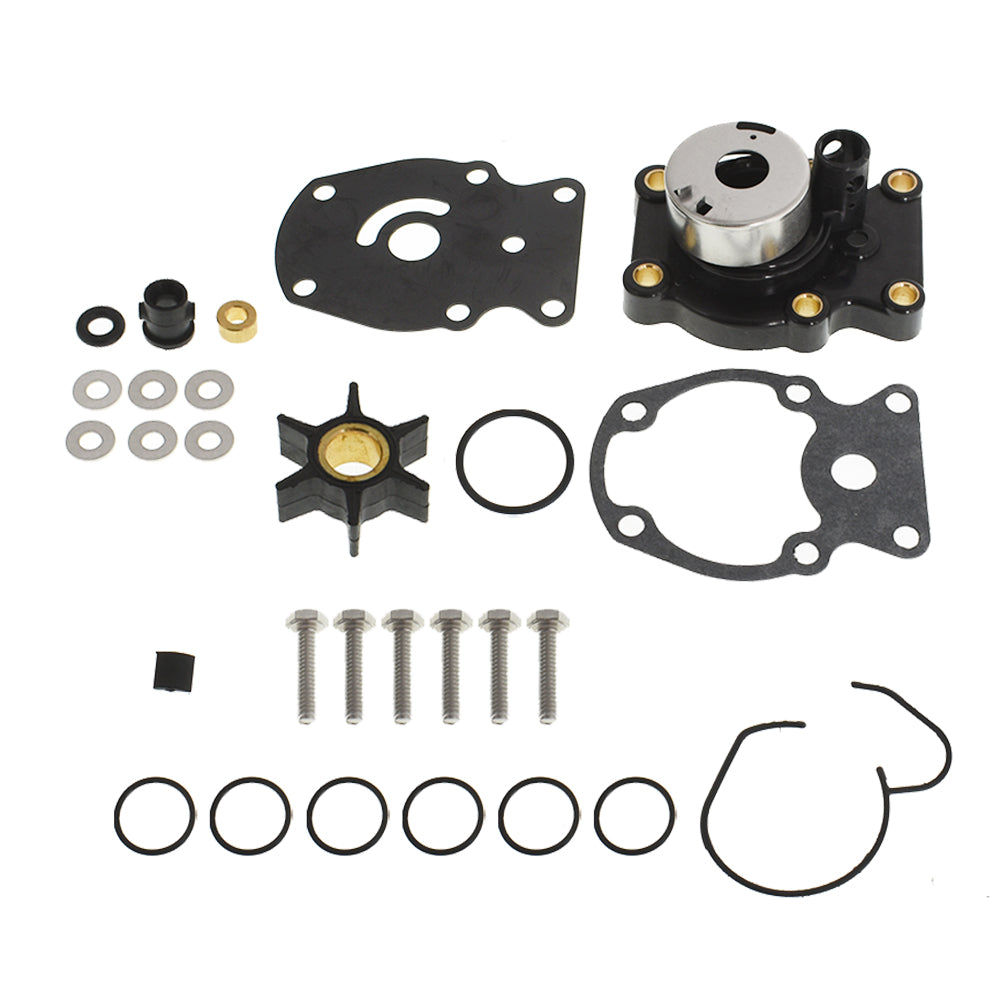

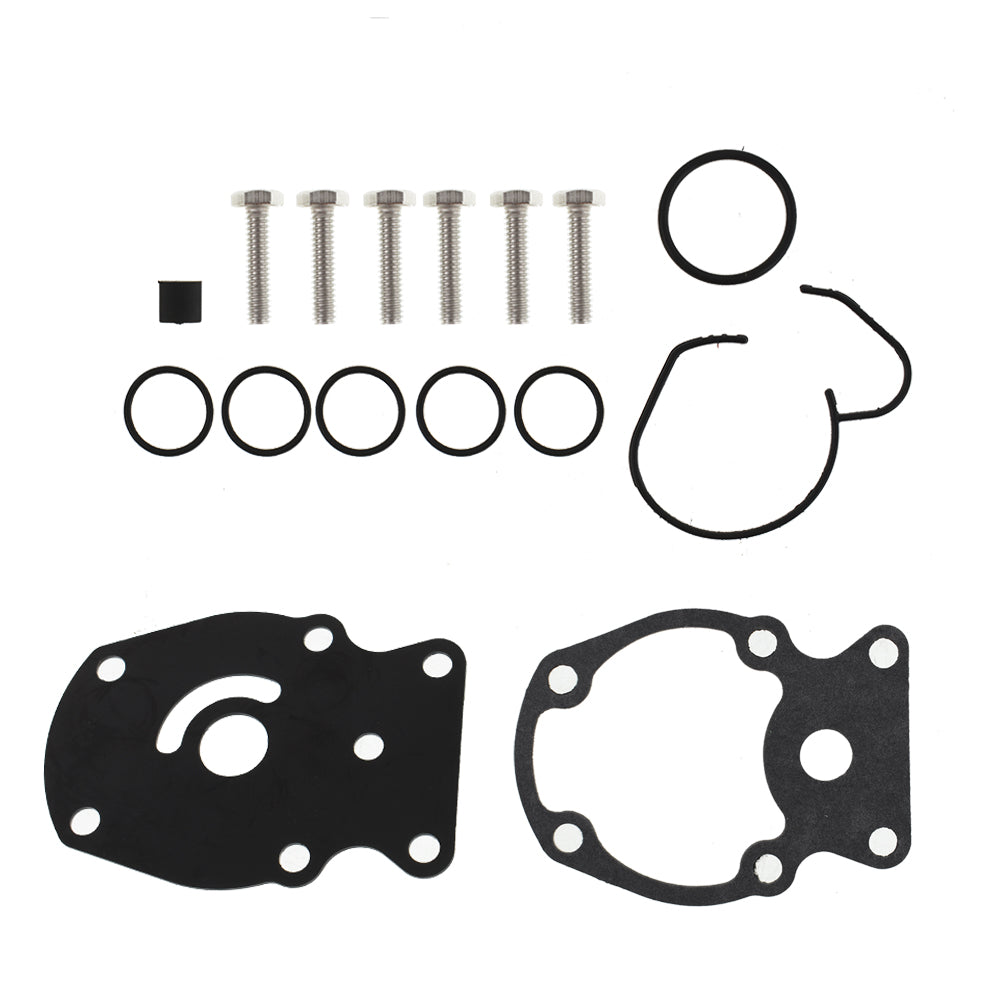

Kit Package includes:

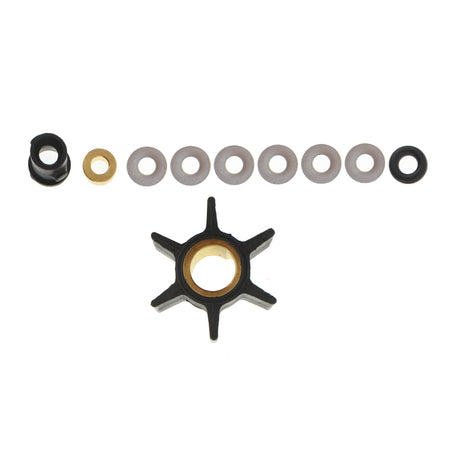

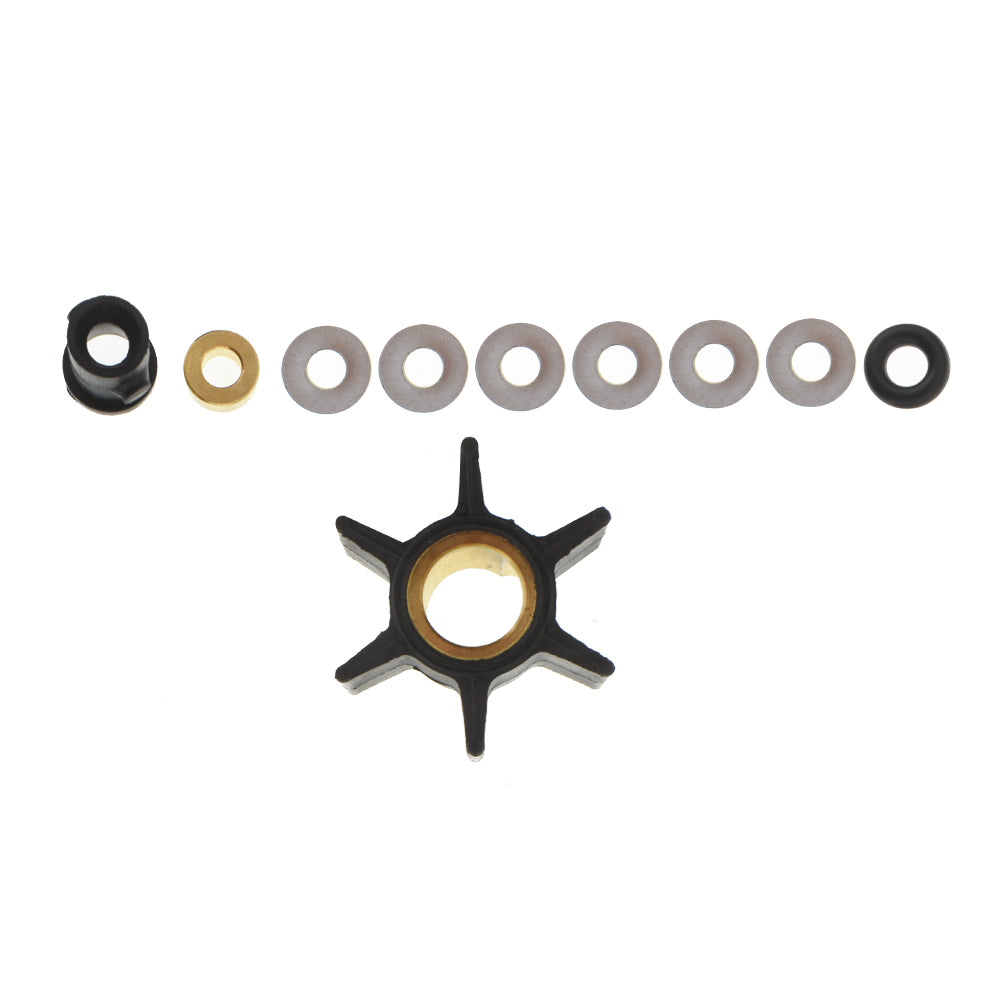

1 X Full Power Plus Neoprene Impeller P/N #:  395289

1 X Impeller Key P/N #:  330619

1 X Gasket P/N #:  325537

1 X Wear Plate P/N #:  328755

1 X Pump Cup P/N #:  328751

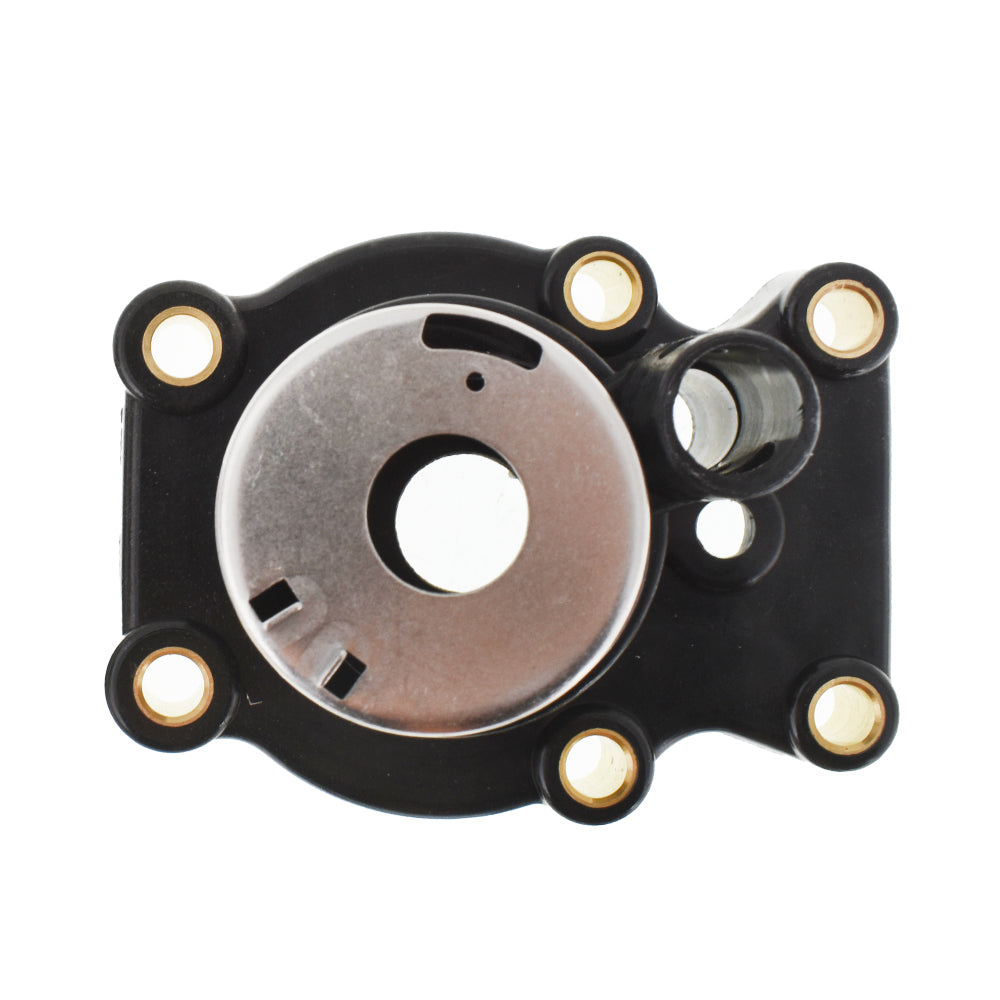

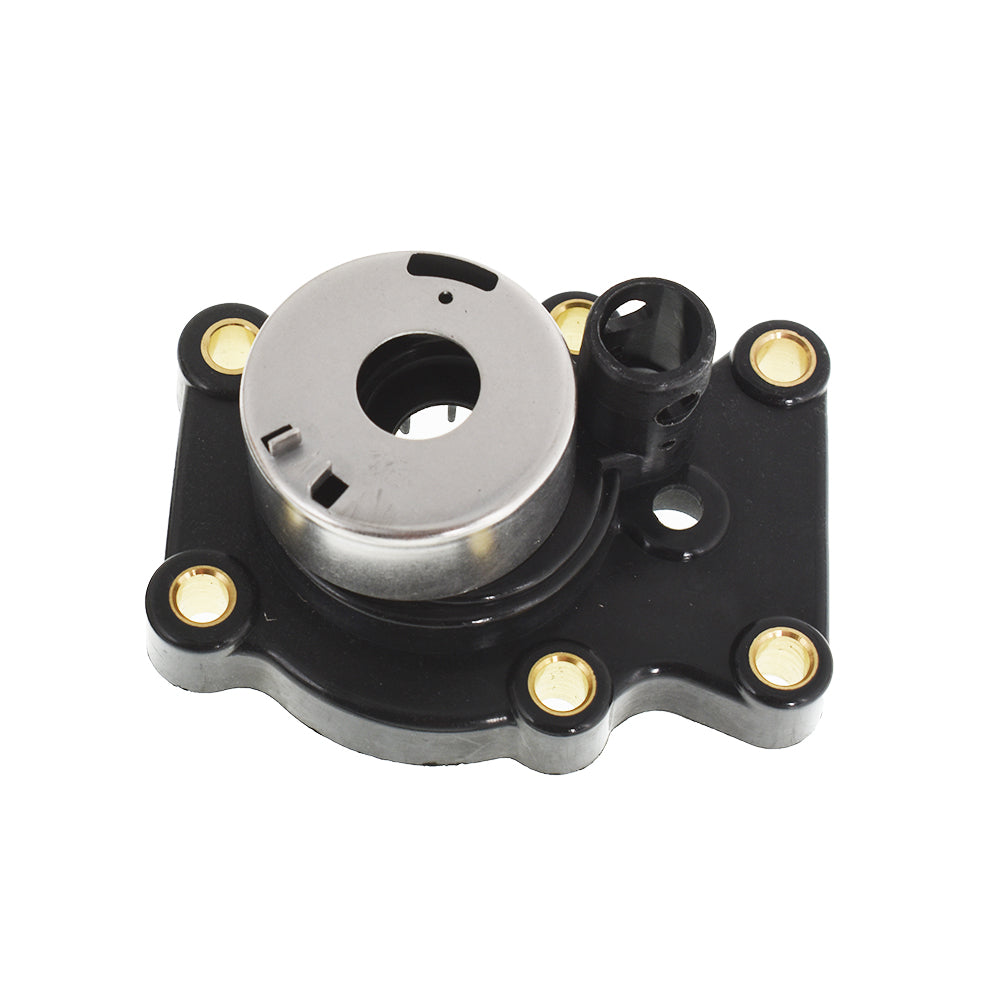

1 X Pump Housing P/N #:  393632

1 X Grommet P/N #:  302497

1 X Brass Bushing P/N #:  328754

4 X O-ring P/N #:  311338 * 2 / For Bushing 301877 / 554545

1 X Sear P/N #:  328753

6 X Bolt with Washer P/N #:  324960 / 318452
