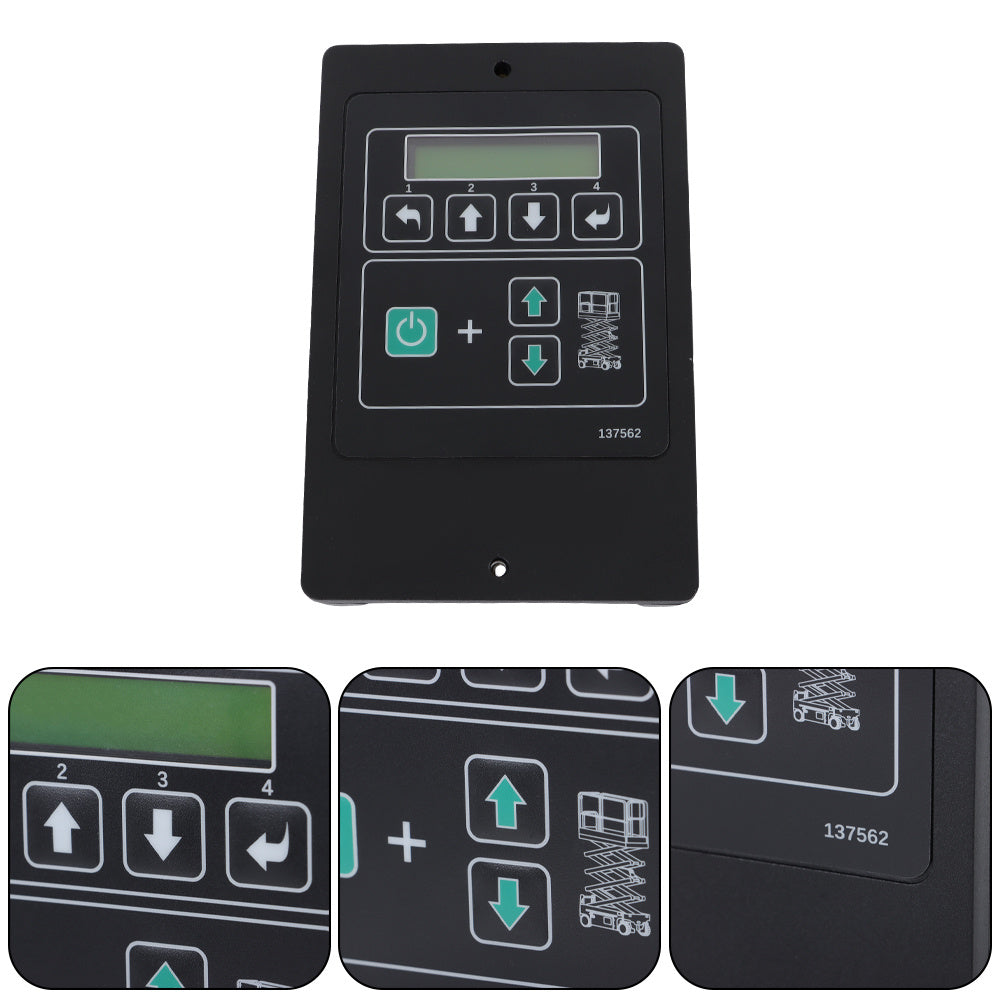

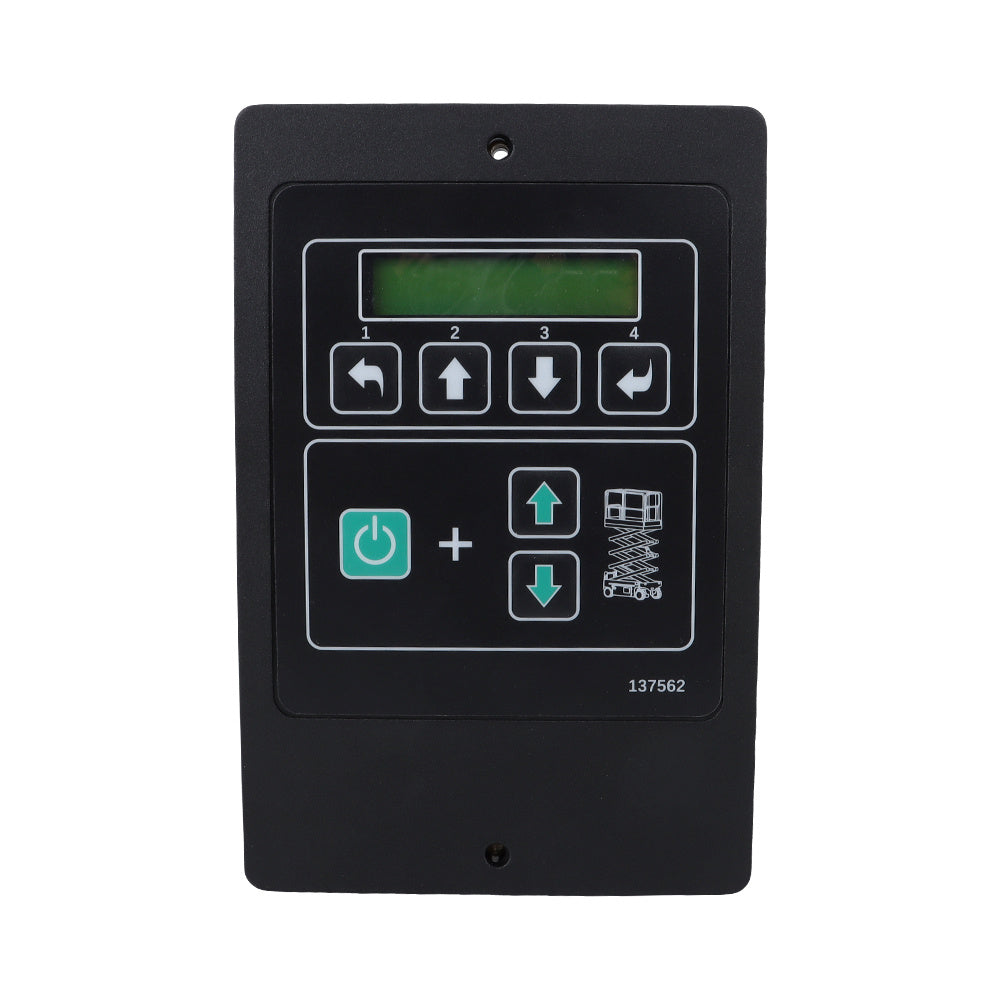

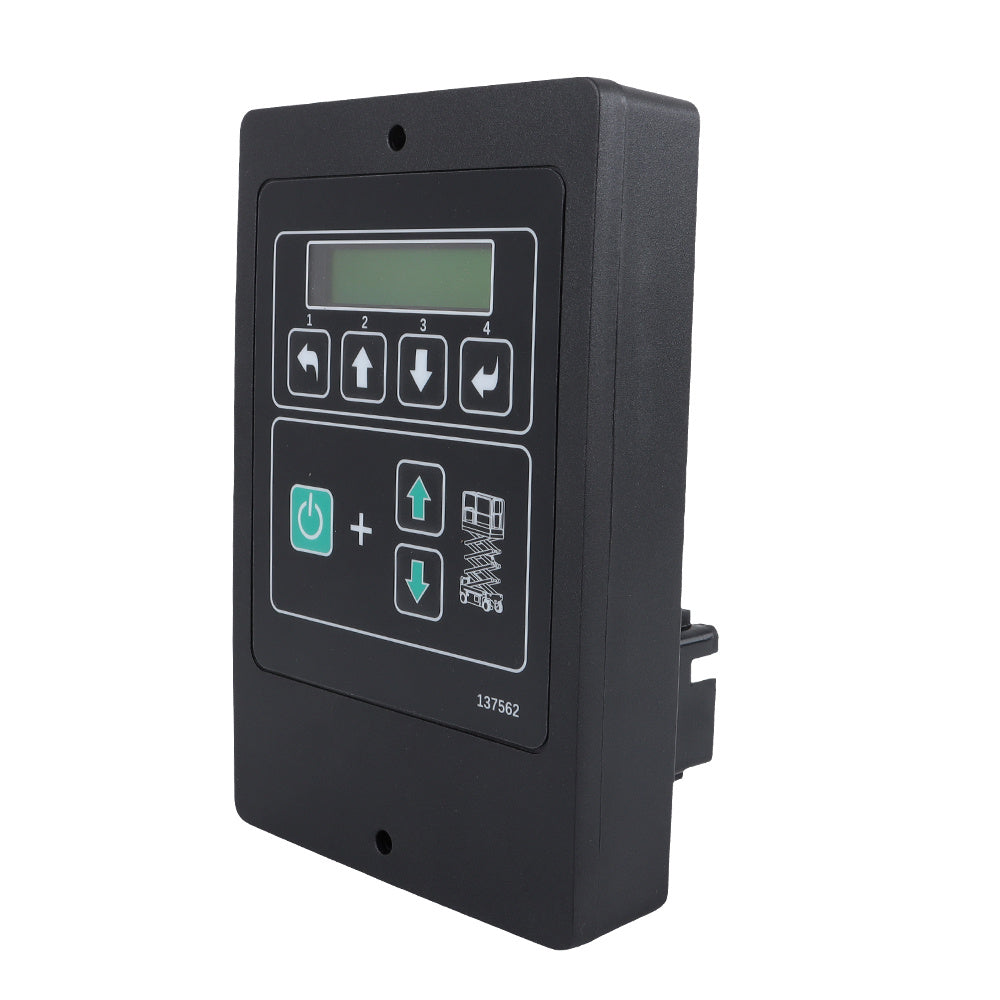

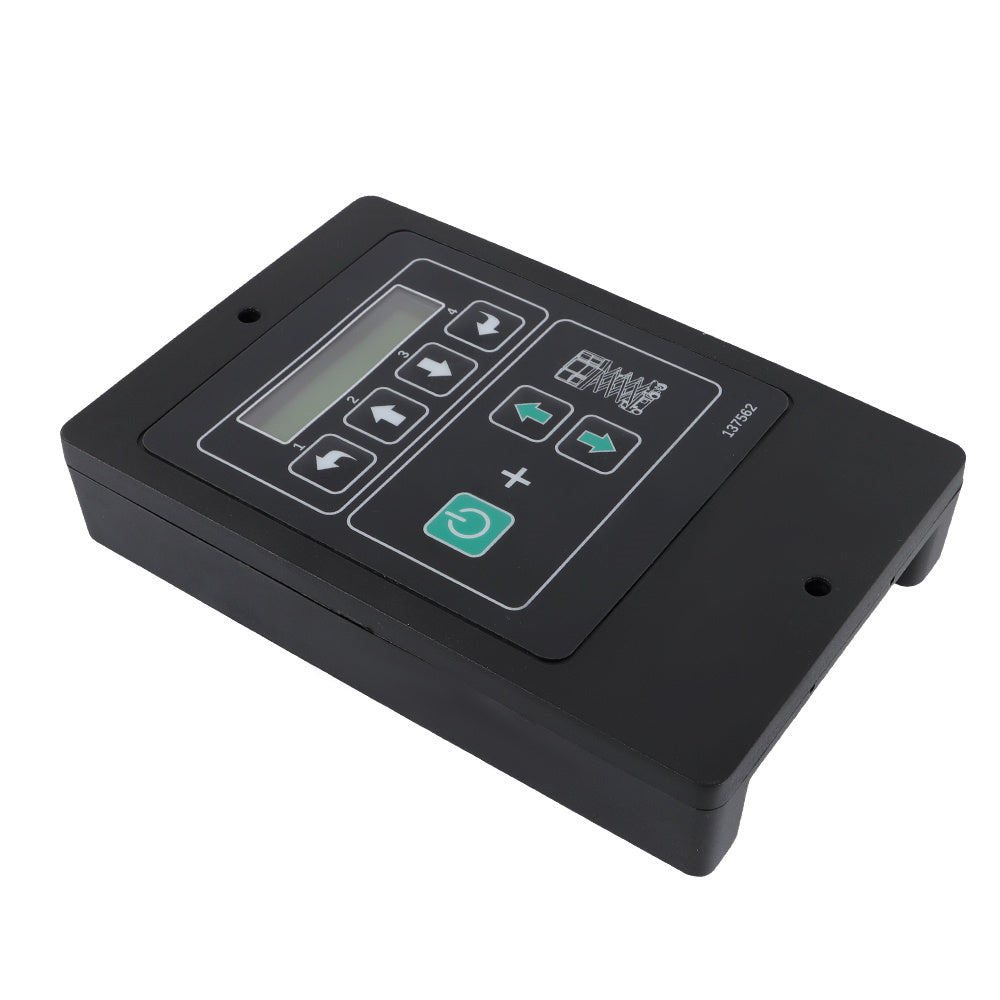

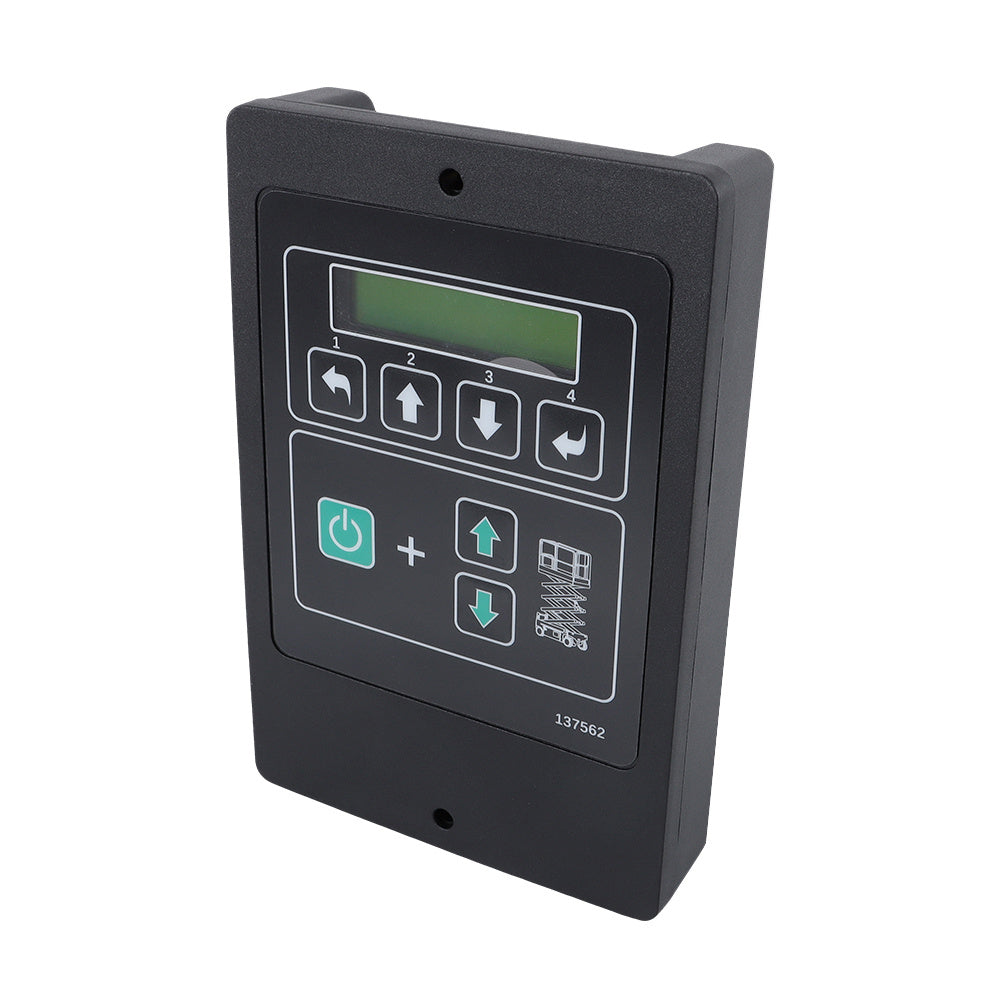

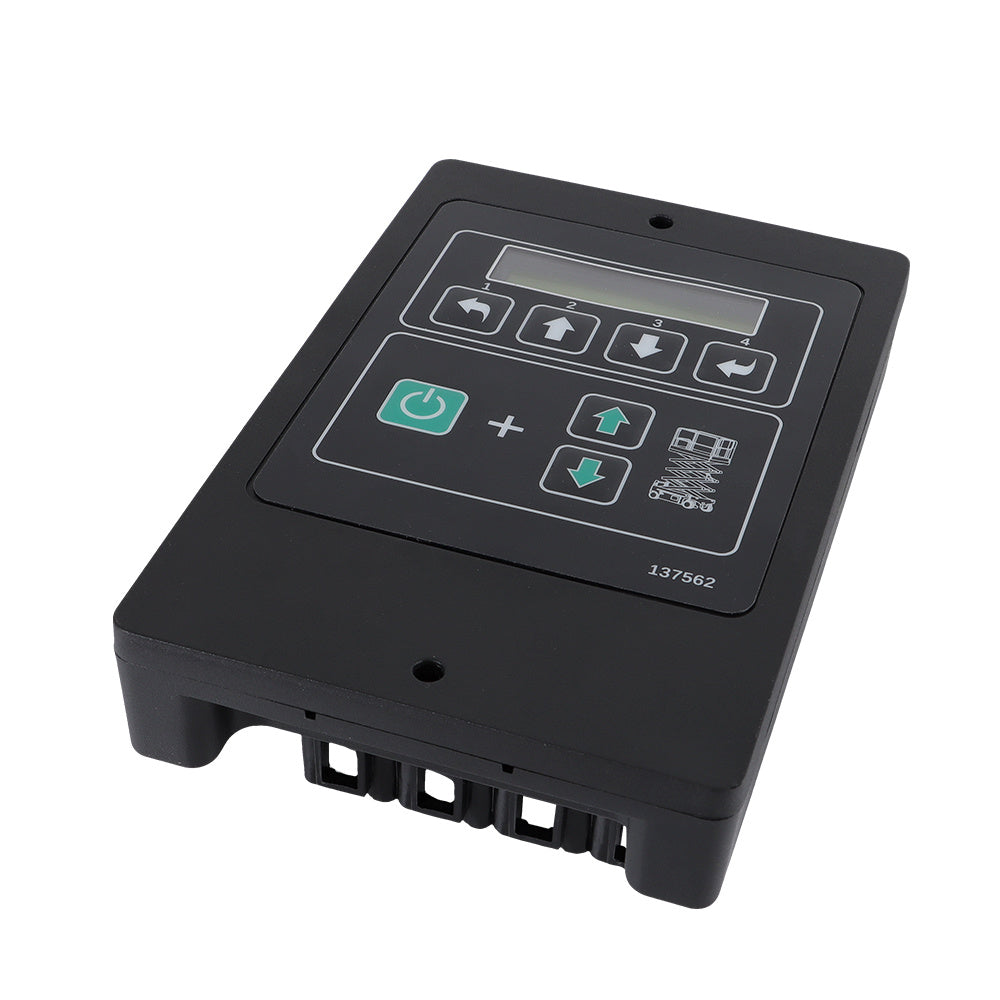

For Genie Scissor Lift GS-4046 GS-4047 GS-4069 Scissor Lift Control Box 256721

Specification：

Part Number: 1256721, 1284285, 137692, 1256721GT, 1284285GT, 137692GT

Compatible with Genie Scissor Lift: GR-12, GR-15, GR-20, GRC-12, GS-1330M, GS-1530, GS-1532, GS-1930, GS-1932, GS-2032, GS-2046, GS-2632, GS-2646, GS-2669, GS-3232, GS-3246, GS-3369, GS-4046, GS-4047, GS-4069, GS-4655, QS-12R, QS-12W, QS-15R, QS-15W, QS-20R, QS-20W

Product Description：

1.When first installing it, the working hours will be displayed as 0 hours. This counter will start accumulating hours after installation.

If you want to set the previous hours from the old vehicle, you can input those values during the initial setup/settings process. The system will add those hours to the new total.

2. The display will show options for the upper and lower control switches. After selecting the lower control, the upper control will read "CH".

3. The pothole alarm option is selectable on the display. This is a common function available on most vehicles. If you don't need it, you could close it.

Package Including：

1*Control Box

Note：

For liquid drive vehicles only, not for electric drive vehicles
