Floor Heating Mat 120v 20 Sqft Electric Radiant Floor Heating System Tile Red

Feature：

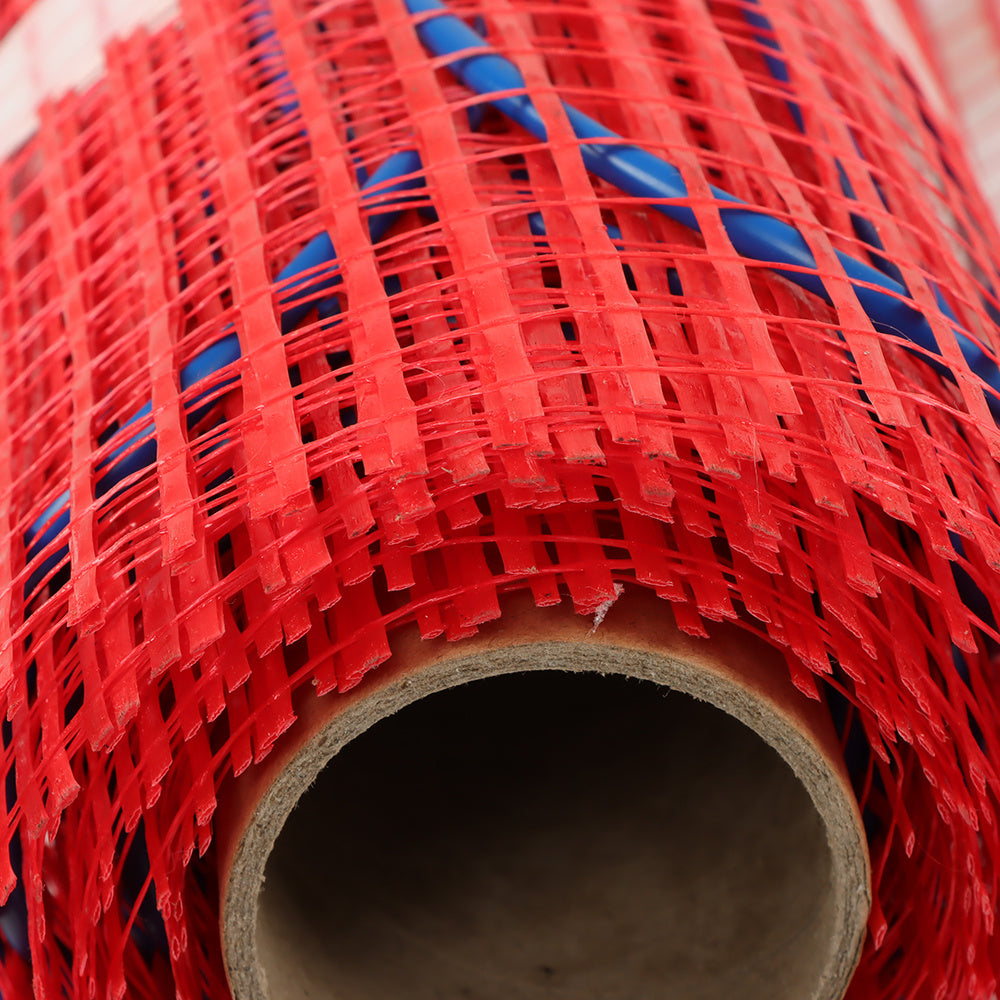

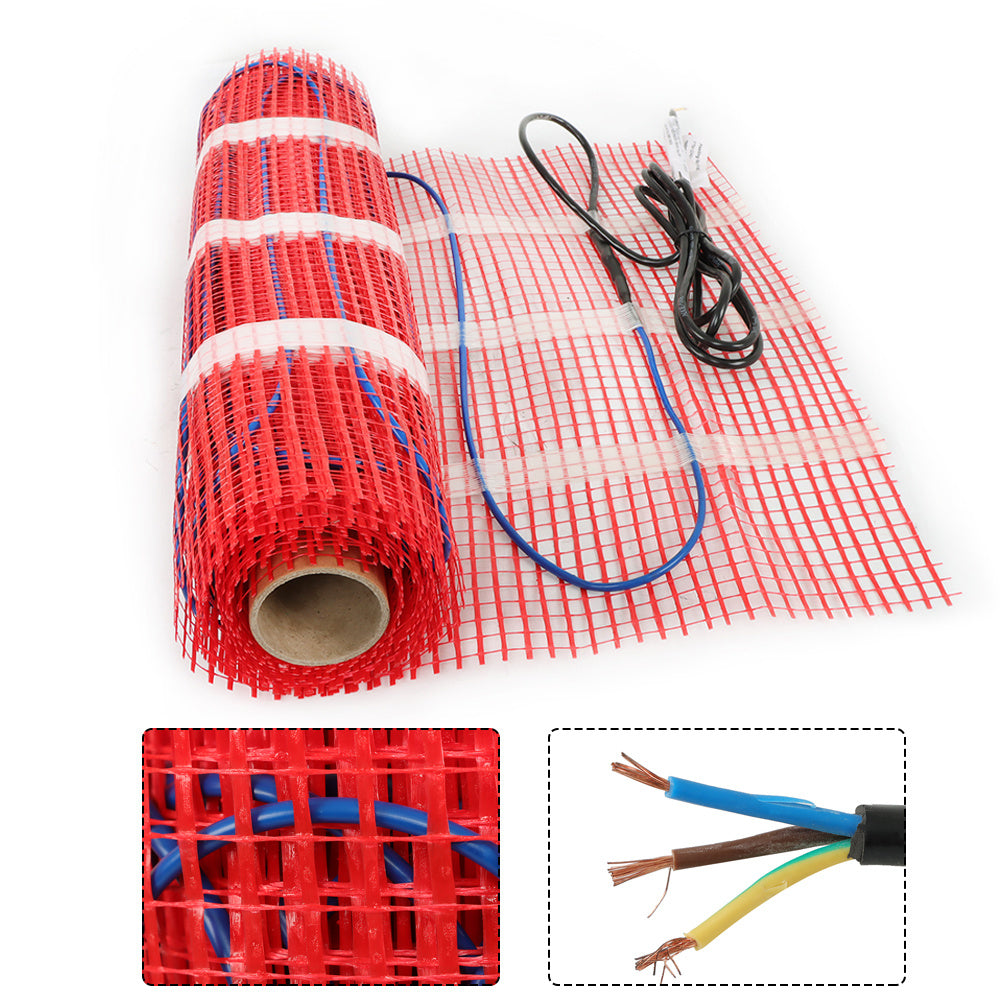

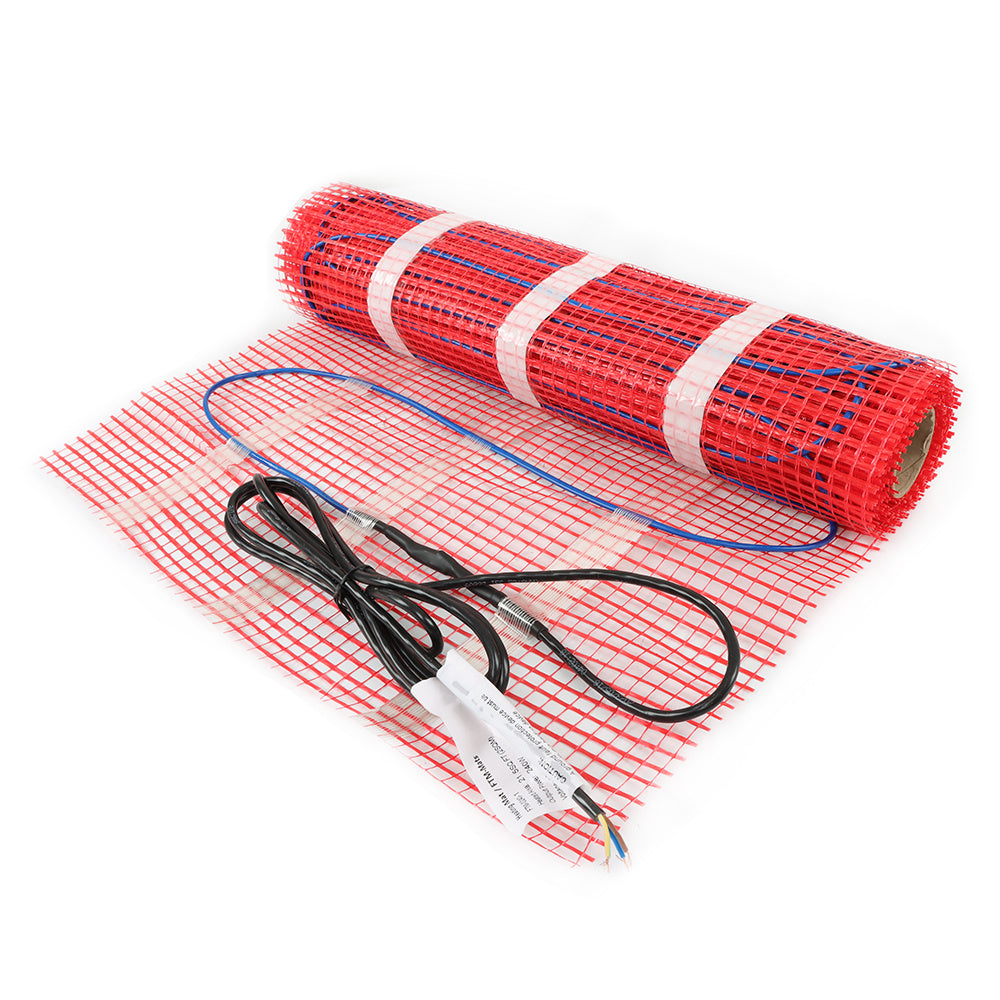

Floor Heating Mat: --Floor Heating Mat is one of the most robust, versatile, easy to install floor heating systems available on the market today.   The resin coated fibreglass re-enforcing mesh is designed to protect the heating cable and add strength to the layer of thinset or mortar.
The re-enforcing mesh can be cut, turned, flipped, or in part removed, to accommodate any room size or shape.   While the MESH can be cut, the heater wire MUST NOT be cut or shortened.

Heater wire is less than 5/32" thick, ensuring minimal effect to finished floor height.
Heater wires are pre-spaced at 3” intervals – providing optimal heat distribution.
Mats are 20” wide, and available in various lengths.
Watt density: 12w/sqft.

Thermostat:--The Thermostat can be configured for control of Floor Temperature, Room Temperature, or Room Temperature with Floor Temperature Limiting'
Ambient Temp Range +32 to +104°F (0 to +40°C).
Floor limit range: +41 to +104°F (+5 to +40°C).
Dimensions: H 4.8” x W 3” x D 1”.
Load: 15Amps (1800w@120v).
Built-in Class A GFCI.
Voltage: 120v.

Description：

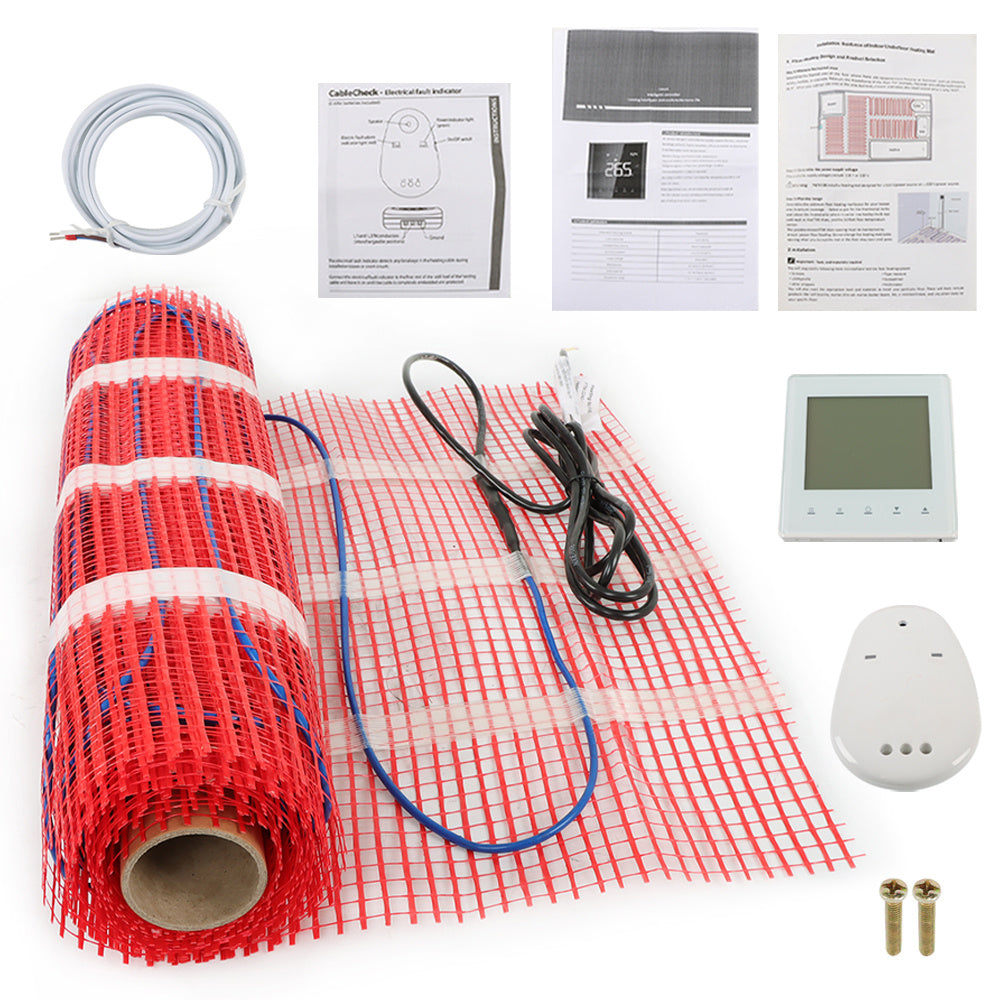

Heating Kit Includes: 20 Sqft (120 volt) Self-Adhesive Heating Mat,  thermostat, alarm, and floor temperature sensor. For installation under Tile, Laminates and more.

EASY TO INSTALL - The 3" Pre-spaced Electric Floor Heating Mat can be cut & turned, flipped or rotated - providing warmth where needed.With Self-adhesive mesh on one side and double sided tape on the other, the mat adheres to the sub-floor and lays flat even when flipped. DO NOT CUT or shorten red heater wire. Heating wires MUST be embedded in a self-levelling underlayment, thinset or mortar.

The Mesh can be cut and flipped or rotated to provide maximum coverage;    wires can also be removed from the mesh to help get into those hard-to-reach areas.
The Self-Adhesive mesh on one side and double sided tape on the other, ensures the mat adheres to sub-floor and lies flat even when flipped or rotated.
Radiant heat does not dry out the air, circulate dust or aggravate allergies.
Out of sight, no unattractive plug-in heaters, radiators or vents;    no storage hassles and no fan noise.
No hot, exposed or moving parts and no maintenance.

Suitable For Most Floor Coverings

athroom - Under Baseboard Systems Flooring Warming Driveway Cable Alarm With Bathroom Tiles Snow

Bedroom - Kit Pad Tape Rug Electrical Sensor Nest Touch Heaters Underfloor Underlayment Warmer

Kitchen - Thermostats Wire Ceiling Membrane Trak Floors Shower Home Reptile Panels Car

Living Room - Infloor Sun Sauna Office Large Hot Carpet Programmable Lux Mud Screen Radient Bathroom Ideally Suited For Tiles - Includes Porcelain, Ceramic, Marble And More. Safe For Wet Areas, Including Showers.

Bedroom Laminate Flooring - We Recommend Installing A Floor Sensor To Limit Floor Temperature And Protect Flooring.

Kitchen Vinyl Flooring (Lvt) - We Recommend Installing A Floor Sensor To Limit Floor Temperature And Protect Flooring.

Living Room Hardwood Flooring - Includes Engineered And Solid Wood. We Recommend Installing A Floor Sensor To Limit Floor Temperature And Protect Flooring.

Package List：

20 Sqft (120 volt) Self-Adhesive Heating Mat,  thermostat, alarm, and floor temperature sensor, For installation under Tile, Laminates and more.

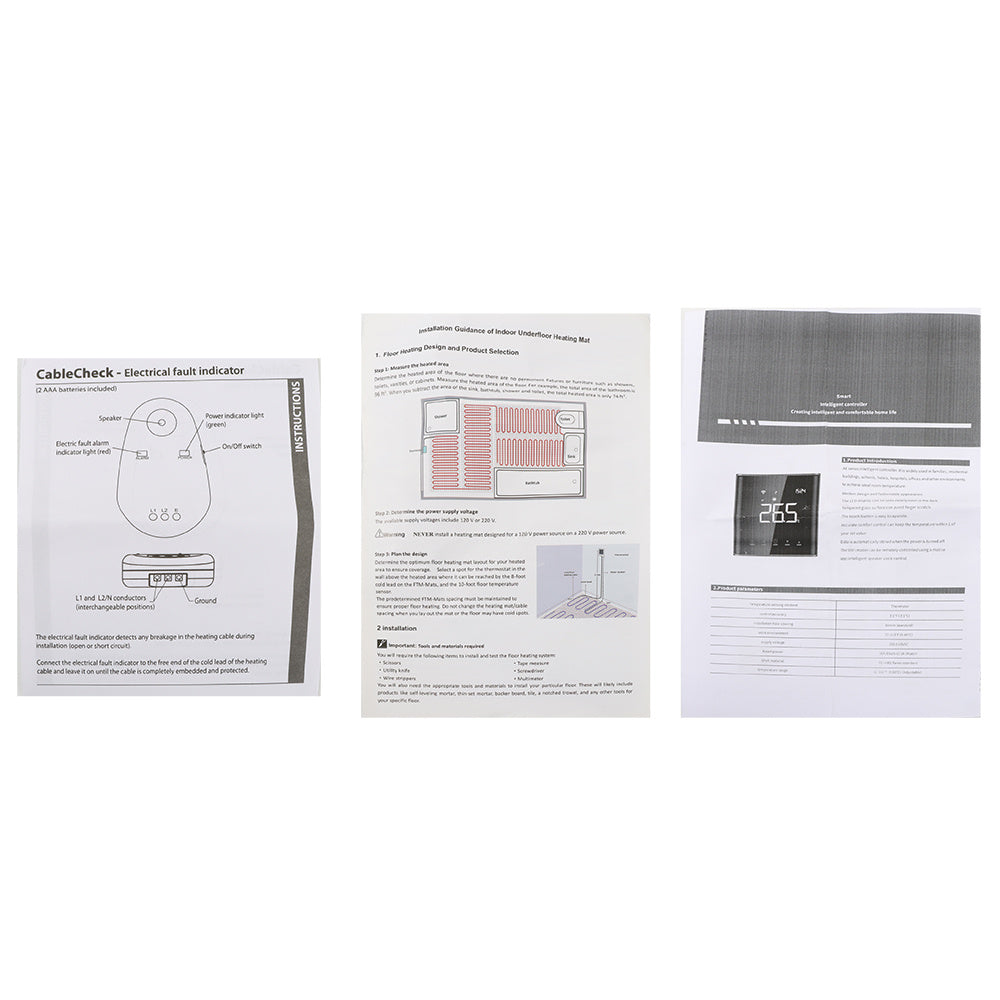

Detailed installation manual.
