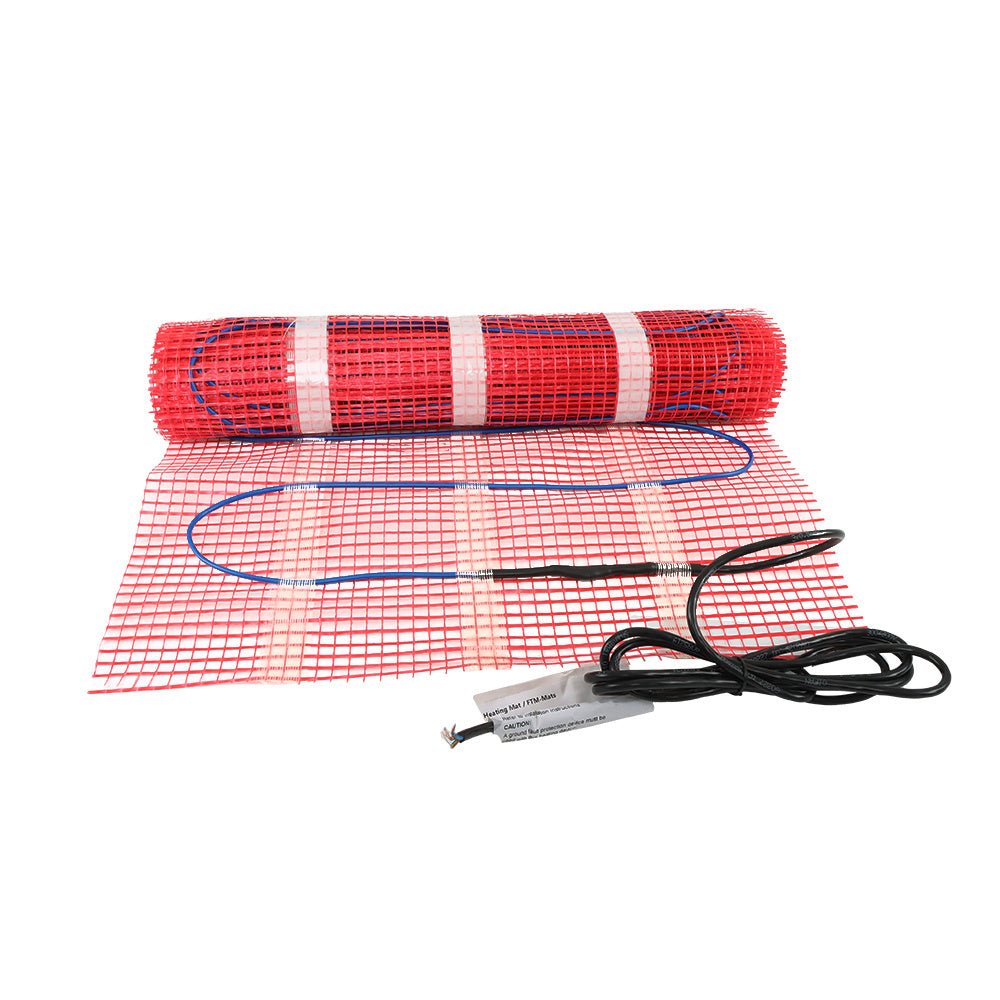

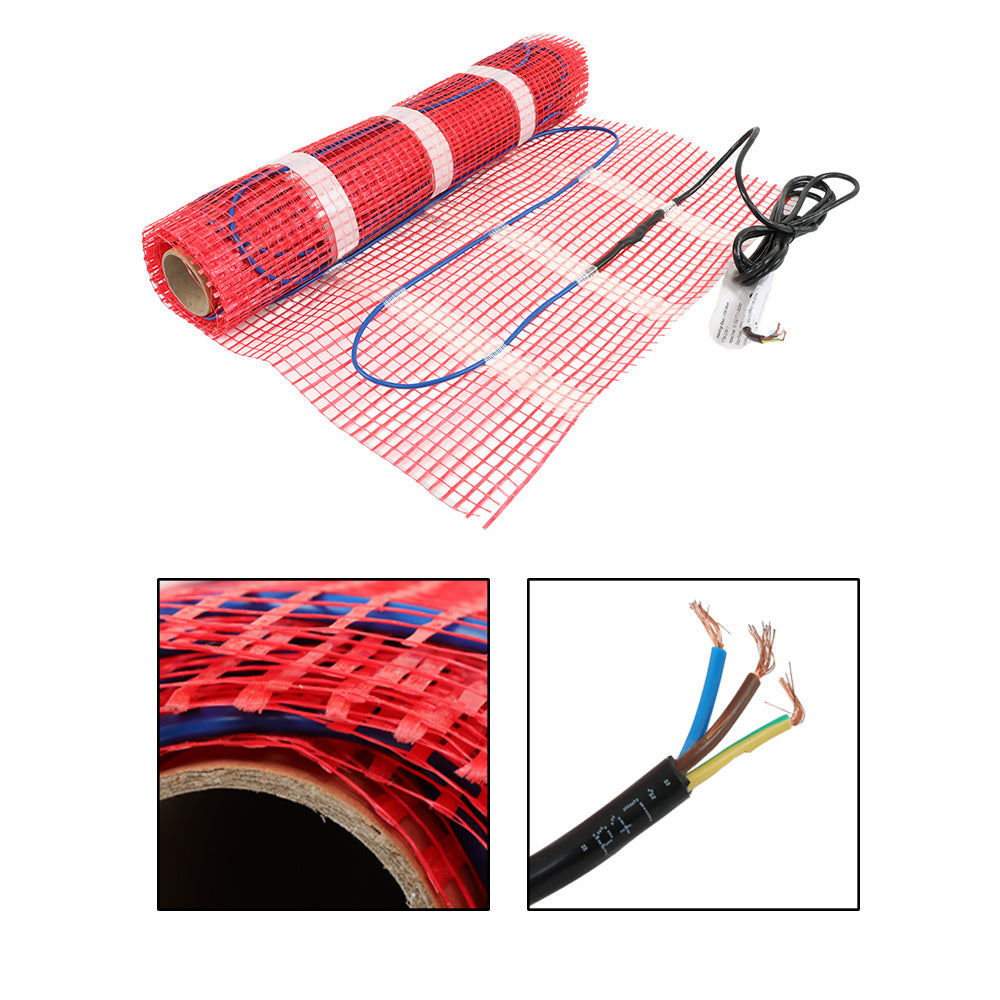

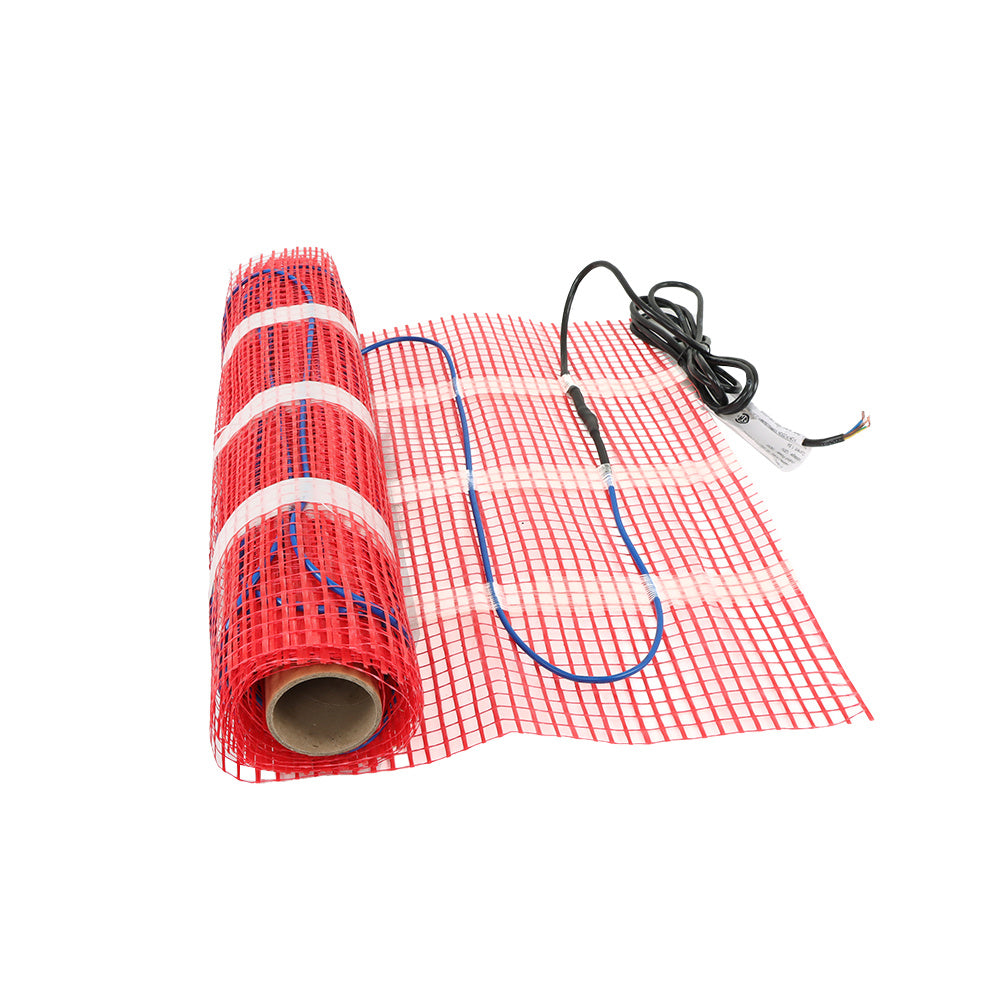

Floor Heating Mat 120v 15 sqft Electric Radiant Floor Heating System Tile Red

Feature：

15 sqft Under Tile Heating Mat with ADHESIVE BACKING - Lays Flat and Stays Flat, no need to staple
Mat size: 20" wide x 9.1ft long.   Voltage: 120V, Amps: 1.5A, Watts: 180W.   Zero EMF.
Heating cable is only 1/8" thick.   Single armored cold lead: 10ft.   Cable spacing: 3".   System output: 12W/sqft (41 BTU/sqft)
120V mats can be combined to heat up to 150 sqft of flooring space using a single thermostat.   Mesh can be cut (do not cut the heating wire).

HeatTech Electric Radiant Floor Heating System is perfect for: New construction and retrofits; Residential homes and apartment buildings; Bathrooms, Kitchens, Saunas, Mud Rooms; Ceramic or Porcelain Tile, Stone, Granite and Marble Floors; Laminate, Engineered Wood, Vinyl Floors and many others.

Description：

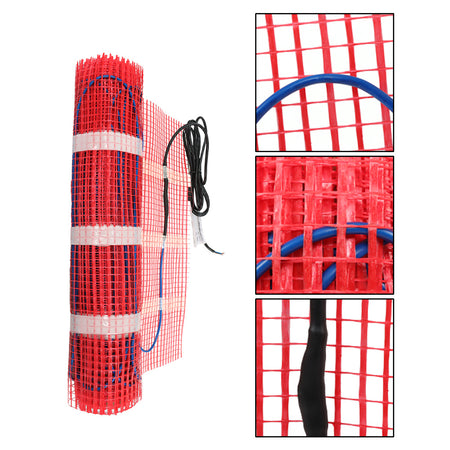

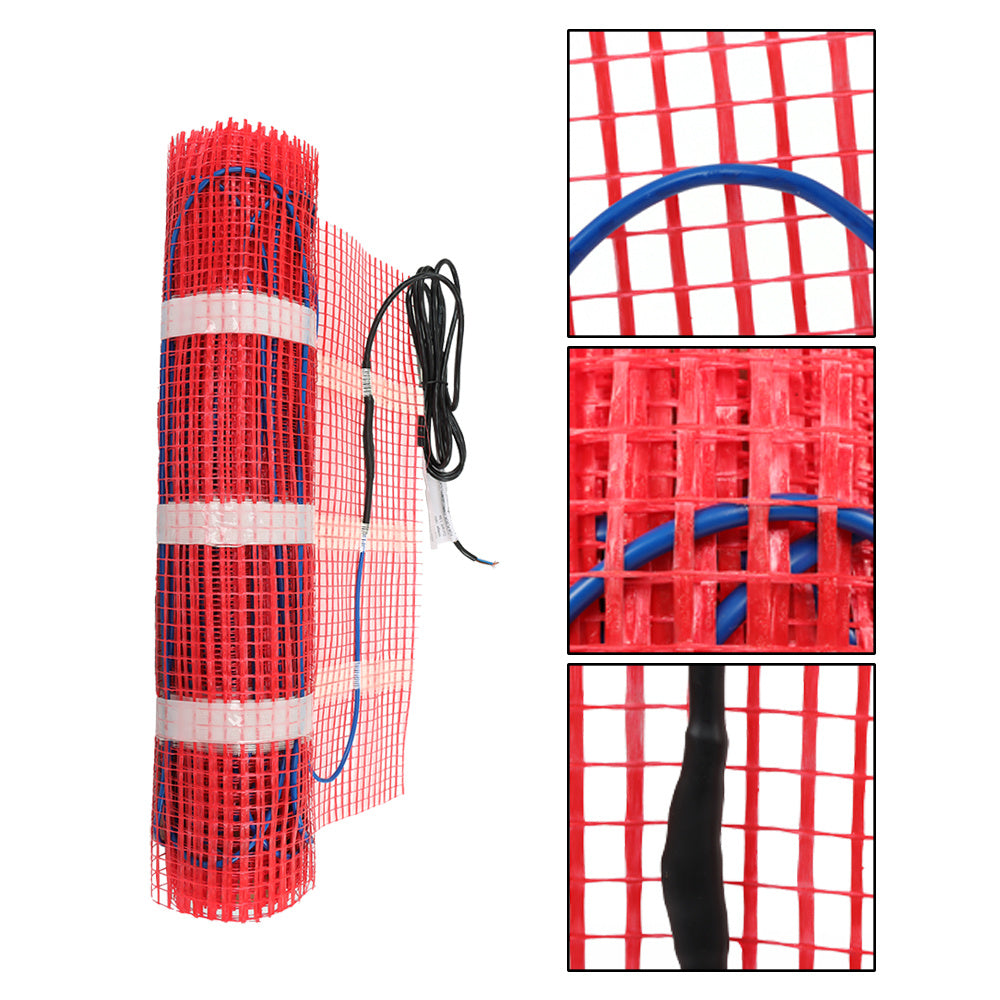

The resin coated fibreglass re-enforcing mesh is designed to protect the heating cable and add strength to the layer of thinset or mortar. The re-enforcing mesh can be cut, turned, flipped, or in part removed, to accommodate any room size or shape. While the MESH can be cut, the heater wire MUST NOT be cut or shortened. Elements are ETFE insulated and covered by a tough outer jacket, providing the ultimate dialectic and mechanical strength. Heater wire is less than 5/32" thick, ensuring minimal effect to finished floor height. Heater wires are pre-spaced at 3” intervals – providing optimal heat distribution. Mats are 20” wide, and available in various lengths. Watt density: 12w/sqft. Voltage: 120v. Ambient Temp Range +32 to +104°F (0 to +40°C). Floor limit range: +41 to +104°F (+5 to +40°C). Dimensions: H 4.8” x W 3” x D 1”. Load: 15Amps (1800w@120v). Built-in Class A GFCI. Voltage: 120v.

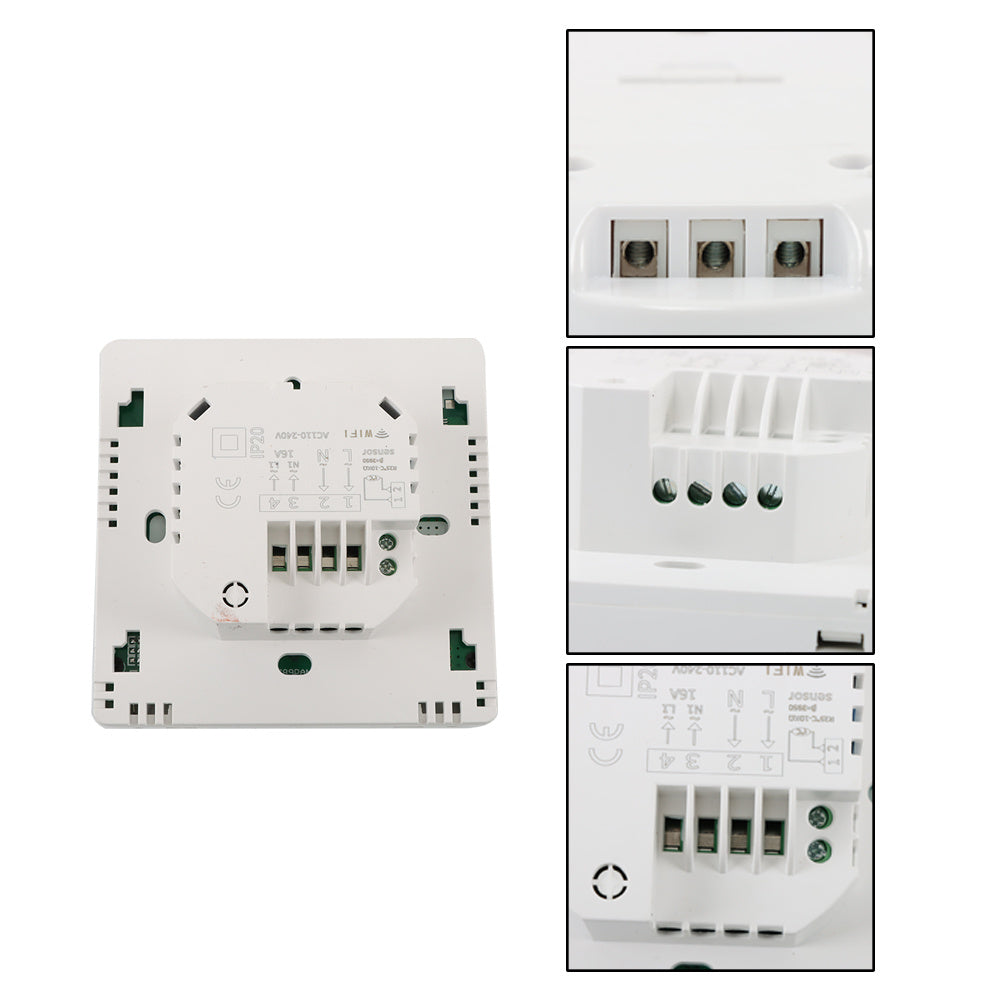

The thermostat can be set to measure AIR only, but for optimal control and comfort we recommend installing the floor sensor and using the thermostats default ‘Dual Sensor’ setting. Installs directly between heating wires for accurate temperature readings Used in conjunction with Thermostat to limit floor temperature Resistance: 8 to 12 K OHM measures 68?F to 86?F (20?C to 30?C) Neutral polarity making for simple connections 15ft length allows for optimal placement Connects directly to thermostat Sensor type: NTC 10 K OHM

Suitable for Most Floor Coverings

BATHROOM IDEALLY SUITED FOR TILES - Includes porcelain, ceramic, marble and more. Safe for wet areas, including showers. Important: Elements MUST be Embedded in Thinset, leveling or self-leveling compound.

BEDROOM LAMINATE FLOORING - We recommend Installing a Floor sensor to limit floor temperature and protect flooring. Important: Elements MUST be Embedded in Thinset, leveling or self-leveling compound.

KITCHEN VINYL FLOORING (LVT) - We recommend Installing a Floor sensor to limit floor temperature and protect flooring. Important: Elements MUST be Embedded in Thinset, leveling or self-leveling compound.

LIVING ROOM HARDWOOD FLOORING - Includes Engineered and Solid wood. We recommend Installing a Floor sensor to limit floor temperature and protect flooring. Important: Elements MUST be Embedded in Thinset, leveling or self-leveling compound.

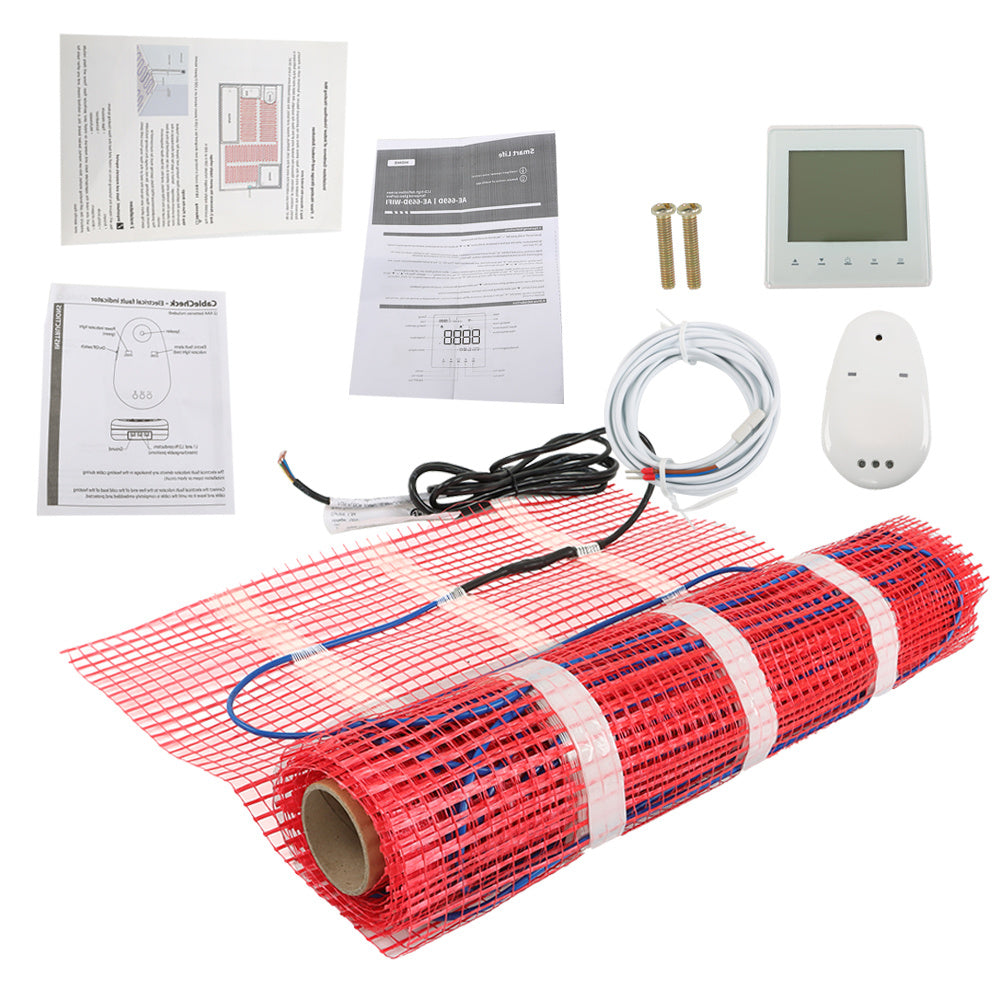

Package List:

Floor Heating Mat, 10 Sq.     ft, Electric Radiant In-Floor Heated Warm System with Digital Floor Sensing Thermostat, Includes Installation Monitor, Adhesive Back for Easy Installation on The Floor
