labwork Transmission Clutch Kit Replacement for GY6 150cc 4-Stroke Engine Scooter Go Kart ATV UTV

Description:

This clutch and variator assembly set is designed for compatible GY6 150cc 4-stroke engines. The kit includes matching clutch and variator components that are intended to be used together. Please confirm your engine type, clutch size, spline count, variator size, roller size, and belt size before ordering.

Fitment:

Replacement for Go Kart with GY6 150cc 4-Stroke Engine

Replacement for Scooter with GY6 150cc 4-Stroke Engine

Replacement for ATV with GY6 150cc 4-Stroke Engine

Replacement for UTV with GY6 150cc 4-Stroke Engine

Specifications:

Type: Transmission Clutch Kit / CVT Kit

Engine: GY6 150cc 4-Stroke

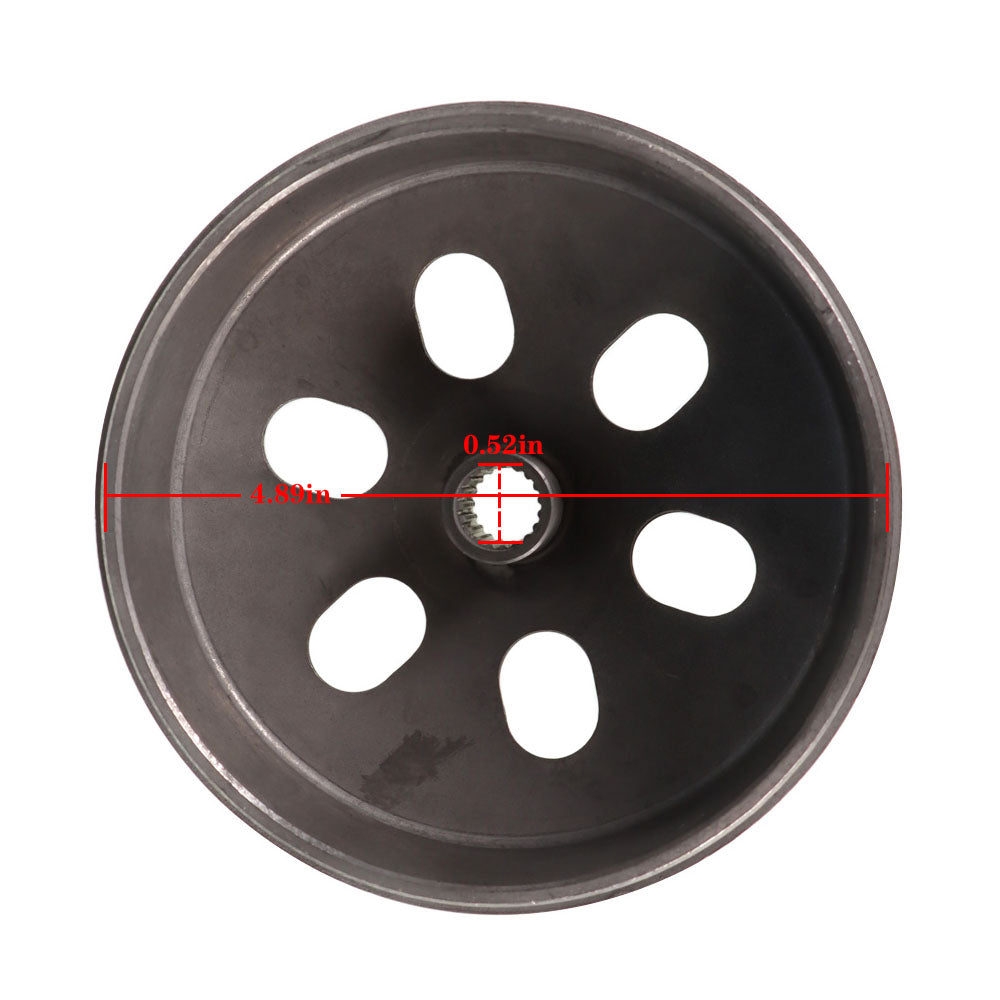

Clutch Inner Diameter Bell: 125mm

Clutch Outer Diameter Bell: 137mm

Number of Splines: 19

Spline Inner Diameter Peak to Peak: 13.6mm

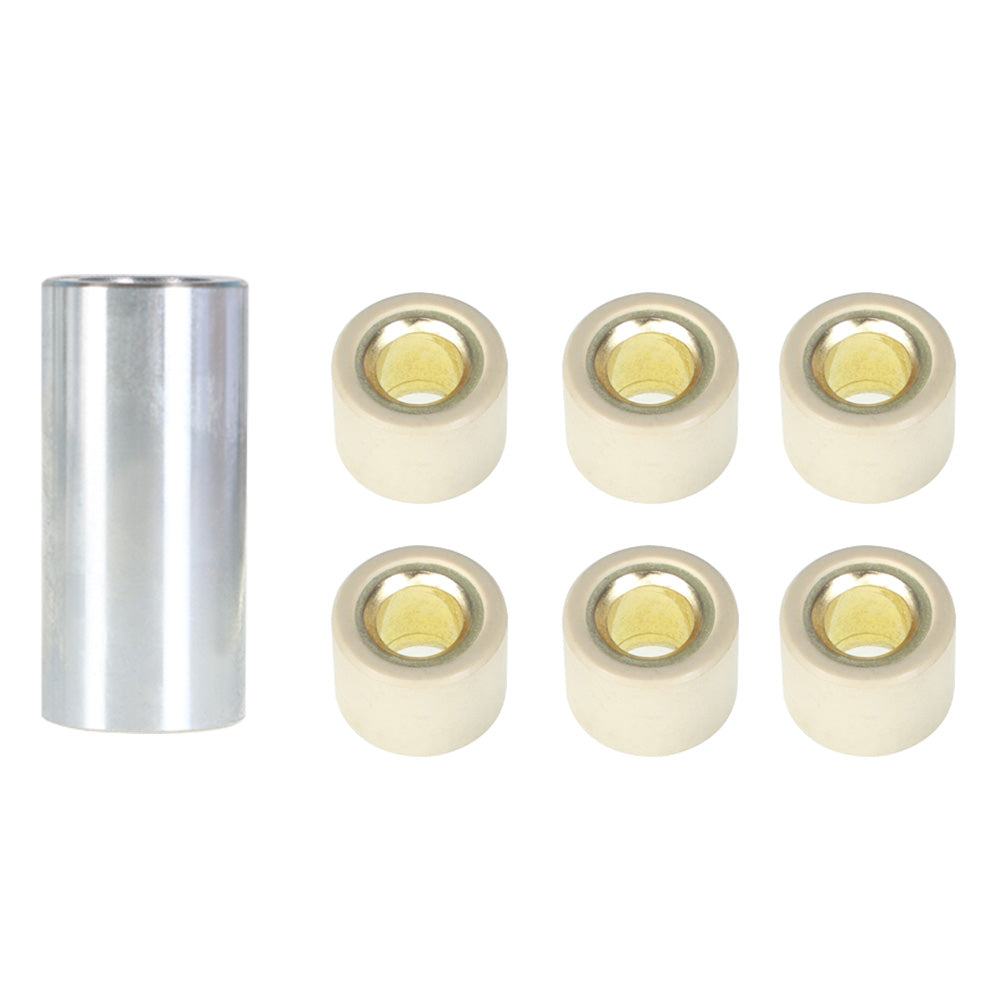

Variator Roller Weights: 6 Pieces, 18mm x 14mm, 13g

Variator Inner Diameter Drive Face: 13mm

Variator Outer Diameter Drive Face: 115mm

Belt Size: 842-20-30

Important Note:

Your title mentions 842 belt and the specification lists belt size 842-20-30, but the package information says 743 belt.

Features:

Designed for GY6 150cc 4-stroke engine CVT transmission systems.

Includes clutch assembly, variator assembly, and belt.

Clutch bell inner diameter is 125mm and outer diameter is 137mm.

19-spline clutch design with 13.6mm spline inner diameter.

Variator includes 6 roller weights, 18mm x 14mm, 13g.

Suitable for go kart, scooter, ATV, and UTV applications.

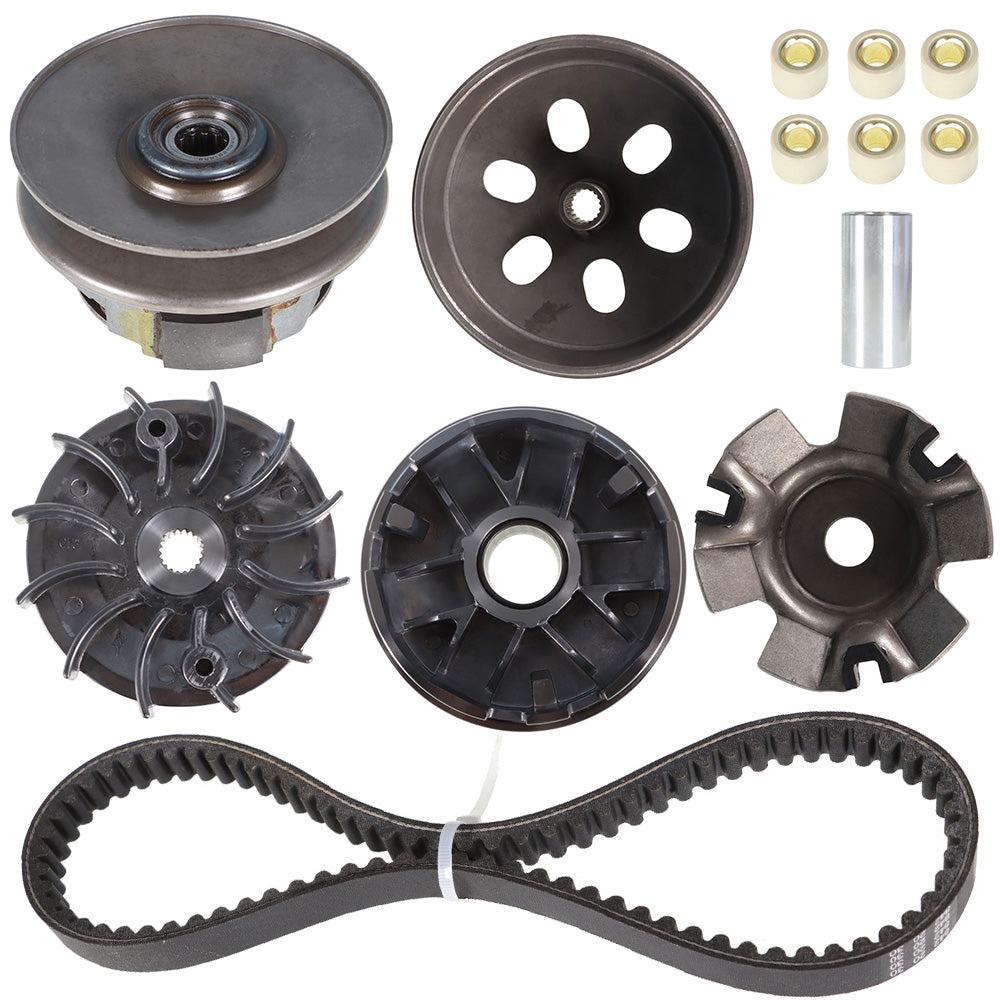

Package Includes:

1 x Clutch Assembly

1 x Variator Assembly

1 x Drive Belt

Note:

All measurement data is manually measured and may have slight deviation.

Please compare your original parts with the listed dimensions before purchasing.
