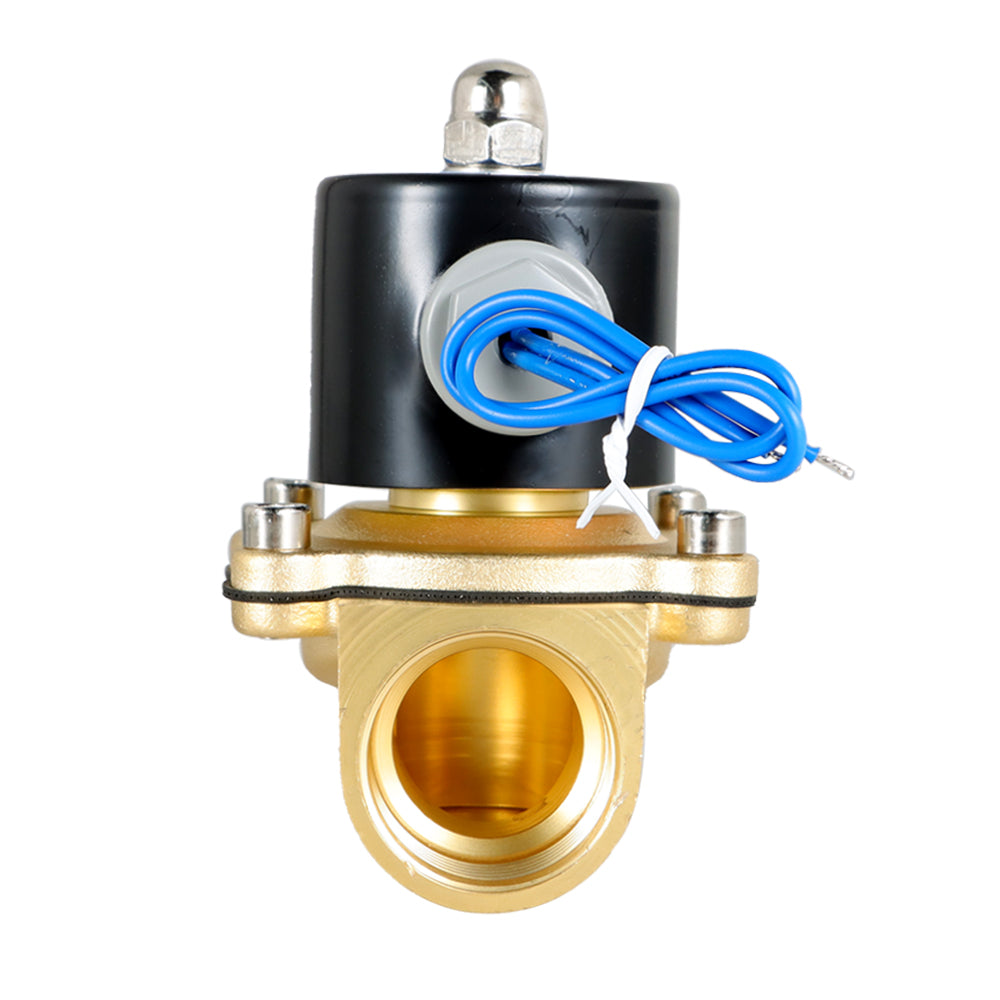

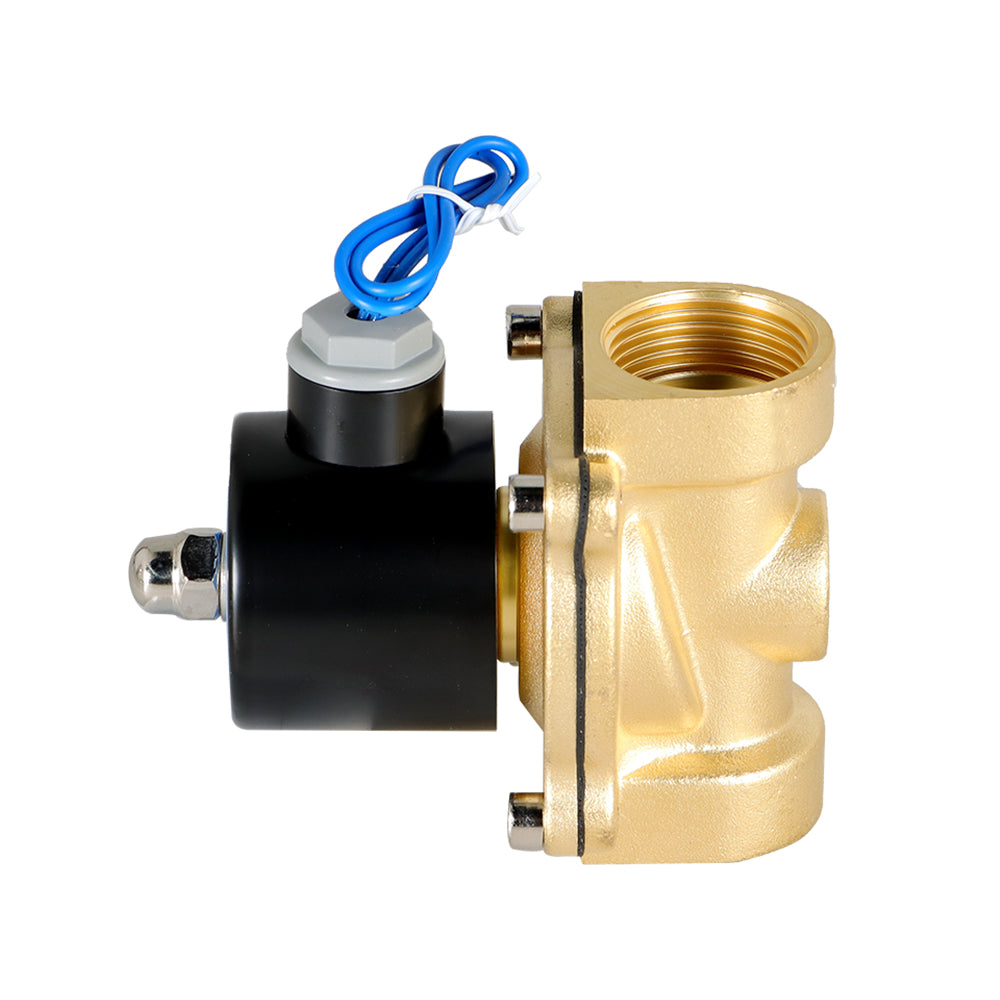

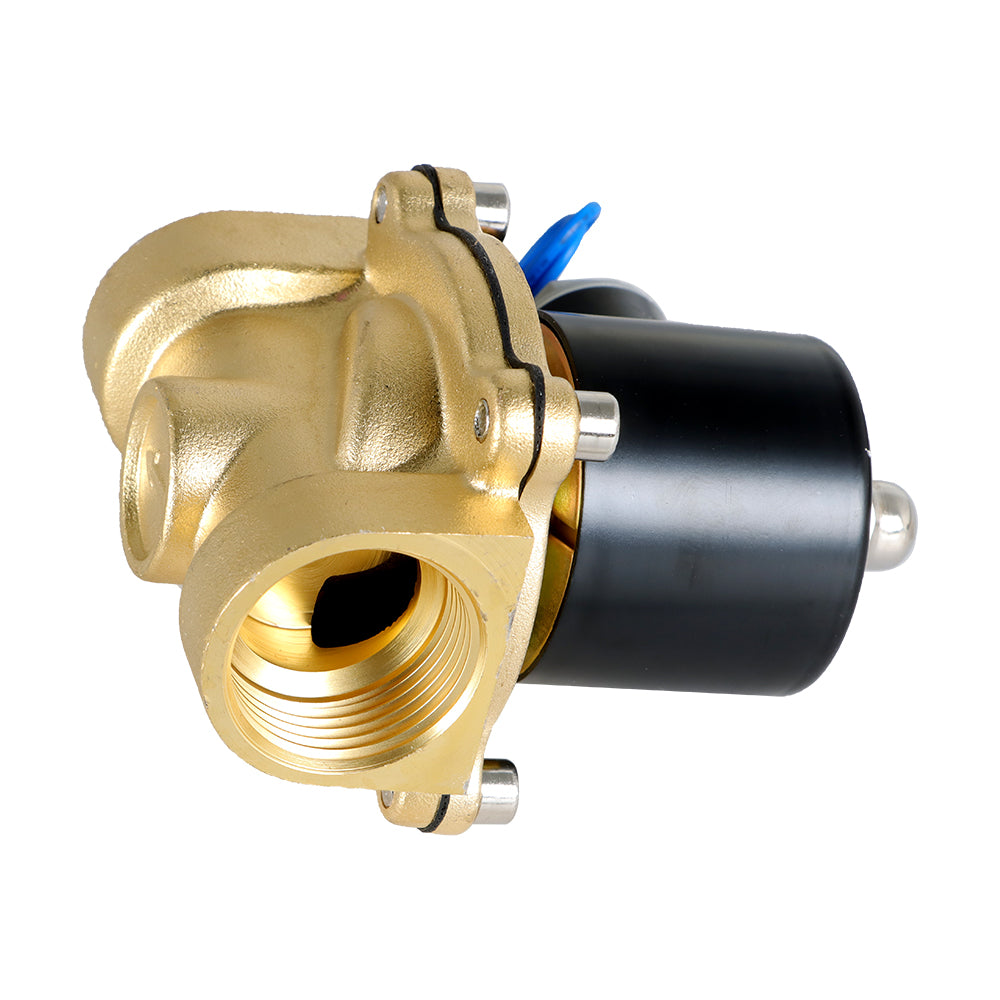

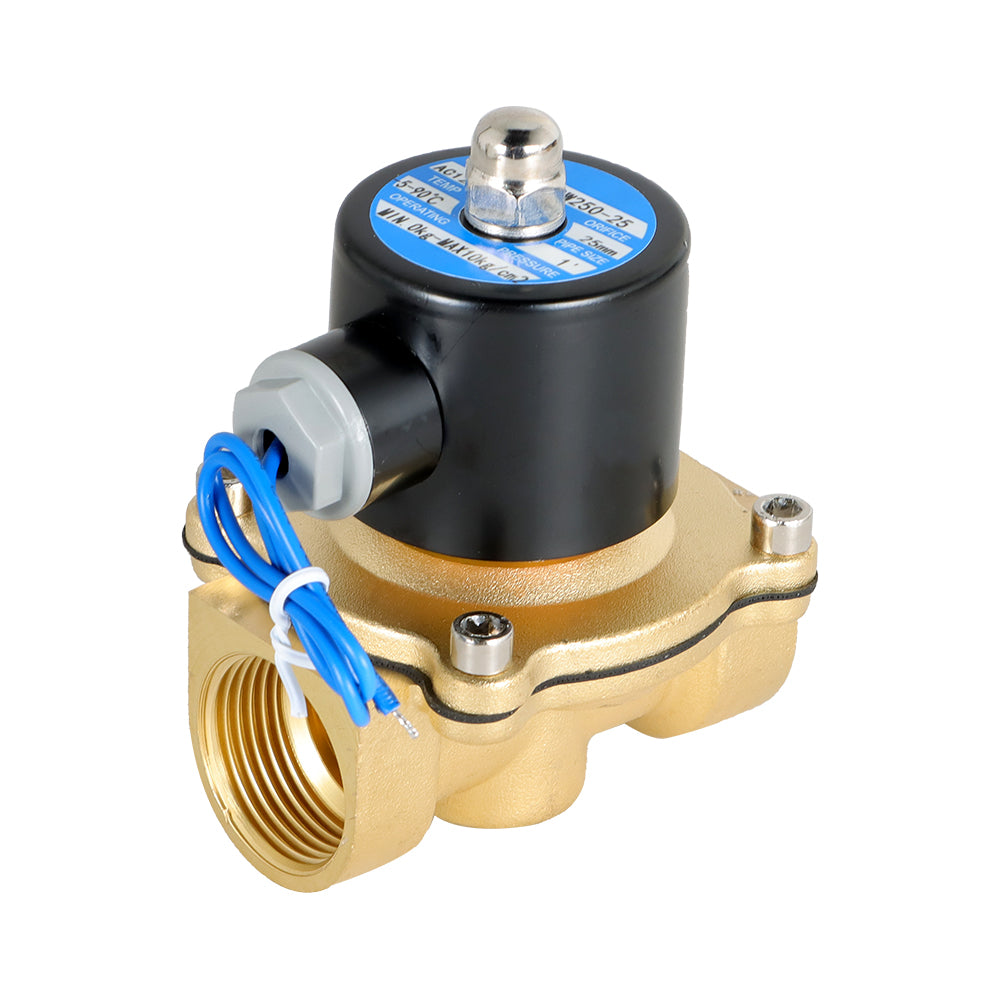

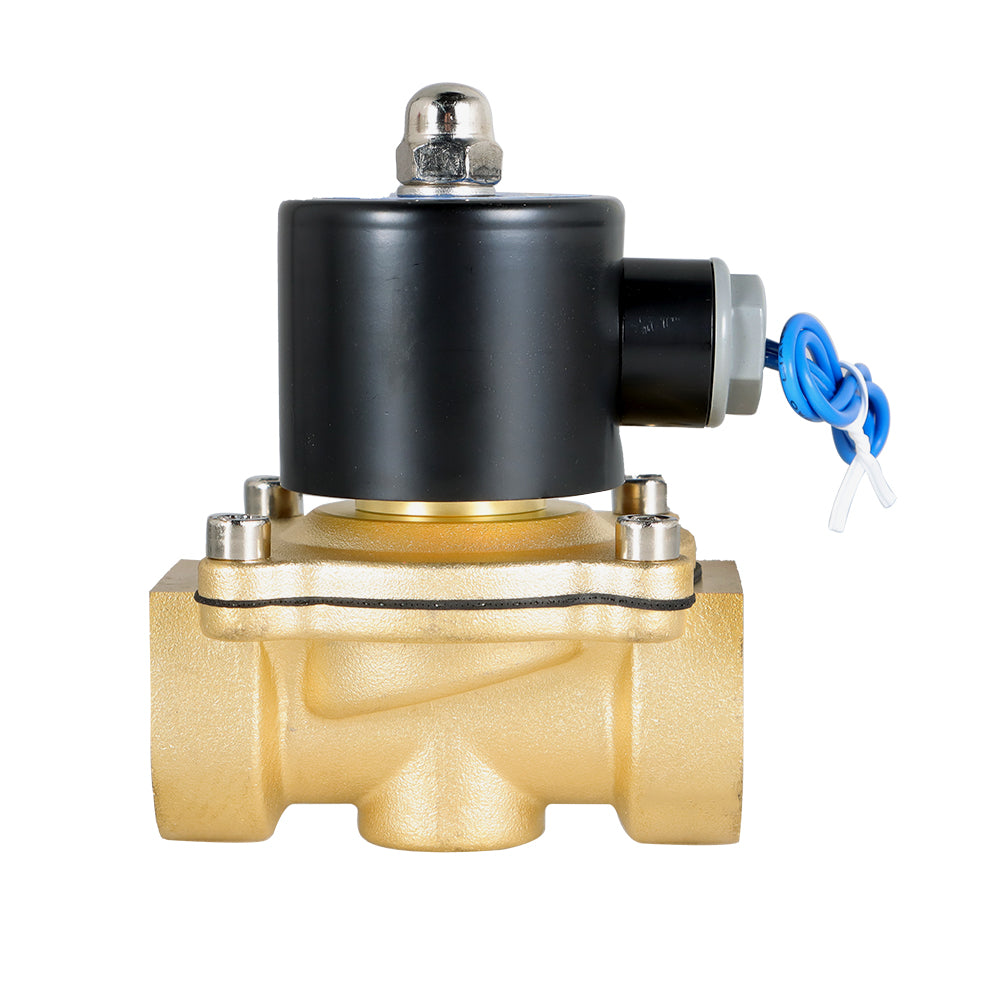

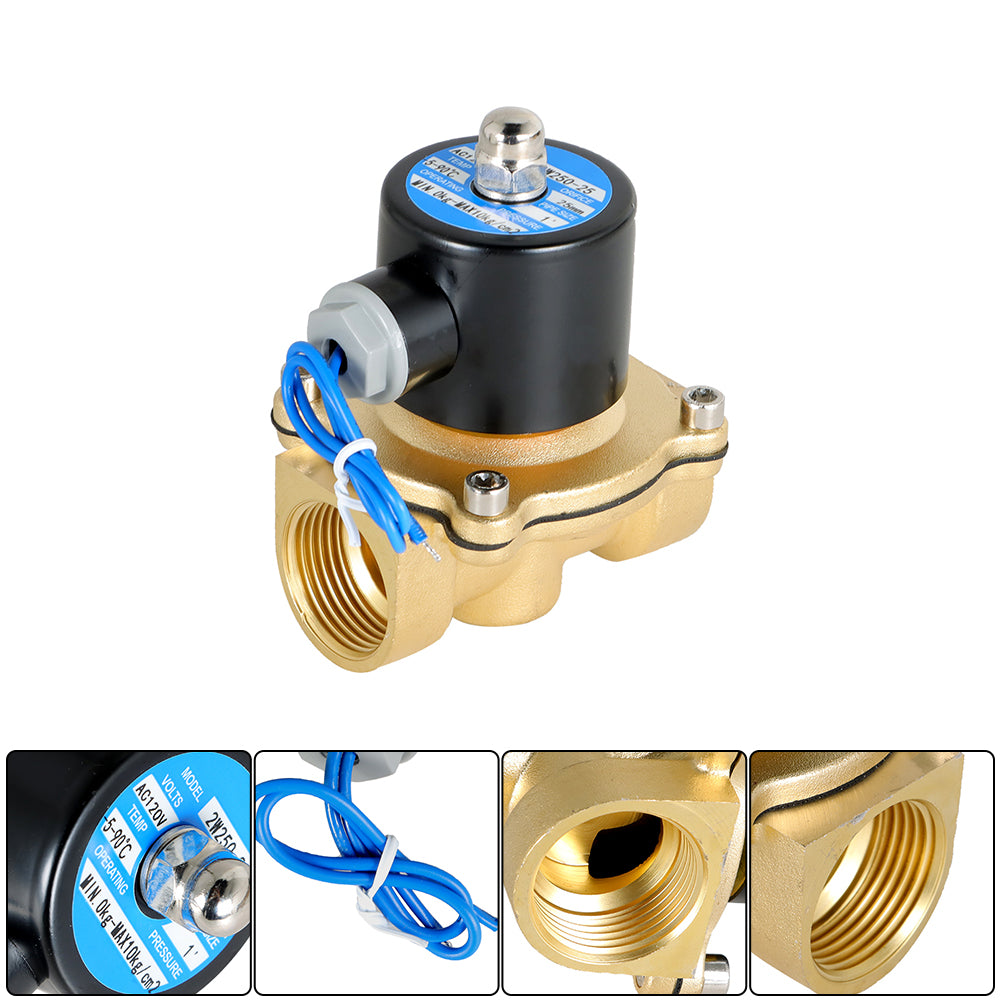

Electric Solenoid Valve Brass Water Air Gas NC 1" NPT 110V 120V Volt AC
Regular price
$35.28
Couldn't load pickup availability
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
Port / Orifice Size
1" NPT (female) inlet / outlet ports
Outer thread diameter / TPI (threads per inch): 1.315 inches / 11.5 TPI
Large internal orifice (1" or 25 mm internal orifice diameter)
Cv value: 12.0
Pressure and Temperature
0 to 145 psi or Vacuum
Max media temp: 90° C
Excellent choice for low pressure applications due to semi-direct lift design
Gravity Feed capable
Suitable Media
Water
Air
Gases
Diesel
Gasoline (with or without Ethanol)
Other media compatible with FKM/Viton
Valve Materials
Valve body: Brass
Plunger and plunger guide tube: Stainless Steel
Diaphragm: FKM (Viton)
Dimensions
Height: 4-1/2"
Width: 2-1/2"
Length: 3-1/4"
Weight: 2 lb 4 oz
