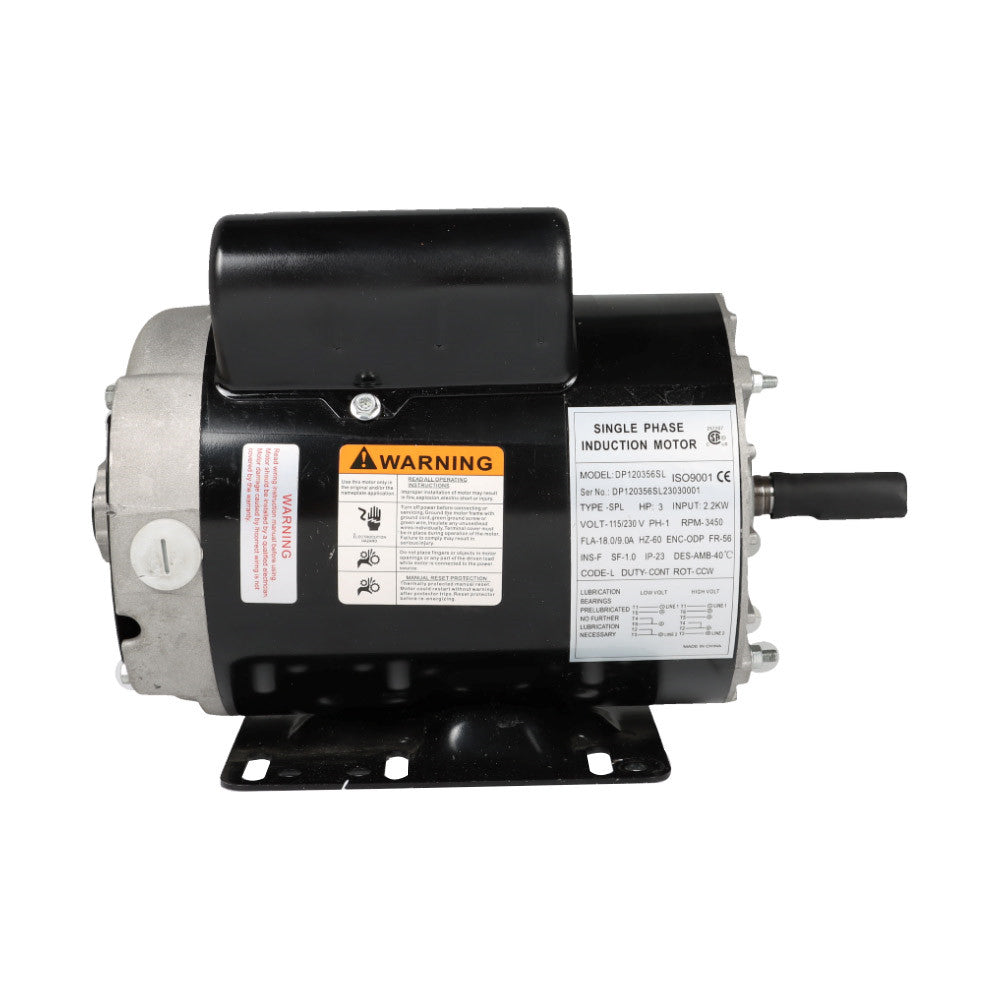

Electric Motor 3 HP 3450 RPM Compressor Duty 56Frame 1Phase 115/230V 5/8" shaft

Specification：

• Model: CM03256
• Type: SPL
• Input: 2.2 kW
• Horsepower: 3 HP SPL
• Voltage: 115/230V
• Phase: Single Phase, 2 Pole
• Amperage: 18/9A
• Rated Speed: 3450 RPM
• Frequency: 60 Hz
• Synchronous Speed: 3600 RPM
• Frame: 56 Frame
• Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft
• Shaft Length: 1.875 in / 4.8 cm
• Rotation: CCW
• Service Factor: 1
• Efficiency: 80%
• Insulation Class: F
• Mounting Type: Base-Mounted
• Enclosure Type: ODP (Open Drip-Proof)
• IP Rating: IP 23
• Current Type: AC
• Single Phase Electric Motor
• Sturdy Steel Construction
• Overload Thermal Protector
• Fast Heat Dissipation
• ODP for Dry Environments

Feature：

• Single Phase Electric Motor: This air compressor electric motor runs at 3 HP SPL. Rated Speed: 3450 RPM, Input: 2.2 kW, Voltage: 115/230V, Amperage: 18/9A, Frequency: 60 Hz, Synchronous Speed: 3600 RPM, Frame: 56 Frame, Shaft Diameter: 5/8 in / 1.6 cm Keyed Shaft, Shaft Length: 1.875 in / 4.8 cm, Rotation: CCW. Push your air compressor to the limits with this well-balanced motor!

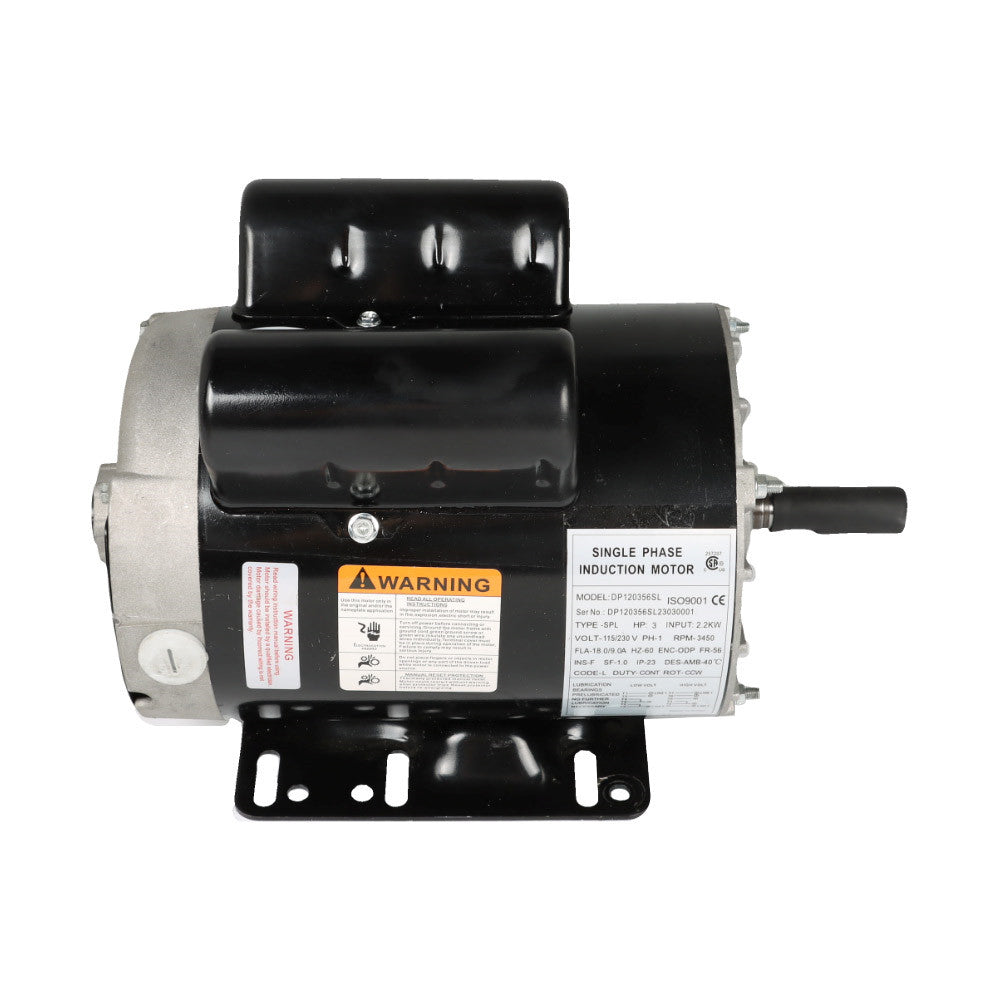

• Sturdy Steel Construction: The 3 HP compressor motor shell is made of premium steel material. The robust and reliable body can guard the internal circuit well against overheating. The attached steel bracket also offers excellent stability. Two capacitors and high-quality ball bearings ensure long service life. Mounting Type: Base-Mounted.

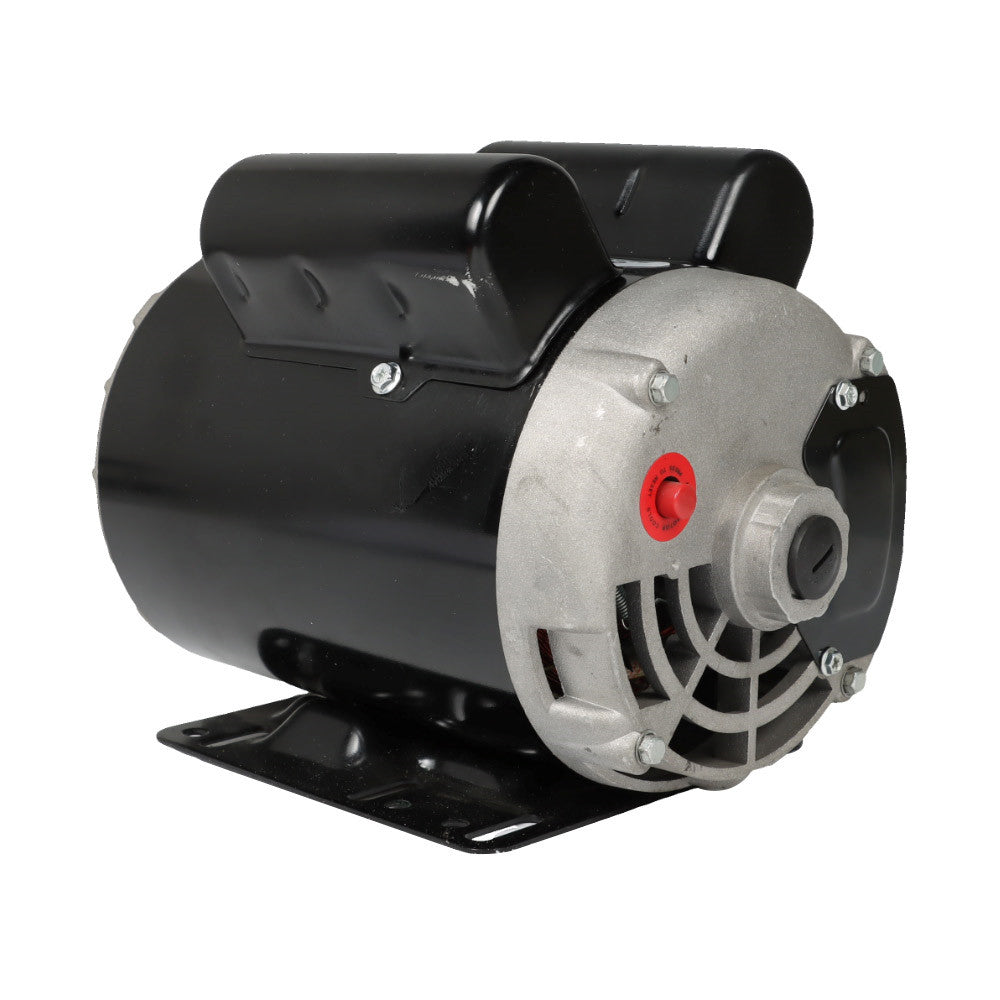

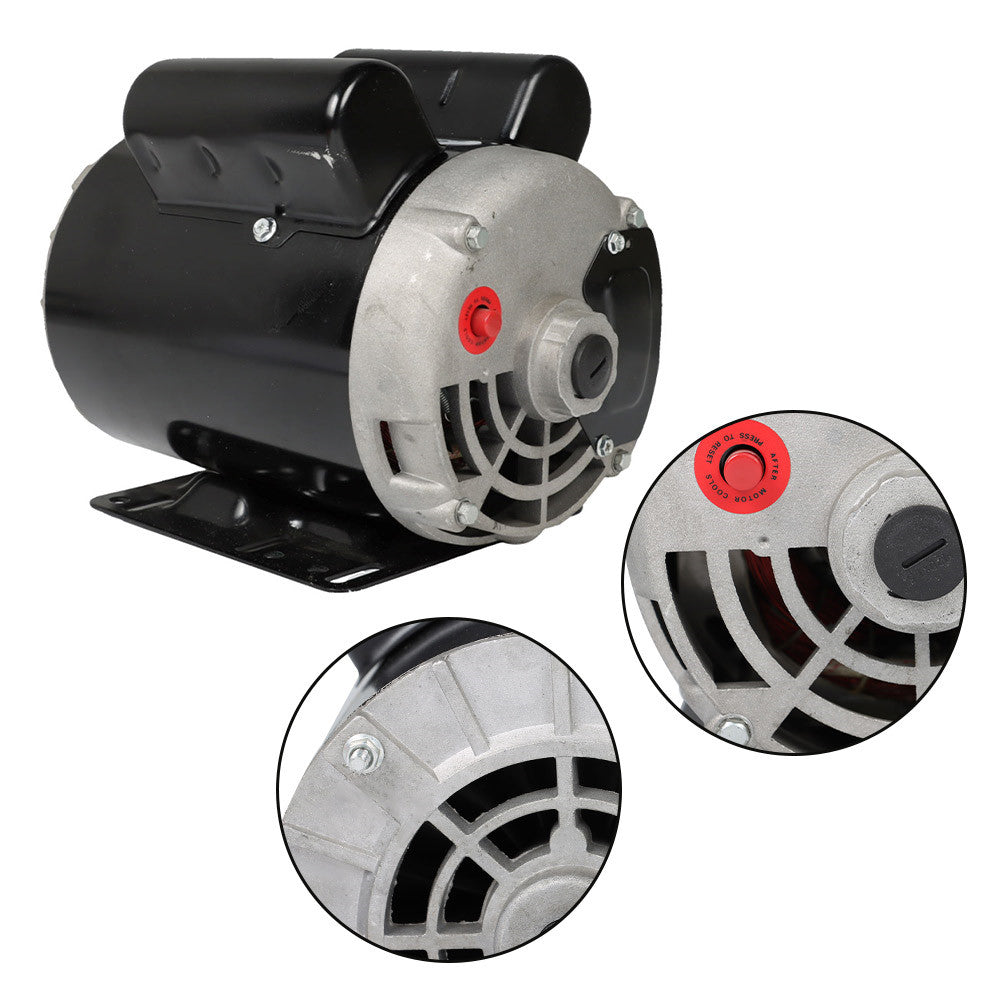

• Overload Thermal Protector: The 3HP electric motor for air compressor adopts a manual reset knob allowing it to stand up against high-temperature overloads. A Reduced starting amperage design ensures the reduced voltage will start at a rated load. Insulation Class: F, Service Factor: 1.

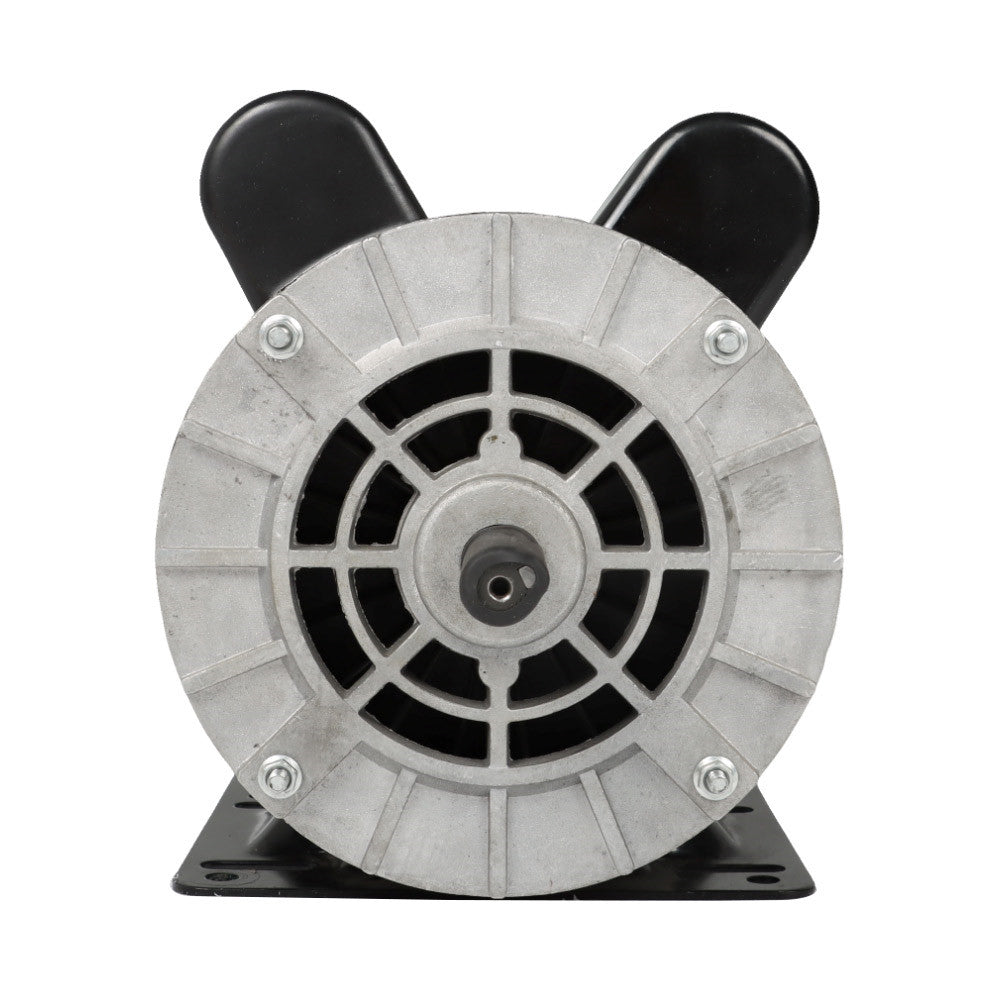

• Fast Heat Dissipation: The 56 frame electric motor has multiple heat dissipation strips for heat dissipation. It can also guard chips and objects against dropping into the motor and causing accidents. Power and protection that you can trust. Works hard while maintaining high performance.
• ODP for Dry Environments: The open drip-proof motor demonstrates optimal performance when used in a relatively clean and dry environment. Specifically designed for air compressor duty uses. Ensure our motor matches the specific specifications listed on your compressor before purchase.

Product Description：

• High-Performance Motor：3 HP electric compressor motor allows you to conserve energy over extended periods, reducing power costs and overheads. It's effortless to move and strong enough to maintain a high working efficiency.
• 3450 RPM High Speed：The compressor motor 230v runs at 3450 RPM, Synchronous Speed: 3600 RPM. Our high-quality steel shaft has toughness, hardness, and the characteristics of low rotating noise and stable operation.
• Rugged & Durable Construction：The 3 horsepower electric motor housing is constructed from reliable metal material, which features robustness, strength, and durability, offering a long service life. A smooth surface provides comfortable use.
• Strip-Shaped Cooling Holes：The table saw motor replacement has multiple heat dissipation holes on both sides. It can quickly dissipate heat while running for a long time, effectively guarding the motor's body.
• Rigid Mounting Bracket：The single-phase commercial-duty open drip-proof air compressor motor comes with a sturdy mounting bracket, which enhances the motor's stability and reduces friction.
• Designed for Air Compressors：This 3 hp single phase electric motor is intended to be used in dry and non-dusty environments. Suitable for various kinds of air compressors and other related appliances.
• Single Phase & ODP Enclosure & For Air Compressor Uses
• Heavy-duty air compressor electric motor is rated at 3 HP SPL 3450 RPM and can be connected to 115/230V incoming power devices. This single-phase 56 frame electric motor conforms to the standard for high hardness and performance, which is well suited for air compressor applications. Built tough to work tough, can you handle that! Our motor will have your air compressor roaring for the next job!

Package Contents：

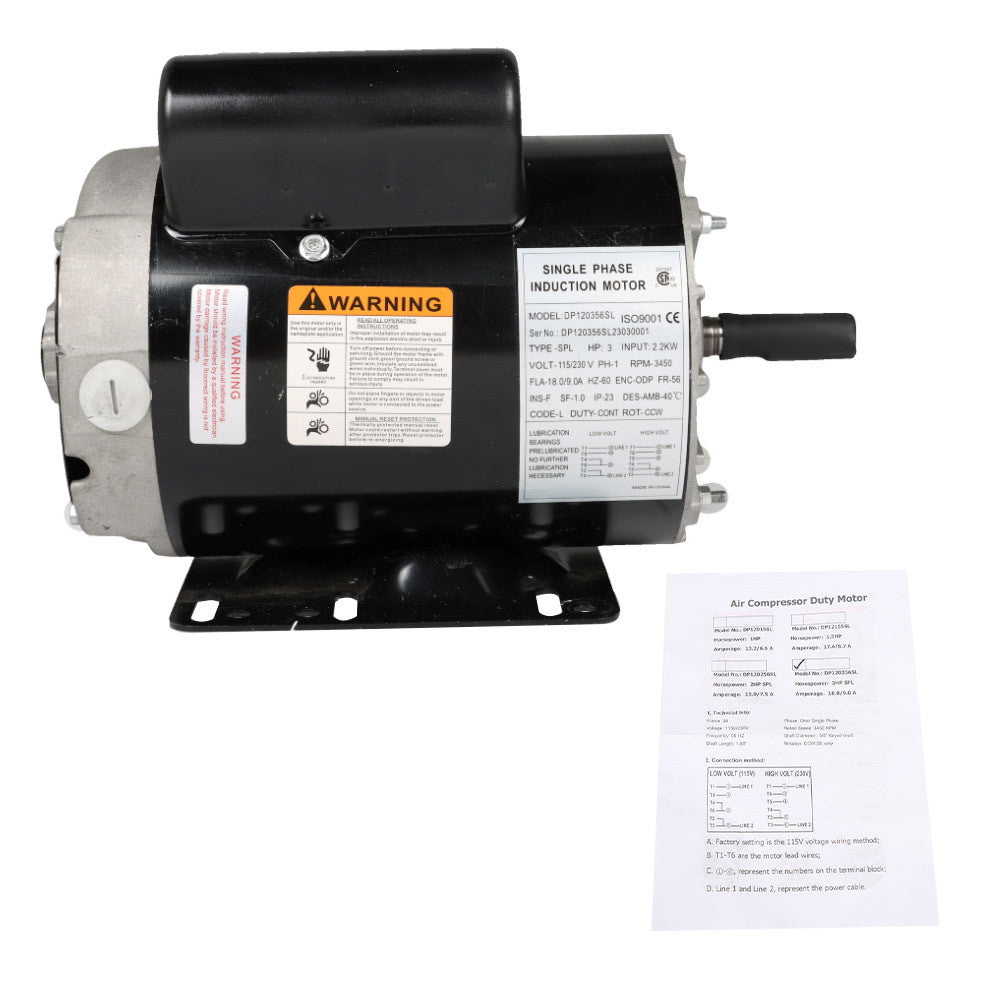

• 1 x Air Compressor Electric Motor
