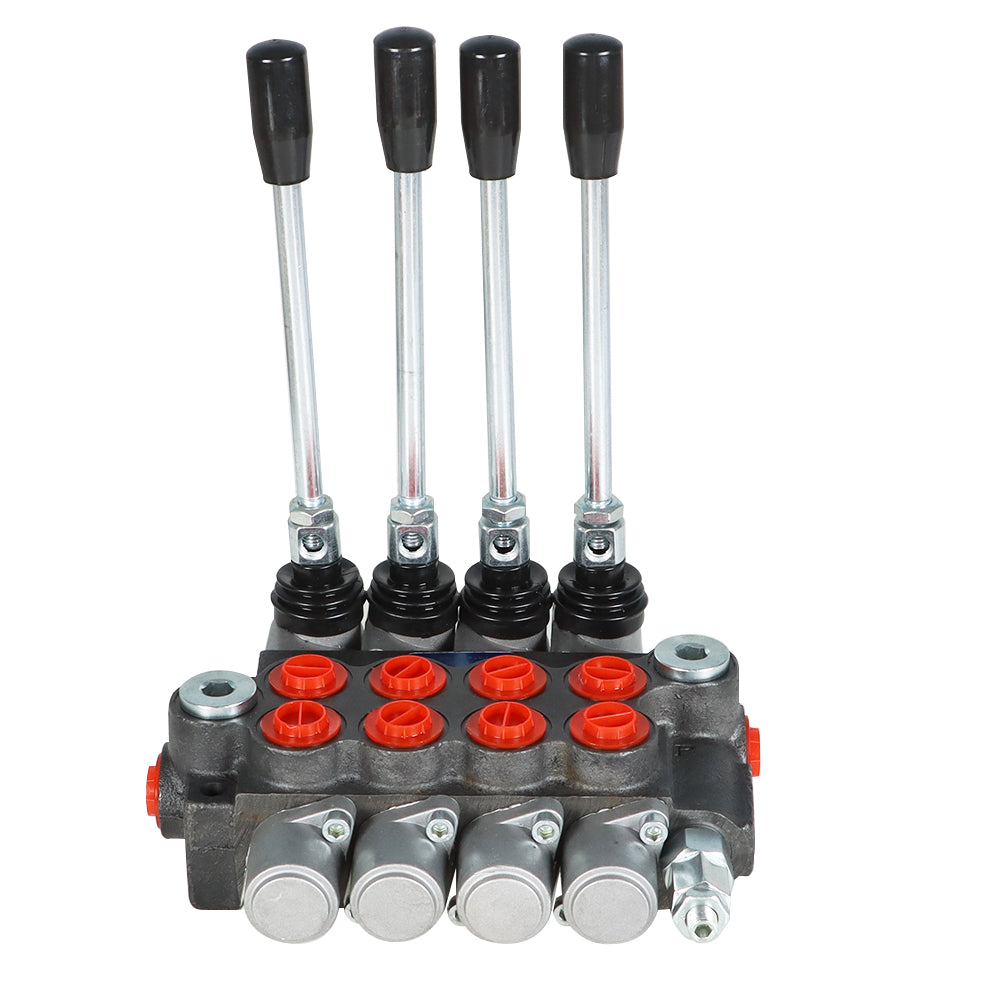

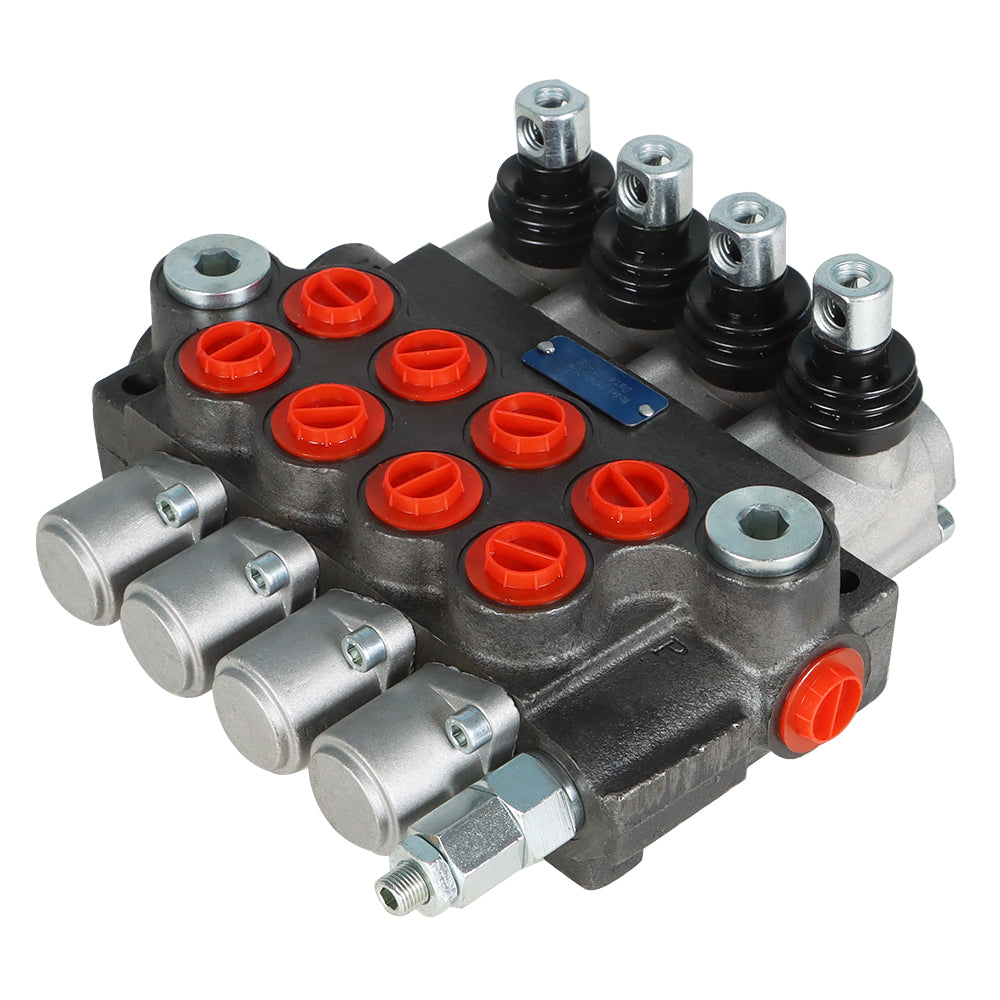

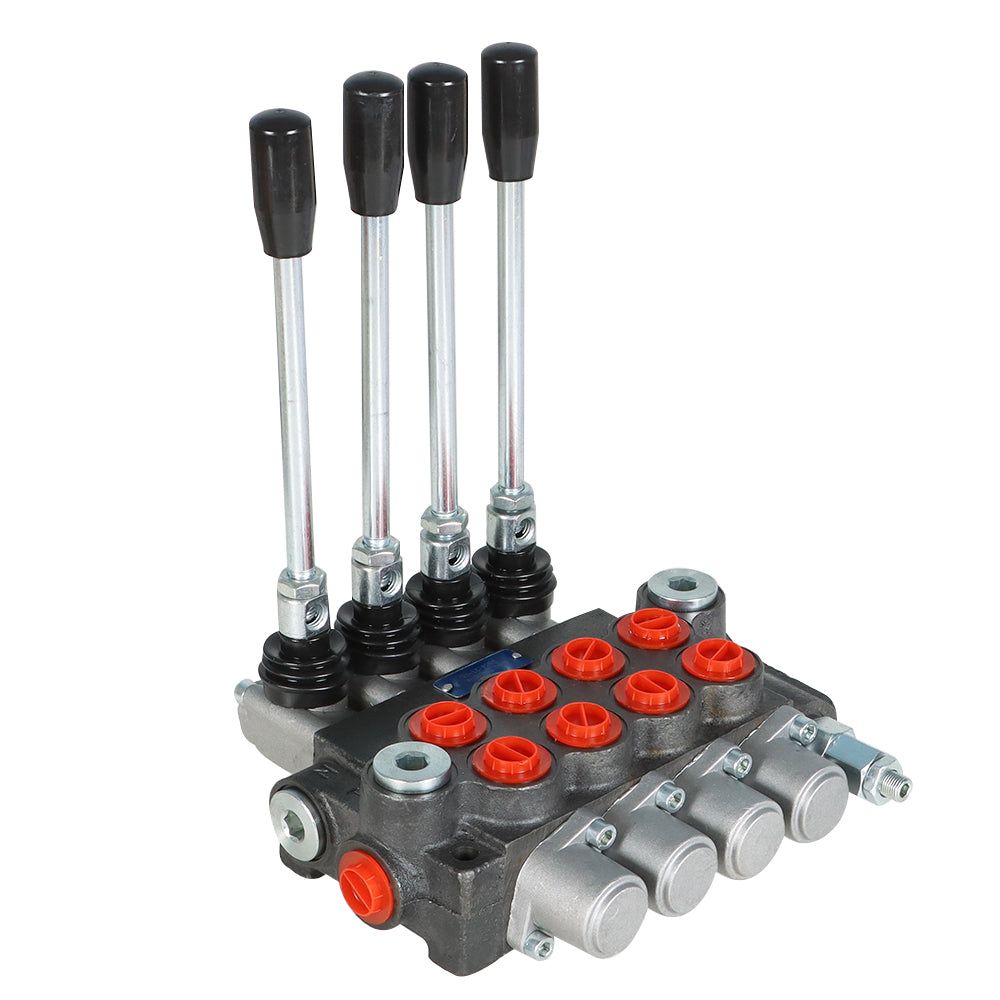

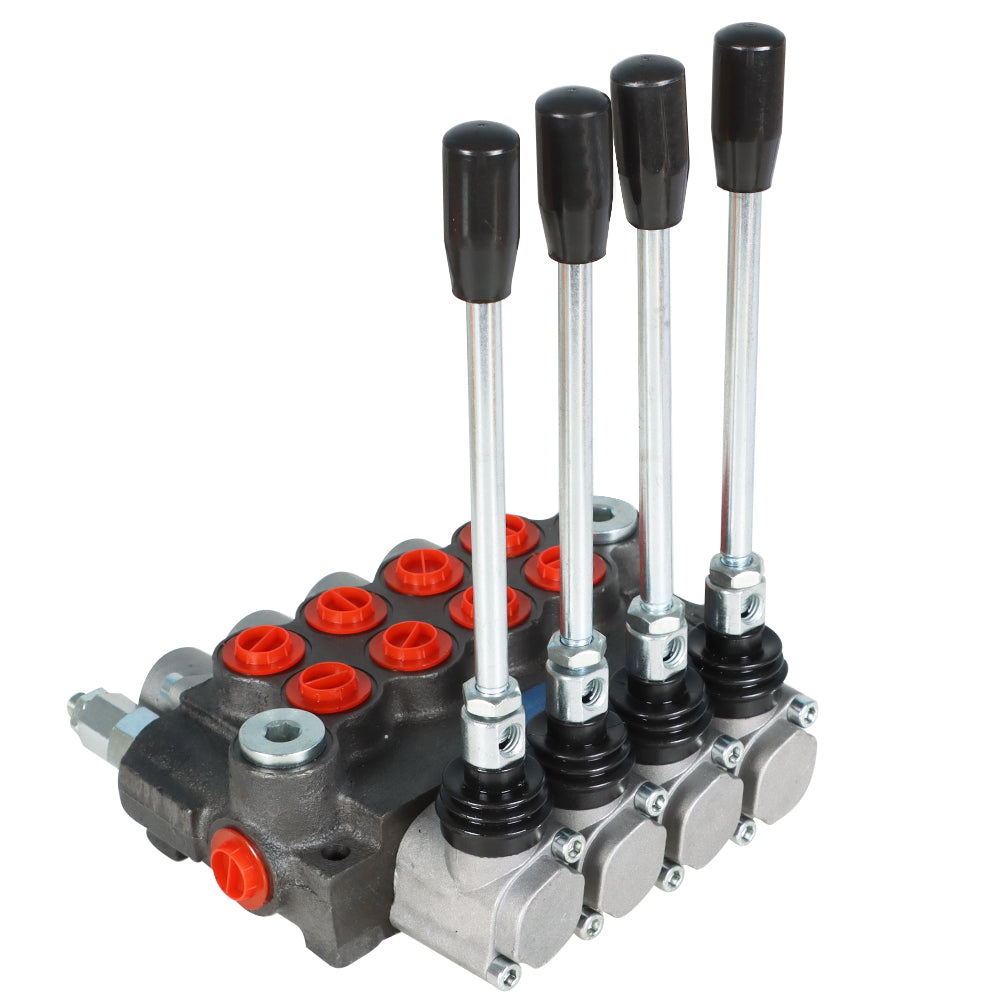

Double Acting Cylinder BSPP,Hydraulic Directional Control Valve 4 Spool 11gpm

Product Description:

1. The compact design of 4 Spool monoblock valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.

2. The adjustable release valve and durable cast iron body is easy to use. All spools are standard double acting with spring return in neutral position.

Features:

1. Compact design use in small tractors, tractors loaders, log splitters, etc

2. Release valve adjustable

3. Spring center to neutral all spools

4. Durable cast iron construction provides long-term usage

5. Brand new condition

Specifications:

Max operating pressure: P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar)

Nominal flow: 11gpm (40l/min)

Relief valve pressure: 17MPa

Center system: Open

A, B ports: G1/2"

P, T, N port: G1/2"

Package Includs:

1 × 4 spool hydraulic directional control valve 11gpm double acting cylinder spool
