D1105 Overhaul Rebuild Kit For Kubota D1105 Engine Tractors B2620HSD RTV1100RW9

Fitment：

Engine Model: D1105 D1105 IDI

For Kubota Tractors B1750D B1750E B2400HST, B2400STE, B2410HSD, B2410HSDB, B26, B2630HSD, B2620HSD, B7610HSD, F2400, F2560E, F2880, F2680E, FZ2400, U25S, KX41,KX41-2S, KX41-2, KX61-2, KX61-2S,  KX36-2,KX41H, RTV1100, RTV1100CW9, RTV1140CPX, RTV1100RW9, ZD28

Liners Part number: 16060-02310 (TL:152.0mm ID:78.0 OD:81.5mm)

Piston Part number: 16060-21114 (TL:69.5mm Piston Pin: 22.0*60.0mm)

Rings Part number: 16393-22050 (2.0H*1.5*4.0mm)

Full Gasket Kit Part number: 16265-99352

head gasket Part number: 16261-03310

Cylinder head part number: 1G065-03044 1G06503044;

1J096-03040 1J09603040;

16060-03042 1606003042;

16022-03043 1602203043;

16022-03044 1602203044;

16027-03040 1602703040;

1G065-03044R 1G06503044R;

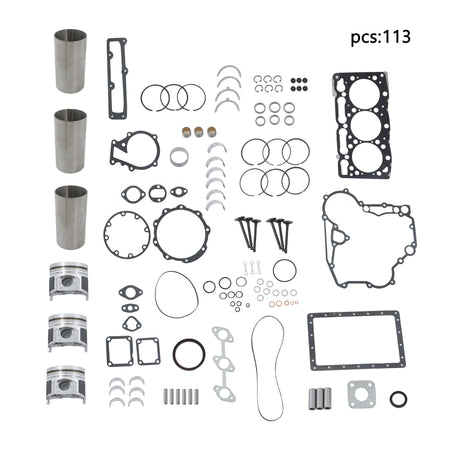

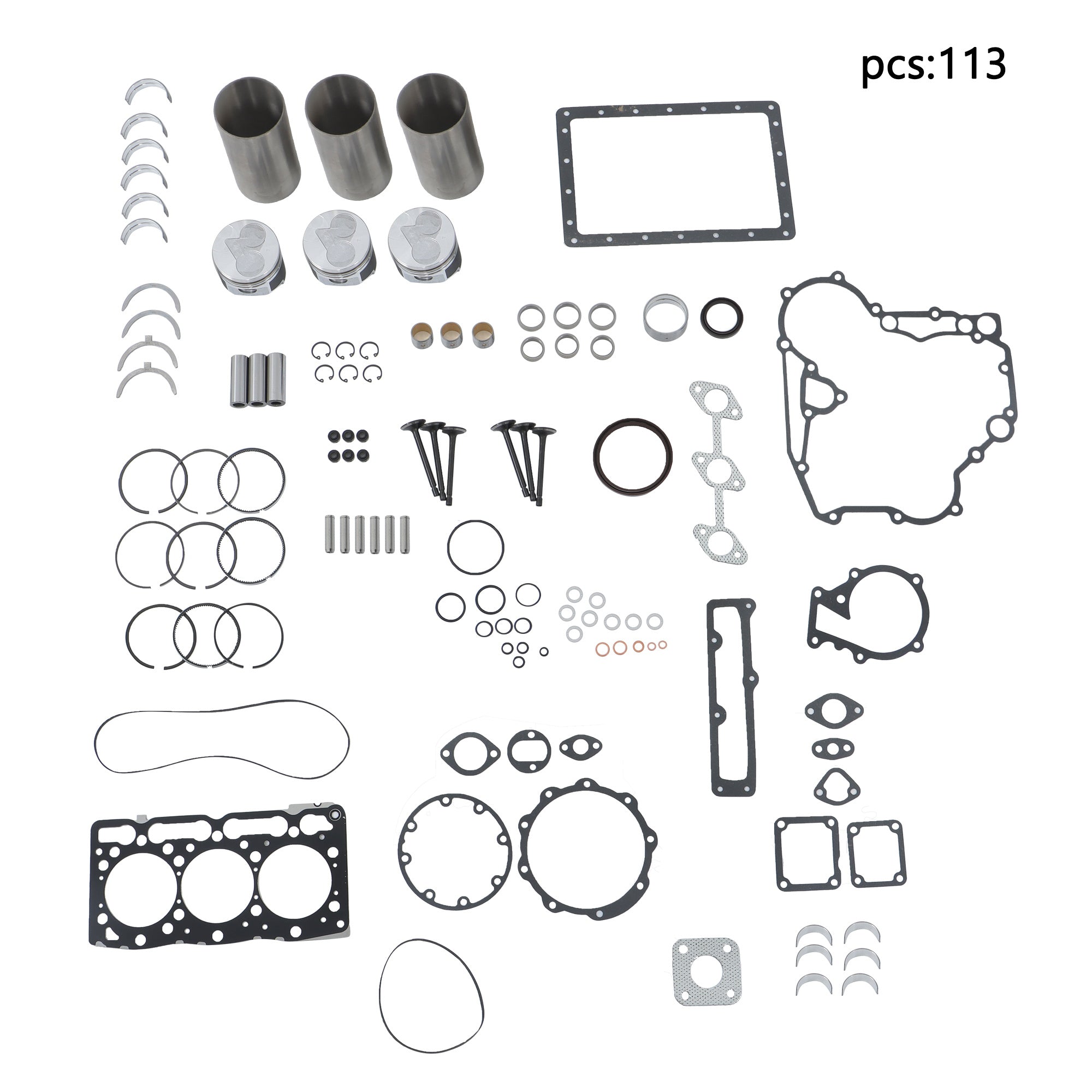

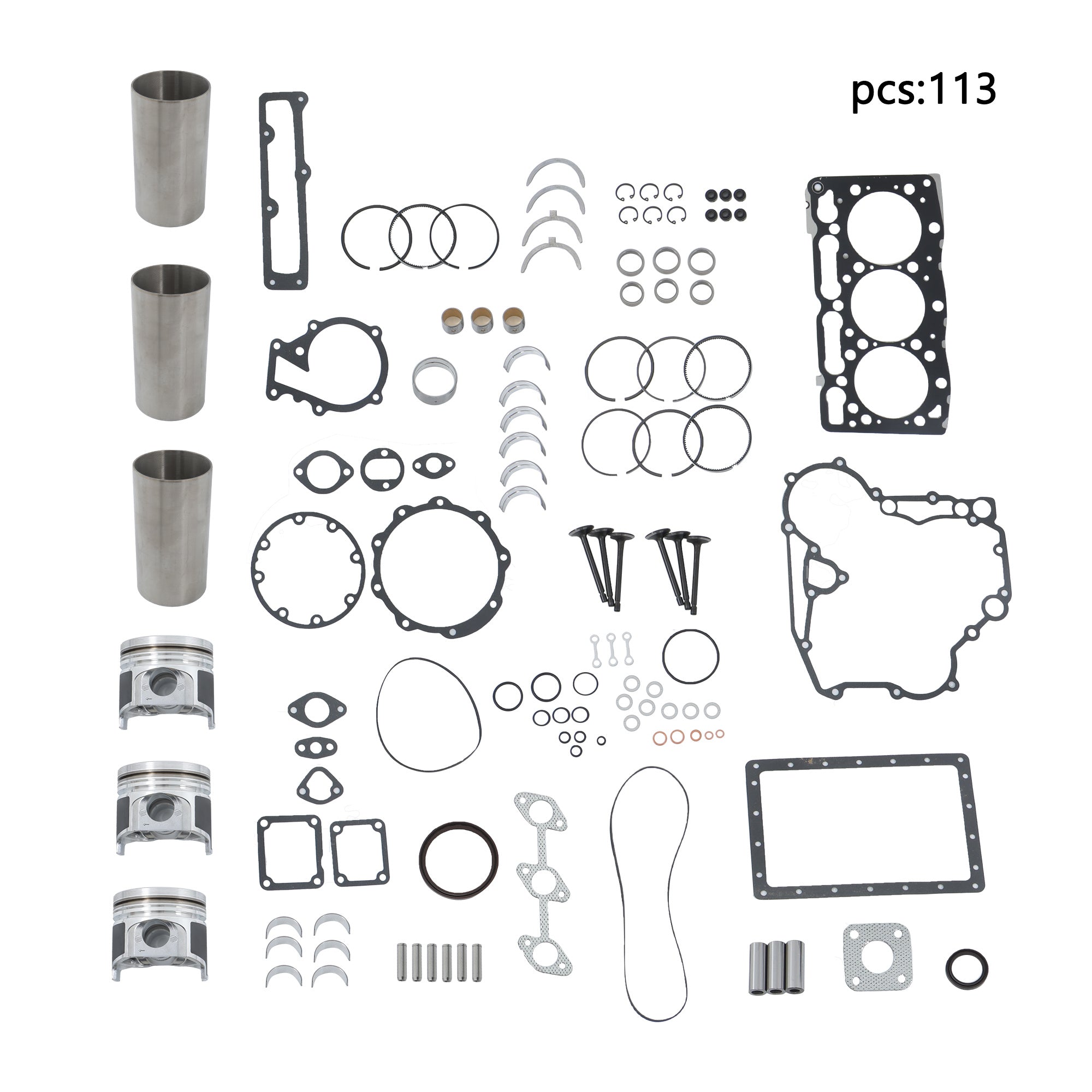

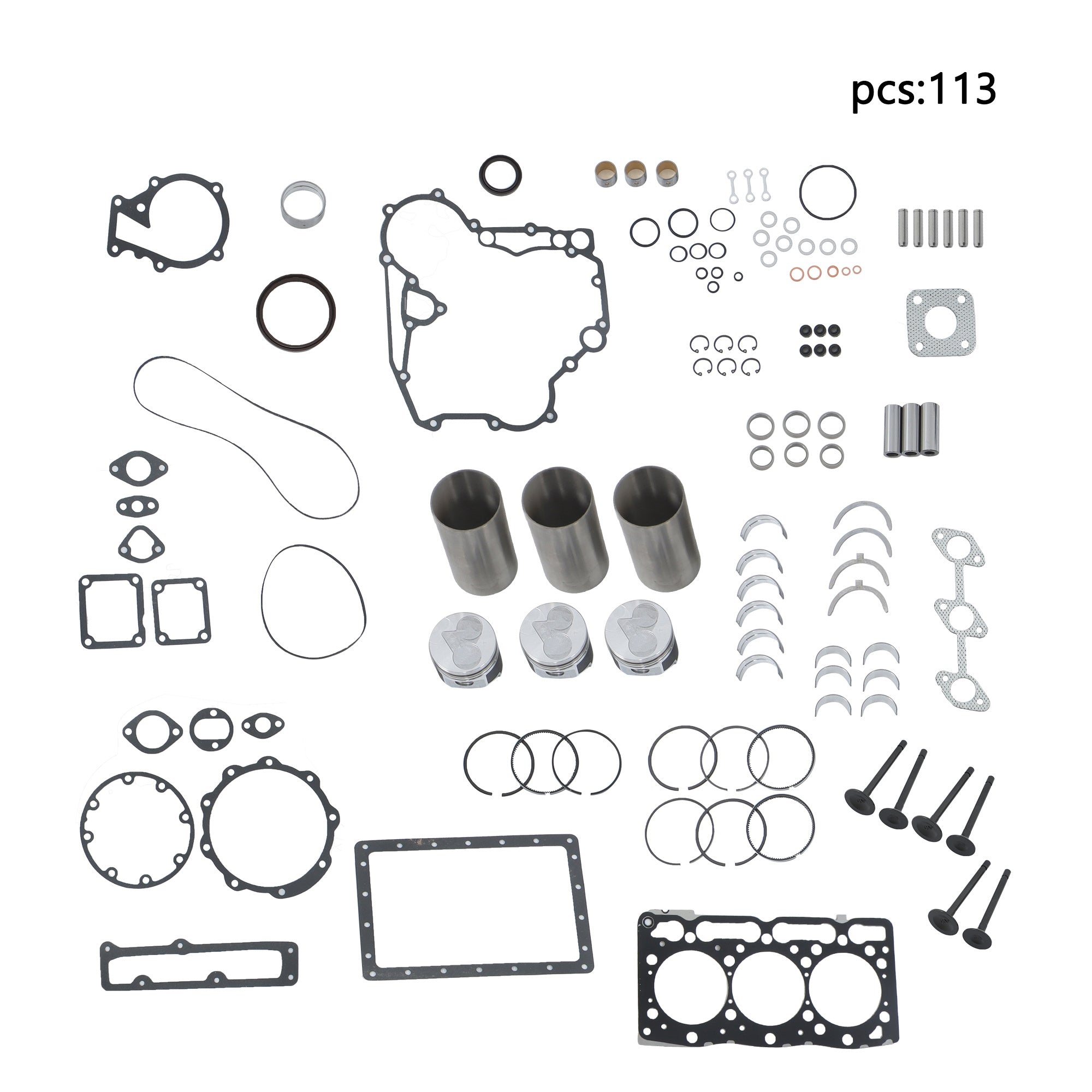

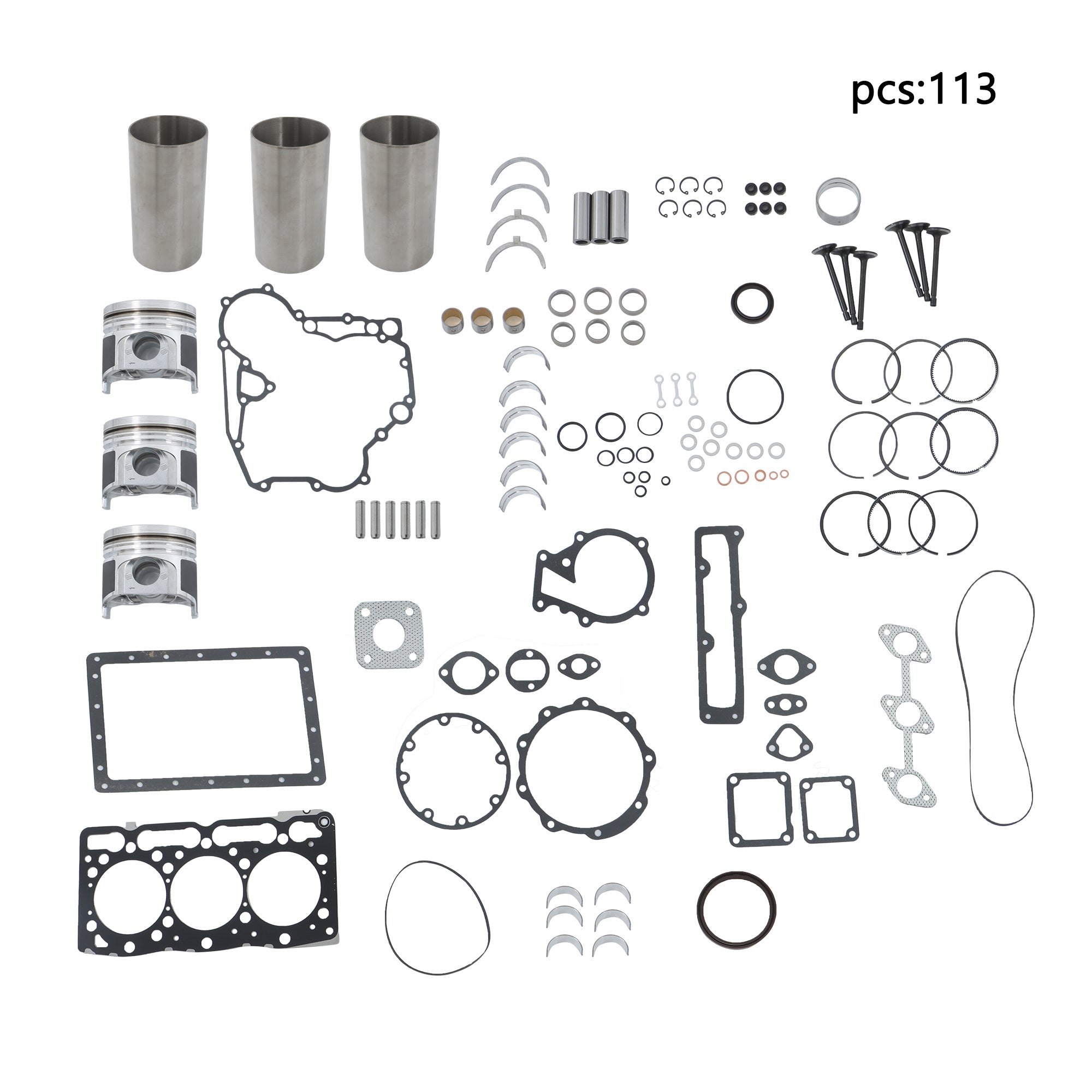

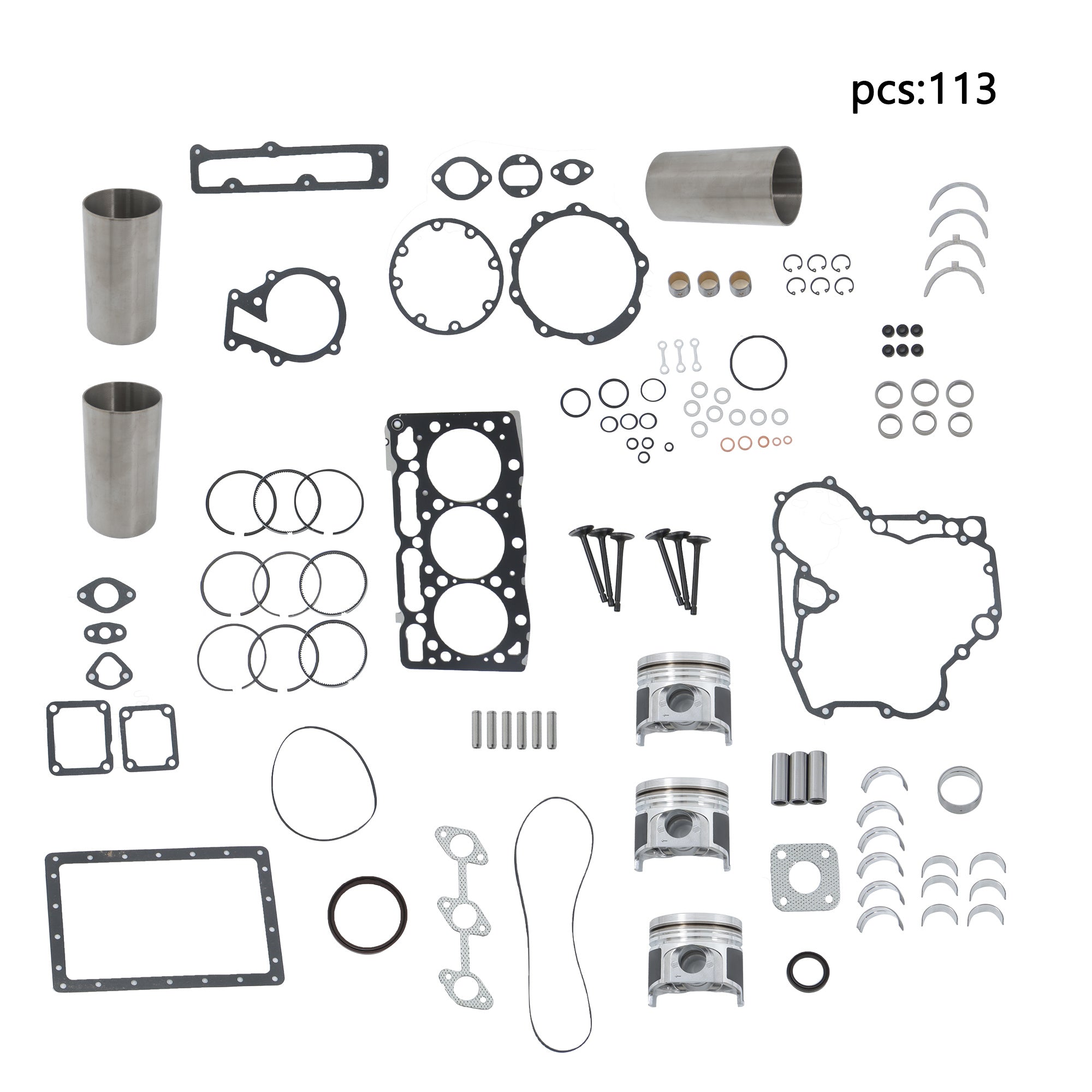

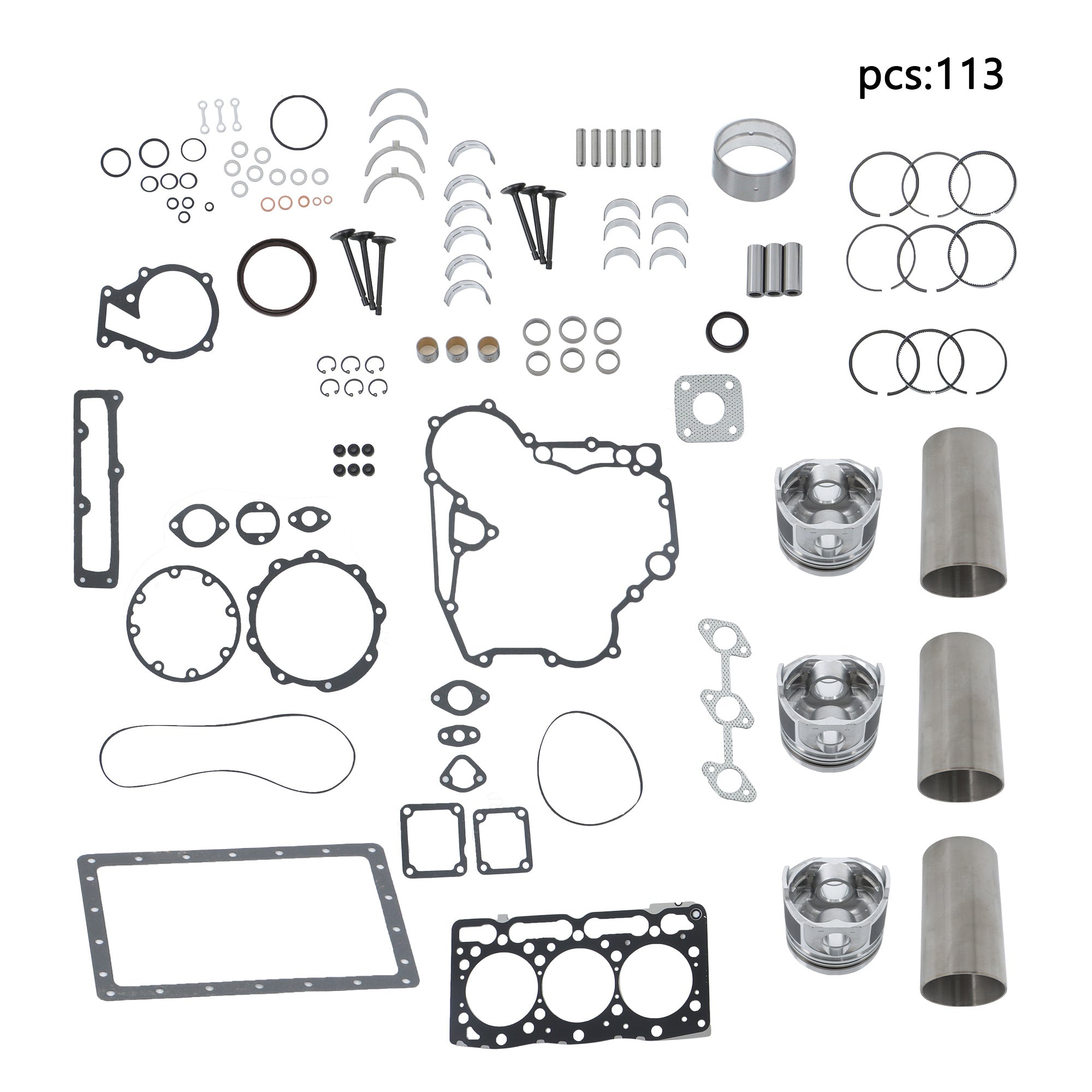

Package Included：

1 Set Full Gasket Kit with Head Gasket

3 Pieces STD Cylinder Liners (Semi-finished)

3 Pieces STD Piston

3 Sets STD Piston Rings

3 Pieces STD Piston Pin

3 Pairs STD Piston Clip

6 Pieces Valve Guides

3 Pieces Intake Valves

3 Pieces Exhaust Valves

3 Pieces Intake Valves Seats

3 Pieces Exhaust Valves Seats

1 Set STD Crankshaft / Main Bearing

1 Set STD Connecting Con Rod Bearing

1 Set STD Thrust Washer / Bearing

1 set of cylinder head assembly
