Cylinder Piston Gasket Top End Kit For Honda 1984-1987 Spree NQ50
Regular price
$29.69
Couldn't load pickup availability
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
FITS FOR：
For Honda NQ50 Spree 1984-1987

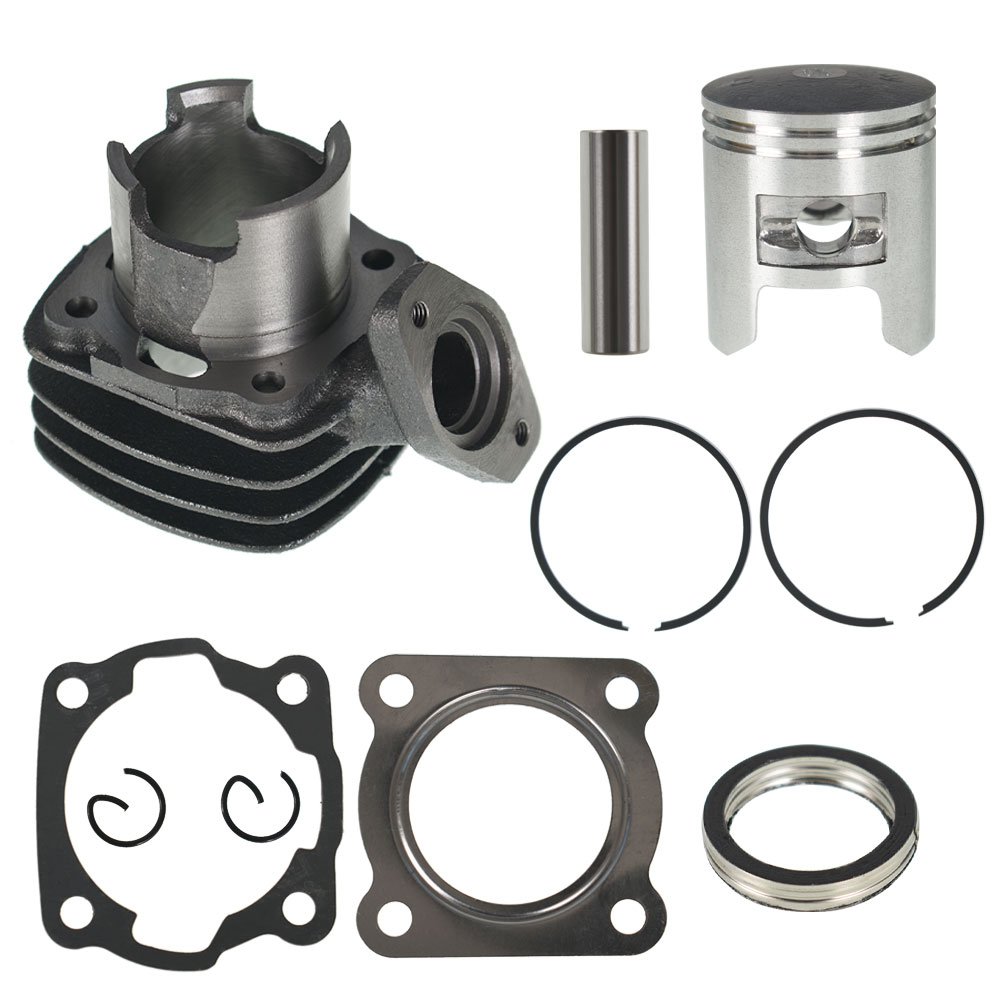

Include:

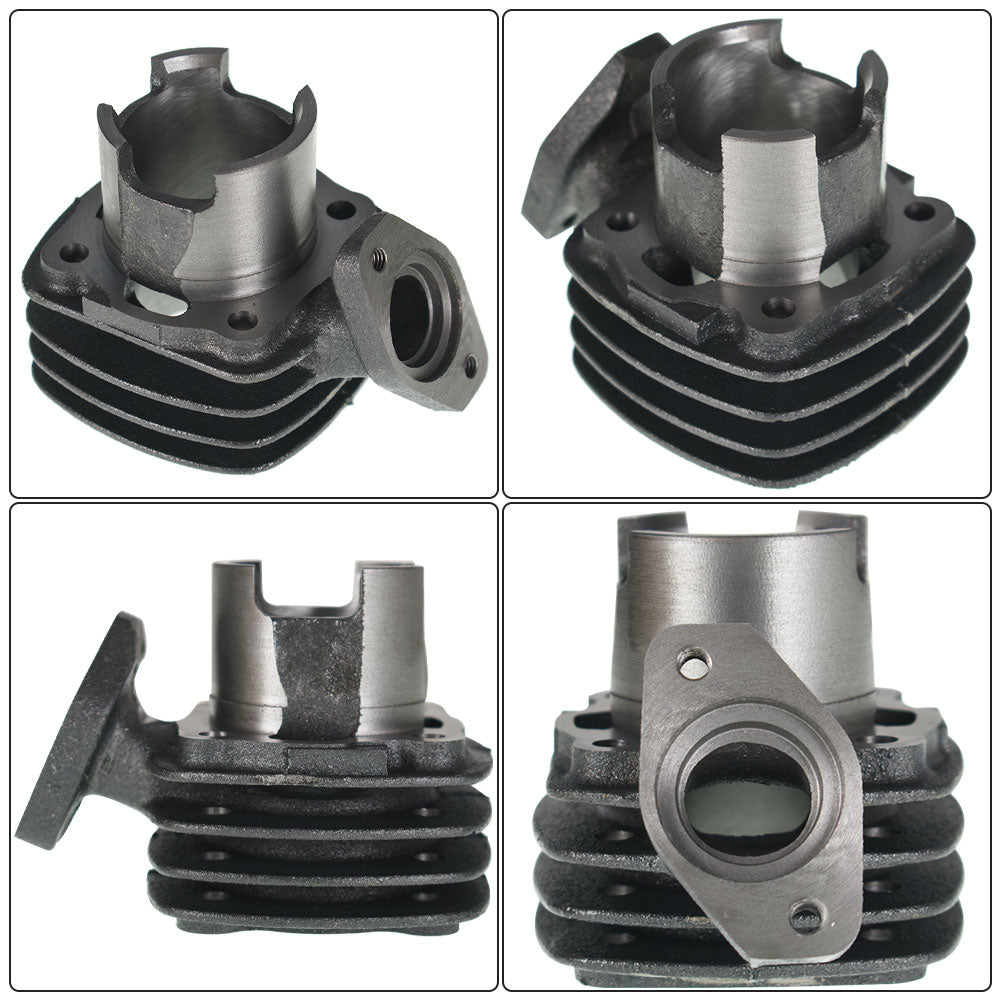

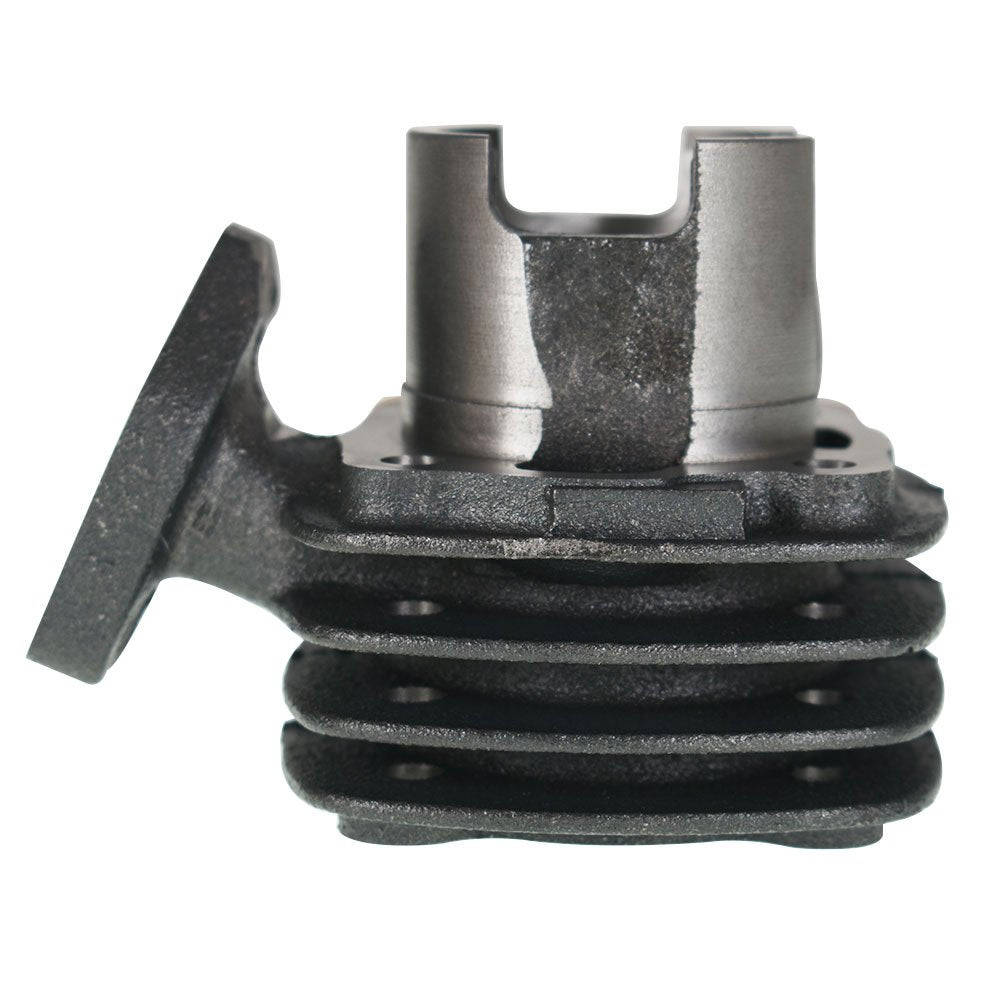

1x Cylinder
1x Gasket Set(2)

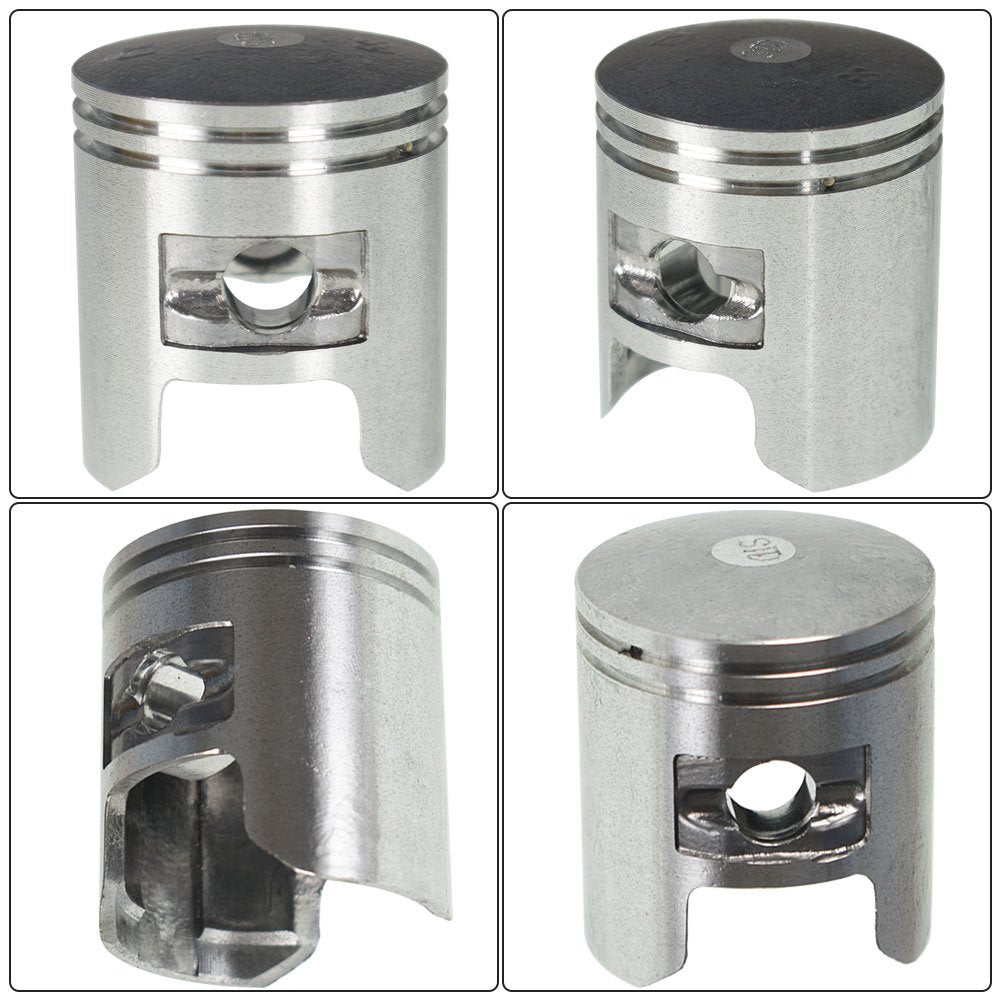

1x Piston

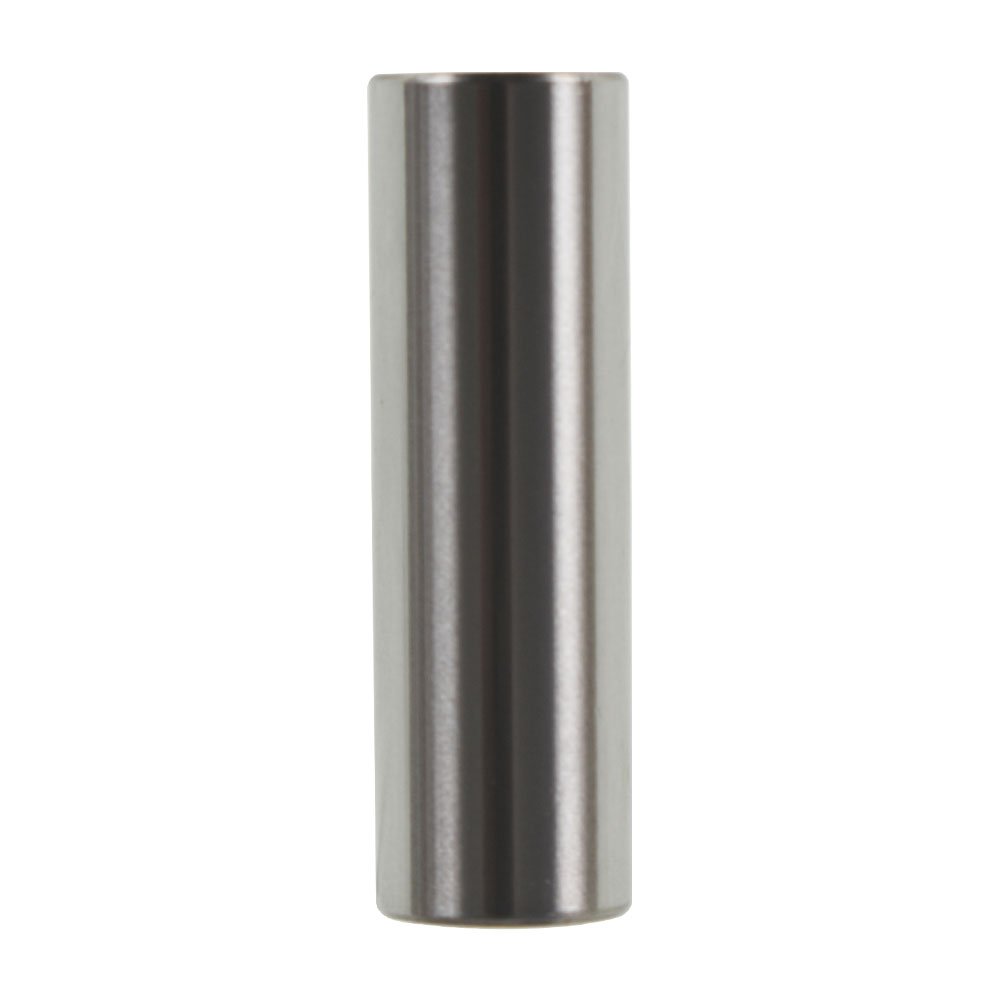

1x Pinston Pin

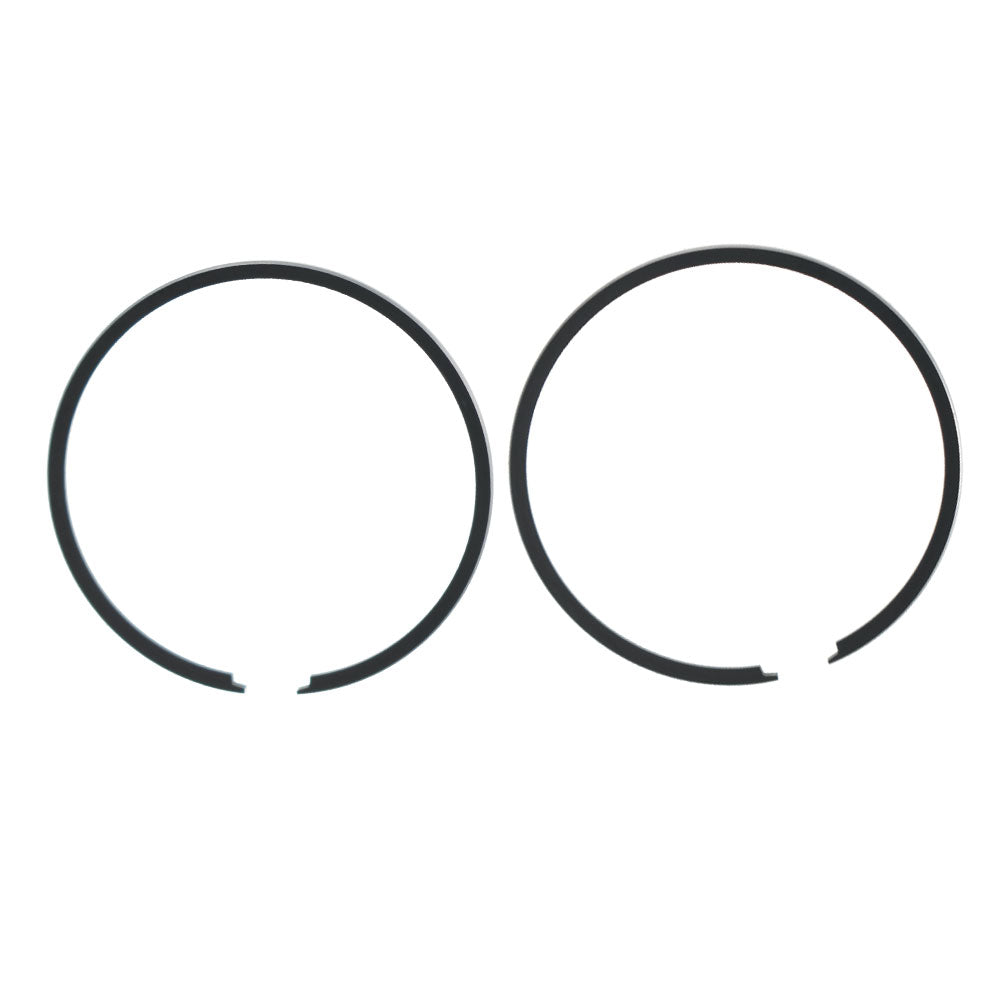

1x Piston Rings Set(5)
2x Cir-Clips
Cylinder bore 40.6mm.
Cilinder bolt hole centres 48mm. (bolt hole diameter is 7mm)
Piston pin diameter. 10mm.
Exhaust flange bolt centres 46mm.
Exhaust hole 30mm
The diameter for the bolt hole to adapt Exhaust is 5mm
Bore extension into crank case 37mm.
O/d of bore extension 51mm.
