Cylinder Jug w/ New Piston & Top End Kit For 2003-2010 11 Kawasaki Bayou KLF 250

Features:

If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Piston is anodized for superior heat resistance and longer lifespan.
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.

Replacement Part Number:
Cylinder: 11005-1965
Cylinder Base Gasket: 11061-1104
Cylinder Head Gasket: 11004-1375
Piston (Std): 13001-1663
Pin, Piston: 13002-1004
Piston Ring Set (Std): 13008-1209
Circlips, piston (2): 92033-1161

Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum
Displacement: 228cc
Bore Type: Standard Bore

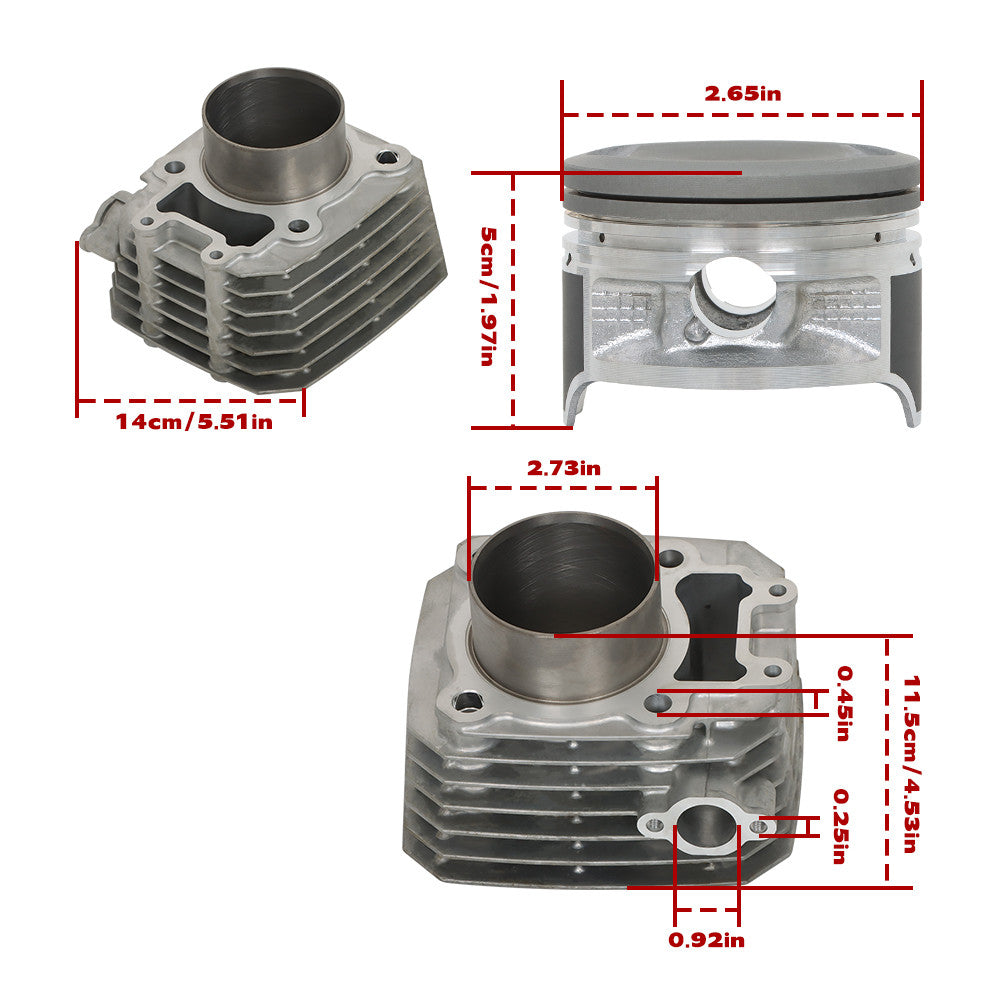

Bore diameter: STD 69mm
Stroke: 61mm
Pin diameter: 16mm

Fits: List clearly so you can find it easily
For Kawasaki ATV 2003 Bayou 250 - KLF250-A1
For Kawasaki ATV 2004 Bayou 250 - KLF250-A2
For Kawasaki ATV 2005 Bayou 250 - KLF250-A3
For Kawasaki ATV 2006 Bayou 250 - KLF250A6F
For Kawasaki ATV 2007 Bayou 250 - KLF250A7F
For Kawasaki ATV 2008 Bayou 250 - KLF250A8F

For Kawasaki ATV 2009 Bayou 250 - KLF250A9F
For Kawasaki ATV 2010 Bayou 250 - KLF250AAF
For Kawasaki ATV 2011 Bayou 250 - KLF250ABF

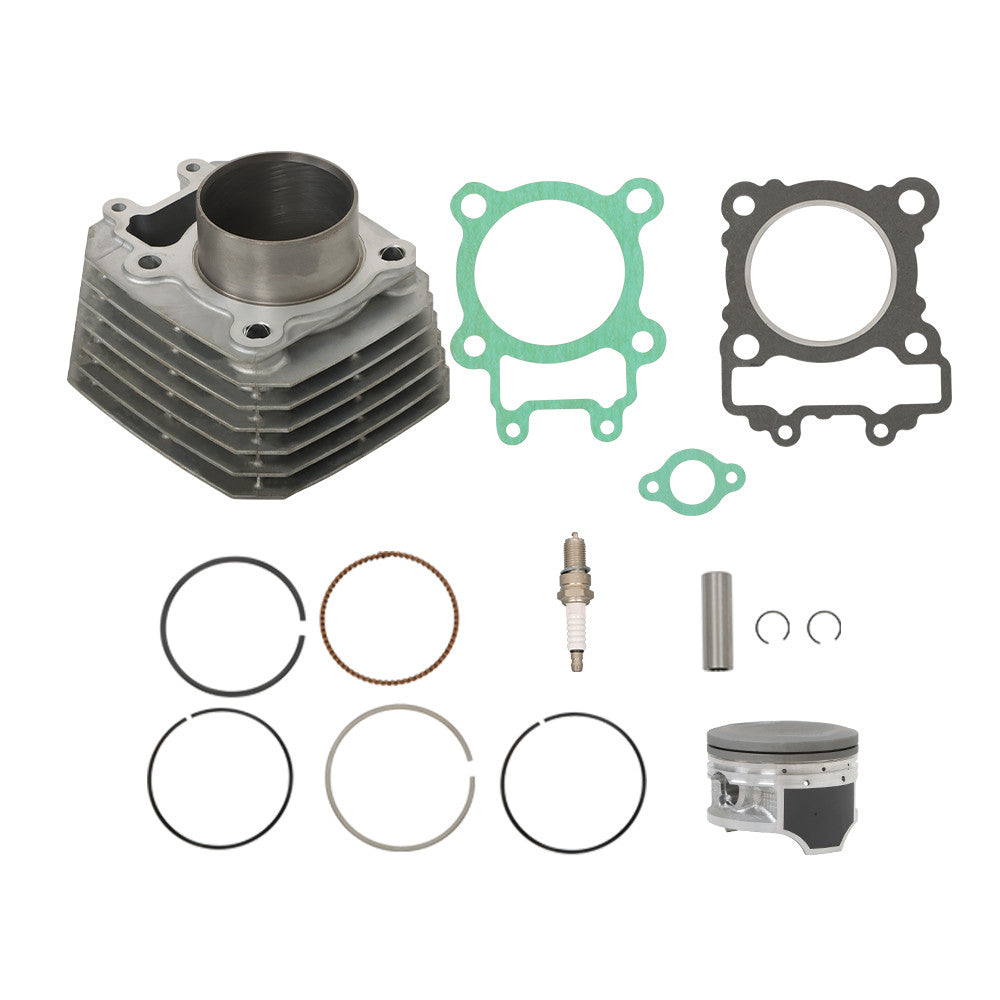

Package Includes:

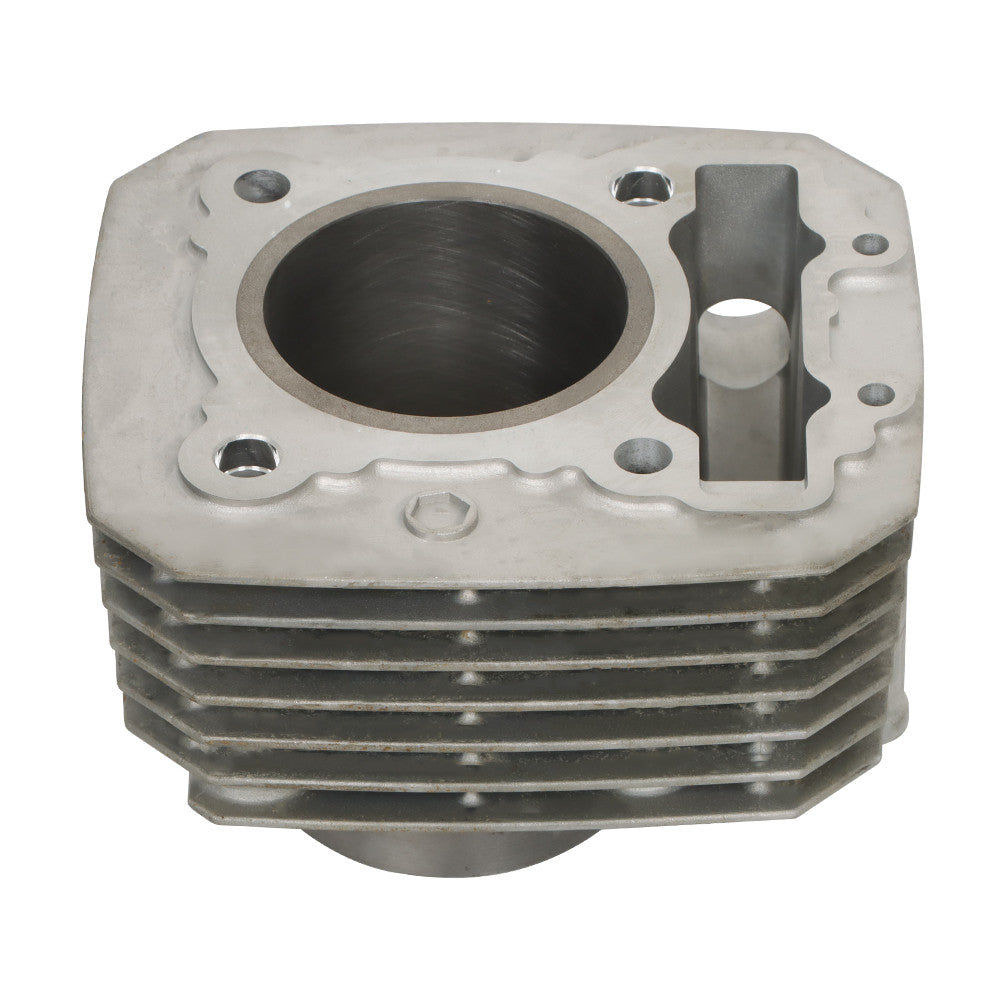

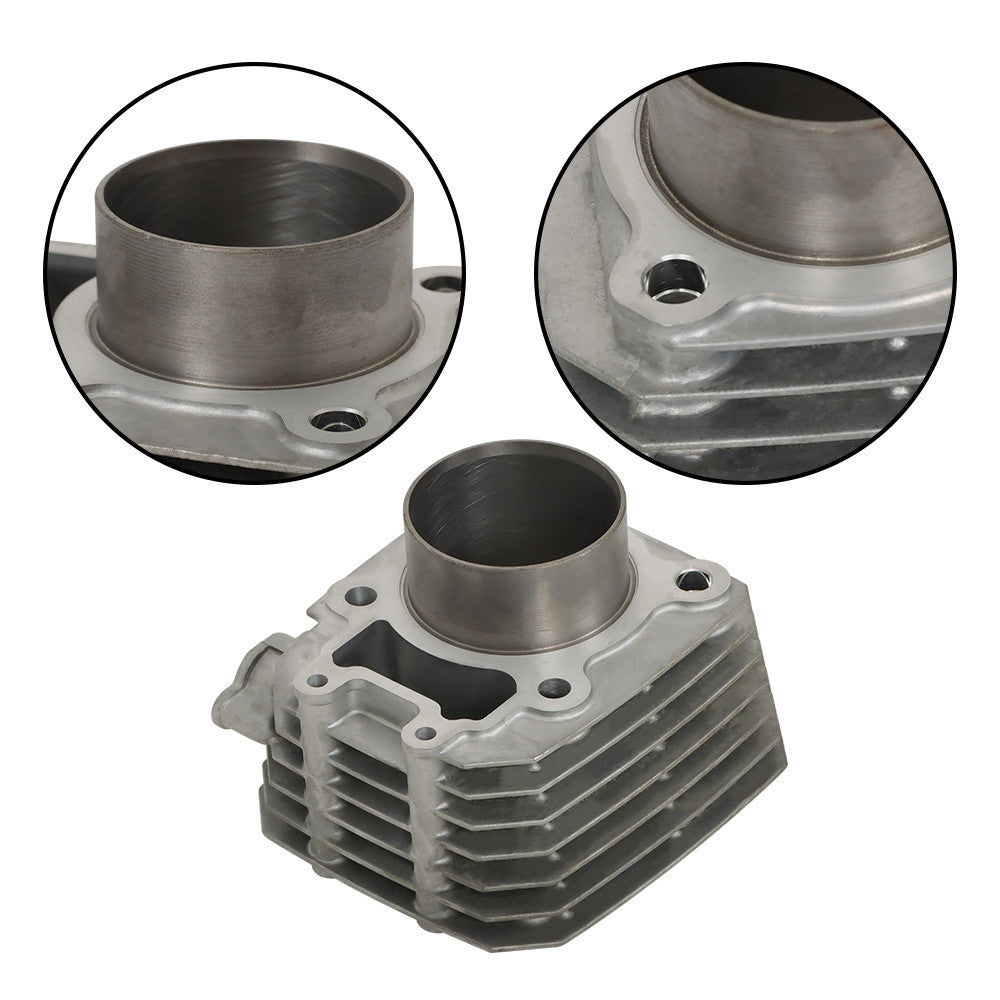

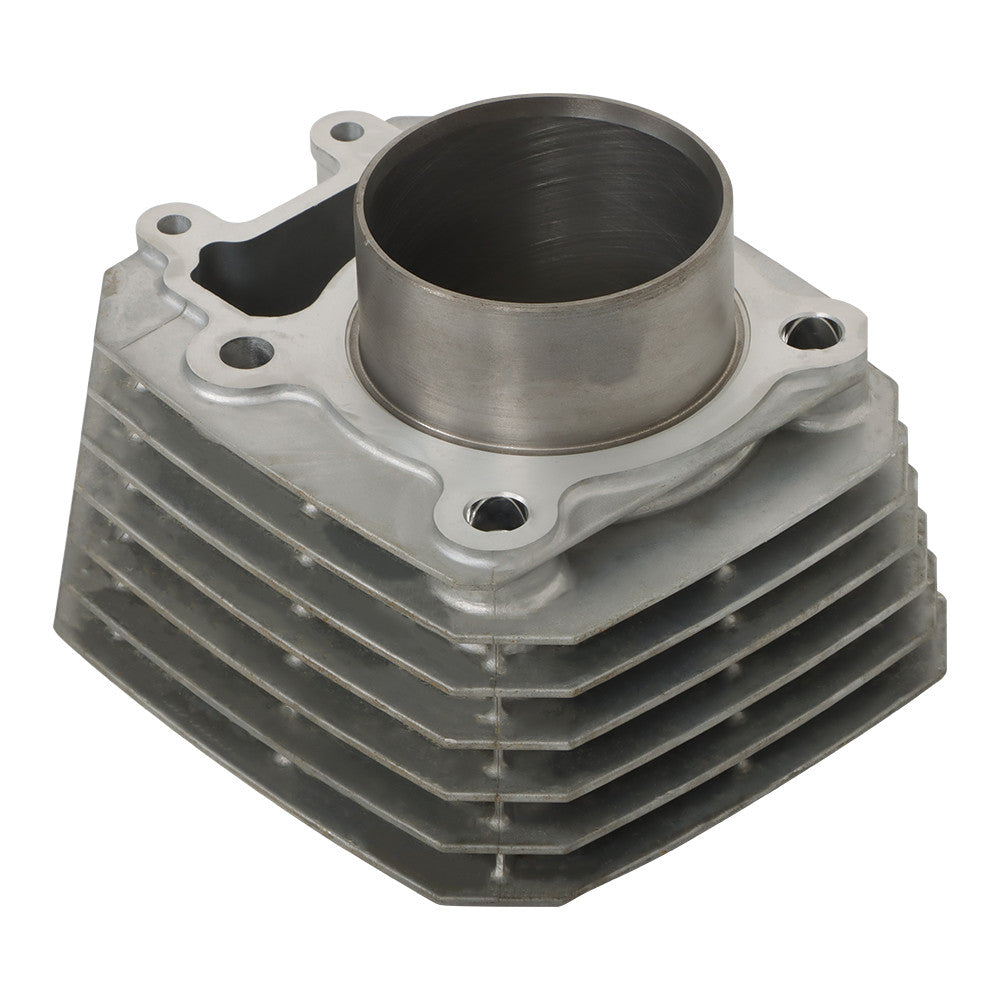

1x Cylinder

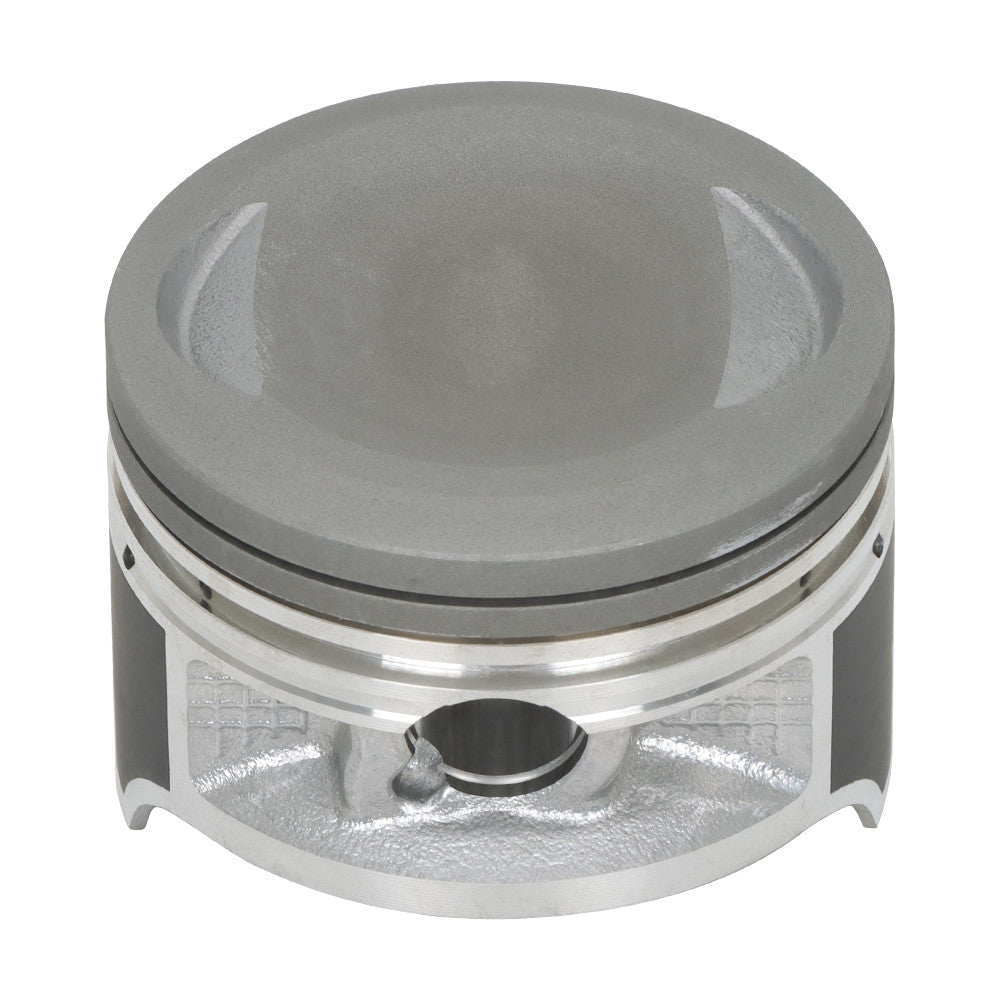

1x Piston
1x Piston Ring Set
1x 16mm Wristpin
1x Circlip(2)
1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Tensioner Gasket
1x Spark Plug
