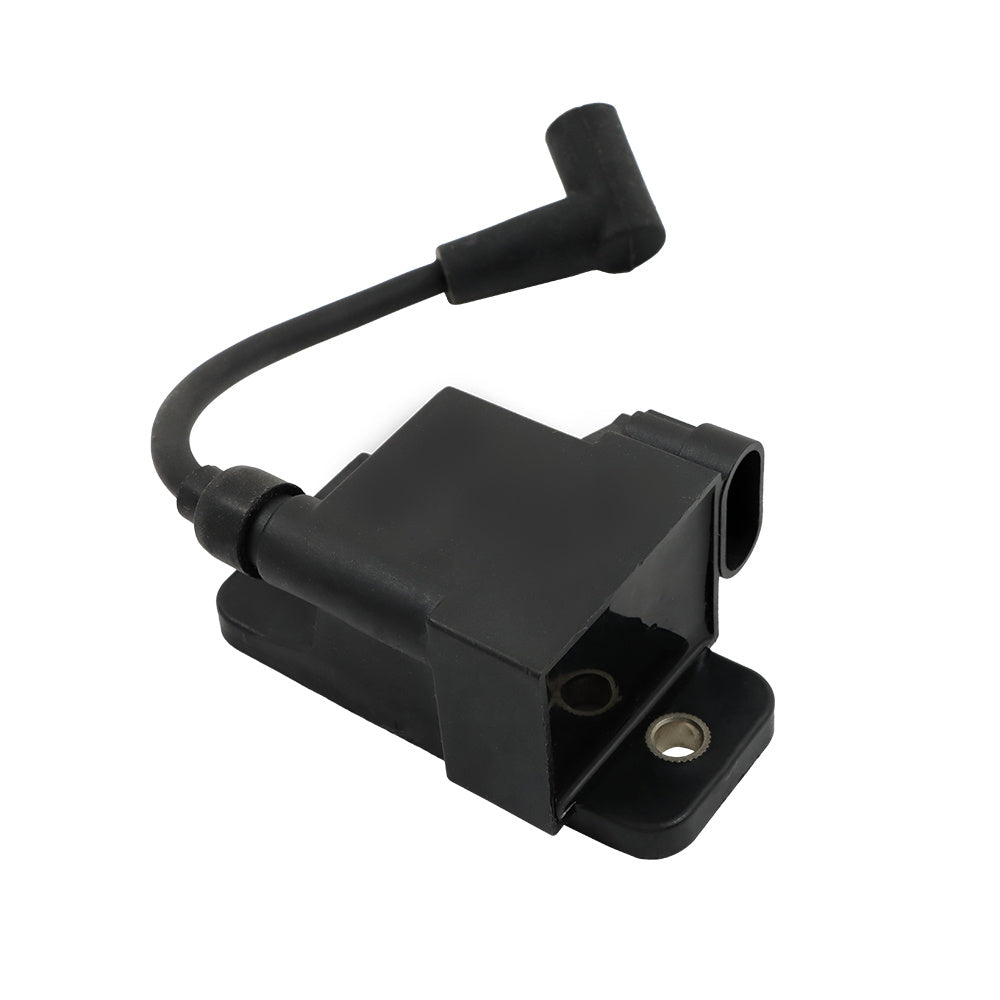

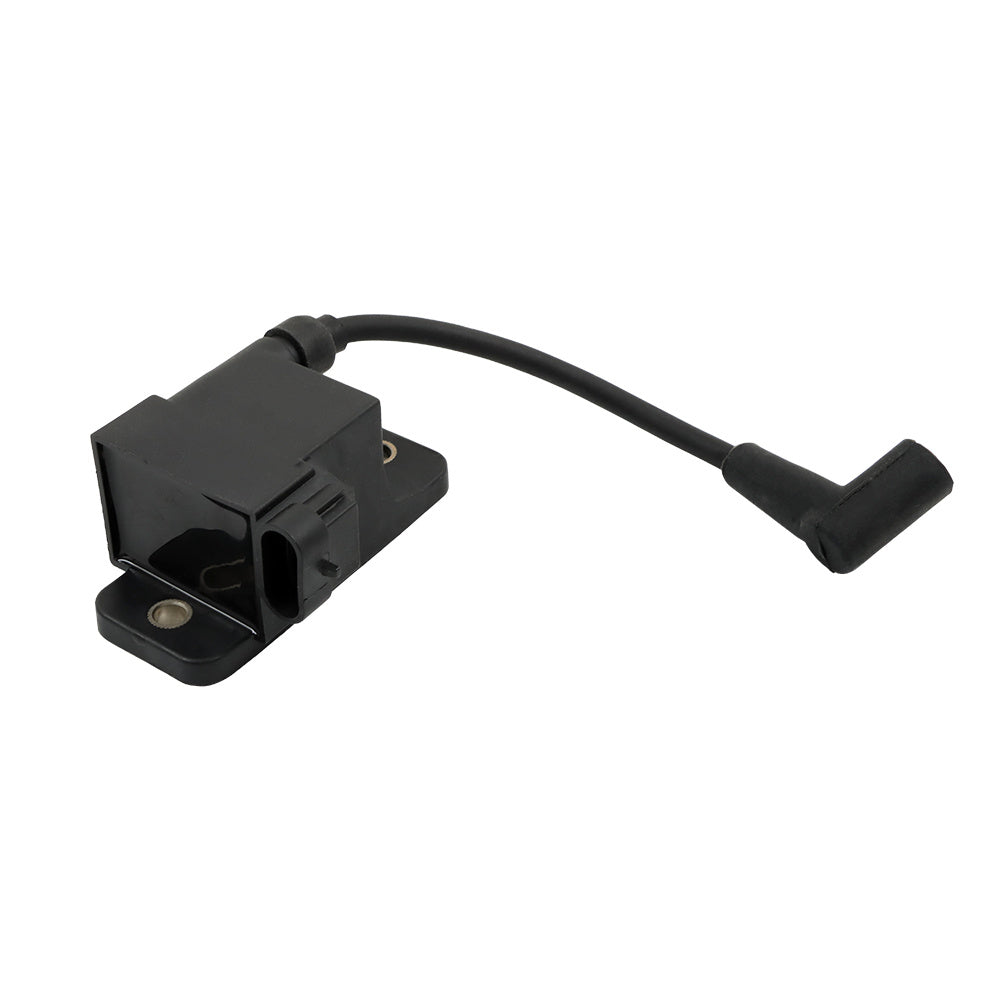

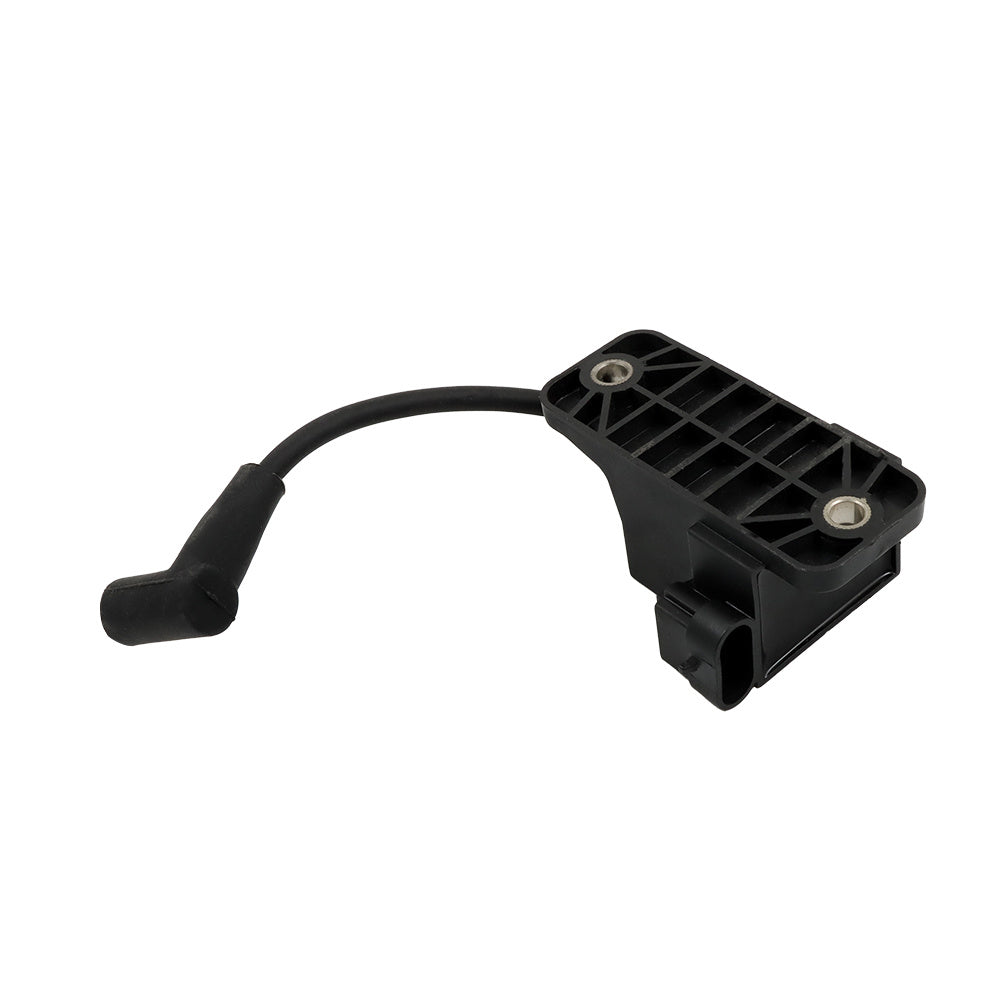

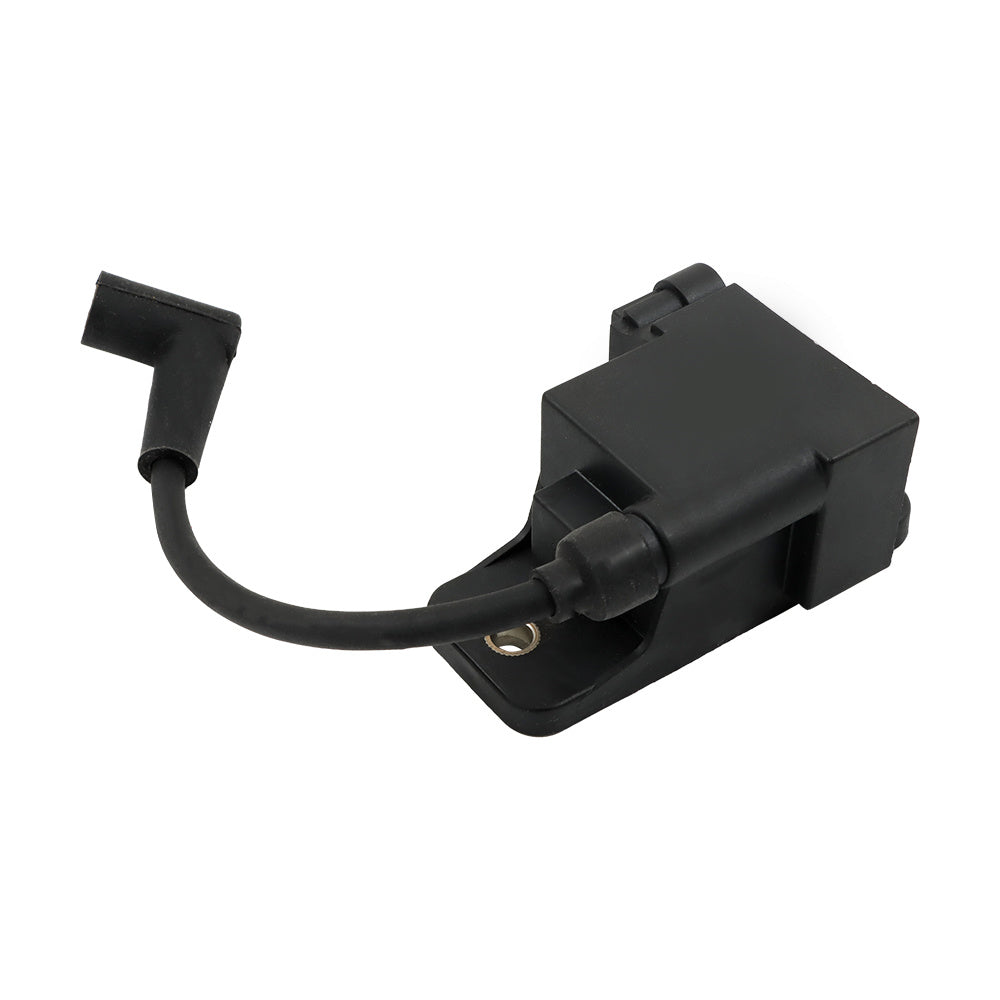

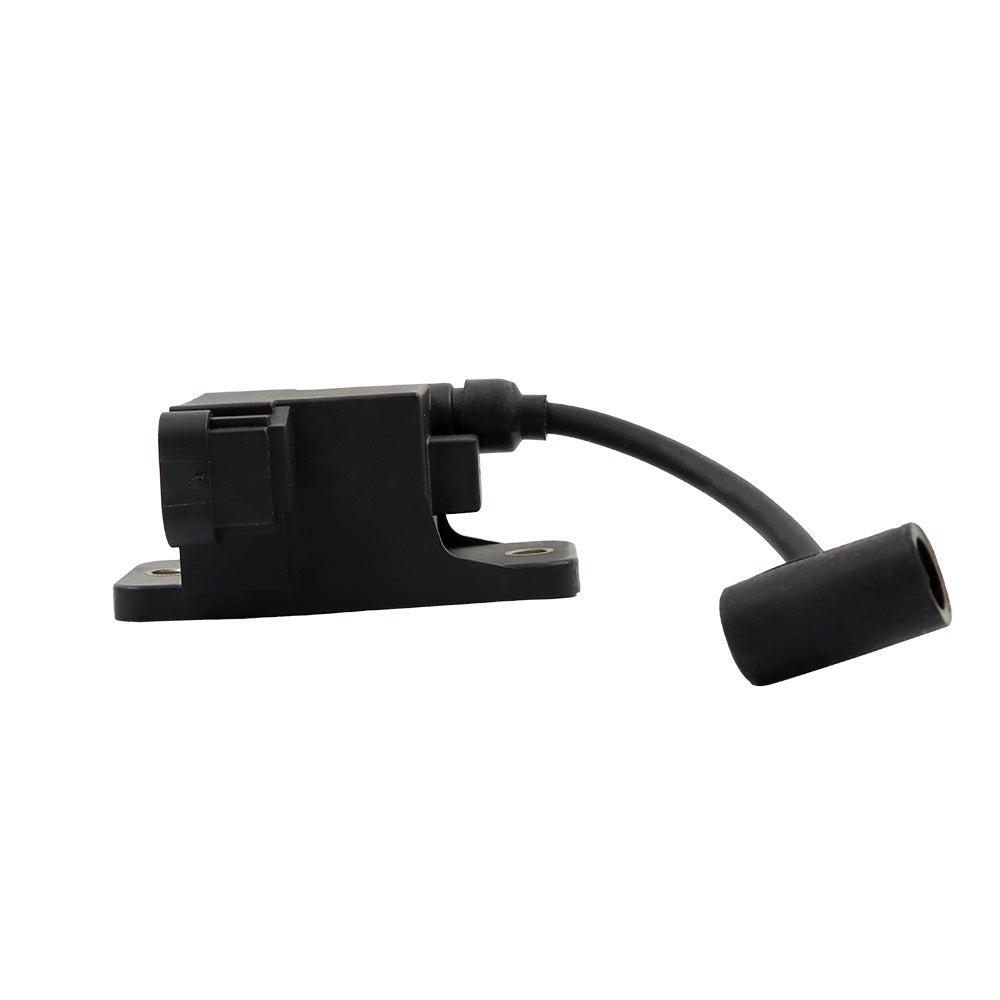

CDM Ignition Coil For Mercury MerCruiser 827509T7 827509A4 Engine 114-7509

Product description

• Type: Outboard Ignition Coil

• Fitment:

• - Fits For Mercury (1996-2007 (30-300HP)

• - Fits For Force (1996-1999 (40,50,75,90 & 120HP)

• - Fits For 30 HP 2 cylinder engines from 1996 to 2006 with serial number range 0G380075-0T979999
• - Fits For 30 HP 3 cylinder engines from 1998 to 2001 with serial number range 0G590000-0T999999
• - Fits For 40 HP 2 cylinder engines from 1996 to 2005 with serial number range 0G380075-0T999999
• - Fits For 100 HP 4 cylinder engines from 1996 to 2000 with serial number range 0G438000-0G965520
• - Fits For 200 HP 6 cylinder engines from 2000 to 2005 with serial number range 0G960500-1B226999

• NOTE:
• Please be very careful to check our photos, make sure the photos showed is the same as you wanted!
• Please make sure the interchange part number matches the part you are replacing.

• Package Include:
• 1 * CDM Ignition Coil

?

• How to install ignition CDM module 114-7509?

1. Disconnect and clean all engine and battery ground wires
2. Disconnect the old CDM Module and remove the high tension coil wire from the spark plug
3. Unbolt and remove the old CDM Module. (Note the direction of the spark plug wire)
4. Check for dc voltage on the kill (stop) wires (usually black/Yellow) with the key switch in the on and off position.
5. Apply a slight amount of dielectric grease to the seal area of the wire connector from the engine harness
6. Apply a slight amount of dielectric grease to the outside of the new spark plug wire and thread the spark plug wire into the new CDM Mod
7. Bolt the new CDM Module onto the engine(orient the new CDM Module so that the spark plug wire is pointed in the same direction as the original)
8. Plug in the connector from the wire harness into the new CDM Module and connect the spark plug wire to the spark plug
