C003 GPS Locator Real-Time Tracking 4G Full Netcom Vehicle Intelligent Terminal

Product Operating Condition：

Red LED (power supply/working status)

Yellow LED (GSM signal status)

Blue LED (GPS signal status)

GPS Tracker Installation Instructions:

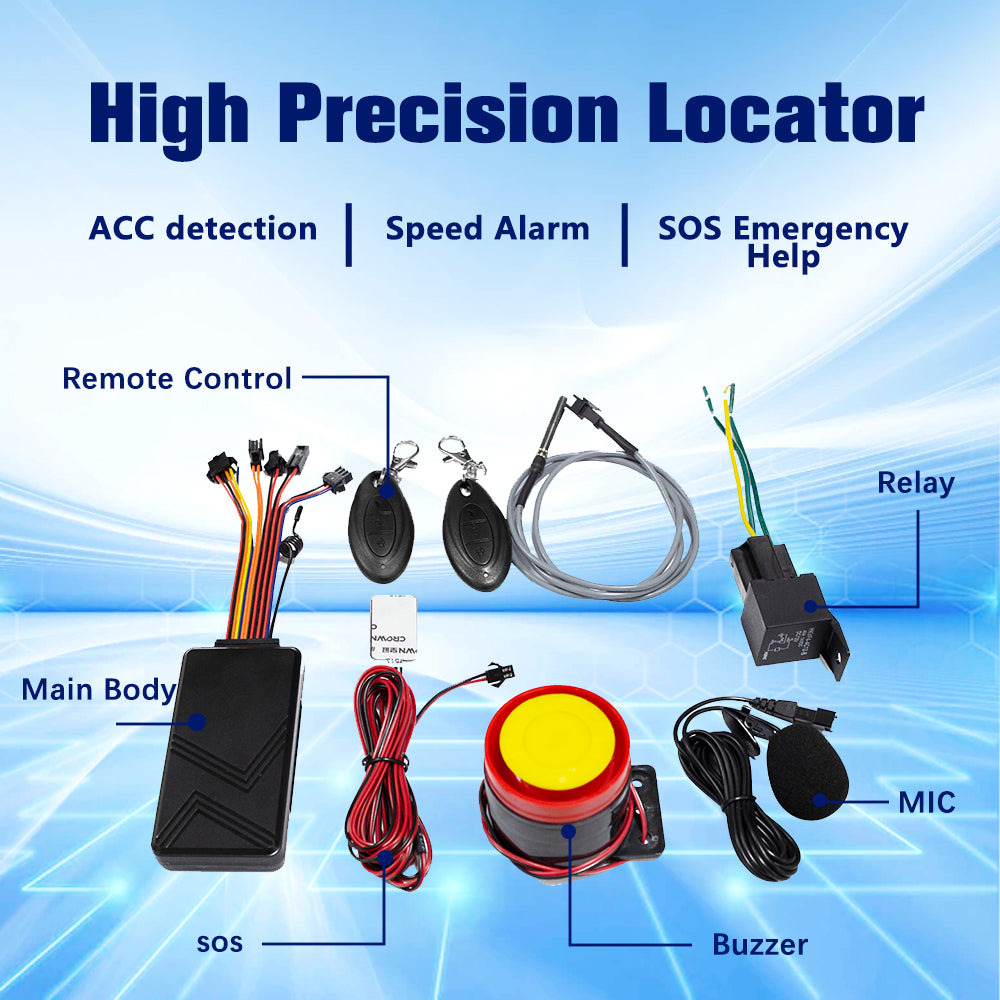

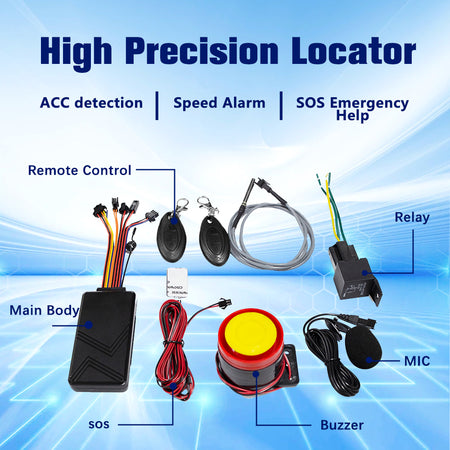

1. Open the packaging box and check whether the device model is correct and the accessories are complete. Otherwise, please contact your dealer;

2. Please make sure that the terminal SIM card has a fee. You can recharge it through the prompts on the mobile phone APP;

3. Please do not remove the SIM card privately, otherwise the factory will not provide warranty for the resulting device damage;

4. Installation position should be as concealed as possible, and be waterproof.

Keep away from emission sources, such as reversing radar, anti-theft device and other vehicle-mounted communication equipment.

5. The device finished with built-in GSM antenna and GPS antenna. When installing, make sure that the front is facing upward (toward the sky), and there is no metal object upside.

6. Please use the power cable provided by the original factory.   The red cable is the positive pole of the power supply, and the black is the negative pole of the power supply.   When installing the negative pole of the power supply, please choose separate grounding or grounding.   Do not connect it with other grounding wires.

7. ACC cable (orange cable) connects to ACC switch.   If the ACC automatic anti-theft function is required, the ACC line must be connected, and the device will determine whether to enter the fortified state according to the ACC state;   if the ACC line is not connected, the vehicle will enter the fortified state.   When the vehicle is running in the fortified state, vibration will trigger the vibration alarm.

8. The oil and electricity control cable (yellow cable) should be connected to the thin yellow cable on the relay (optional).

APP Download Instructions:

You can search the APP name "gps-go" in the App Market or APP Store to download it.

Individual users please log in with the device ID number. The ID number is marked on the device body and the packaging box.

Data Recharge Instructions:

After downloading and installing the APP, log in to your account and bind your device, then automatically jump to the recharge page, select “Date Plan Recharge”, choose the corresponding package according to your needs, and then recharge your traffic successfully after payment.

Note:

This product comes with a SIM card, which can be recharged and used directly, and does not support personal SIM cards for the time being.
