ADC120-12V+ESD5500E+MSP6729 Generator Governor Actuator Speed Sensor

Feature:

ESD5500E series speed governor is high cost effective,the best quality,large stock,lower price,perfectly electric speed governor.

Widely used to all kinds of generator together with ADC120 12V ,high performance and perfectly realize electronic speed governor.

Product Description：

Speed Sensor MSP6729

Inductance：142MH+25%

Resistance：300 Ohms Maximum

Thread Size: 3/8-24UNF-2A

Proximity to Gear Teeth：0.025-0.035in.(0.64-0.89mm.)

Temperature Range：-55℃ to 105℃

IDLE Ouput：1.5 volts AC minimum

Max Output：30 volts AC

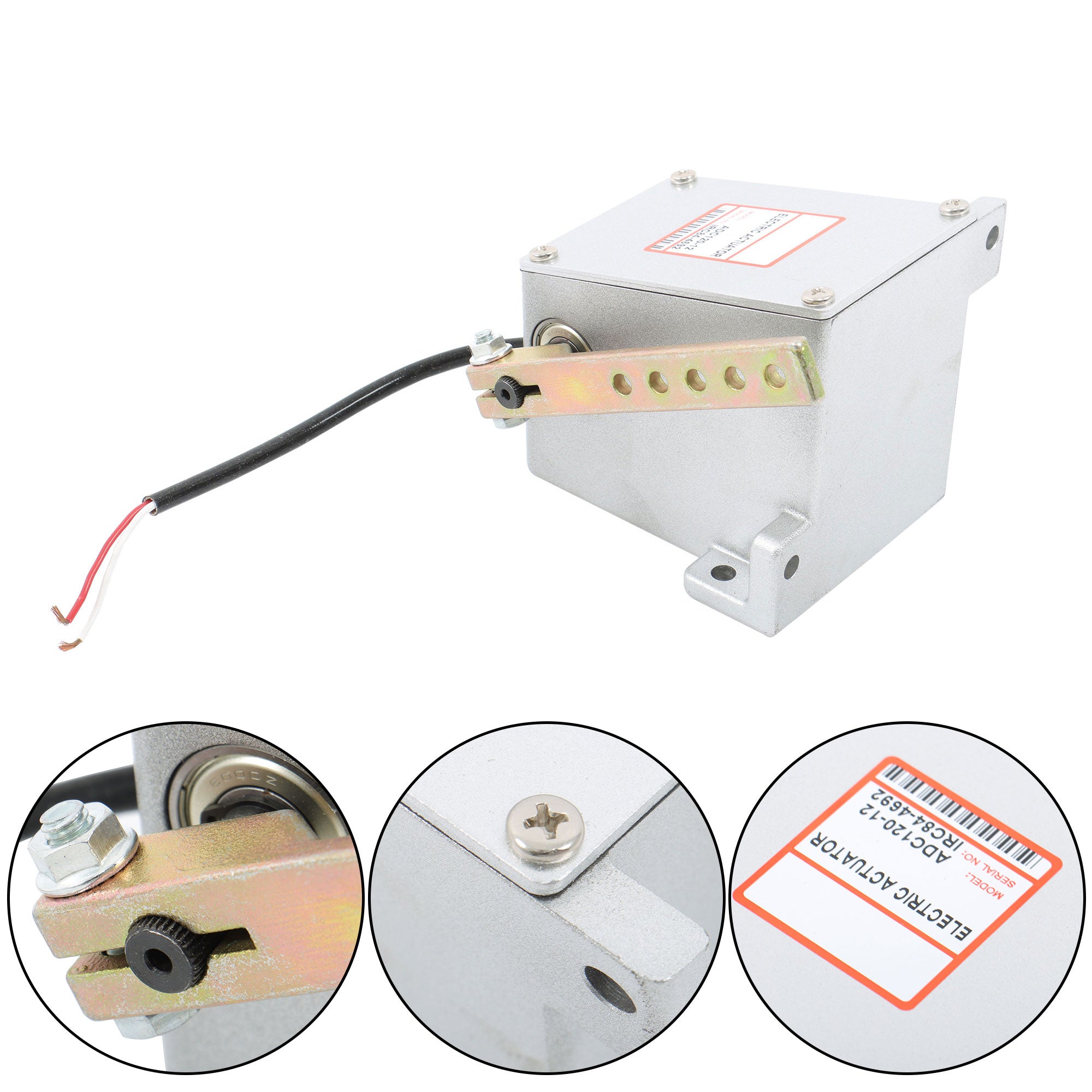

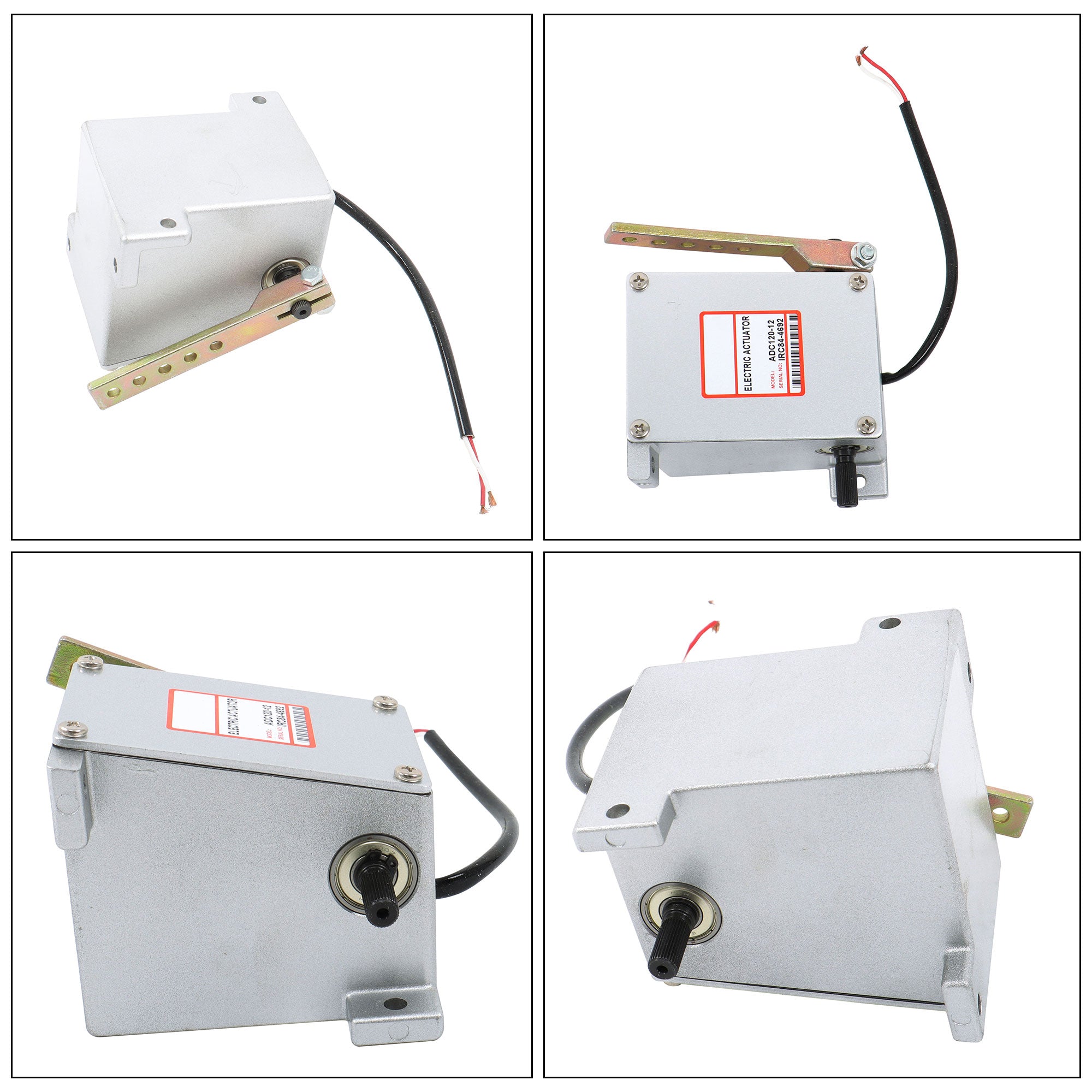

ADC120-12 Actuator

PERFORMANCE:

Available Torque Max1.0Lb-ft(1.4Nm)

Maximum Operating Shaft Angular Travel 25+1degree CW/CCW

POWER INPUT:

Operating voltage 12V DC

Normal Operating Current 2 A at 12V

Maximum CurrentContinuously Rated 6 A at 12V

ENVIROMENTAL:

Temperature Range -54 to 95

Relative Humidity up to 100%

All Surface finishes Fungus proof and corrosion resistant

PHISICAL:

Weight 2.3 kg

Mounting Any position, electrical connector at the top preferred

RELIABILITY:

Vibration up to 20G @50-500 Hz

Testing 100% Tested

MATING HARDWARE:

Connector Supplied With Actuator

Lever LE1500-2

Rod End Bearings(to attach a 12#20 HD linkage rod to lever) BR100(Right Hand)

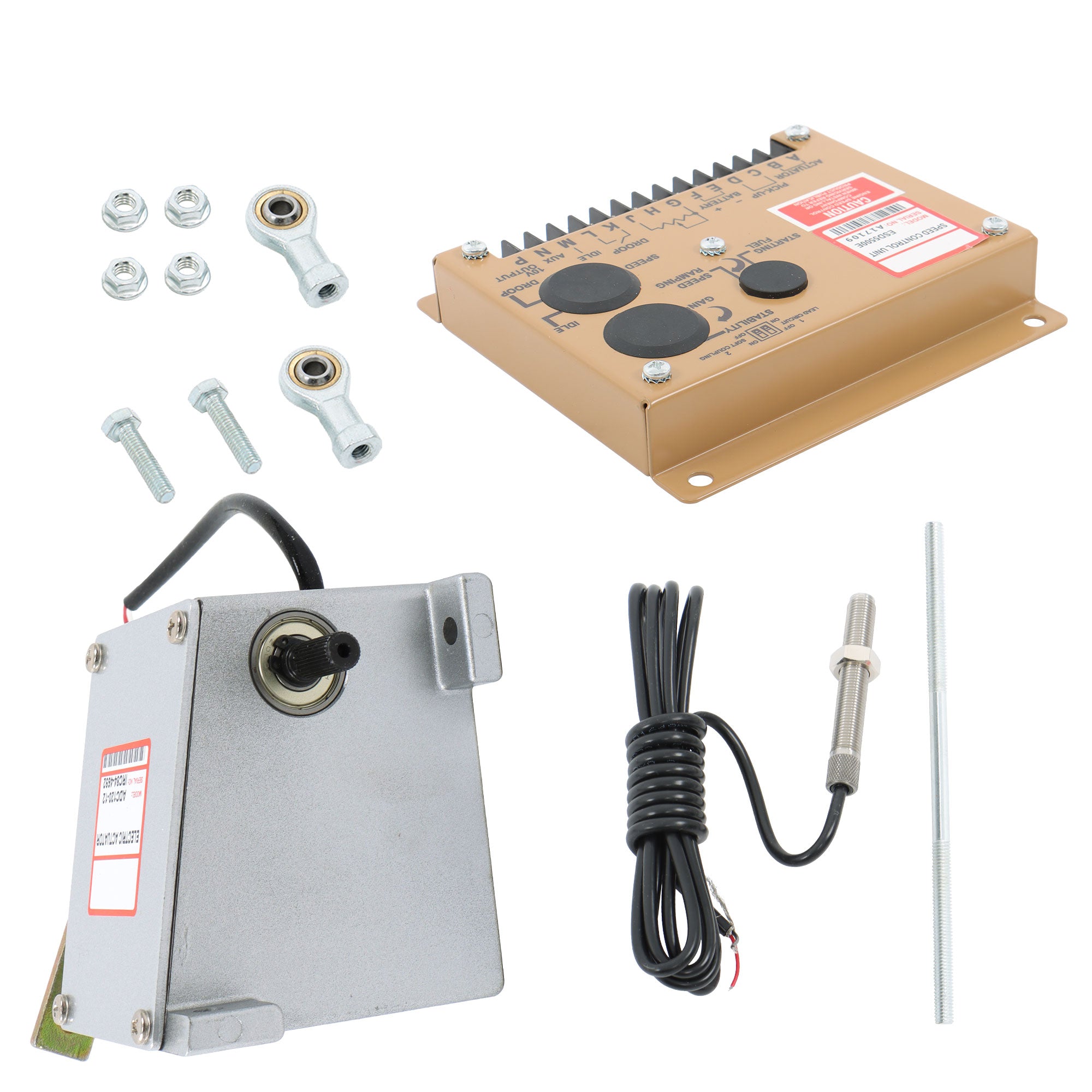

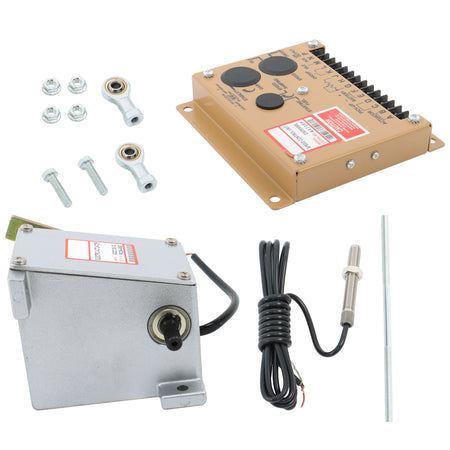

Package Including:

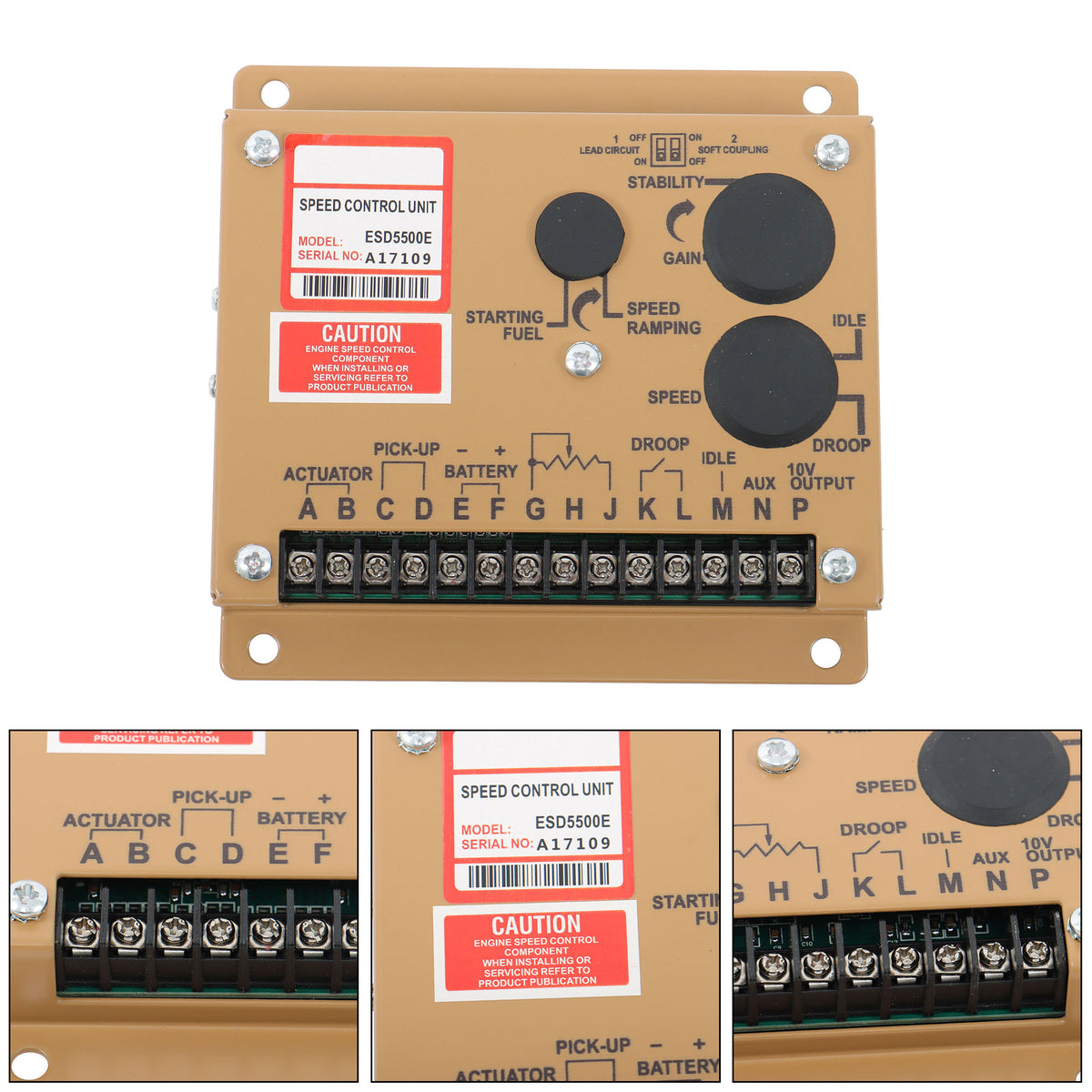

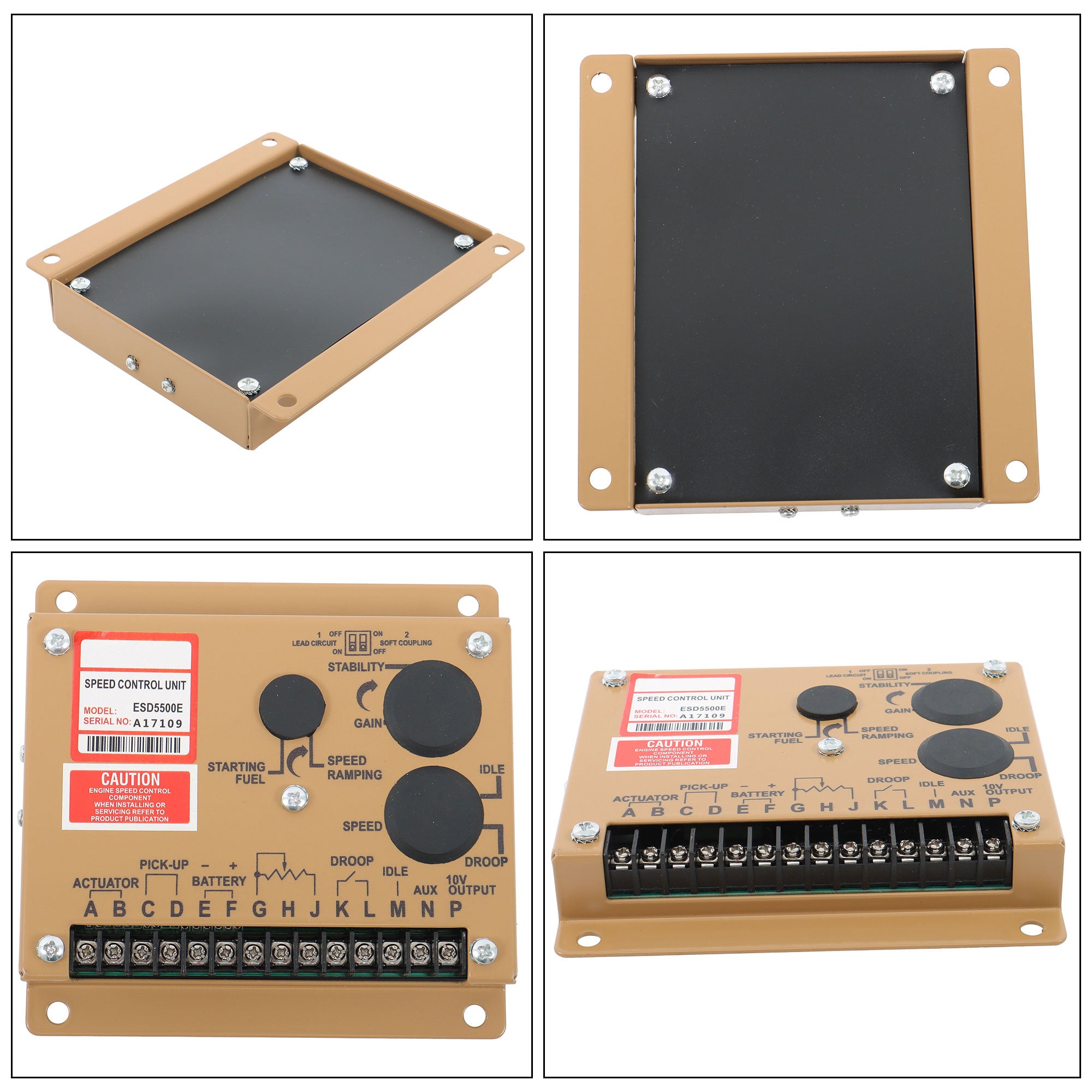

1x ESD5500E speed controller

1x MSP6729 Magnetic Speed Sensor

1x ADC120 actuator
