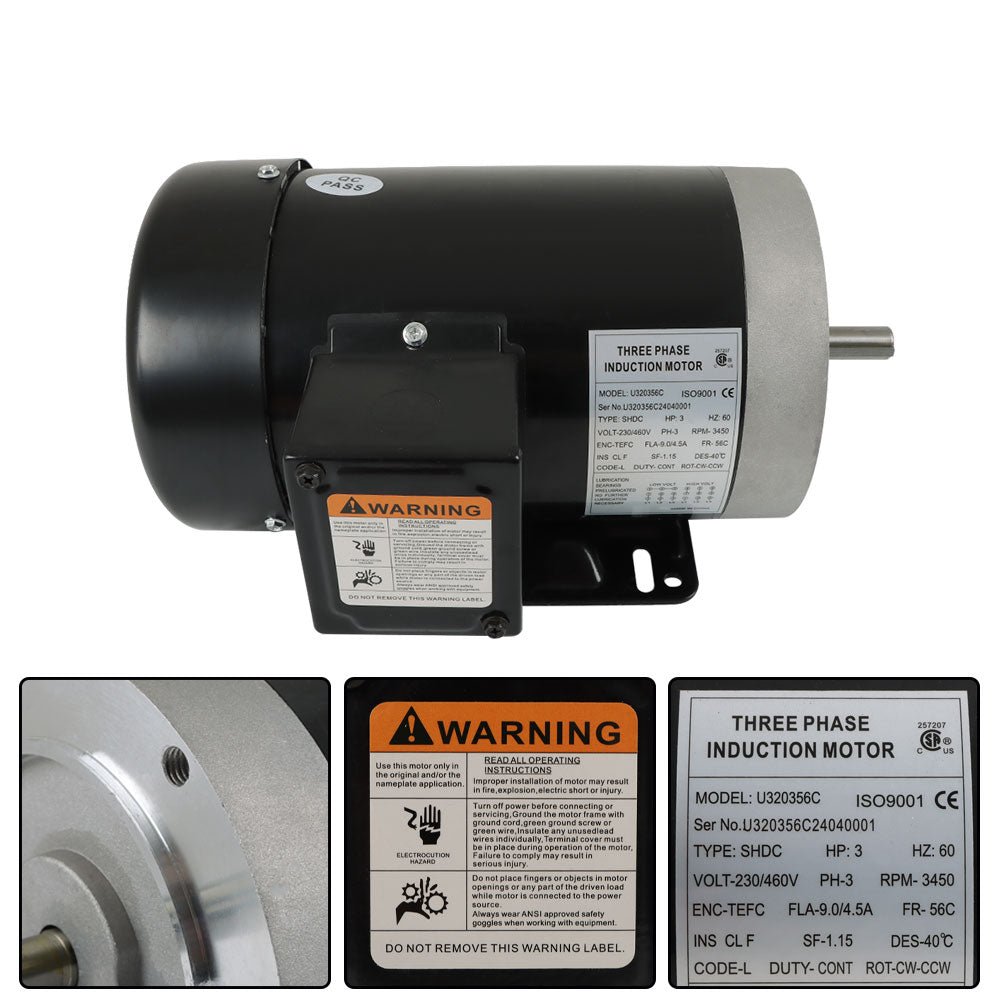

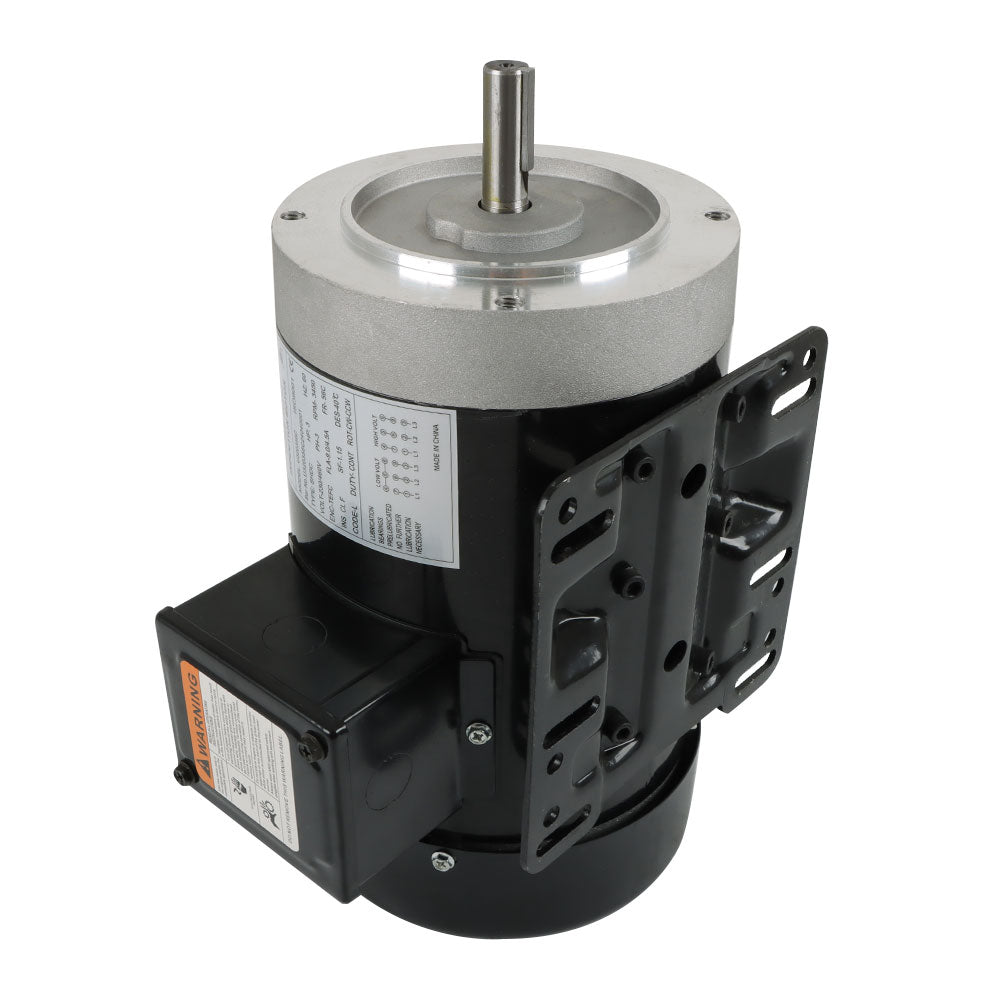

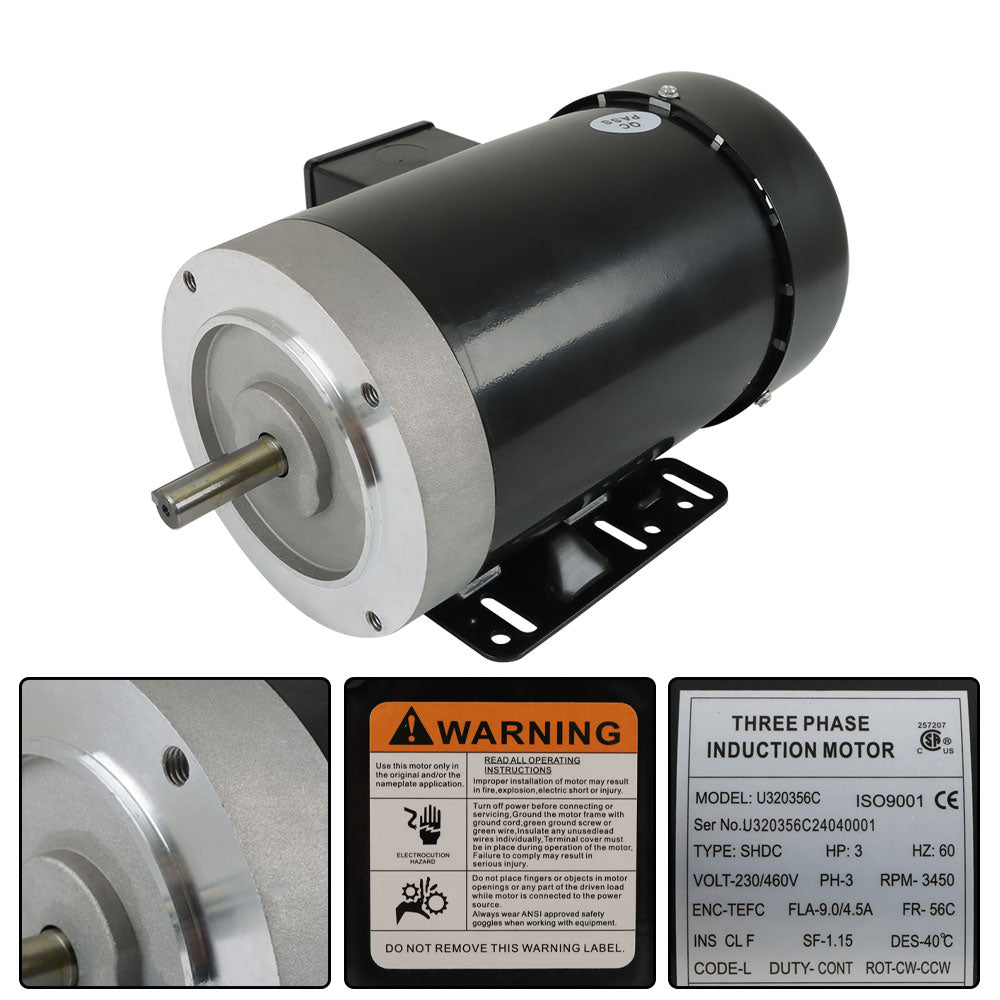

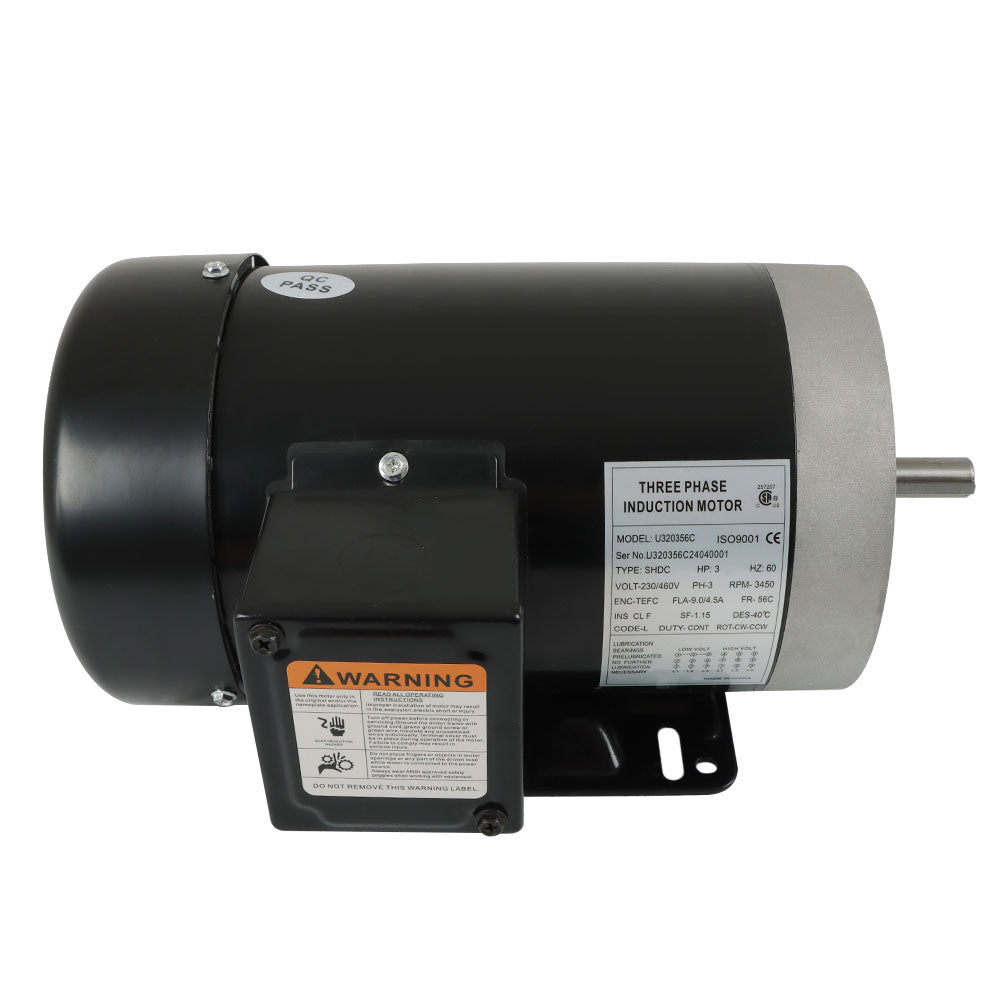

60HZ 3HP 3450RPM General Purpose Three Phase Motor 230V/460V CW/CCW TEFC 2Pole

Feature：

Frequency Rating：60 Hz

Reversible/Non-Reversible：Reversible

Nominal Rated Input Voltage：230V/460VV

Rated Load (HP)：3

Special Motor Construction：Spindle Motor

Shaft Diameter：５/8 in

Enclosure Type： TEFC (Totally Enclosed Fan Cooled)

Phase：Three Phase

Insulation Class：F (Max 311°F)

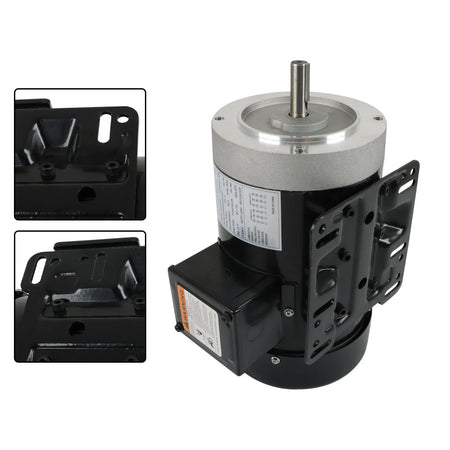

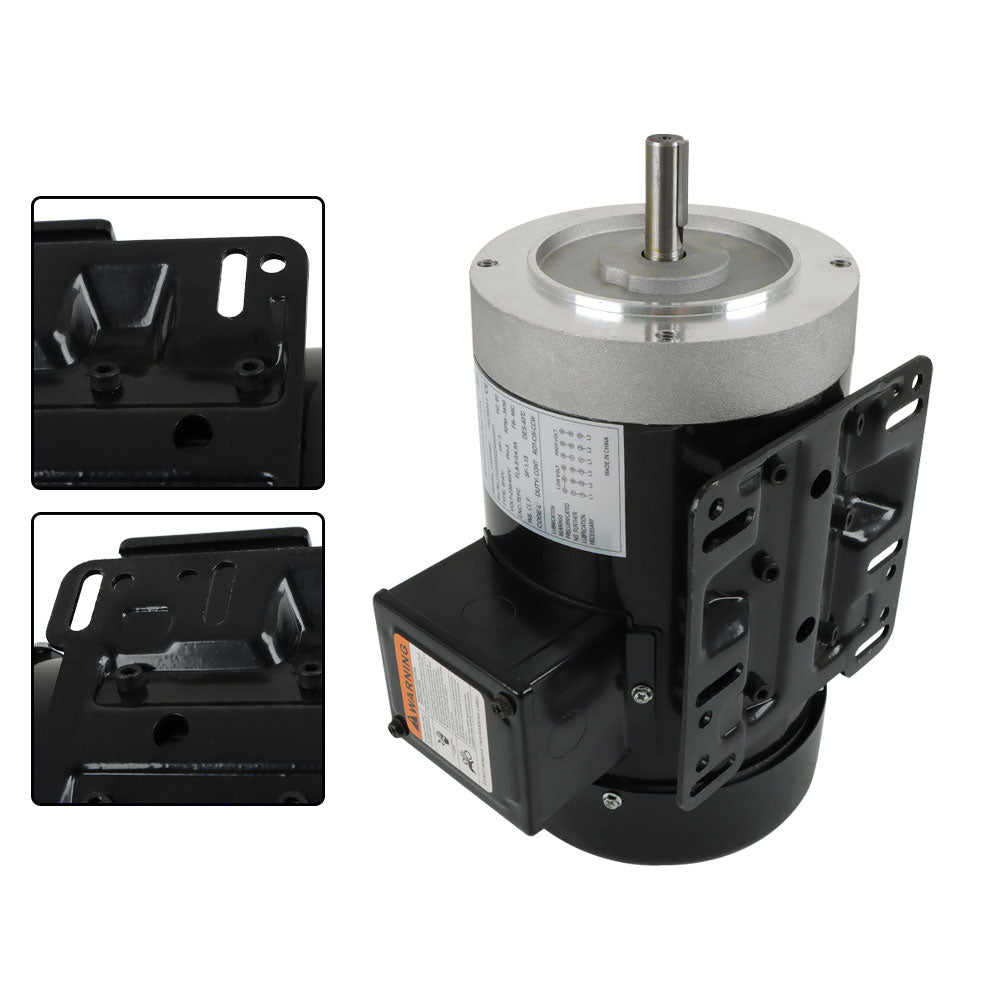

Mounting Type：Base-Mounted

Pole :２

Amps：9.0A / 4.5AA

Motor Type：Induction/Asynchronous

Base RPM：3450RPM

IP Rating：IP55

Shaft Length：1.88in

Housing Material：Rolled steel shell

Model：General electric Motor

IEC Frame Size：56C

Description：

Amps

Be sure to replace the motor with a full load current value of less than 10% of what you purchased

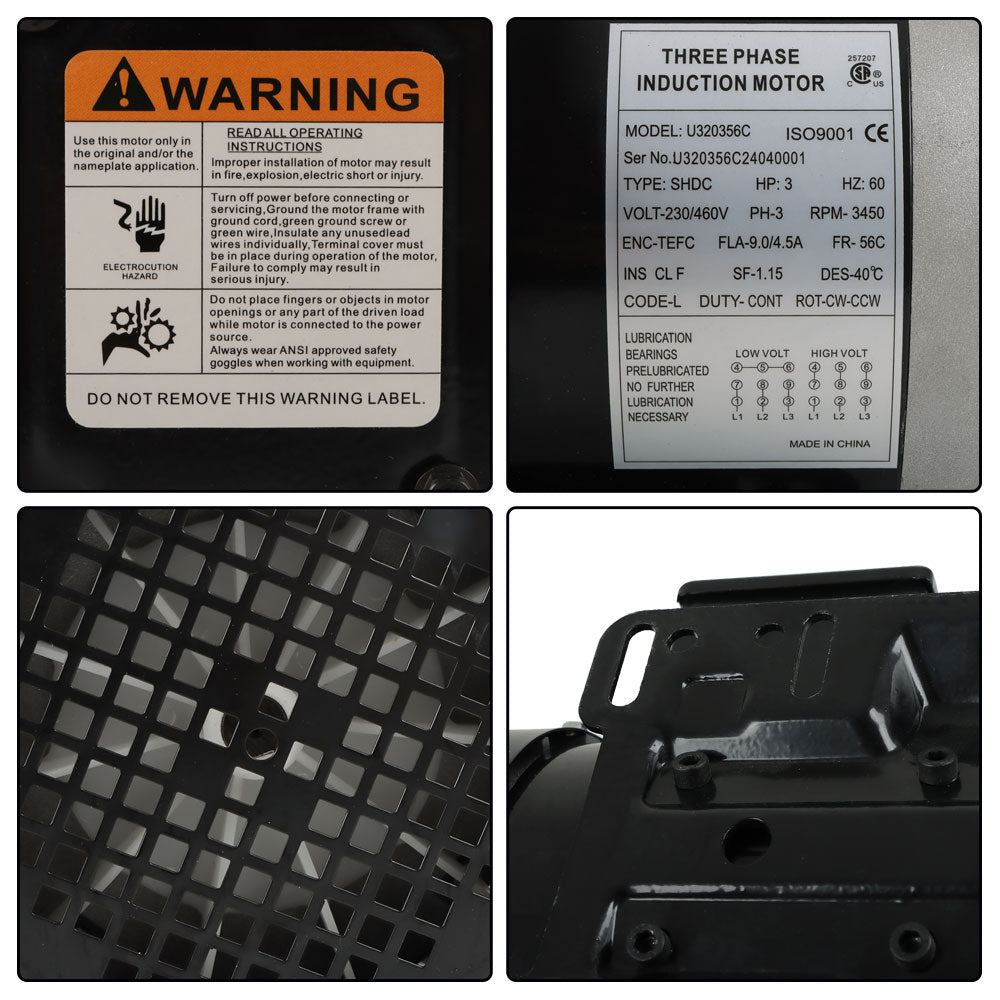

Totally Enclosed Fan Cooling (TEFC)

Prevent the free exchange of air between the inside and outside of the frame, but do not make the frame completely airtight. The fan is mounted on the shaft and air is pushed onto the frame during operation to assist in the cooling process

RPM

Matching rpm is very important, the wrong speed can damage the pump, rpm do not need to be exactly matched, the difference can be close

Frame size

The size of the frame corresponds to the size of the motor. Improper size of motor will lead to motor failure

Phase and voltage

A 230V motor single-phase power supply refers to a 1 phase 230V AC motor.It cannot withstand a voltage lower than 208V. They will run too hot and the motor will fail
TEFC

Style shell is versatile. Can be used in air compressor, mechanical equipment, fan, water pump, reducer, machine tool and general equipment

Package List:

1 x 3HP General electric Motor
1 x Manual
