Product Description

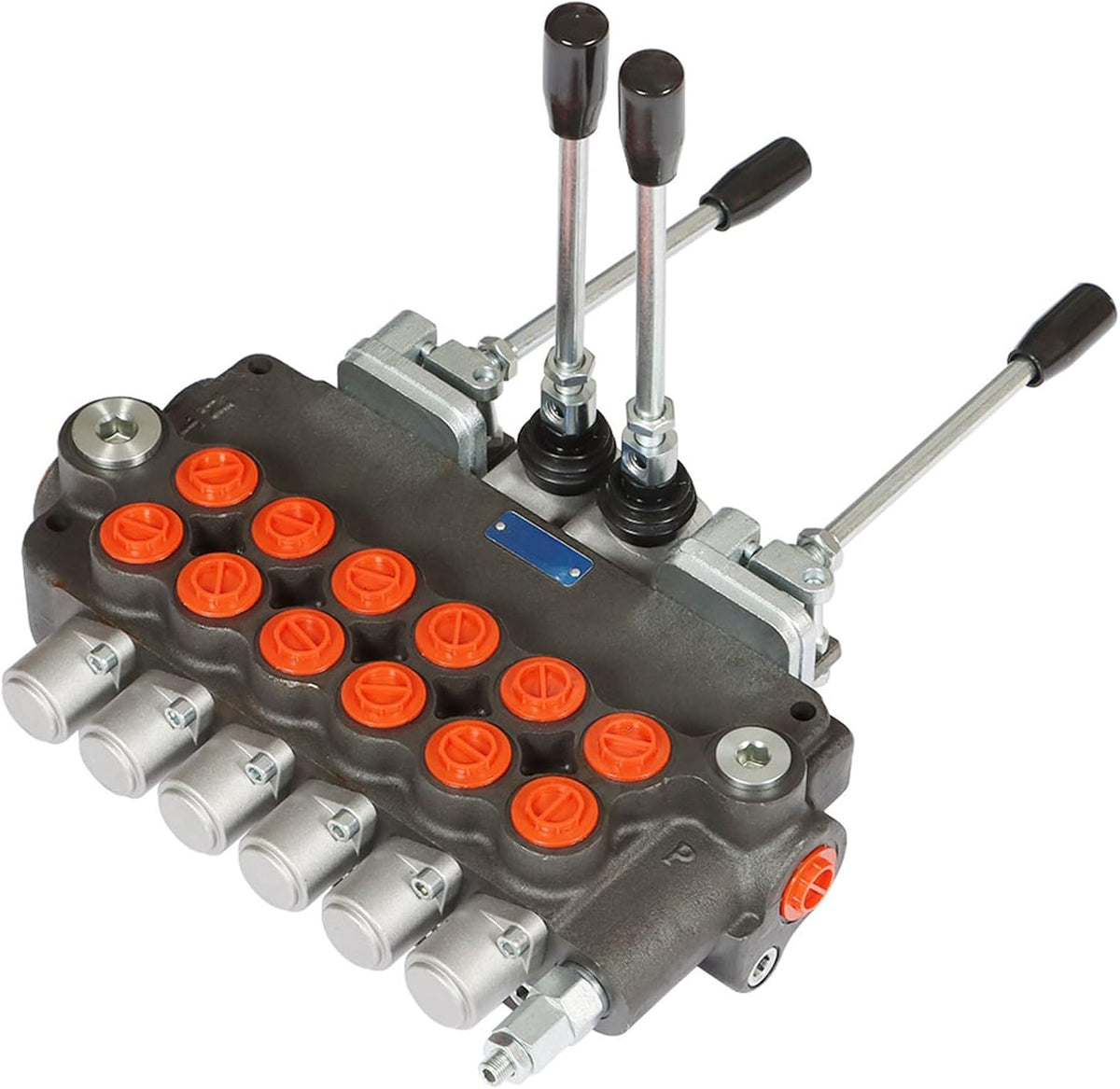

This labwork hydraulic directional control valve is available in 2-spool, 3-spool, and 6-spool configurations. Each valve is designed for double-acting cylinders and features a durable cast-iron monoblock body, adjustable relief valve, spring return to neutral, and SAE O-ring ports.

Suitable for small tractors, tractor loaders, log splitters, and other mobile hydraulic equipment.

Variant Options

Variant Flow Rating Maximum Pressure Port Type

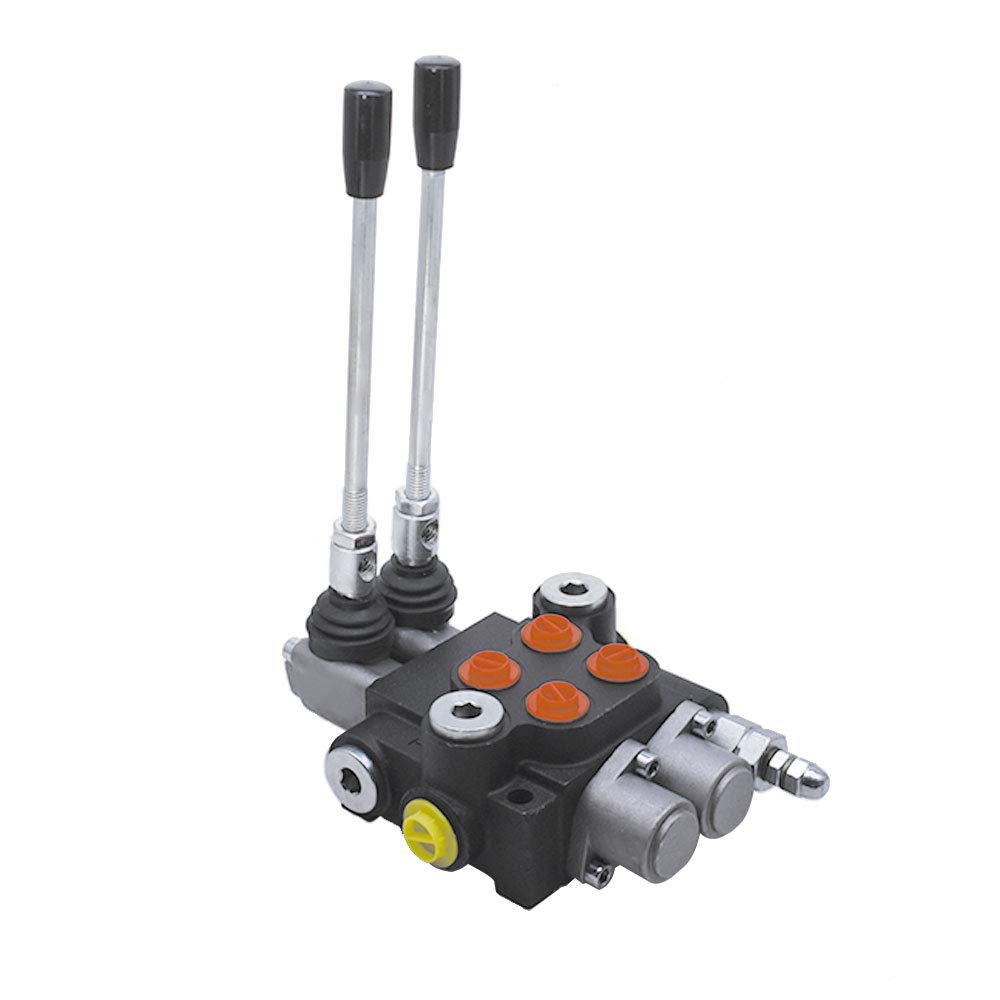

2 Spool 13 GPM / 50 L/min 3,600 PSI SAE Ports

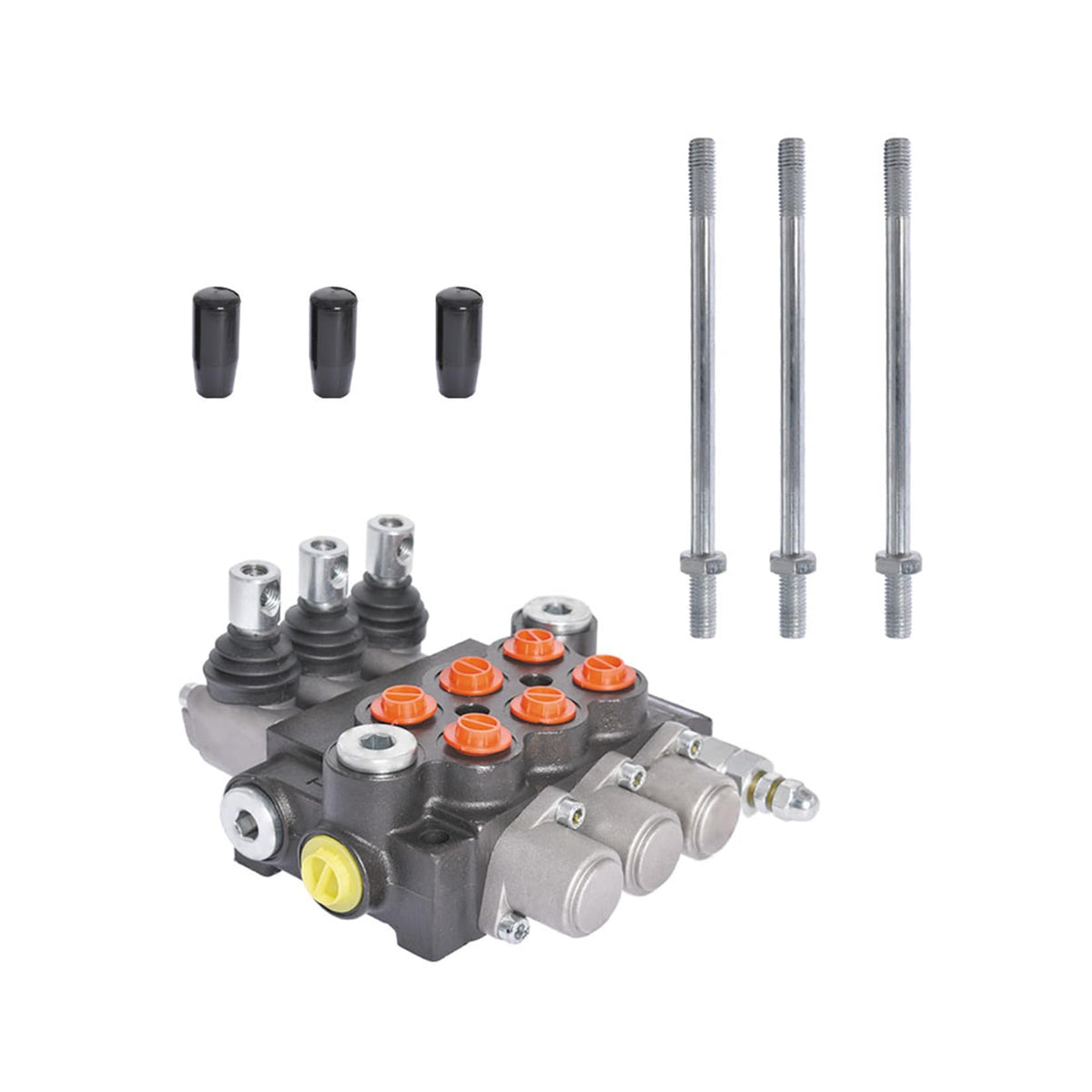

3 Spool 13 GPM / 50 L/min 3,600 PSI SAE Ports

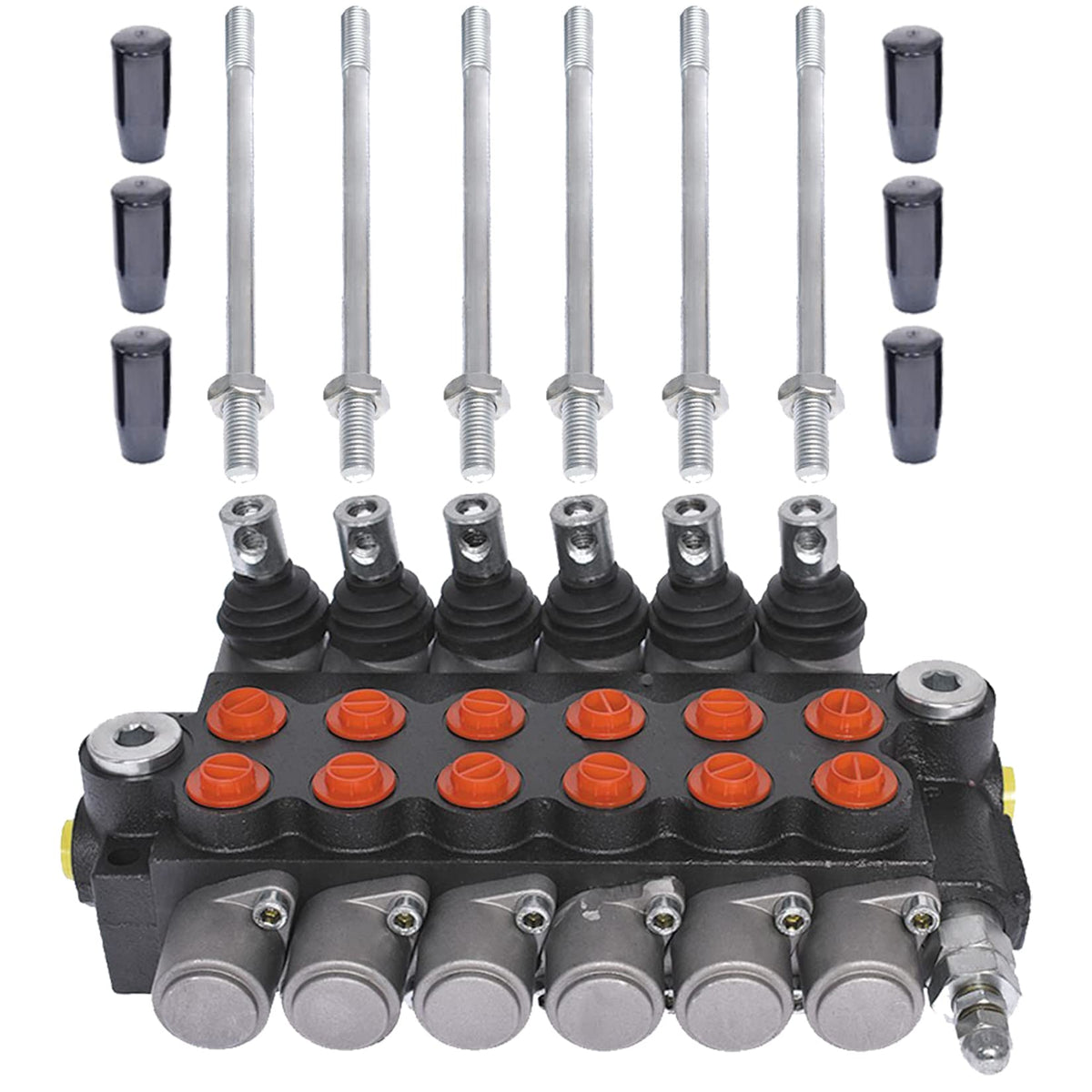

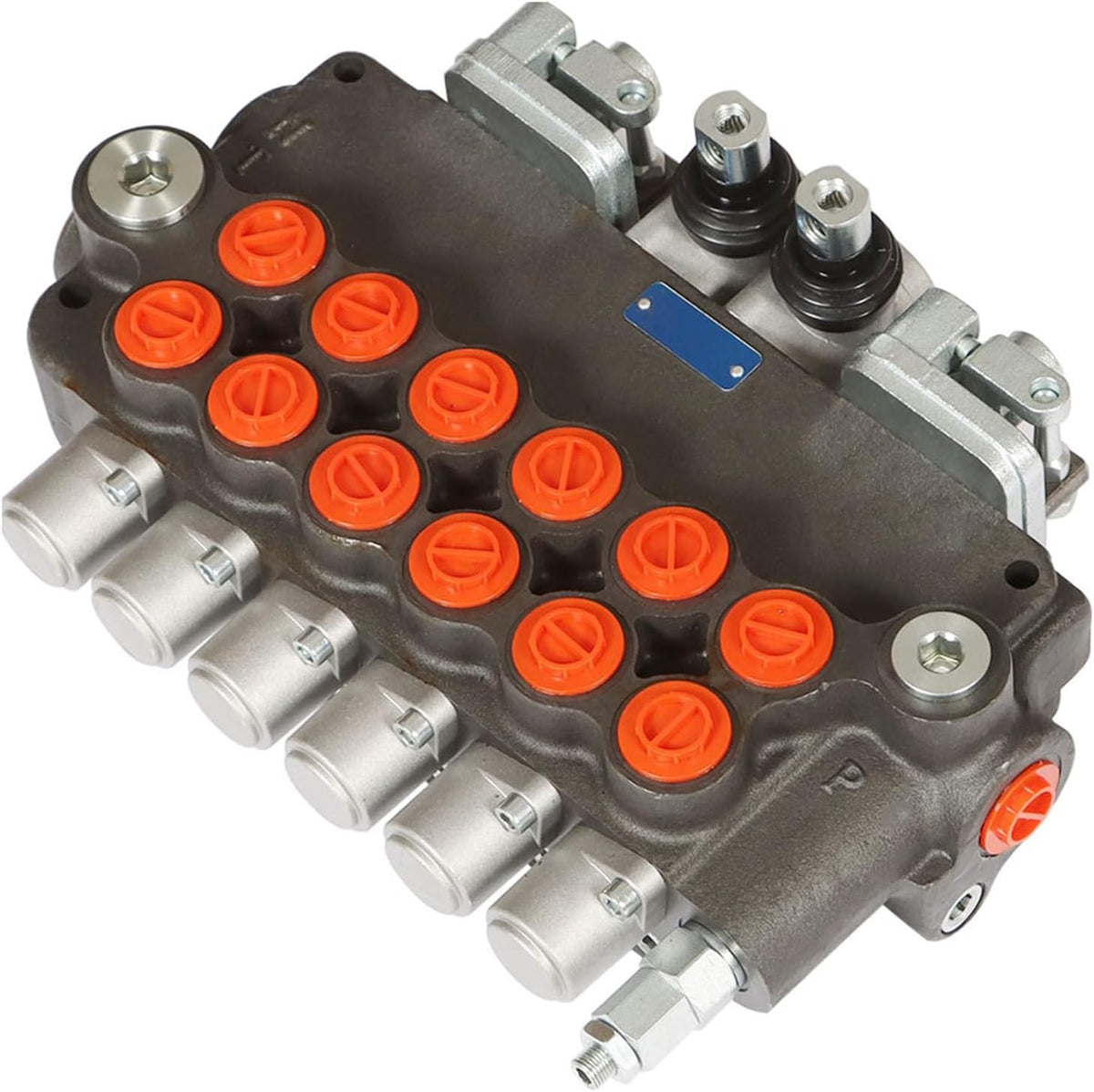

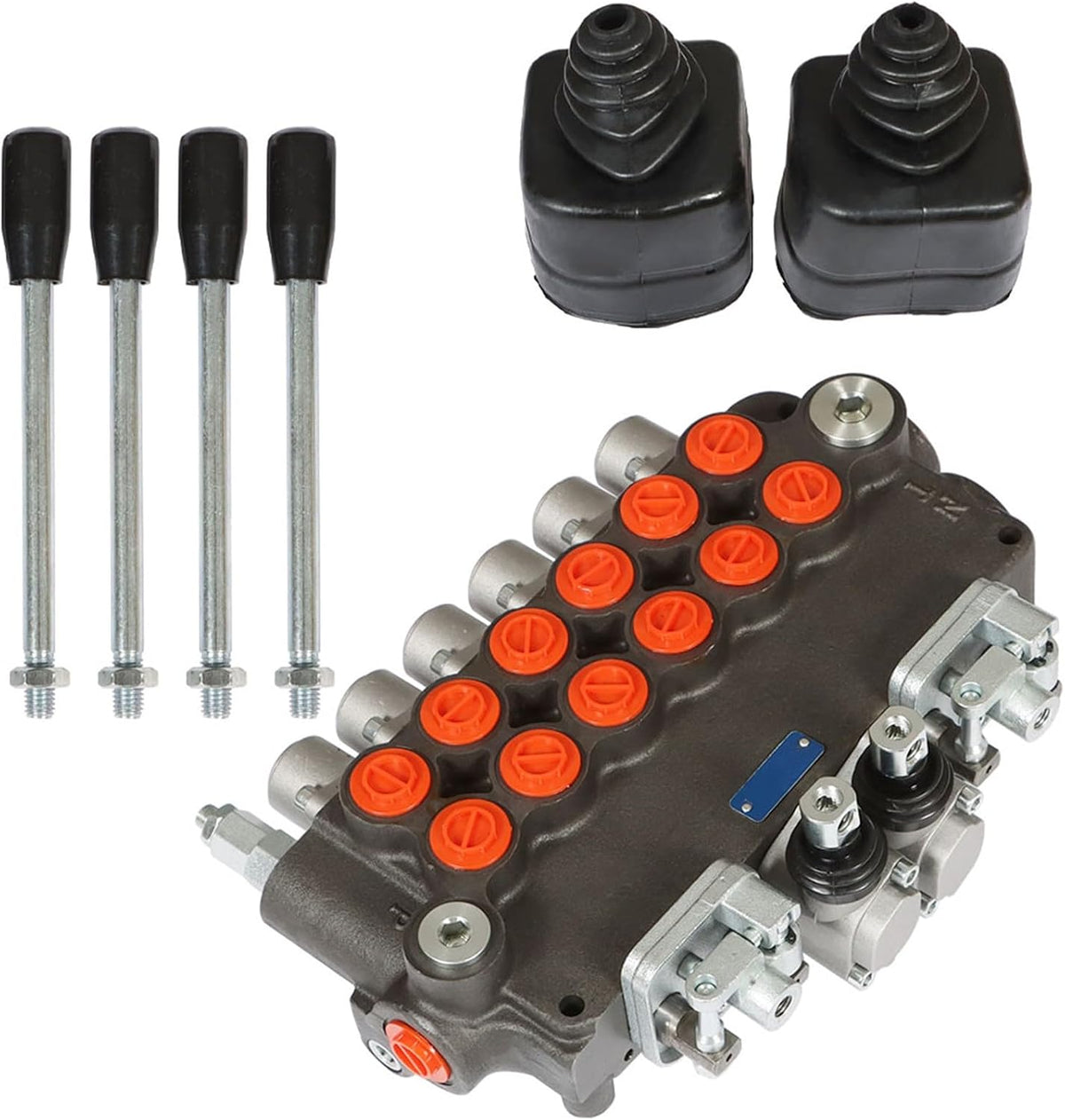

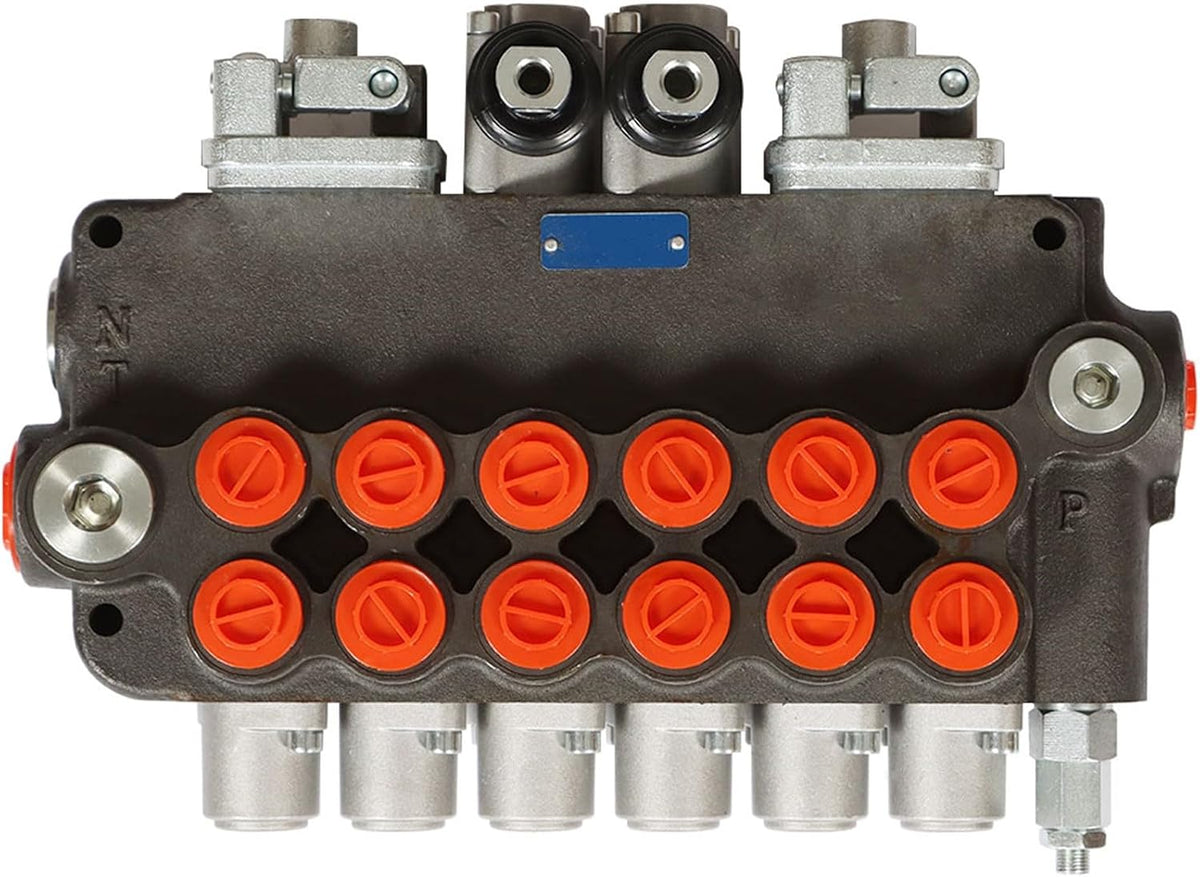

6 Spool 13 GPM / 50 L/min 3,600 PSI SAE Ports

Specifications

  • Type: Hydraulic Directional Control Valve
  • Available Spools: 2, 3, or 6
  • Flow Rating: 13 GPM / 50 L/min
  • Maximum Pressure: 3,600 PSI
  • Function: Double Acting
  • Circuit: Open Center
  • Control: 4-Way, 3-Position
  • Spool Return: Spring Return to Neutral
  • Construction: High-Tensile Cast Iron Monoblock
  • Spools: Precision-Ground and Hard-Chrome-Plated
  • Relief Valve: Adjustable
  • Port Standard: SAE O-Ring
  • Fitment Type: Hydraulic Replacement Part

Port Specifications

  • A and B Work Ports: SAE 10 O-Ring, 7/8-14 thread
  • Inlet Port: SAE 10 O-Ring, 7/8-14 thread
  • Outlet Port: SAE 10 O-Ring, 7/8-14 thread

Features

  • Double-acting control for hydraulic cylinders
  • Compact design for installations with limited space
  • Spring return helps restore the spools to neutral
  • Load checks help reduce unintended load drop
  • Vertical or horizontal handle mounting
  • Suitable for open-center pump-to-tank systems
  • Closed-center or power-beyond operation may require a change plug
  • Can be adapted for motor or single-acting spool use with the proper plug
  • Durable construction for long-term hydraulic service

Applications

  • Small tractors
  • Tractors
  • Tractor loaders
  • Log splitters
  • Mobile hydraulic equipment

Package Includes

  • 1 × Selected Hydraulic Directional Control Valve

Important Note

Select the correct spool count before ordering. Verify hydraulic flow, pressure, port thread, cylinder type, and system configuration. Closed-center, power-beyond, motor, or single-acting applications may require additional plugs or modifications. Professional hydraulic installation is recommended.
