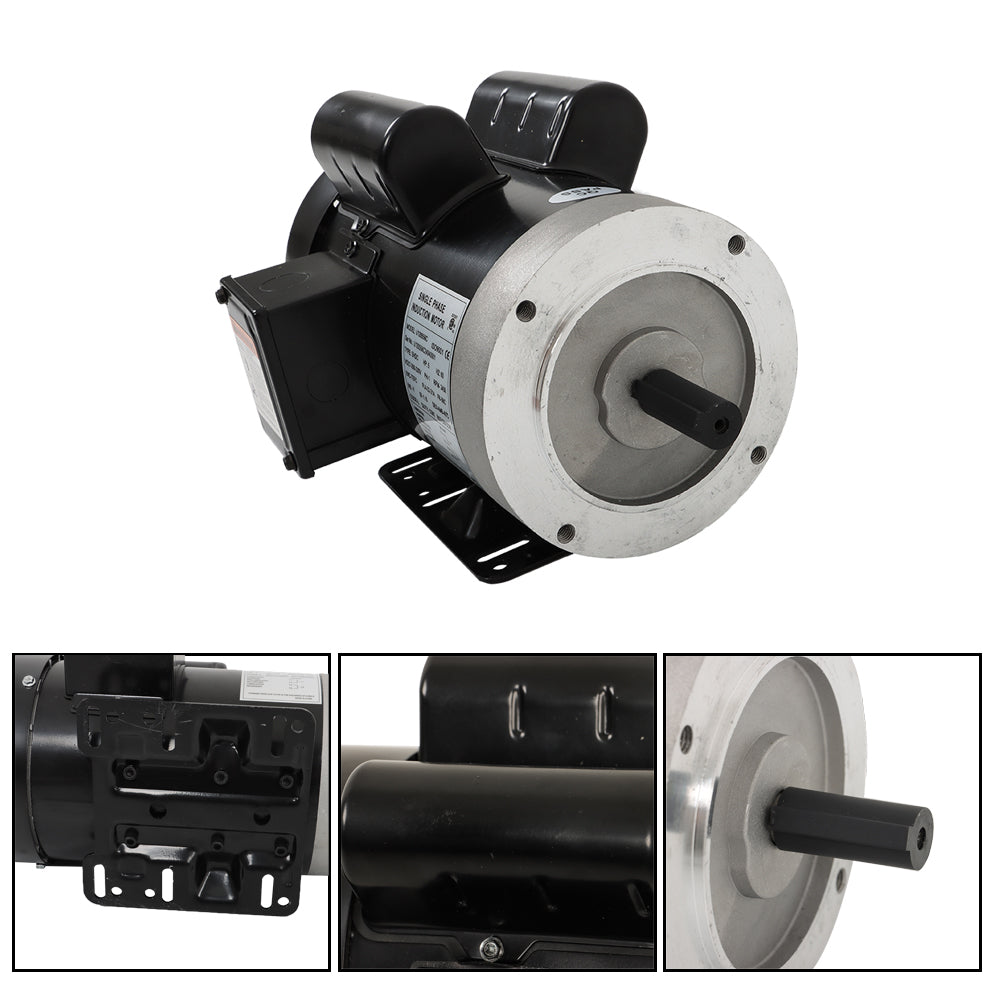

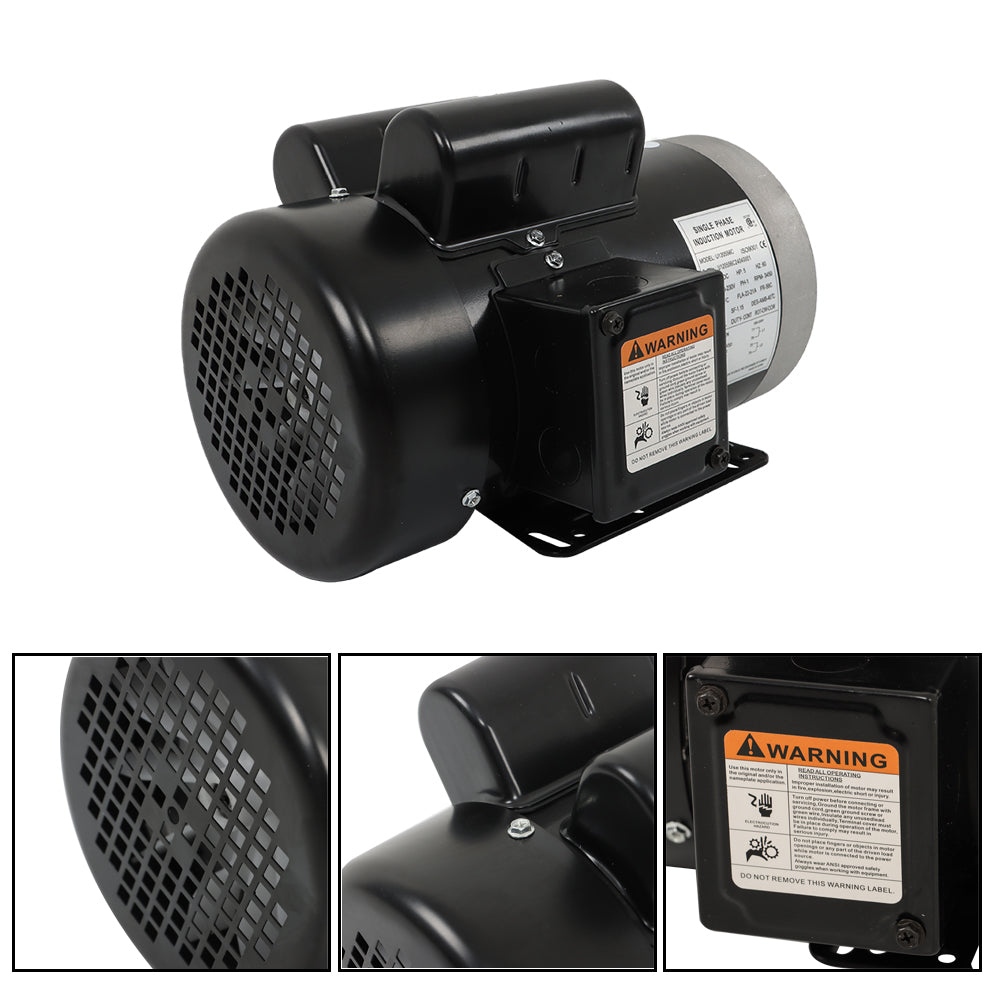

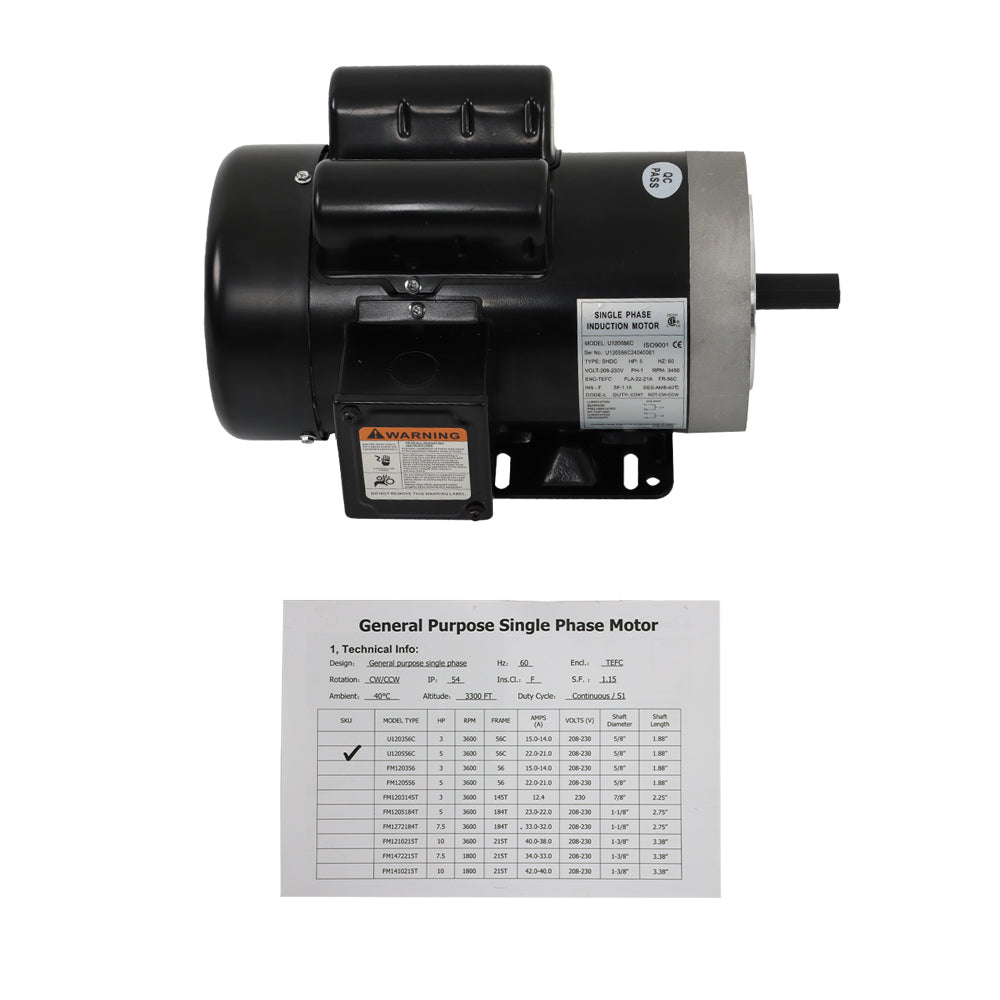

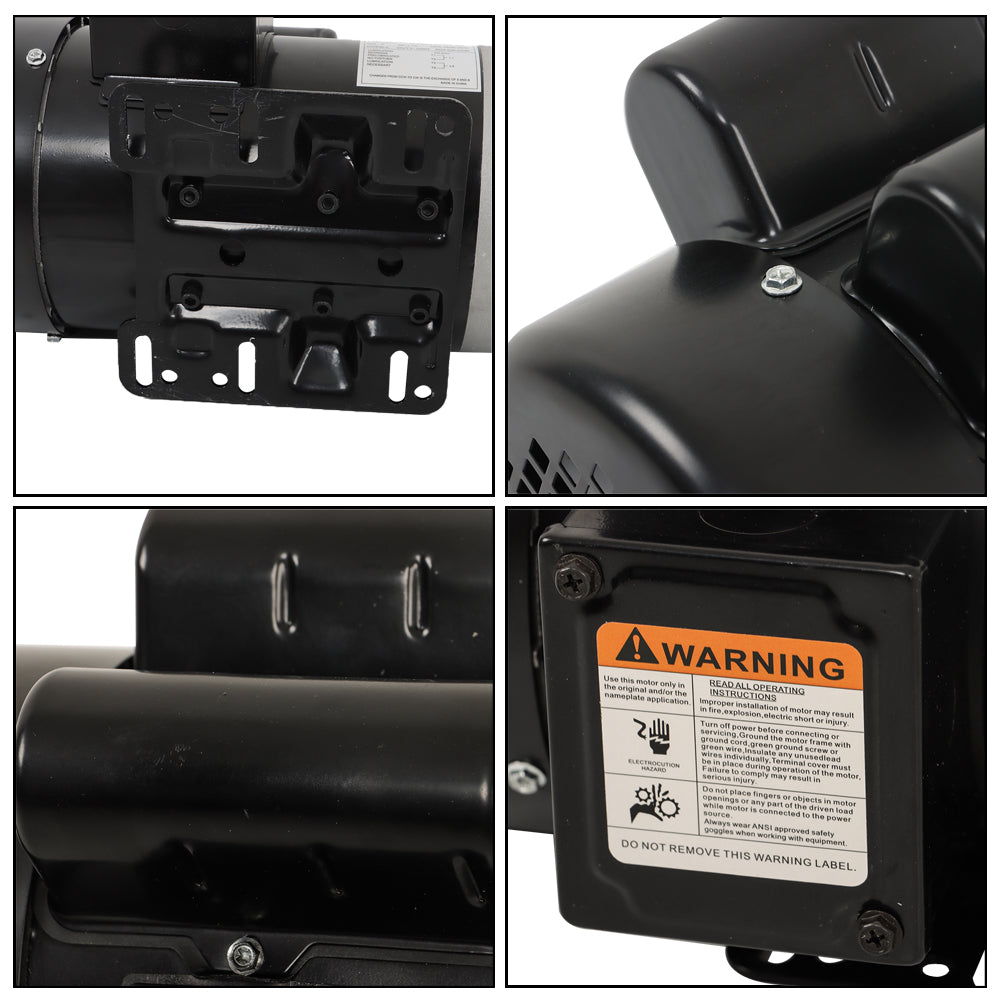

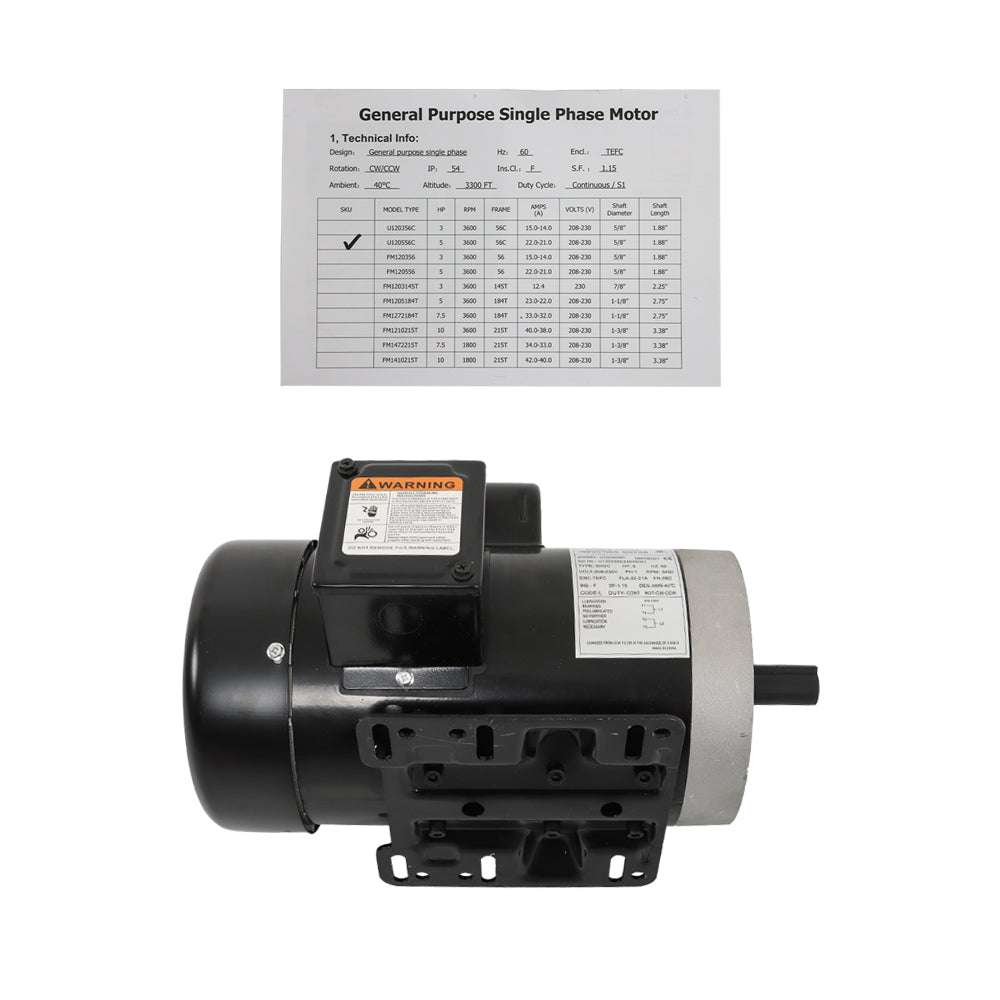

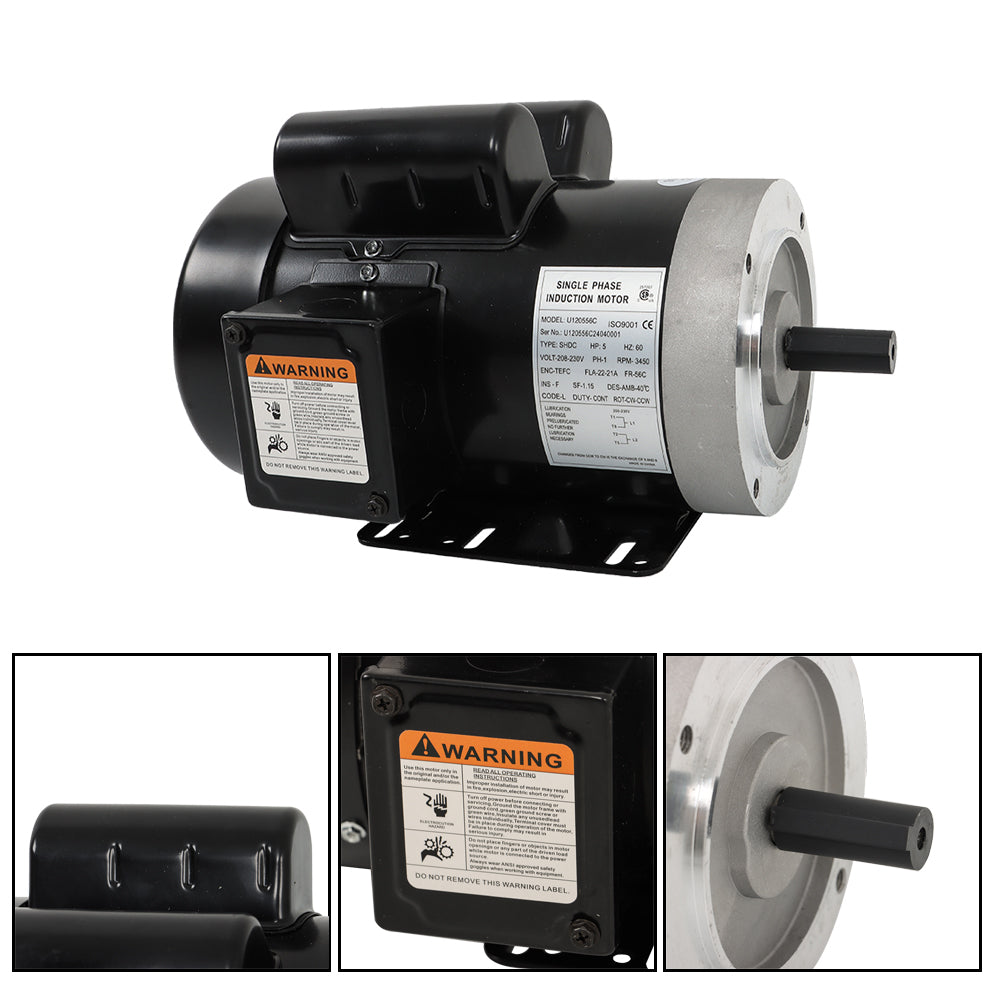

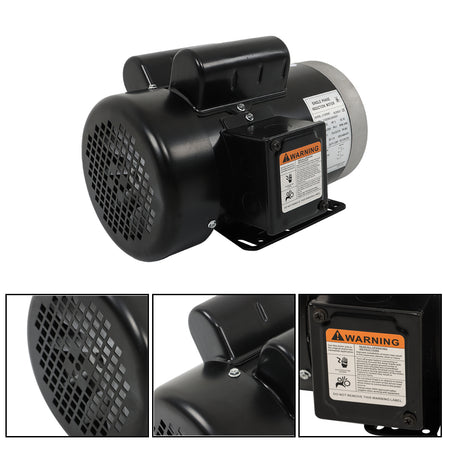

5HP Electric Motor 3450RPM Air Compressor Motor Single Phase 208-230V 5/8"Shaft

Feature：

AC Frequency Rating：60 Hz
Reversible/Non-Reversible：Reversible  CW/CCW
Nominal Rated Input Voltage：208-230V
Rated Load (HP)：5
Special Motor Construction：Spindle Motor
Current Type：AC
Shaft Diameter：５/8 in
Enclosure Type： TEFC (Totally Enclosed Fan Cooled)
AC Phase：Single Phase
Insulation Class：F (Max 311°F)
Mounting Type：Base-Mounted
Pole :２
Amps：22.0-21.0A
AC Motor Type：Induction/Asynchronous
Base RPM：3450RPM
IP Rating：IP55
Shaft Length：1.88in
Protector：Non
Housing Material：Rolled steel shell
Model：General Electric Motor
IEC Frame Size：56C
Synchronous Speed:3600 RPM

Description：

Amps

Be sure to replace the motor with a full load current value of less than 10% of what you purchased

Totally Enclosed Fan Cooling (TEFC)

Prevent the free exchange of air between the inside and outside of the frame, but do not make the frame completely airtight. The fan is mounted on the shaft and air is pushed onto the frame during operation to assist in the cooling process

RPM

Matching rpm is very important, the wrong speed can damage the pump, rpm do not need to be exactly matched, the difference can be close

Frame size

The size of the frame corresponds to the size of the motor. Improper size of motor will lead to motor failure

Phase and voltage

A 230V motor single-phase power supply refers to a 1 phase 230V AC motor.It cannot withstand a voltage lower than 208V. They will run too hot and the motor will fail
TEFC

Style shell is versatile. Can be used in air compressor, mechanical equipment, fan, water pump, reducer, machine tool and general equipment

Reference

Spindle motor is also called high-speed motor, which refers to the AC motor with more than 10000 rpm. It is mainly used in wood, aluminum, stone, hardware, glass, PVC and other industries. It has the advantages of fast speed, small volume, light weight, low material consumption, low noise and low vibration

AC motor is used to realize the conversion of mechanical energy and AC energy. AC motor has no commutator, so it is simple in structure, convenient in manufacture and relatively firm, it is easy to be made into a motor with high speed, high voltage, large current and capacity

Asynchronous motor is also known as induction motor that is an AC motor which generates electromagnetic torque by the interaction of air gap rotating magnetic field and rotor winding induced current, so as to realize the conversion of electromechanical energy into mechanical energy

Package List:

1 x 5HP General Electric Motor
1 x Manual
