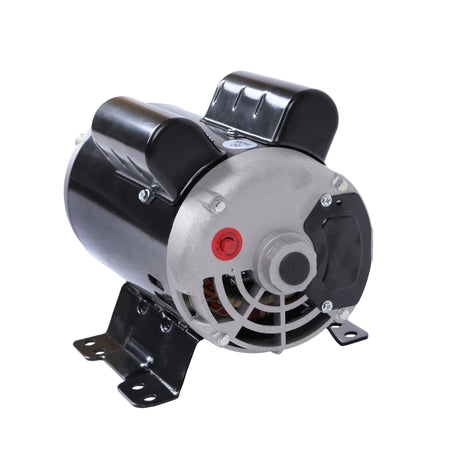

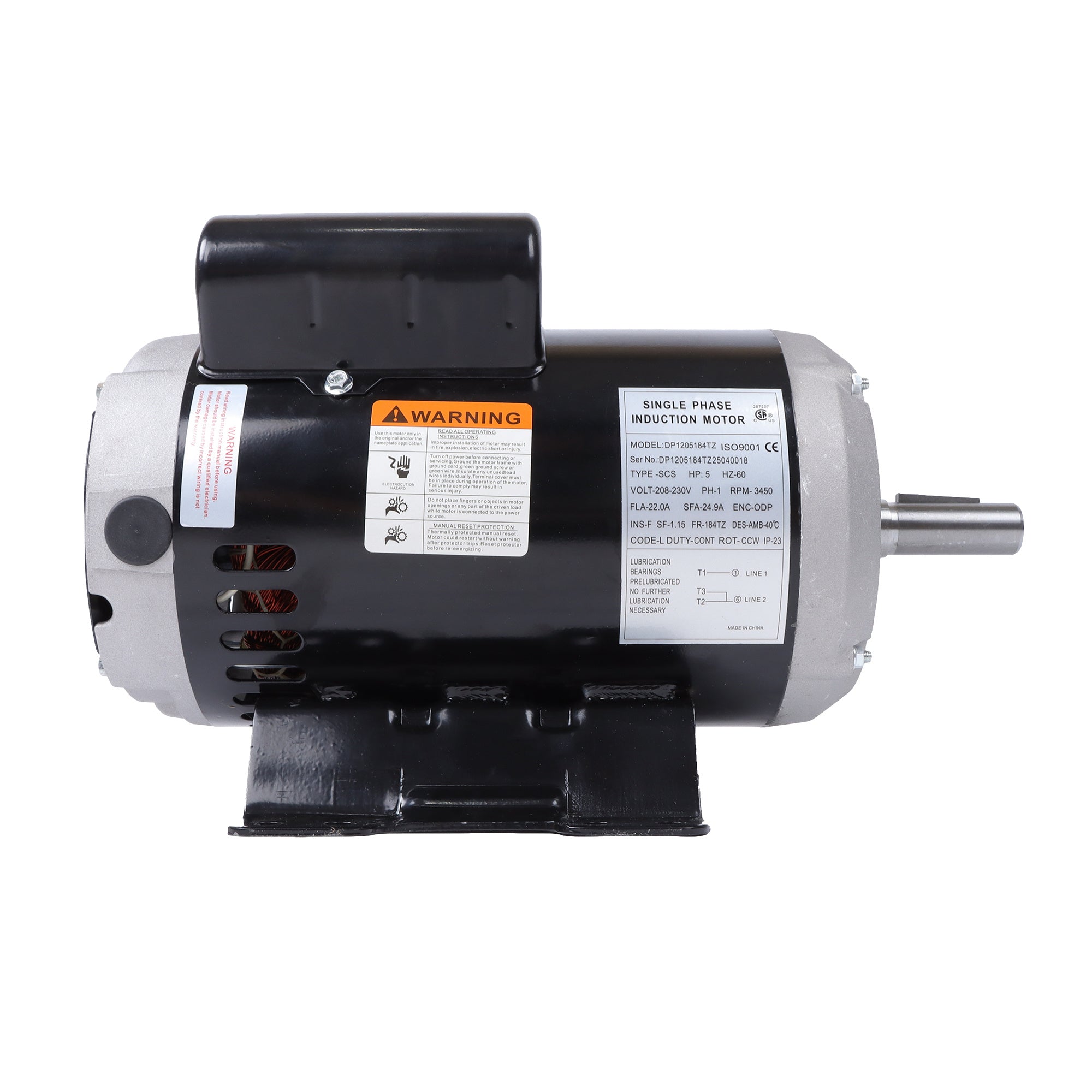

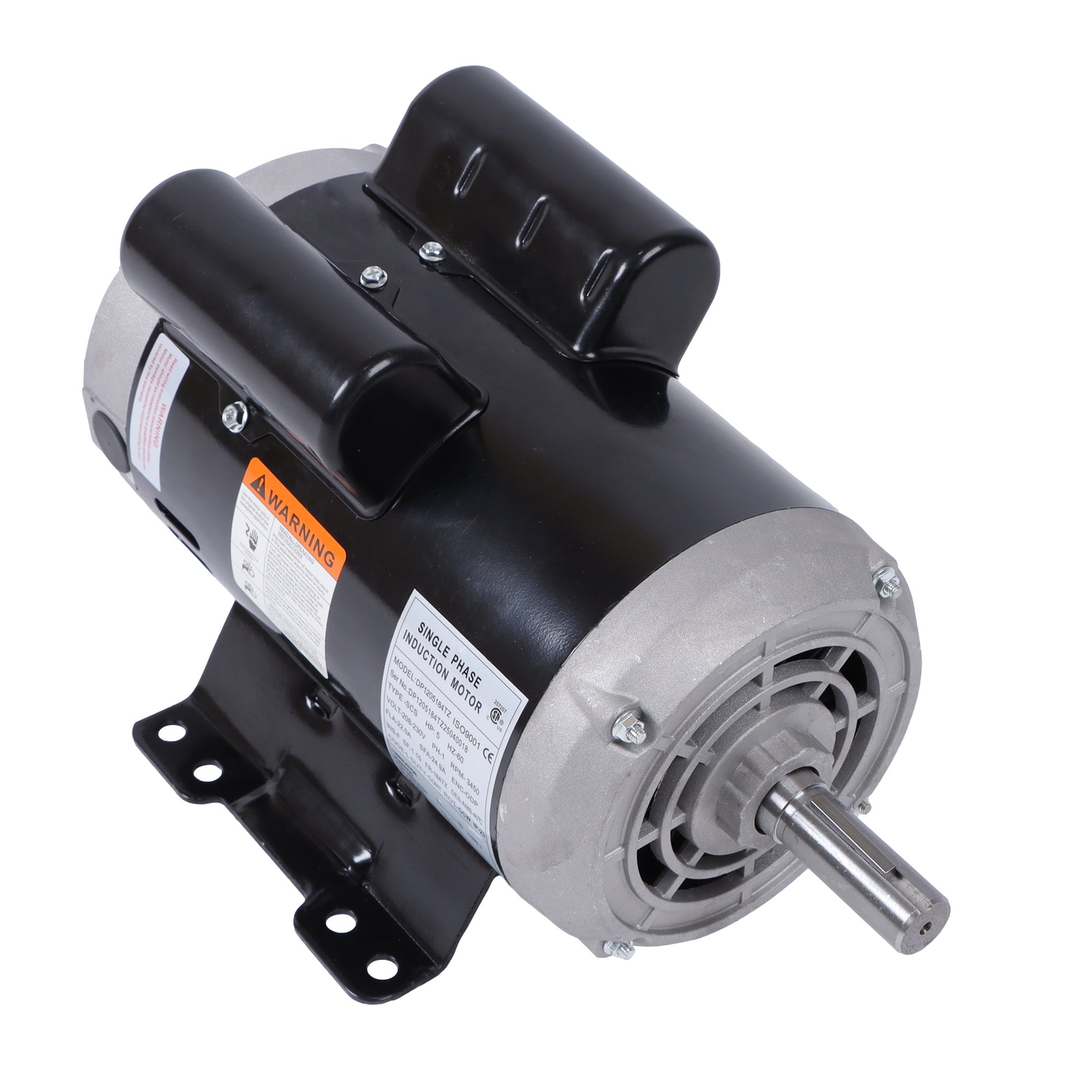

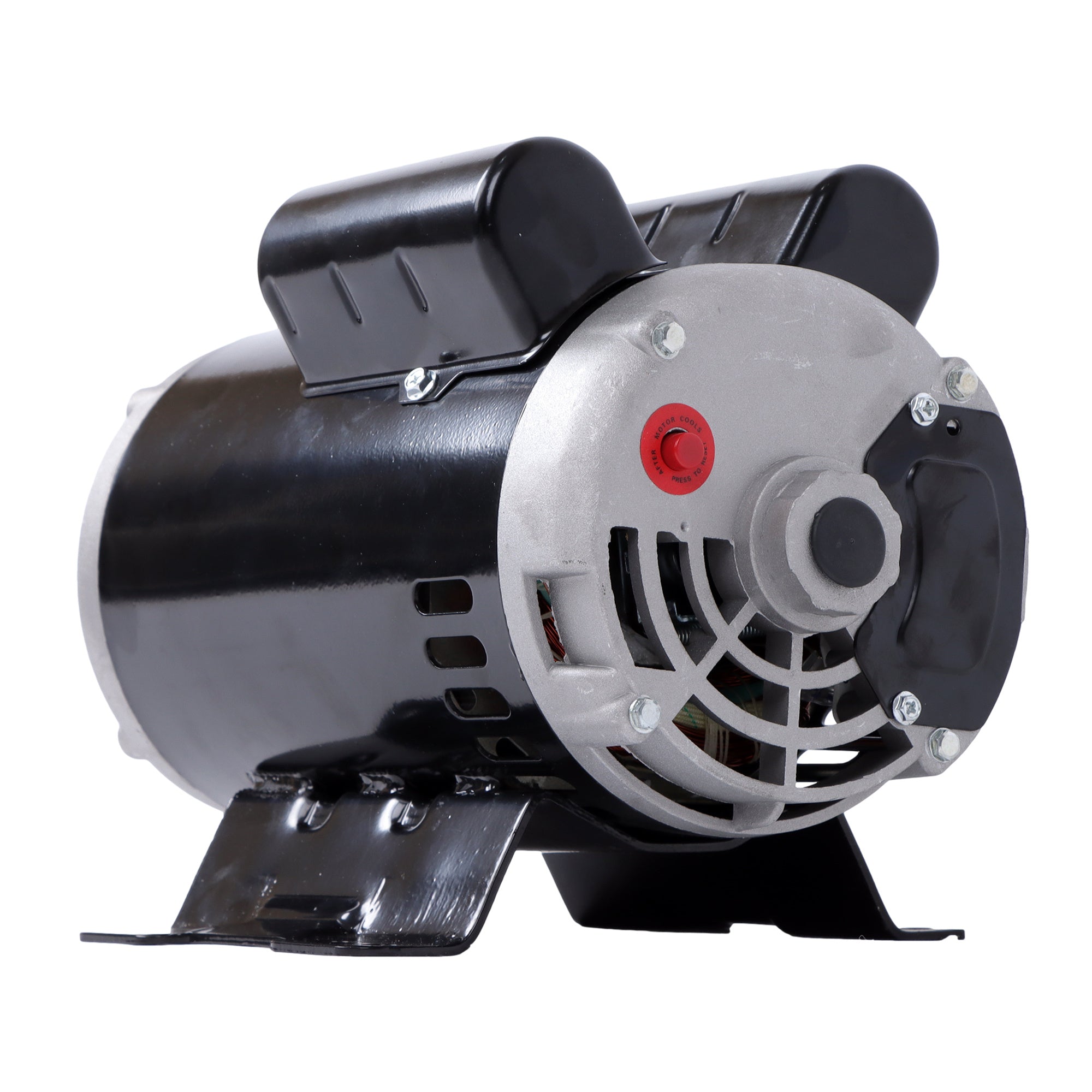

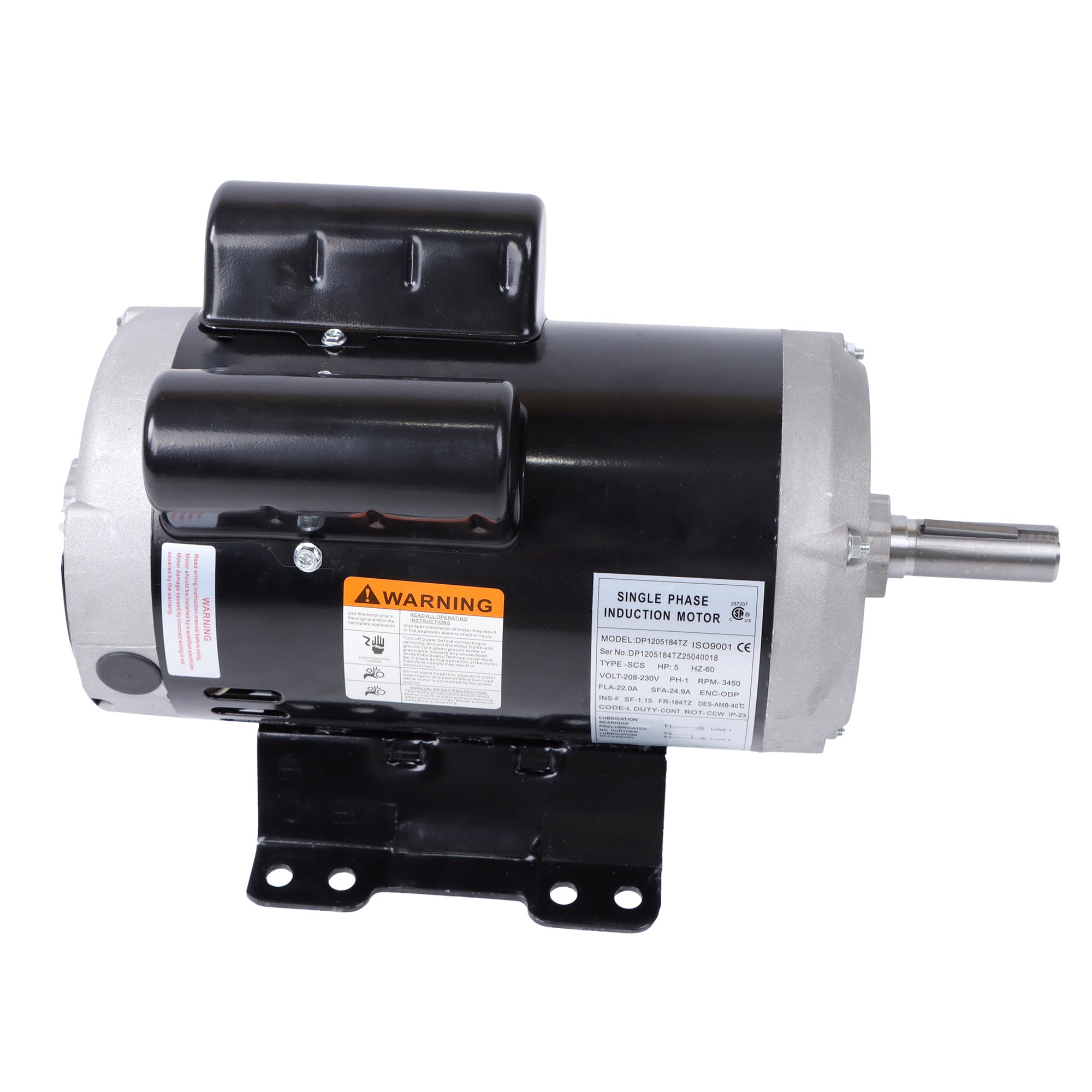

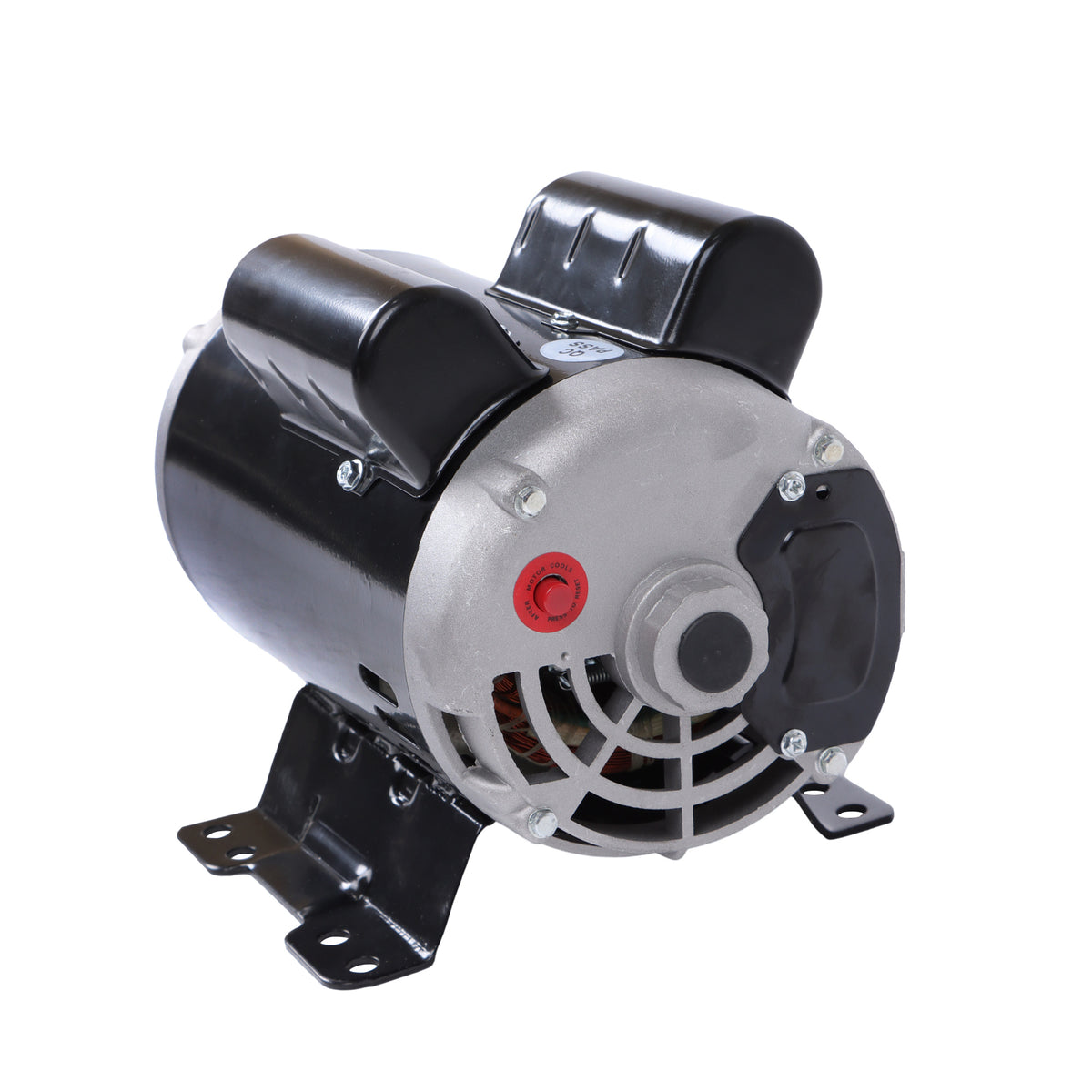

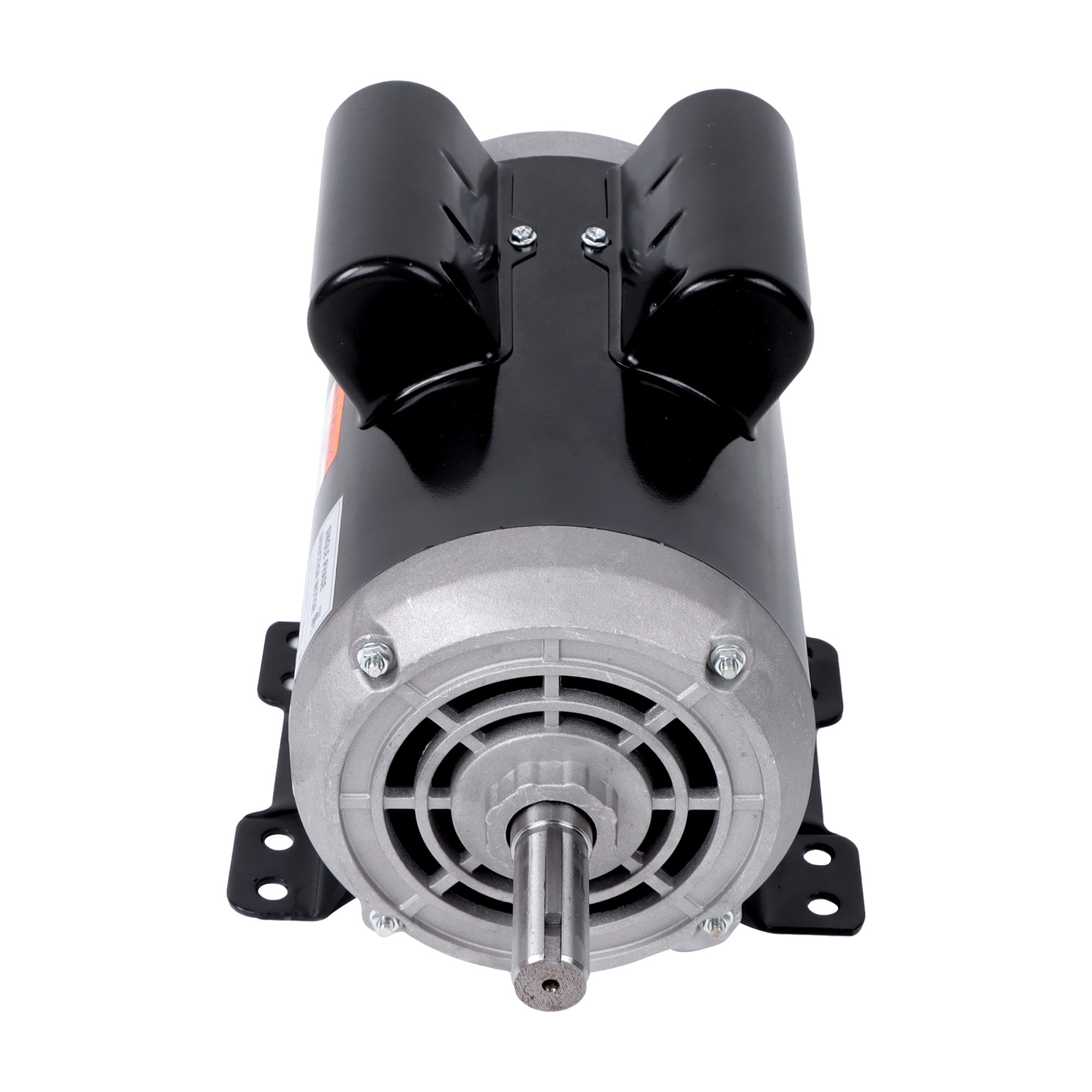

5HP Air Compressor Motor 56283138 54421193 For Ingersoll Rand 230V 3450 Rpm 60HZ

Specification:

Part Number:

00636OS1XCD182/4Y
54421193, P09988A, CC1021885, 23378805, 23220064, 56283138

SINGLE PHASE MOTOR 5HP
Horse Power: 5HP
208/230 VOLT
184 FRAME BOLT PATTERN
3450 RPM
21.9 / 21.1 AMPS
7/8'' SHAFT
ROT: CCW DRIVE END
ENCL: ODP
FLA :24.9
HZ: 60
Service Factor: 1.15

Feature：

Brand new, high starting torque design for compressor duty applications.

Overload protection with manual reset.

Steel frame and base.

Welded base. Capacitor start/capacitor run.

Package Including：

1*Air Compressor Motor

Notes:

Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.

When the motor is received,
1. Turn the shaft by hand to see if the motor shaft can rotate normally.
2. Do not run with load first, run the machine for a few minutes, and then bring the load after everything is normal.
3. When running with load, it is best to use an ammeter to measure the actual running current and see if it exceeds the rating on the nameplate.
