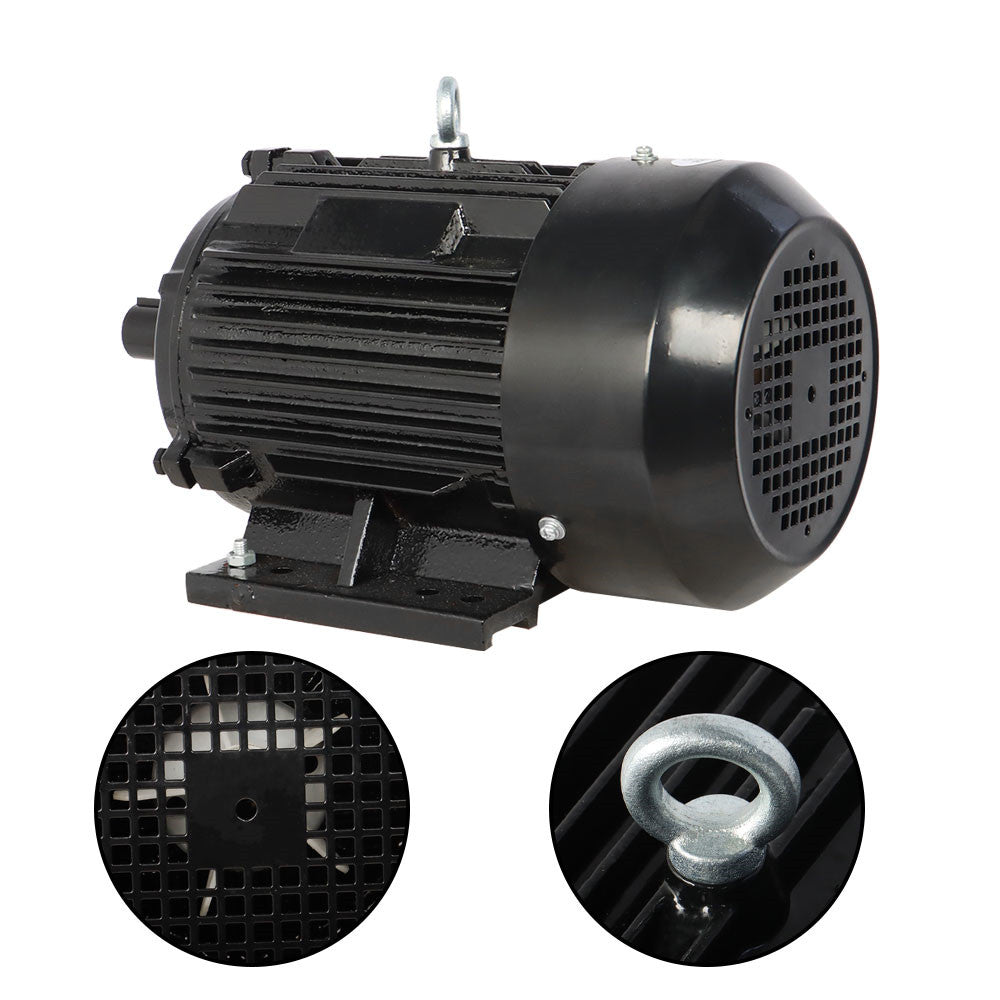

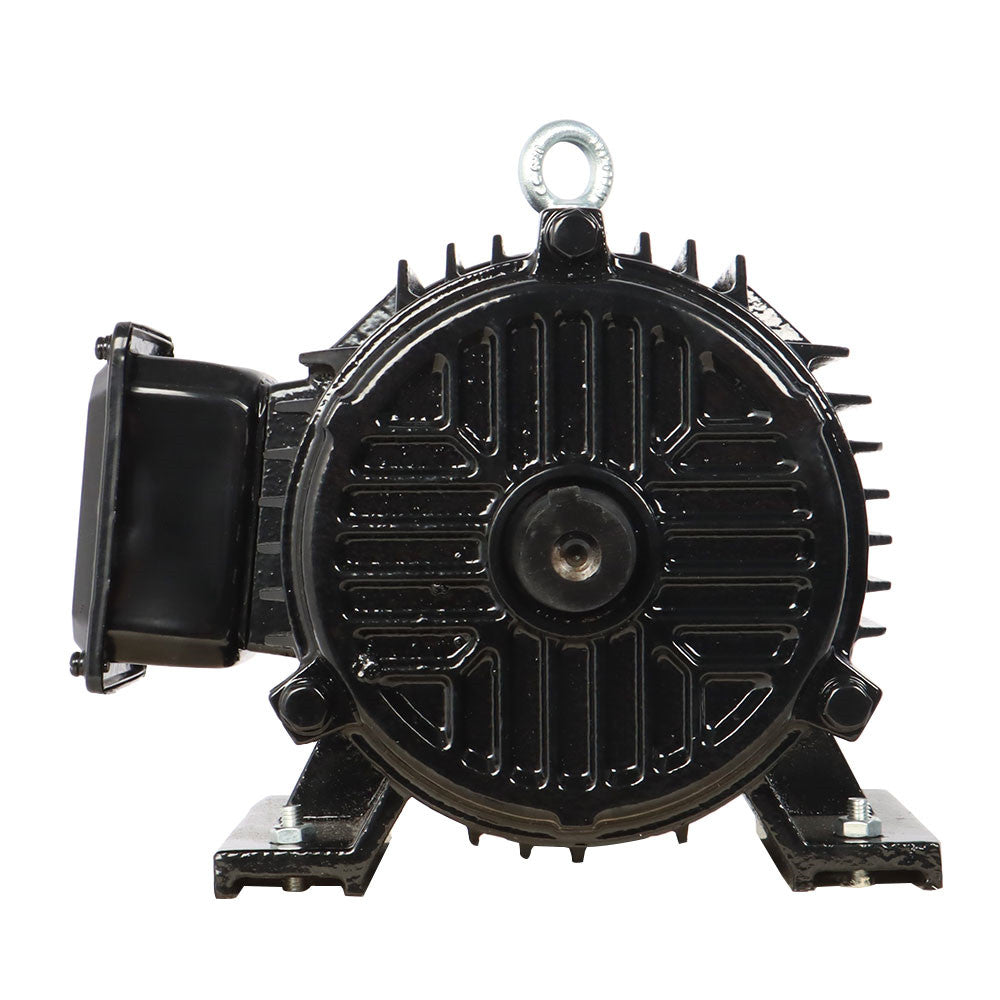

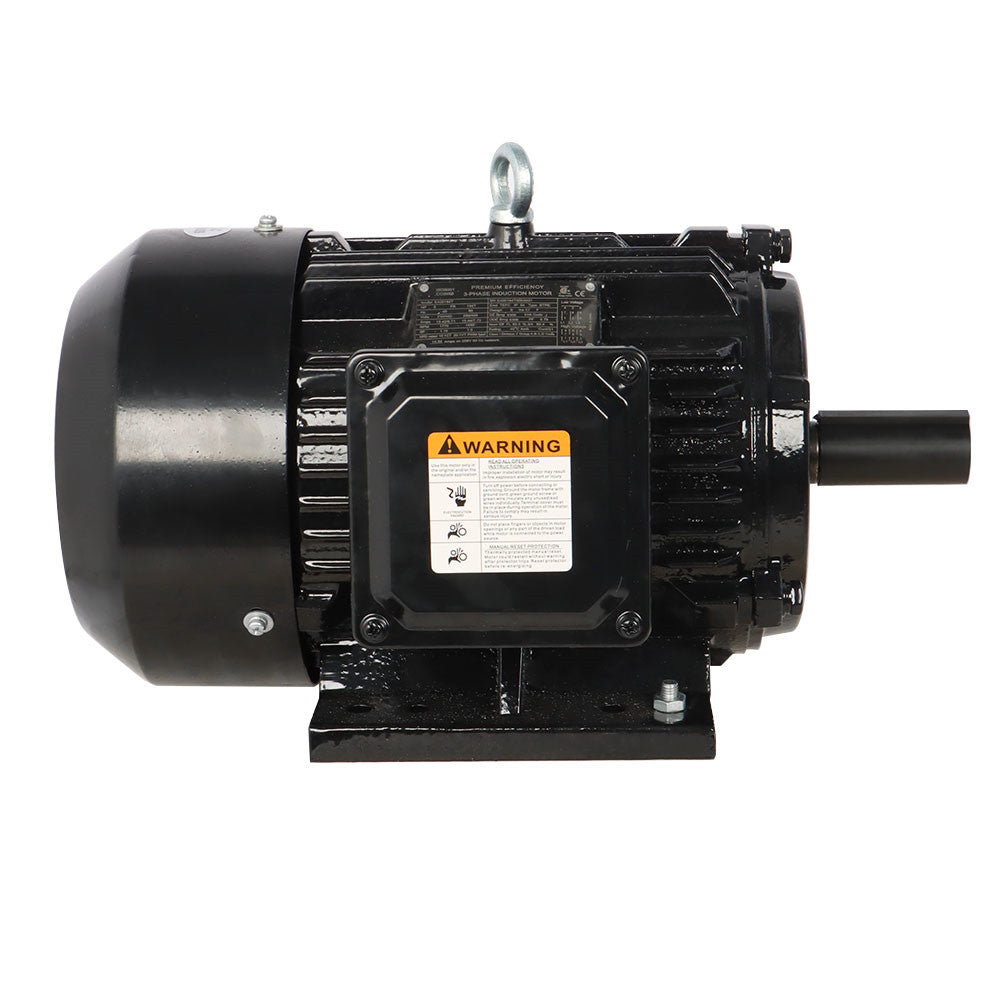

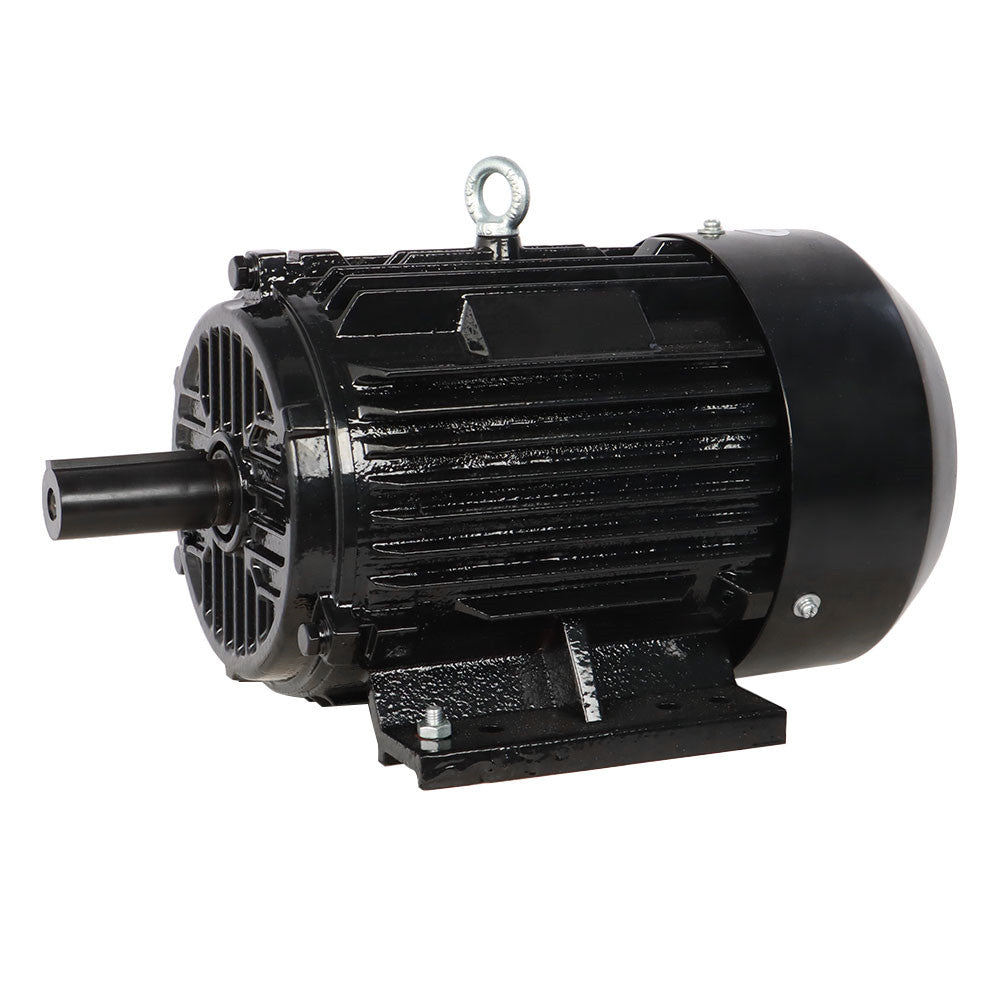

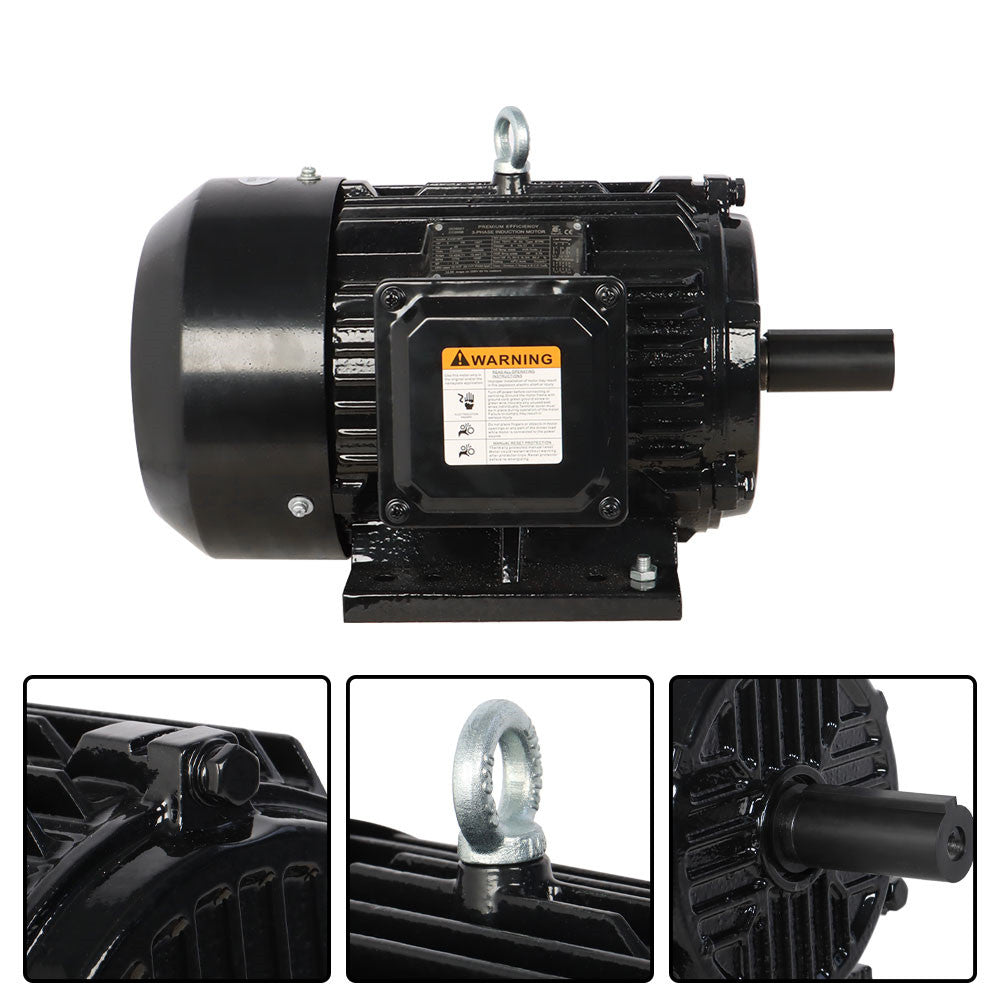

5HP 3 Phase Electric Motor 1800 RPM 184T Frame TEFC 230/460 Volt Severe Duty

Description:

5 horsepower, 3 phase premium efficiency severe duty electric motor with rigid base.

This motor features Class F insulation, fan cooling, a 1.25 service factor, is a premium efficiency severe duty motor.  Designed for 60Hz also suitable for 50Hz operation with a 1.0 service factor.

Features a TEFC / IP55 enclosure, and is a 184T frame.


Specification:

5 Horsepower
3 Phase
TEFC / IP55 Fully Enclosed
184T Frame
Service Factor 1.25
Class F Insulation
104 lbs
208-230/460 Volt
1800 RPM  (Full Load Speed 1755)
Fan Cooled
Class F Insulation
Shaft Length: Approximately 2 7/8"
Keyed 1 1/8" Diameter Shaft
Current: AC
Full Load Amps: 12.6 / 6.3 (Usable on 208V at 13.9)
60 HZ (Suitable for 50 HZ with 1.0 SF)
Rotation: Bi-Directional
Shaft Material: 1045 Carbon Steel
Nema Design B
Max Temp: 40 Degrees C
Insulation Class:F (Max 311°F)
Features:5 Horsepower 3 Phase TEFC / IP55 Fully Enclosed 184T Frame Servic
