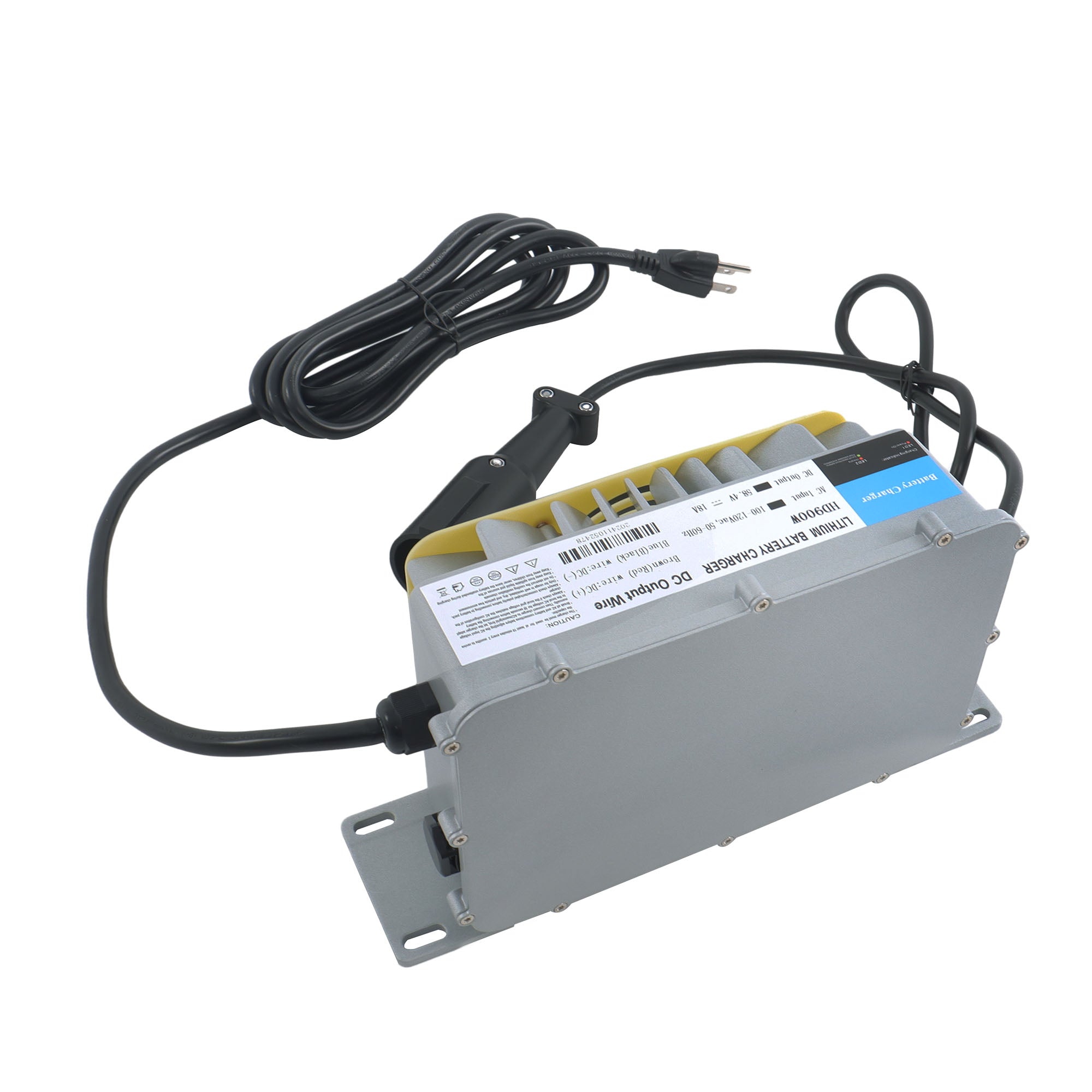

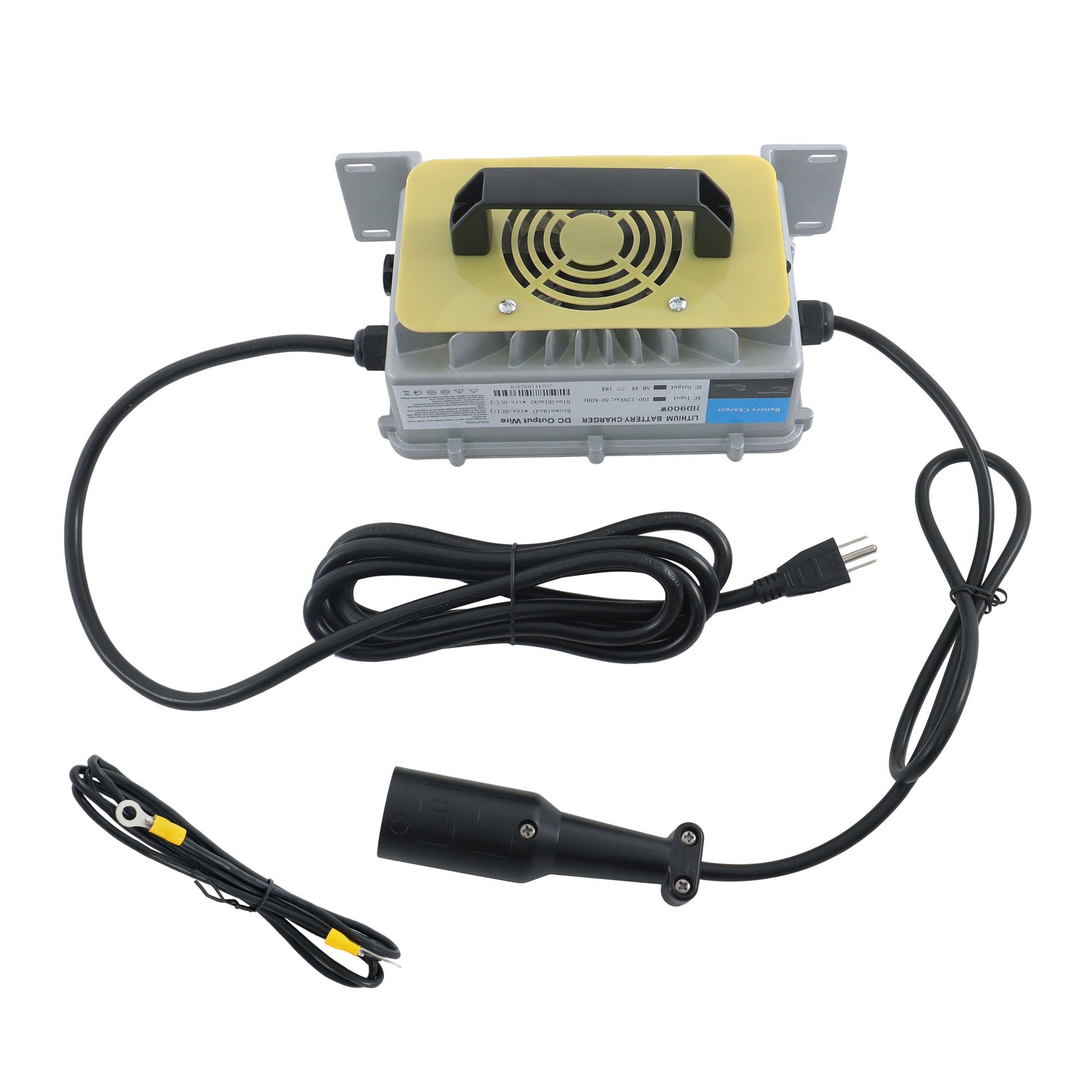

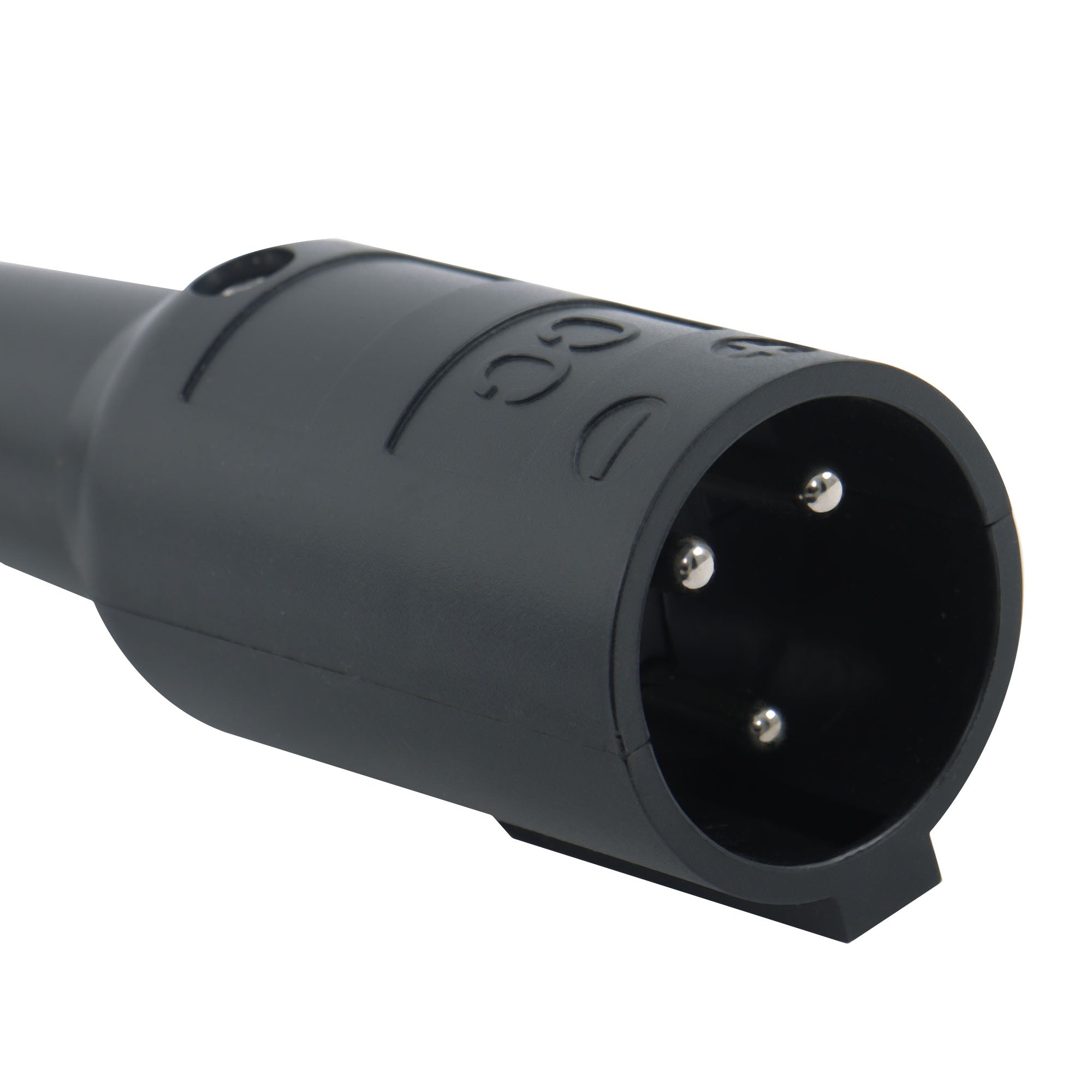

58.4Volt 18Amp Lithium Battery Matching 3-pin Round Plug

• Replacement for Club Car DS/ Precedent Golf Cart
• This 58.4V 20A Golf Cart Lithium Battery Matching 3-pin Round Plug Charges
• Note: Allowable AC input voltage is 100-240 volts AC, no other voltages are allowed

DC Output:
Maximum DC output voltage: 58.4V
Nominal DC output voltage: 51.2V (48V)
Nominal DC output current: 20A 110 VAC , 20A 220 VAC
Maximum DC output power: 1200W
Battery type: Lithium


AC Input
AC input voltage range 85-270 VAC
Nominal AC input voltage 100-240 VAC
Nominal AC input frequency 50 / 60 Hz
Maximum AC input current 13A
Nominal AC input current 10A
Power factor >0.9


Charging consists of 3 steps:
Constant current, constant voltage and float charging.


LED status description:
1. Steady green: Full
2. Alternating flashing traffic lights: standbyOvercharge (fan stops working)
3. Red flash: PREC precharge
4. Slow green flashing: Transition Current
5. Slow flashing red: Fast chargeRecharge
