#50SS Stainless Steel Roller Chain X 10 Feet + 2 Free Connecting Links

In stock
Regular price $89.92
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee

Checking Vehicle Fit

Have Questions?
Market@labworkauto.com

specification:

ANSI Chain No.: #50

Lenght: 10 feet

Pitch (P): 0.625 inch (15.875 mm)

Roller Diameter (d1 max): 0.4 inch (10.16 mm)

Width Between Inner Plates (b1 min): 0.370 inch (9.4 mm)

Pin Diameter (d2 max): 0.2 inch (5.08 mm)

Pin Lenght (L max): 0.815 inch (20.70 mm)

Pin Lenght (Lc max): 0.874 inch (22.20 mm)

Plate Thickness (T max): 0.080 inch (2.03 mm)

Ultimate Tensile Strenght (Q min): 22.20/5045 kN/LB

Weight (q): 0.685 lb/ft (1.02 kg/m)

Average Tensile Strenght (Qo): 29.4 kN



Product Description:

All of our chain products have gone through stringent process measures for Best Quality! This includes heat treatment, which ensures the optimum ware life and toughness for all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth. During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life. Assembled chains are then dipped in a hot lubricant. This lubrication and the process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the environment. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will see when in use. This helps align the chain parts which will minimize the initial elongation. This will drastically increase the life of the chain!



Package including:

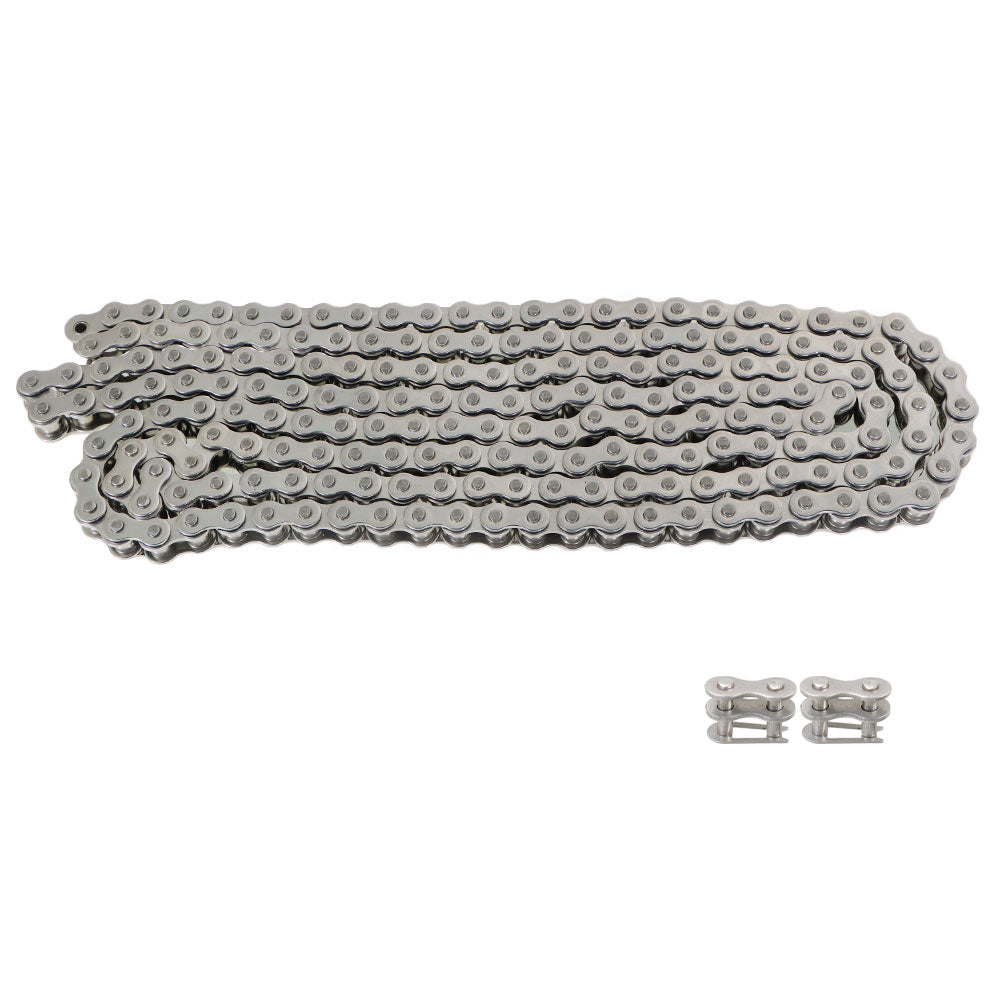

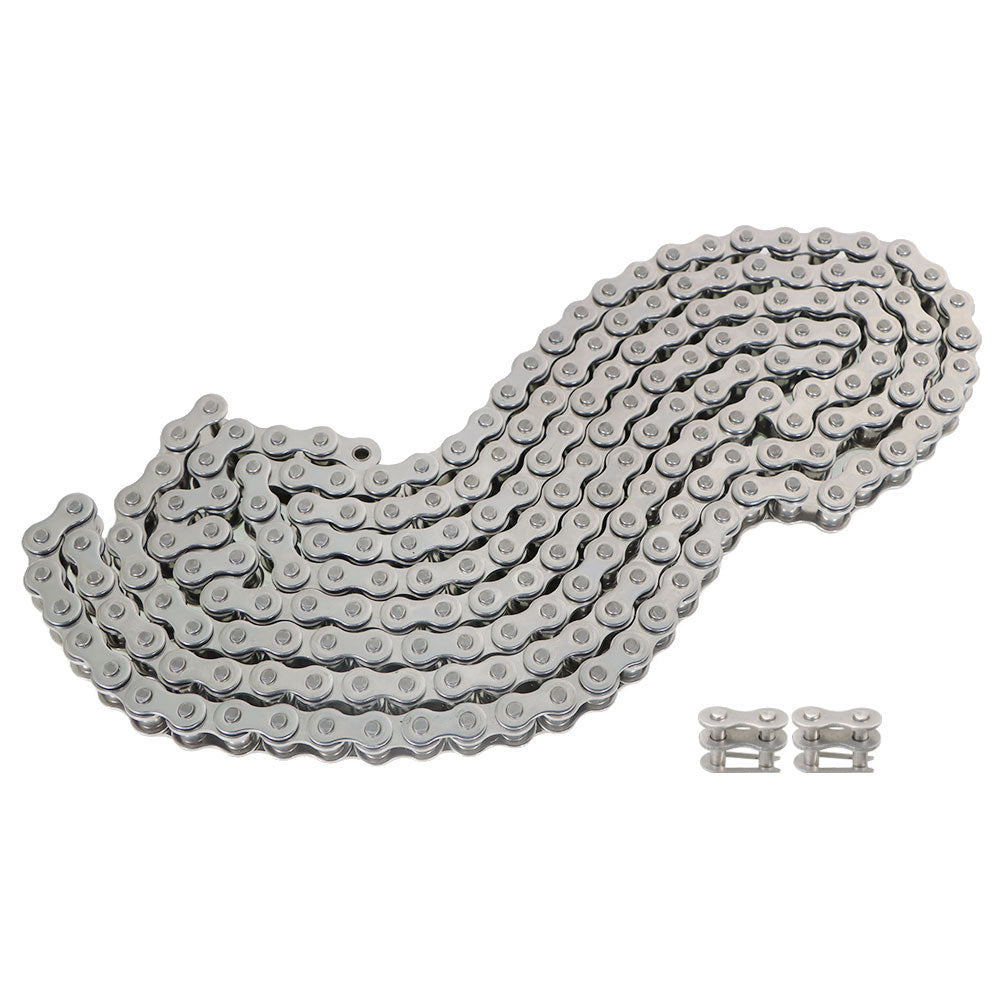

50SS 10ft chain with 2 connector.



Note:

Please Make Sure That The Model And Appearance Of Your Equipment Are Exactly The Same As Our Products.

It Is The Customer's Responsibility To Buy The Right Products. If You Are Not Sure, Please Contact Us In Time.

Thank You For Your Cooperation.
