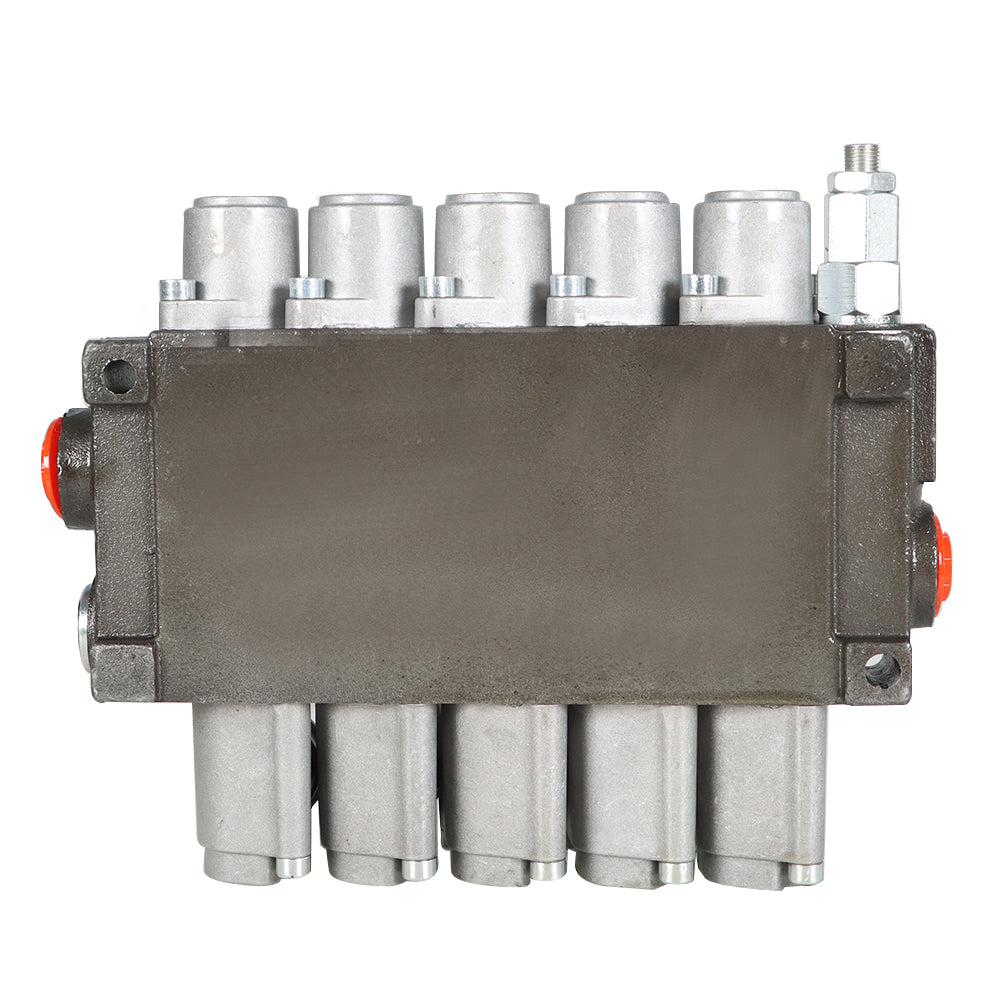

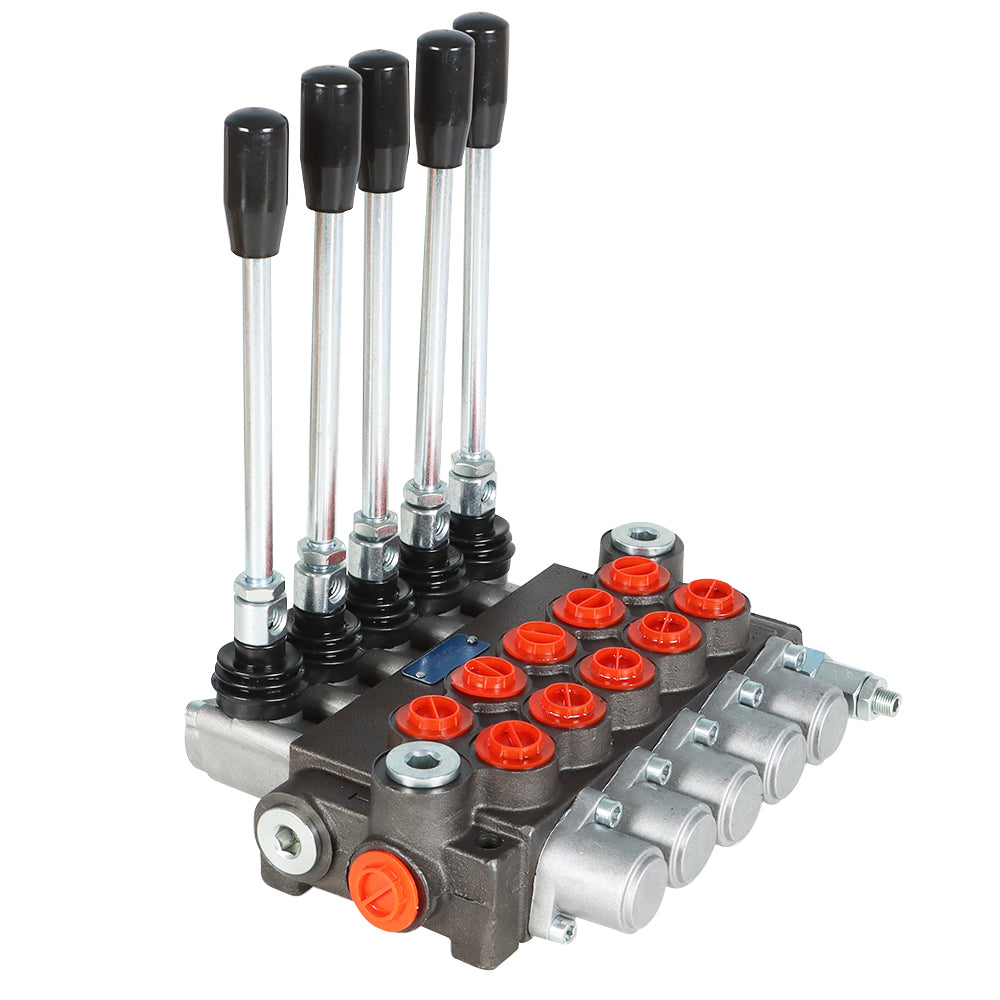

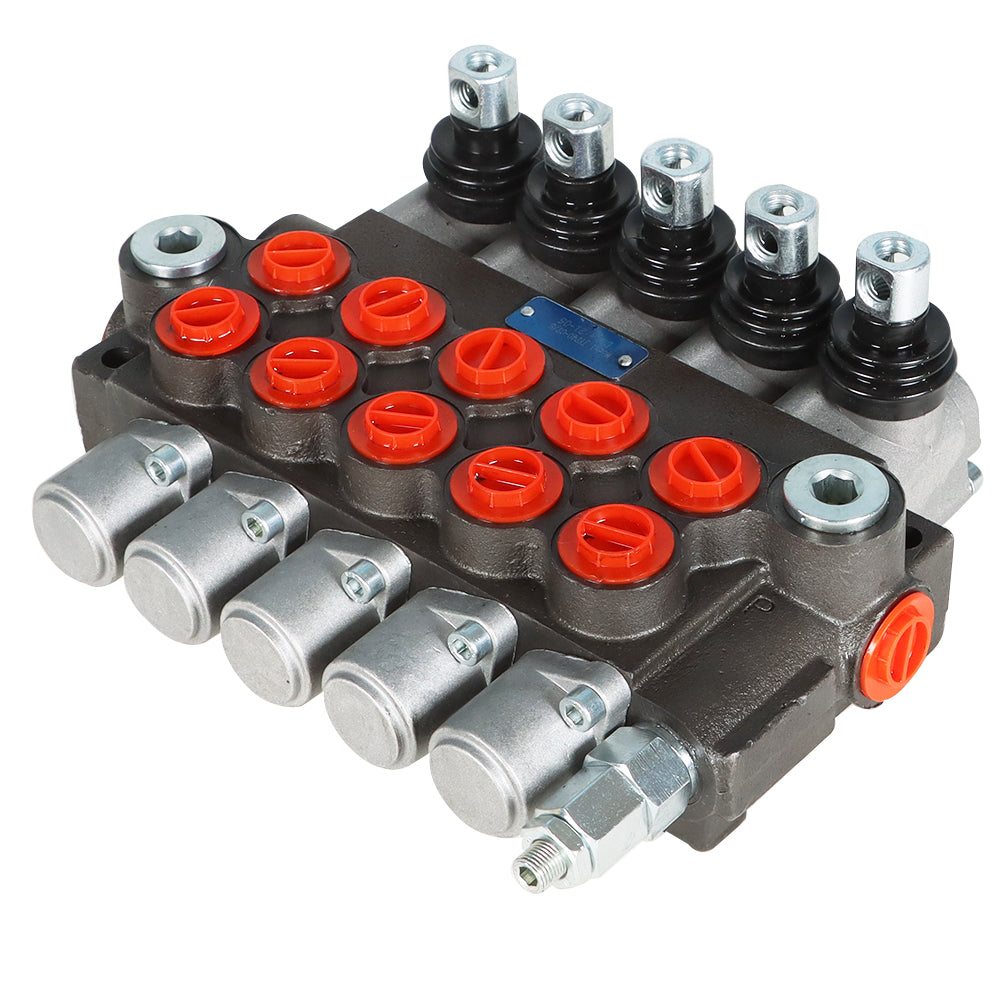

5 Spool Hydraulic Control Valve Double Acting 13 GPM 3600 PSI SAE Ports

Specifications:

•     5 Spool monoblock valve
•     Flow 13 GPM13 GPM (50L)
•     3600 PSI MAX Pressure
•     Adjustable release valve
•     Inlet port SAE 10
•     Outlet port SAE 10
•     Working ports SAE 8
•     4 Way 3 Positions
•     Spring center to neutral all spools
•     Durable cast iron body
•     Fluid temperature from 5 to 176F
•     Mounting with 2 bolts M8
•     Handle mounting vertically or horizontally


This hydraulic directional control valve is designed to manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. Its' compact design allows to use the control valve in small tractors, tractors loaders, log splitters & other mobile applications.
