5" K11-130 130mm Lathe Chuck 3 Jaw Self-Centering Milling Machine CNC Chuck

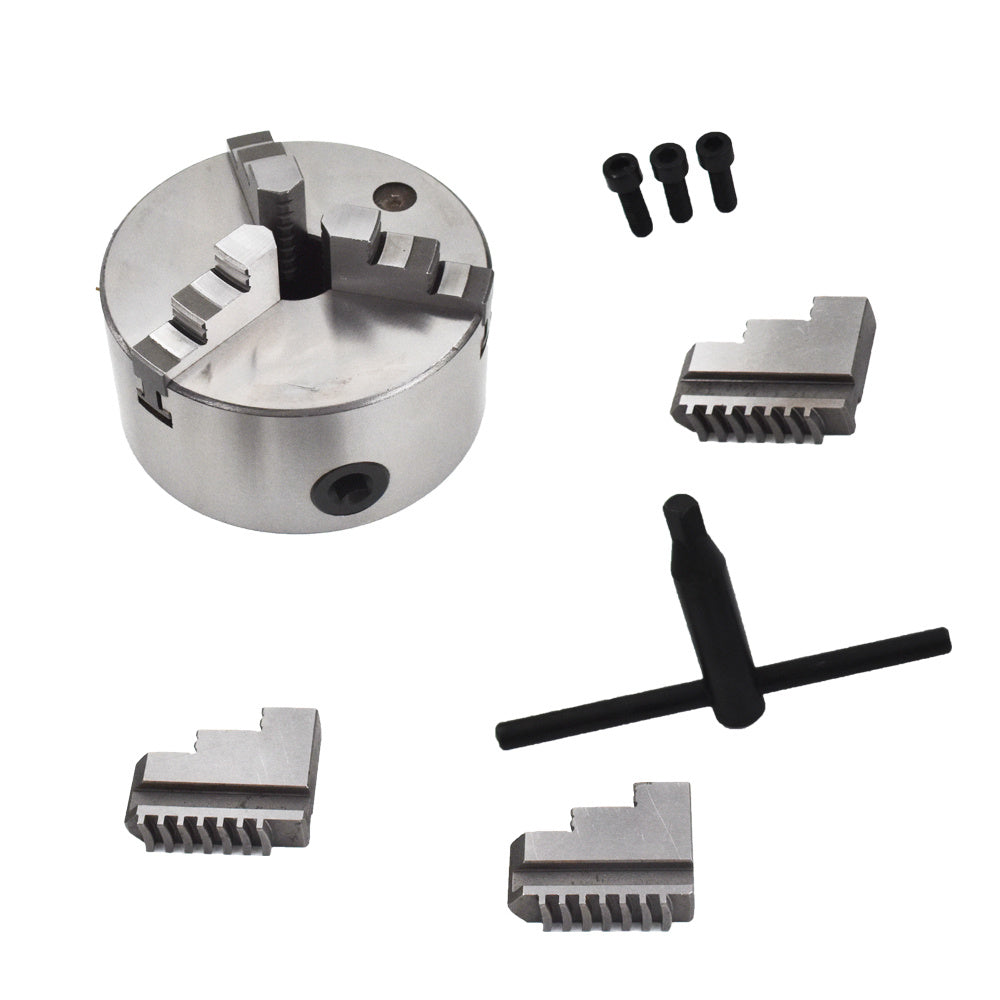

Package Including:

• 1 x Lathe Chuck
• 3 x Jaws

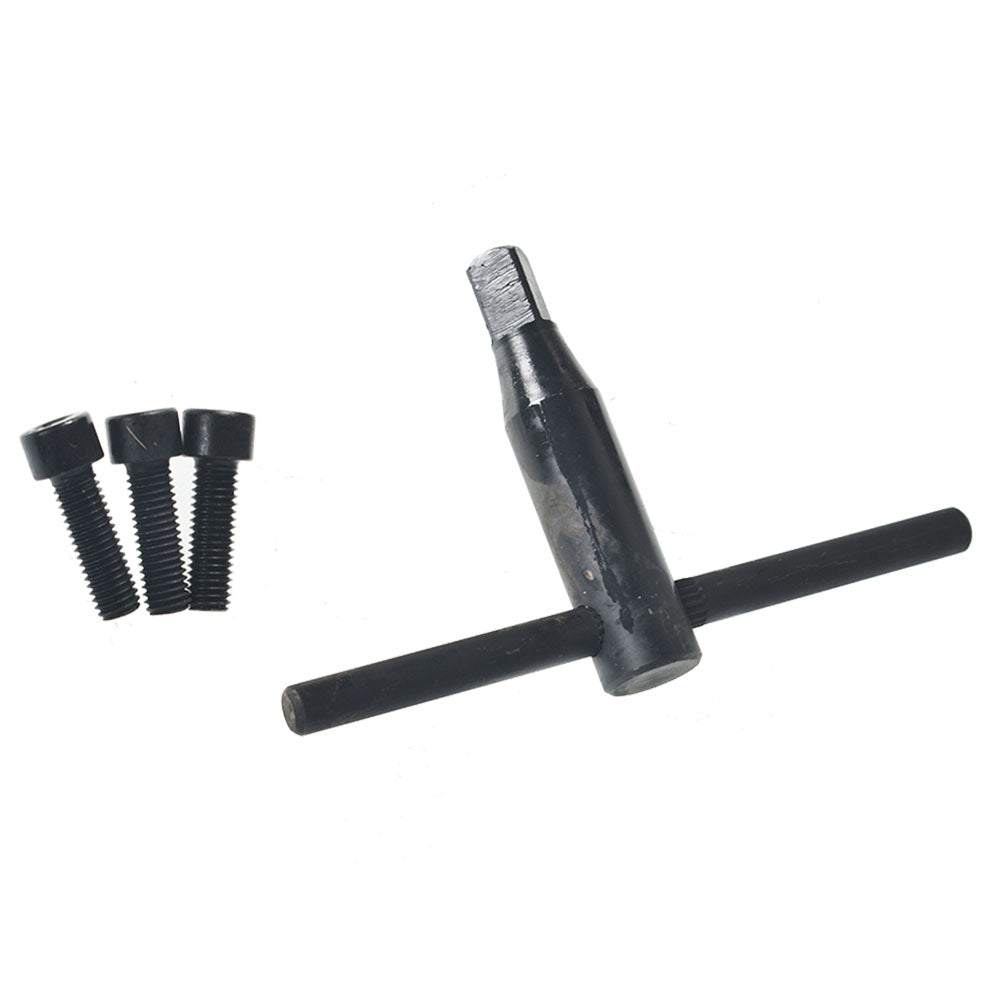

• 1 x Wrench

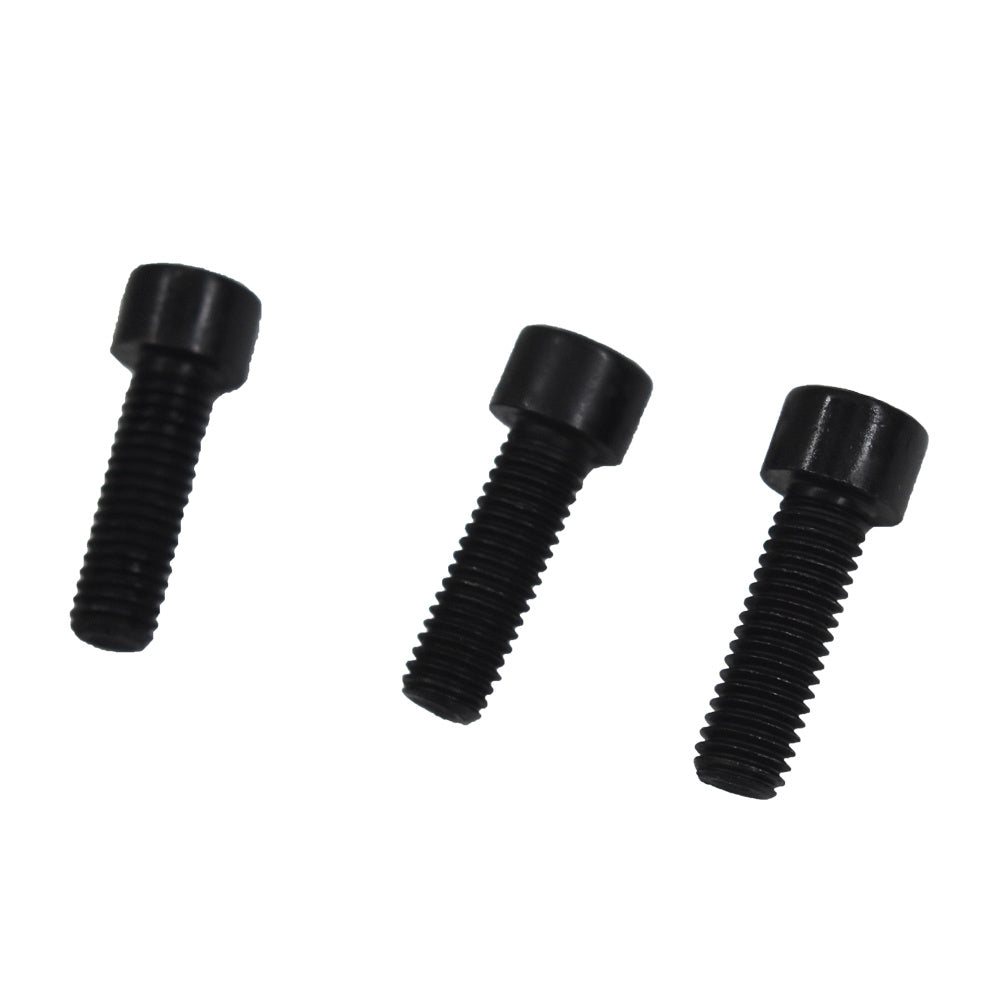

• 3 x Screw
• 3 x Nut

Specification??

• Size: 130 mm (5.1")
• Outside Diameter: 130 mm (5.1")
• Bolt Circle Diameter: 115 mm (4.25")
• Center Thru Hole Diameter: 30 mm (1.18")
• Chuck Body Thickness: 60 mm (2.28")
• Internal Jaw Clamping Range (A-A1): 3-40 mm (0.12"-1.58")
• Internal Jaw Jamming Range (B-B1): 40-130 mm (1.58"-5.12")
• External Jaw Clamping Range (C-C1): 40-120 mm (1.58"-4.7")
• Mounting Thread: 3-M8
• Accuracy: 0.002"

Features??

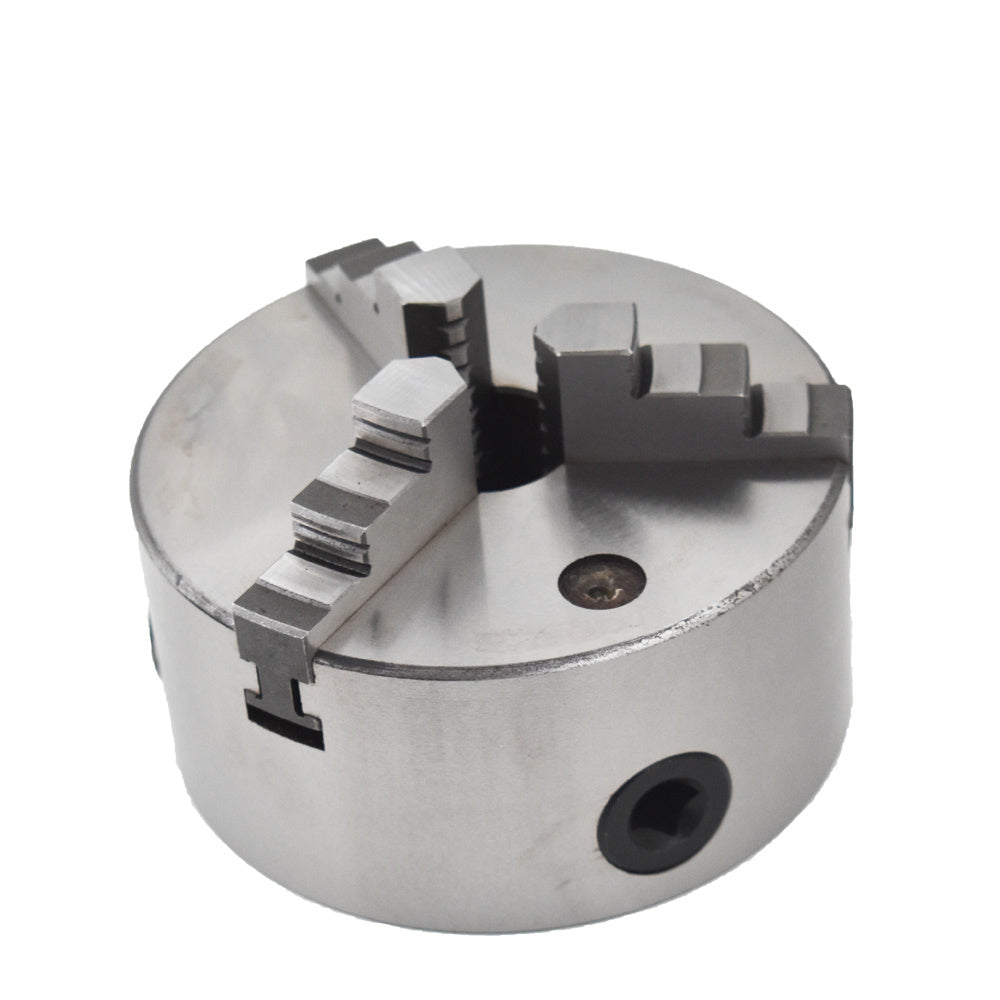

• MAIN PARAMETER - 3 jaw self-centering design lathe chuck. Diameter: 130 mm (5.1")
• QUALITY MATERIAL - Cast iron chuck body. All guideways and bearing surfaces are precisely machined

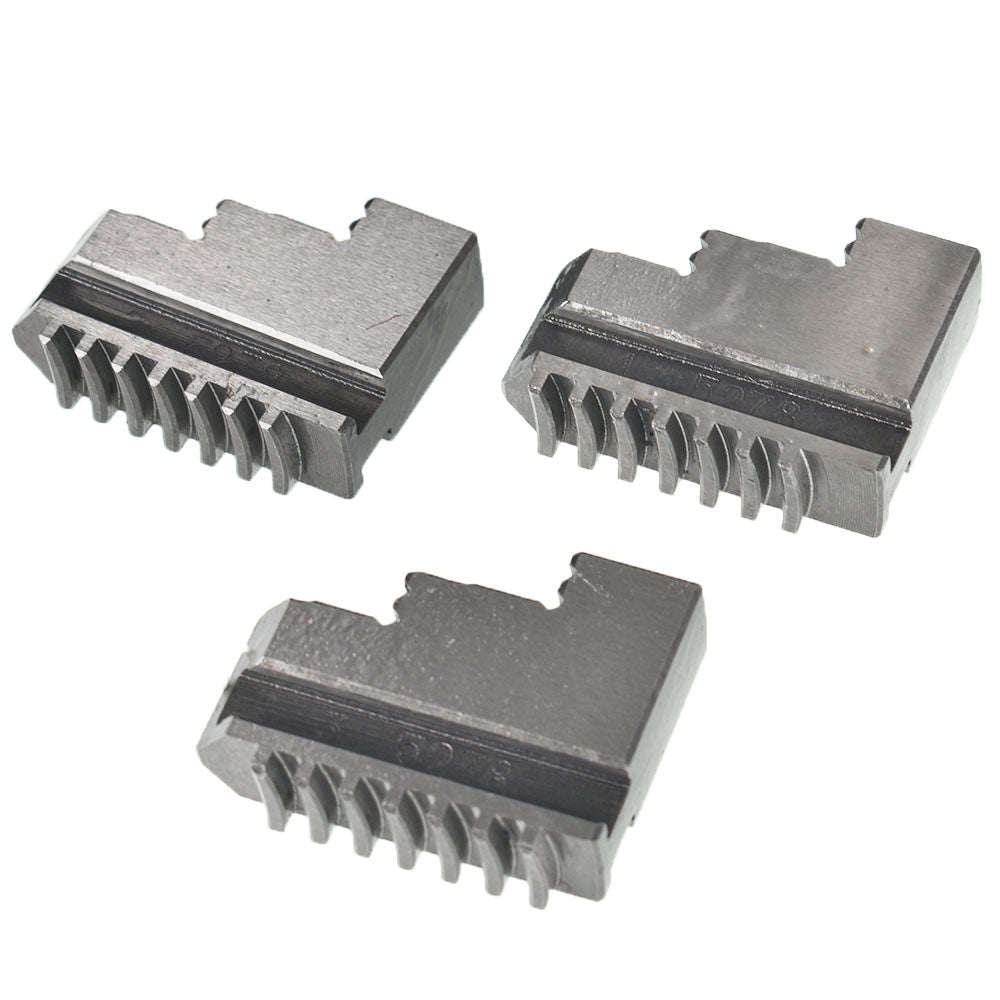

• 2 SETS OF JAWS - Internal and external jaw sets included.
• Internal clamping range: 3-40 mm (0.12"-1.58").
• Jamming range: 40-130 mm (1.58"-5.12").
• External clamping range: 40-120 mm (1.58"-4.7")
• DURABLE IN USE - Both side of jaw teeth and guides are ground and hardened to HRC 58-62
