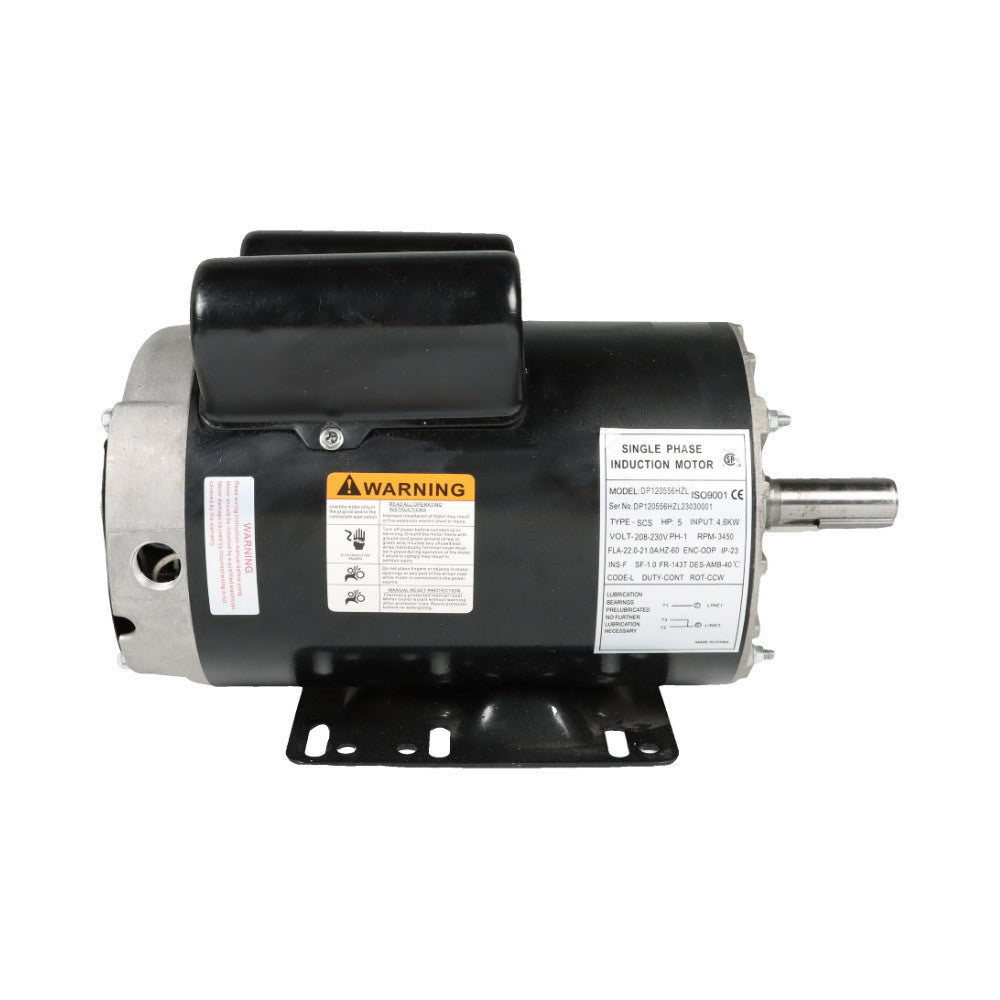

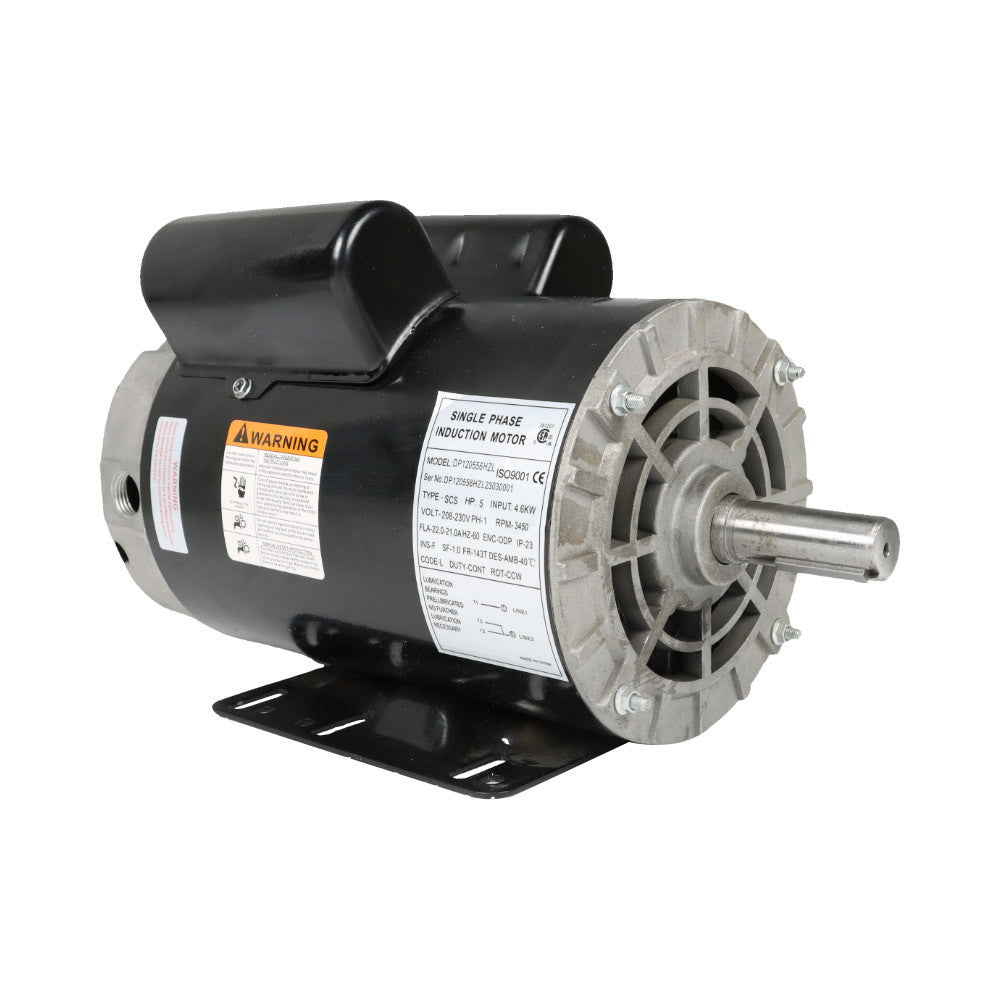

5 HP 1Phase Compressor Duty Electric Motor 230 V 3450 RPM Frame-56HZ 7/8'' Shaft

Specification：

• Open Drip Proof (ODP)
• Single Phase
• 5 HP
• 3450 RPM
• 60hz
• 230 Volts
• AMB 40 °C
• Frame: 56 HZ
• Duty: Cont. Compressor
• Service Factor: 1.0
• Full Load Amps: 22
• INS. CL: F
• Non-reversible, CCW Rotation Facing Shaft
• Thermally Protected
• Overall Length W/O Shaft: 12.5"
• Overall Length With Shaft: 14.85"
• Overall Height: 8.65"
• Overall Width: 6.6"
• Shaft Diameter: 7/8"
• Shaft Length: 2-3/8"
• Standard Size Keyway: 3/16"

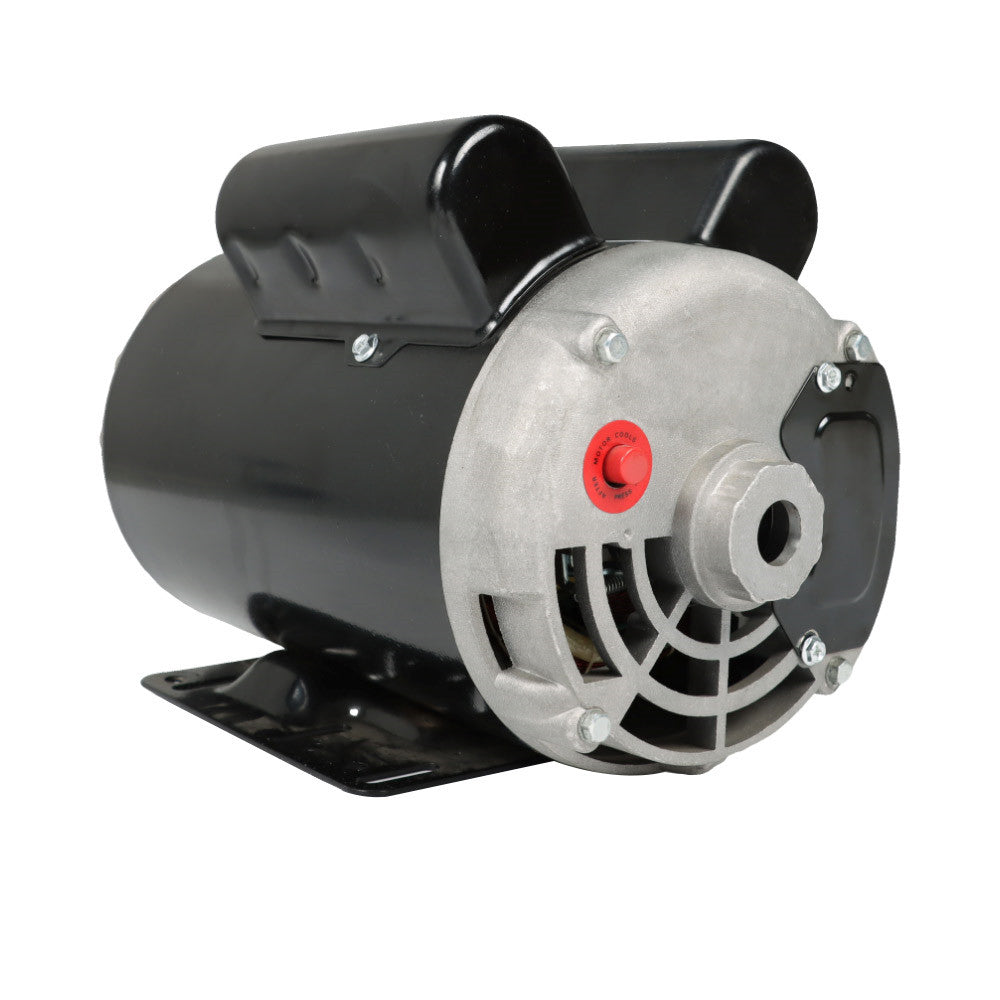

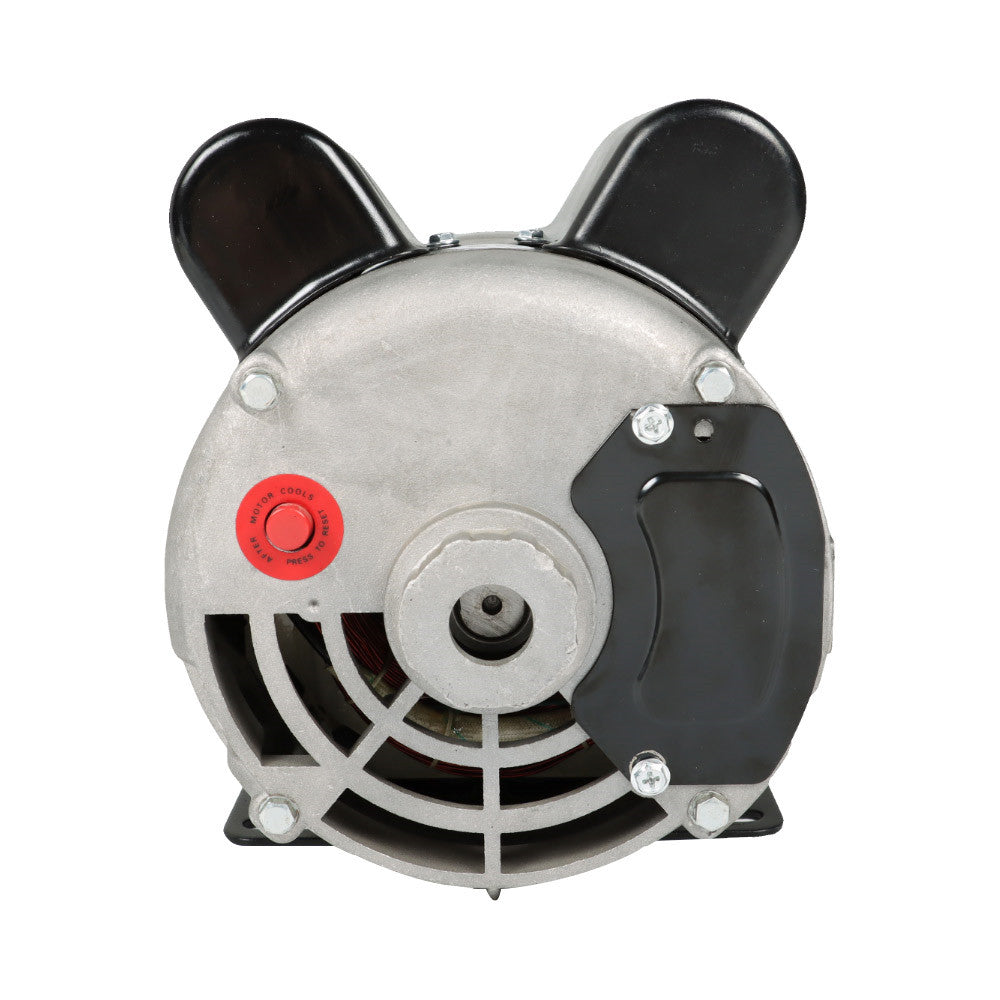

• Features Manual Reset Overload Protection

Feature：

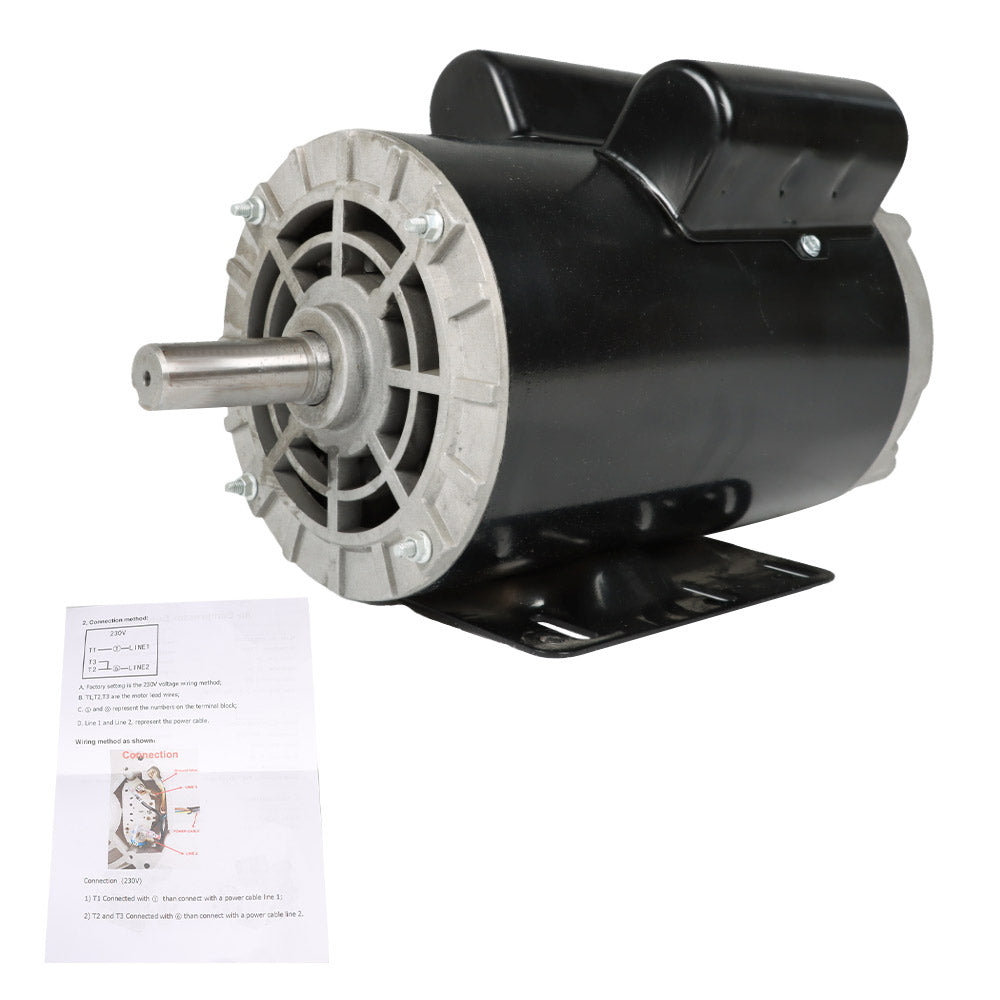

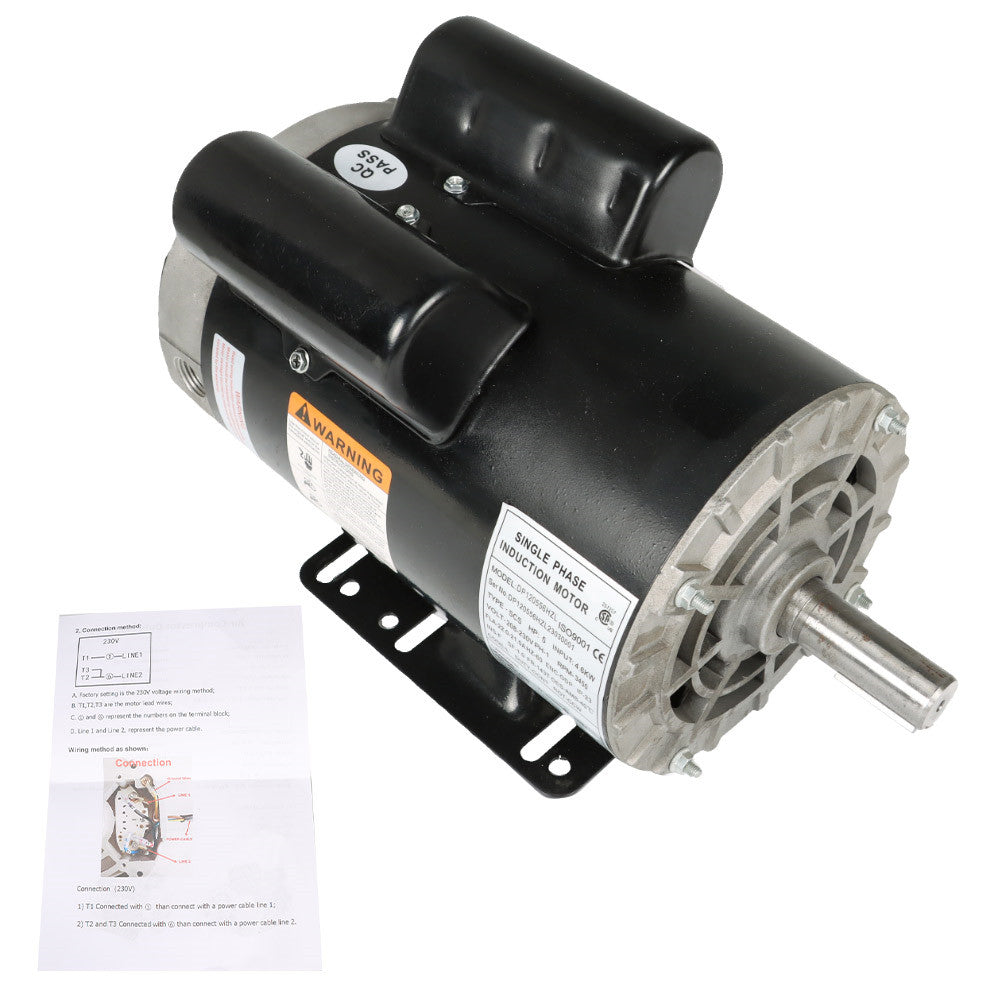

• Brand new 5 HP 230 volt compressor duty electric motor. This motor features a 56 HZ frame with a 7/8" diameter shaft and is 3450 RPM. This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft. This is a high quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications. Wiring diagram is listed on the side of the motor for reference. Below is a full list of specifications.

Package Contents：

• 1 x Air Compressor Electric Motor
