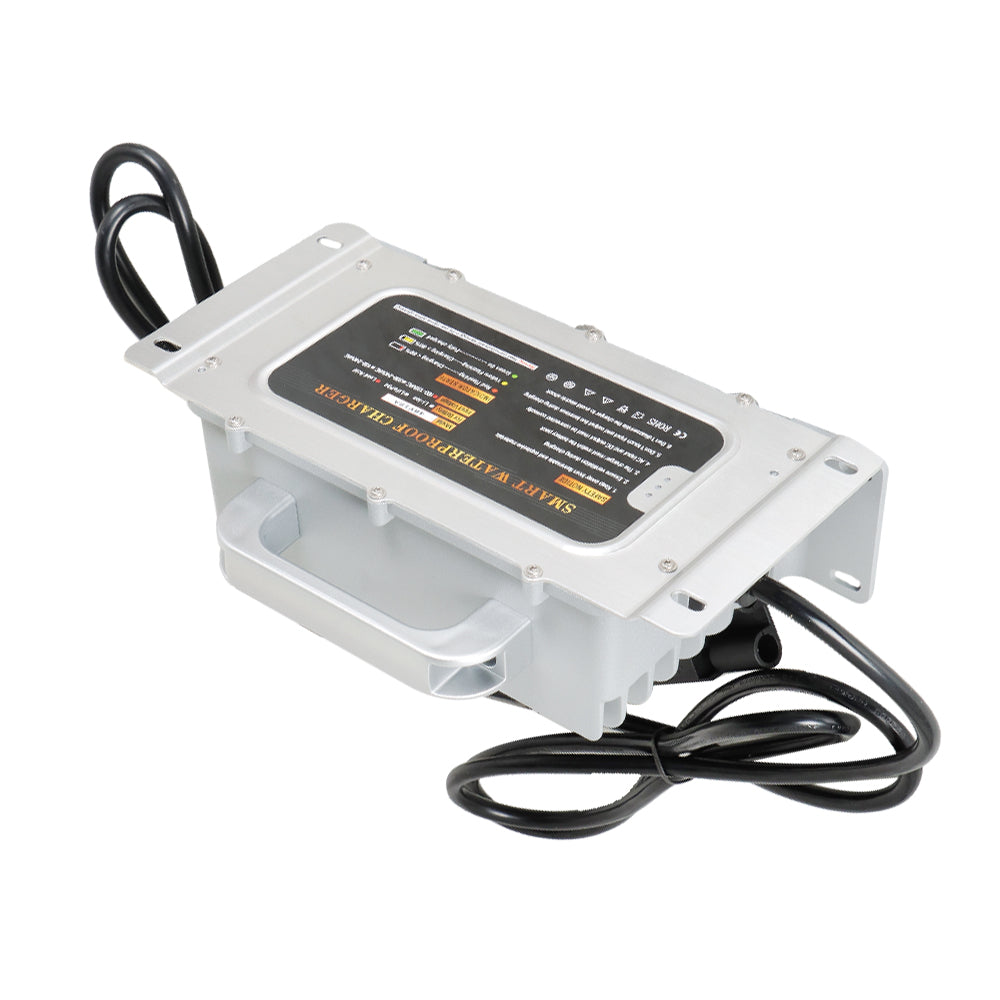

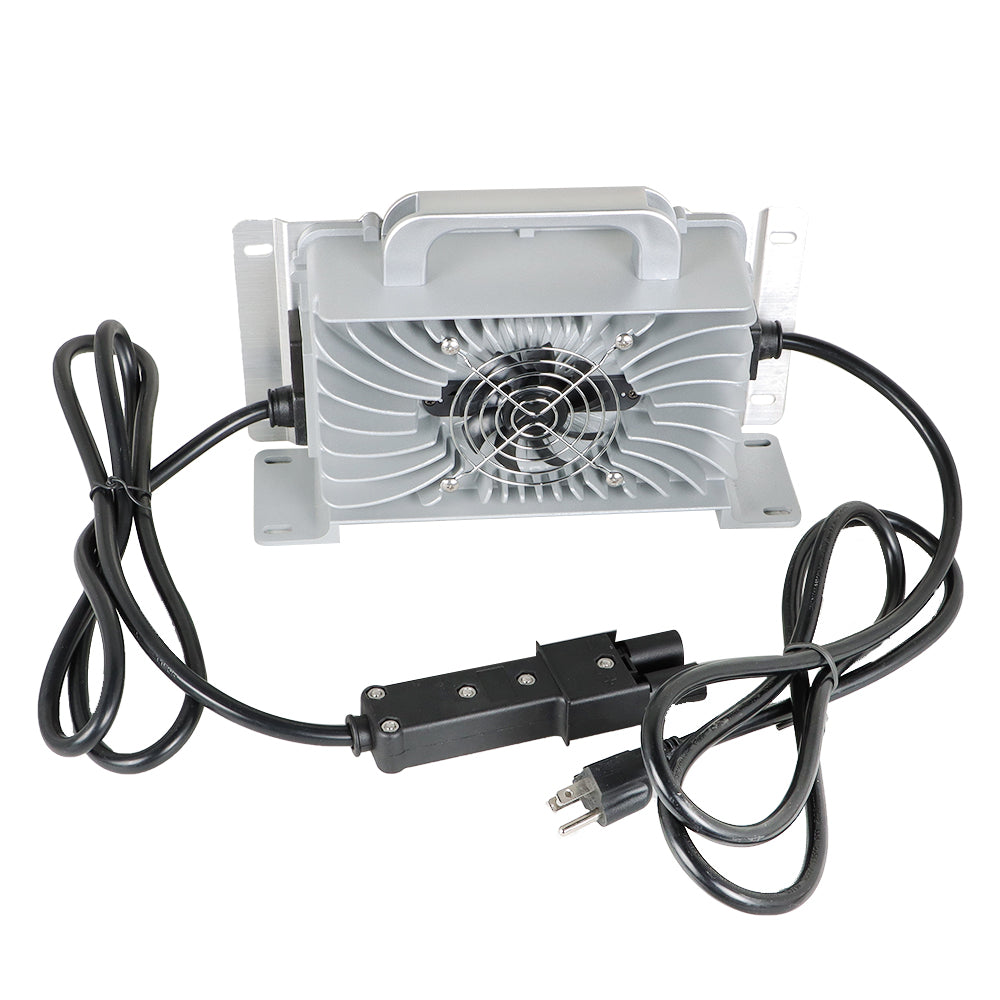

48V 15A Battery Charger with 2 Pin Handle Plug

Compatible Models:

Replacement for Yamaha G19-G22 Golf Carts

Package List:

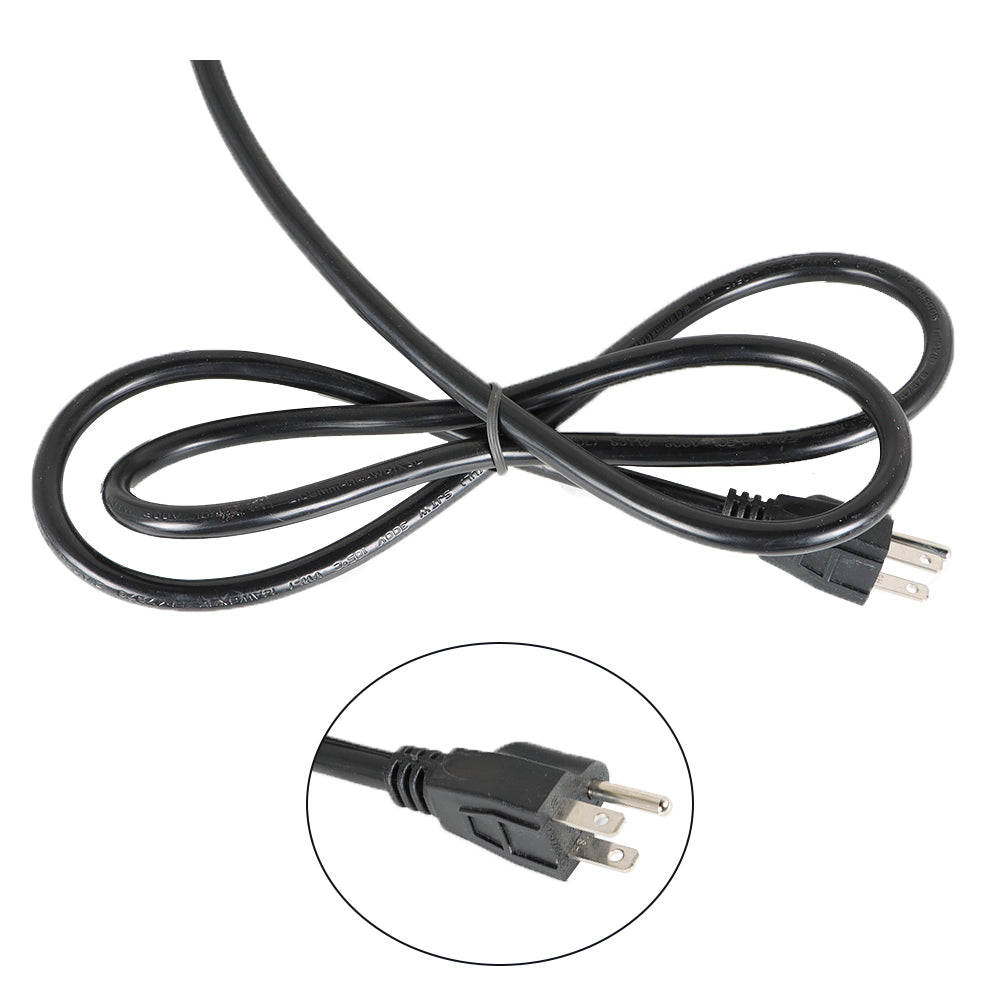

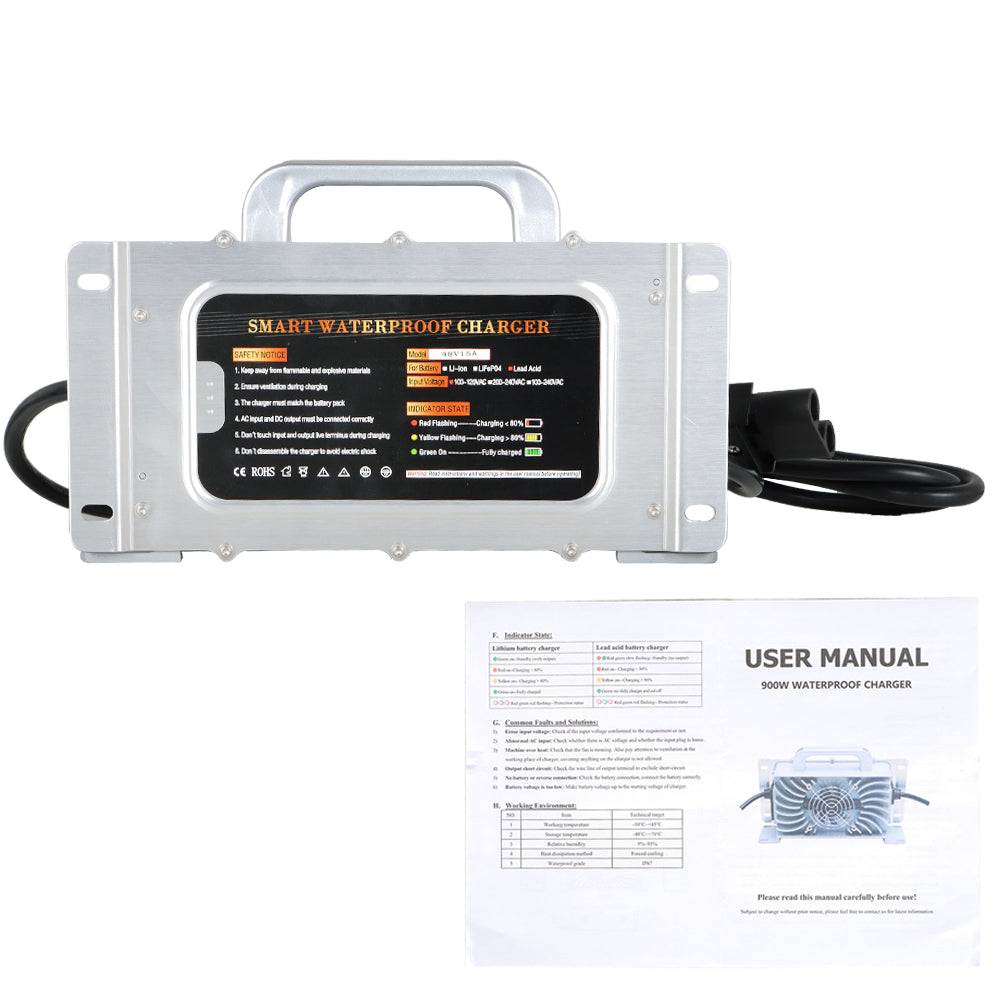

1x Charger and 1x AC Cable.

How To Troubleshoot The Charger if It Isn't Working?

Step 1 - VERIFY YOUR AC OUTLET IS WORKING
Q : No LED lights are lit up when the charger is plugged into the wall.
A : Check the AC wall outlet and Breaker Panel.


Step 2 - CHECKING CONNECTIONS & COMMON ISSUES
Q : 1) Battery charger is making a repeated clicking noise; 2) The fan on the charger will not turn on; 3) The charger does not enter charging mode.
A : 1) Check that all the battery cables are tight against the battery terminals; 2) Check for any signs of corrosion on the battery terminals; 3) Ensure your cart is in run mode,the parking brake has been fully engaged and the key is in the off position.


STEP 3 - TESTING YOUR BATTERIES(Essential Tools:Multimeter , 12V Trickle Charger)

Notice :

1.Batteries drain over time(over 30 days) whether they are in use or not.
2.The 36V(48V) golf cart has a safety requirement of a minimum of 18V(24V) for the charger to start working.

Helpful Hints :

1.Test the Pack Voltage of Golf Cart Batteries. If you do not have the minimum voltage,please recondition Golf Cart Batteries with a trickle charger.
2.Test Individual Battery Voltage.If any of the batteries have a voltage difference from each other greater than 1V, it will need to be checked by a golf cart mechanic for a dead cell.
3.Test the Golf Cart Receptacle for Voltage.If the voltage is not reading at the receptacle, or the voltage is different, there may be a wire connected incorrectly or loose.
