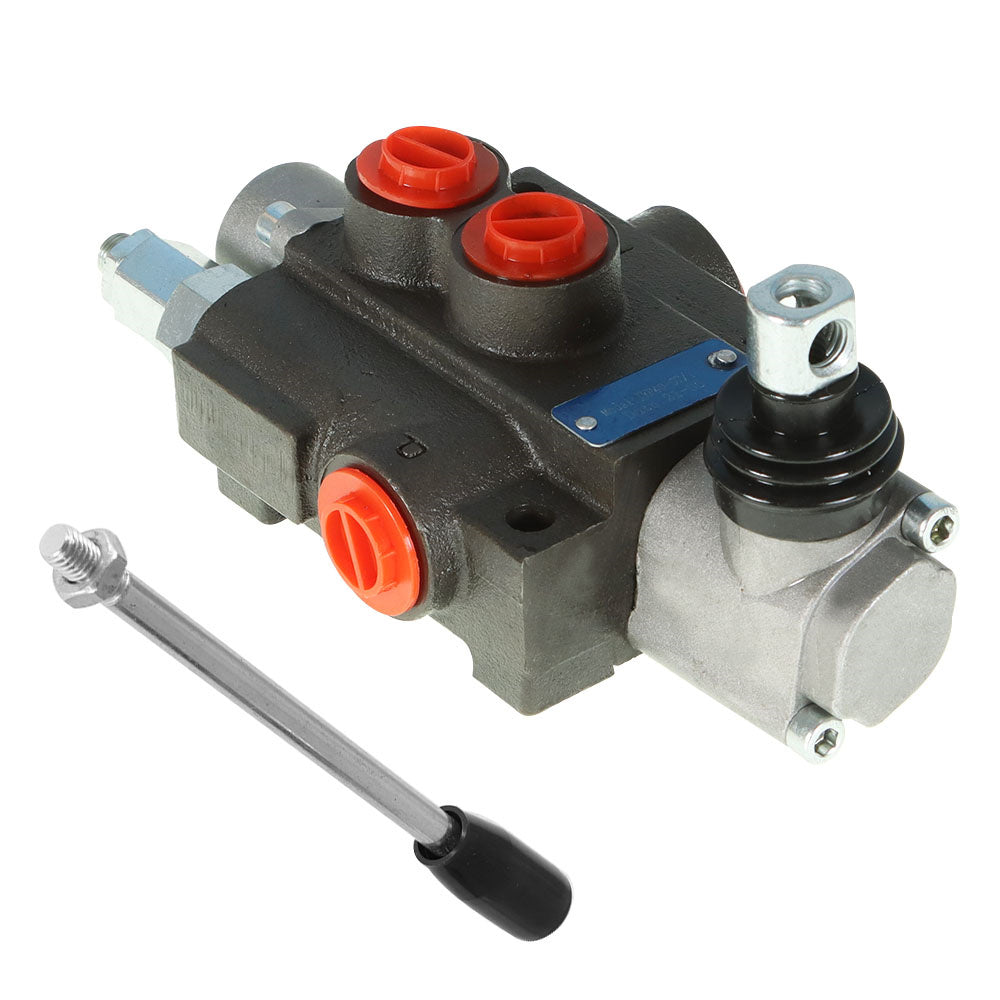

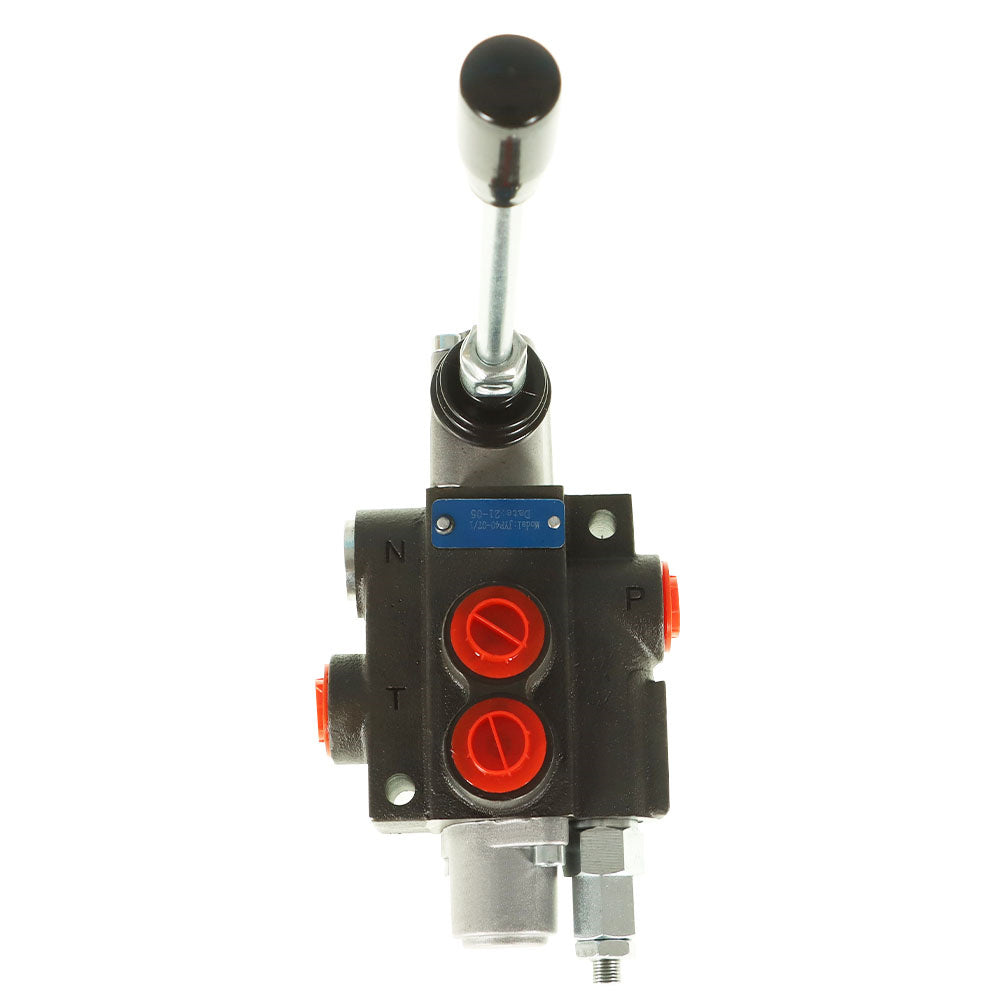

3600 PSI Hydraulic Directional Control Valve 11Gpm Valve Double Acting 1 Spool

Specifications:

• Max operating pressure: 3600 PSI
• Nominal flow: 11gpm (40l/min)
• Relief valve: Adjustable
• Center system: Open
• A, B ports: 7/8-14" BSPP
• P, T, N port: 7/8-14" BSPP
• Weight: 6.8lb (3kg)
• Dimensions (L* W* H): 12.2"*8"*3.9" (31*20*10 cm)

Feature:

• Solid Construction: Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.
• High Performance: The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
• Spring Return: All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
• Inner Check/Relief Valve: The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.
• Multiple Control Ways: We have many control ways to choose: manual control, pneumatic control, hydraulic and electric control.
• Wide Application: The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.
• 1 Spool Directional Hydraulic Control Valve: The compact design of 1 Spool hydraulic valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.

Package Including：

• 1 piece 1 Spool Hydraulic Directional Control Valve 11Gpm Hydraulic Valve Double Acting Hydraulic Control Valve
