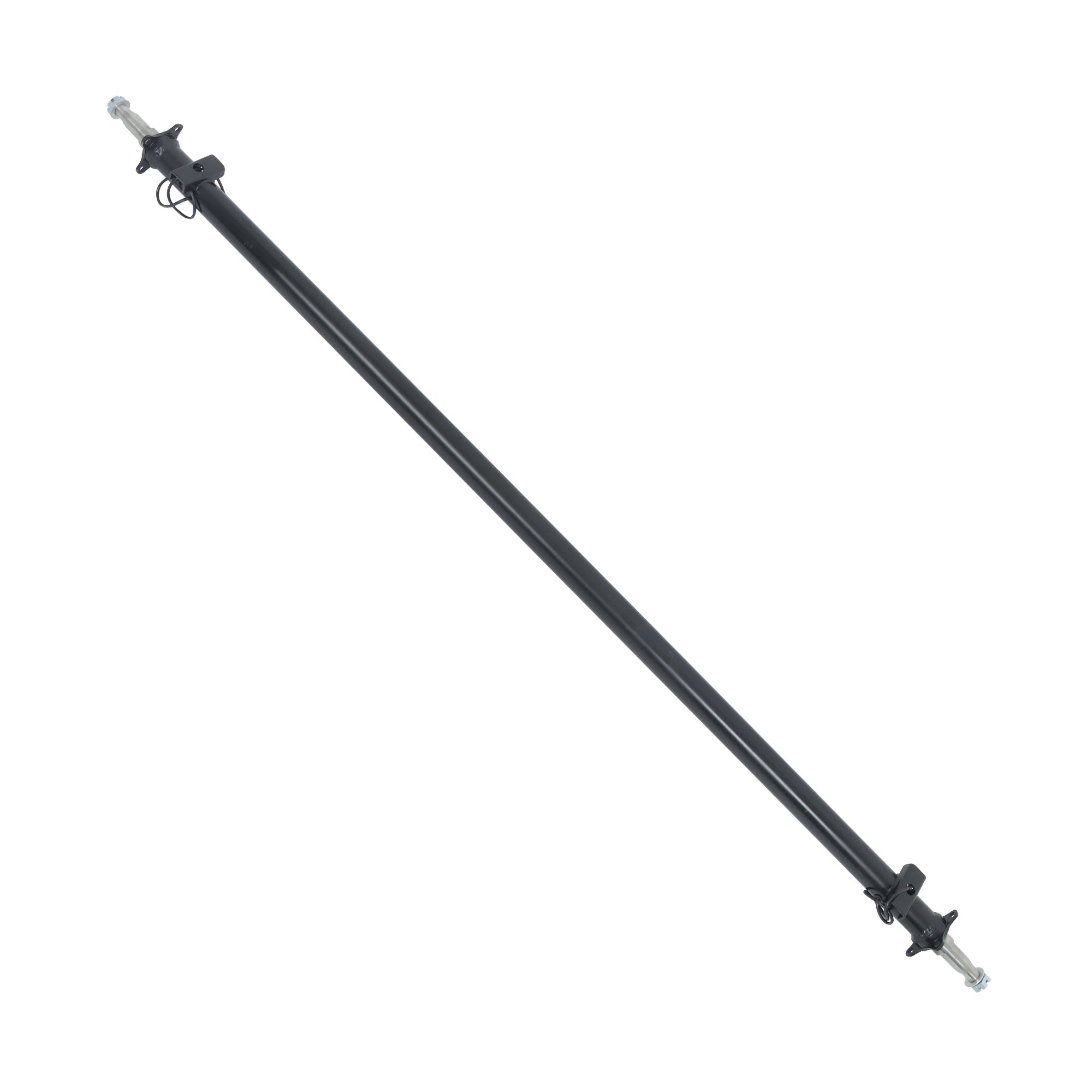

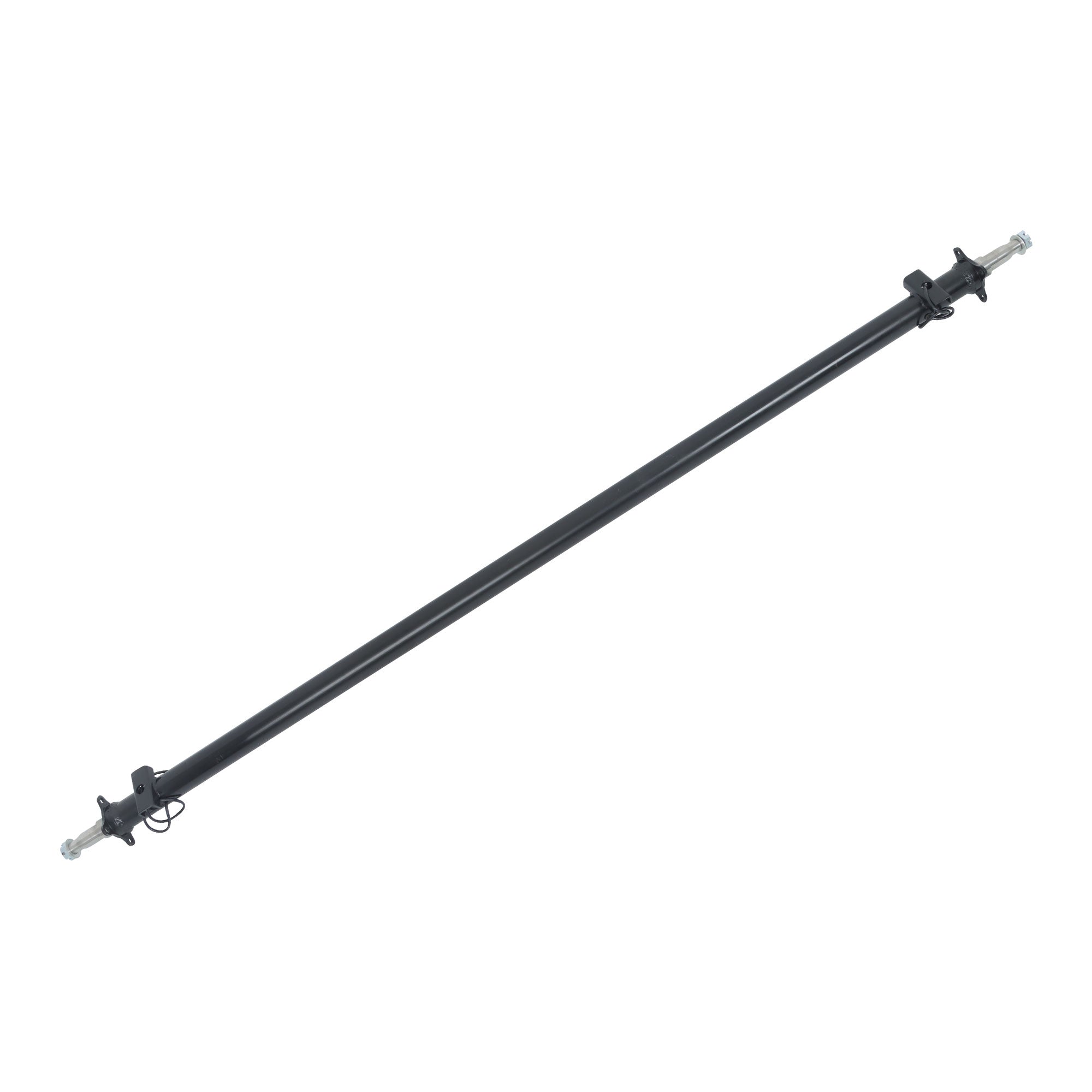

3500lbs Trailer Axle Only Beam With Idler 89" Hub Face 74" Spring Center

Key Features

• High-Strength Construction: Built with a straight, heavy-duty 5mm thick steel axle tube to ensure even tire wear and a stable highway towing experience.

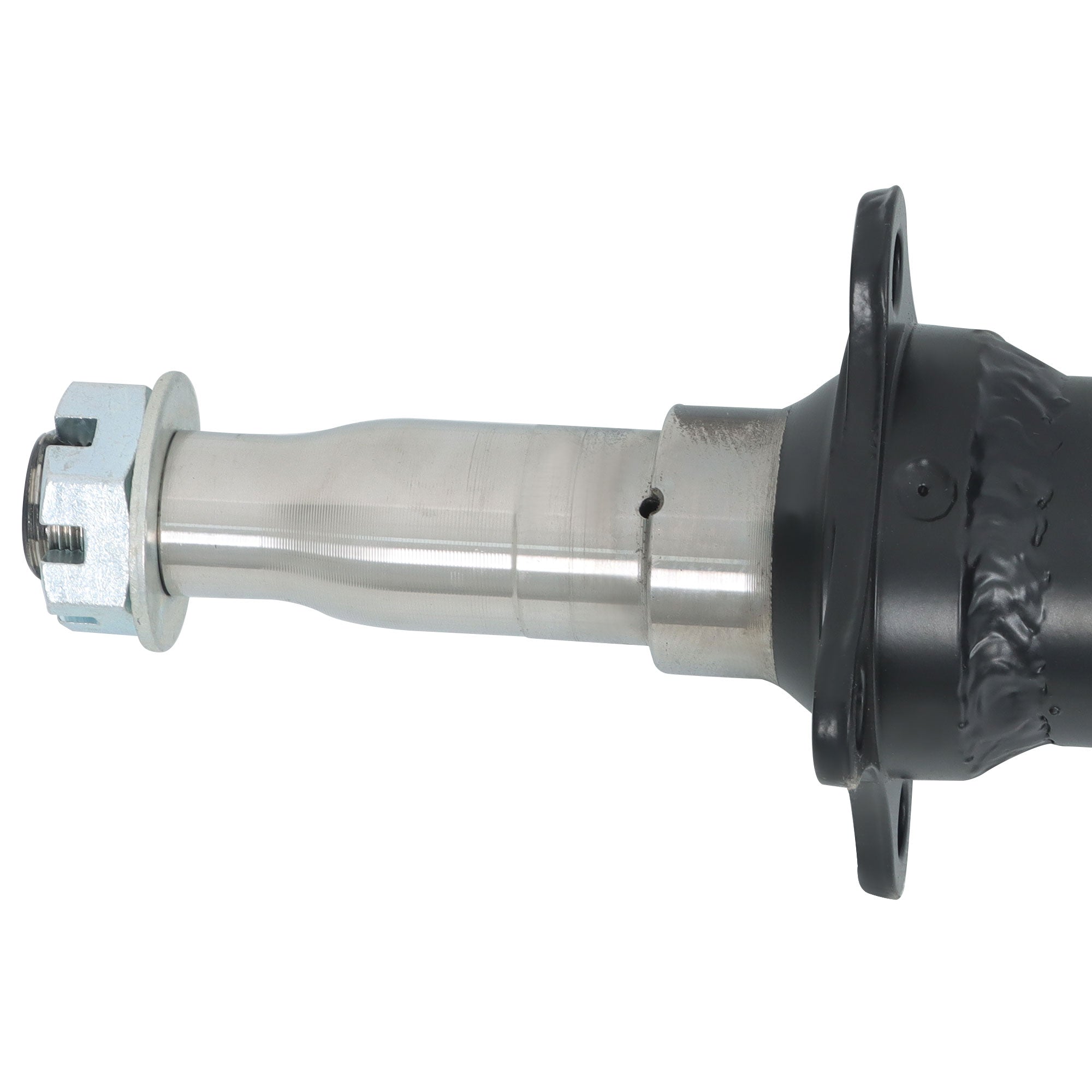

• Effortless Maintenance: Features an integrated grease-injection design allowing you to lubricate the axle spindles easily without removing the entire hub assembly.

• Pre-Wired for Electric Brakes: Internally routed wiring channel included, making it simple and clean to connect aftermarket electric trailer brakes.

• Underslung Design: The spring seats are factory-welded to the bottom of the axle beam, lowering your trailer's ride height for optimal center of gravity and stability. Pair with double-eye leaf springs for the best performance.

Technical Parameters & Specifications

• Load Capacity: 3,500 lbs (3.5K)

• Axle Tube Diameter: 2-3/8 inches

• Wall Thickness: 5 mm

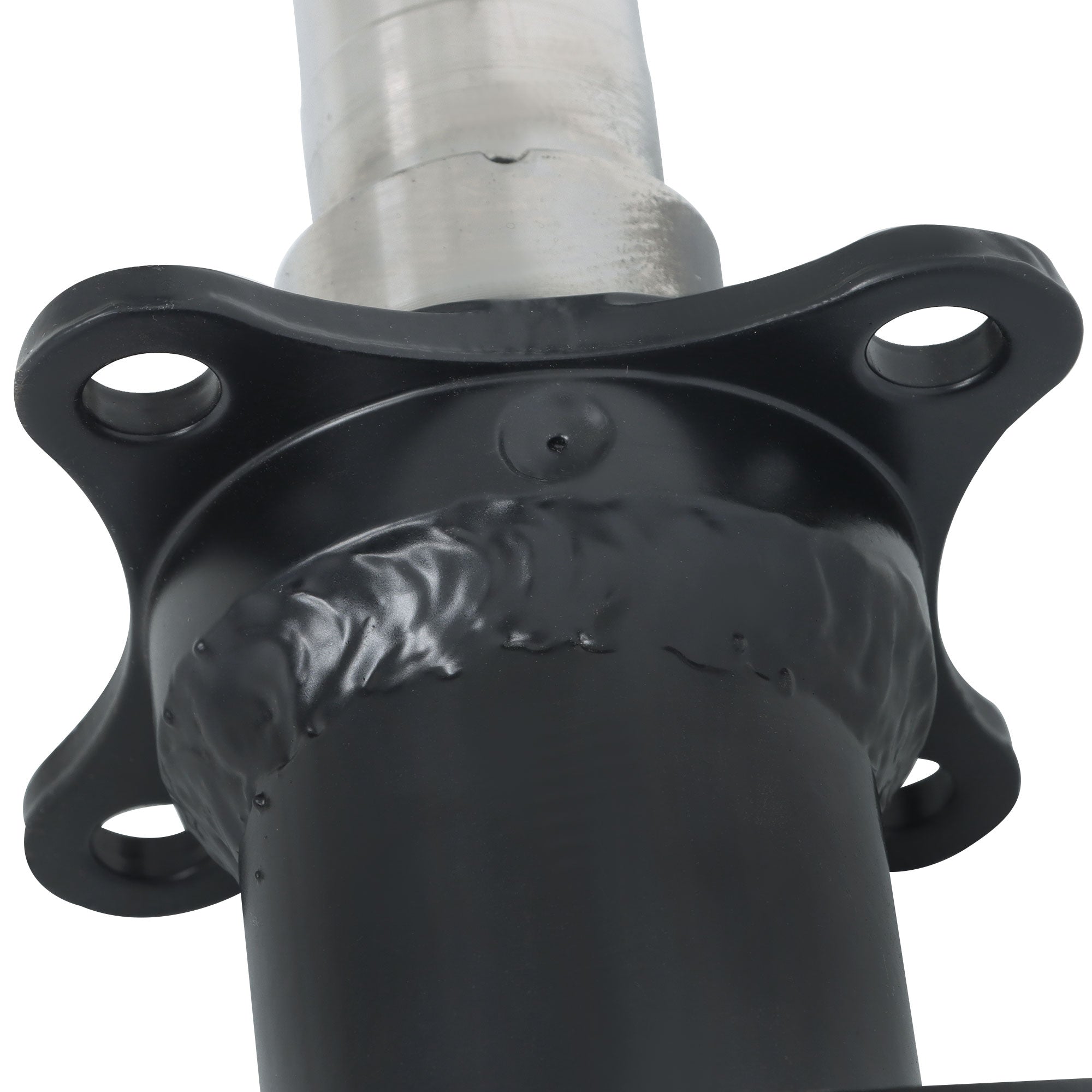

• Brake Flange Configuration: 4-Bolt Standard

• Compatible Bearings: Inner Bearing: L68149 | Outer Bearing: L44649

• Warranty: 1-Year Manufacturer Warranty

Universal Fitment & Application

A highly versatile replacement beam suitable for all light-duty trailers, including:

• Utility, Cargo, & Enclosed Trailers

• Boat / Marine & Car Hauler Trailers

• ATV, Lawn, Landscape, & Motorcycle Trailers

• RV & Camper Trailers

Package Includes

• 1 × 3.5K Trailer Axle Beam

• 2 × Grease Zerk / Injection Nozzles

• 2 × Spindle Washers / Gaskets

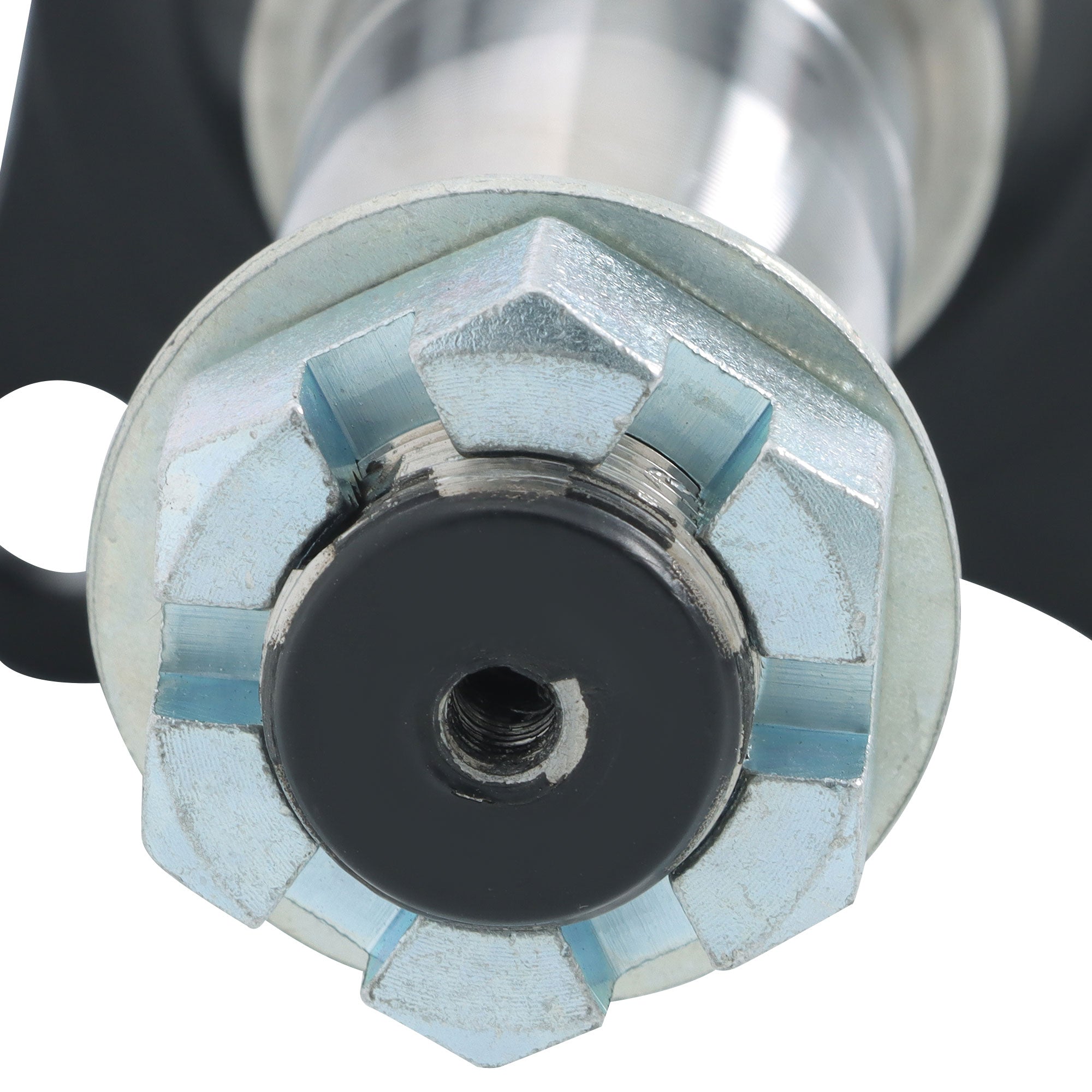

• 2 × Castle / Spindle Nuts

• 2 × Cotter Pins (Open Mouth Pins)

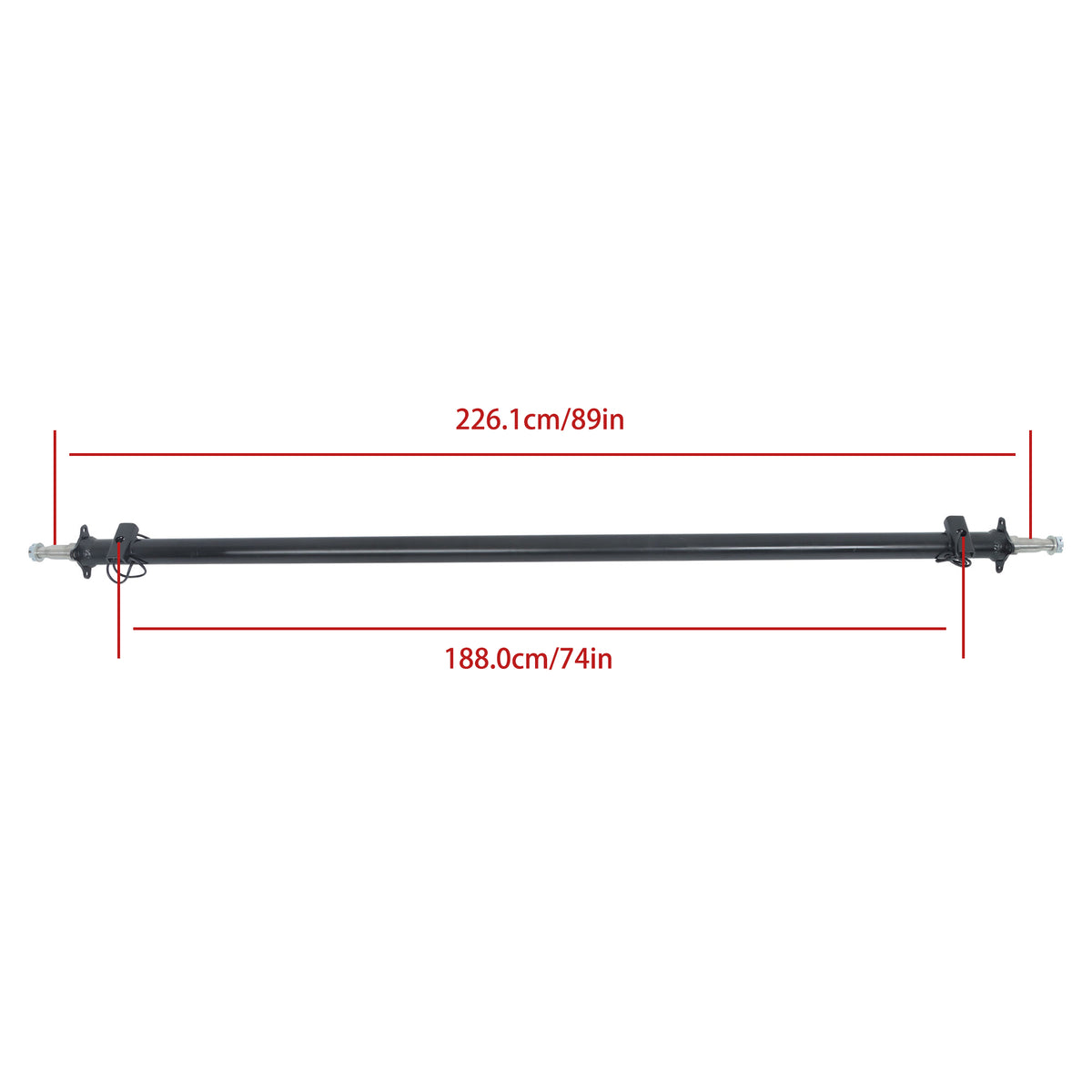

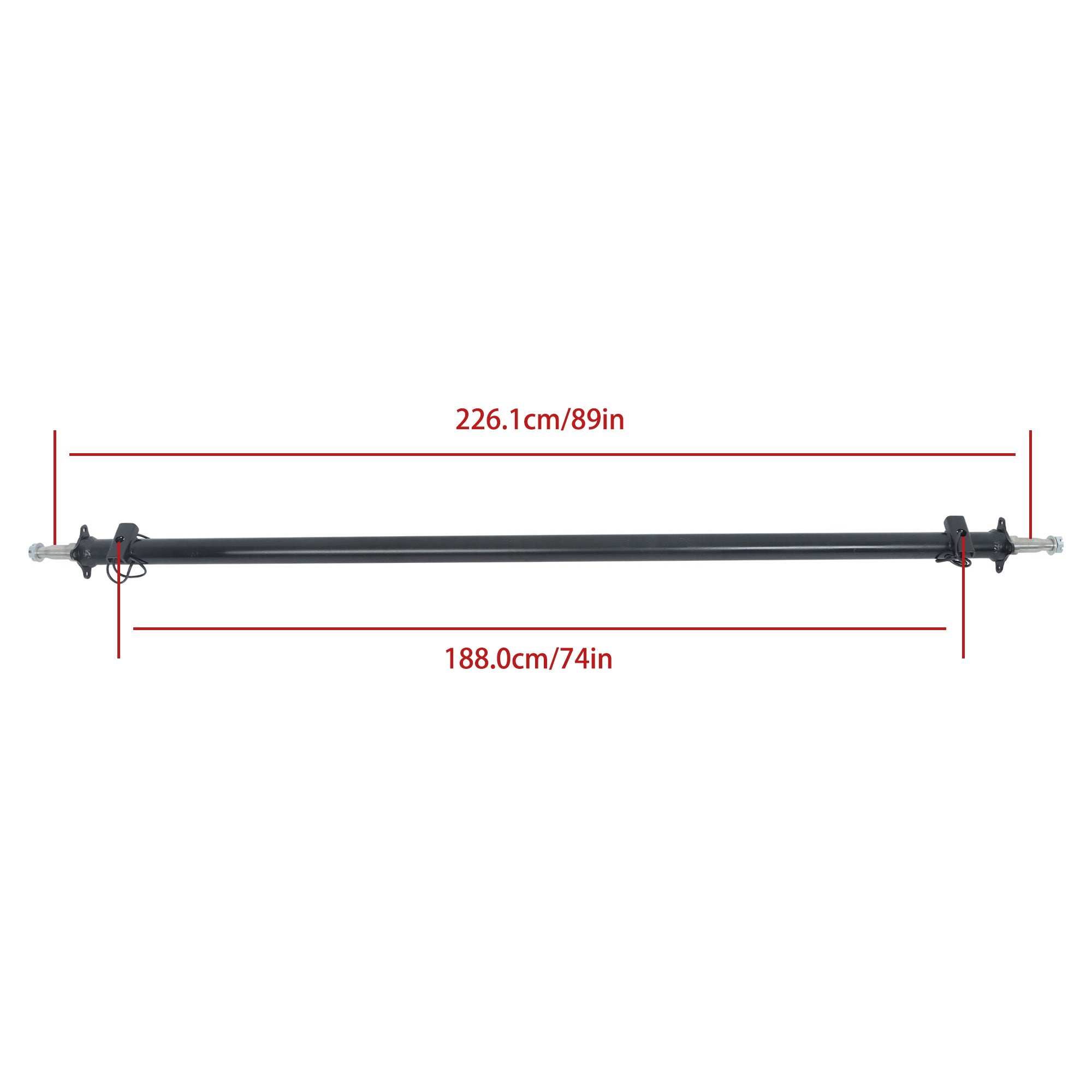

Measurement Guide: How to Order the Right Size

If building a custom trailer from scratch, simply select your desired width. If replacing an existing axle, you MUST verify the following two dimensions (an allowable error of up to 1 inch is acceptable):

1. Hub Face Distance (HF): Measure from the base of the wheel studs on one side across to the base of the wheel studs on the opposite side (where the wheel meets the hub).

2. Spring Center Distance (SC): Measure from the exact center of the welded leaf spring seat on one side to the center of the spring seat on the other side.

Installation Notes

• Component Notice: This listing is for the Axle Beam Only. It does not include brake assemblies, hubs, or bearings, allowing you to customize your hub face, leaf springs, and U-bolt kit matching your current setup.

• Resources: Please check the attached product video for installation guidance. Additional assembly and safety assistance can be requested by contacting our customer service.
