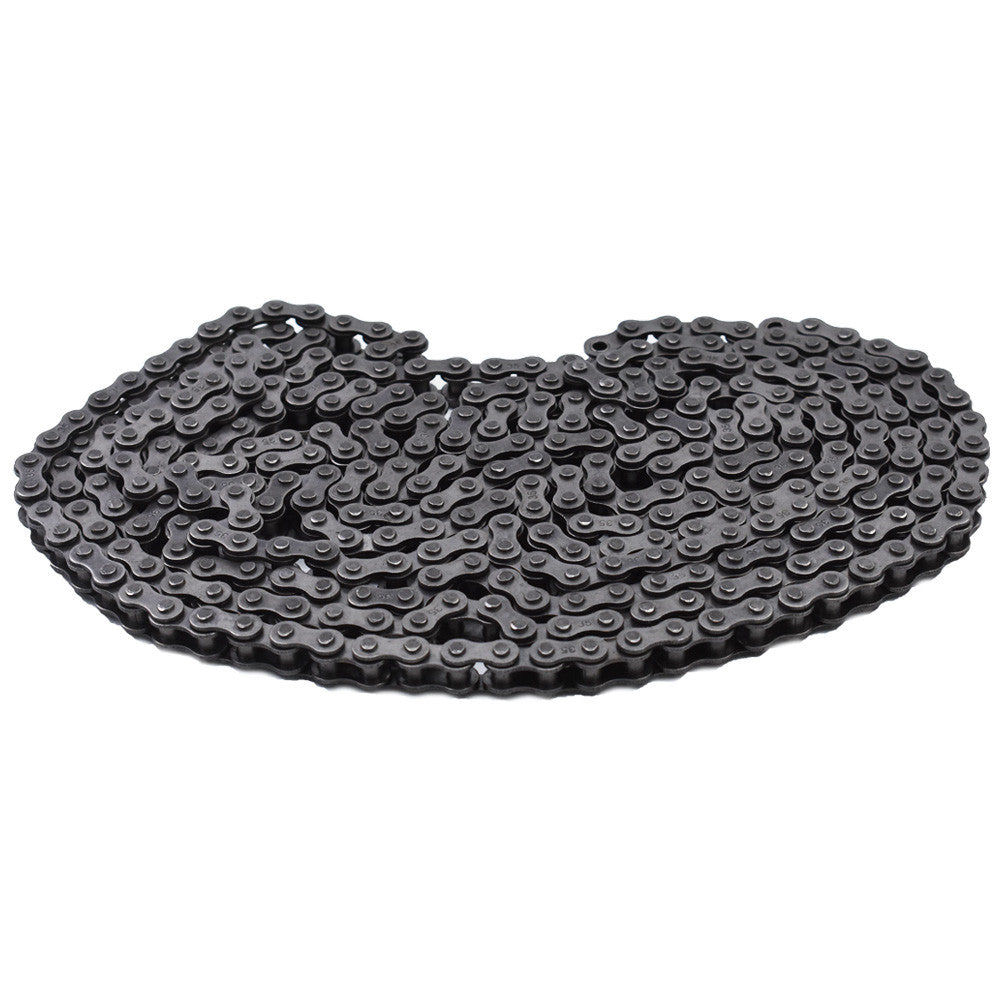

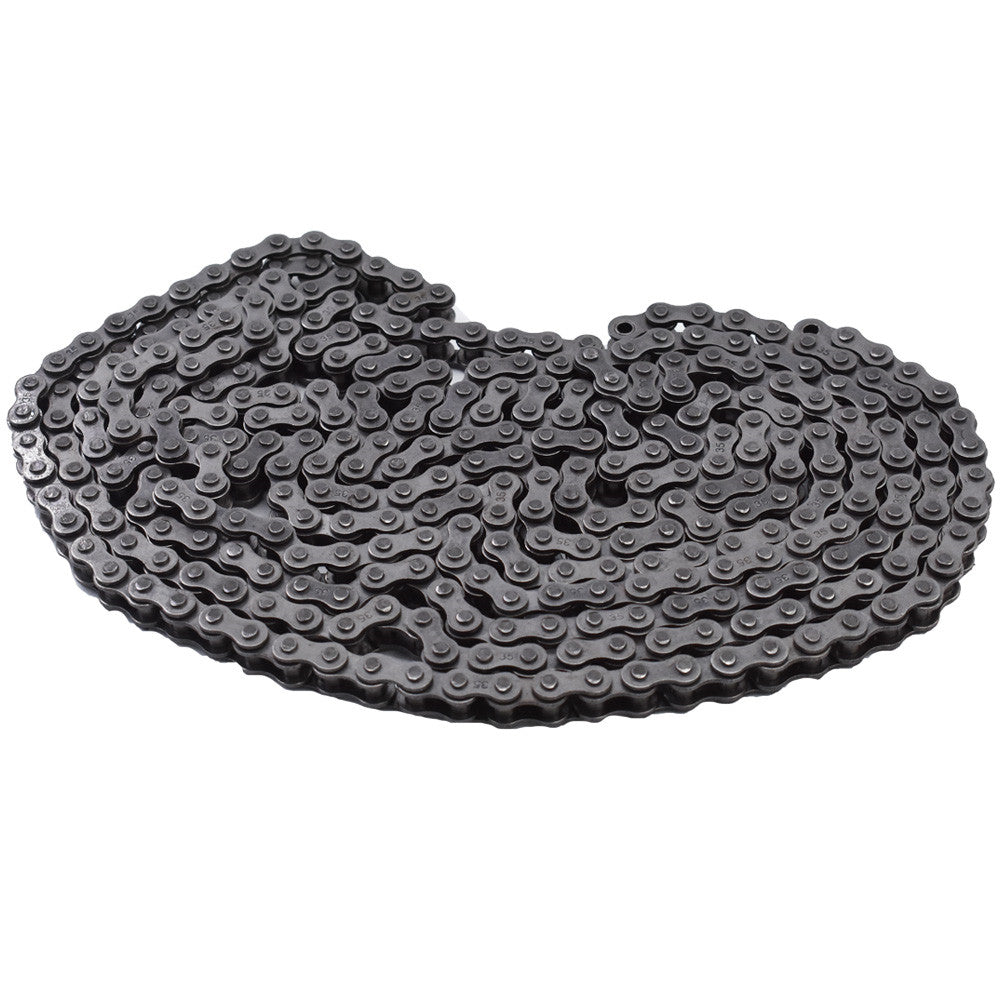

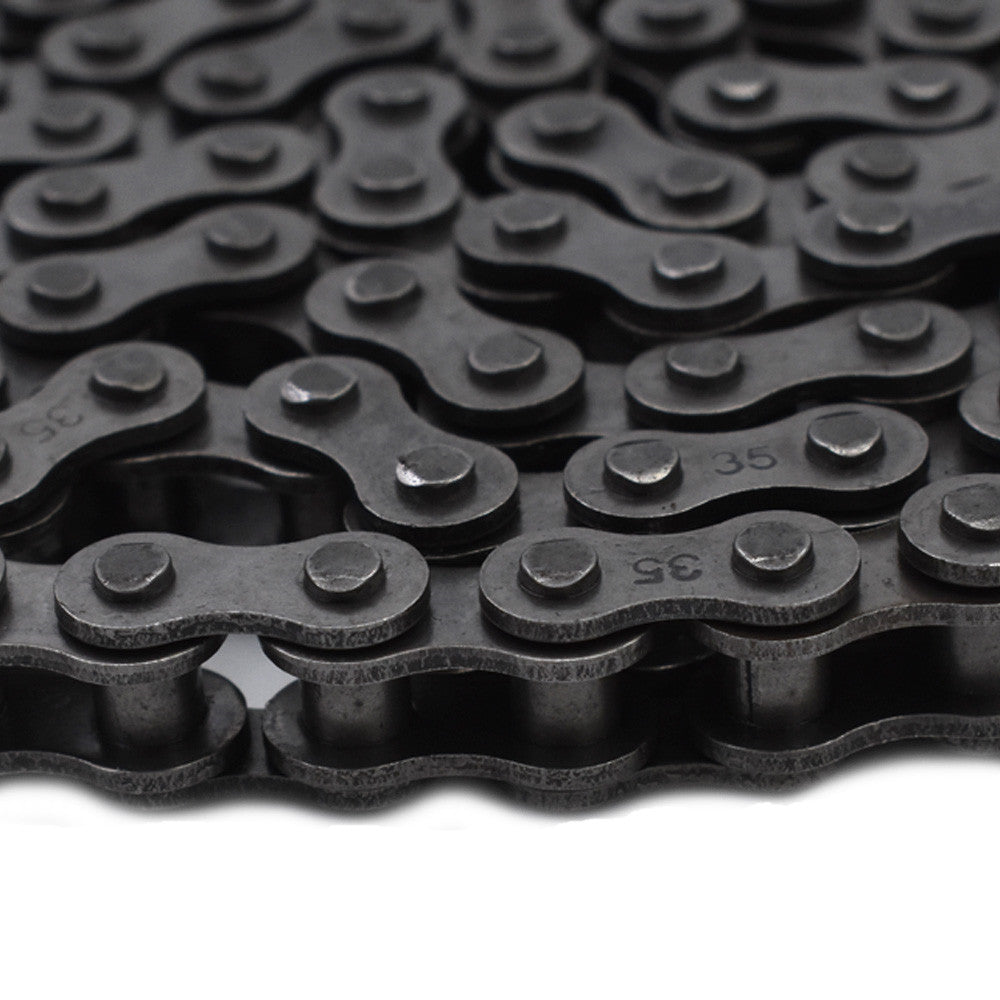

#35 Roller Chain 10 Feet with 2 Connecting Links 0.375???? New

Product Description:

All of our chain products have gone through stringent process measures for Best Quality! This includes heat treatment, which ensures the optimum ware life and toughness for all component parts. Solid hardened and shot peened precision rollers are standard on most of our chains. The bushings provide a smooth roller bearing effect reducing the impact load as the chain engages the sprockets tooth. During chain assembly, all chain components are oriented to ensure pins, bushings, and side plates are correctly positioned for optimum chain strength and long life. Assembled chains are then dipped in a hot lubricant. This lubrication and the process in which it is applied greatly improve the ware life capacity of the chain and further protect it from the effects of the environment. All of our chains are factory preload. They are pretested to support and maintain the expected load the chain will see when in use. This helps align the chain parts which will minimize the initial elongation. This will drastically increase the life of the chain. All our Chain is certified from ISO 9001:2000 QM certification through ISO 14001 (which documents the sustainability and environmental compatibility of production and waste disposal processes) to the ISO/TS 16949 quality requirements for the automotive industry.

Specification??

ANSI #35 Industrial Roller Chain

Pitch Size: 0.375 Inch

Length: 10 Feet Box

Average Tensile Strength: 2100 lbs

Pitch Size (p) : 0.375 Inch

Roller Diameter (d1 max) : 0.200 Inch

Width Between Inner Plates (b1 min) : 0.188 Inch

Pin Diameter (d2 max) : 0.141 Inch

Pin Length (L max) : 0.488 Inch

Pin Length (Lc max) : 0.519 Inch

Inner Plate Depth (h2 max) : 0.354 Inch

Plate Thickness (T max) : 0.051 Inch

Material: Carbon Steel

Length: 10 Feet

Weight Per Foot: 0.221 lbs

Package Including??

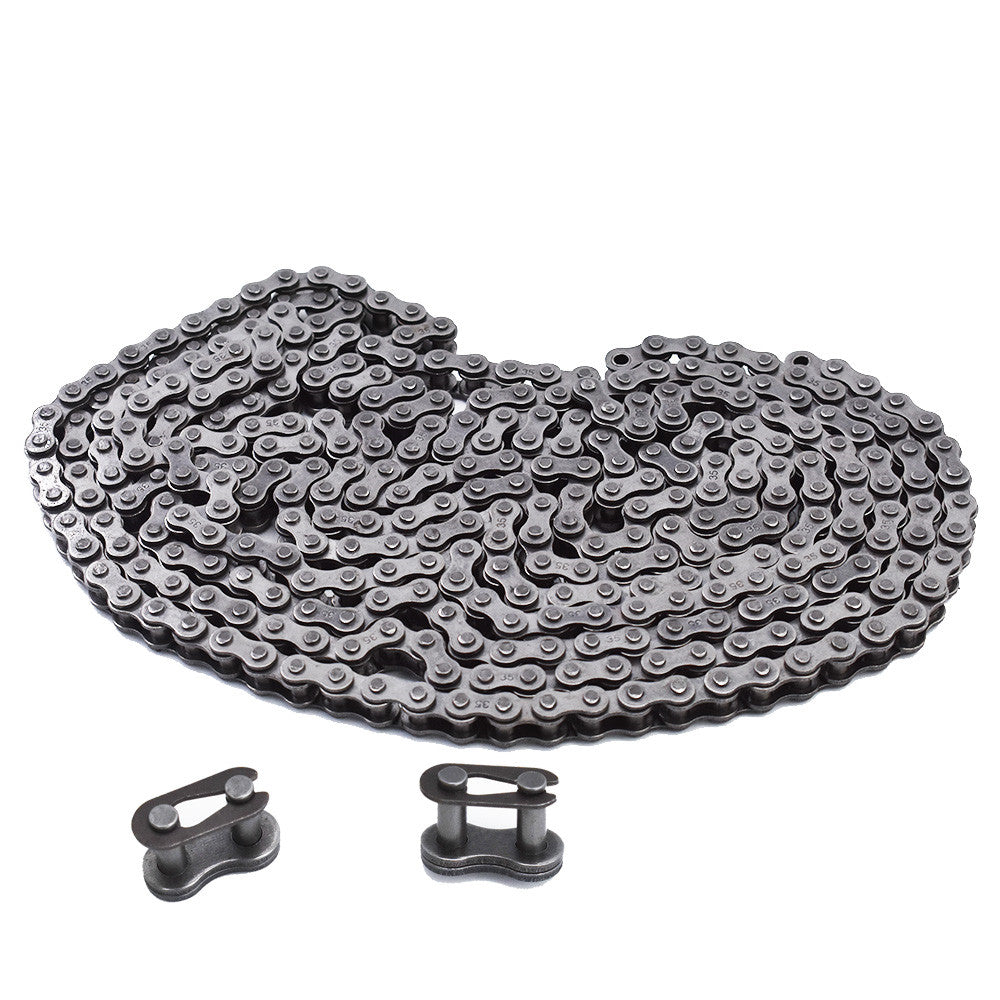

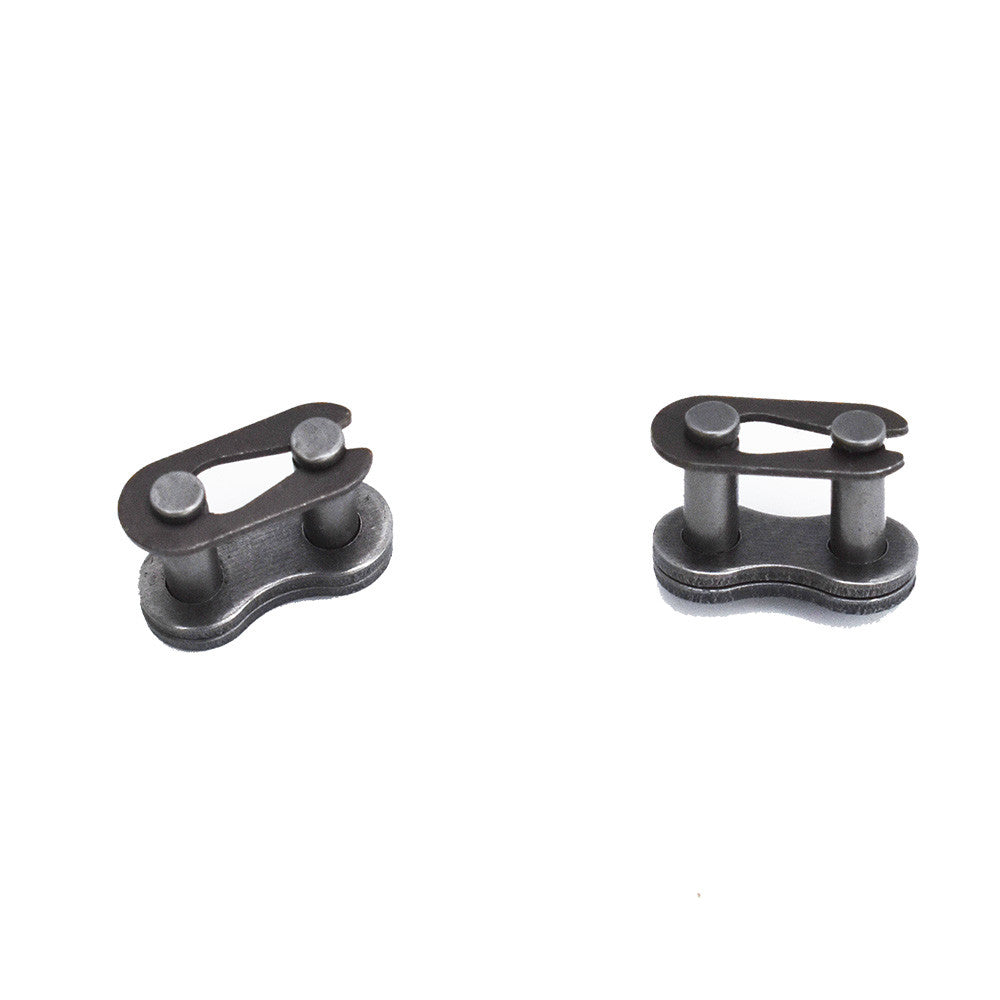

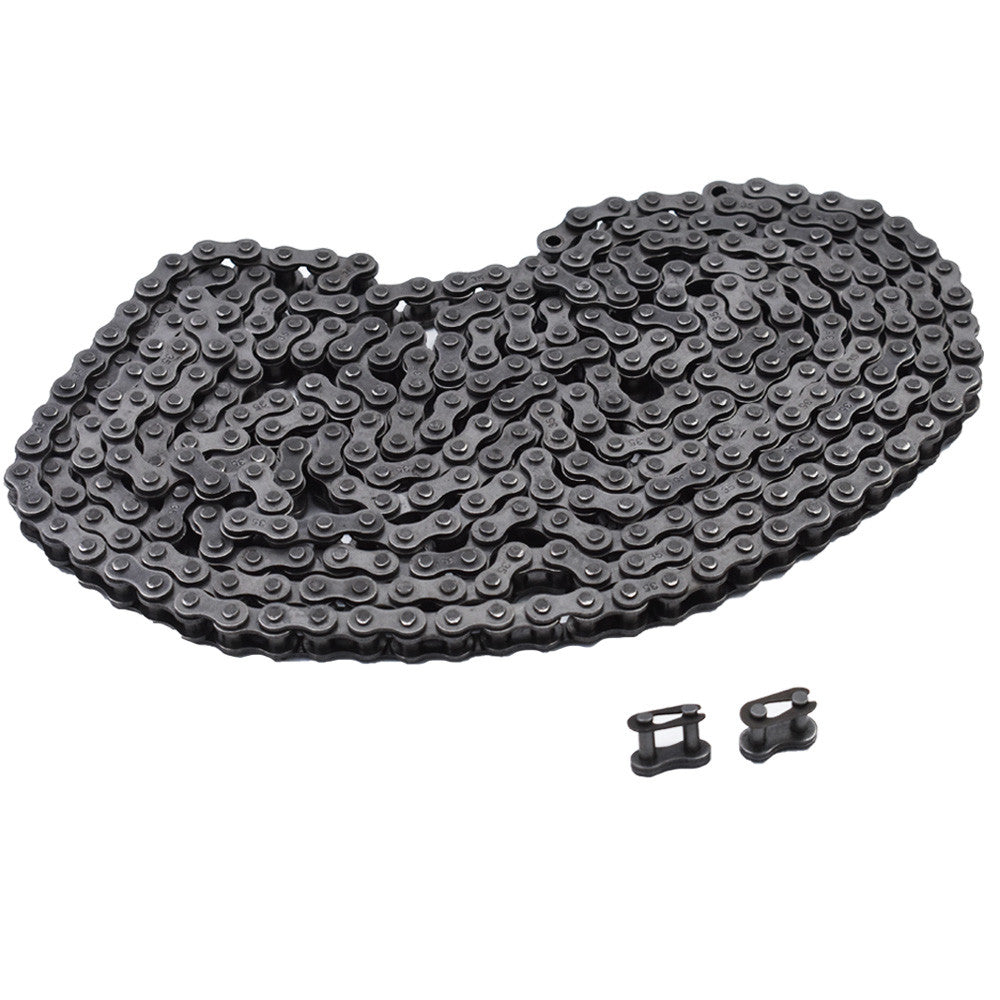

#35 Roller Chain 10 Feet with 2 Connecting Links
