30 Sqft Electric Radiant Floor Heating System Tile with Thermostat Mat Kit 120 V

Feature：

• Mesh Cutting Techniques – Cut & Rotate
• There are several ways the heating mat may be cut and turned to fit around corners and avoid obstacles such as fixtures and built-ins on the floor.
• Heating wires must never touch or cross
• Heating wire cannot be cut or shortened
• Heating wires must never be closer than 2 ½ inches apart
• The mesh between the wires may be cut but take great care not to cut or nick the wire itself.  Wire may also be removed from the mesh and laid out on the floor.  Secure in position with pieces of 1” wide duct tape, or hotmelt glue.
• Unlike conventional heaters that warm one particular spot, radiant floor heating evenly distributes warmth throughout the floor and up into the room, leaving no uncomfortable cold spots.
• The heat is directed where it is most pleasing – the feet – leaving the air we breathe slightly cooler.   In fact, the air surrounding our bodies remains slightly cooler than our bodies, preventing that ‘’stuffy’’ feeling so often experienced in a room that is heated by forced air.
• 3” pre-spaced wiring is designed to reduce installation time and ensure even heat distribution.
• Dual wire technology with aluminium shield minimizes electromagnetic fields (EMF).
• The Mesh can be cut and flipped or rotated to provide maximum coverage;   wires can also be removed from the mesh to help get into those hard-to-reach areas.
• The Self-Adhesive mesh on one side and double sided tape on the other, ensures the mat adheres to sub-floor and lies flat even when flipped or rotated.
• Radiant heat does not dry out the air, circulate dust or aggravate allergies.
• Out of sight, no unattractive plug-in heaters, radiators or vents;   no storage hassles and no fan noise.
• No hot, exposed or moving parts and no maintenance.
• Intelligent Heating Systems
• Optimal Comfort, Easy Control and Contemporary design
• The modern thermostat provides so much more than simple temperature control - it is a personalized and intuitive device designed to give a greater degree of control and comfort in the hands of the user.
• Dual sensors (Air and Floor) with floor limiting feature.
• Built-in Class A GFCI (Ground Fault Circuit Interrupter).
• Intuitive menus – no manuals needed.
• Large back-lit display for easy reading.
• Child lock - prevents tampering
•

Specification：

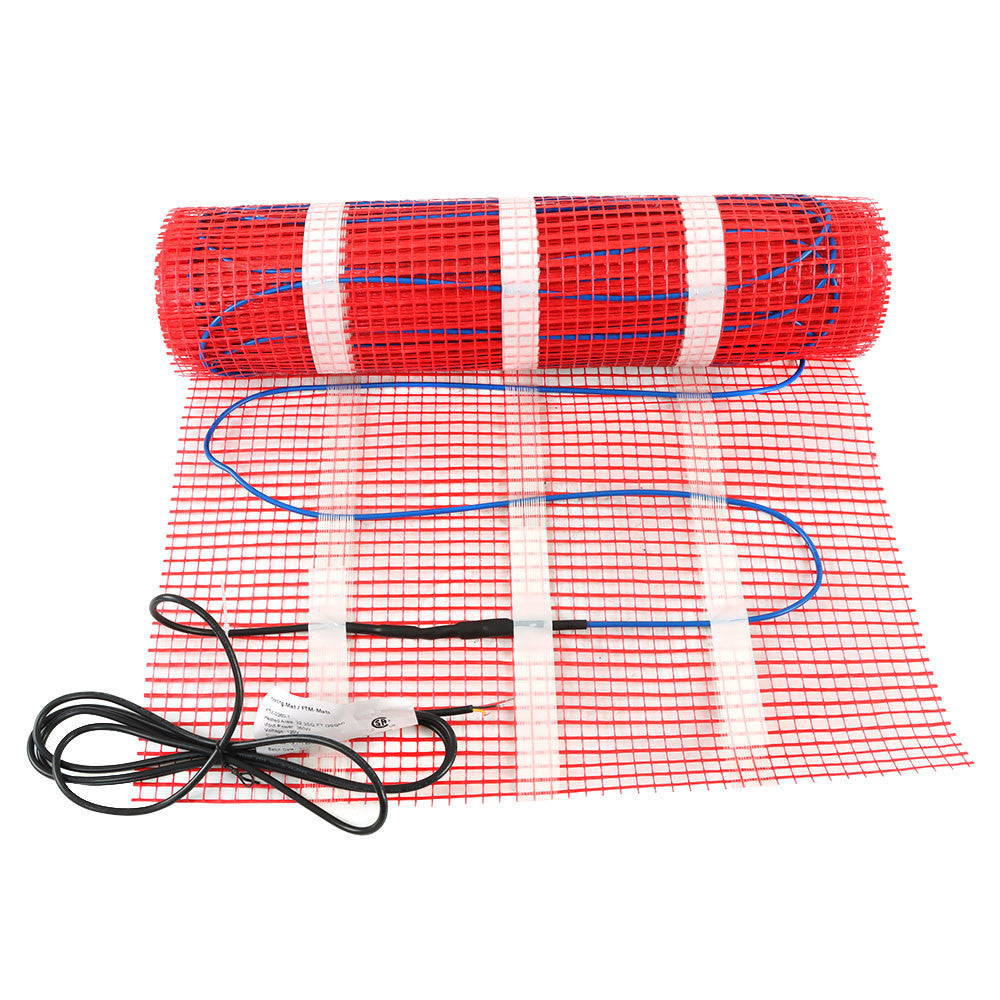

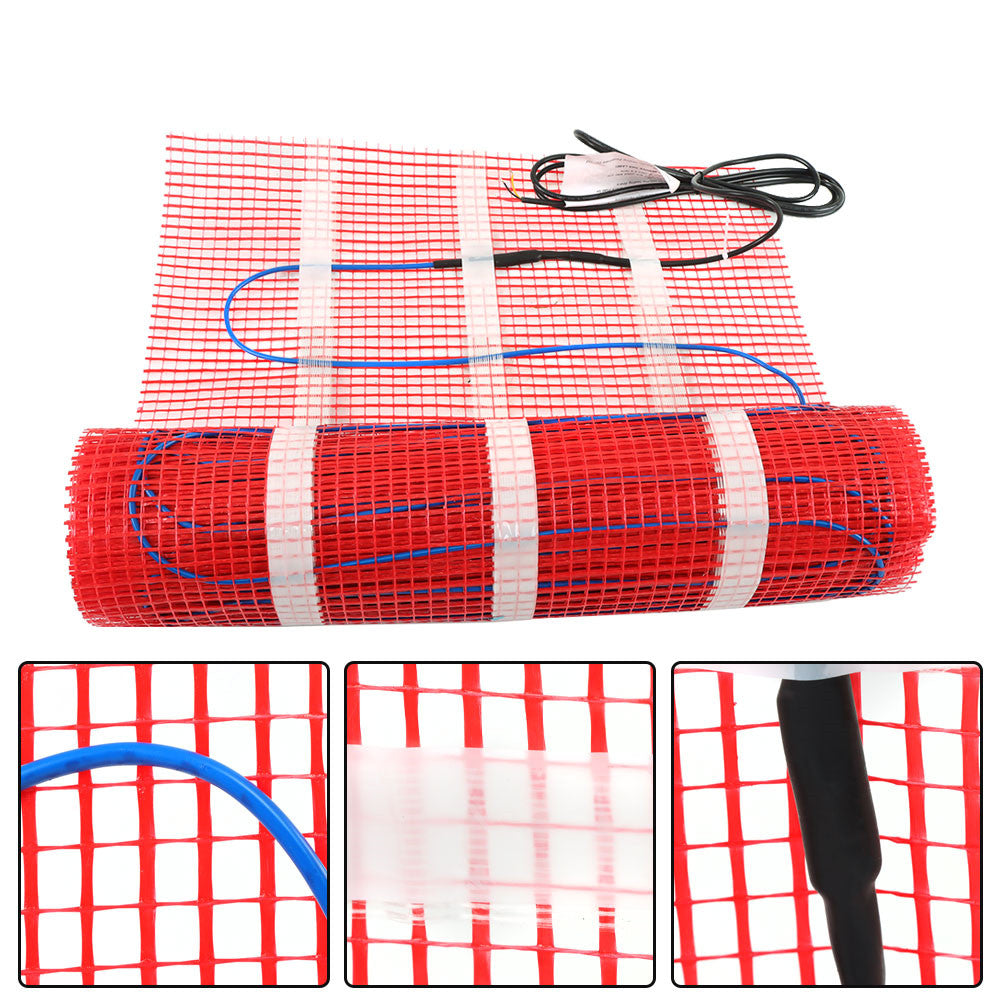

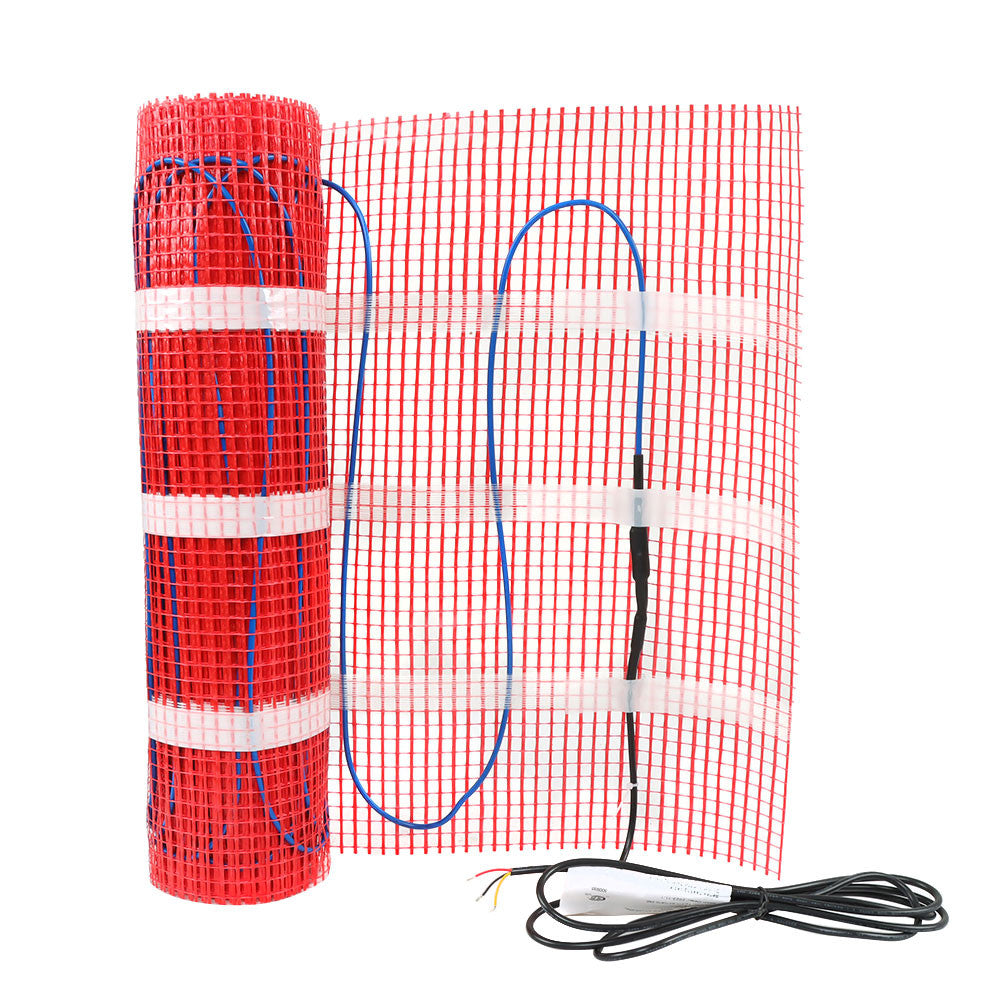

• Floor Heating Mat-Radiant Floor Heating Mat is one of the most robust, versatile, easy to install floor heating systems available on the market today.   The resin coated fibreglass re-enforcing mesh is designed to protect the heating cable and add strength to the layer of thinset or mortar.
• The re-enforcing mesh can be cut, turned, flipped, or in part removed, to accommodate any room size or shape.   While the MESH can be cut, the heater wire MUST NOT be cut or shortened.
• Elements are ETFE insulated and covered by a tough outer jacket, providing the ultimate dialectic and mechanical strength.
• Heater wire is less than 5/32" thick, ensuring minimal effect to finished floor height.
• Heater wires are pre-spaced at 3” intervals – providing optimal heat distribution.
• Mats are 20” wide, and available in various lengths.
• Watt density: 12w/sqft.
• Voltage: 120v.
• Ambient Temp Range +32 to +104°F (0 to +40°C).
• Floor limit range: +41 to +104°F (+5 to +40°C).
• Dimensions: H 4.8” x W 3” x D 1”.
• Load: 15Amps (1800w@120v).
• Built-in Class A GFCI.
• Voltage: 120v.

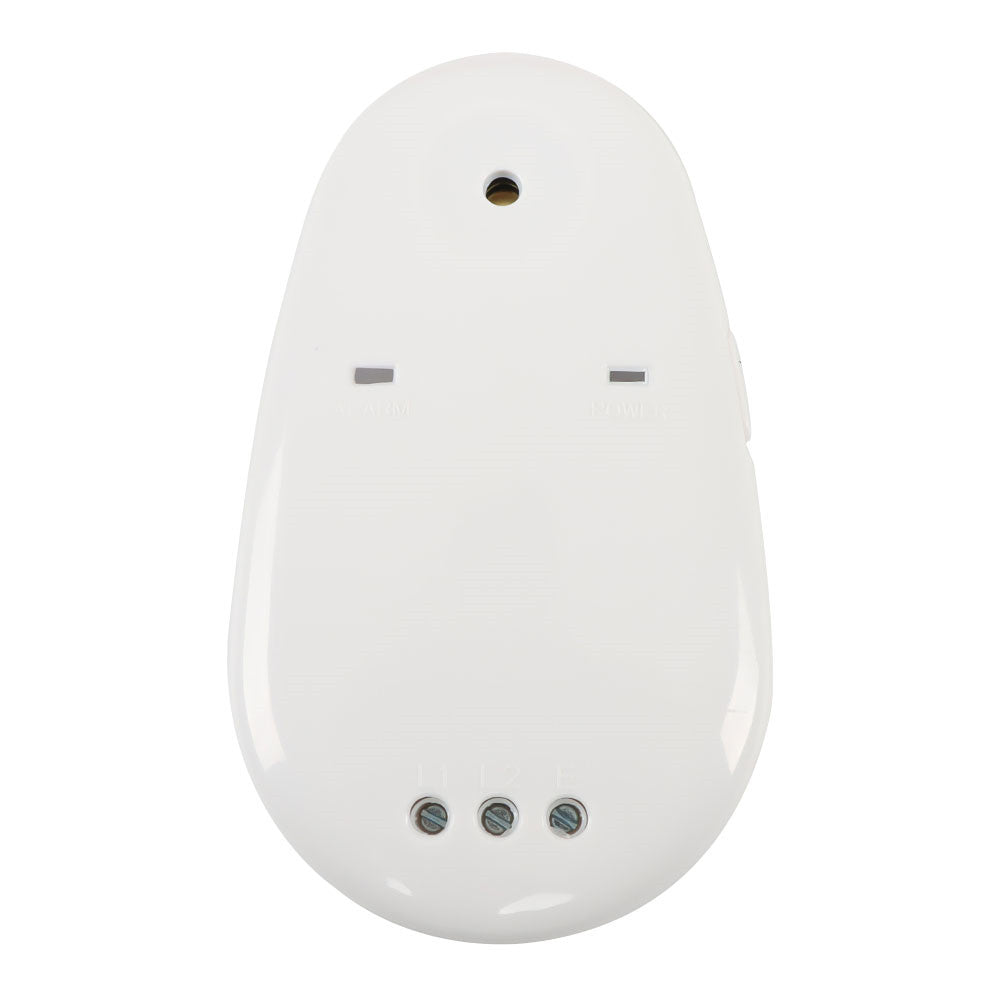

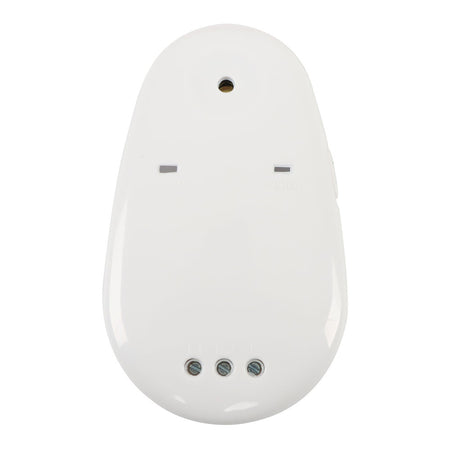

• If the heating cable is cut or damaged during installation the Monitor will immediately alert the installer by means of a loud alarm and red flashing light.   We still recommend an ohms test is carried out before, during and after installation.
• If the alarm sounds we suggest contacting a professional to identify the damaged area and make the repair.
• Early warning system, avoiding costly repairs in the future.
• Connects directly to the heater - Live, Neutral and Earth.
• Provides peace-of-mind during installation.
• Offers real-time continuity monitoring.
• Includes loud alarm and flashing light.
• Works with all floor heating systems.
• Includes 2xAAA batteries.
• Floor Sensor-The Floor Sensor is a reliable and accurate temperature sensing probe designed to measure floor temperatures when connected to a thermostat.   Thermostats’ default setting is Dual Sensing (Air/Floor), meaning the floor sensor will need to be installed and connected.
• The thermostat can be set to measure AIR only, but for optimal control and comfort we recommend installing the floor sensor and using the thermostats default ‘Dual Sensor’ setting.
• Installs directly between heating wires for accurate temperature readings
• Used in conjunction with Thermostat to limit floor temperature
• Resistance: 8 to 12 K OHM measures 68?F to 86?F (20?C to 30?C)
• Neutral polarity making for simple connections
• 15ft length allows for optimal placement
• Connects directly to thermostat
• Sensor type: NTC 10 K OHM

Product Description：

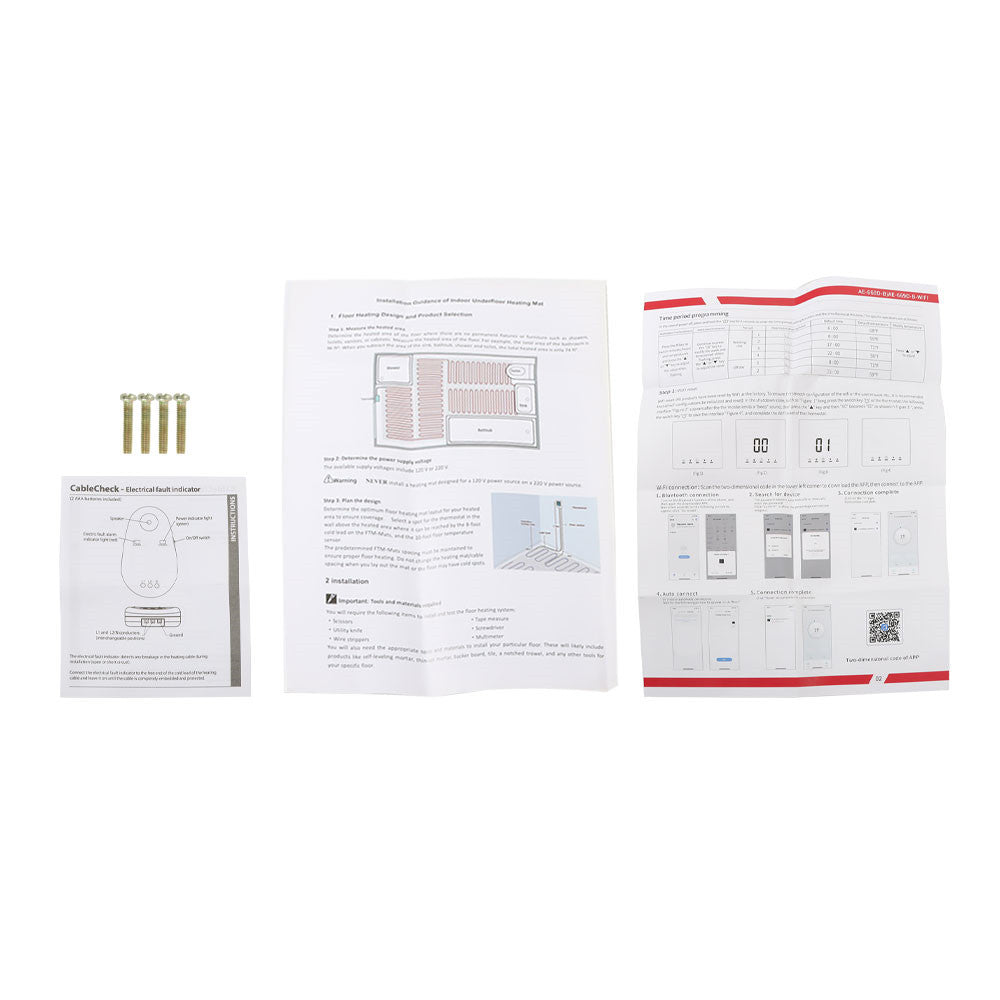

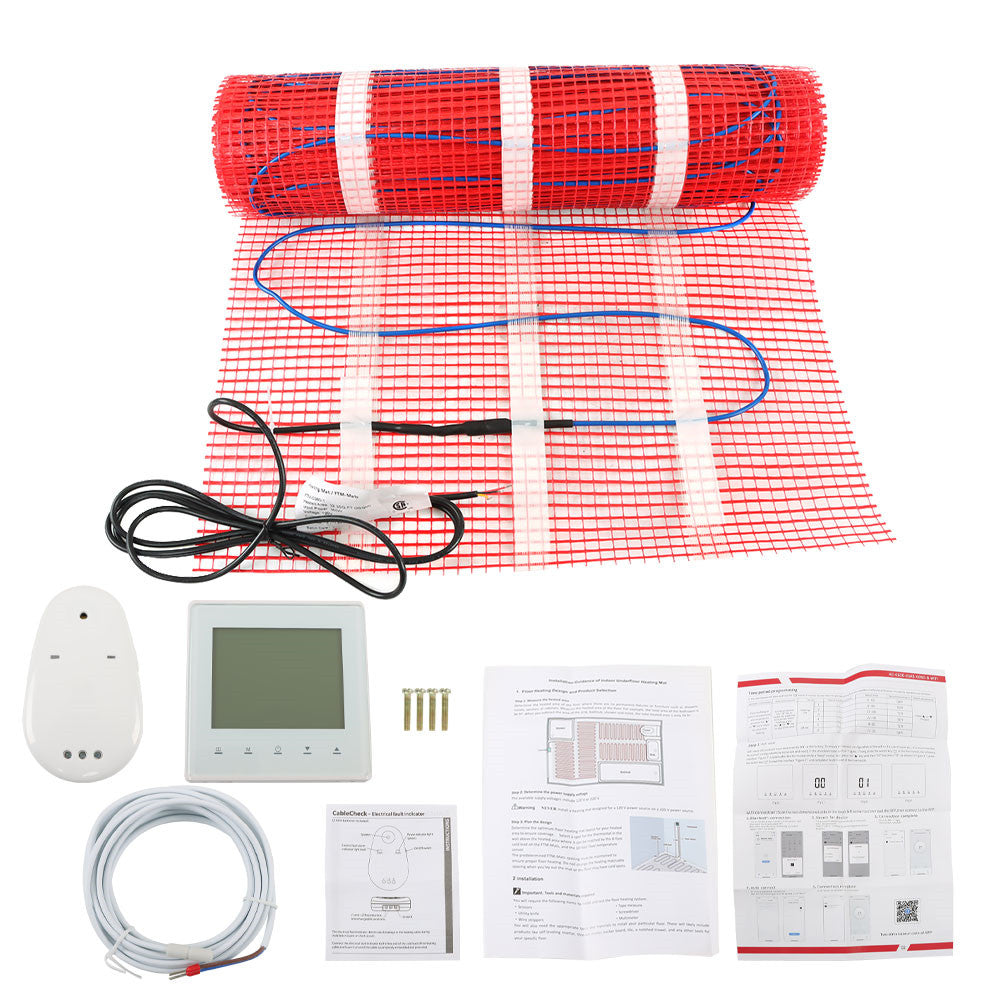

• Comfort- Enjoy the Warmth easy-to-install Electric Floor Heating System.      Heating Kit Includes: 30 Sqft (120 volt) Self-Adhesive Heating Mat, Cable monitor/Alarm, rogrammable Thermostat with Floor Sensor and Built-in GFCI (Ground Fault Protection).      For installation under Tile, Laminates and more.
• Easy To Install - The 3" Pre-spaced Electric Floor Heating Mat can be cut & turned, flipped or rotated - providing warmth where needed.      With Self-adhesive mesh on one side and double sided tape on the other, the mat adheres to the sub-floor and lays flat even when flipped.      DO NOT CUT or shorten red heater wire.      Heating wires MUST be embedded in a self-levelling underlayment, thinset or mortar.
• Technical Info- Mat Size: 30 Sqft (20"wide x 18.3ft long).      Voltage: 120, Amps: 3.0, Watts: 360 @ 12w/sqft.      The Dual wire technology with aluminium shield, reduces electromagnetic fields (EMF) to ultra-low levels.   Heating wires are 1/8" in diameter, ensuring minimal effect on finished floor level.

Package Including：

• 30 Sqft Mat Kit

Note:

• Products with electrical plugs are designed for use in the US. Outlets and voltage differ internationally and this product may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
