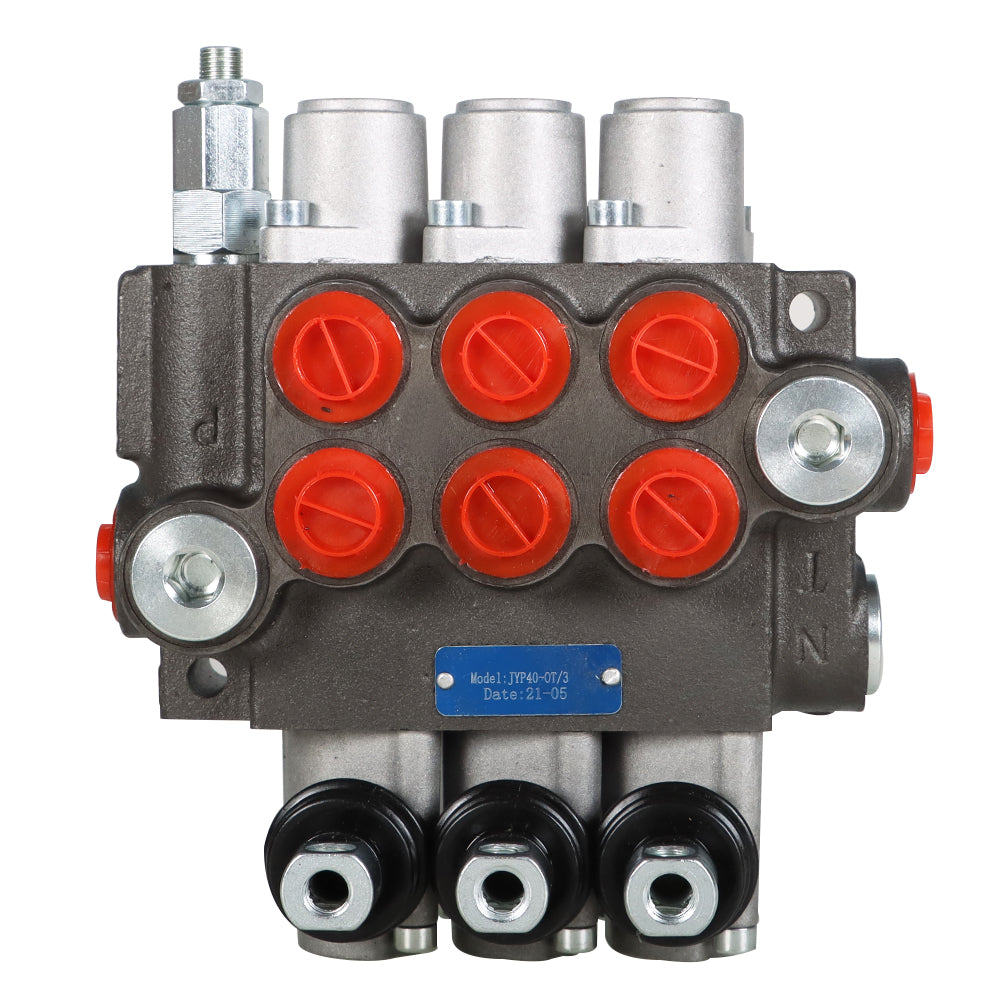

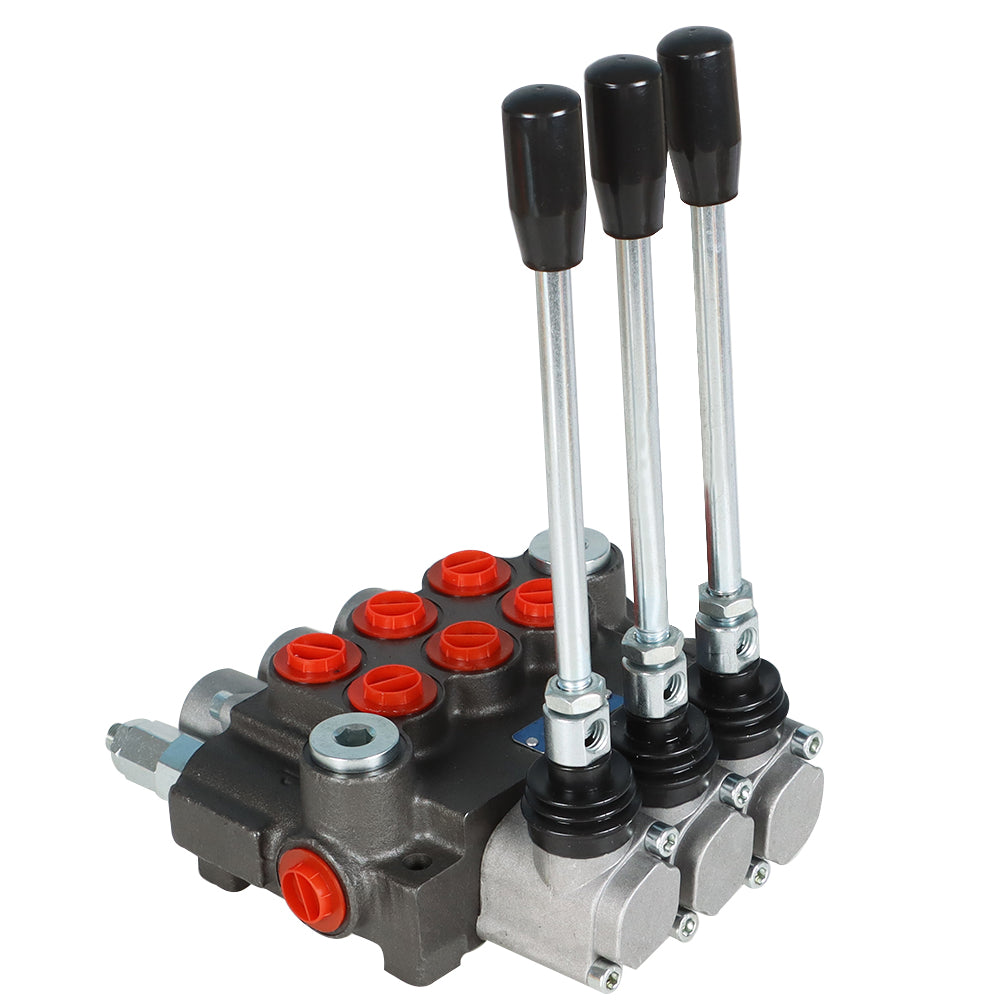

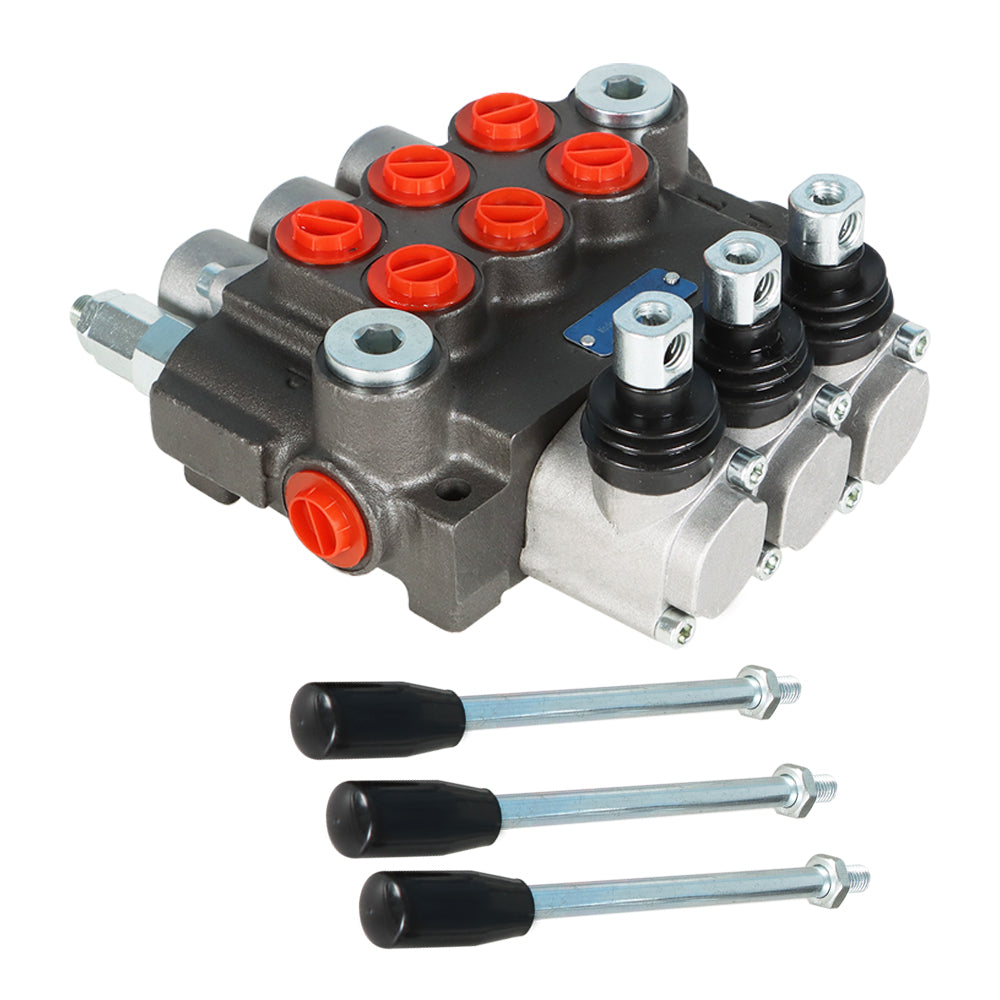

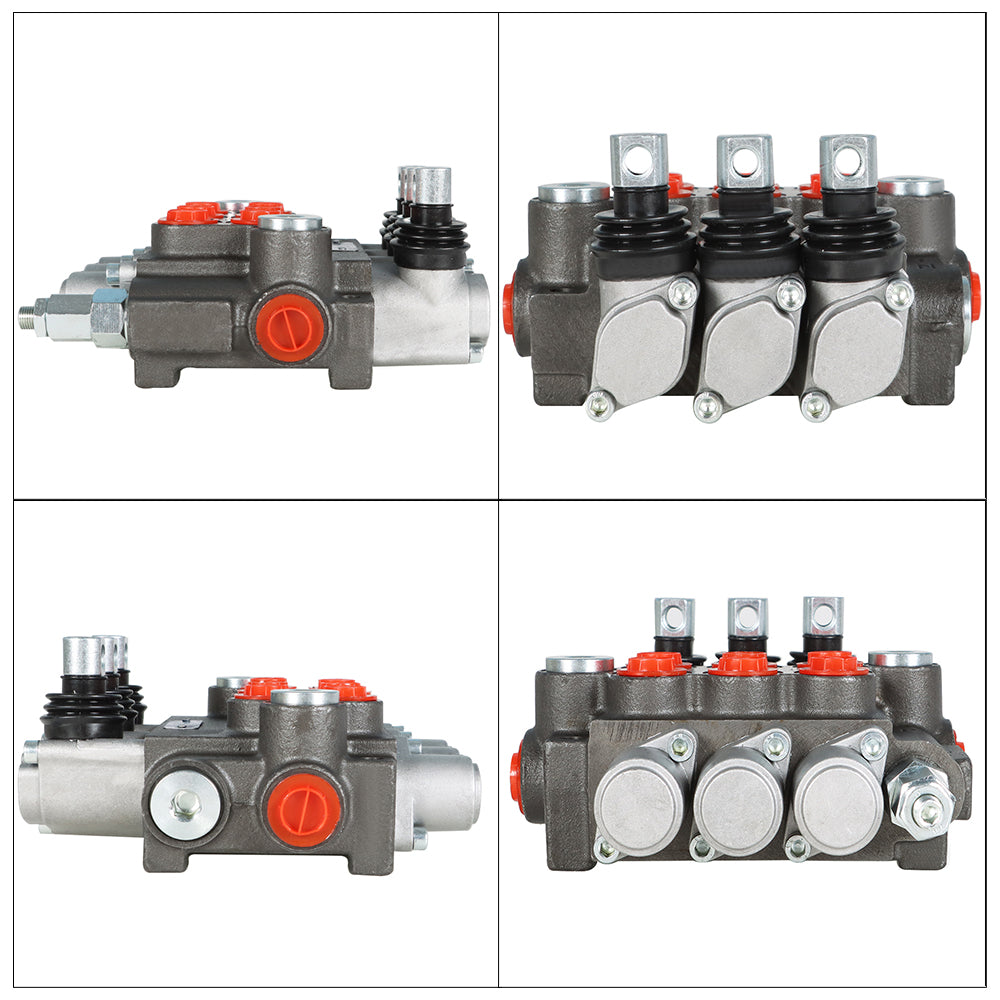

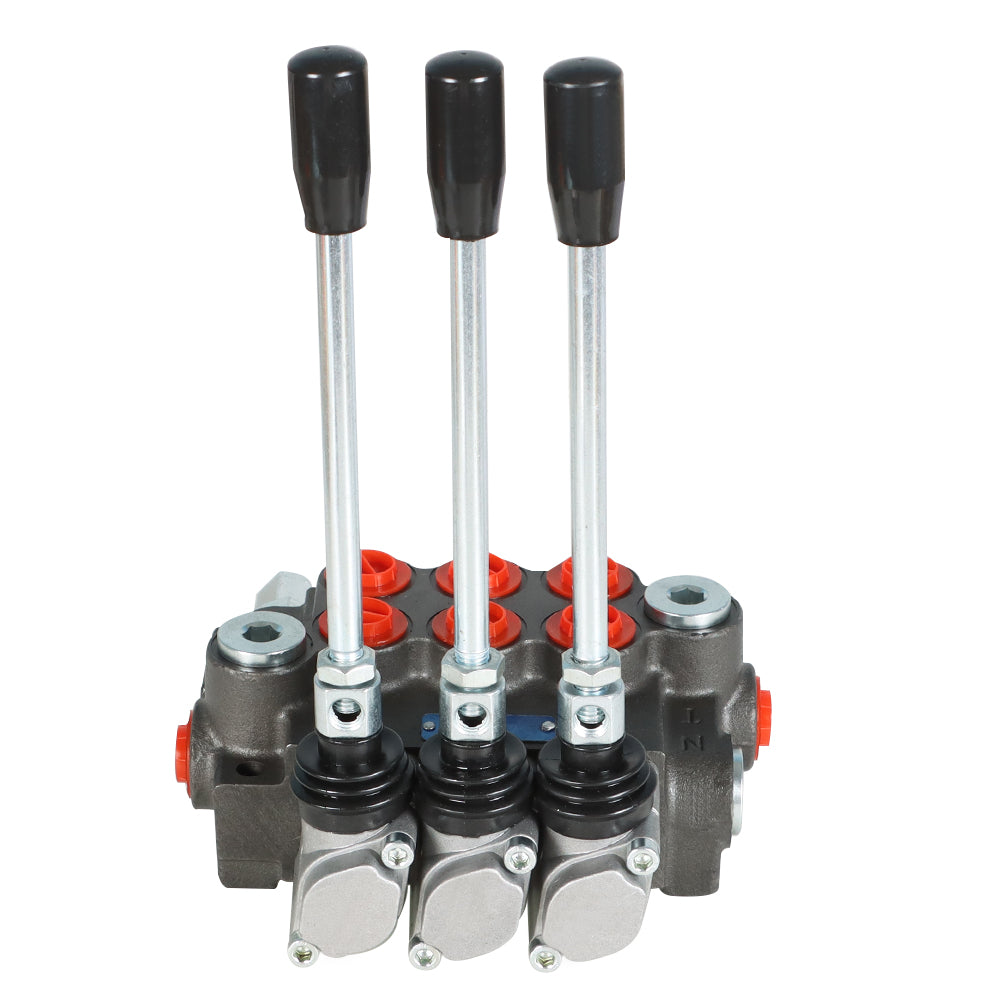

labwork 3 Spool P40 Hydraulic Directional Control Valve 13GPM 1/2 BSPP

Specifications:

Max Operating Pressure:
P = 3600 psi / 250 bar
T = 150 psi / 10 bar
A, B = 4300 psi / 300 bar

Nominal Flow: 13 GPM / 60 L/min
Relief Valve: Adjustable
Center System: Open
A, B, P, T, N Ports: 1/2 inch BSPP
Back Pressure: ≤1 MPA
Temperature: -20 - 80℃
Vise Range: 10 - 400 mm²/s
Filtrating Accuracy: ≤10 um

Description:

P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

Inner Check Valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

Inner Relief Valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

Oil Way: Parallel circuit, power beyond option.

Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

Valve Construction: Monoblock construction, 1-7 levers.

Spool Function: O, Y, PA.

Option: Hydraulic lock is available to be added on A and B port.

Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, etc.

Package List:

1 x 3 Spool P40 Hydraulic Directional Control Valve
