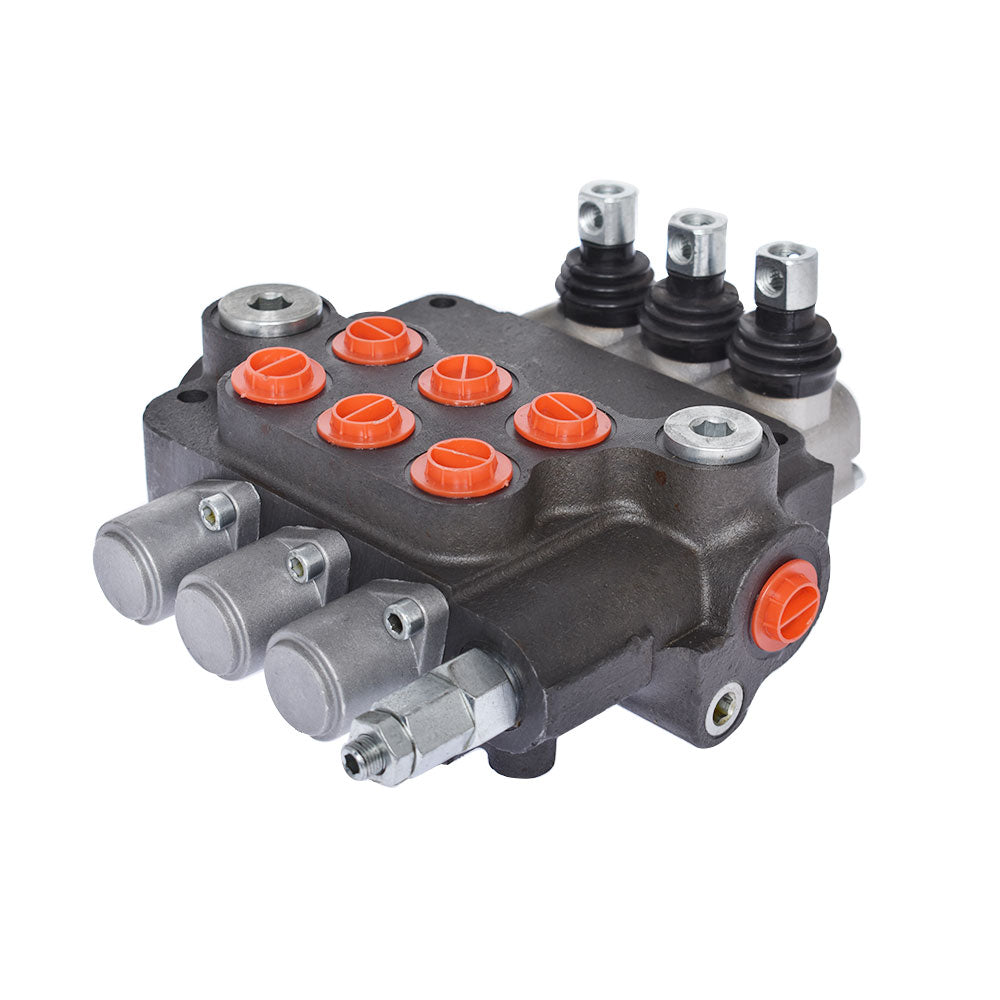

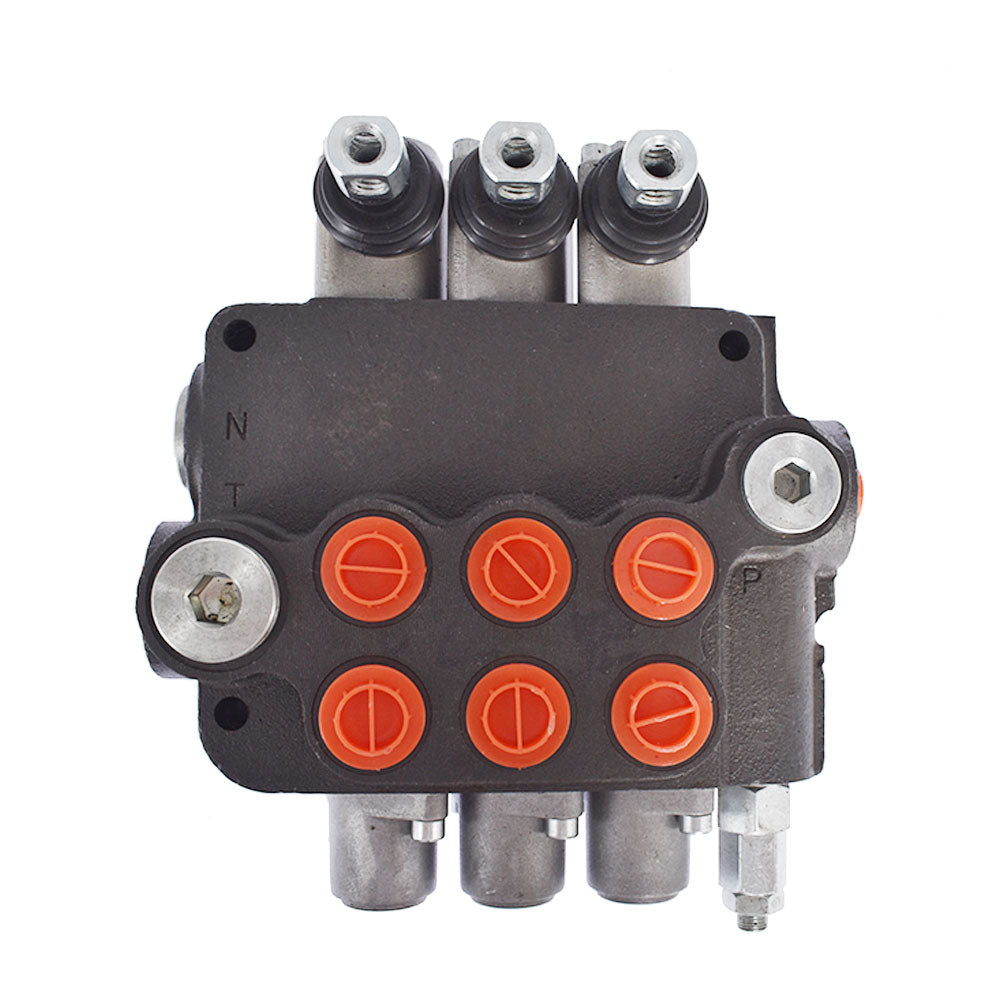

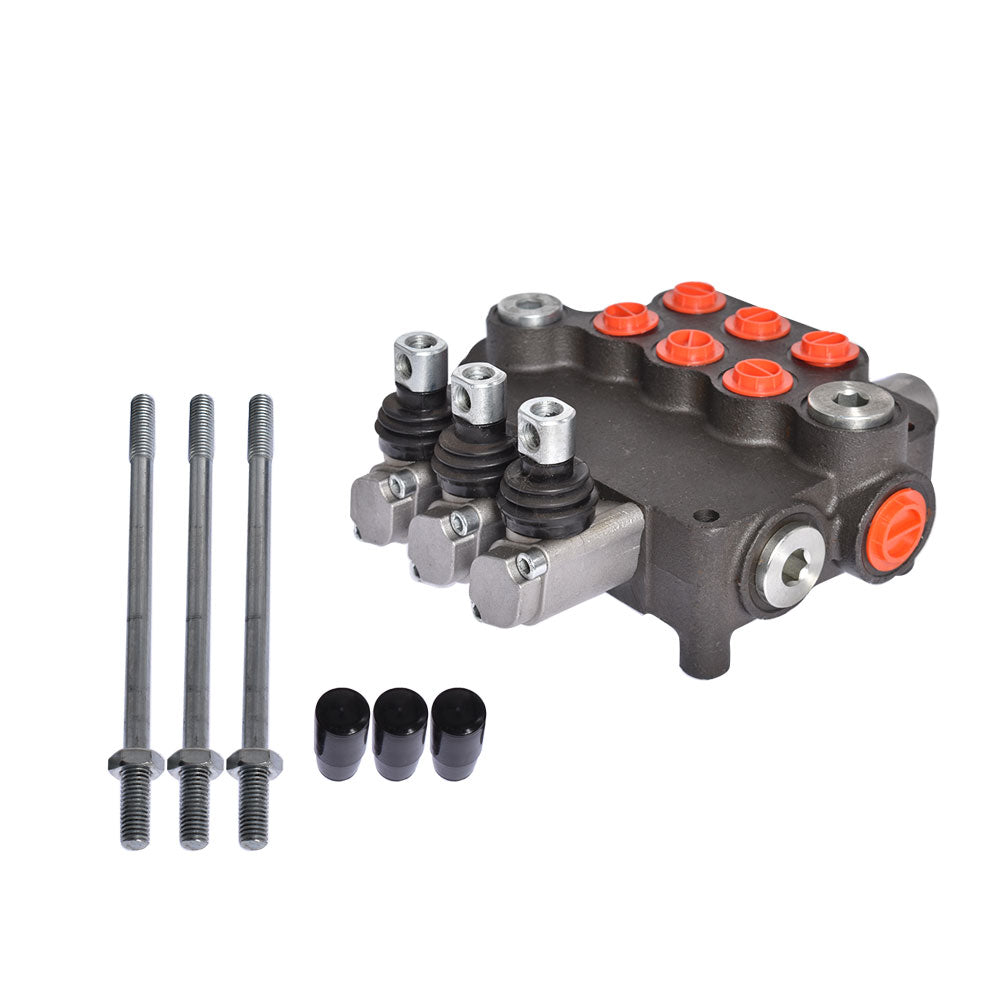

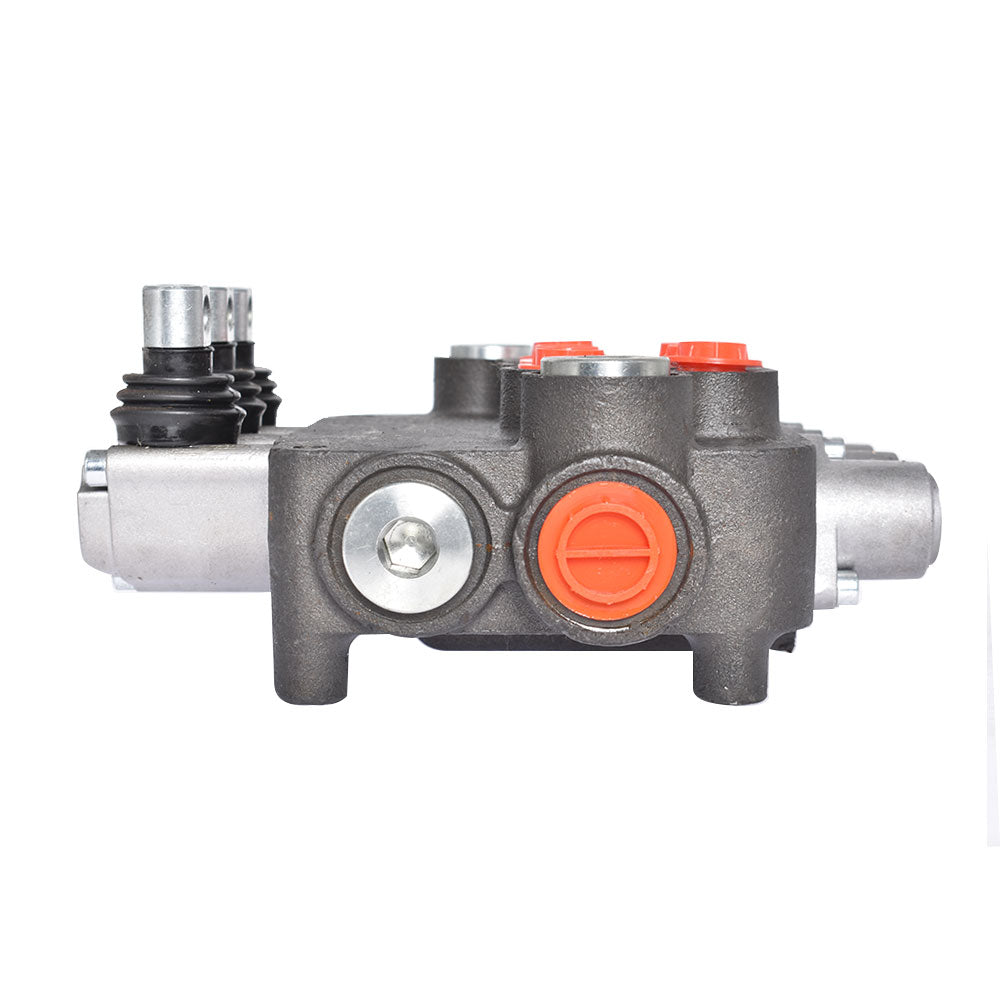

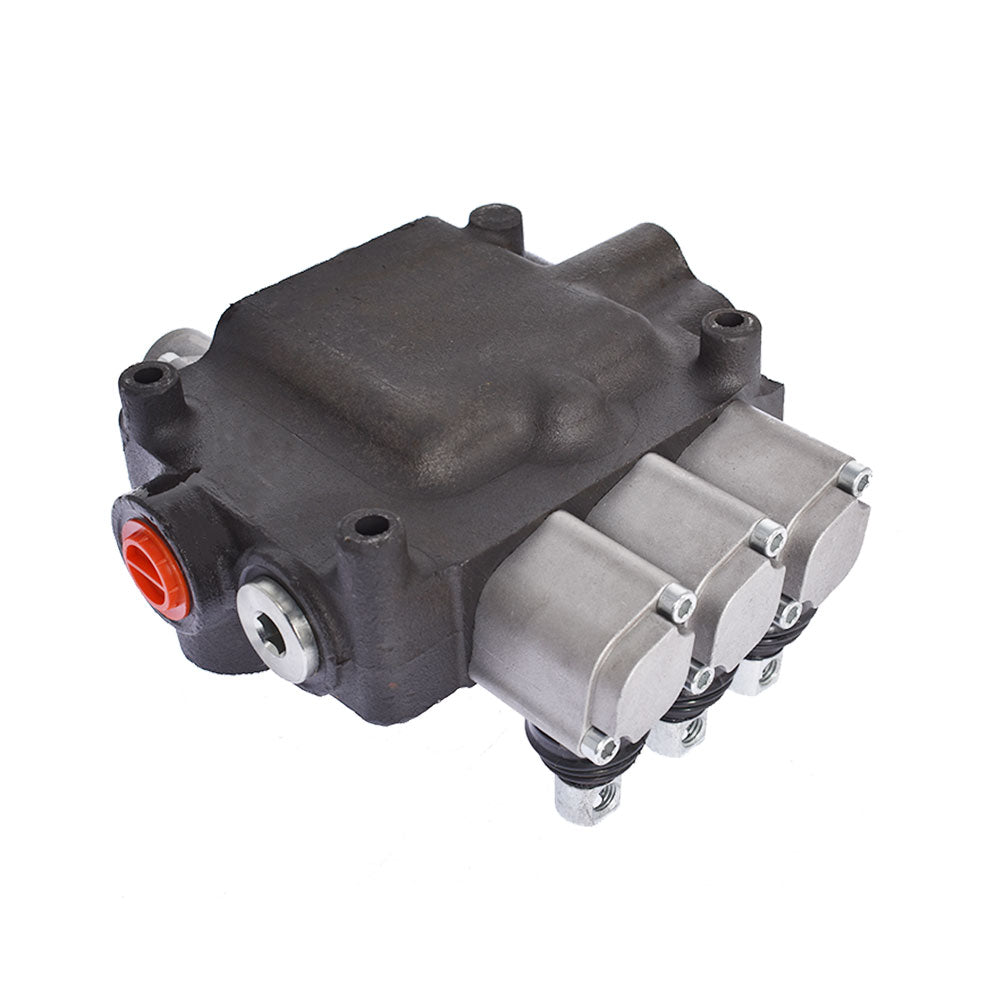

3 Spool Hydraulic Monoblock Double Acting Control Valve, 21 GPM, SAE Ports

Monoblock Hydraulic Directional Control Valve, 3 Spool, 21 GPM

This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
Common Uses:


    Operate hydraulic cylinders (Double-Acting or Single-Acting)

    Operate hydraulic motors ("D" Spool Required)

    Install rear remotes on a tractor

Benefits:


    3 Spool valve with compact design allows for installations in tight areas

    All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders

    Used for open center systems (Pump to Tank Flow) - closed center option available

    Anti-drop load checks on each spool

    Precision ground and hard chrome-plated spools assure a long life

    High-tensile strength cast iron monoblock construction

    SAE O-Ring ports ensure solid seal and prevent blockages

    Capable of Closed Center or Power Beyond (conversion plug required)

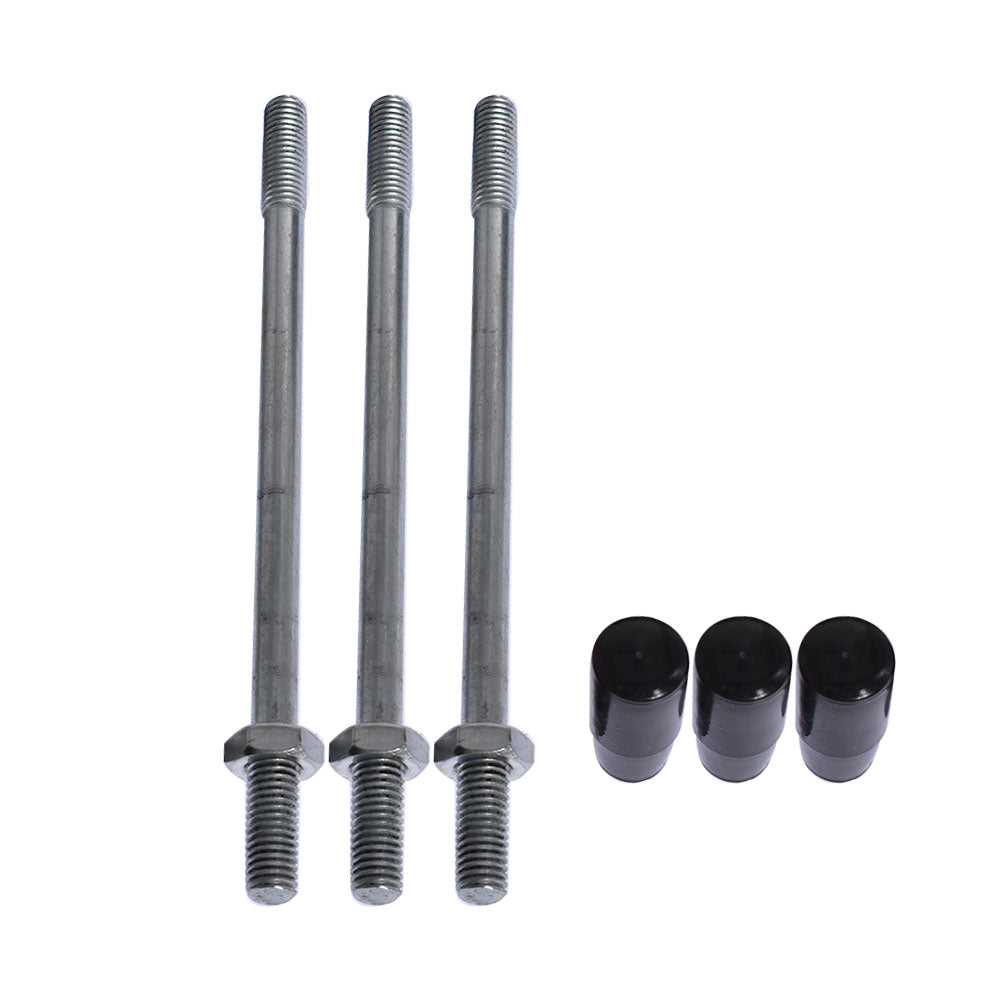

    Vertical or horizontal handle mount

    Adjustable Relief Valve Range: 1500 to 3625 PSI

    Used as motor or single-acting spool possible (#10 SAE port plug required)

  Features:


    Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI

    Flow Rating: 21 GPM (80 l/min)

    A & B Work Ports:  #10 SAE O-Ring (7/8”-14) Thread

    Inlet Port: #10 SAE O-Ring (7/8”-14) Thread

    Outlet Port: #12 SAE O-Ring (1-1/16”-12) Thread

    3 – 5/16” Mounting Holes
