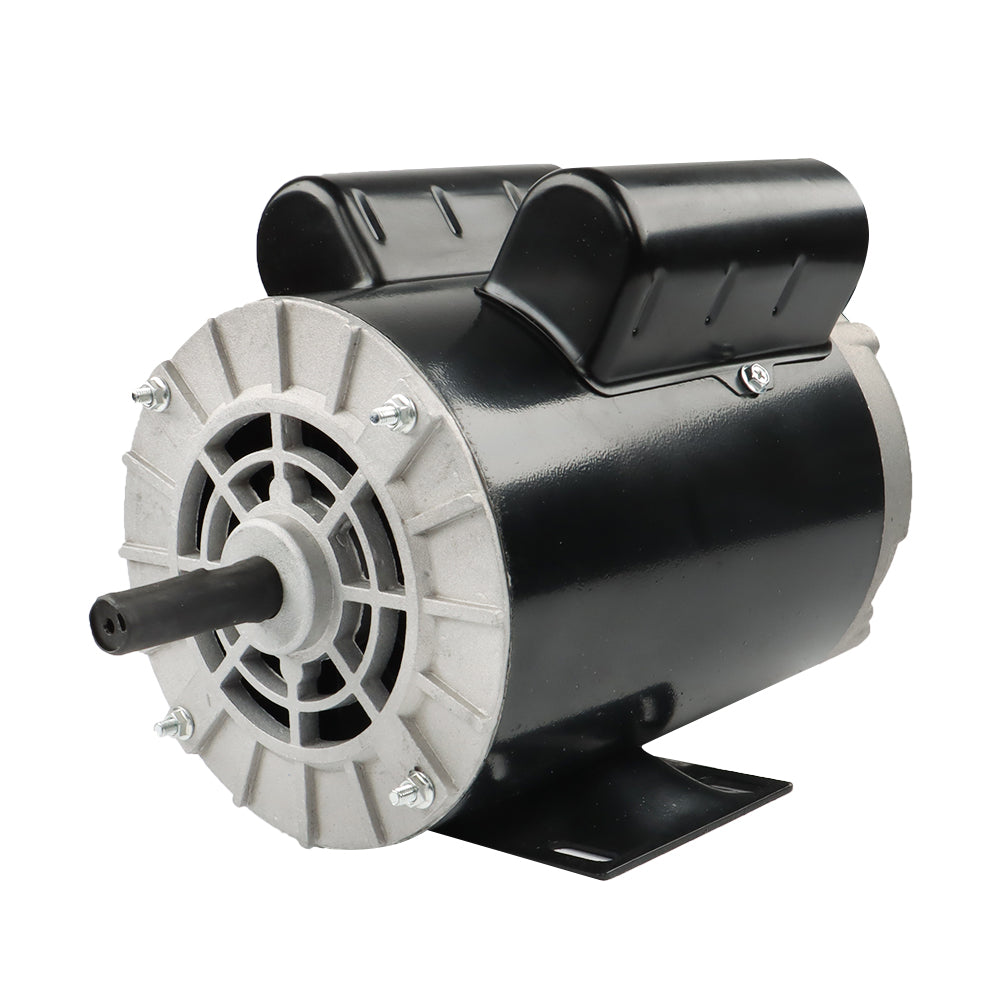

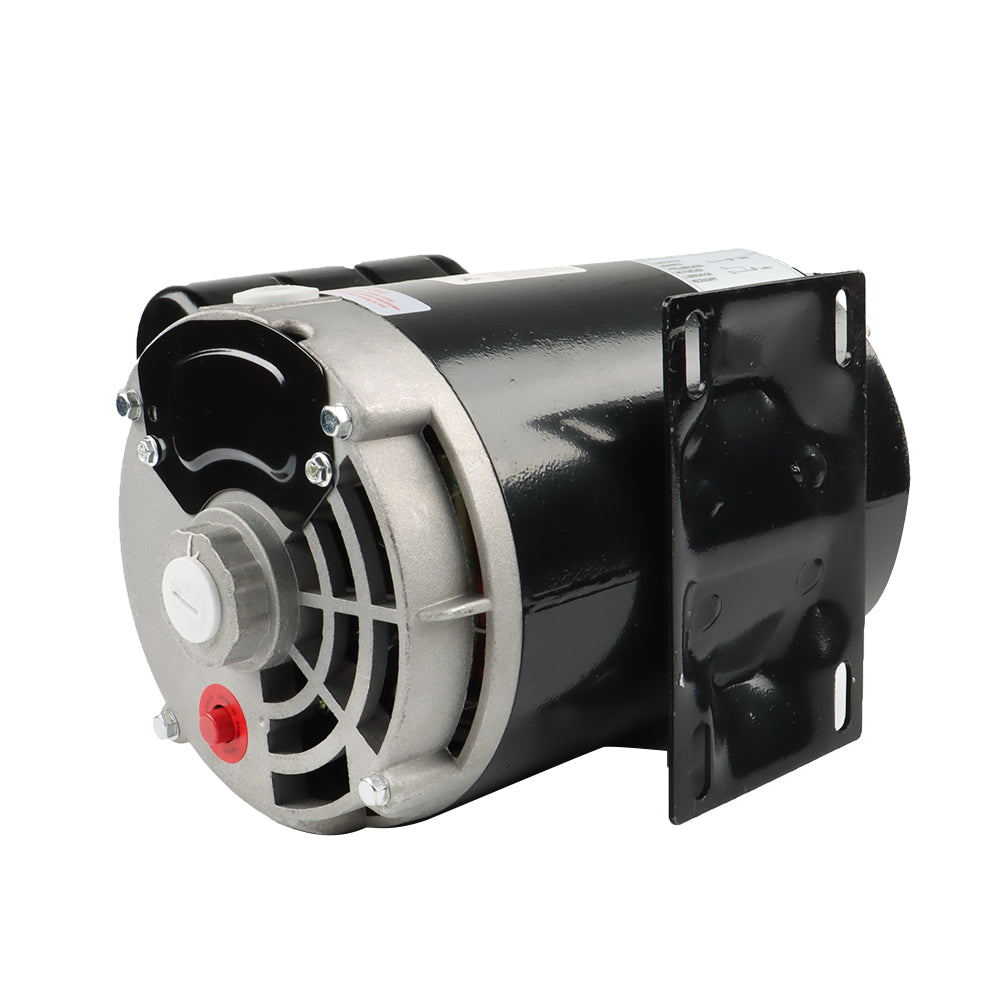

3.7HP Electric Motor 56 Frame 3450RPM Single-Phase Air Compressor Motor, 5/8" Shaft, 230V

Product Description

This 3.7HP single-phase electric motor is designed for compatible air compressors and general equipment. Its steel housing, high-speed operation, and heat-dissipation design support reliable performance in demanding applications.

Compatibility

• Compatible with air compressors using a 56-frame motor
• Suitable for general equipment requiring a 230V single-phase motor
• Verify mounting dimensions, shaft size, rotation, and electrical requirements before ordering

Specifications

• Motor Power: 3.7 HP
• Voltage: 230V
• Phase: Single Phase
• Rated Speed: 3450 RPM
• Frame Size: 56
• Shaft Diameter: 5/8 in
• Shaft Length: 1.88 in
• Rotation: Counterclockwise (CCW) only
• Reversible: No
• Application: Air Compressor and General Equipment

Features

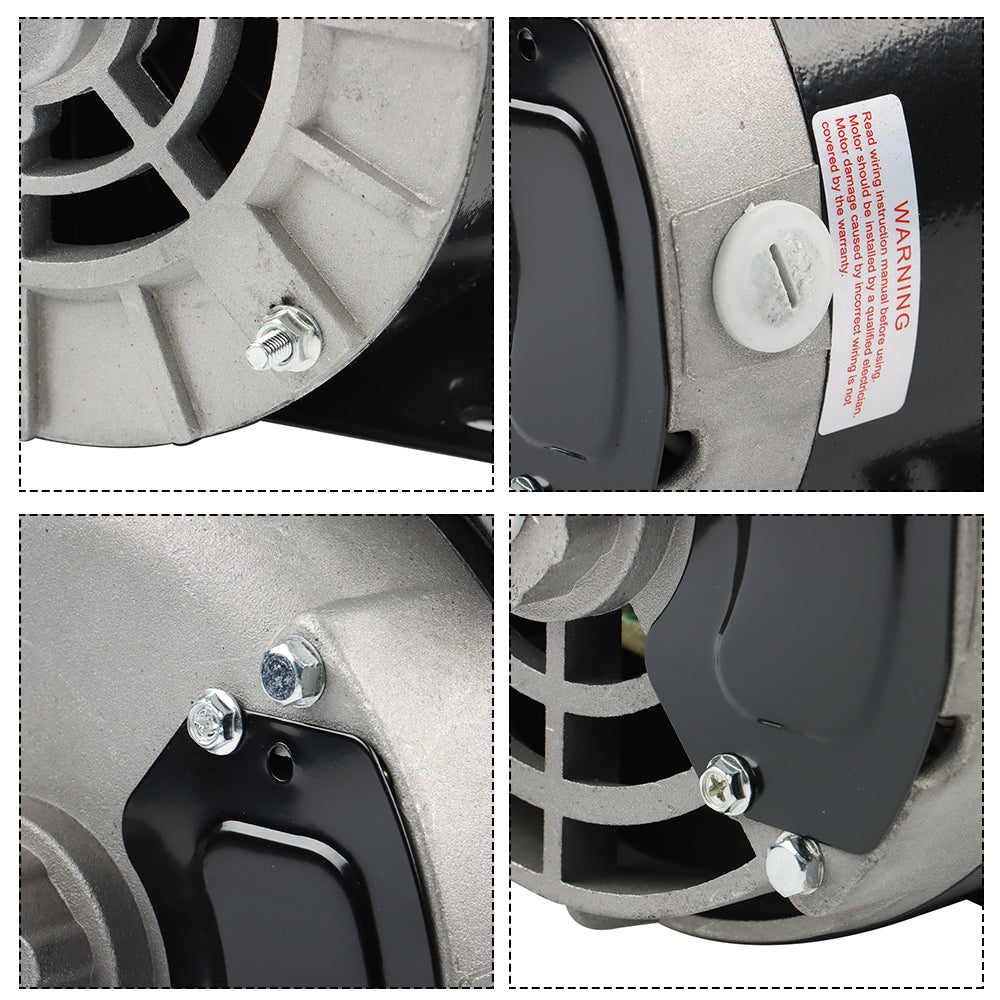

• Durable steel housing resists wear and corrosion
• 3450 RPM operation supports efficient compressor performance

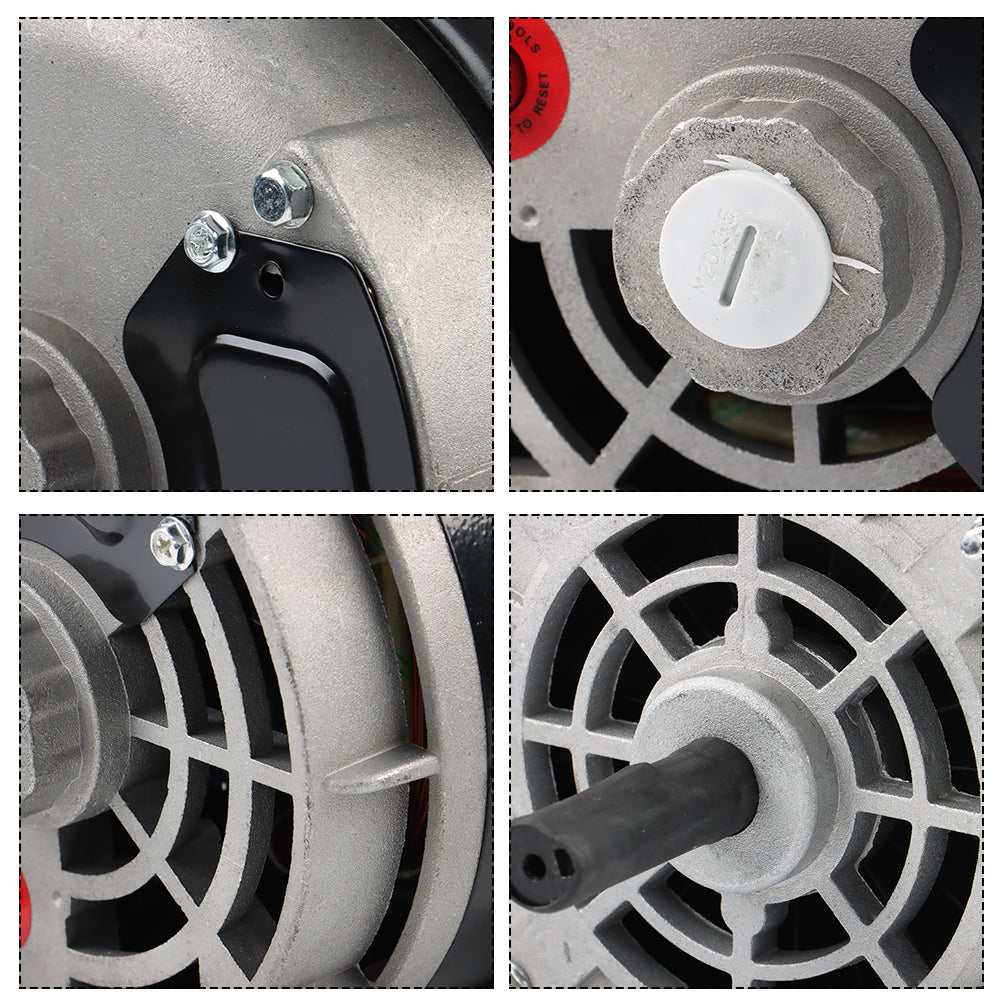

• Multiple cooling openings help dissipate heat
• Built-in protection helps shut down the motor during overcurrent, phase loss, short circuit, overvoltage, or leakage conditions

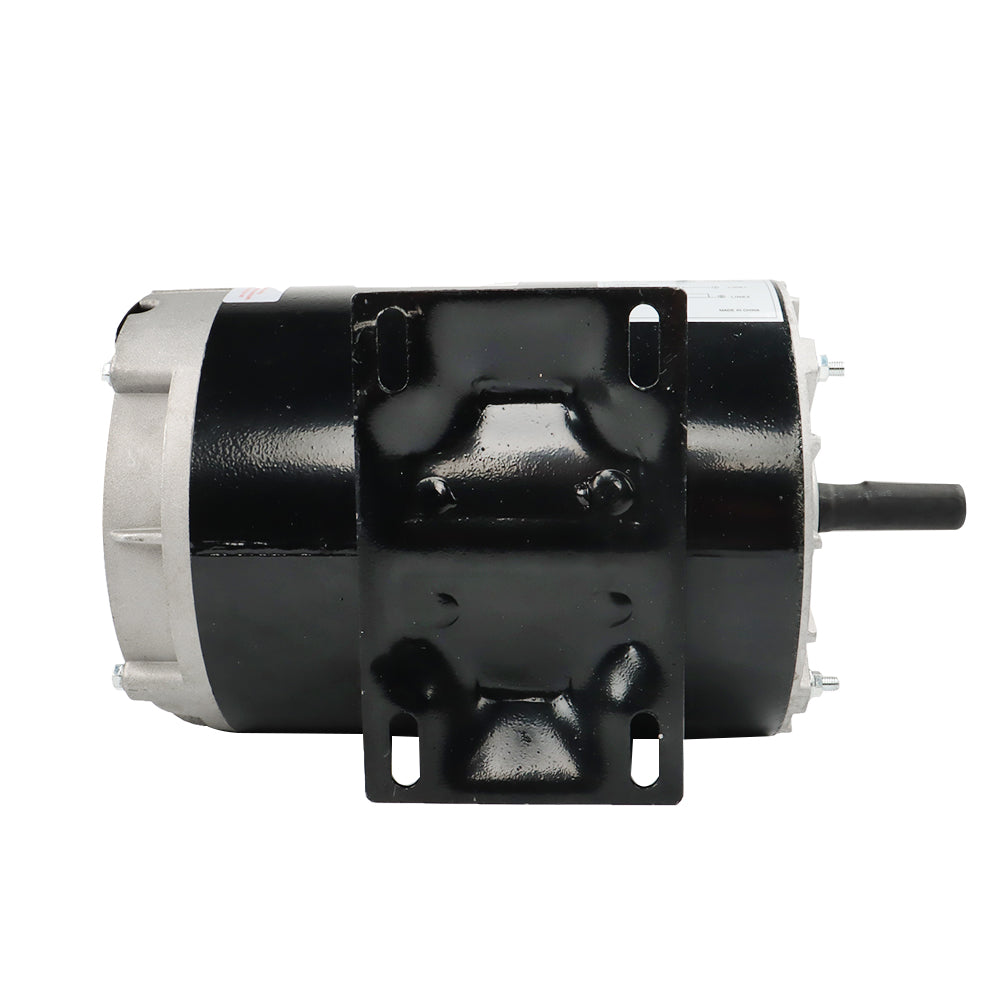

• Stable mounting bracket design
• Suitable for compatible air compressors and general machinery

Package Includes

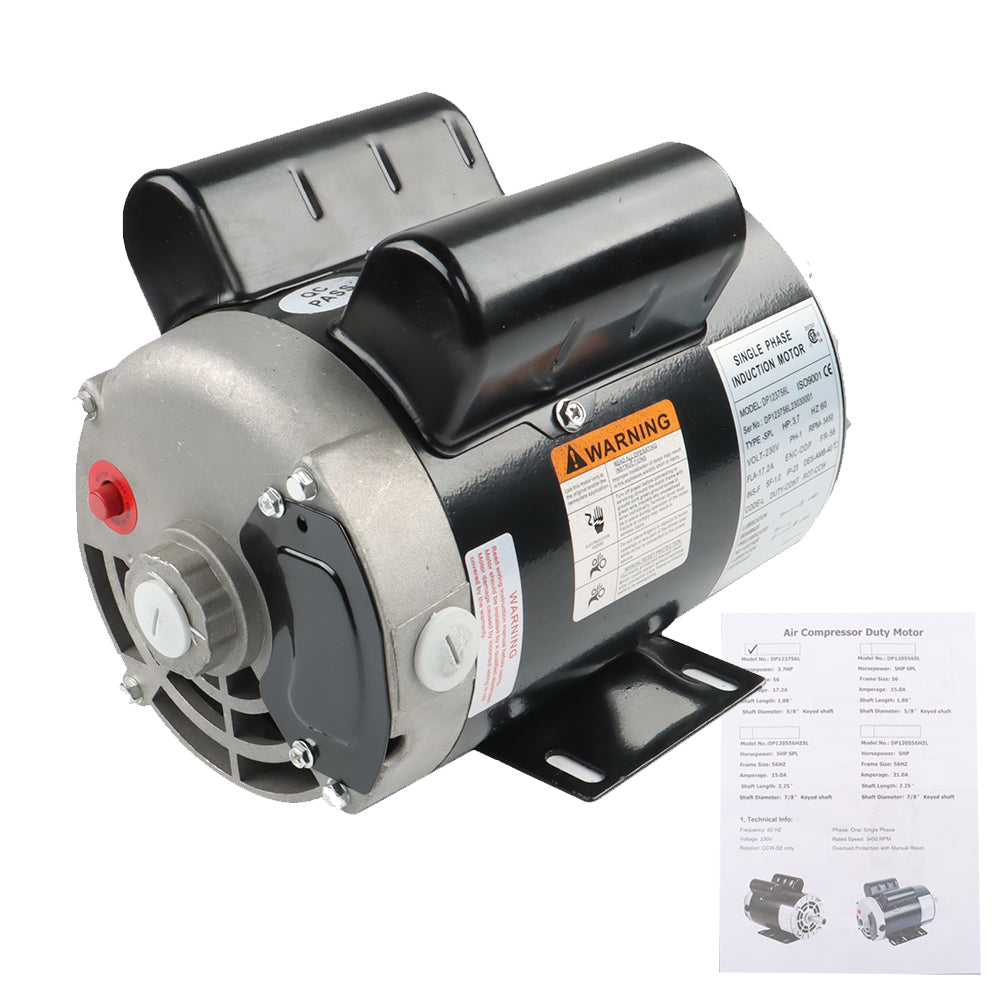

• 1 × 3.7HP Electric Motor
• 1 × User Manual
• Installation Instructions Included

Important Note

This motor rotates counterclockwise only and is not reversible. Confirm the motor frame, shaft diameter, shaft length, mounting pattern, voltage, amperage, and required rotation before purchase. Electrical installation should be performed by a qualified professional.
