2PCS Ignition Coils 12V For Honda CB350 CL350 SL350 CL450 CB450 CB500 1965-1975

For Honda 12 volt ignition coils with 90° spark plug caps, fits motors with points or converted electronic ignition systems.

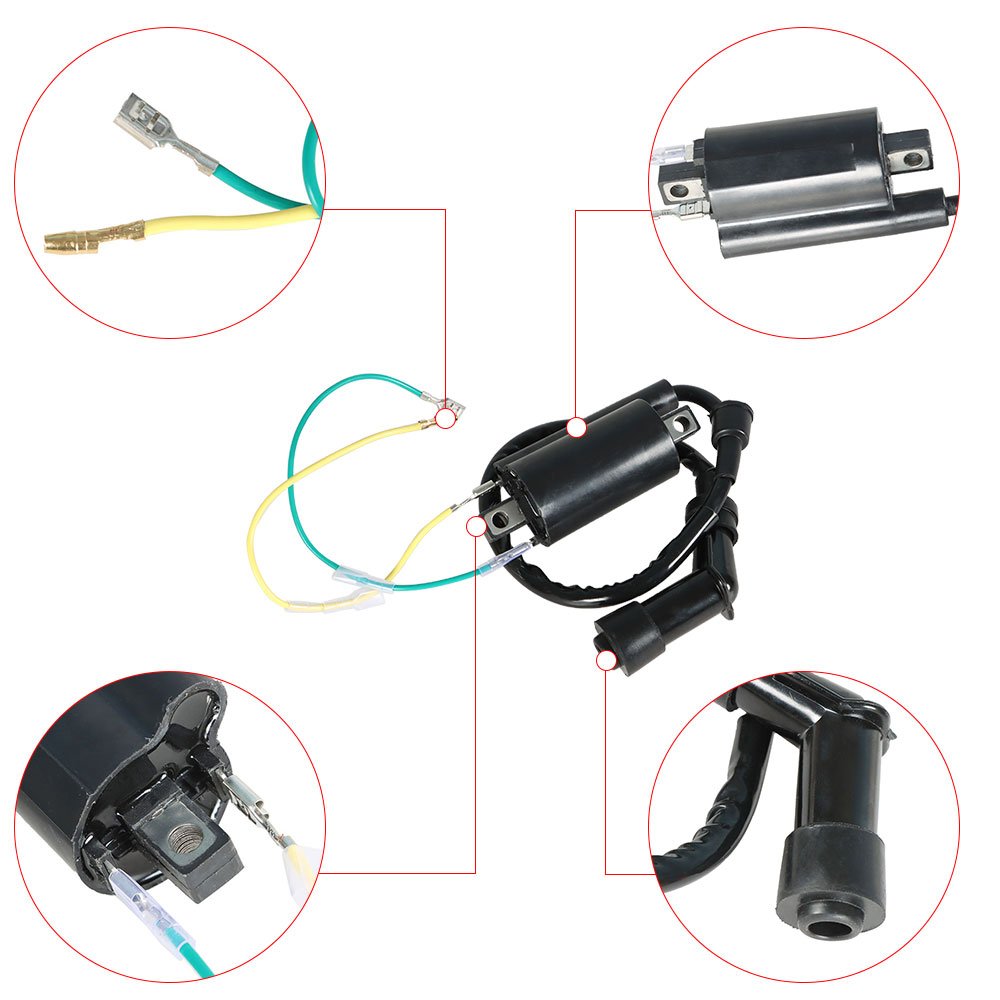

Dimensions:

• Spark plug wire length from base of coil to the end of the cap 490mm (19.25")
• 90 degree spark plug boot installed as pictured
• Black wire w/ white stripe 180mm (7.1") with male bullet connector
• Yellow 185mm (7.25") with dual female bullet connector
• 80.5mm (3.17") from center to center of the mounting holes

Replaces Part Numbers:

30501-292-672 30500-286-004 3050000-31-31-31 2-007 30500-286-007

Fit For:

This part will ONLY work on the vintage twin cylinder.

Honda CB 350 Super Sport -- 1968-1973
Honda CB 360 -- 1974-1976
Honda CB 450 -- 1968-1974.
Honda CB 450 Super Sport -- 1965-1974
Honda CB 500 Twin -- 1975
Honda CJ 360 T -- 1976-1977.
Honda CL 350 -- 1973.
Honda CL 350 Motorsport -- 1972
Honda CL 350 Scrambler -- 1968-1973
Honda CL 360 Scrambler -- 1974-1976
Honda CL 450 Scrambler -- 1967-1974
Honda SL 350 Motorsport -- 1969-1973

NOTE:

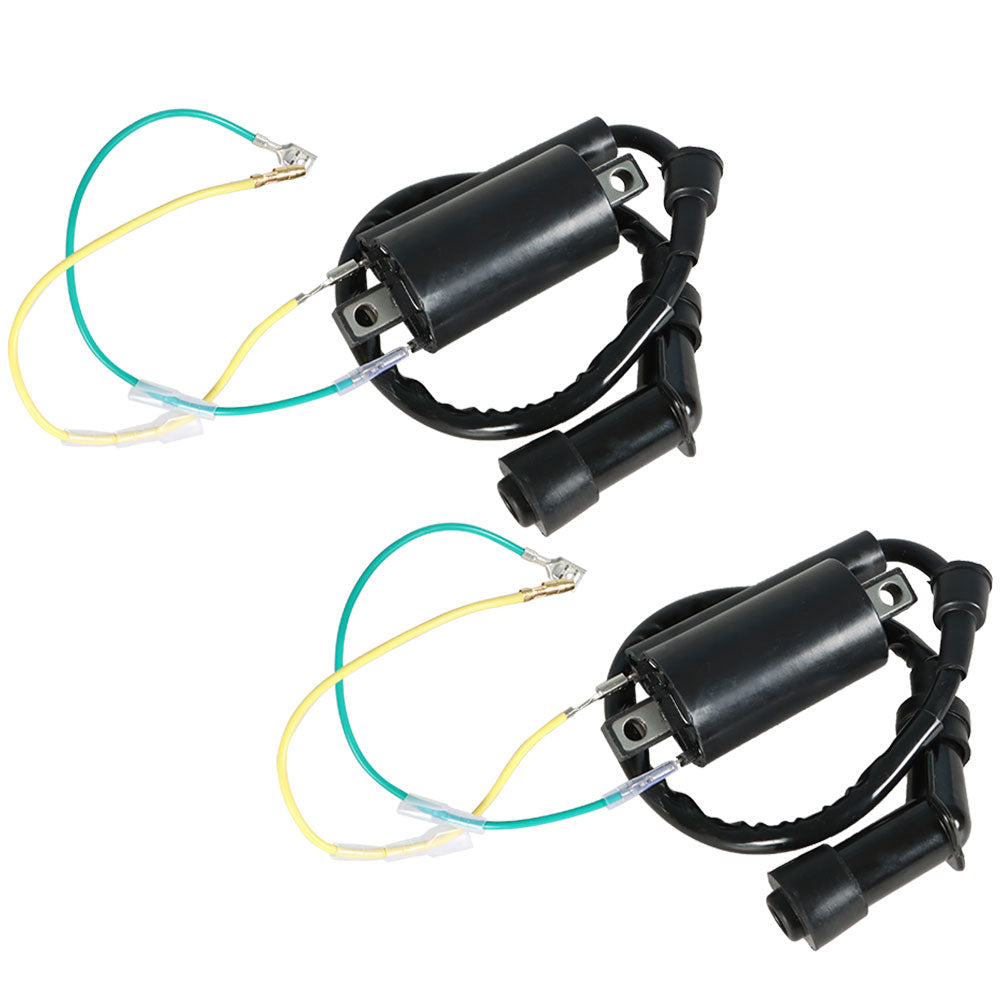

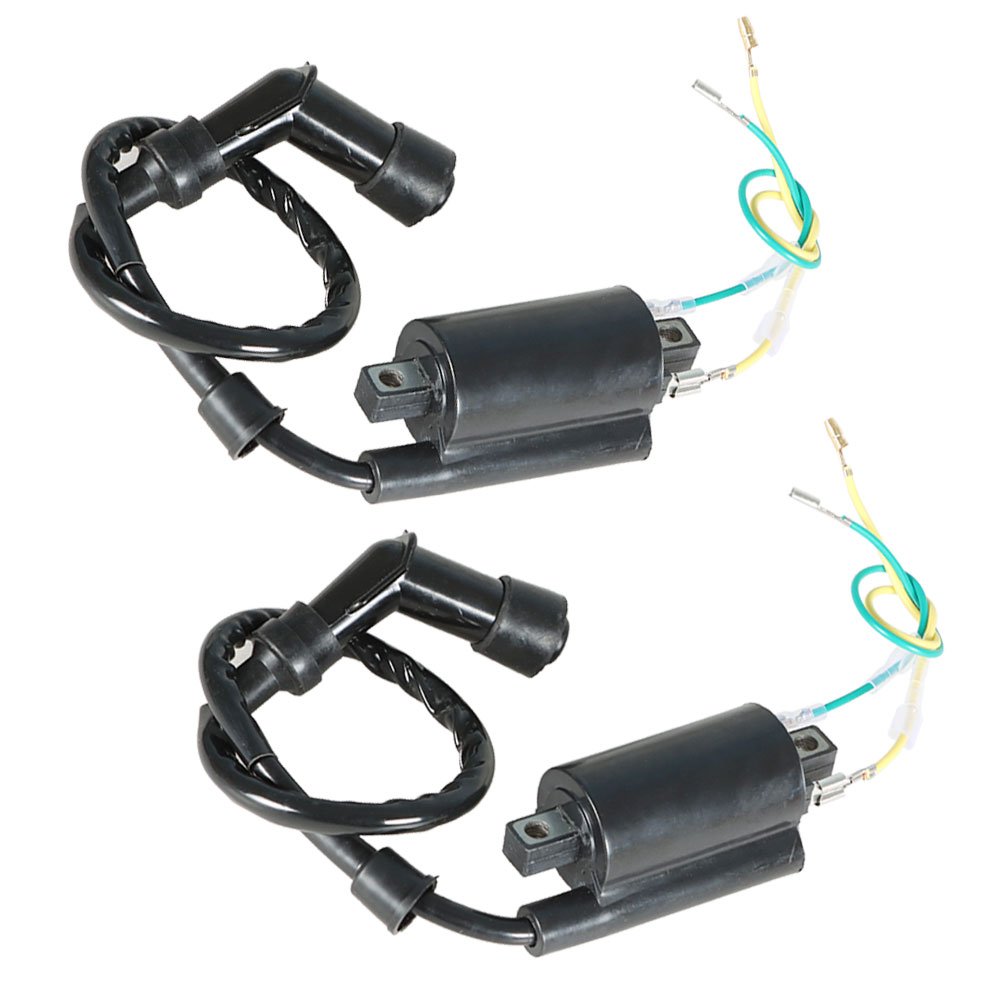

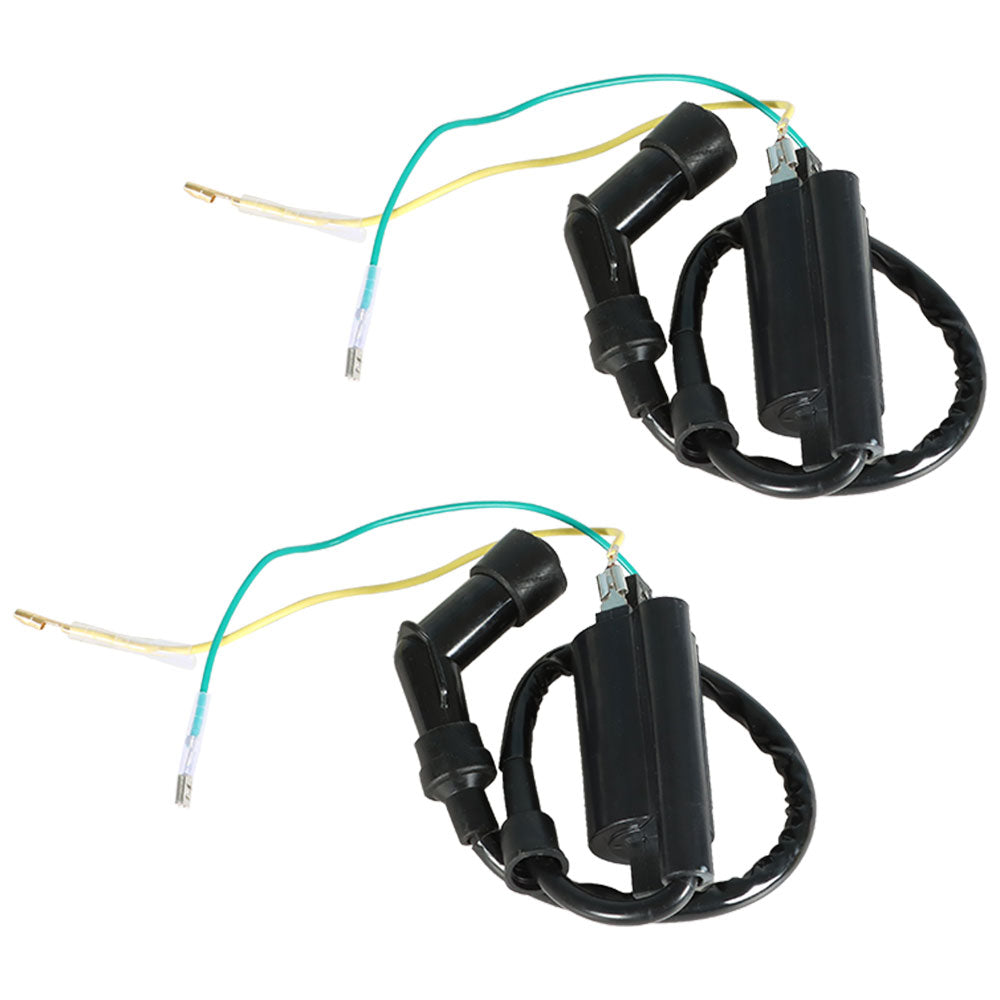

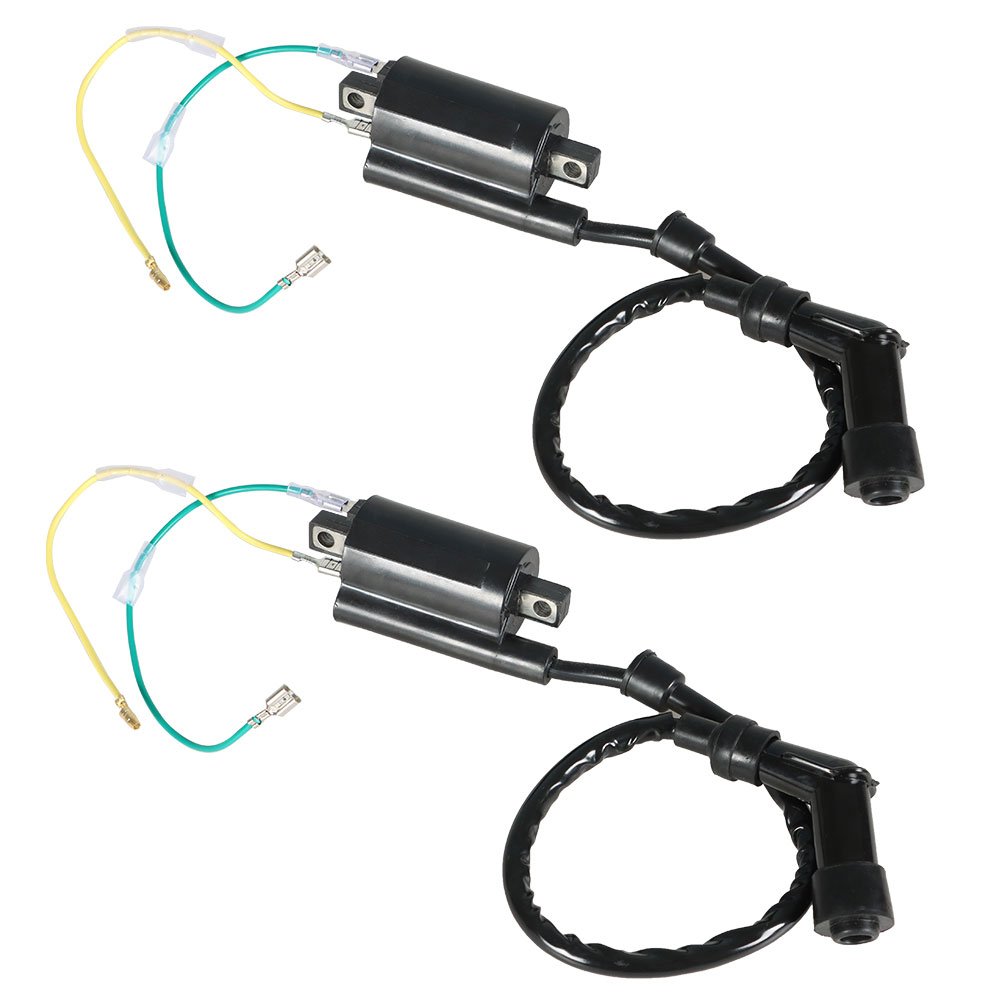

1. This ad is for TWO (2) coils (right & left).
2. Some applications may have a very tight fit, some also may need a small spacer or washers to acheive proper clearance for the left side. (mounting hardware not included) In some rare cases, a mounting bracket may need to be adjusted or fabricated)

Package Included:

2pack Ignition Coil Set
