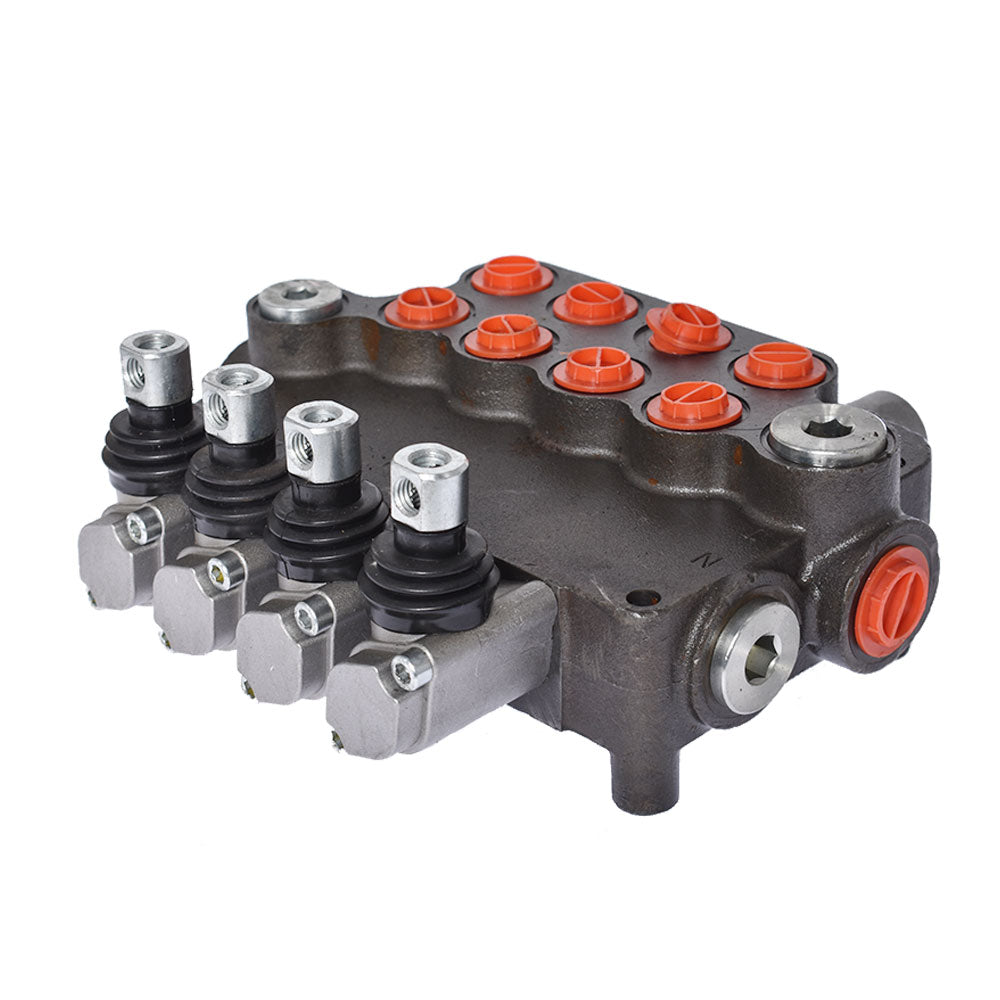

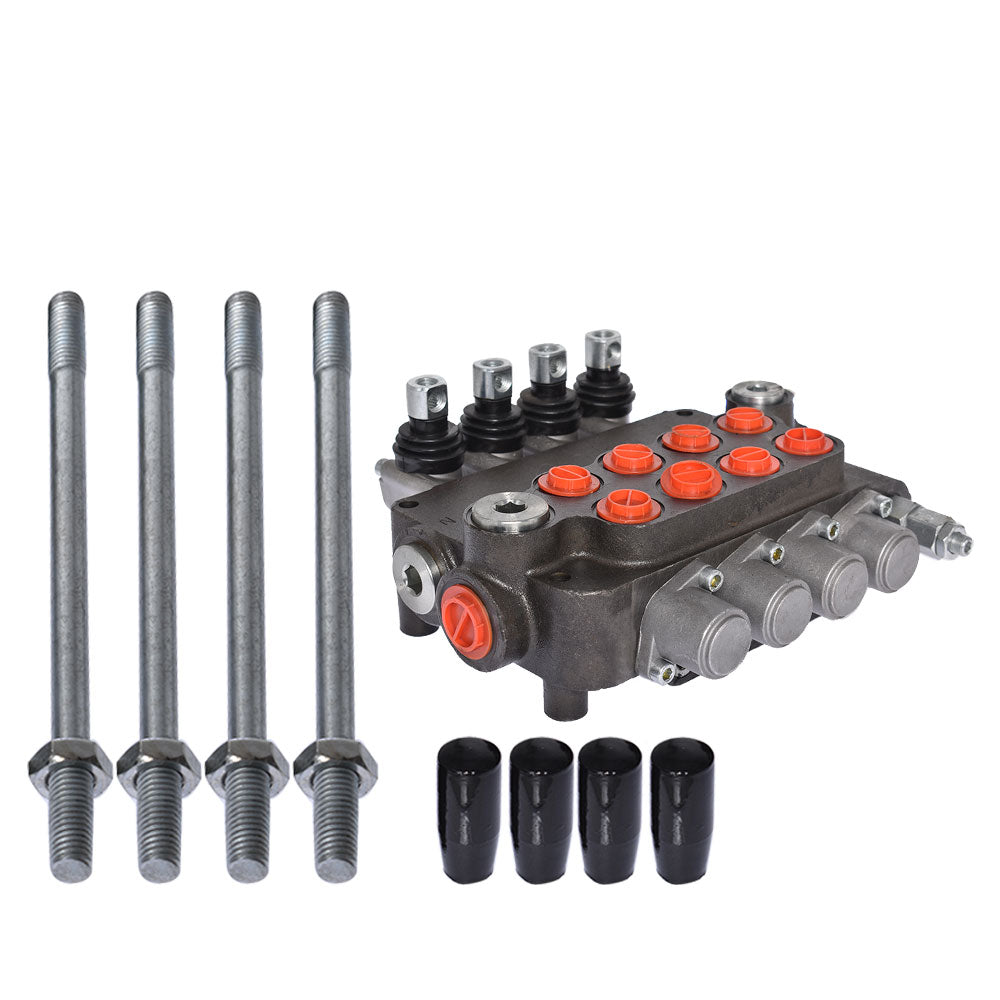

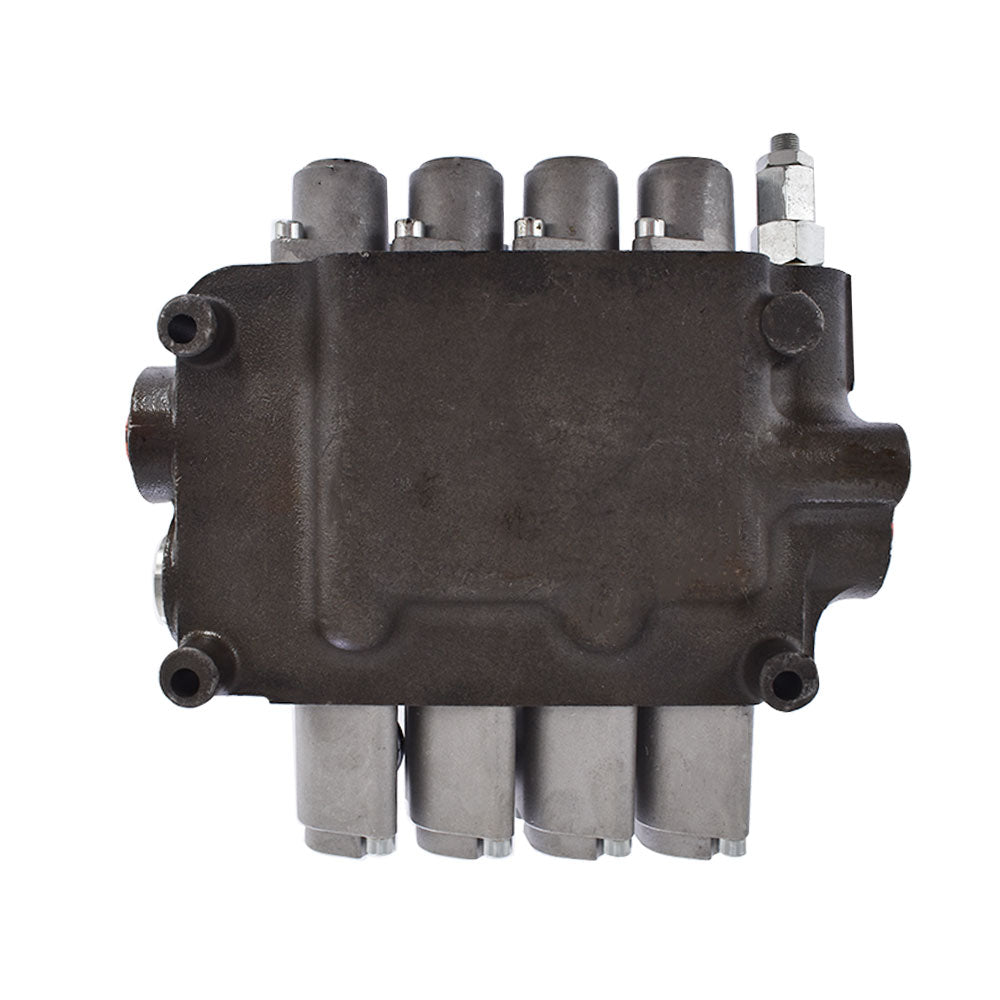

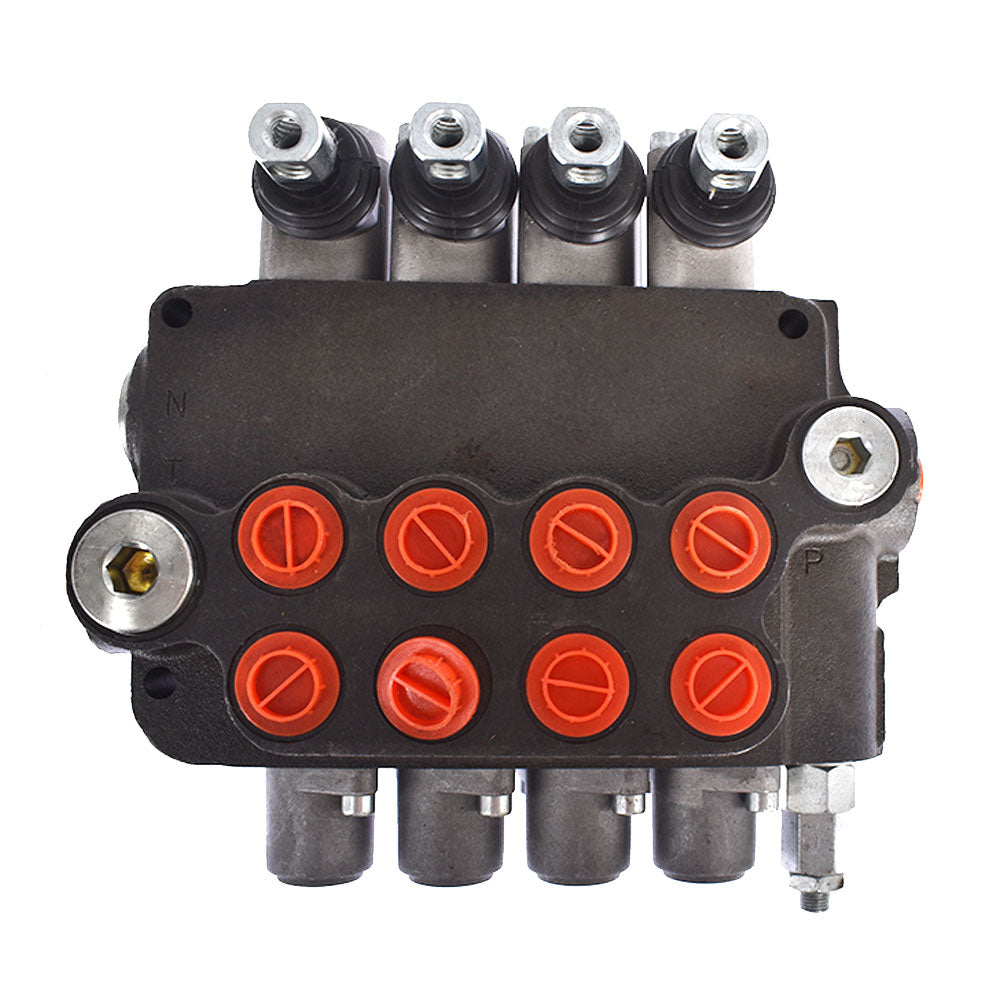

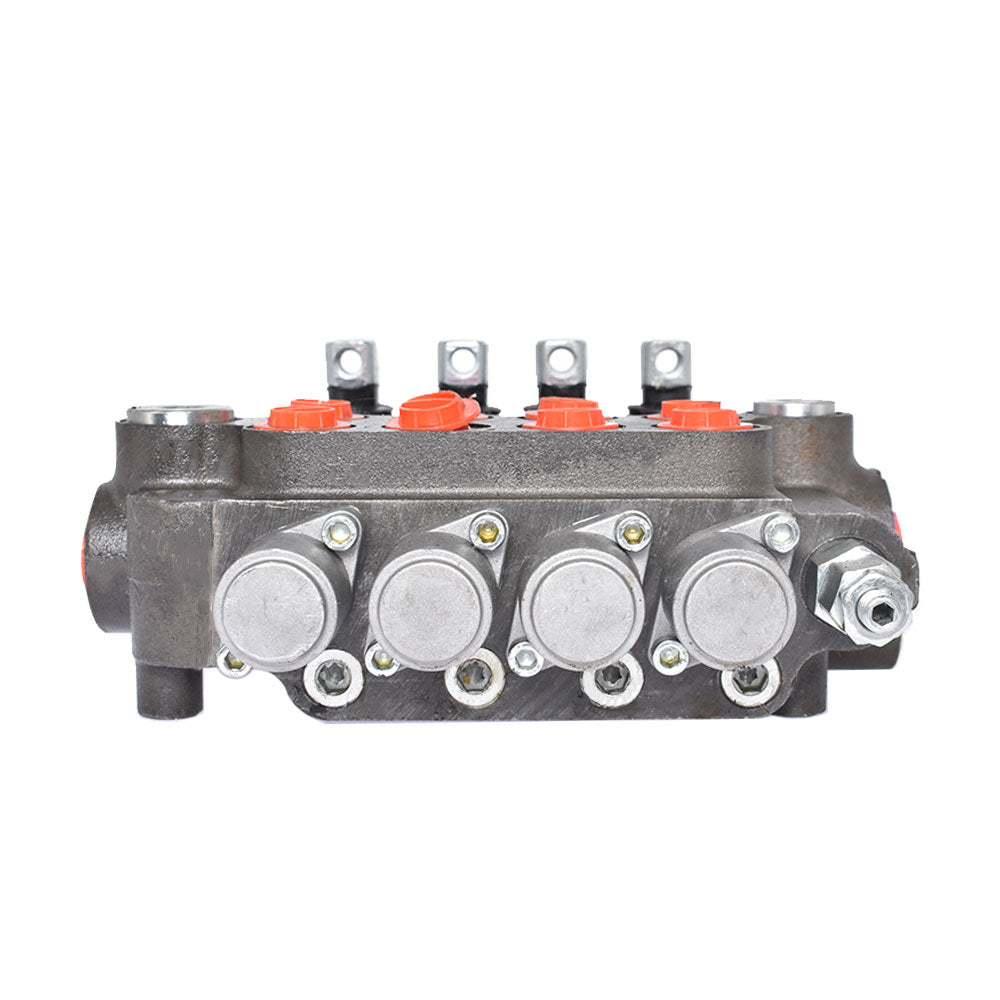

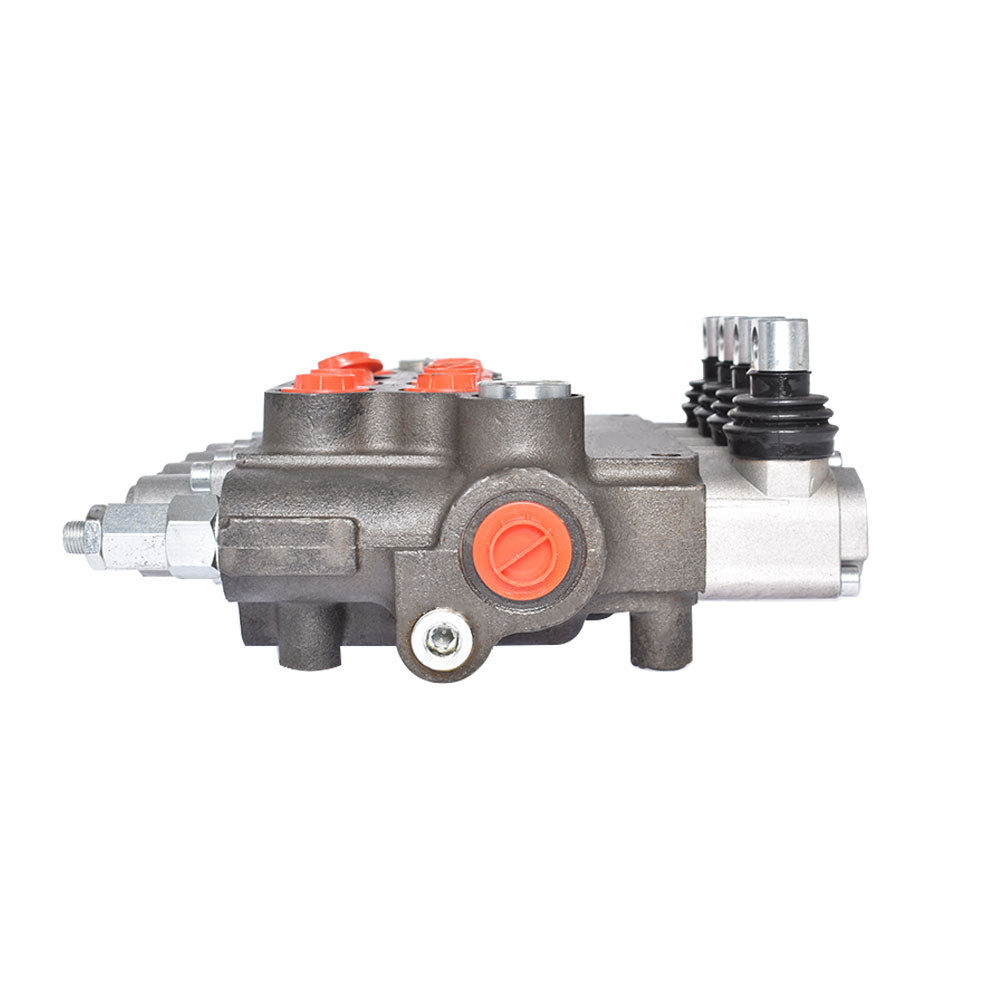

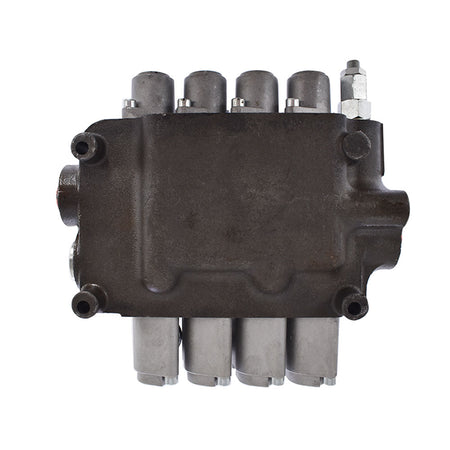

21 GPM 3600 PSI SAE Ports 4 Spool Hydraulic Control Valve Double Acting

Common Uses:
    Operate hydraulic cylinders (Double-Acting or Single-Acting)

    Operate hydraulic motors ("D" Spool Required)

    Install rear remotes on a tractor

Benefits:
    4 Spool valve with compact design allows for installations in tight areas

    All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders

    Used for open center systems (Pump to Tank Flow) - closed center option available

    Anti-drop load checks on each spool

    Precision ground and hard chrome-plated spools assure a long life

    High-tensile strength cast iron monoblock construction

    SAE O-Ring ports ensure solid seal and prevent blockages

    Capable of Closed Center or Power Beyond (conversion plug required)

    Vertical or horizontal handle mount

    Adjustable Relief Valve Range: 1500 to 3600 PSI

    Used as motor or single-acting spool possible (#10 SAE port plug required)
