labwork 11 GPM Hydraulic Directional Control Valve, 2/3/4/6 Spool or 6-Spool Joystick, Double-Acting

In stock
No reviews
$82.05
Size
Style
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
Checking Vehicle Fit
Product details
  • Placement Hydraulic System
Have Questions?
Market@labworkauto.com
Description Reviews

Product Description

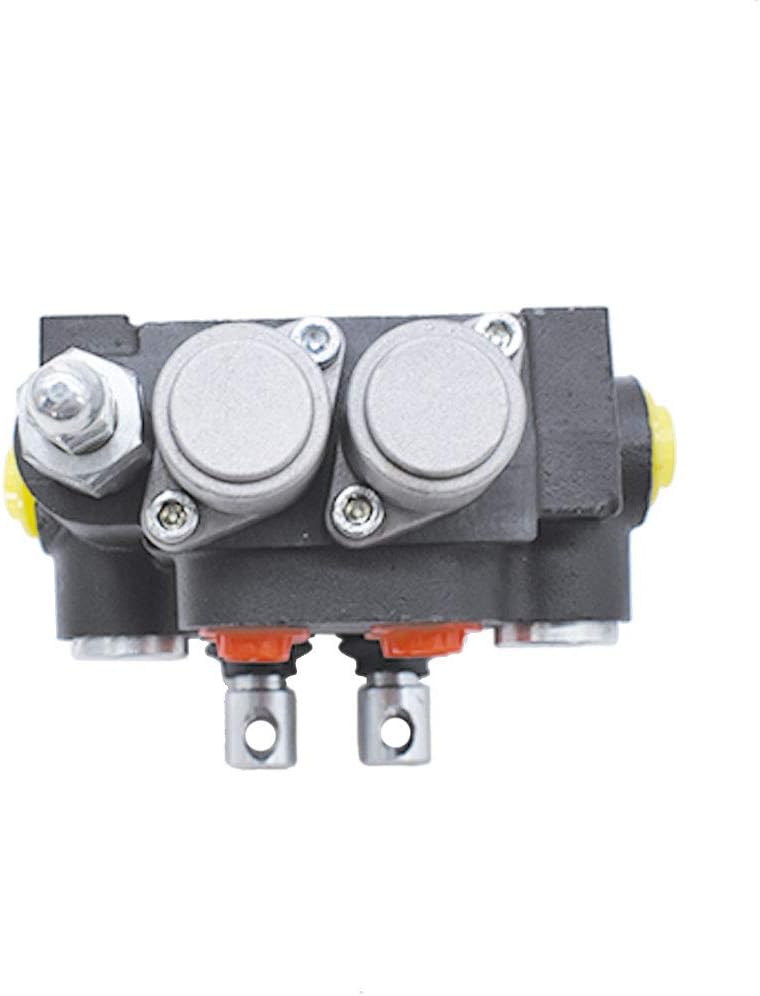

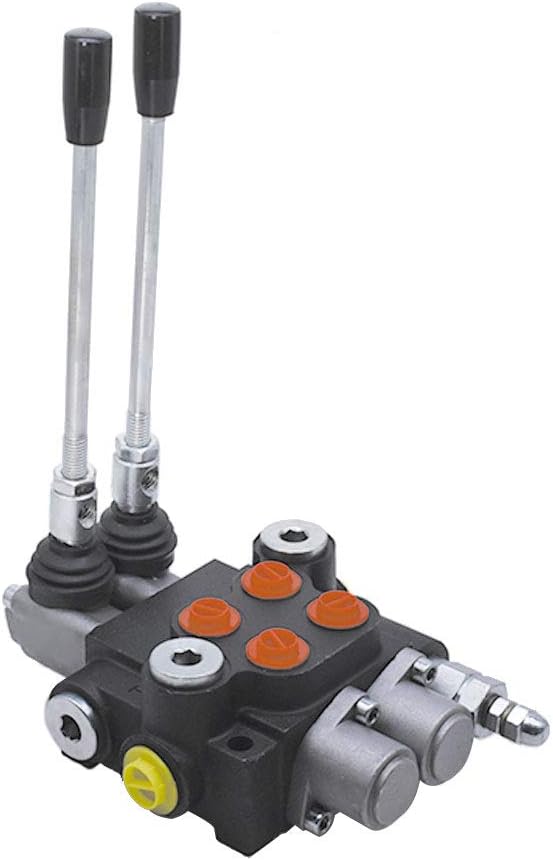

This labwork hydraulic directional control valve is available in multiple spool configurations for operating double-acting cylinders. Built with a high-tensile cast-iron monoblock body and precision-ground, hard-chrome-plated spools, it is suitable for small tractors, tractor loaders, log splitters, and other mobile hydraulic equipment.

All spools use spring return to the neutral position. Select the spool configuration and control style that matches your hydraulic system and equipment requirements.

Variant Options

Variant Flow Rating Pressure Rating Port / Control Configuration

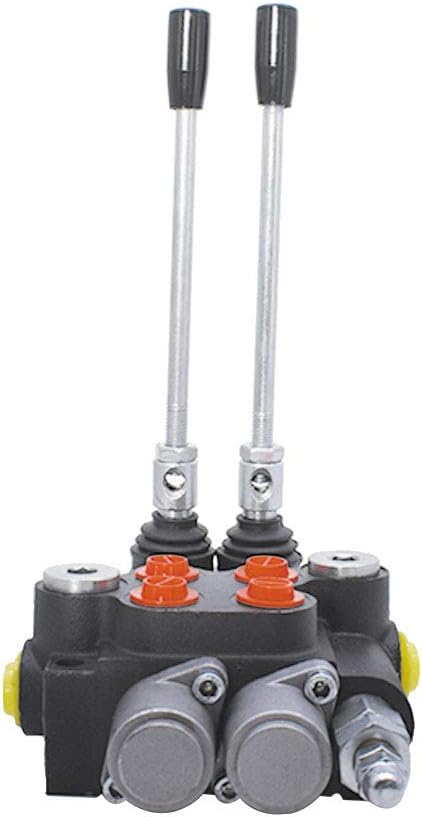

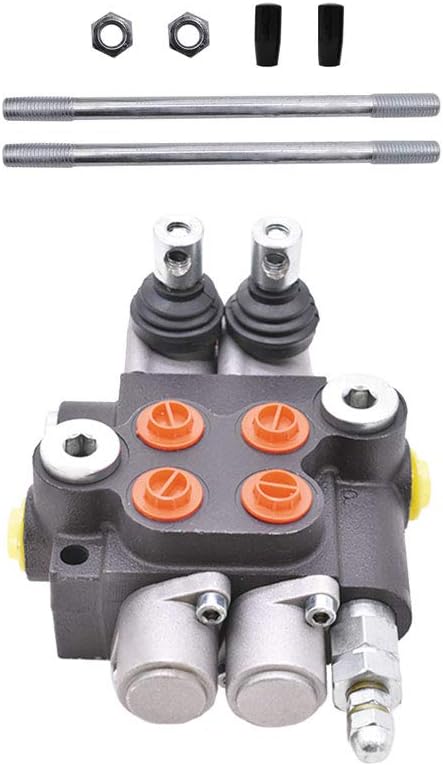

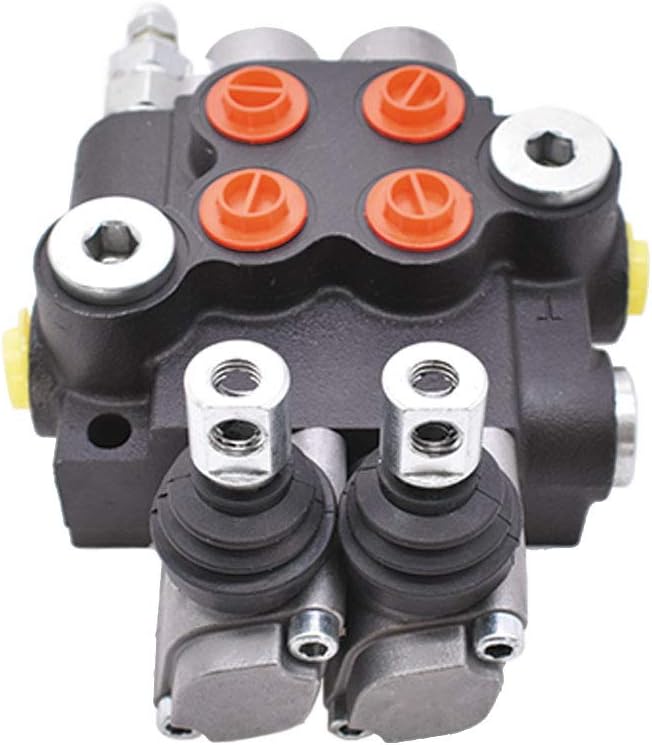

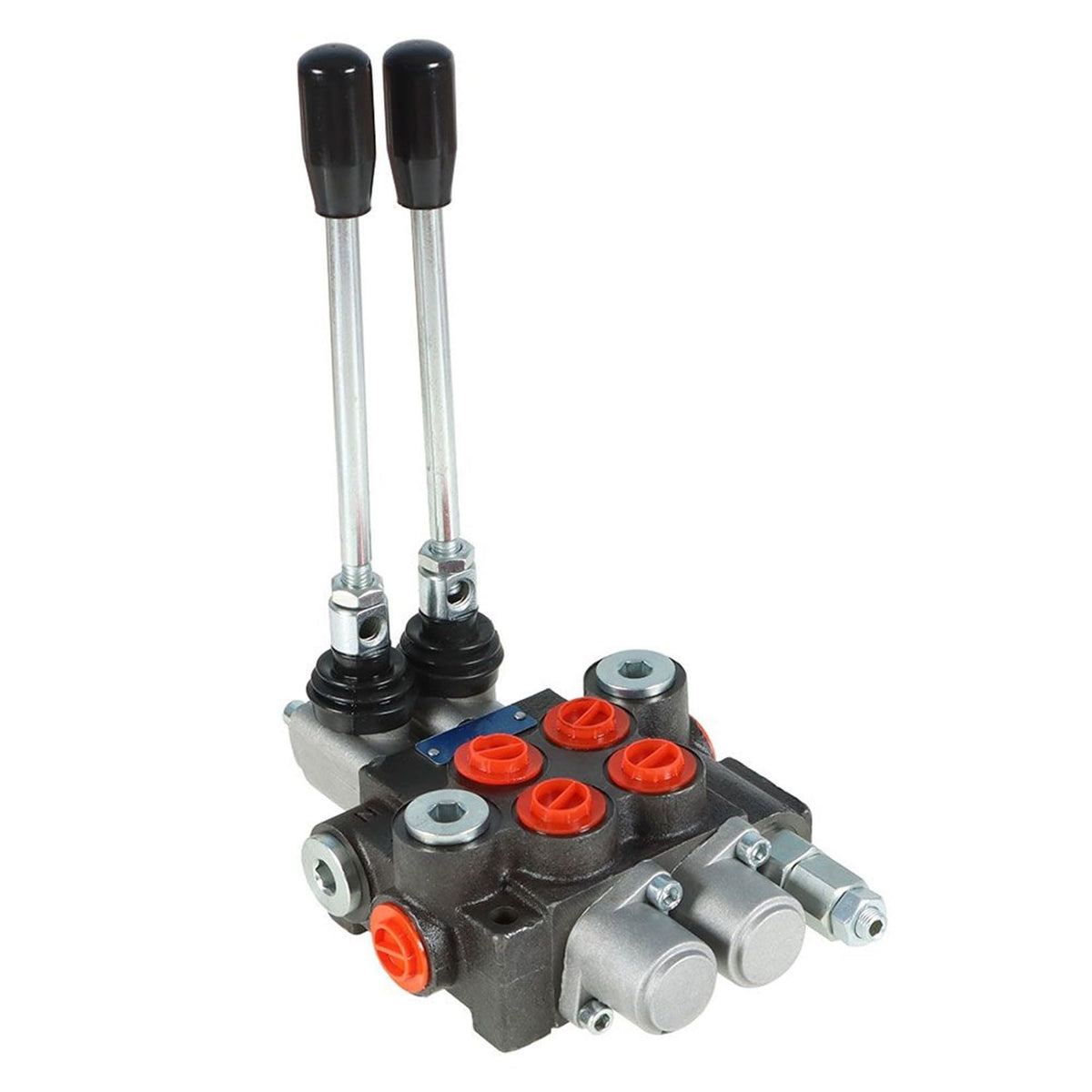

2 Spool 11 GPM / 40 L/min Up to 3,625 PSI SAE ports, double-acting, spring return

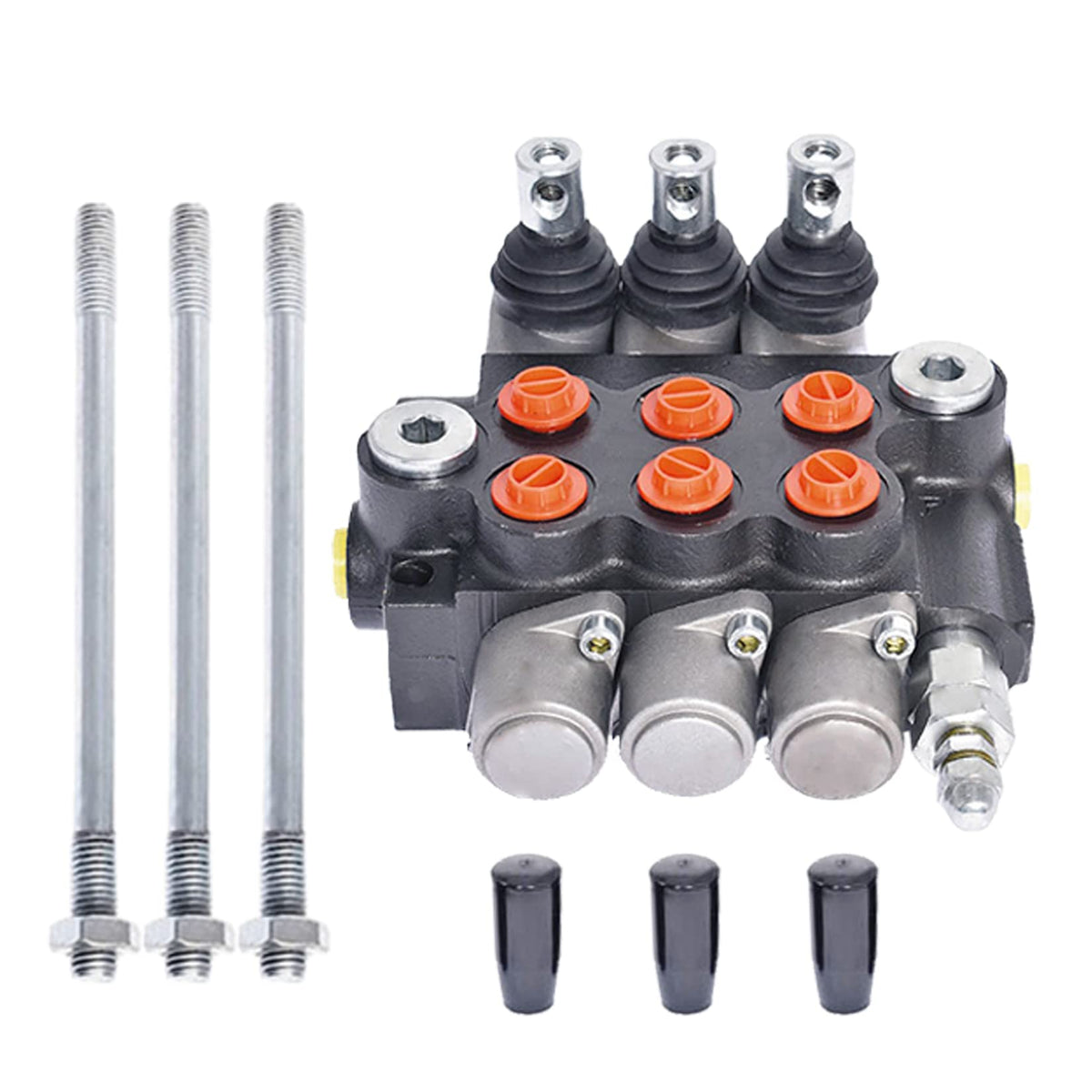

3 Spool 11 GPM / 40 L/min Up to 3,600 PSI SAE ports, double-acting, spring return

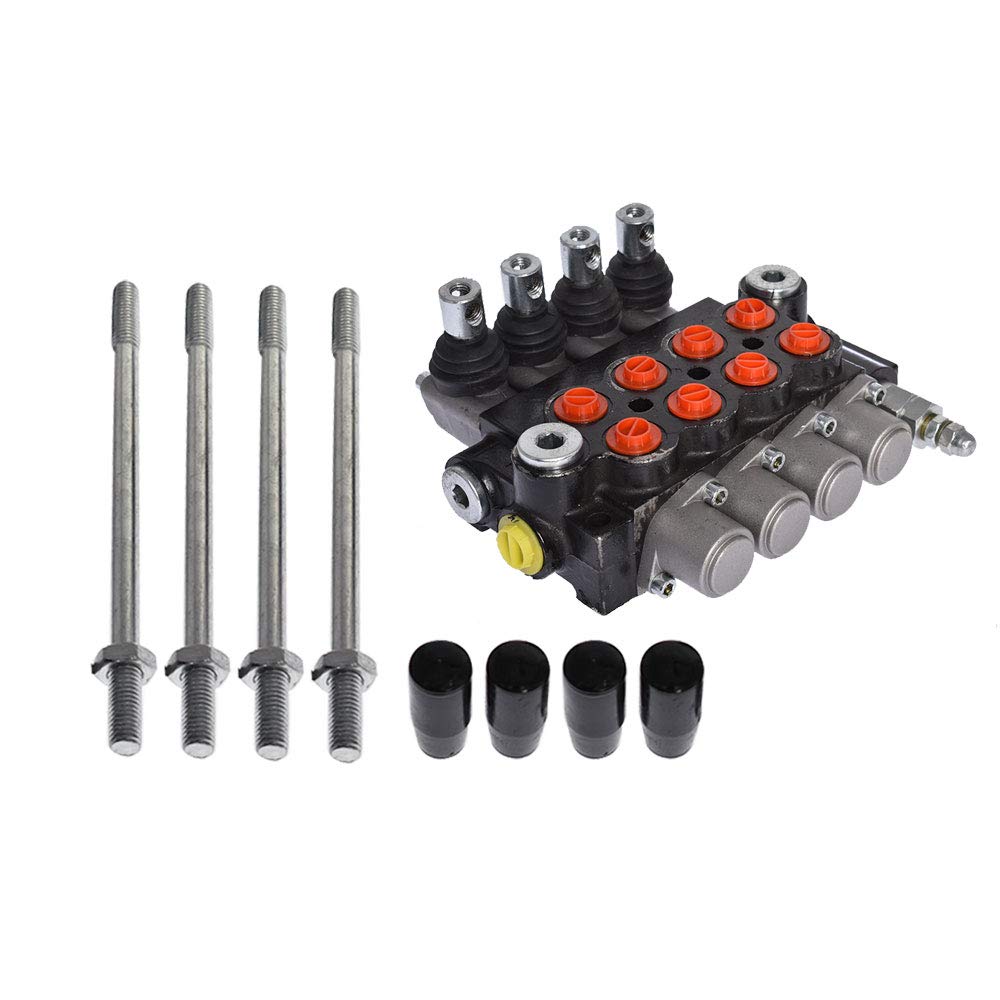

4 Spool 11 GPM Up to 3,625 PSI SAE ports, double-acting, spring return

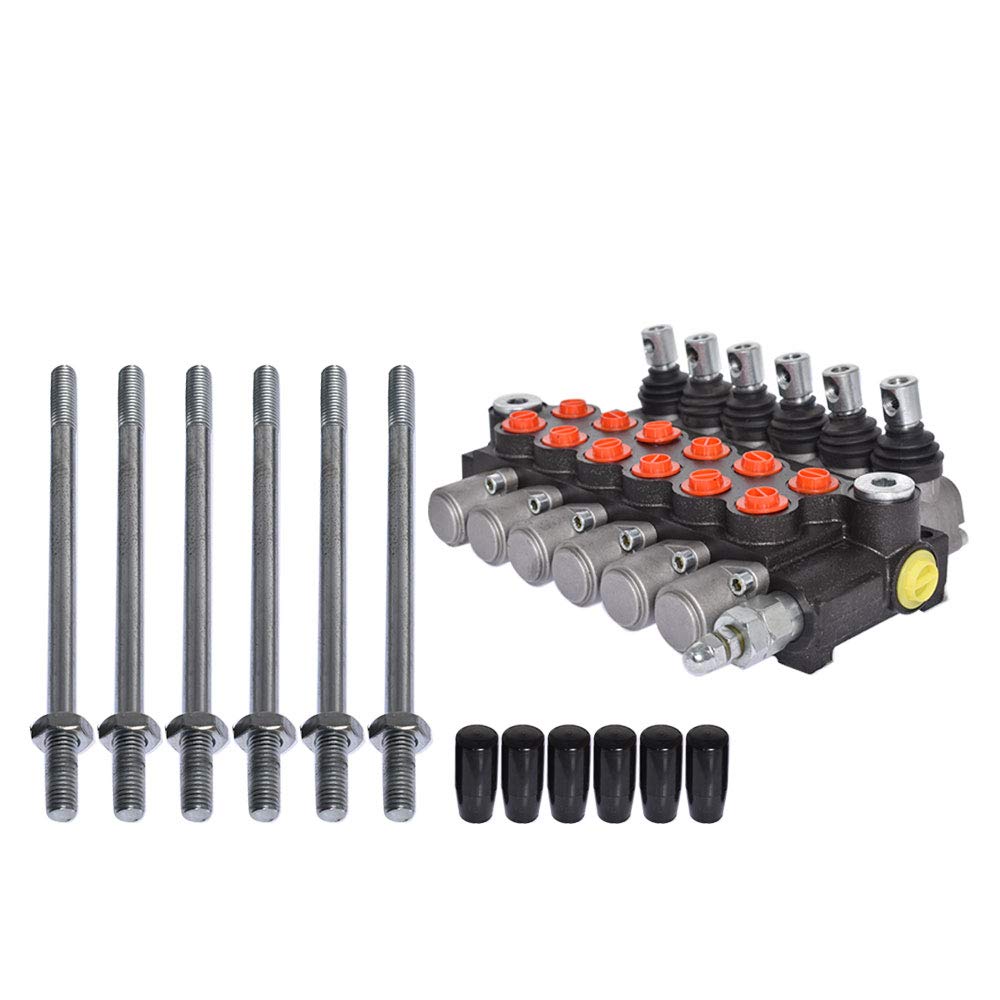

6 Spool 11 GPM Up to 3,600 PSI BSPP ports, double-acting, spring return

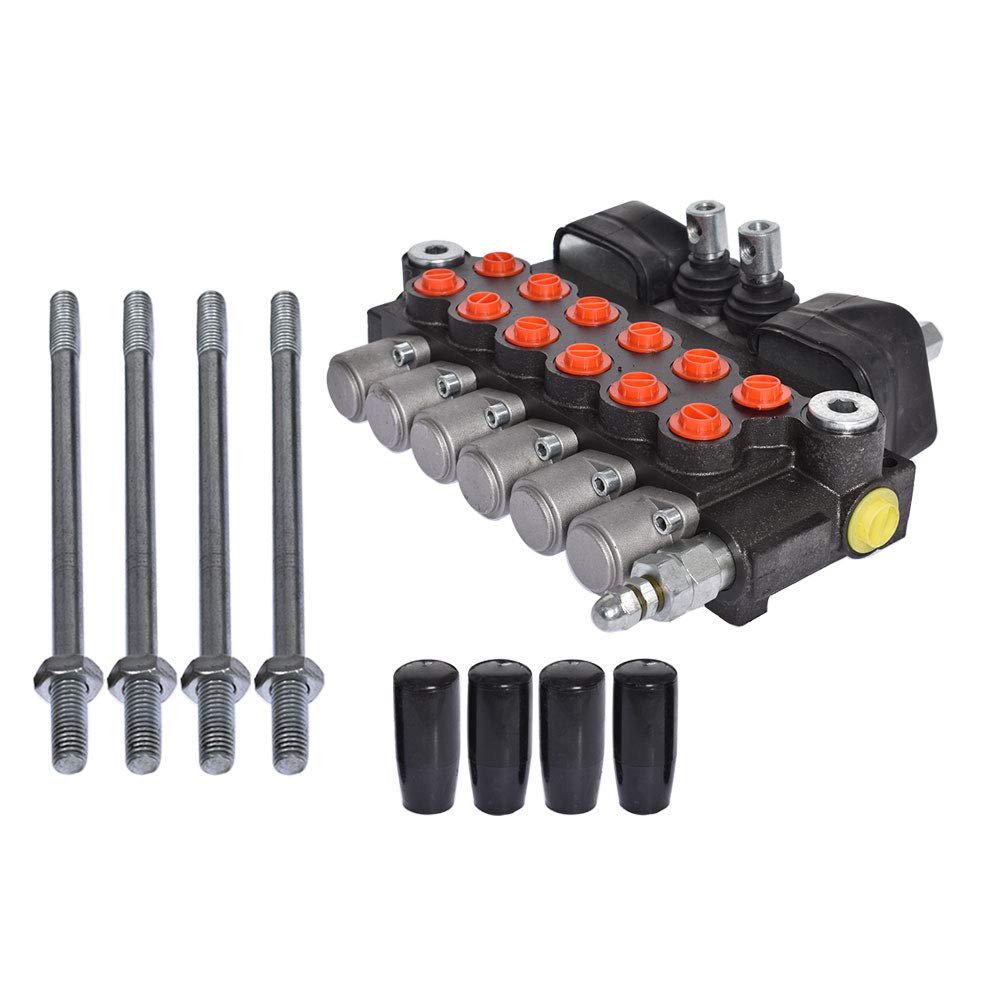

6 Spool with Joystick 11 GPM Up to 3,625 PSI SAE ports, double-acting, two joysticks

General Specifications

  • Type: Monoblock Hydraulic Directional Control Valve
  • Circuit: Open Center
  • Cylinder Function: Double Acting
  • Spool Return: Spring Return to Neutral
  • Maximum Flow: 11 GPM / 40 L/min
  • Construction: High-Tensile Cast Iron
  • Spools: Precision-Ground, Hard-Chrome-Plated
  • Mounting Hole Spacing: 2-5/16 in where applicable
  • Handle Mounting: Vertical or Horizontal
  • Relief Valve: Adjustable
  • Application: Small Tractors, Loaders, Log Splitters, and Mobile Equipment

Port Specifications

For applicable SAE-port variants:

  • A and B Work Ports: SAE 10 O-Ring, 7/8-14 thread
  • Inlet Port: SAE 10 O-Ring, 7/8-14 thread
  • Outlet Port: SAE 10 O-Ring, 7/8-14 thread

The 6-spool BSPP variant uses BSPP ports as specified for that option.

Features

  • Double-acting control for hydraulic cylinders
  • Spring-centered spools support reliable neutral positioning
  • Load checks help reduce unintended load drop
  • Compact design fits installations with limited space
  • Open-center design supports pump-to-tank flow
  • Closed-center or power-beyond operation may be available with the required plug or configuration change
  • A spool may be configured for motor or single-acting use with the appropriate plug
  • Durable construction for demanding hydraulic applications

Package Includes

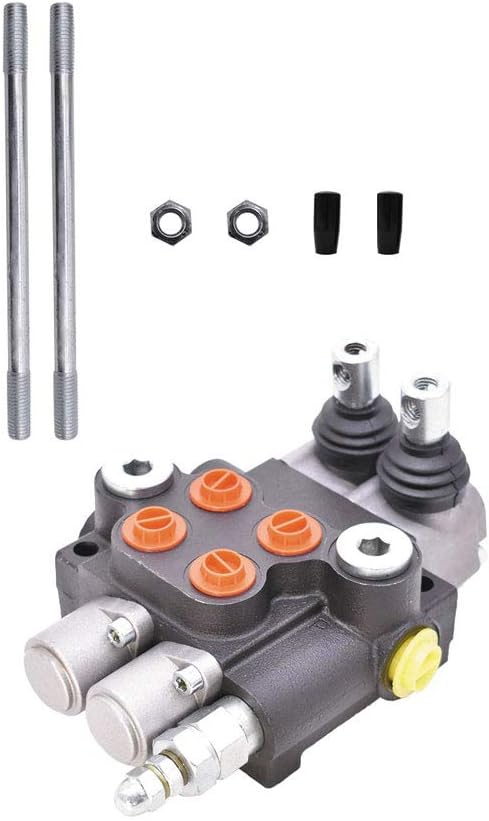

  • 1 × Selected Hydraulic Directional Control Valve
  • 2 joystick handles when the 6-spool/joystick variant is selected

Important Note

Select the correct spool count, joystick configuration, port standard, pressure rating, and thread type before ordering. Verify that the valve matches your pump flow, system pressure, cylinder type, and hydraulic circuit. Professional hydraulic installation is recommended.
