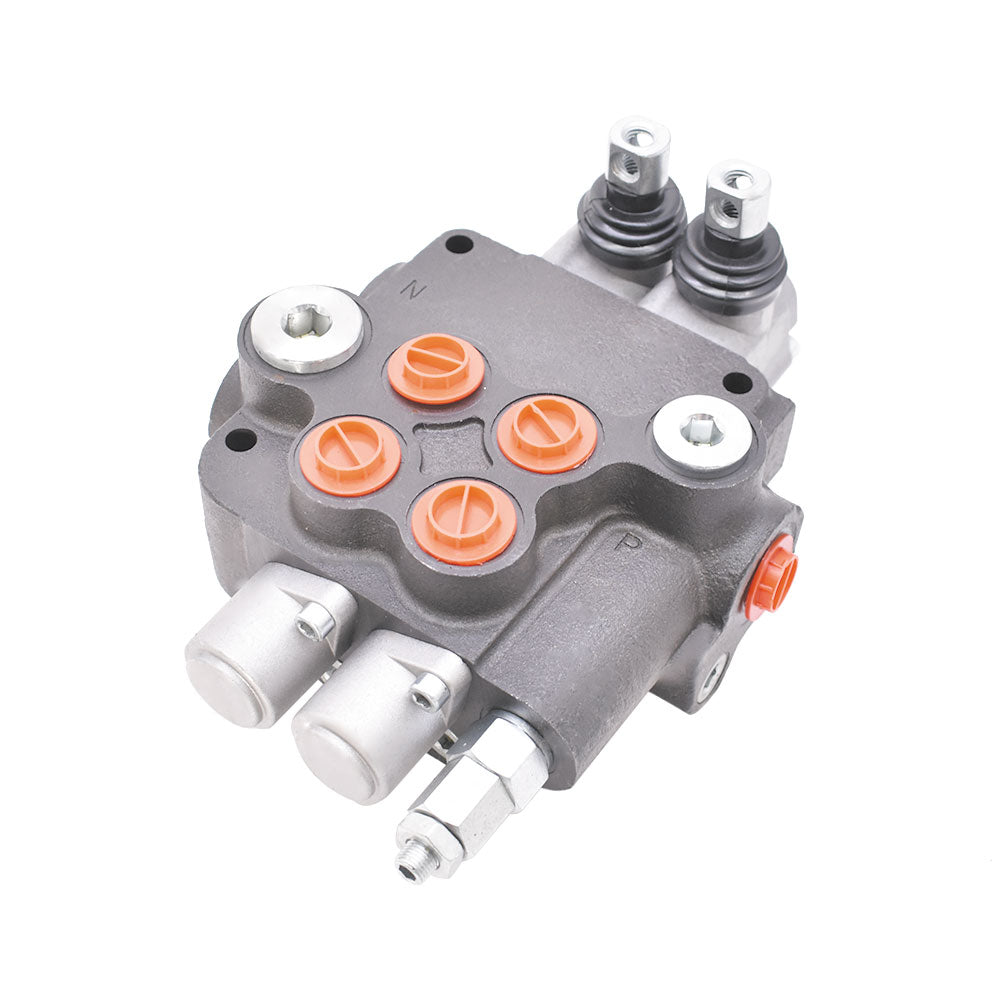

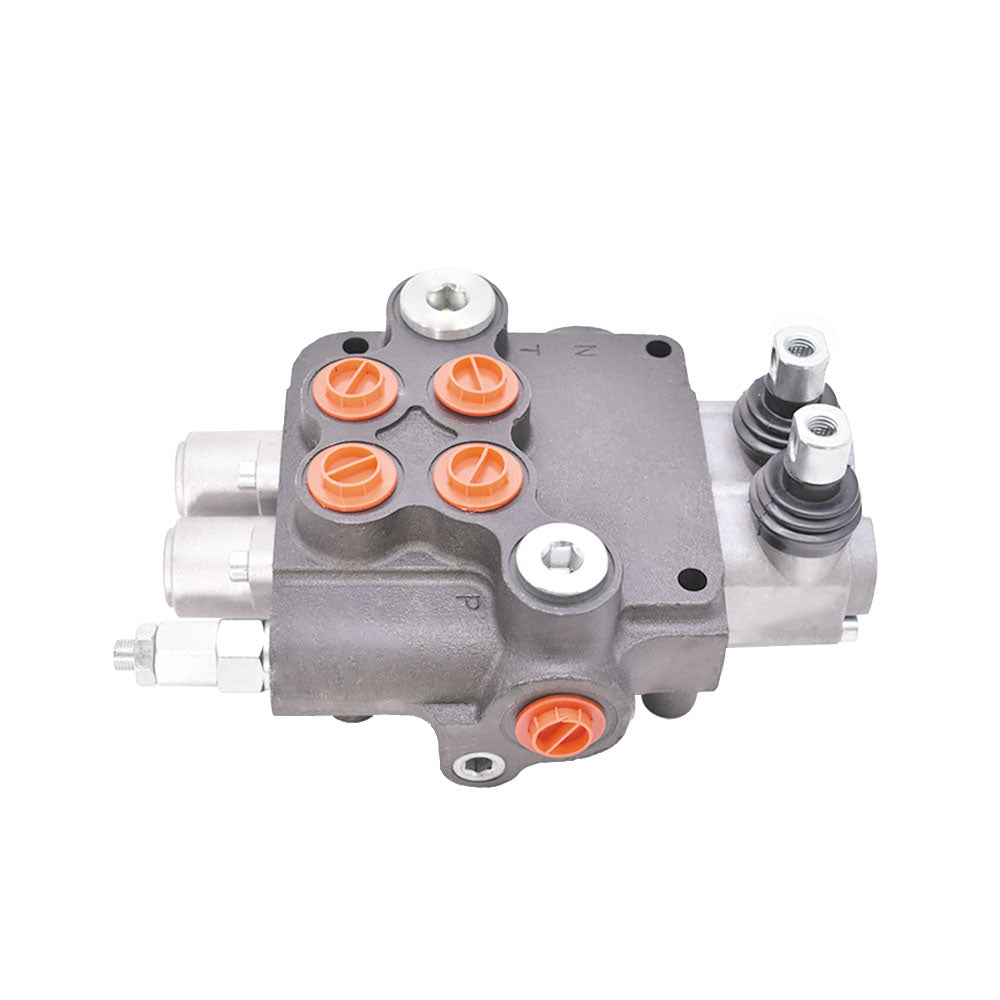

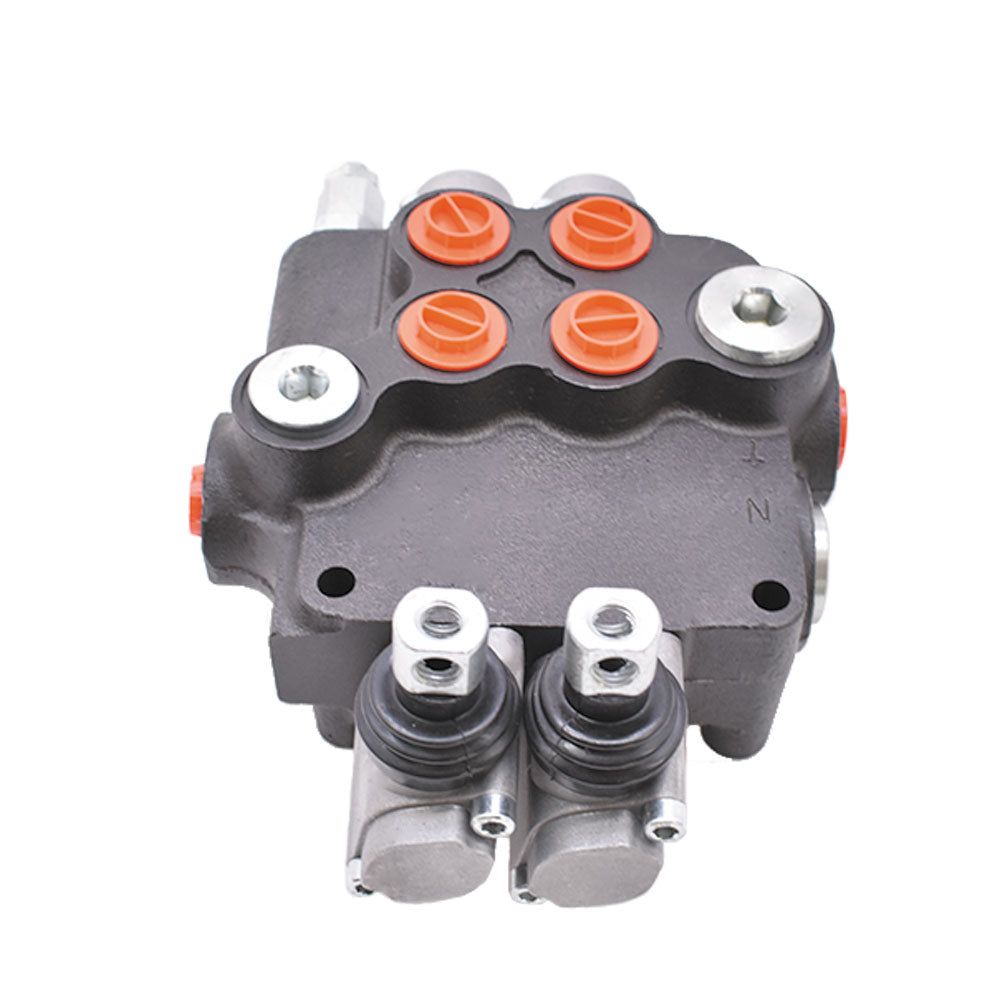

2 Spool Hydraulic Control Valve Double Acting 21 GPM 3600 PSI SAE Ports

 Features & Details

    【DOUBLE ACTING】- Our hydraulic control valve is made for operating double-acting cylinders.
    【DURABLE QUALITY】- This hydraulic directional control valve comes with 2 spools and #8 SAE O-ring in/out ports, with cast iron construction for long-time use.
    【HIGH PERFORMANCE】- This hydraulic relief valve range can reach up to 3600 PSI and the maximum flow is up to 21 GPM.
    【SPRING RETURN】- All spool valves come with spring return, which can return to the neutral position.
    【WIDELY USED】- This hydraulic directional valve is suitable for small tractors, tractors loaders, log splitters, etc.

Key Features
     Solid Construction

    Durable cast iron construction, precision ground, and hard chrome-plated spools provide long-term usage.

    High Performance

    The relief valve range can reach up to 3600 PSI and the maximum flow is up to 21 GPM.

    Spring Return

    All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.

    Inner Check/Relief Valve

    The check valve inside the valve body is to ensure the hydraulic oil not to be returned and the relief valve inside the valve body can adjust the hydraulic system working pressure.

    Wide Application

    The compact design is suitable for the use in small tractors, tractors loaders, log splitters, forklift environment vehicles, light loading machines, etc.

2 Spool Directional Hydraulic Control Valve

The compact design of the 2-spool hydraulic control valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. It has 4 way 3 positions, and the spring center to neutral all spools.

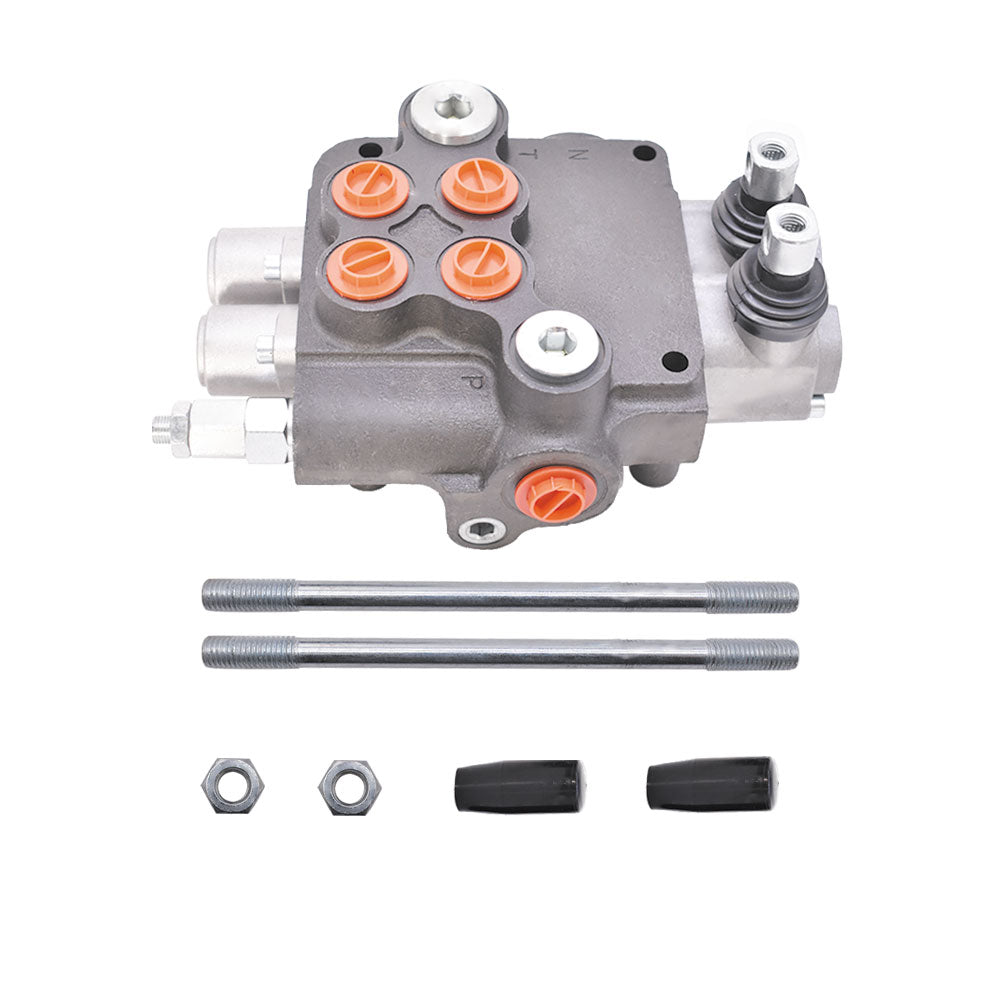

Package Content

    1 x 2 Spool Hydraulic Control Valve Double Acting 21 GPM 3600 PSI SAE Ports
