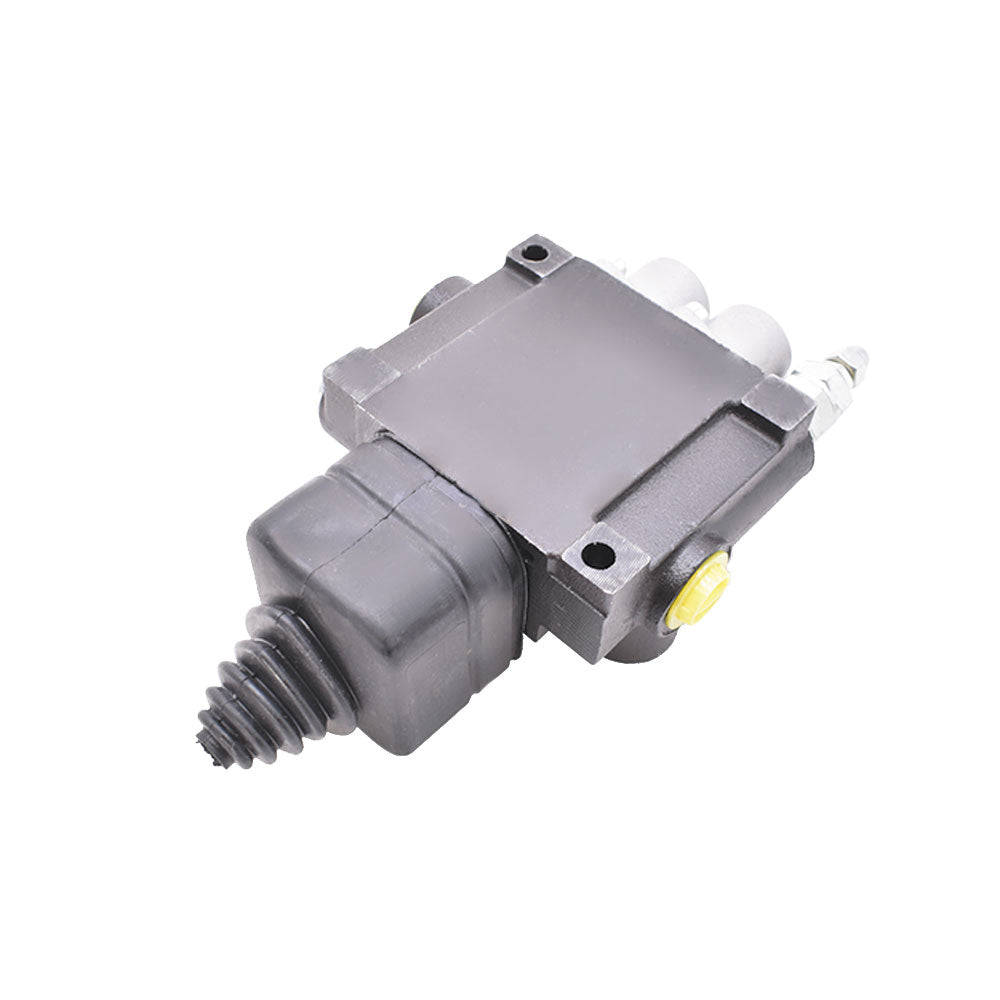

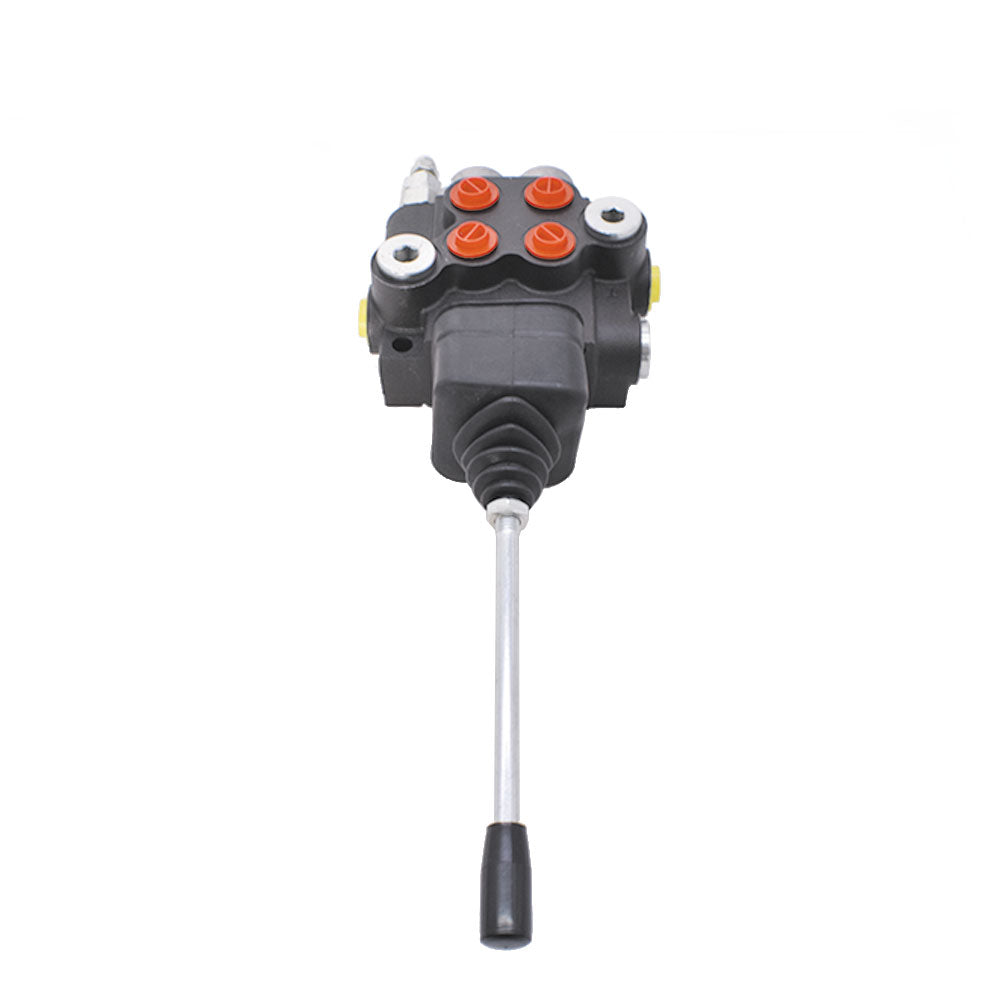

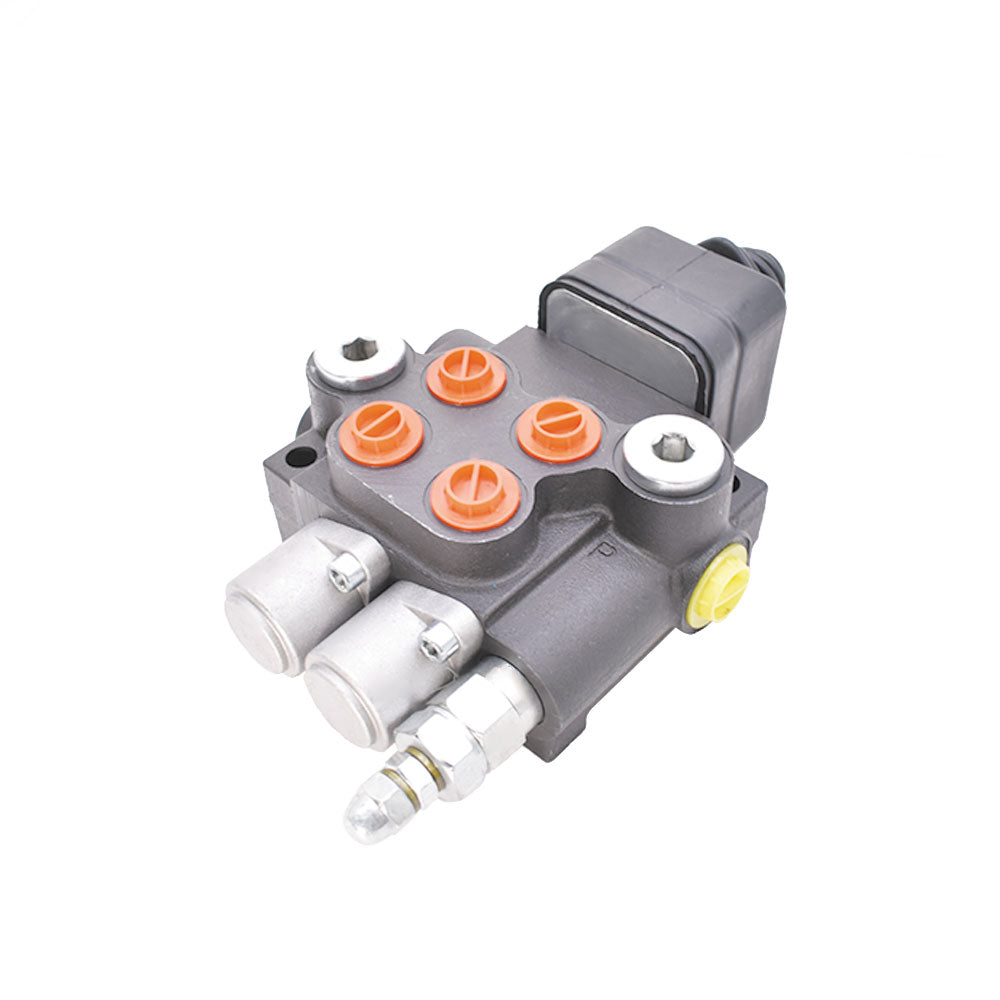

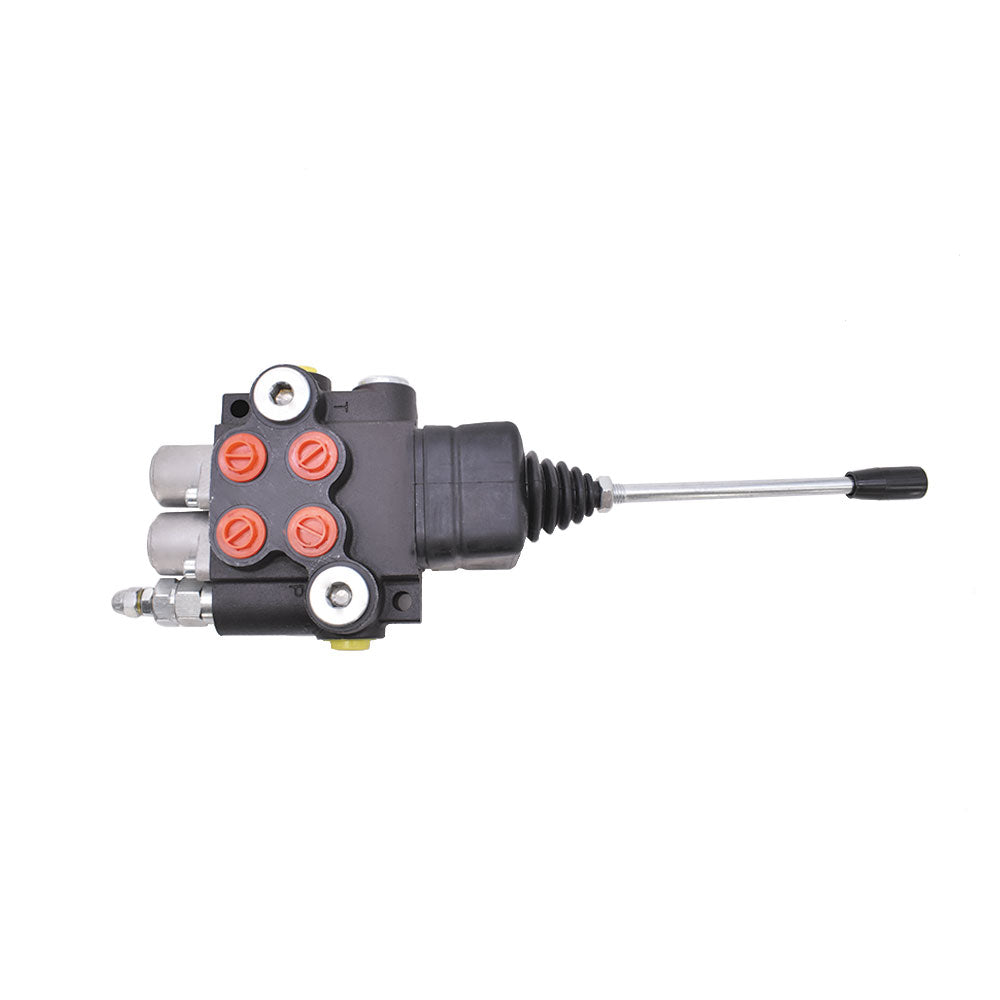

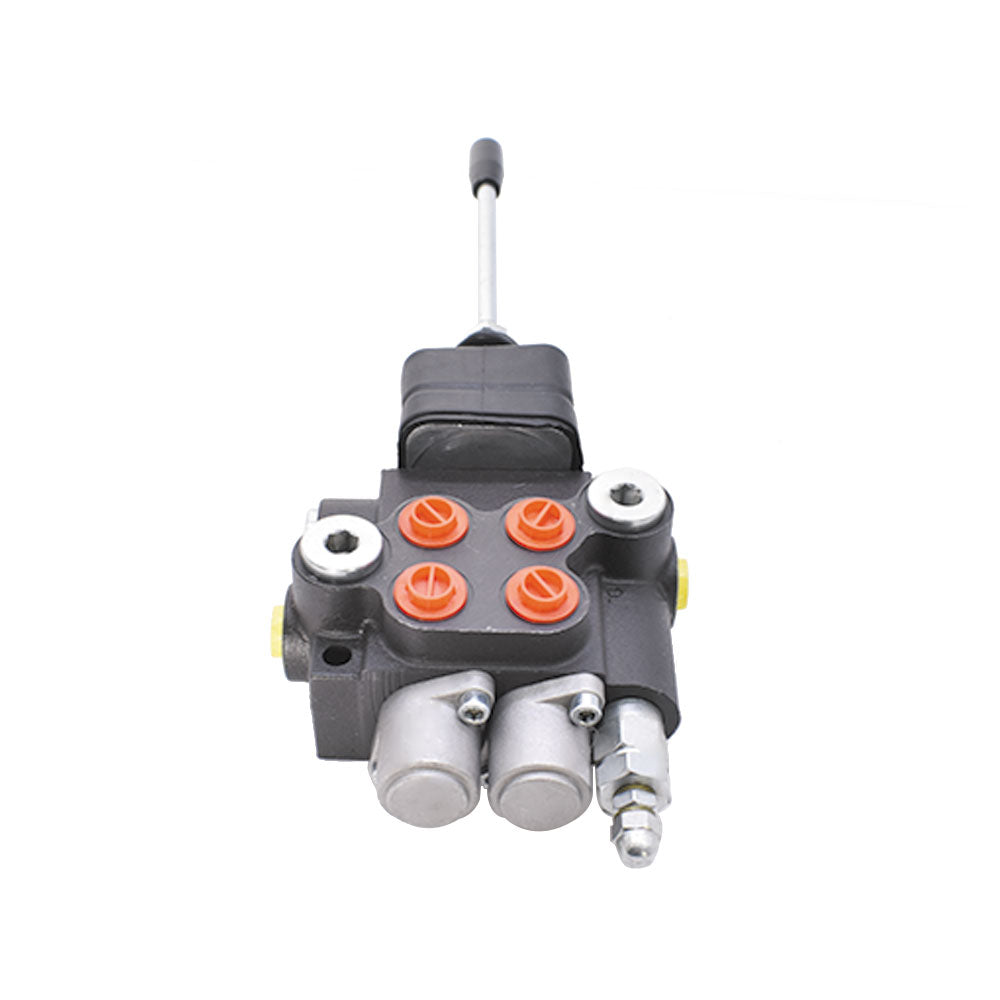

2 Spool 21GPM Hydraulic Directional Control Valve for Tractor Loader w/Joystick

Key Features

• High-Tensile Monoblock Build: Fabricated from heavy-duty, high-tensile strength cast iron. The compact 2-spool design allows for seamless installations in tight, restricted mechanical areas.

• Precision-Grounded Spools: Features hard chrome-plated, precision-ground spools that guarantee an exceptionally long service life, ultra-smooth actuation, and minimal internal friction.

• Spring-Return to Neutral: Outfitted with standard double-acting spools that automatically spring back to the neutral position, making them ideal for managing double-acting cylinders.

• Leak-Proof SAE O-Ring Ports: Designed with standardized SAE O-ring ports to provide a solid, high-pressure seal while preventing blockages or fluid weeping.

• Anti-Drop Load Checks: Equipped with individual load check valves on each spool to prevent load drop or backflow during spool shifting.

• System Flexibility: Standard configuration runs on an Open Center system (pump-to-tank flow), but can be easily converted to Closed Center or Power Beyond systems using a conversion plug.

• Dual Handle Orientation: Versatile handle layout supports both vertical and horizontal mounting configurations to match your specific cabin layout.

Common Applications

• Operating single-acting or double-acting hydraulic cylinders.

• Powering hydraulic motors (requires a specialized "D" spool configuration).

• Adding rear remote valves/hydraulic outlets to agricultural tractors.

• Custom fluid plumbing on log splitters, skid steers, loaders, and small industrial machinery.

Technical Specifications

• Flow Rating: 21 GPM (80 L/min)

• Maximum Pressure Parameters: * Inlet Port (P): 3625 PSI

  • Work Ports (A & B): 4350 PSI

  • Tank/Outlet Port (T): 725 PSI

• Adjustable Relief Valve Range: 1500 to 3625 PSI

• Port Thread Dimensions:

  • Inlet / Pressure Port (P): #10 SAE O-Ring (7/8”-14 Thread)

  • Outlet / Return Port (T): #12 SAE O-Ring (1-1/16”-12 Thread)

  • Work Ports (A & B): #10 SAE O-Ring (7/8”-14 Thread)

• Mounting Infrastructure: 3 × 5/16” Mounting Holes

Package Includes

• 1 × 2-Spool Hydraulic Directional Control Valve Casing

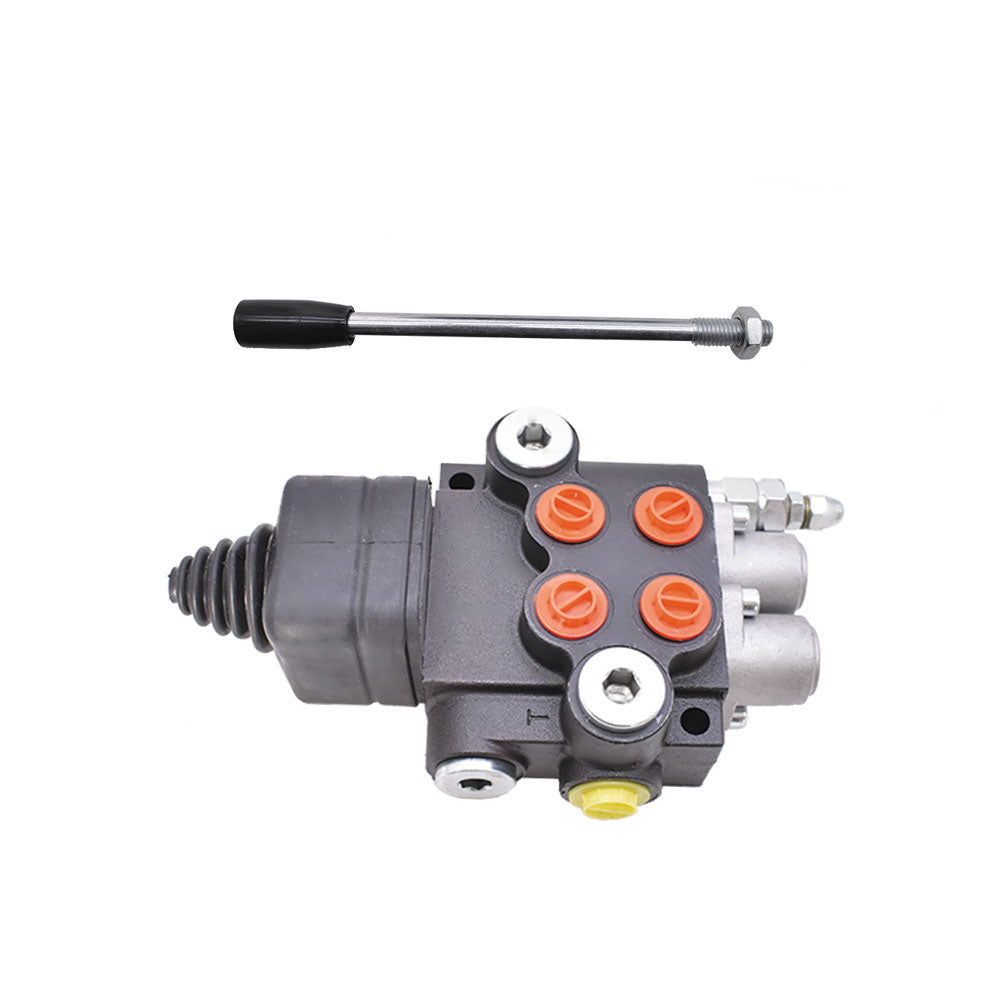

• Control Handles and Mounting Hardware

  (Note: Conversion plugs, port plugs, hydraulic fittings, and fluid lines are NOT included).

Important Mechanical & Installation Notes

• Single-Acting & Motor Adaptation: This valve assembly can be utilized to operate a motor or a single-acting cylinder system. To do so, an additional #10 SAE port plug must be purchased and installed into the corresponding circuit.

• Clean the Hydraulic Lines: Ensure that the entire hydraulic fluid system is flushed and clear of metal filings or contamination prior to plumbing this valve. Fine debris can damage the precision-ground surfaces of the spools.

• Professional Calibration Recommended: Working with high-pressure fluid power systems requires strict attention to pressure limits. Adjusting the relief valve setting should be done with an inline pressure gauge. Professional installation is highly advised.
