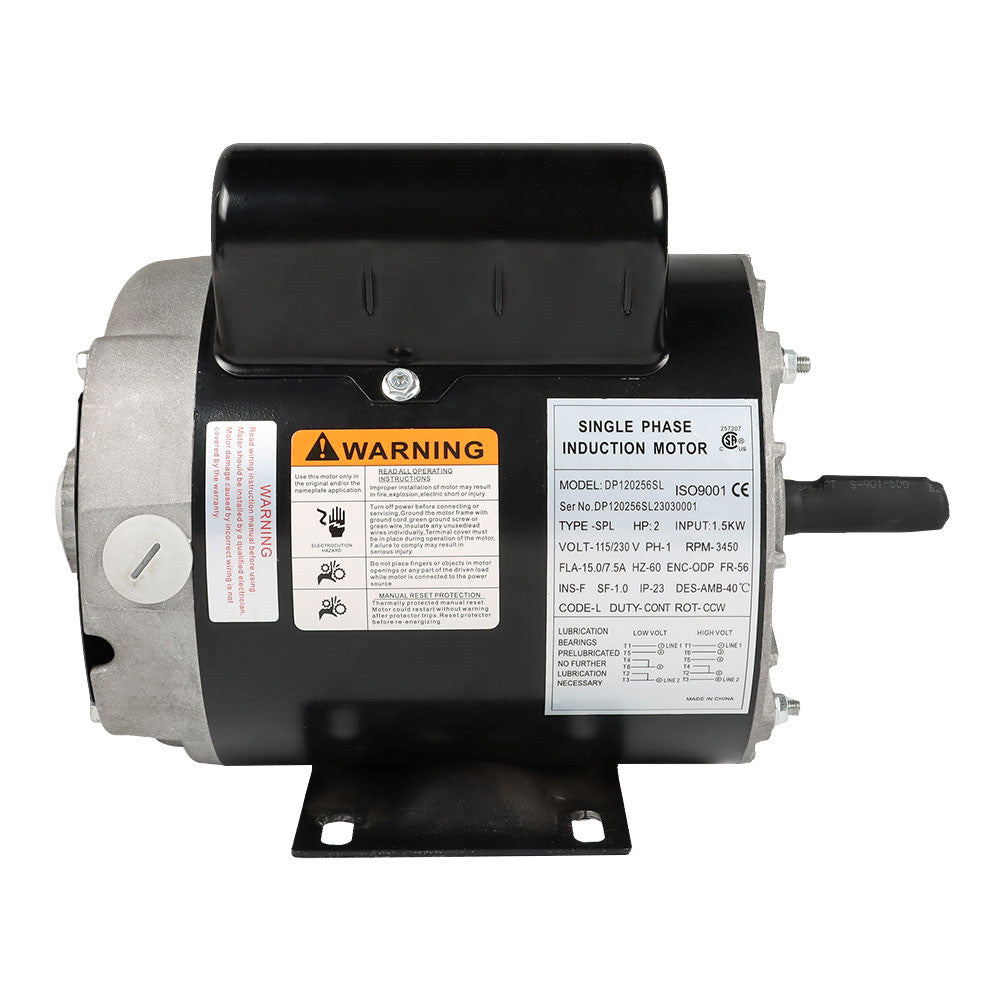

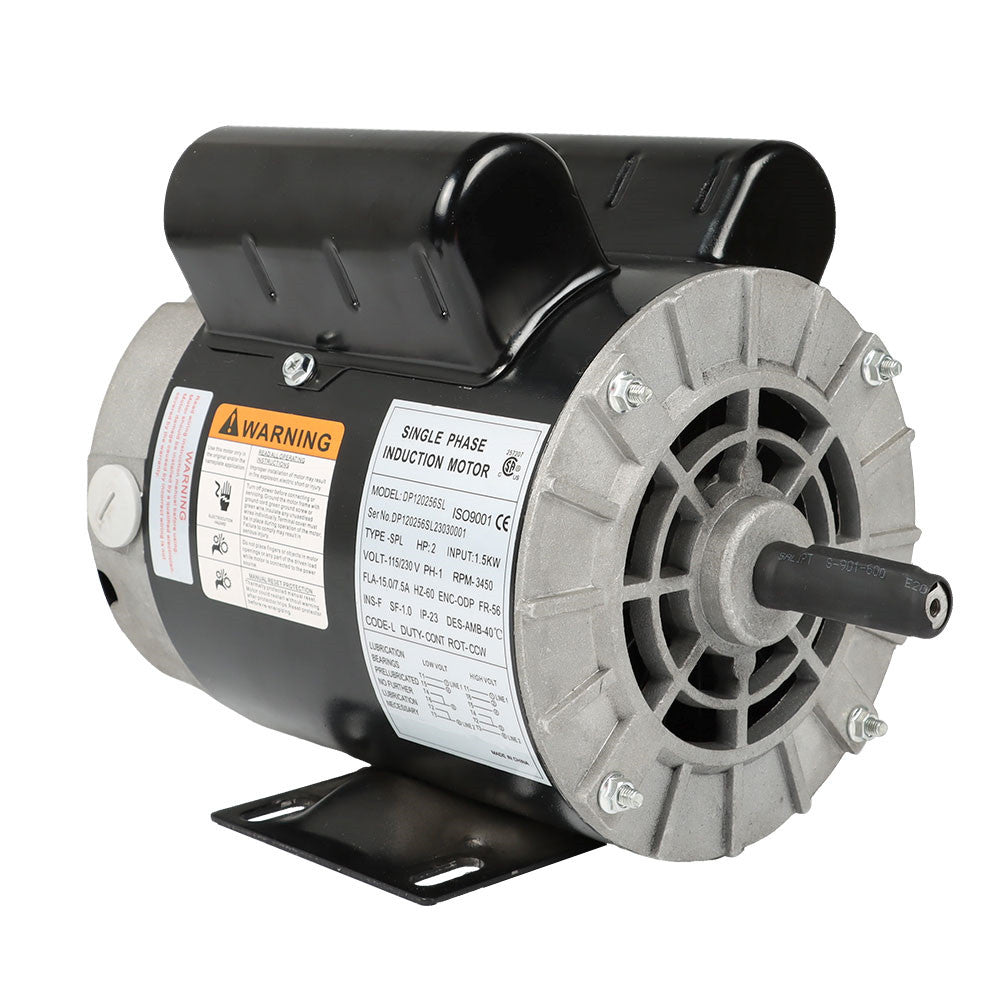

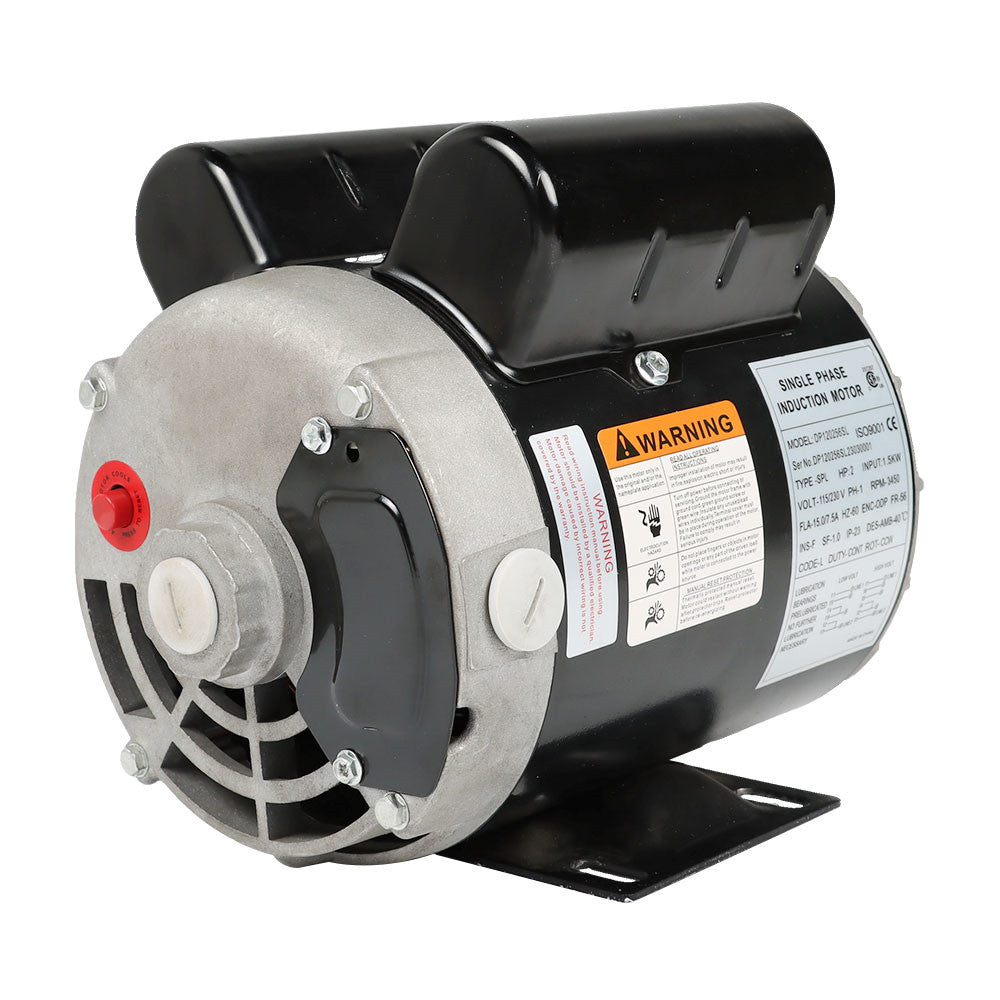

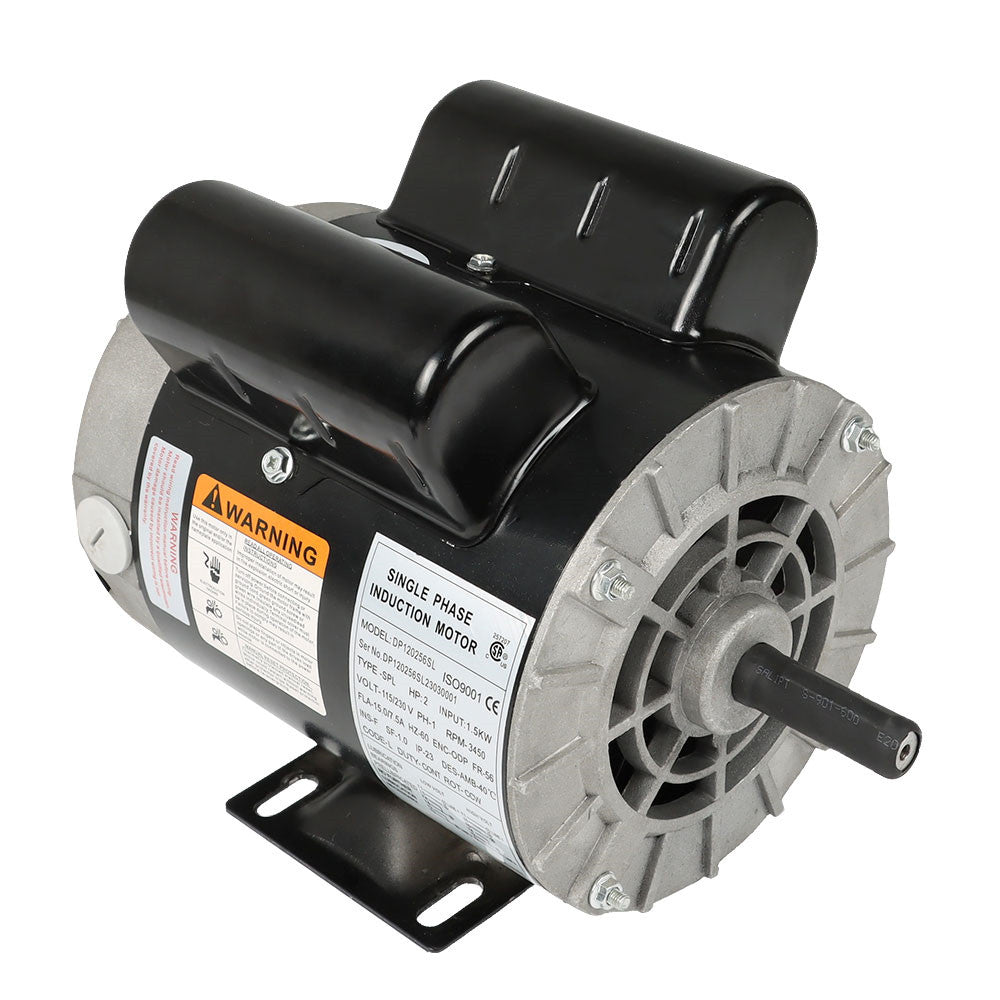

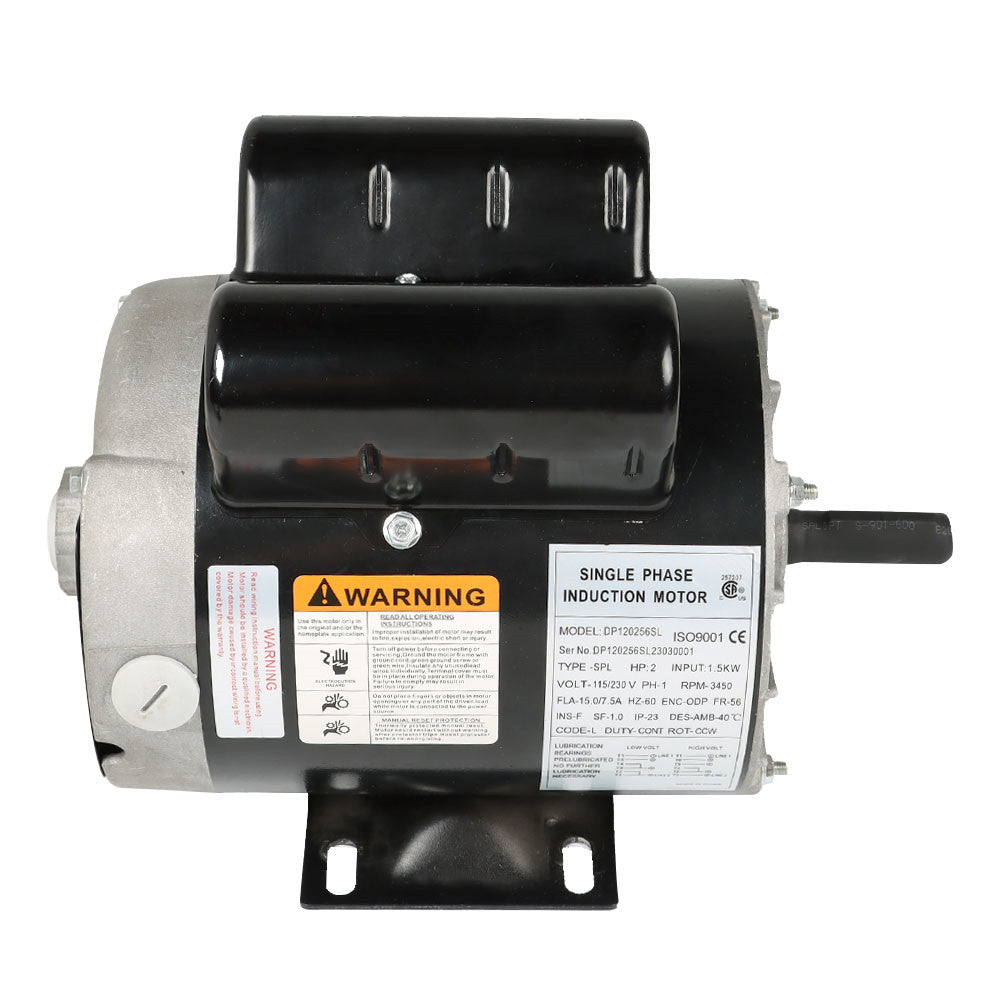

2 HP SPL Compressor Duty Electric Motor 3450 RPM 56Frame 5/8" Shaft 115/230 Volt

Feature:

• Open Drip Proof (ODP) Enclosure
• Single Phase
• 2 HP
• 3450 RPM
• 60hz
• 115/230 Volts
• AMB 40 °C
• Frame: 56
• Duty: Cont. Compressor
• Service Factor: 1.0
• Full Load Amps: 15/7.5
• INS. CL: F
• Non-Reversible, CCW Rotation Facing Shaft
• Thermally Protected
• Overall Length W/O Shaft: 9.75"
• Overall Length With Shaft: 12.3"
• Overall Height: 8.5"
• Overall Width: 6.35"
• Shaft Diameter: 5/8"
• Shaft Length: 1.88"
• Standard Size Keyway: 3/16"
• Features Manual Reset Overload Protection

Description：

• Brand new 2 HP 115/230-volt compressor duty electric motor.  This motor features a 56 frame with a 5/8" diameter shaft and is 3450 RPM.  This is a non-reversible motor and features counter-clockwise (CCW) rotation facing the shaft.  This is a high-quality motor designed to handle and withstand the startup load of a compressor pump but will also work with many other applications.  The wiring diagram is listed on the side of the motor for reference.  Below is a full list of specifications.
