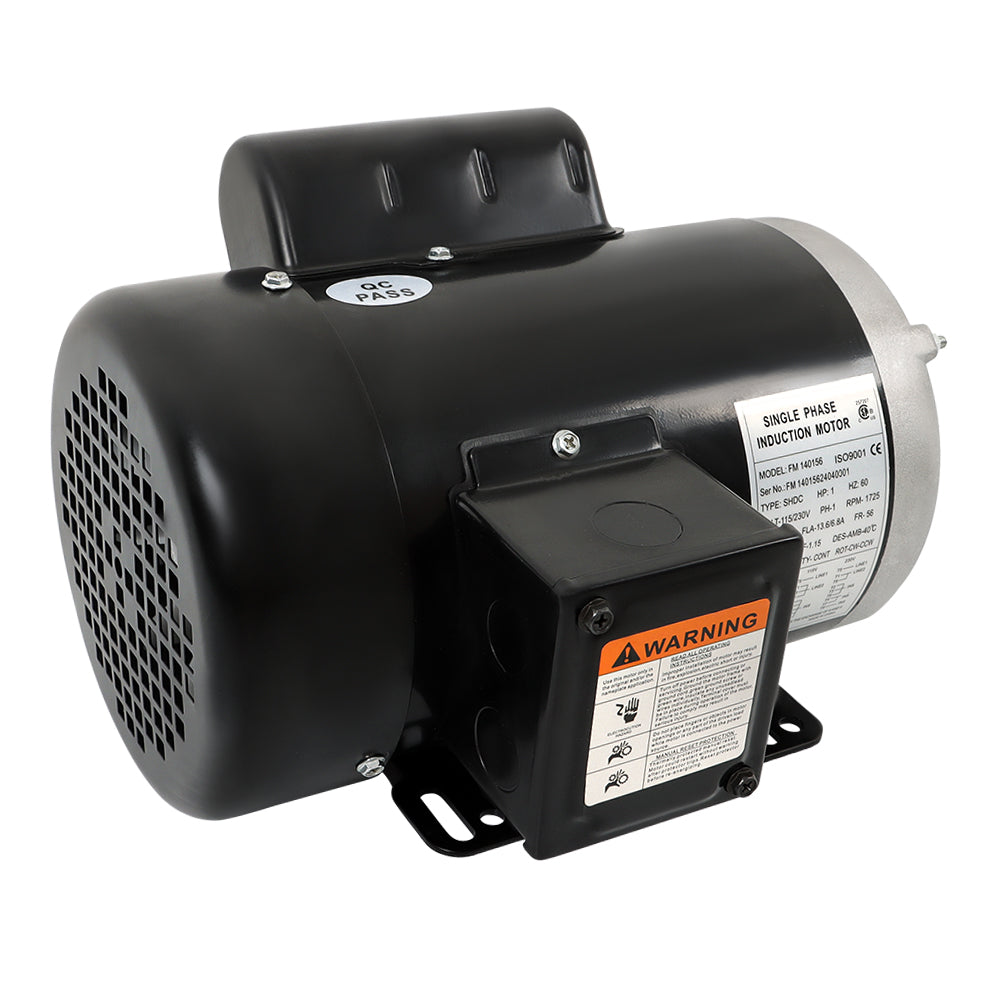

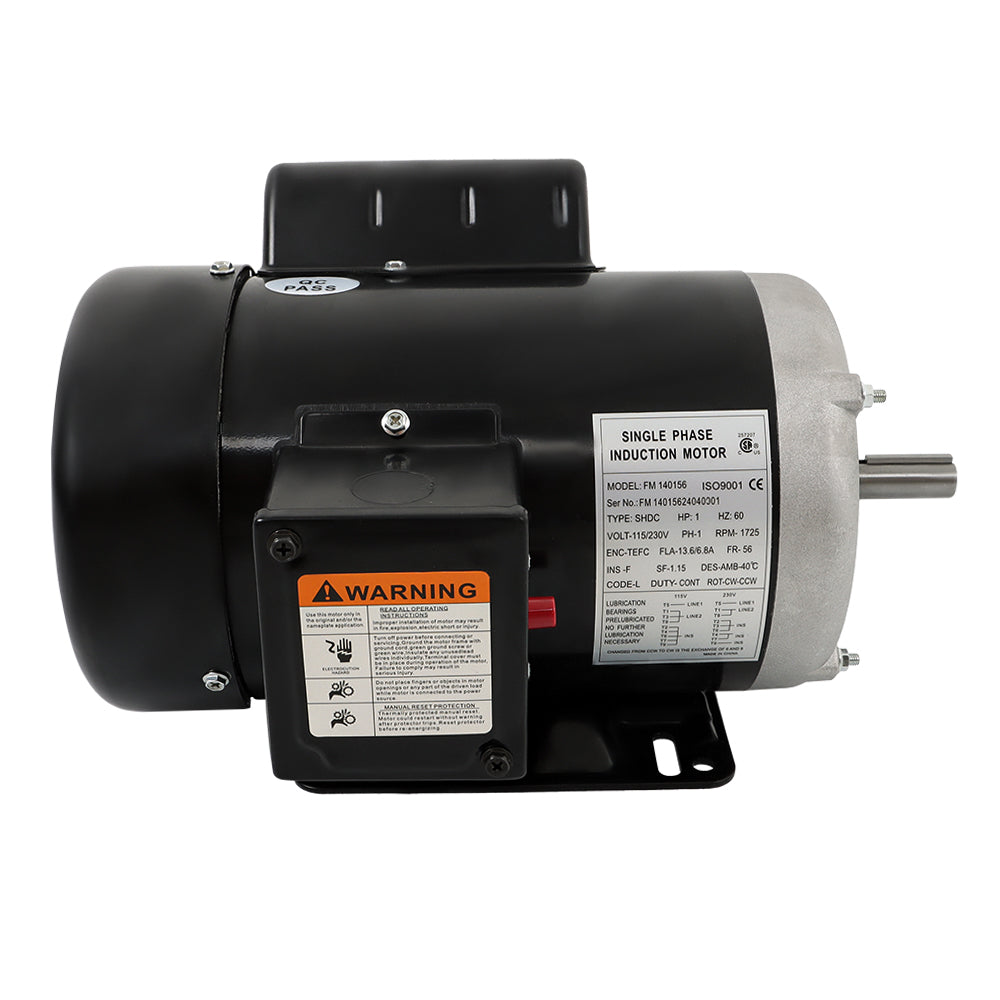

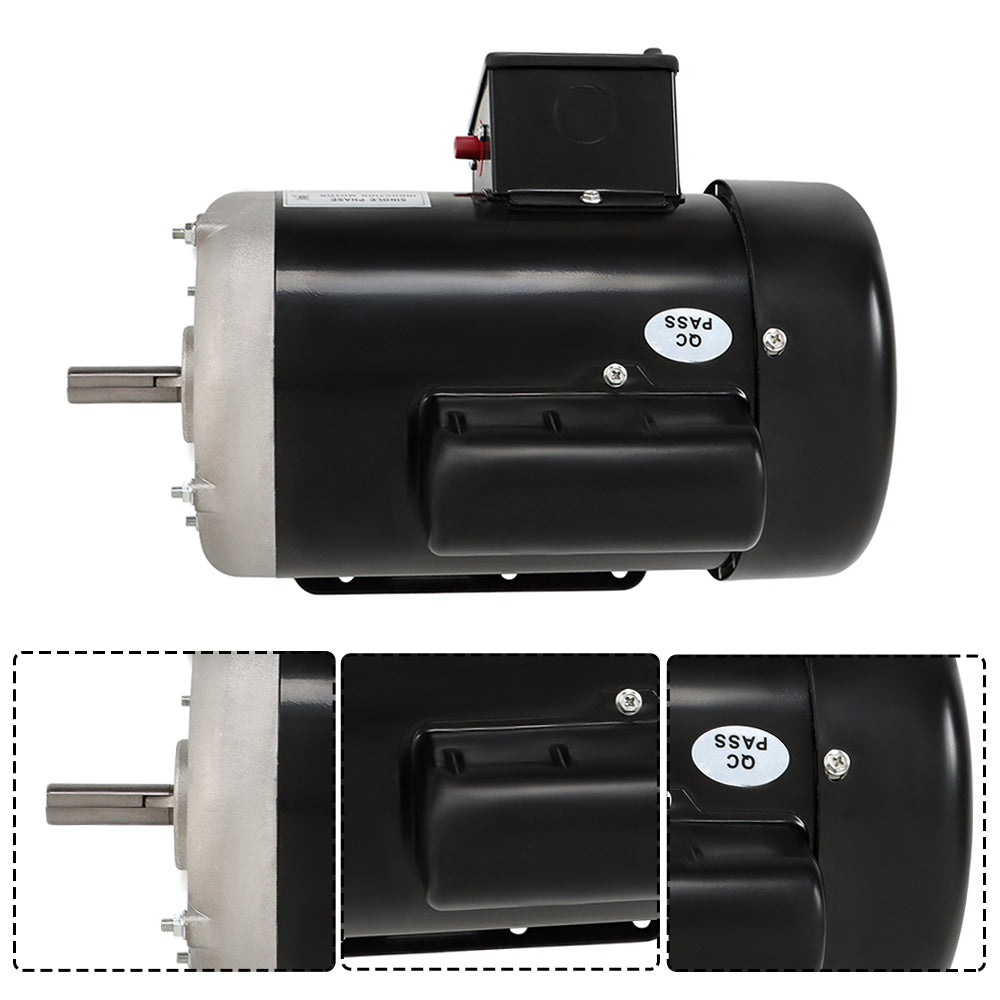

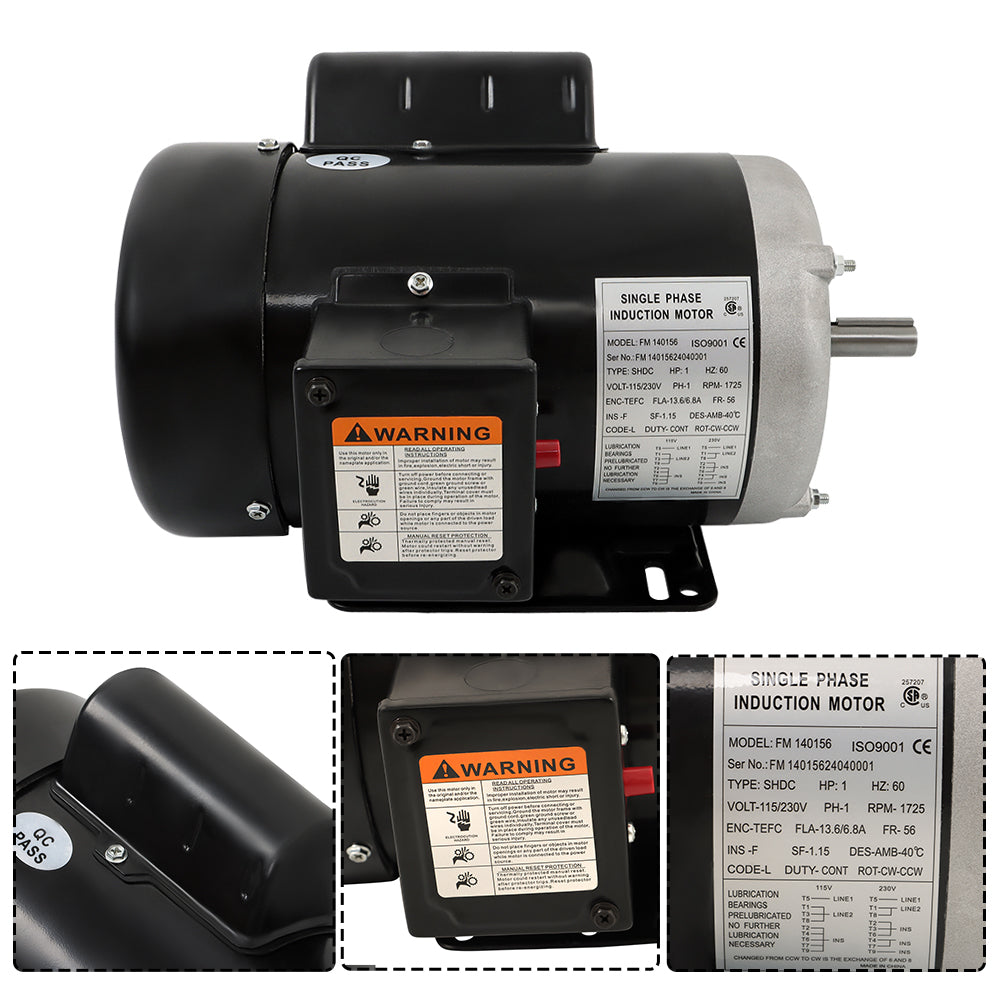

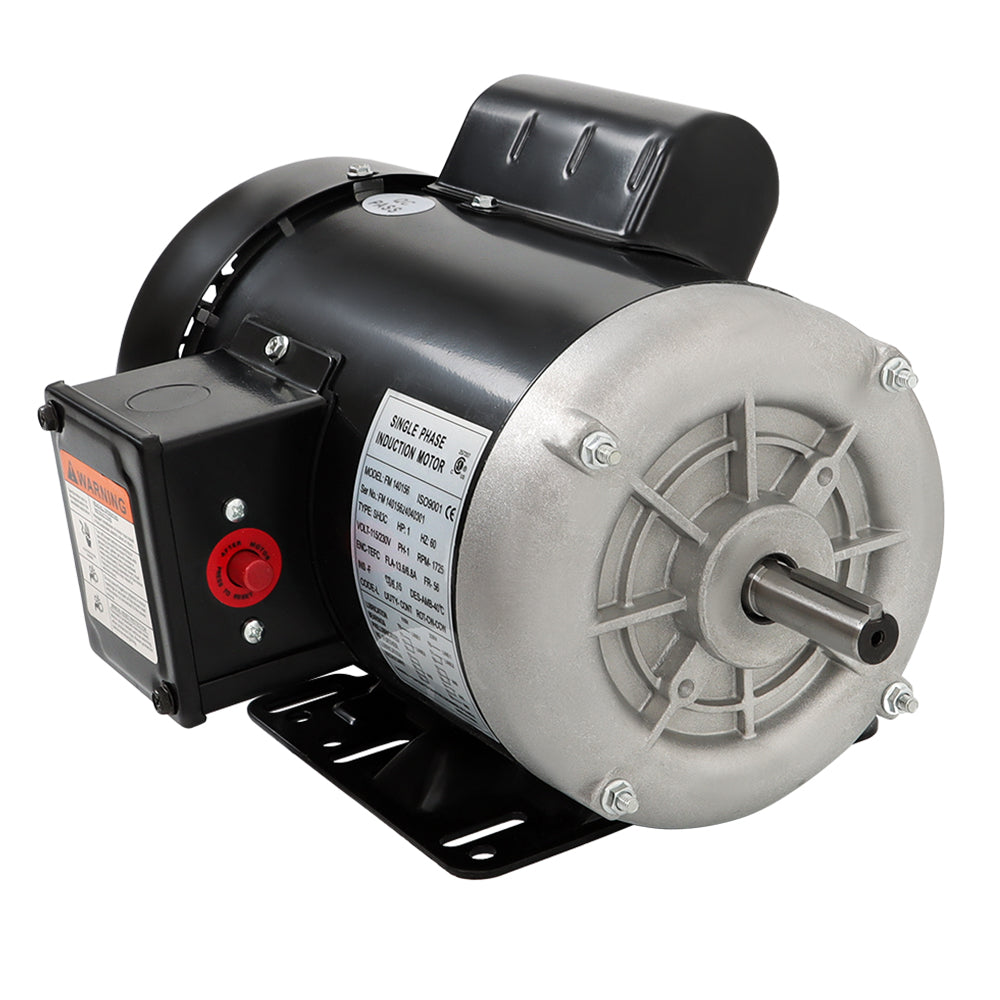

1HP Electric Motor 56 Frame 1 Phase TEFC 1750RPM General Rated 13.6/6.8A

Feature：

Frequency Rating：60 Hz

Phase: Single Phase
Reversible/Non-Reversible：Reversible CW/CCW
Nominal Rated Input Voltage：115/230V
Rated Load (HP)：1
Special Motor Construction：Spindle Motor
Current Type：AC
Shaft Diameter：５/8 in

Shaft Length：1.88 in
Enclosure Type： TEFC (Totally Enclosed Fan Cooled)
Insulation Class：F (Max 311°F)
Mounting Type：Base-Mounted
Pole :4
Amps：13.6/6.8A
Motor Type：Induction/Asynchronous
Base RPM：1750RPM
IP Rating：IP55
Protector：Yes
Housing Material：Rolled steel shell
Model：Farm Electric Motor
IEC Frame Size：56
Synchronous Speed:1800 RPM

Description：

Before using the electric motor, ensure that the wiring is correct, run the electric motor without load, and check whether the motor runs normally
Under the premise of not exceeding the load, the current of the circuit breaker should be more than three times the rated current of the electric motor before it can be started normally

Amps
Be sure to replace the motor with a full load current value of less than 10% of what you purchased

Totally Enclosed Fan Cooling (TEFC)
Prevent the free exchange of air between the inside and outside of the frame, but do not make the frame completely airtight.  The fan is mounted on the shaft and air is pushed onto the frame during operation to assist in the cooling process

RPM
Matching rpm is very important, the wrong speed can damage the pump, rpm do not need to be exactly matched, the difference can be close

Frame size
The size of the frame corresponds to the size of the motor.  Improper size of motor will lead to motor failure

Phase and voltage
A 230V motor single-phase power supply refers to a 1 phase 230V motor. It cannot withstand a voltage lower than 208V.  They will run too hot and the motor will fail

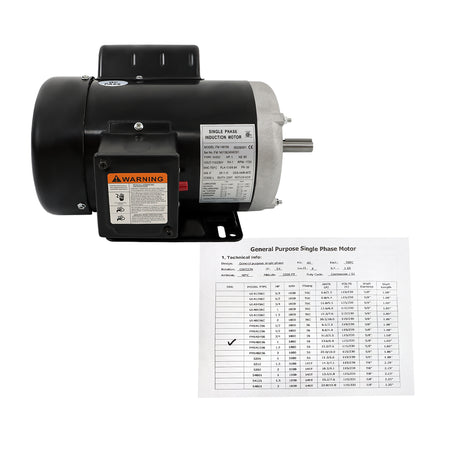

Package List:

1 x 1HP Farm Electric Motor
1 x Manual

Note：

Please Make Sure That The Model And Appearance Of Your Equipment Are Exactly The Same As Our Products.

It Is The Customer's Responsibility To Buy The Right Products. If You Are Not Sure, Please Contact Us In Time.

Thank You For Your Cooperation.
