1969 1970-1978 FOR HONDA FOUR CB750 CB750A F/K IGNITION COILS & SPARK PLUG CAPS

Fitment :


For Honda CB750A Hondamatic 1976-1978
For Honda CB750F Super Sport 1975-1978
For Honda CB750K 1969-1978

For Honda CB750 Four 1970-1974
For Honda CB750 Diecast Engine 1969
For Honda CB750 Sandcast Engine 1969
For Honda CB750K 750 Four 1975-1978

Description：

Note:Please Compare Your Unit With The Picture.

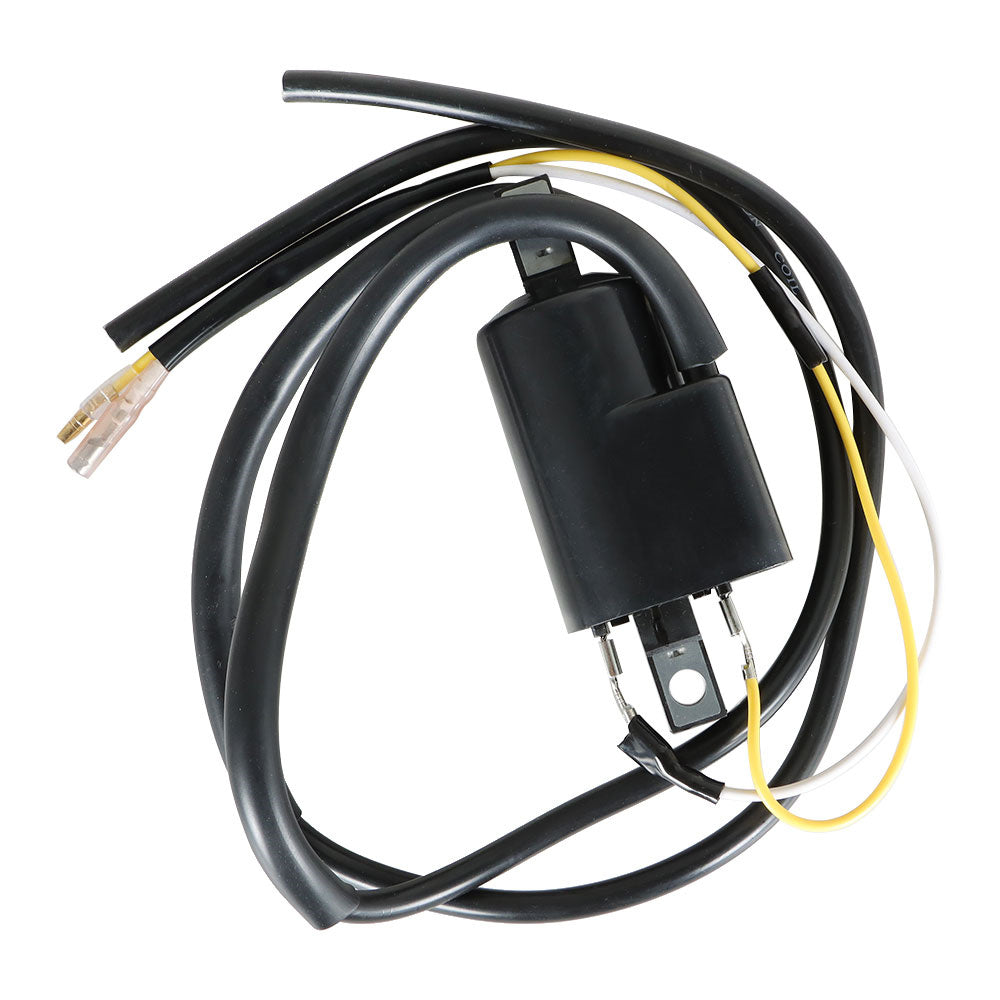

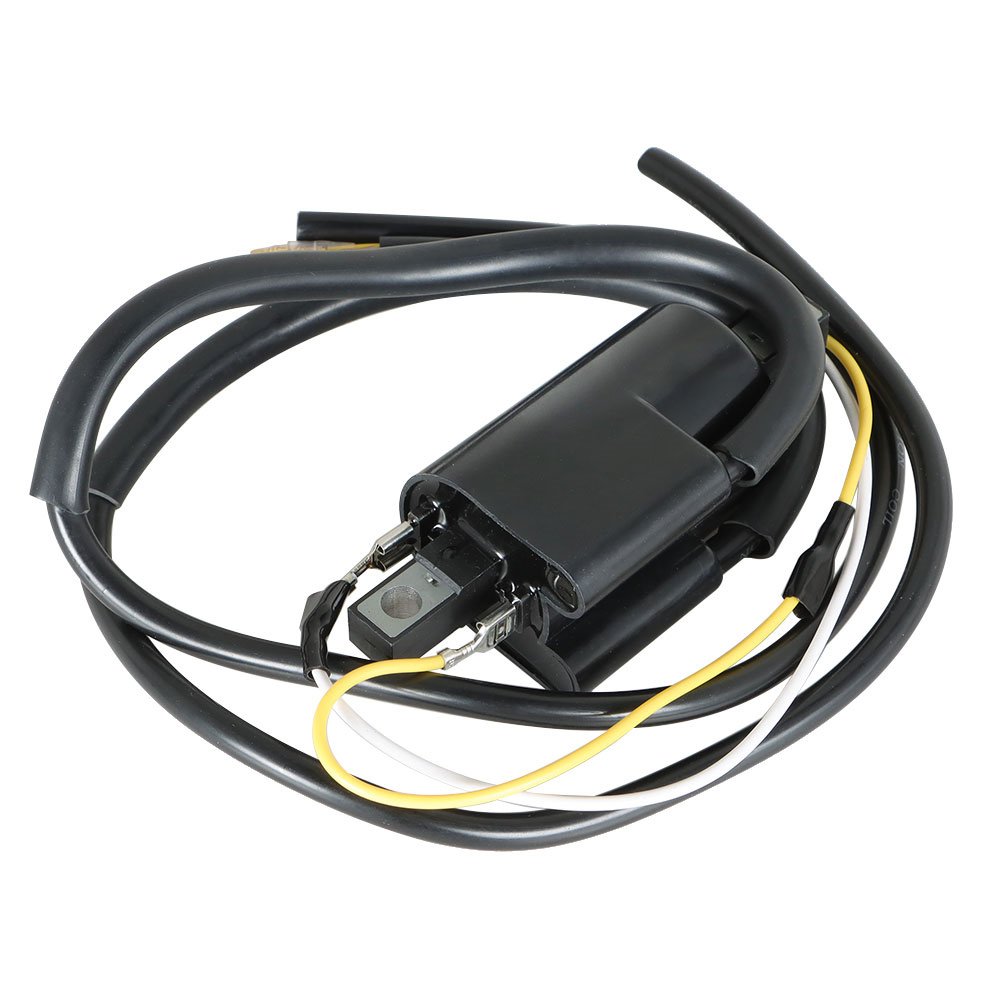

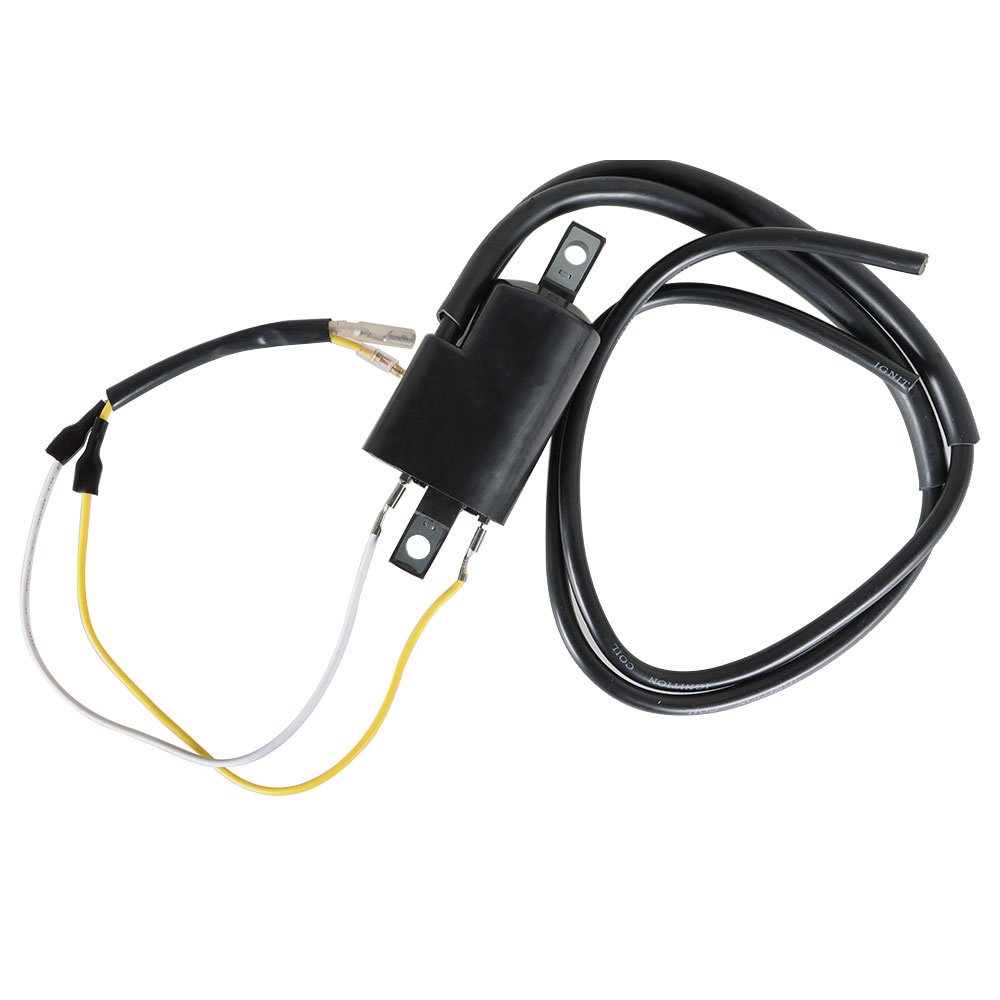

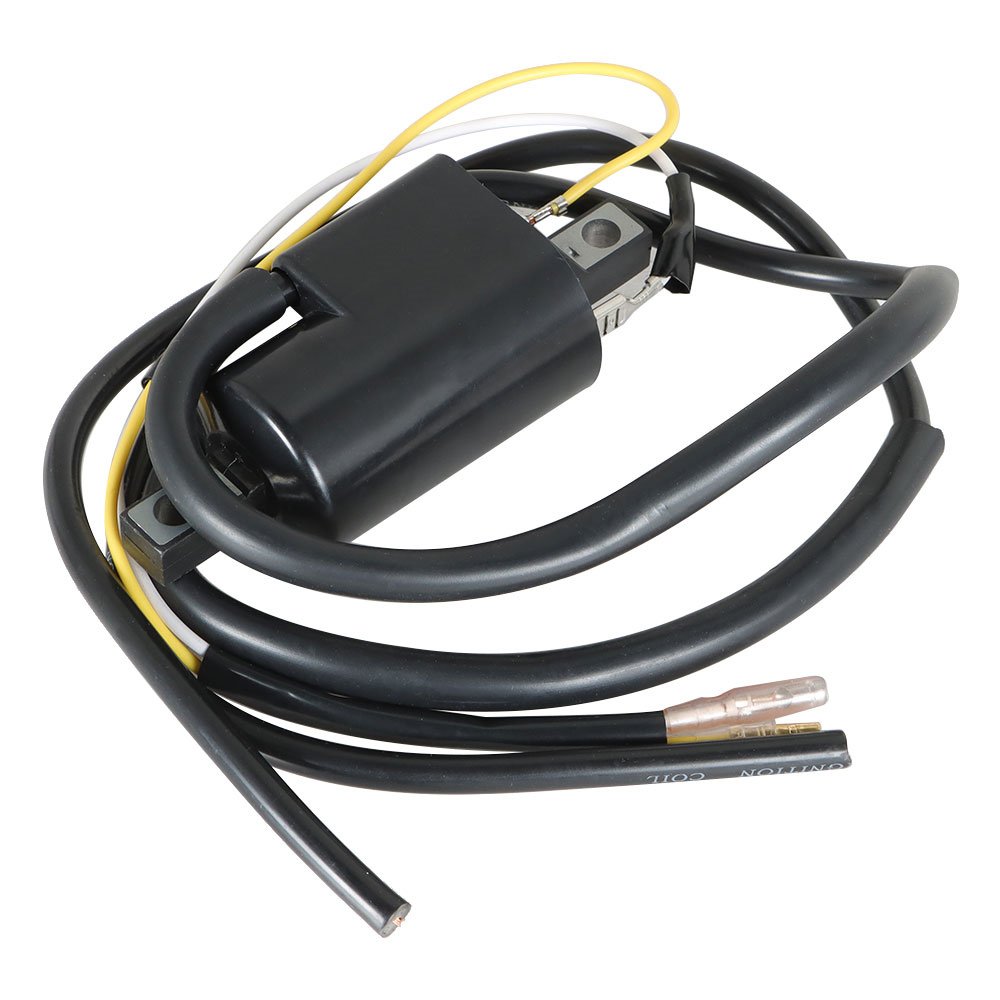

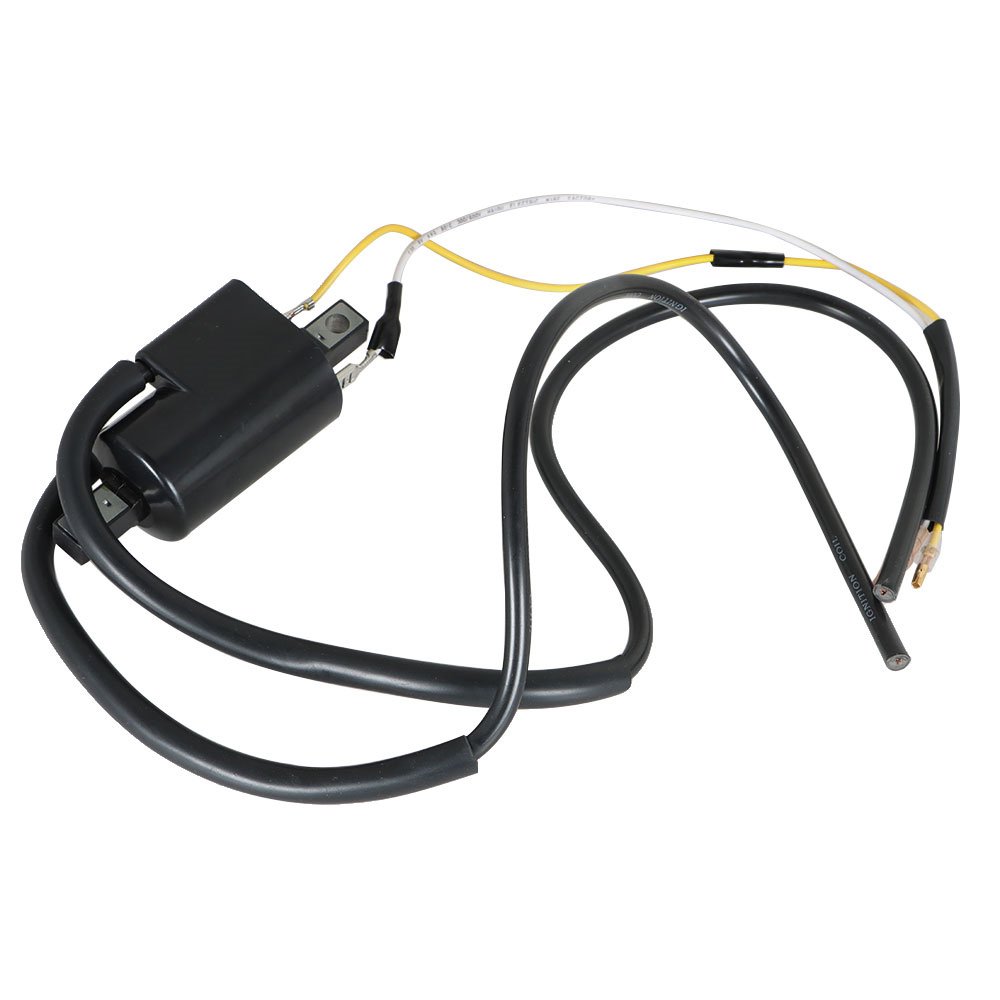

As shown in the figure, the product consists of Ignition Coil and Spark Plug.

100% Brand New and High Quality

Spark plug wires are 17" long
Mounting holes are 90mm (3.54") apart. (measured from the center of each hole)
Low tension wires: 8" long - 1 male and 1 female bullet connector (power goes to the black/white line male terminal. points/condenser wire goes to the blue female terminal)
Primary Windings: 4.6 ohms +- 10% (just like the old coil)

Coils Replace Part Numbers: 30501-300-003, 30502-300-003

5k ohm resistor type spark plug caps are also included: VD05F x2 and SD05F x2

Installation Tip: Fan out the spark plug wires before twisting on the caps that way you make a better connection.

Package Include:

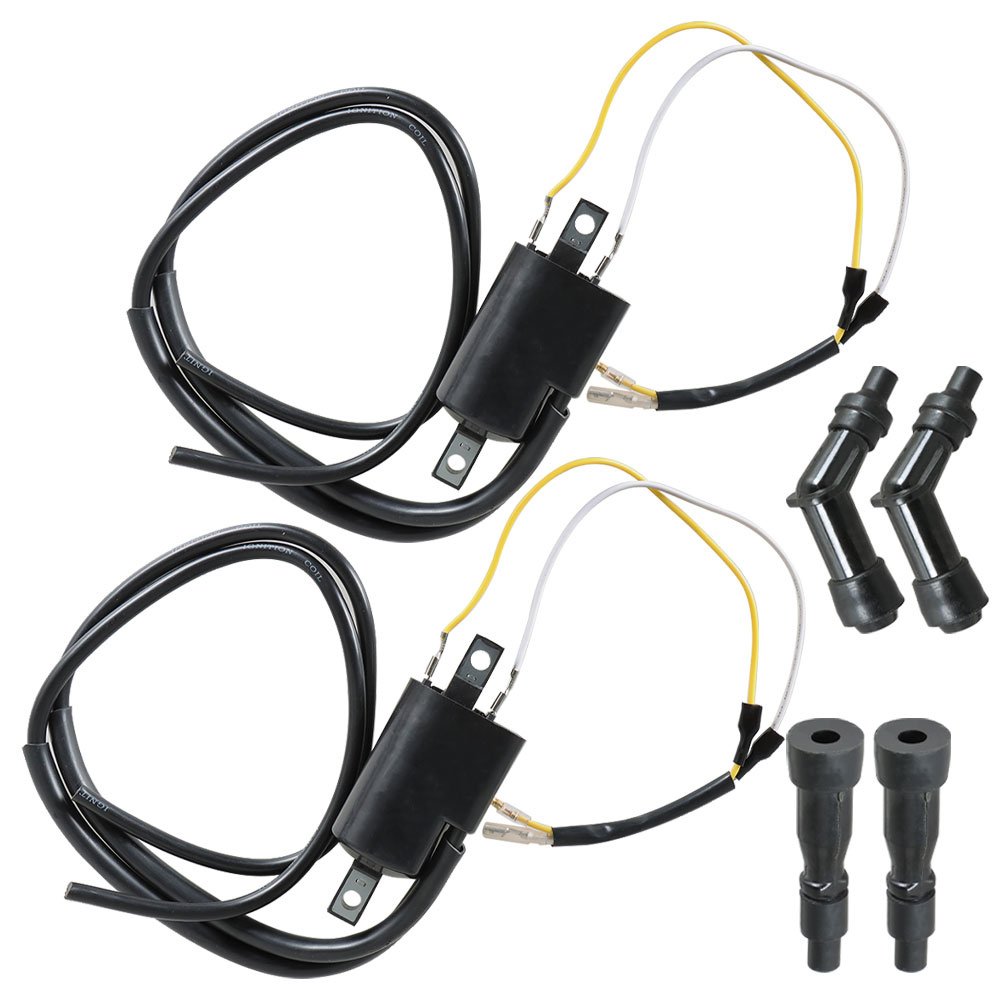

2 x Ignition Coil w/ 4x Spark Plug Caps
