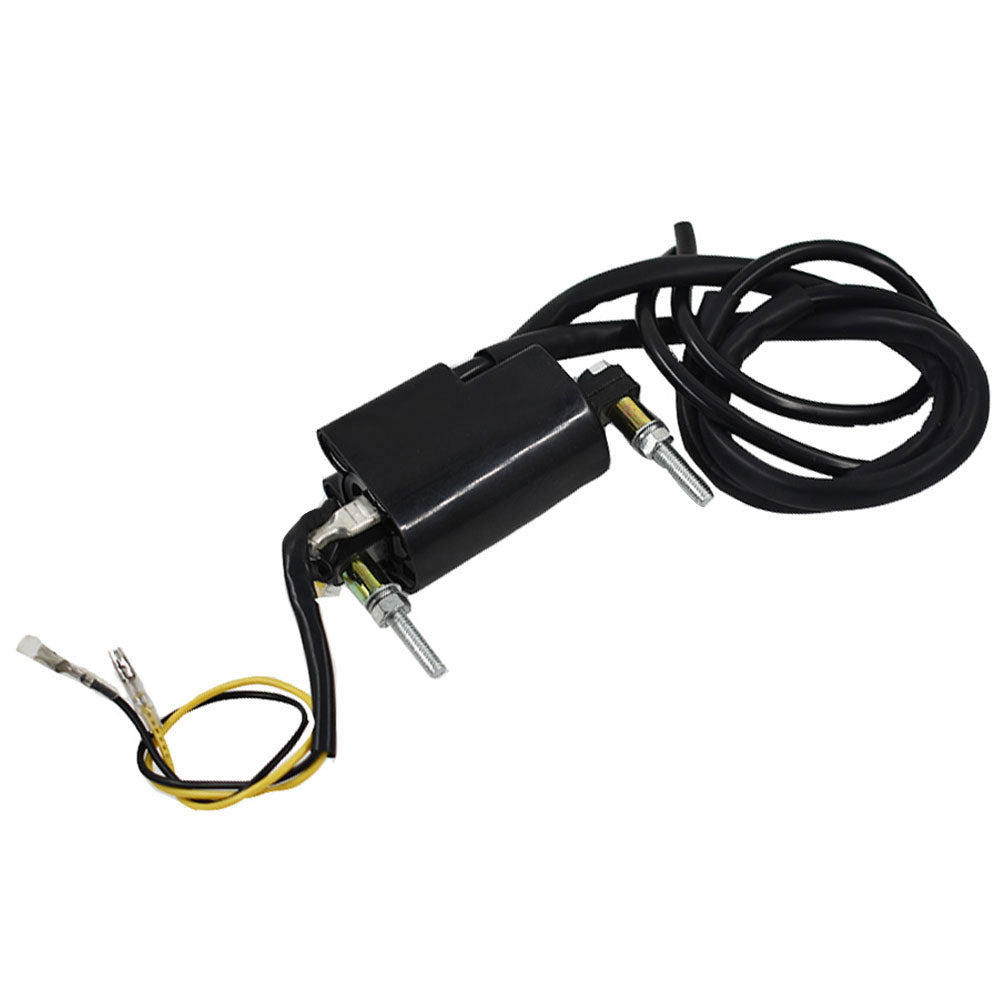

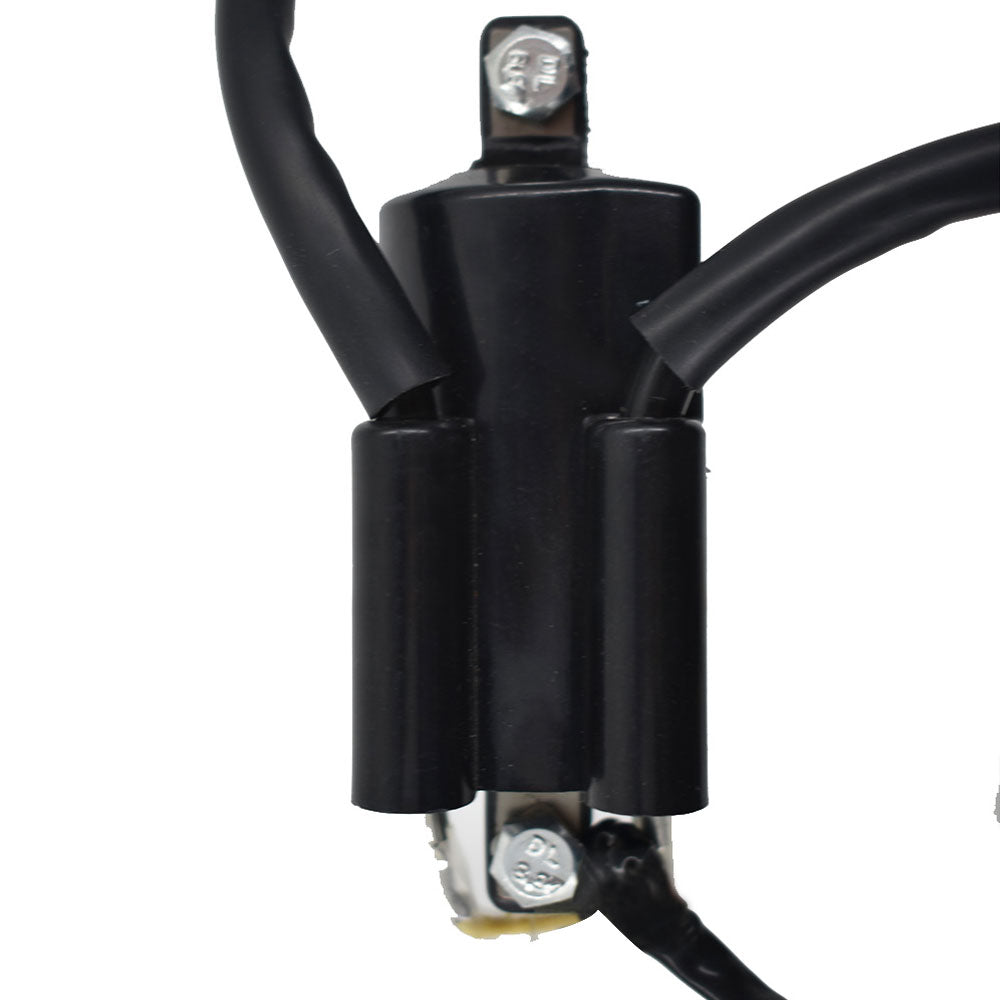

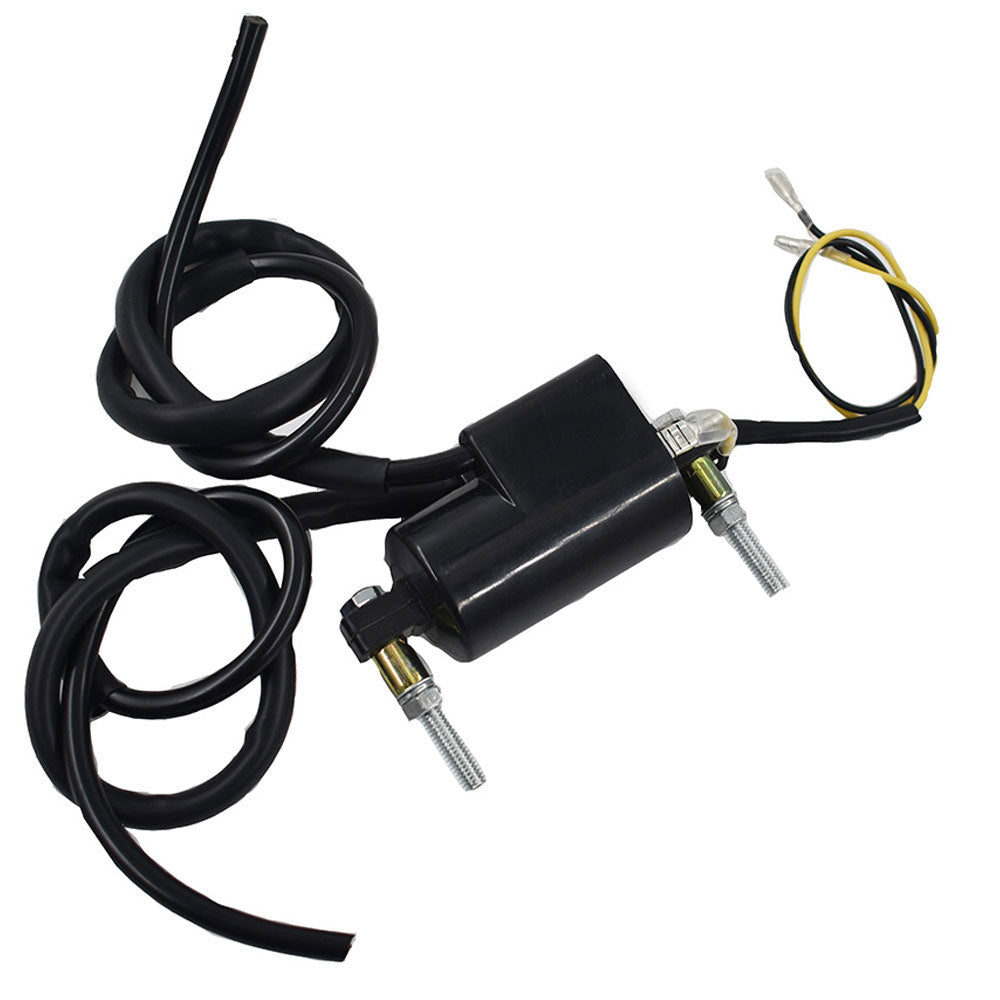

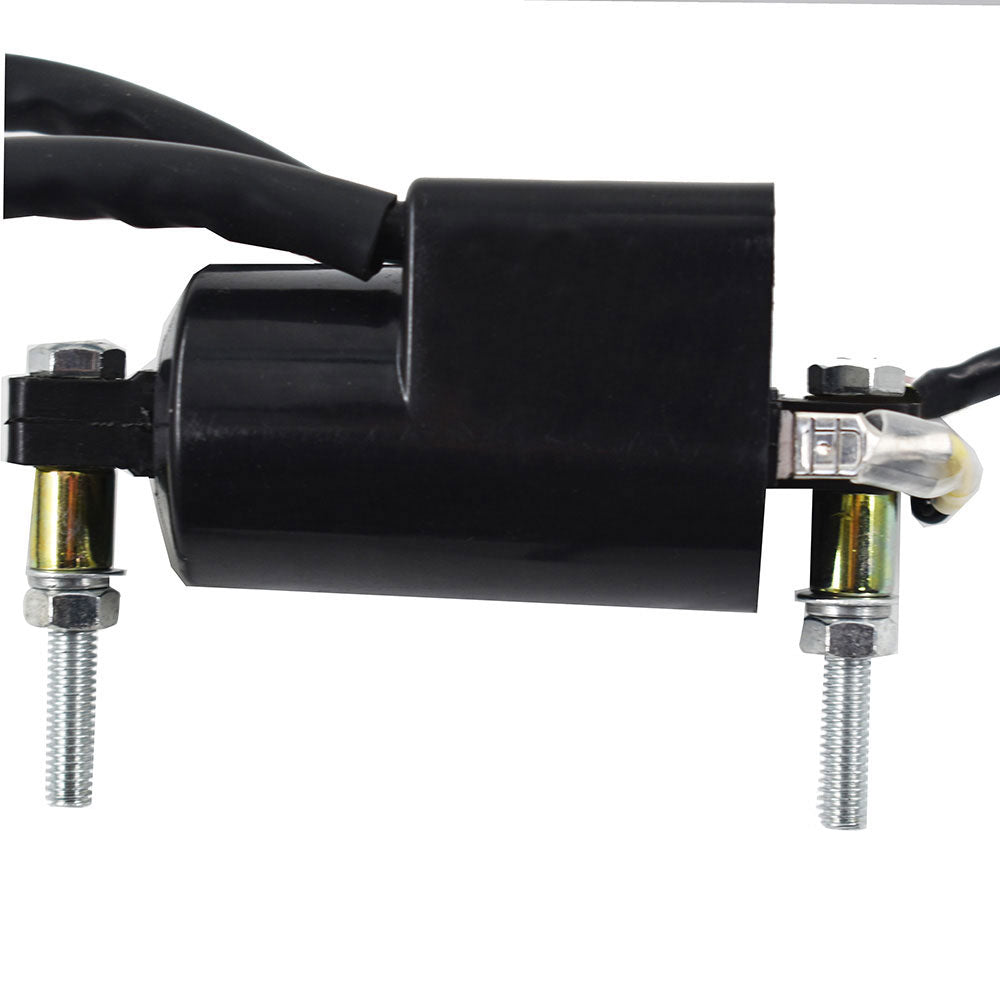

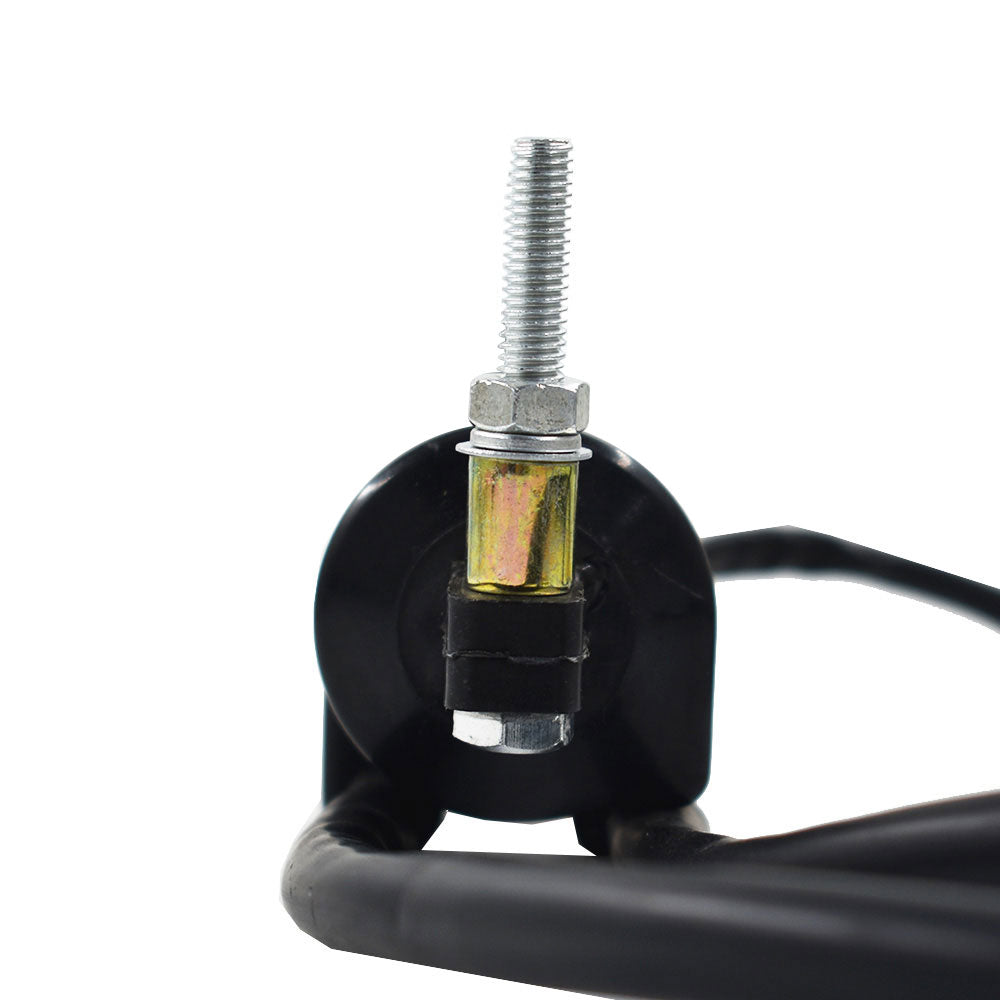

12V Dual Wire Ignition Coil Fit For Honda Kawasaki Yamaha Suzuki CB KZ XS GS

In some circumstances you may need to modify the way the coil is mounted to the bike, but at this price it is a very inexpensive alternative to purchasing a coil costing twice as much from the Dealer !! If you need more than 1 coil, please make sure you change the quantity to accordingly.

Specifications:

Primary Resistance 3.8 ohms +/- 10%

Secondary Resistance 14.6k ohms +/- 10% Length

Width 1.5"

Height 1.75"

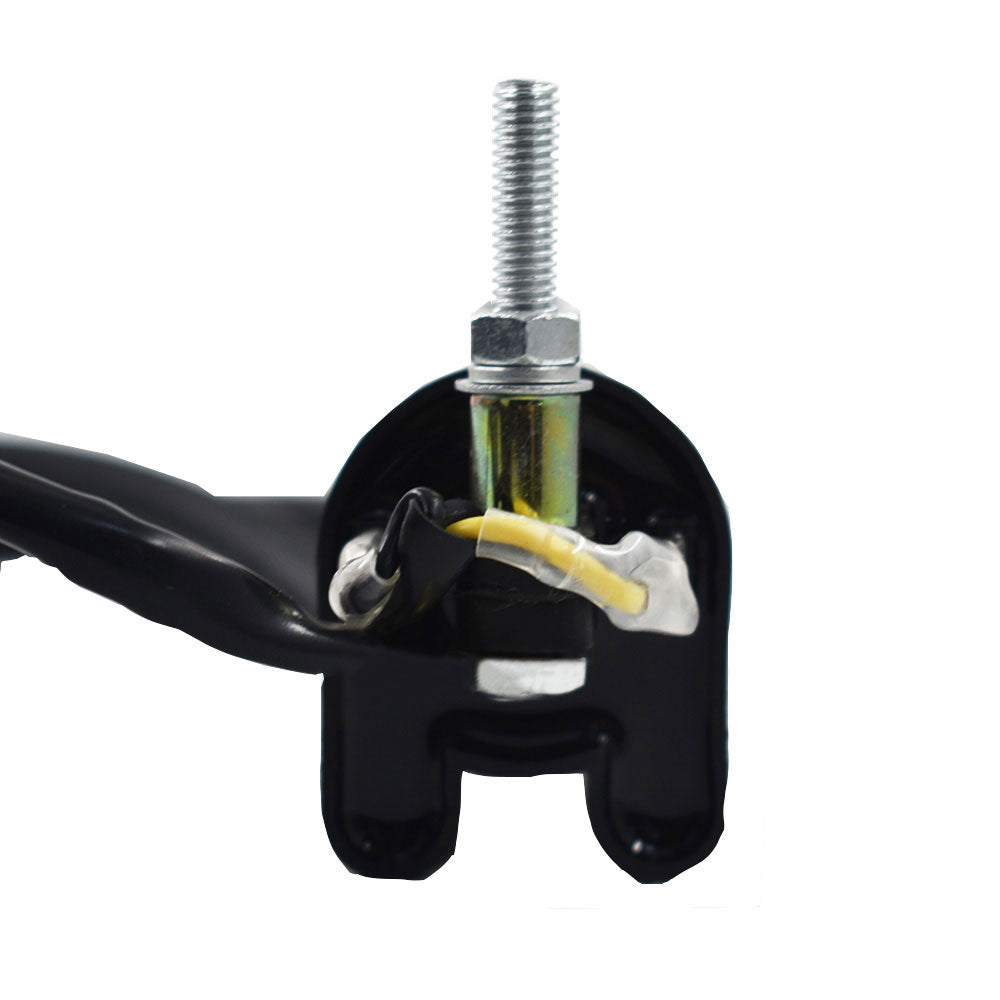

The yellow (+) on the coil connects to Black / White (ignition / kill switch) on the bike

The black (-) on the coil connects to the Blue (condenser / points wire) on the bike

Fit For:

For Honda Part Number:

30501-323-003 / 30502-323-003 / 30501-300-003 / 30502-300-003 / 30501-300-013 / 31103-300-035 / 30500-422-013 / 30500-422-003 / 30510-333-013 / 30520-333-013

For Kawasaki Part Number:
21121-083 / 21121-1174 / 21121-1003 / 21121-1010 / 21121-1035 / 21121-1011 / 21121-1036 / 21121-1001 / 21121-1002 / 21121-1026

For Suzuki Part Number:

33410-44X50 / 33410-44120 / 33420-44120 / 33410-45012 / 33410-45010 / 33420-45010 / 33410-45021 / 33420-45020 / 33410-45512 / 33410-45110 / 33420-45110

For Yamaha Part Number:

1AA-82310-09-00 / 36Y-82320-60-00

NOTE:

PLEASE READ THIS ENTIRE AD BEFORE MAKING A PURCHASE! PLEASE CHECK SPECS, PICS, AND ALL OF OUR NOTES!!!!
