11PC ER32 Collet Set With R8 Shank ER32 Chuck & Spanner For Milling Machine

Specifications:

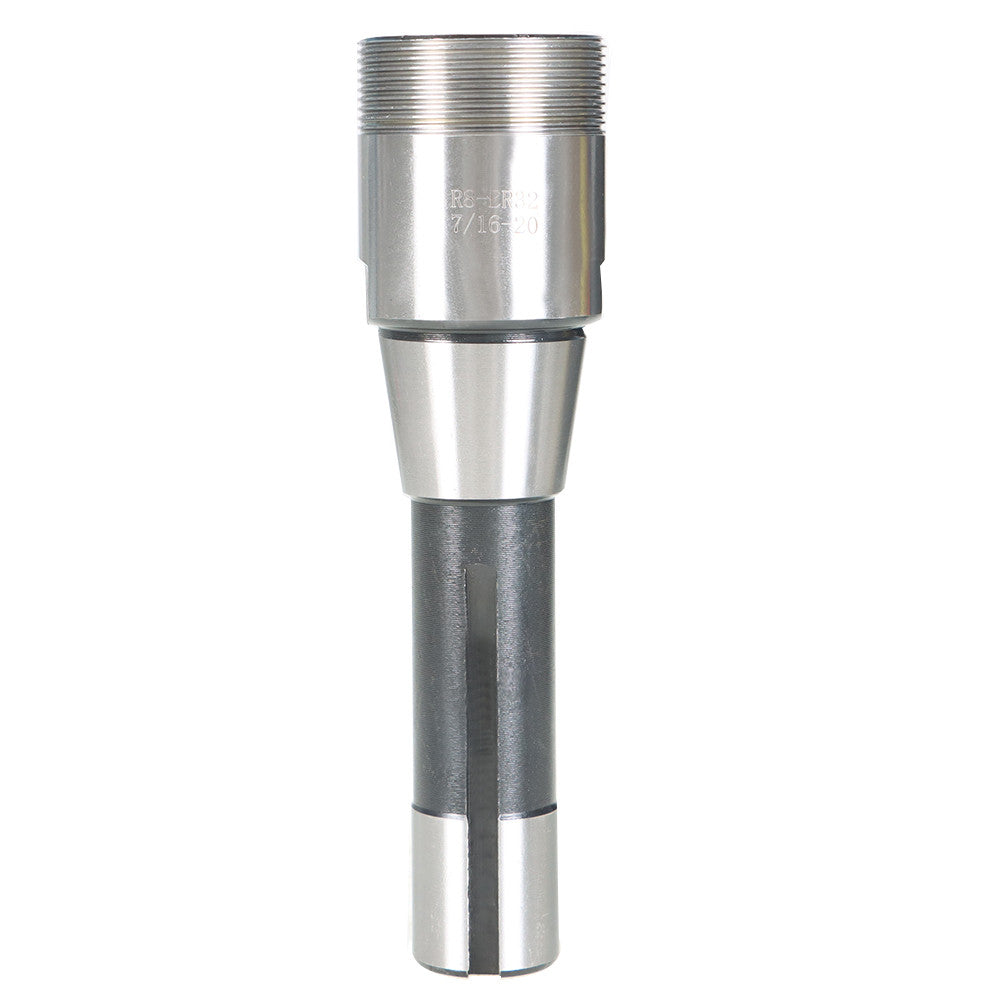

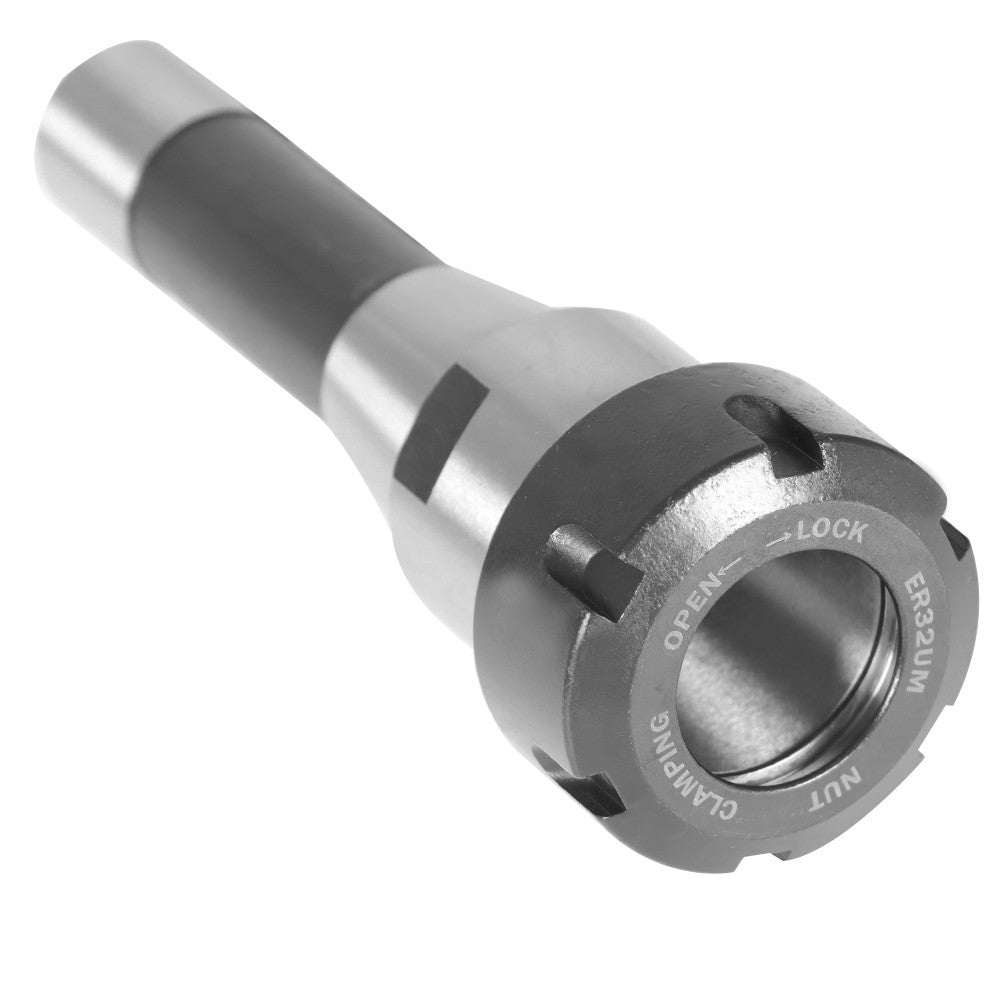

• Collet Chuck
• Model: R8-ER32
• Material: Metal
• Size: 16cm/6.3 inch
• R8 spindle
• Drawbar thread : 7/16
• ER32 clamping range :1-20mm
• Spanner/wrench1X 45-52
• Suitable For: R8 dedicated machine

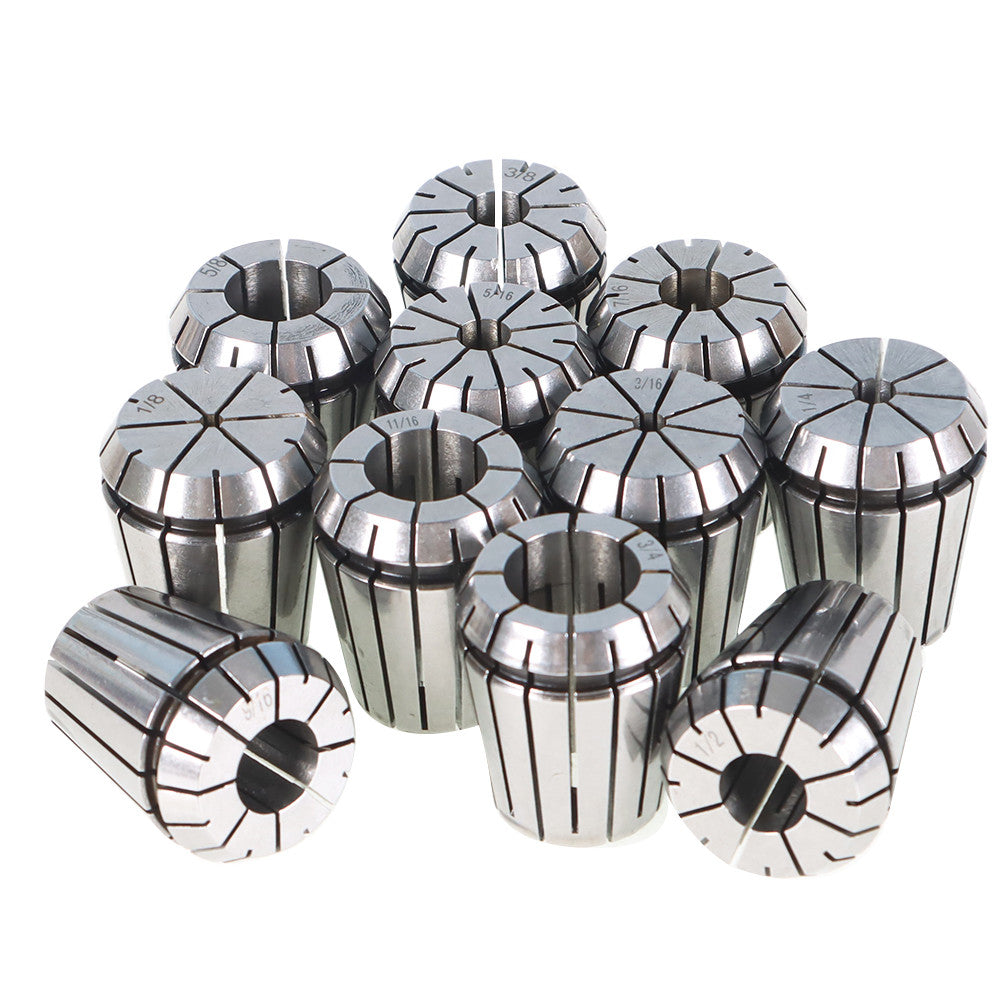

• ER32 Spring Collet Set
• Material:high grade spring steel
• Color:steel color
• Type:ER32
• Length:39mm
• Diameter:32mm
• Inner diameter: 3mm(1/8 )/5mm(3/16)/6mm(1/4)/8mm(5/16)/10mm(3/8)/11mm(7/16)
• 13mm(1/2)/14mm(9/14)/16mm(5/8)18mm(11/14)/19mm(3/4)

Features:

• This is a new precision collet chuck holder for professionals and hobbyists demanding.
• Available in the BT ER extension rod handle, can be used for clamping drill.
• milling cutter, straight shank tool.
• Collet must be assembled into the clamping nut before inserting into the chuck.
• Performance stability, high accuracy.
• All Collets are Made of high quality alloy spring steel. 0.0005 accuracy.
• Hardened and precision ground.Main Material: Alloy spring steel.
• 11Pcs ER32 Collet Set :Inner diameter: 3mm(1/8 )/5mm(3/16)/6mm(1/4)/8mm(5/16)/10mm(3/8)/11mm(7/16) 13mm(1/2)/14mm(9/14)/16mm(5/8)18mm(11/14)/19mm(3/4)
• Spanner/wrench1X 45-52.Suitable For: R8 dedicated machine.
• Before using this tool, please measurement tool deflection, tool deflection accuracy exceeds 0.01MM, please correct before cutting.

Package including：

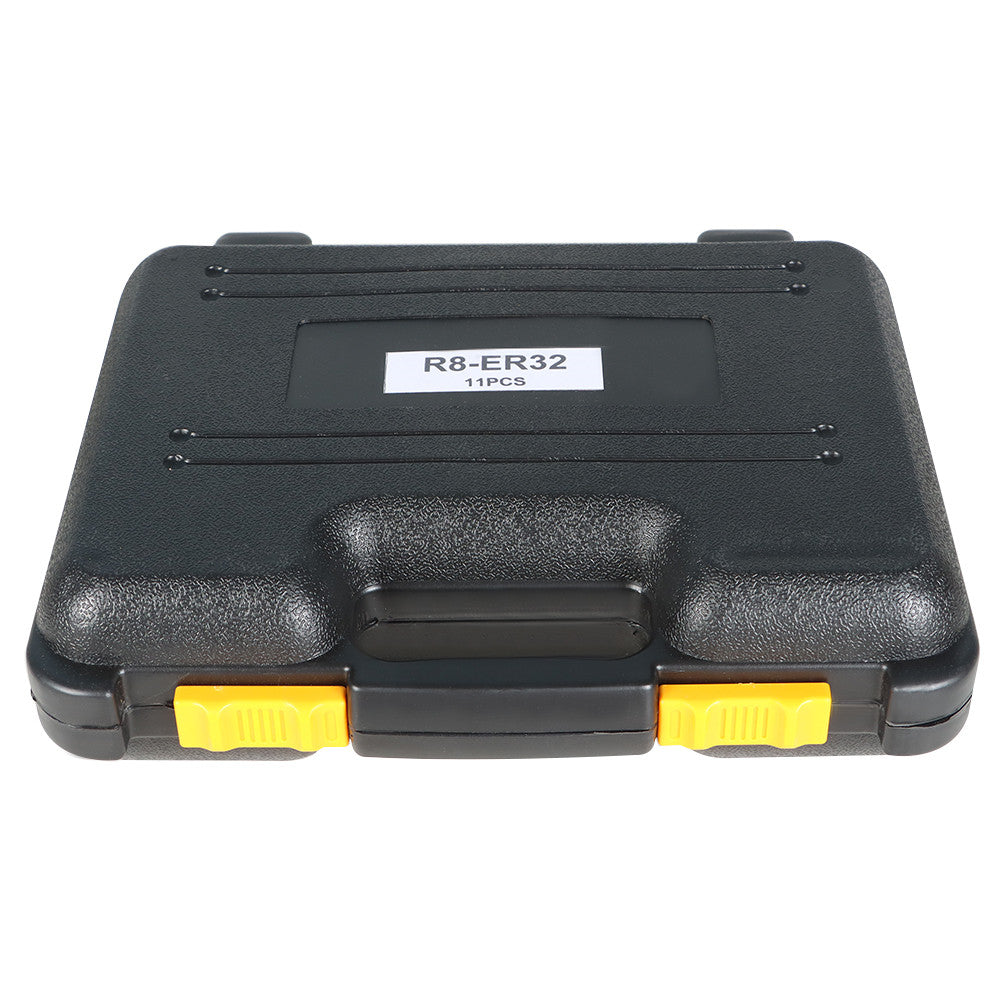

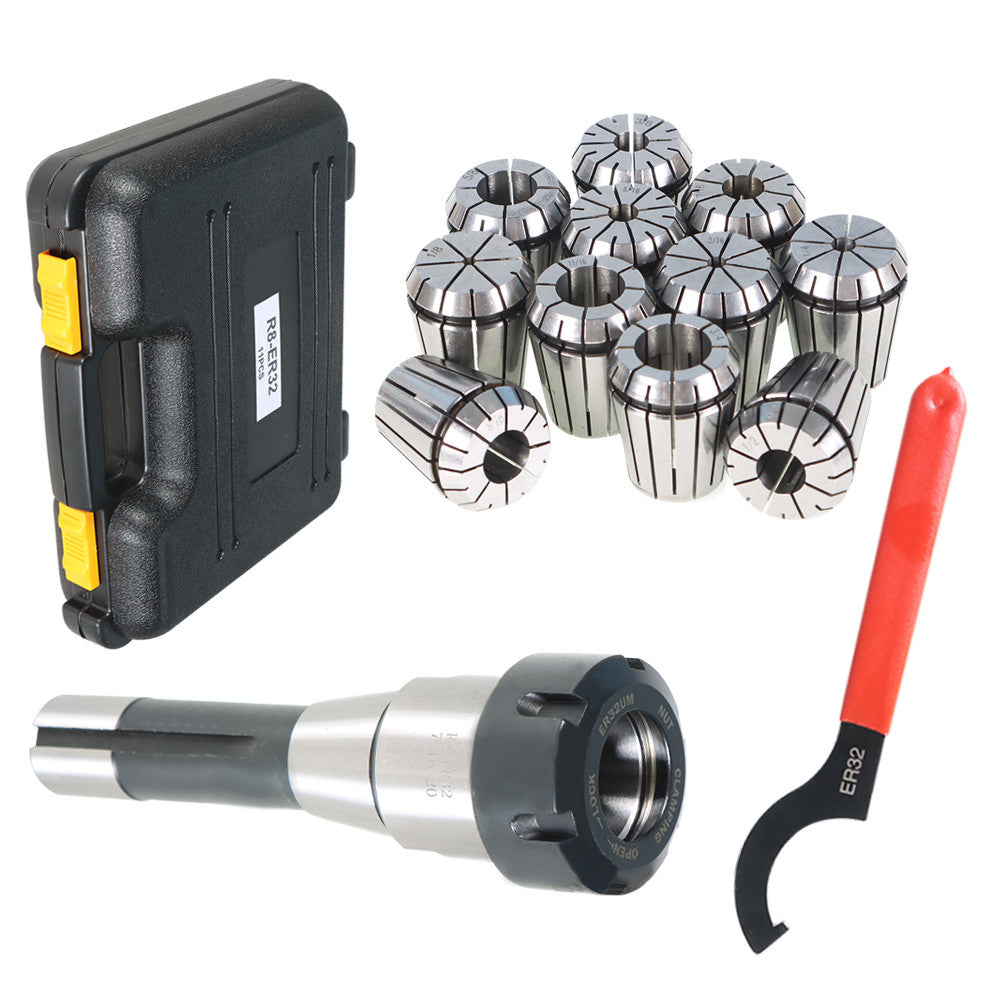

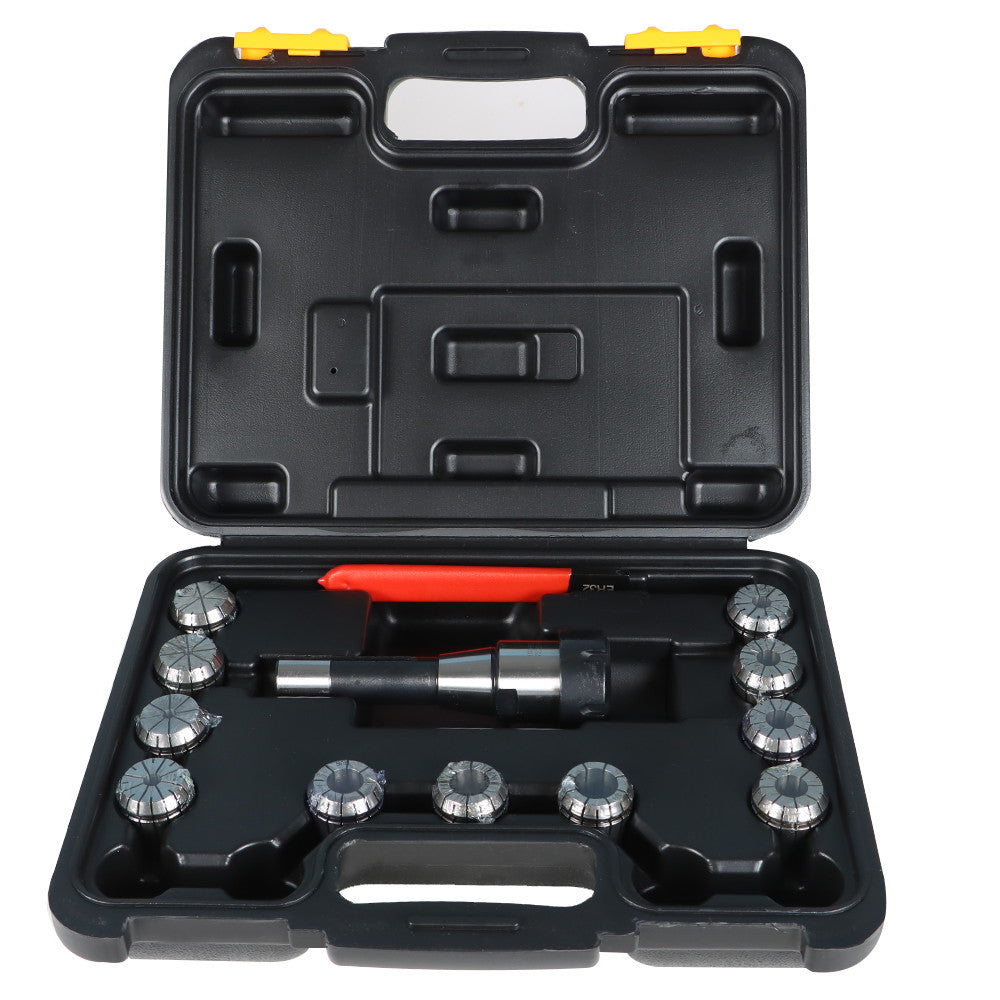

• R8 With 11PC ER32 Collet Set ER32 Chuck & Spanner For Milling Machine （3mm(1/8 )/5mm(3/16)/6mm(1/4)/8mm(5/16)/10mm(3/8)/11mm(7/16) 13mm(1/2)/14mm(9/16)/16mm(5/8)18mm(11/16)/19mm(3/4) ）
