labwork 10-Ton Hydraulic Knockout Punch Driver Kit, 1/2 to 2 Inch, 6 Dies

In stock
Regular price $117.53
Regular price $138.27 -15% Sale price $117.53
Free Shipping
Secure Payment
30 Day Free Return
Warranty Guarantee
Checking Vehicle Fit
Product details
  • Product Category Hydraulic Conduit Punch Set
  • Material Metal, Plastic
Have Questions?
Market@labworkauto.com

Product Description

This 10-ton hydraulic knockout punch kit provides clean conduit holes for electrical, plumbing, signal, instrument, and machinery installations. The interchangeable punch-and-die set includes six common sizes from 1/2 to 2 inches and is supplied with a hydraulic pump, hose, draw studs, spacers, piston shaft, carrying case, and manual.

Applications

  • Electrical conduit installation and repair
  • Wire pipelines and cable systems
  • Signal lamps and instruments
  • Metallurgy, petroleum, electronics, and chemical industries
  • Shipbuilding and machinery maintenance
  • Compatible materials: stainless steel, aluminum, steel, and plastic

Specifications

  • Type: Hydraulic Knockout Punch Driver Kit
  • Maximum Force: 10 Tons
  • Die Sizes: 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 inches
  • Maximum Stainless-Steel Thickness: 2 mm / 14 gauge
  • Maximum Steel Thickness: 3.2 mm / 11 gauge
  • Actual Hole Sizes:
    • 1/2 in die: 0.885 in / 22.5 mm
    • 3/4 in die: 1.115 in / 28.3 mm
    • 1 in die: 1.362 in / 34.6 mm
    • 1-1/4 in die: 1.701 in / 43.2 mm
    • 1-1/2 in die: 1.951 in / 49.6 mm
    • 2 in die: 2.416 in / 61.5 mm
  • Draw Studs:
    • 3.1 in × 0.31 in diameter
    • 3.2 in × 0.30 in diameter
  • Storage: Portable Metal Carrying Case

Features

  • 10-ton hydraulic punching force
  • Six interchangeable dies and punches
  • Rotatable ON/OFF switch for safer operation
  • Ergonomic plastic handle reduces hand fatigue
  • Pump base supports stable positioning
  • Portable carrying case simplifies storage and transport
  • Suitable for multiple metal and plastic materials

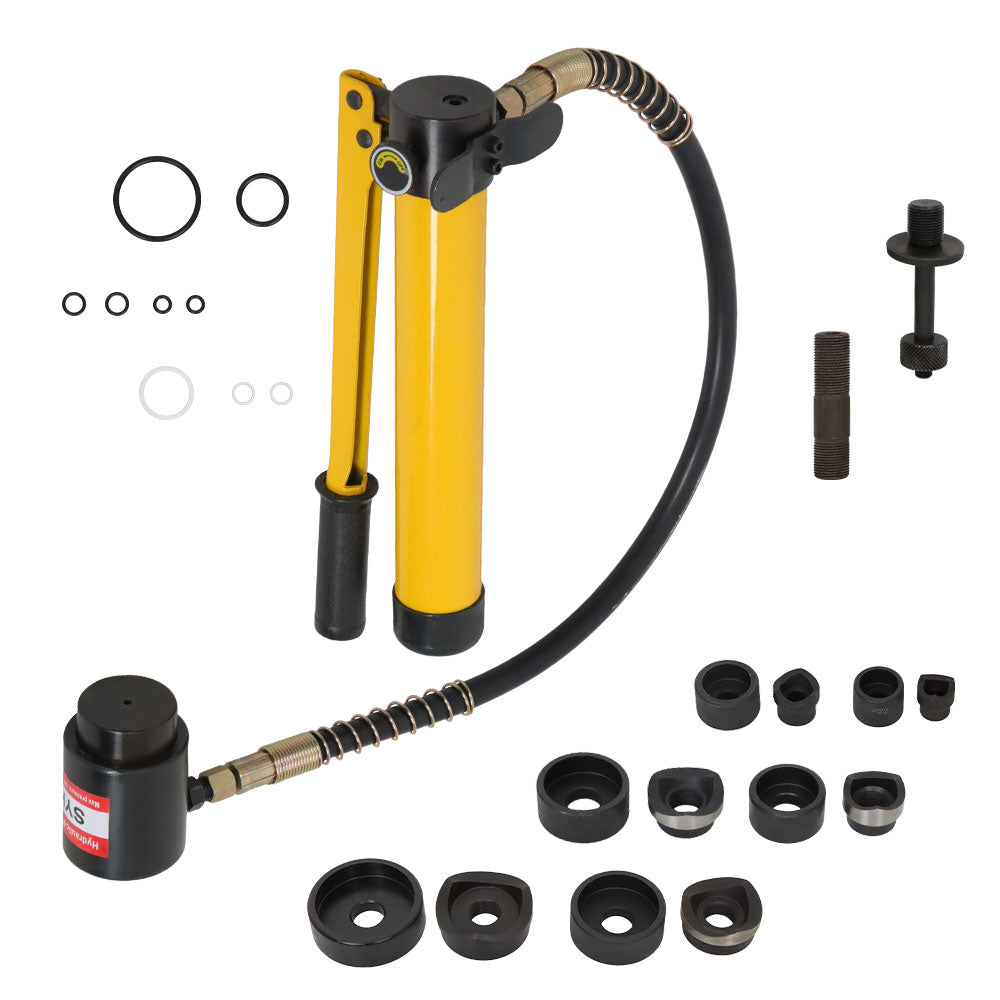

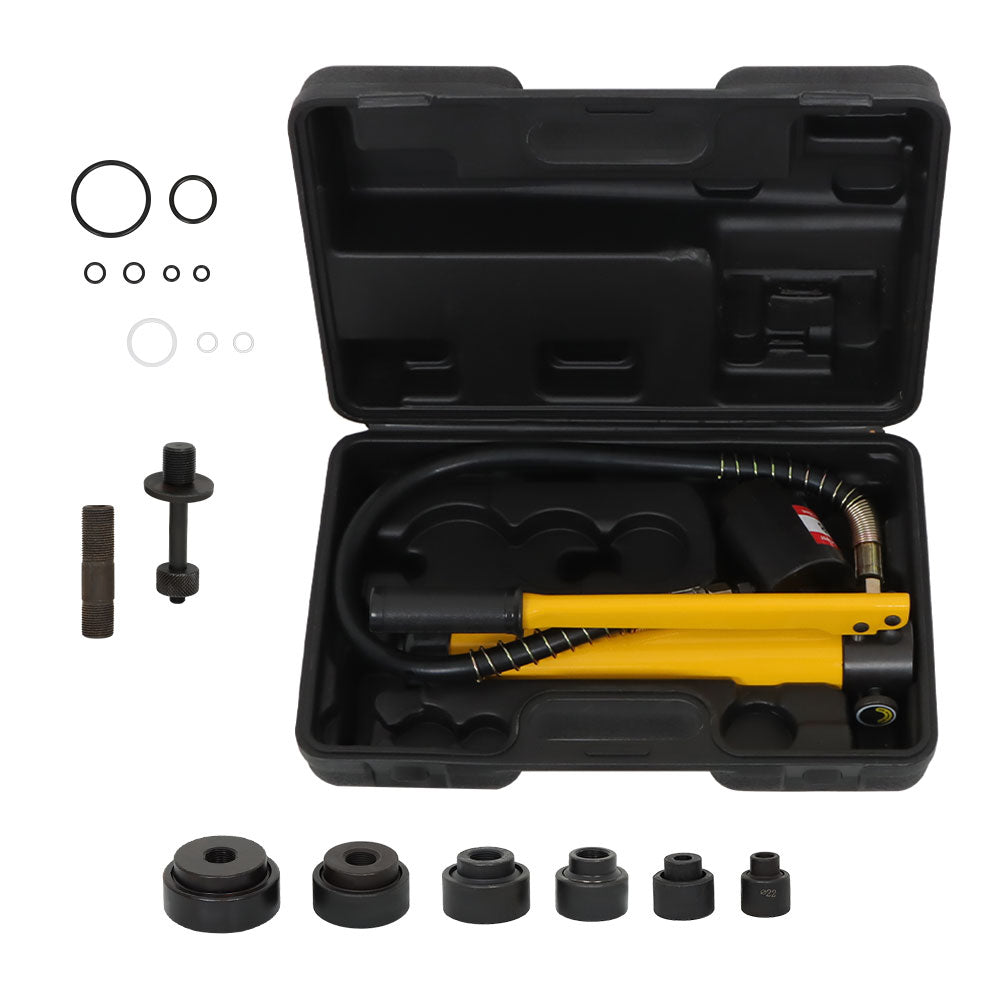

Package Includes

  • 1 × 10-Ton Hydraulic Pump with Hose
  • 6 × Punches and Dies
  • 2 × Spacers
  • 1 × Piston Shaft
  • 2 × Draw Studs
  • 1 × Metal Carrying Case
  • 1 × Instruction Manual

Important Safety Notes

  • Never operate the tool without material in the punching position.
  • For large holes, drill a smaller pilot hole before using the knockout punch.
  • Do not exceed the rated force or material-thickness limits.
  • Inspect the pump, hose, studs, and dies before each use.
  • Wear appropriate eye, hand, and body protection.
