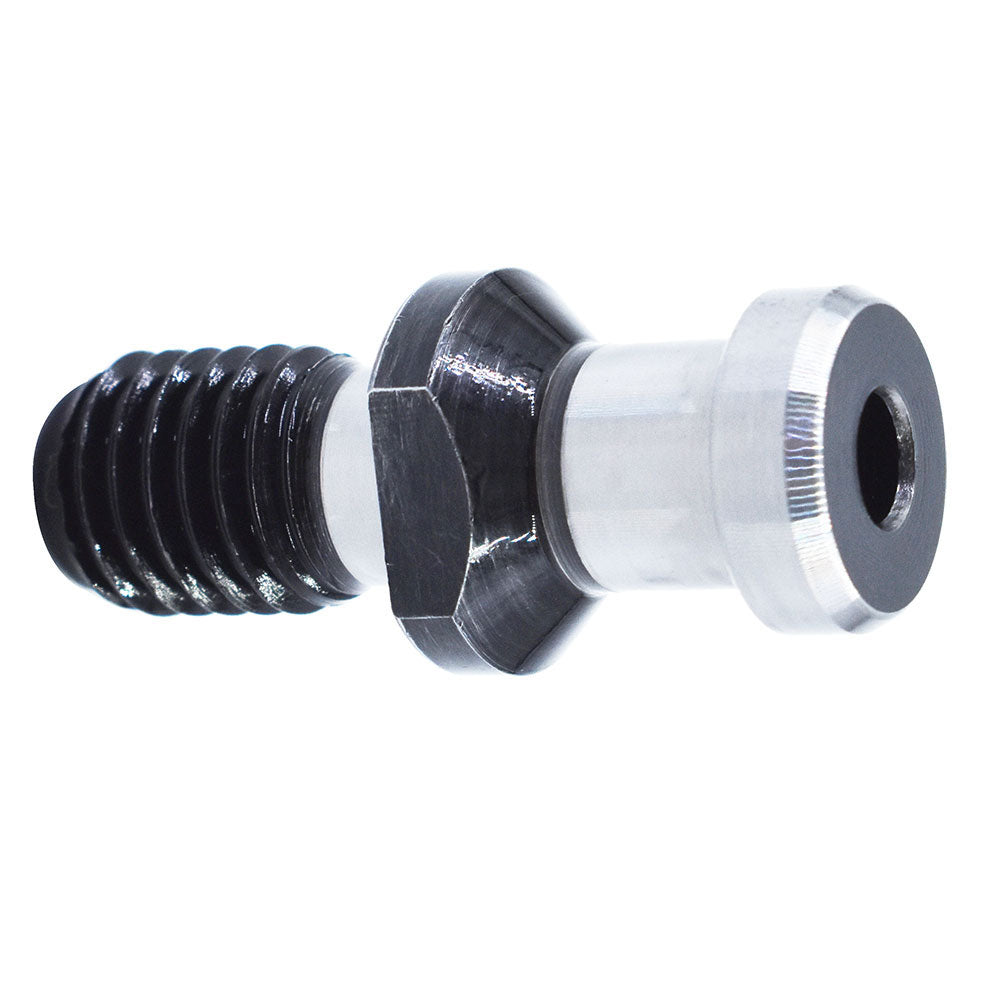

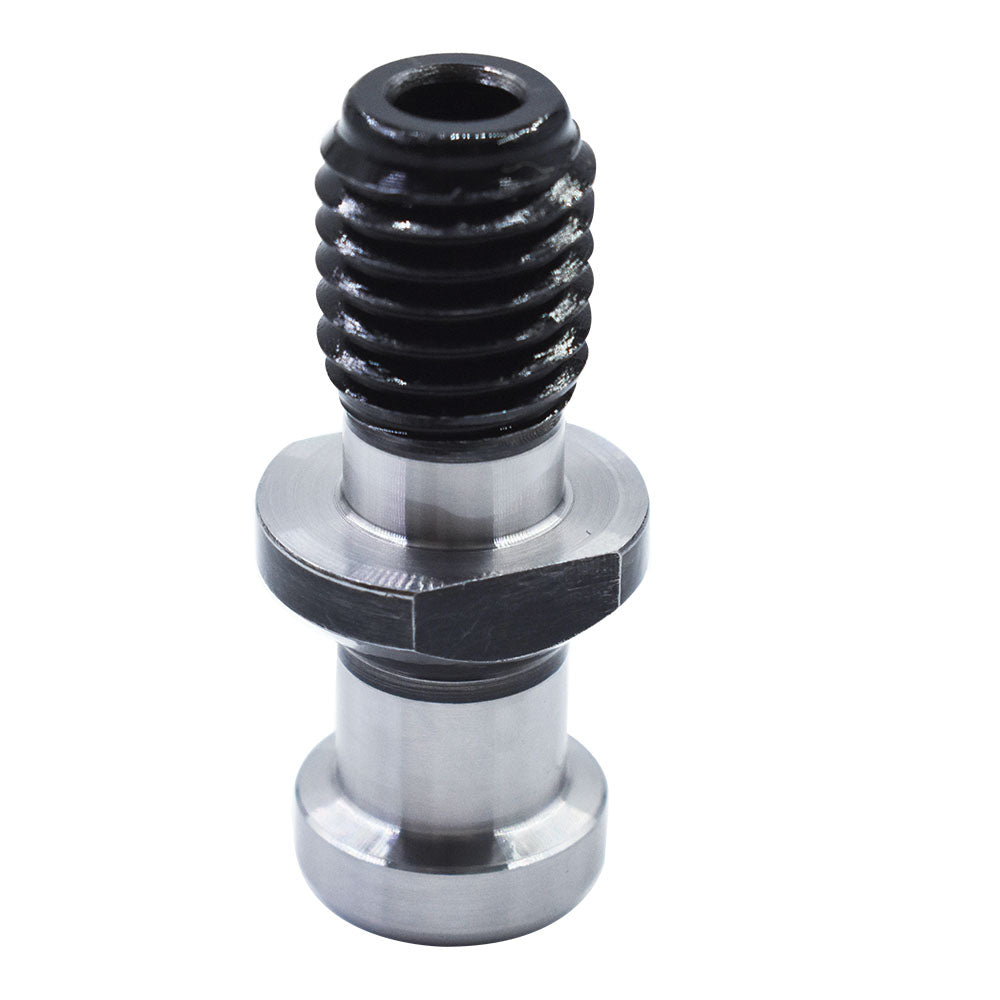

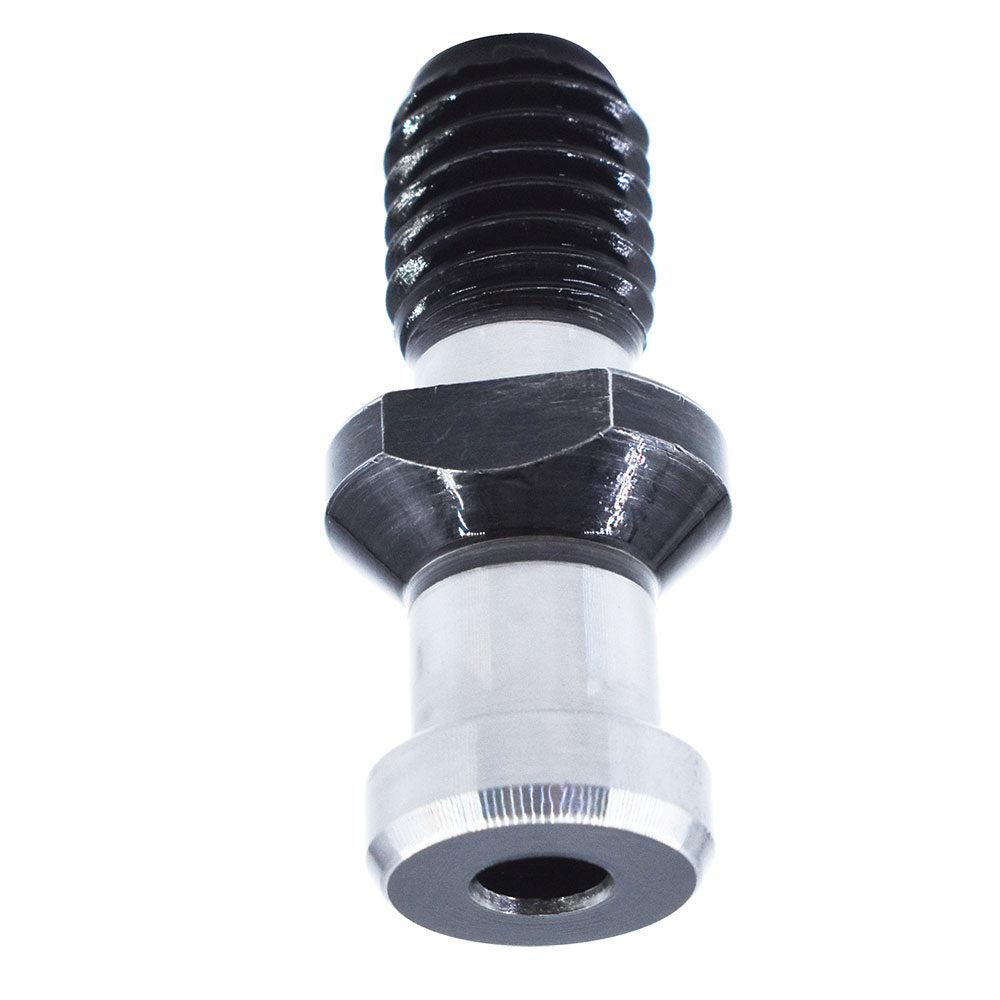

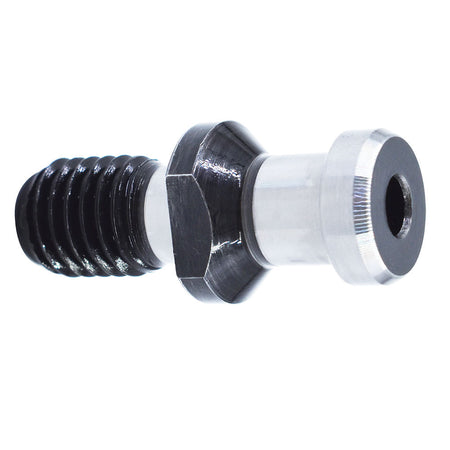

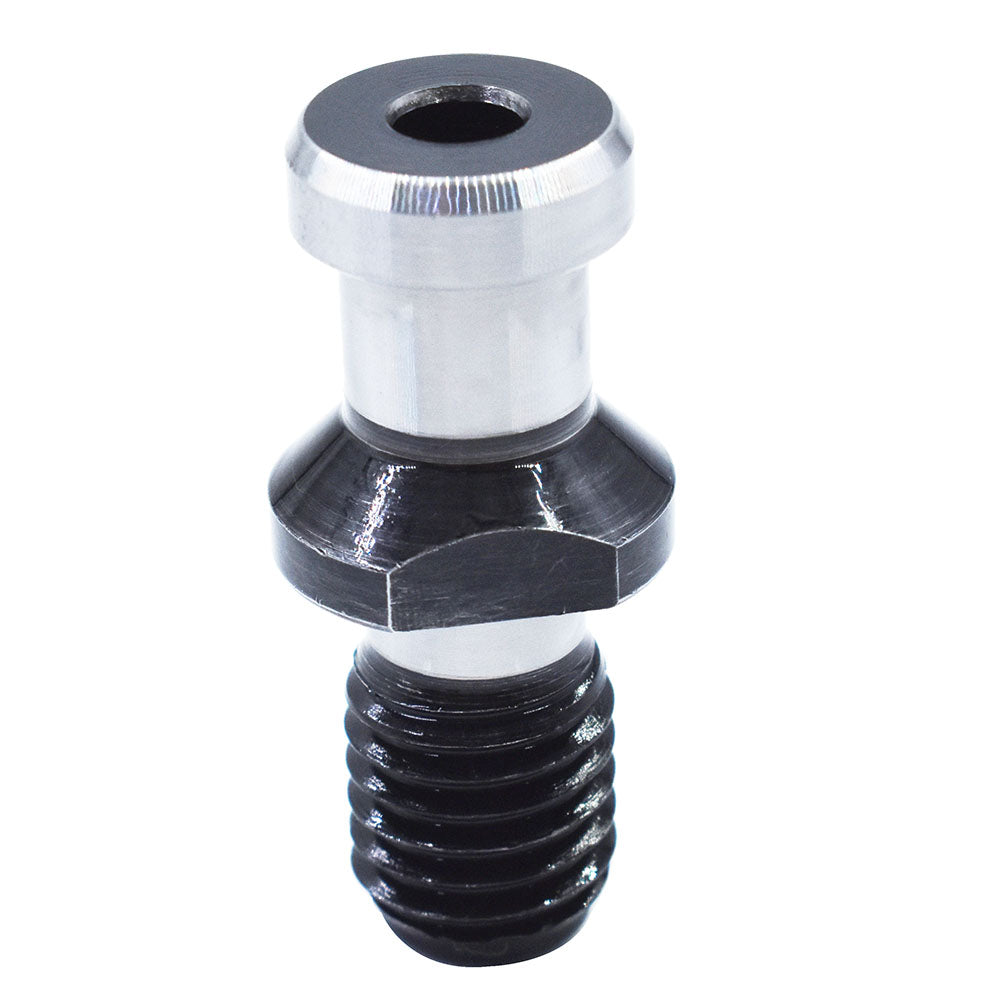

10 Pcs CAT40 75° 0.747" Pull Stud Coolant Thru Retention Knob For Mori Doosan
Couldn't load pickup availability
Description：
Head Diameter：0.747"
Head Angle ： 75°
Drawbar Thread Size：5/8"-11
Machine Taper Size ：CAT40
Neck Diameter：0.549"
Hole：0.281"
Pilot：0.641"
Overall Length：2.001"
Shoulder To Head：0.787"
Shoulder To End：1.024"
Coolant Hole
Features：
Made from alloy steel 5155 with heat treat to RC 56-58
Each retention knob is individually magnetic particle tested to ensure free of crack
High quality black oxide finish to ensure long enduring tool life
Fully ground on all critical surface including a pilot under the flange of retention knob for full contact between tool holder's taper end and retention knob
This pull stud is compatible with the following:
J&M JM71123
TJ Davies PSC-470 X 15
Lyndex C40-1500-ISO
Collis 69004
Command RS4E-0114-C

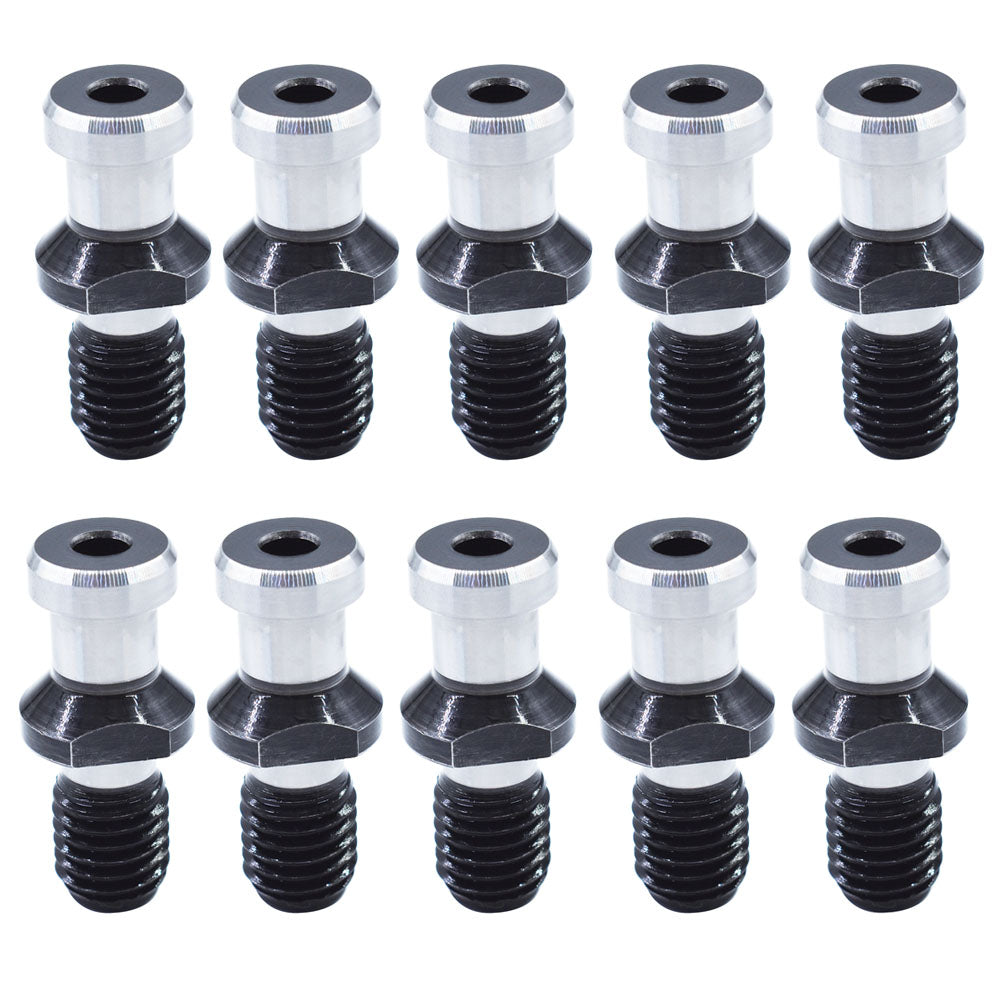

Quantity：
10 pcs CAT 40 75° .747 Pull Stud for DMG Mori Doosan
