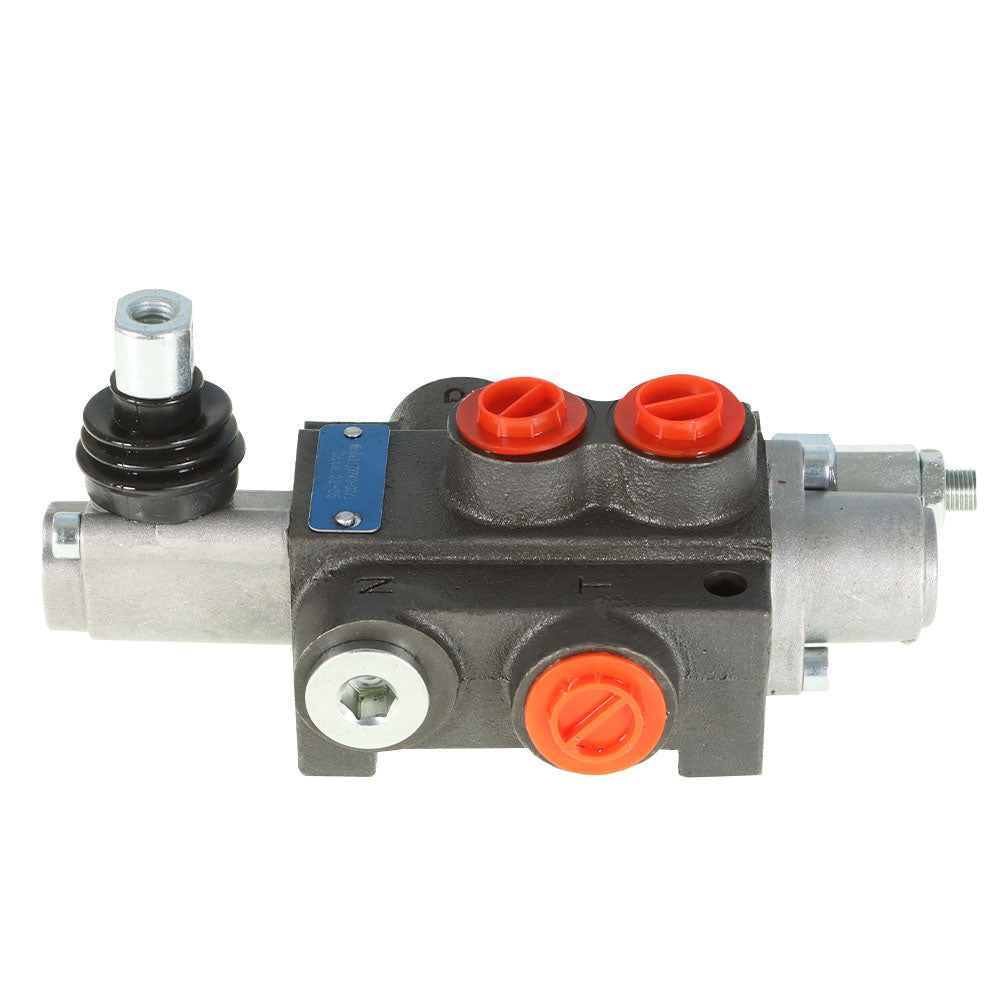

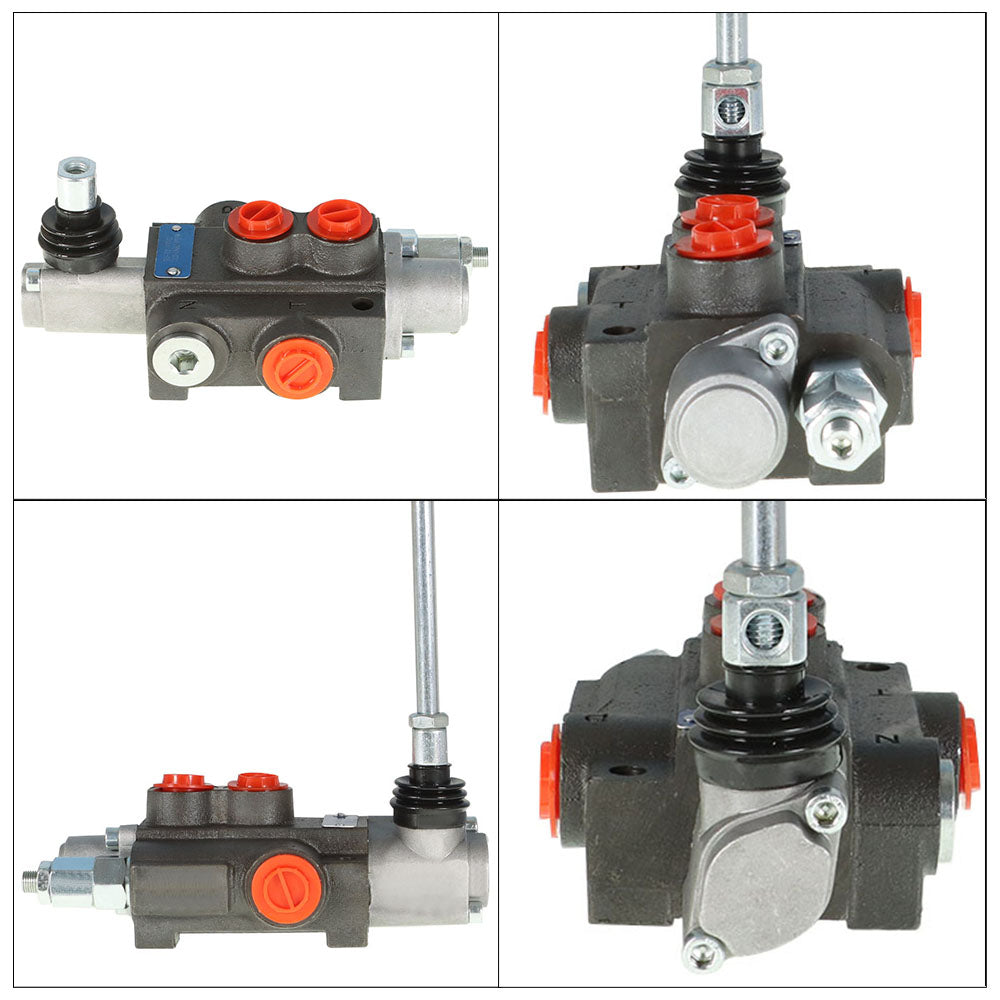

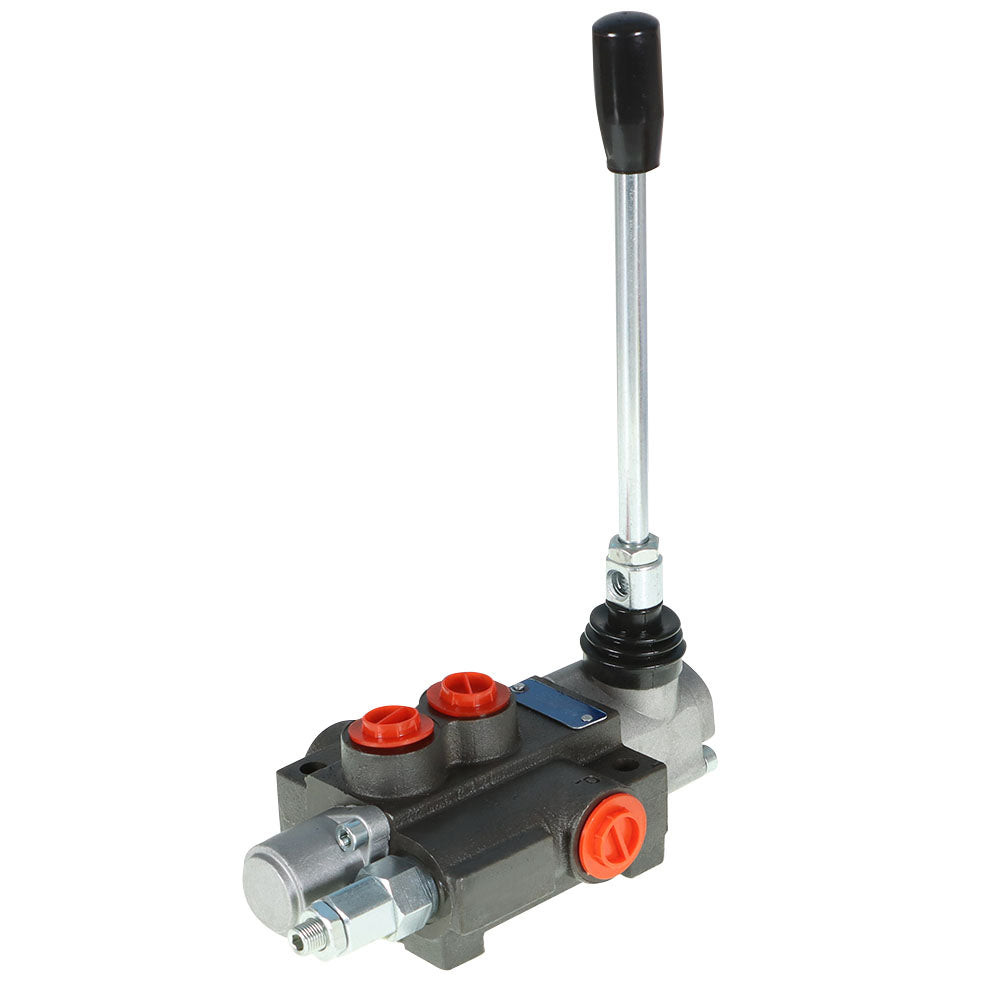

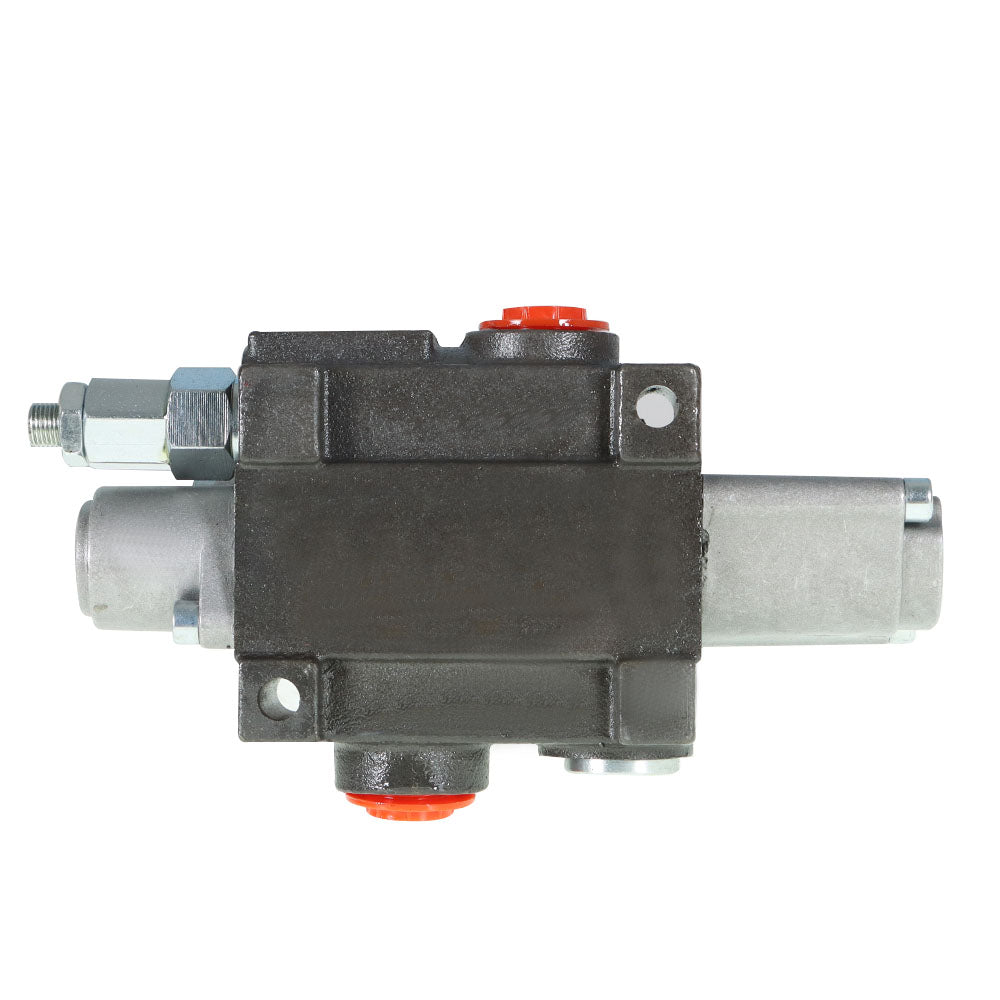

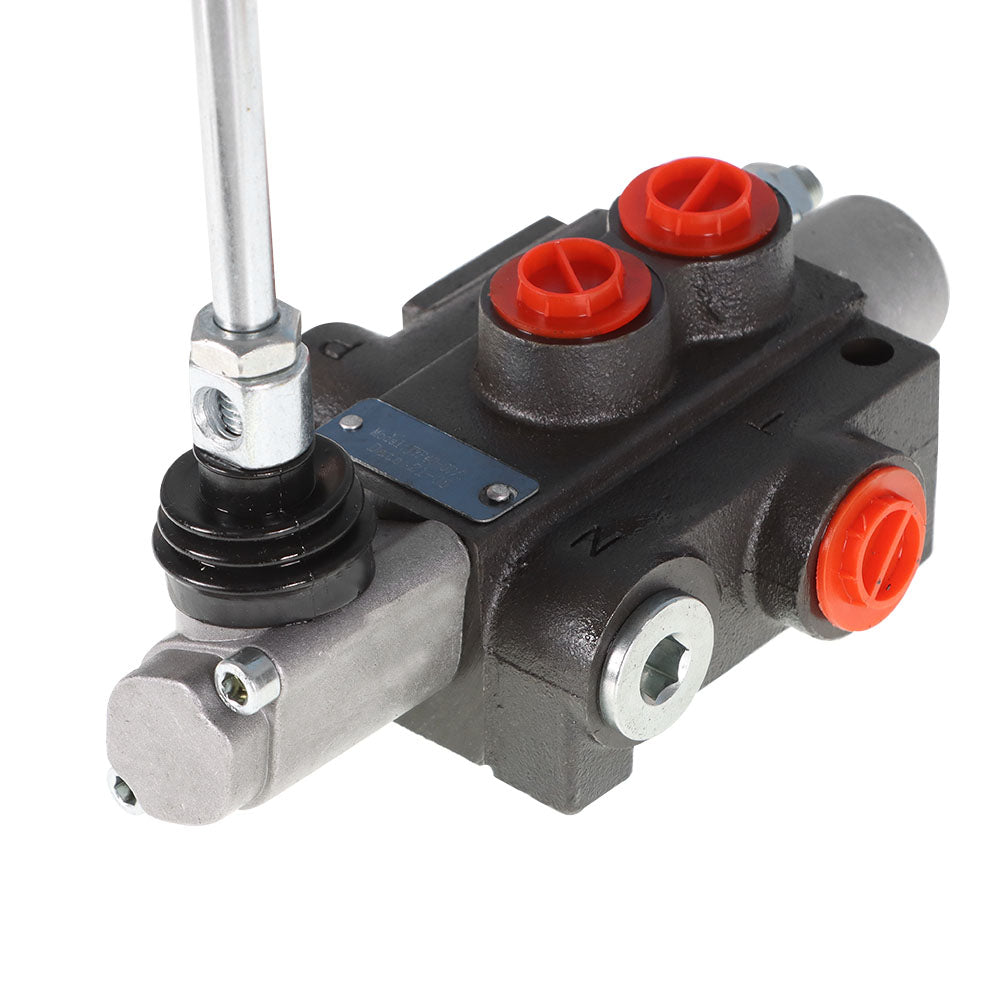

1 Spool Hydraulic Directional Valve, 13GPM，manually operated, BSPP Intrface

Specifications:
Max operating pressure: P = 3600psi (250 bar);
T = 150psi (10 bar); A ,
B = 4300psi (300 bar)
Nominal flow: 13gpm (60L/min)
Relief valve: Adjustable
Center system: Open
A, B ports: 1/2" BSPP
P, T, N port: 1/2" BSPP
Back pressure: ≤1MPA
Temperature: -20 - 80℃
Vise rang: 10 - 400mm2/s
Filtrating accuracy: ≤10um

Features:
P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.
Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
Oil way: Parallel circuit, power beyond option
Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
Valve construction. monoblock construction, 1-7 levers.Spool Function: O,Y, PA.
Option: Hydraulic lock is available to be added on A and B port.
Available with manual,' pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

Applications:
Small tractors,Tractors loaders,Log splitters,Other mobile

Packages:
1 × 1 Spool Hydraulic Directional Control Valve
