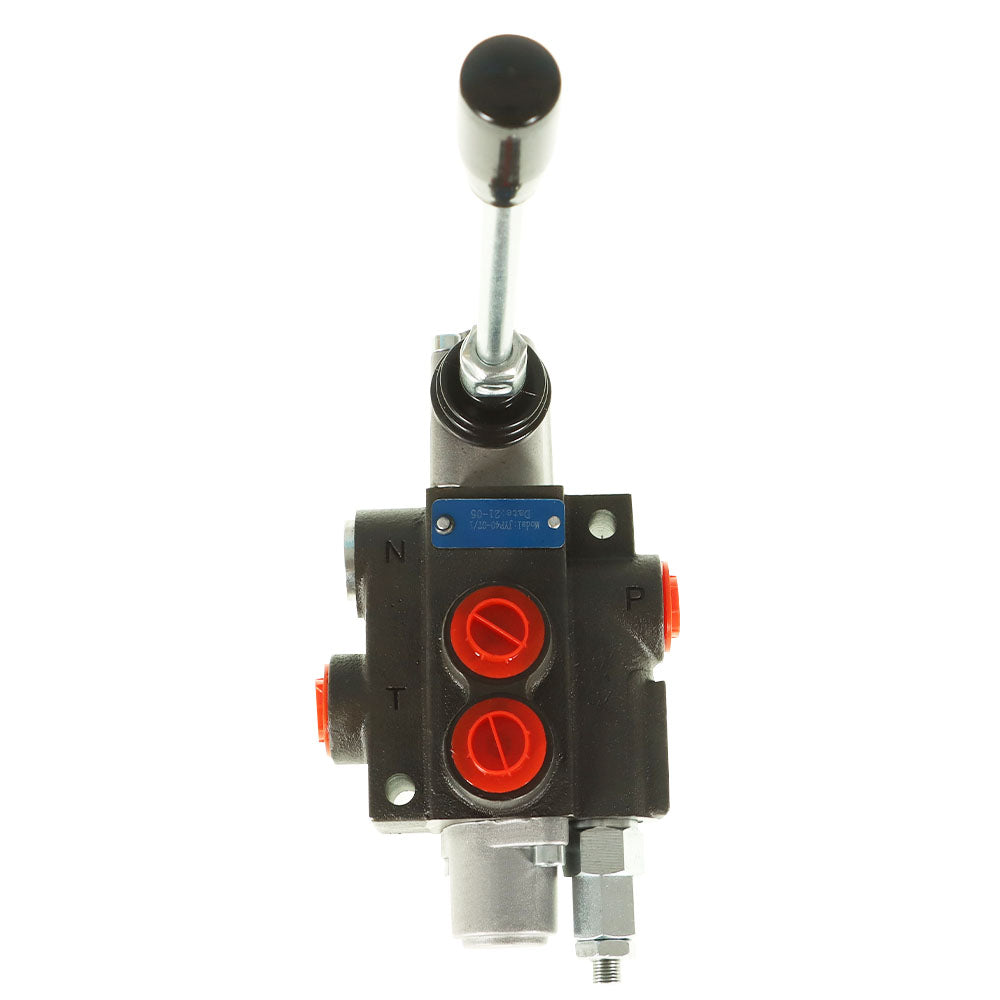

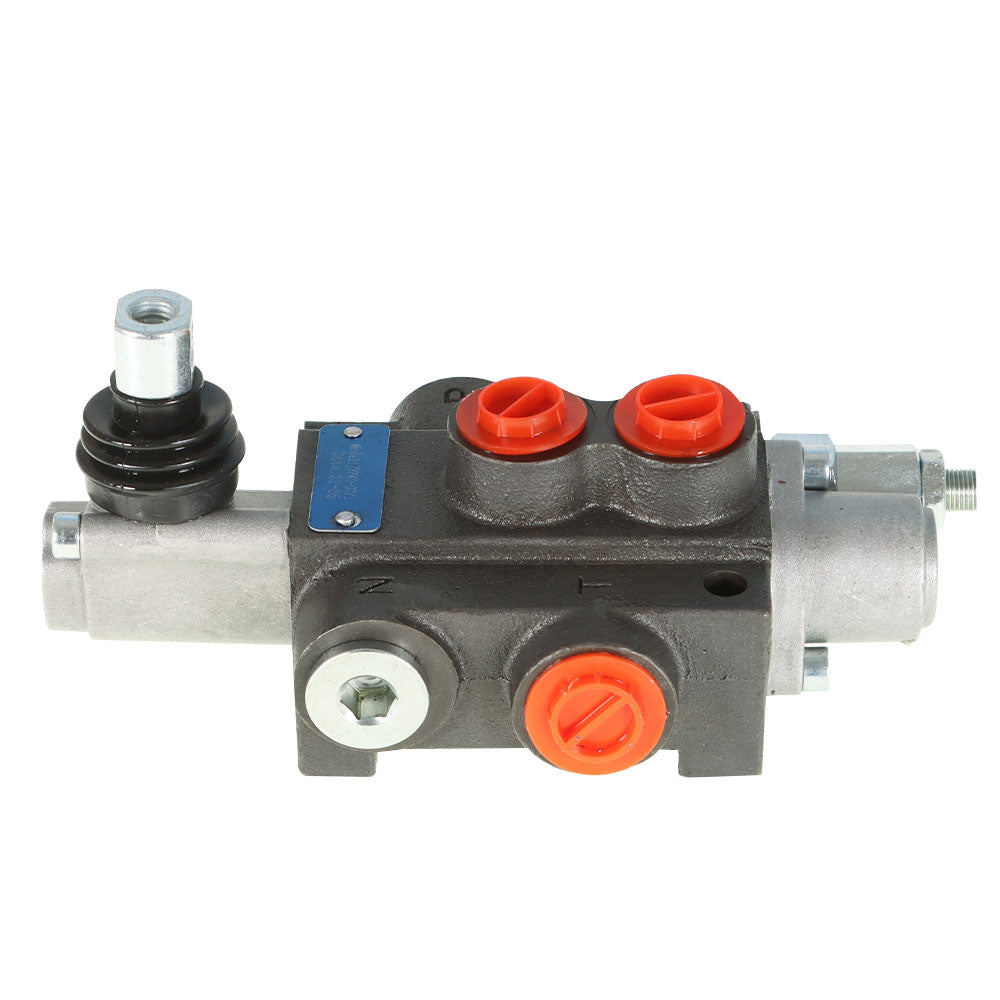

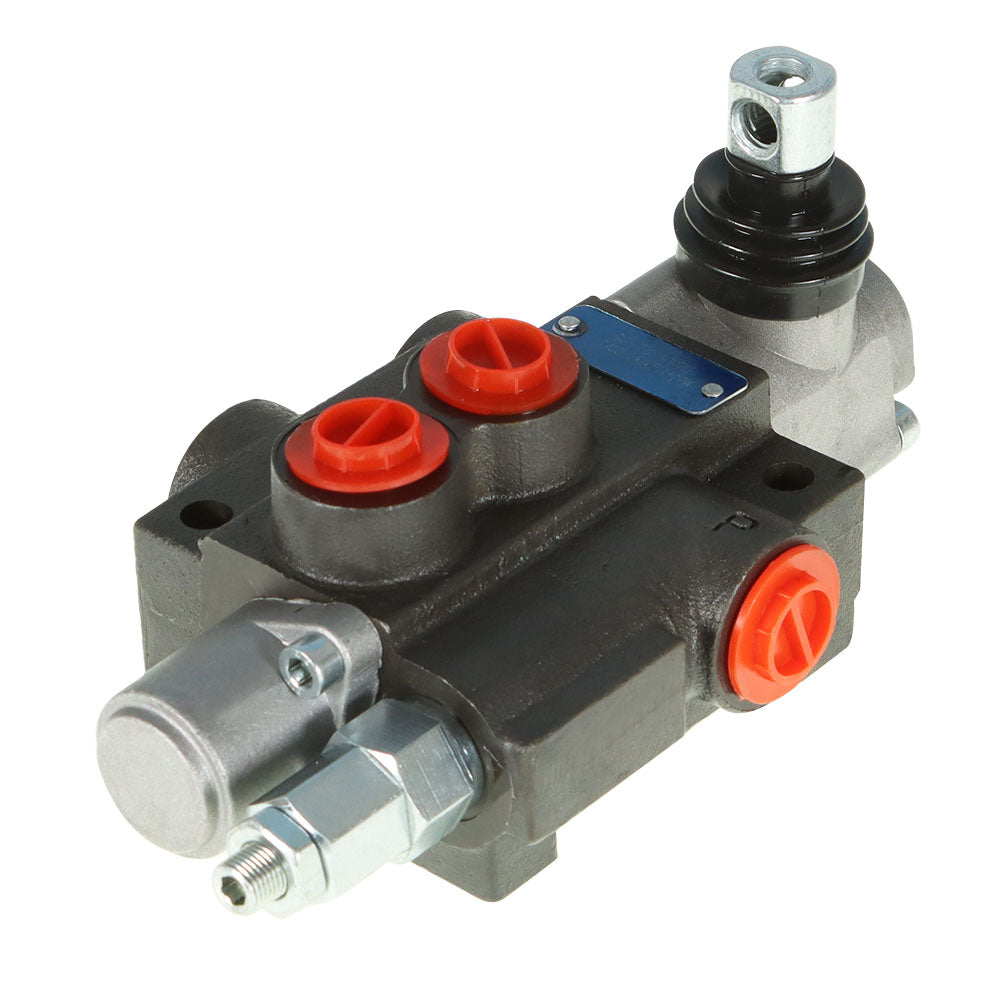

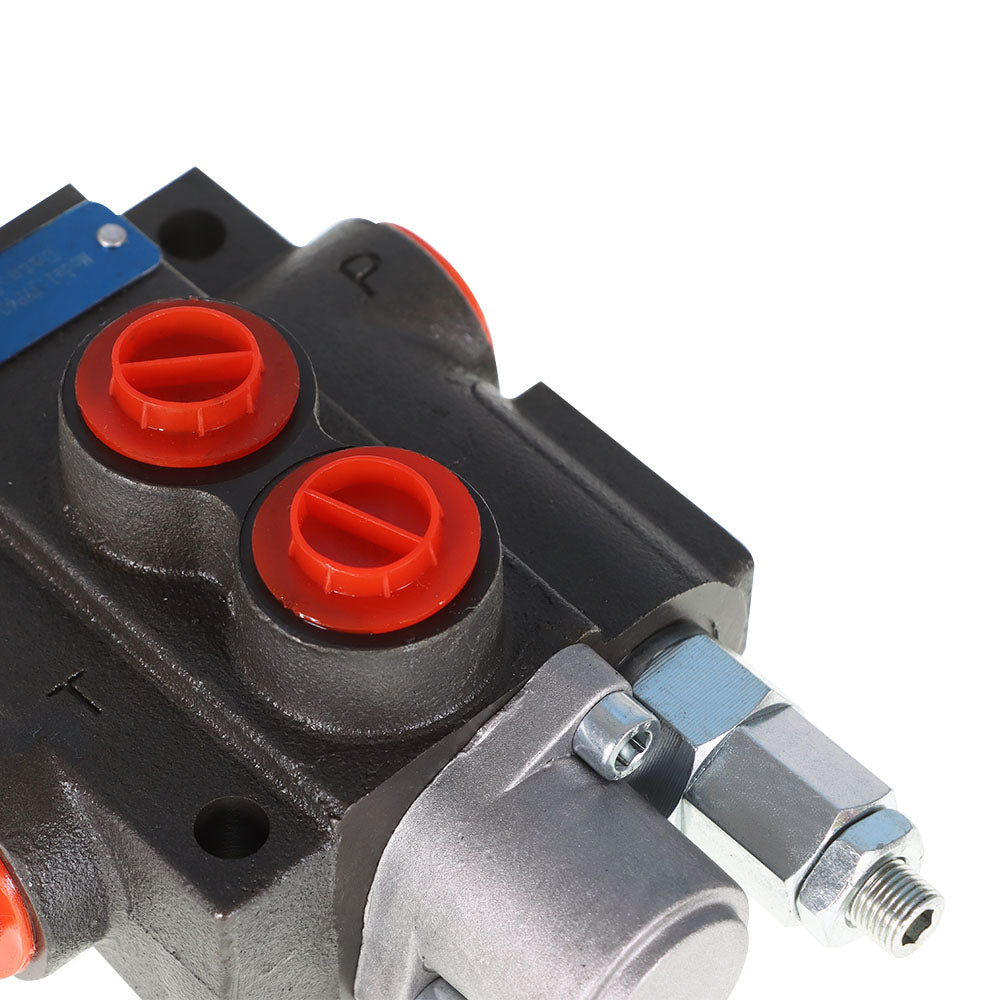

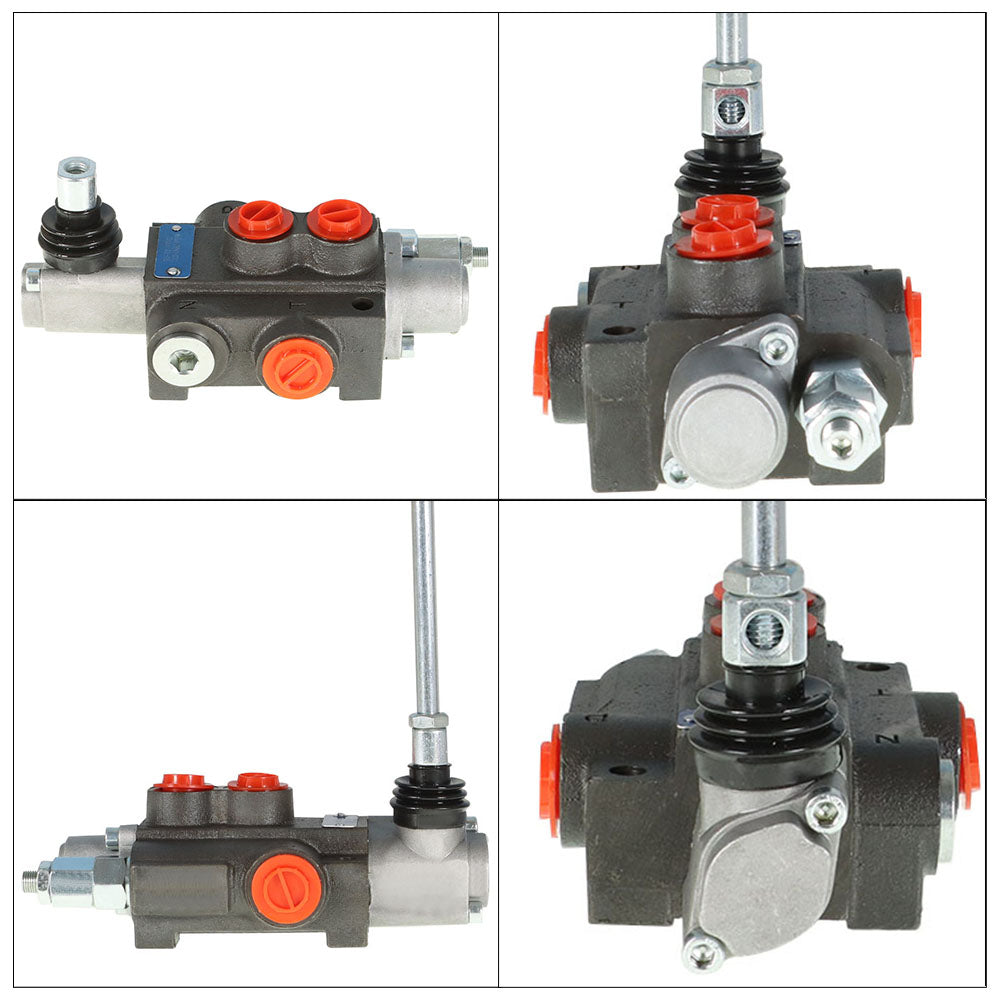

1 Spool Hydraulic Directional Control Valve 13Gpm 3600Psi Loader Joystick

Specifications:

Model: P40-1

Manual Control

Nominal flow: 13gpm (50l/min)

3600 PSI MAX Pressure

Relief valve pressure: 17MPa

A, B ports: 7/8-14"

P, T, N port: 7/8-14"

O function, spring reset

Gross Weight: 3kg

Package Size: 22*12.5*10cm(8.7*4.9*3.9")

Application:

1. Agricultural machine

2. Dump truck

3. Construction Vehicle

4. Special purpose vehicle

5. Drilling machine

Features:

1. Economical hydraulic multi-way valve

2. Integral structure, stable and reliable performance

3. Widely used in engineering machinery, agricultural machinery and other fields

Description:

Hydraulic reversing valve is designed to manage and direct the flow of hydraulic oil between hydraulic pump and hydraulic cylinder, motor, oil tank, etc. This is an economical hydraulic multi-way valve, which can be widely used in engineering machinery, agricultural machinery and other fields.

Package Includes:

1 × 1 spool hydraulic directional control valve
