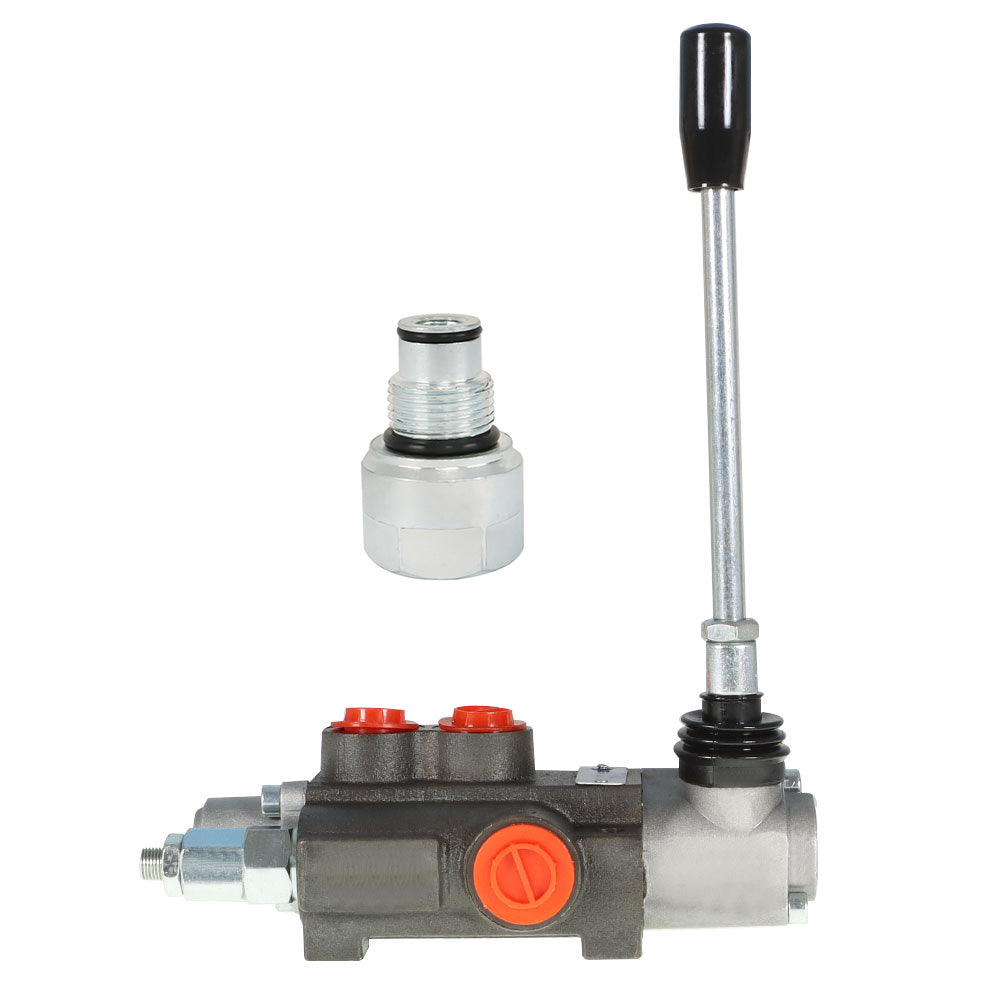

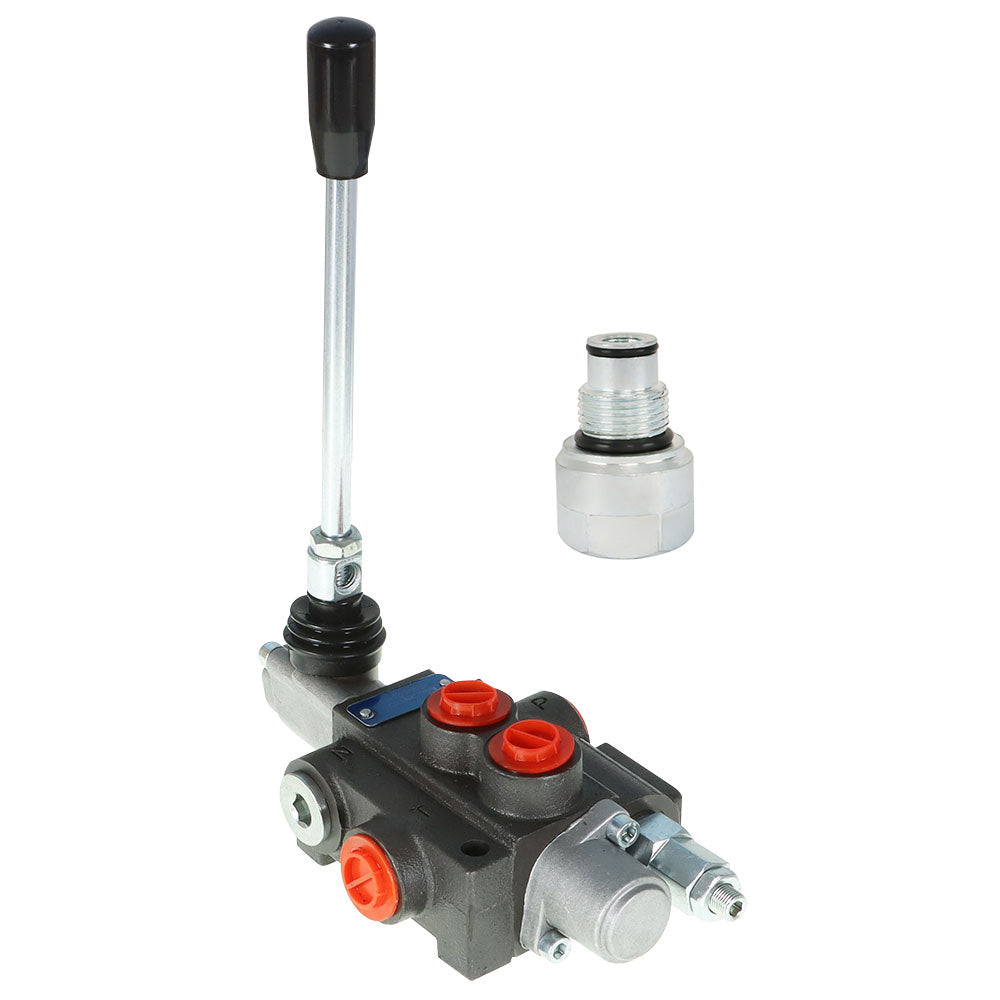

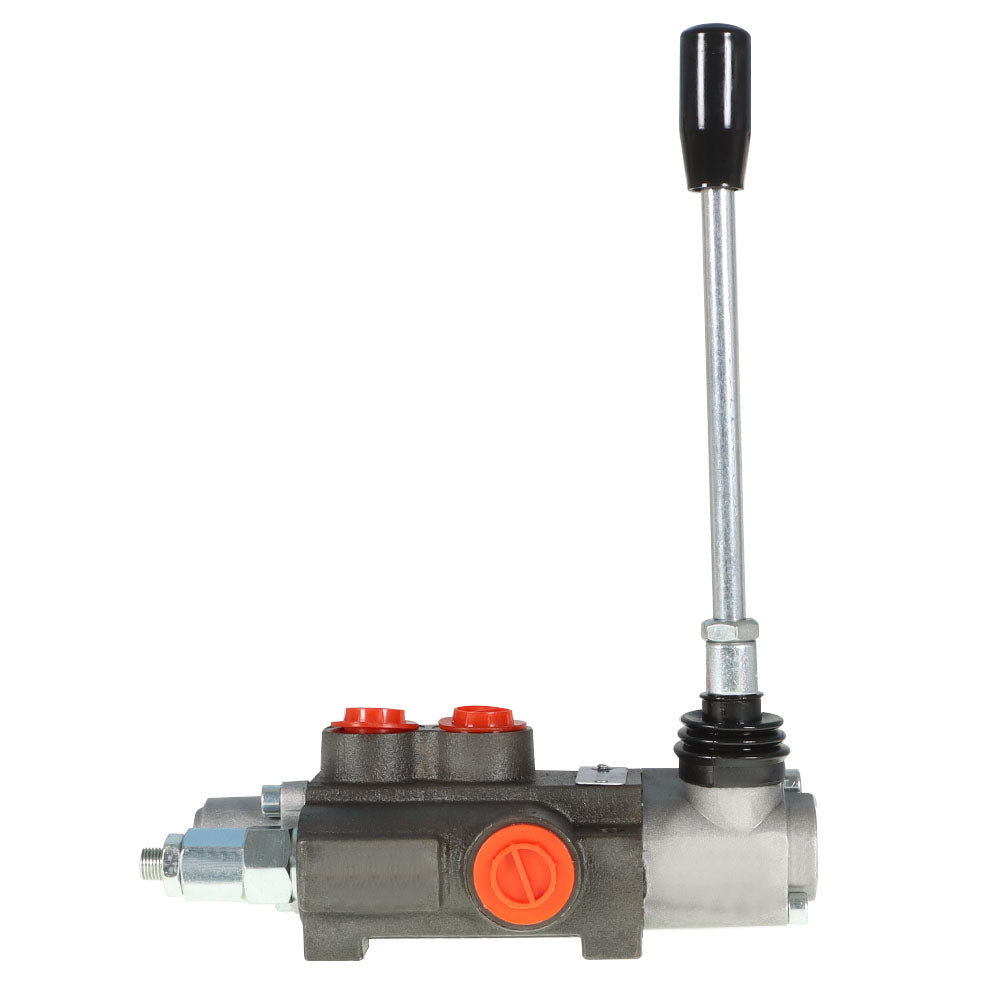

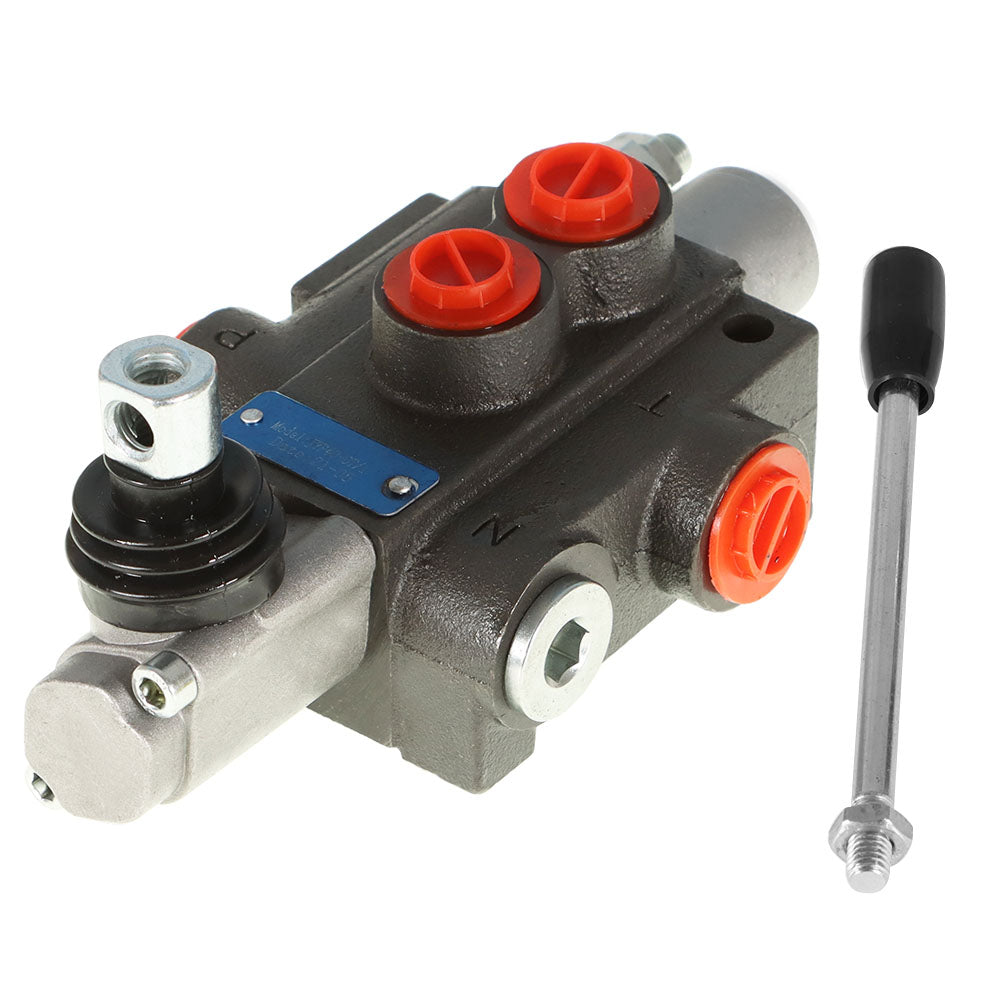

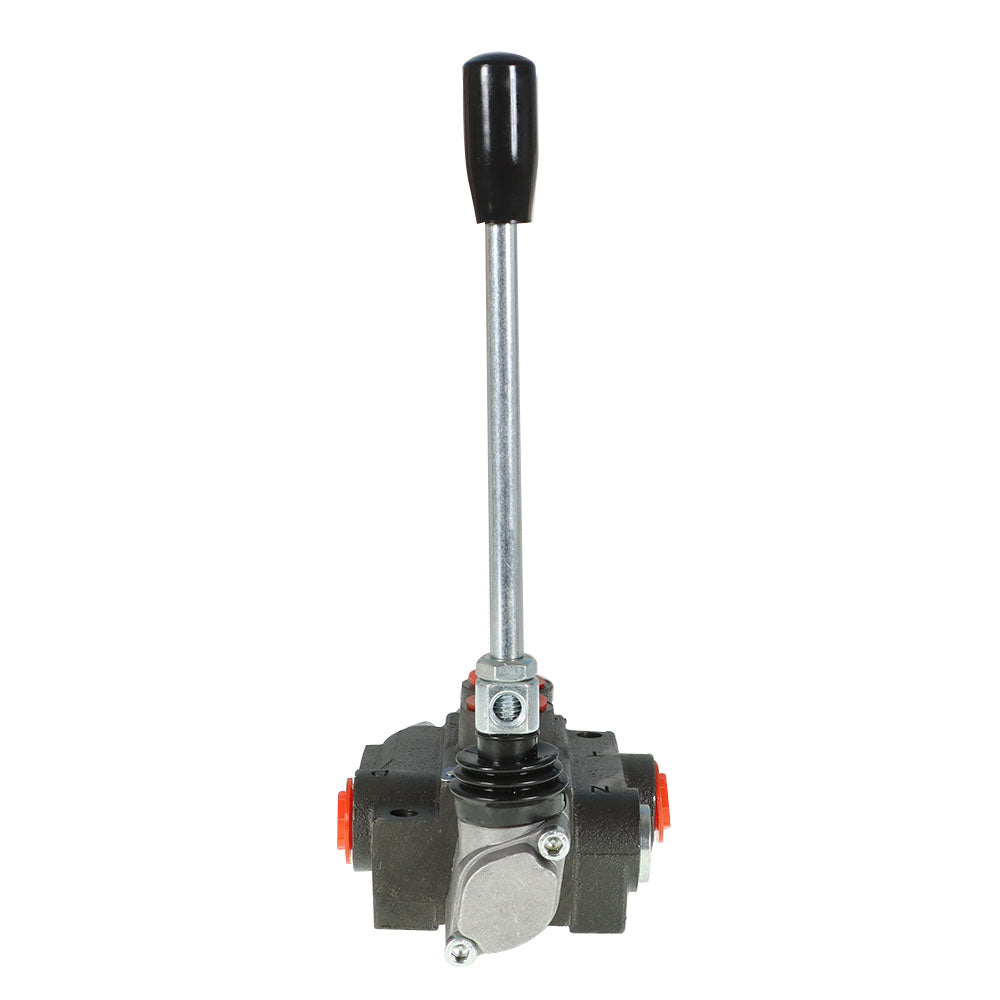

1 Spool Hydraulic Directional Control Valve 13 GPM 3600 PSI BSPP+Conversion Plug

Product Description：

Hydraulic Control Valve：

-Max Operating Pressure: P = 3600PSI (250 Bar);
-T = 150PSI (10 Bar);       A ,
-B = 4300PSI (300 Bar)
-Nominal Flow: 13GPM (60l/min)
-Relief Valve: Adjustable
-Center System: Open
-A, B Ports: 1/2" BSPP
-P, T, N Port: 1/2" BSPP
-Back Pressure: ≤1MPA
-Temperature: -20 - 80℃
-Vise Rang: 10 - 400mm2/s
-Filtrating Accuracy: ≤10um

-Inner Check Valve: The Check Valve Inside The Valve Body Is To Insure The Hydraulic Oil Not To Be Returned.
-Inner Relief Valve: The Relief Valve Inside The Valve Body Is Able To Adjust The Hydraulic System Working Pressure.

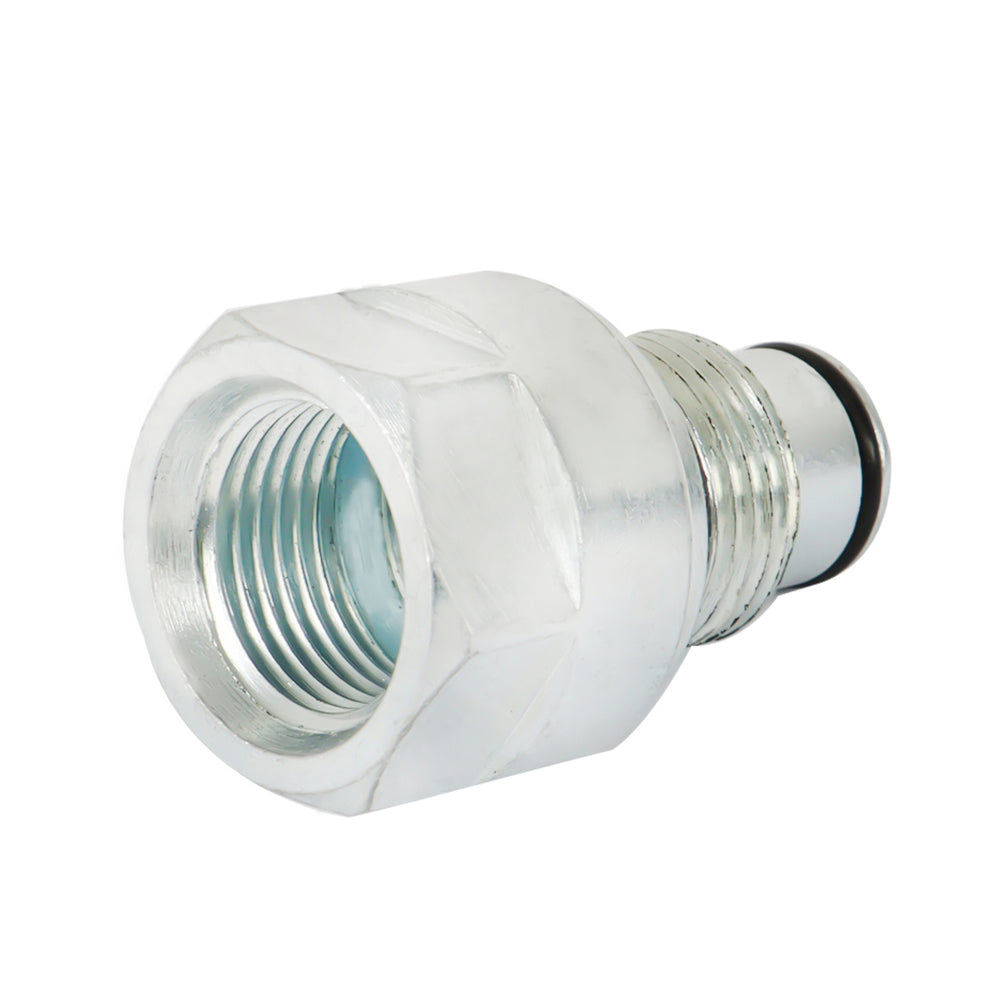

High voltage adapter：

P40 Directional Control valve Accessory (G10 Series)

10 GPM, Power Beyond Plug SAE For all Control Valves

Power Beyond Plug for Chief Control Valves (G10 Series)

Package Including：

P40 Directional Control Valve Accessory (G10 Series): 10 GPM, Power Beyond Plug SAE for All Control Valves.

1*1 Spool Hydraulic Directional Control Valve.

Notes:

If you have any problem with the product you purchased, please contact us in time.
