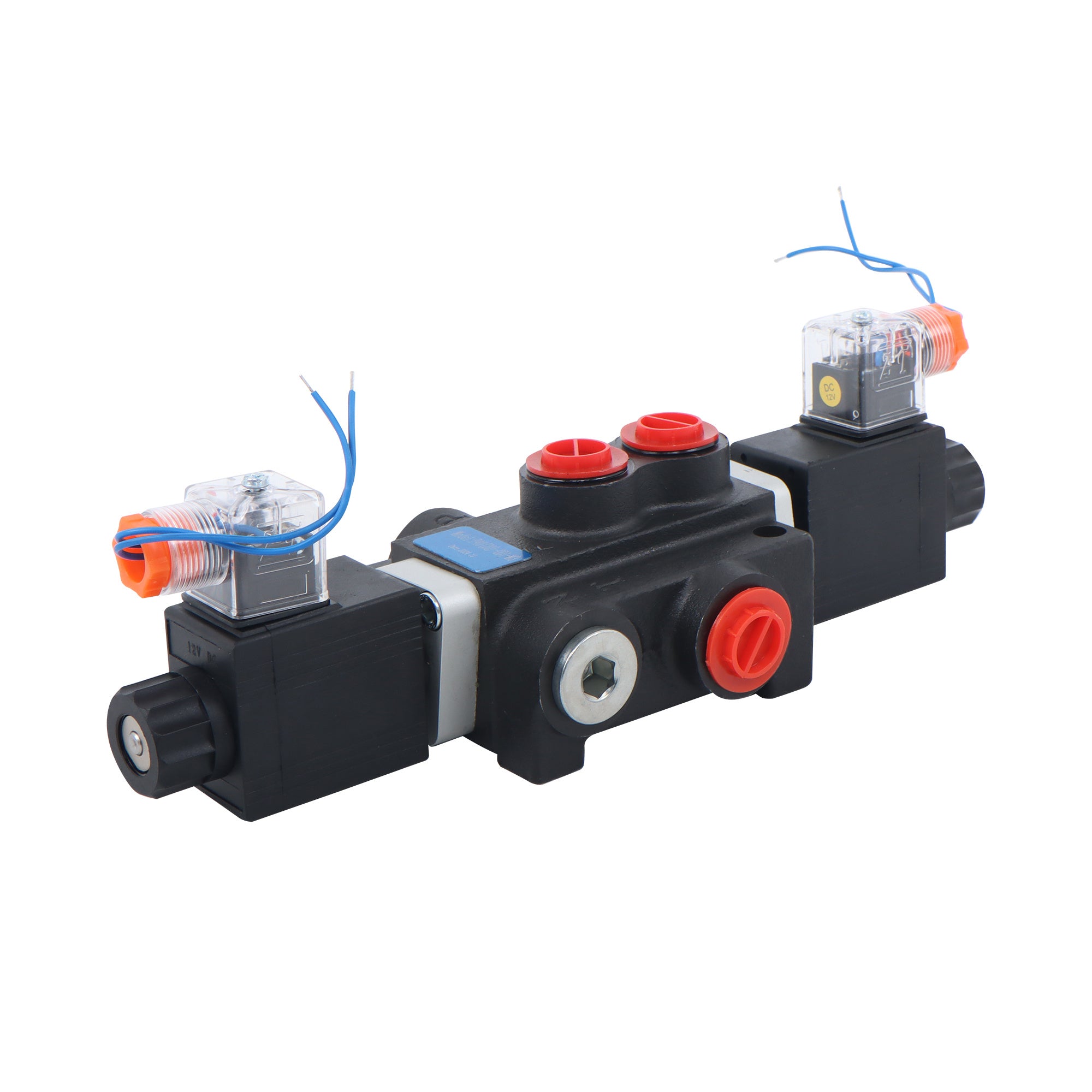

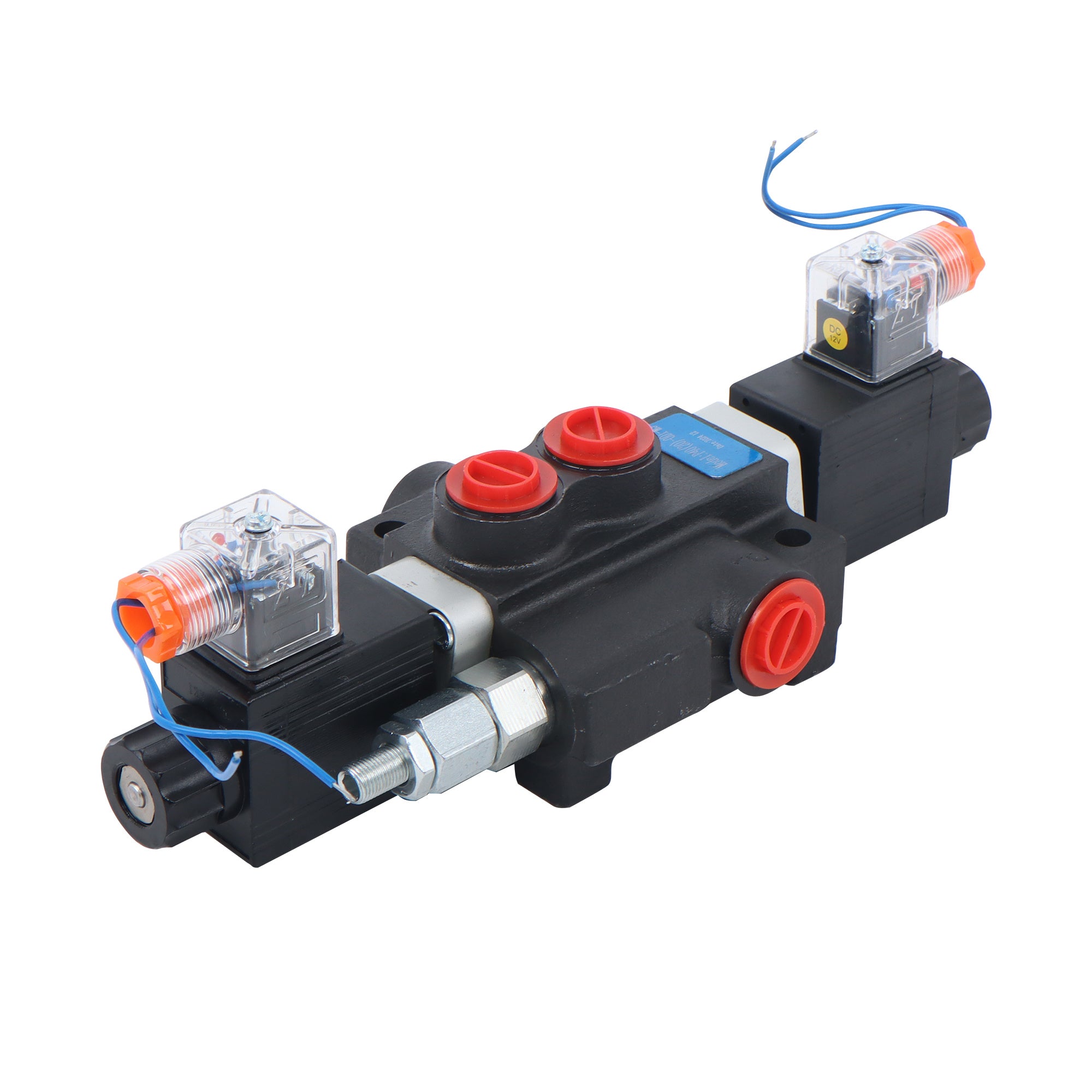

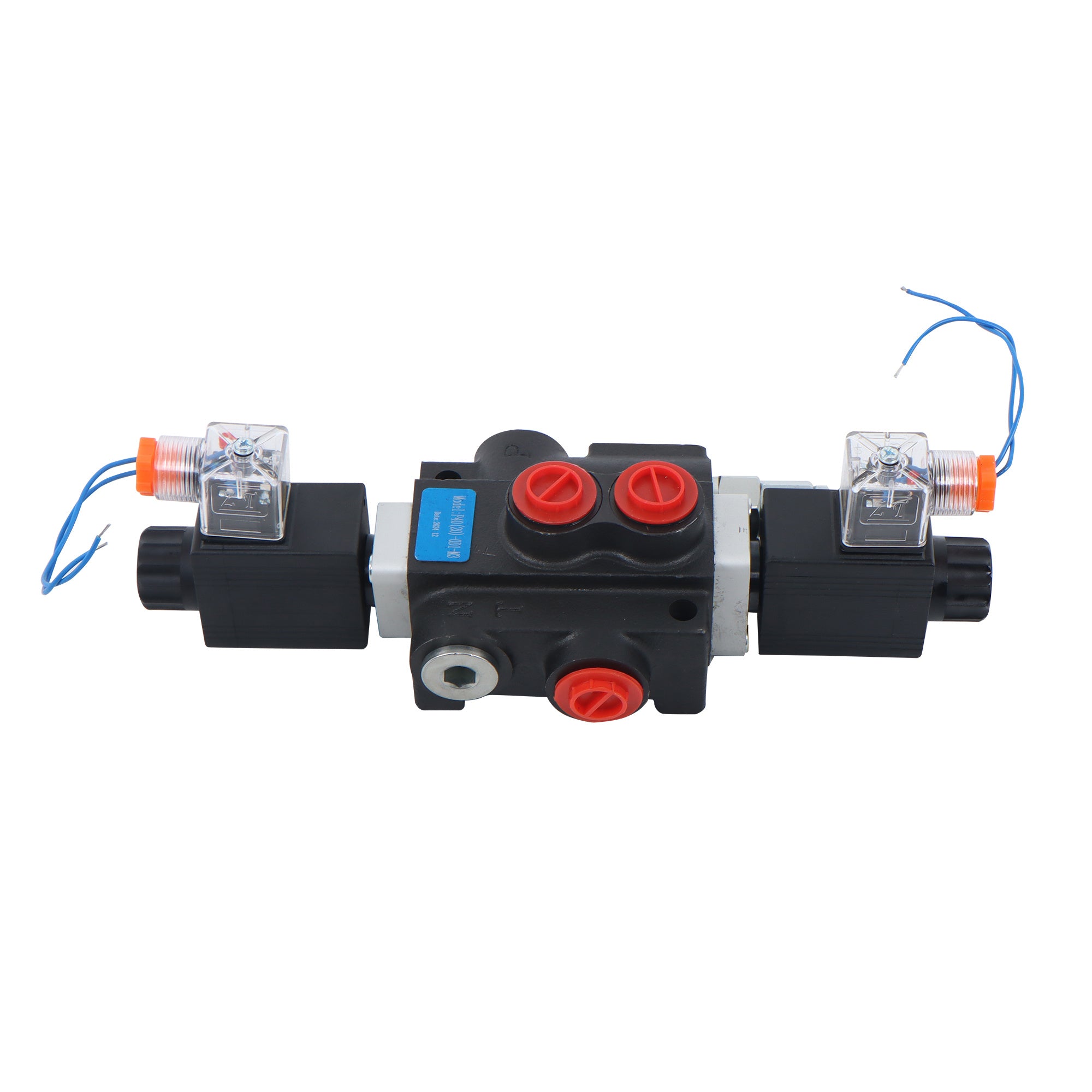

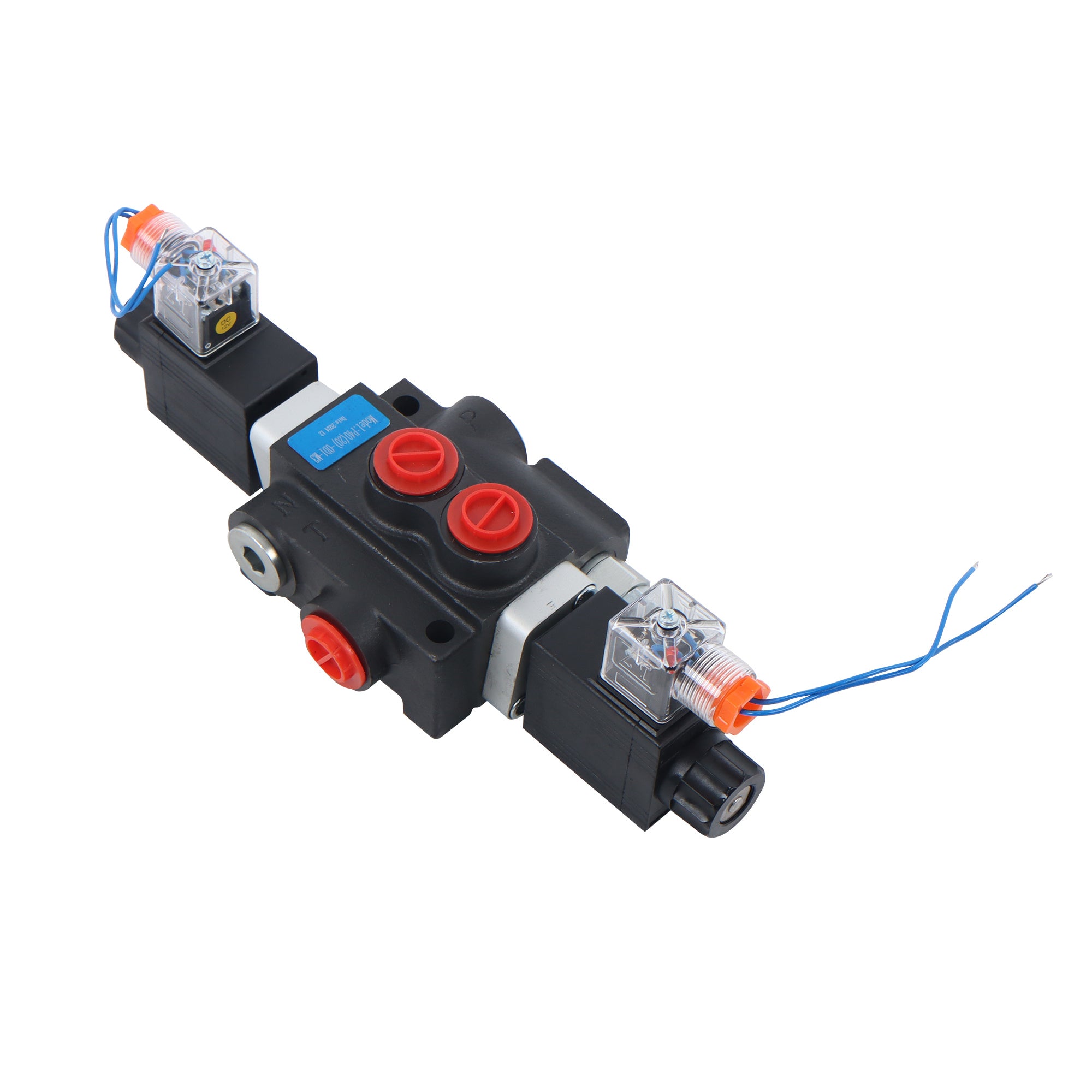

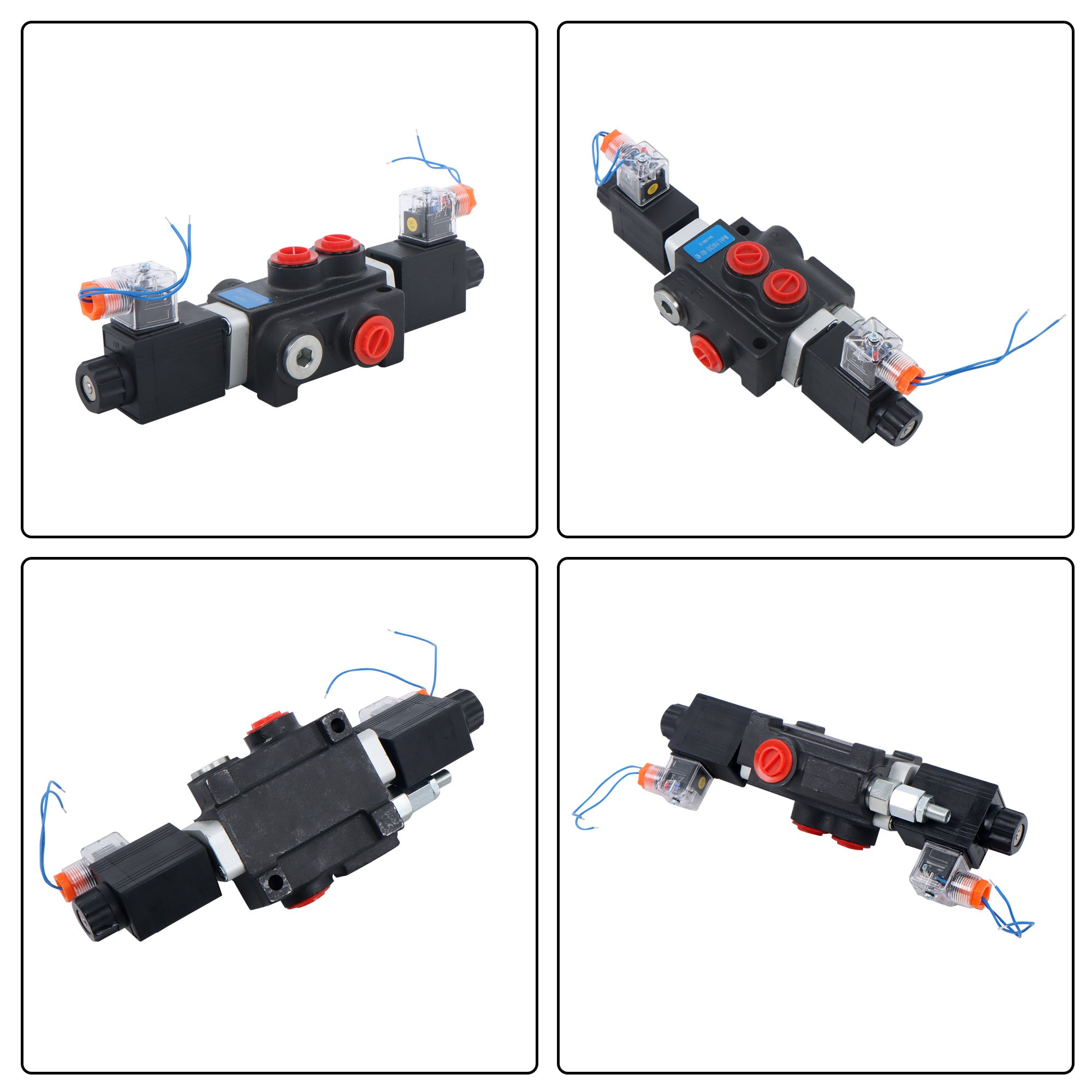

1 Spool 3600 PSI 13 GPM Solenoid Hydraulic Control Valve Double Acting 12V DC

Specification：

• 12 Volt DC Solenoids
• DIN 43650 3 Prong Connectors
• Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
• Preset Pressure Relief: 2610 PSI
• Flow Rating: 13 GPM (50 l/min)
• A & B Work Ports: #8 SAE O-Ring (3/4”-16) Thread
• Inlet Port: #10 SAE O-Ring (7/8”-14) Thread
• Outlet Port: #10 SAE O-Ring (7/8”-14) Thread
• N Port: #8 (1/2 – 14) G Thread (British Pipe Thread Parallel)

Description：

Precision ground and hard chrome-plated spools assure a long life

High-tensile strength cast iron monoblock construction

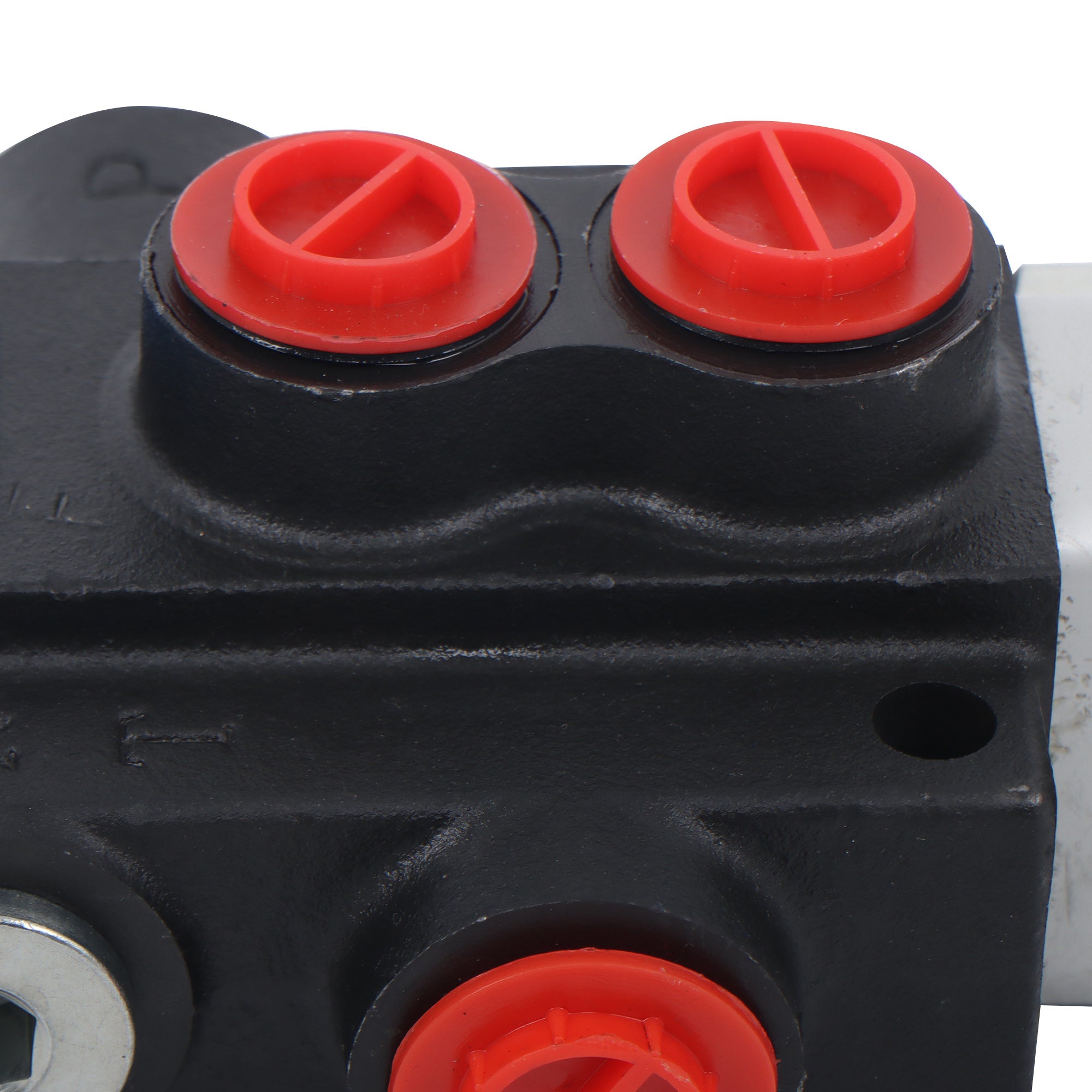

SAE O-Ring ports ensure solid seal and prevent blockages

Used for open center systems (Pump to Tank Flow)

Capable of closed center or Power Beyond (conversion plug required)

Adjustable Relief Valve Range: 1500 to 3625 PSI

Manual Override

Package Including：

1*Solenoid Control Valve
